AXIS Q1645 Box IP security camera 1920 x 1080 pixels Wall, 1/2" CMOS, 1920 x 1080px, Ethernet, PoE, 9.1W, 82x210x66mm, 950g, Black/Silver
Axis Q1645 Box IP security camera 1920 x 1080 pixels Wall
| Manufacturer: |
Axis |
| Category: |
Home |
| Sub-Category: |
Security Cameras |
| SKU: |
01222-001 |
| EAN: |
7331021062283 |
Description

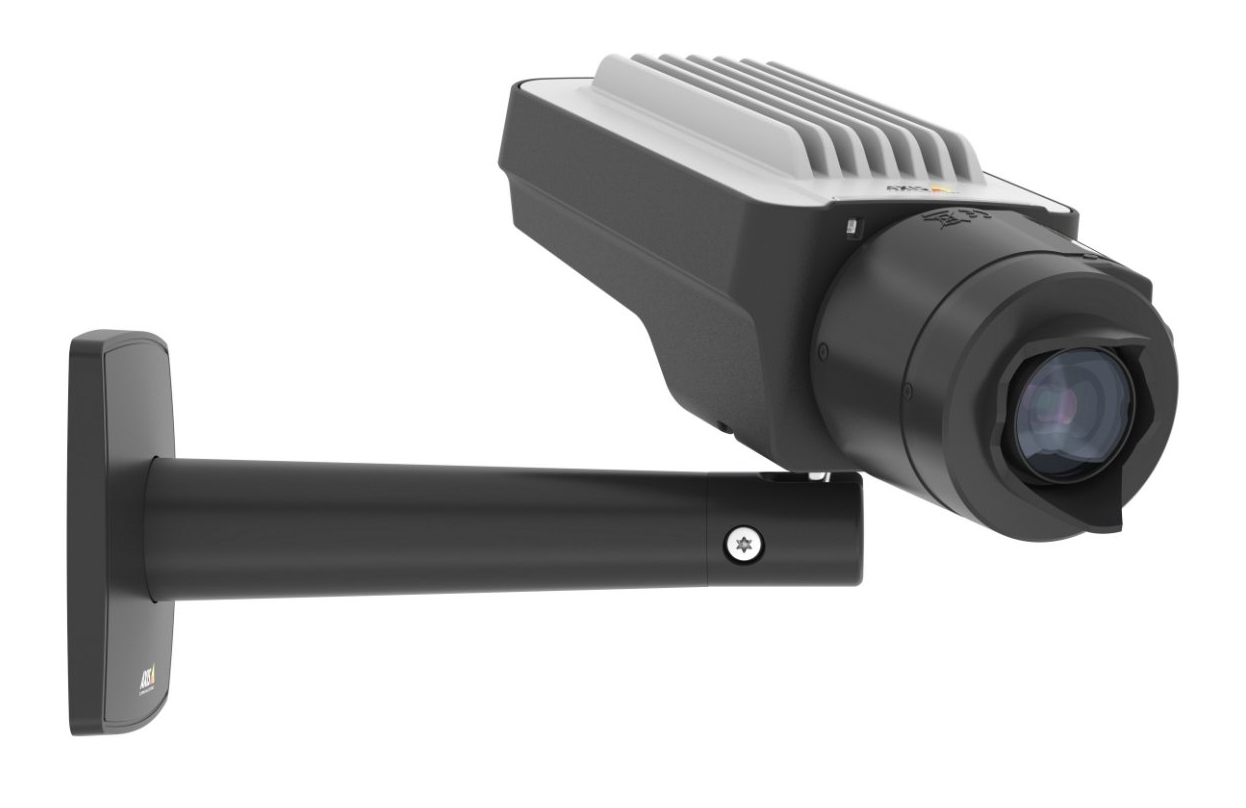

AXIS Q1645 Network Camera
With its 2 MP resolution, AXIS Q1645 Network Camera is engineered for light sensitivity that’s absolutely second to none. An advanced camera that’s sharp in more ways than one, it delivers high-resolution video at high speed for crystal-clear images. And built-in analytics help you make smart decisions about for instance operations and resource allocations. High resolution. Full frame rate. Unparalleled light sensitivity. That’s the difference between an image that’s sharp and one that’s razor sharp in any light. Simply put, AXIS Q1645 is a camera that’s second to none. With 2 MP resolution at up to 120 fps, 1/2” sensor and Axis Lightfinder, this camera captures more light than ever and enables outstanding image usability even in poor light. Plus, Axis Forensic WDR ensures perfect balance in scenes with strong variations in light. And you get electronic image stabilization (EIS) as well.
That’s one smart camera
AXIS Q1645 is chockful of intelligent features that facilitate smart decision-making, enhanced security, first-class image usability, and fast, easy installation. It comes pre-installed with AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard analytics for proactive surveillance. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation if you’re using multiple monitors. In addition, intelligent i-CS lens technology facilitates fast and easy installation and adjustment. Plus zoom can be set remotely – and then the camera automatically sets the focus. Both of which help minimize time and money spent on installation.
One camera. Three scenes.
With AXIS Q1645, you can choose between three scene profiles. For each profile, the camera automatically optimizes exposure time, white balance, aperture, sharpness, contrast and noise for every camera in your surveillance solution to suit specific use scenarios. The result is always great image quality and cost-effective installation.
Specifications
| Performance |
|---|
| Infrared (IR) cut-off filter | Yes | | PTZ modes | Digital PTZ | | Type | IP security camera | | Connectivity technology | Wired | | PTZ control | Yes | | Wide Dynamic Range (WDR) | Yes | | Day/night mode | Yes | | Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 | | Design |
|---|
| Form factor | Box | | Product colour | Black, Silver | | Mounting type | Wall | | LED indicators | Yes | | Housing material | Zinc | | Camera |
|---|
| Minimum illumination | 0.004 lx | | Camera shutter speed | 1/100000 - 2 s | | Lens viewing angle, horizontal | 109° | | Lens viewing angle, vertical | 58° | | Progressive scan | Yes | | Image sensor |
|---|
| Sensor type | CMOS | | Progressive scan | Yes | | Optical sensor size | 25.4 / 2 mm (1 / 2") | | Lens system |
|---|
| Maximum aperture number | 1.5 | | Focal length range | 3.9 - 10 mm | | Video |
|---|
| Noise reduction | Yes | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Text caption overlay | Yes | | Privacy masking | Yes | | Image stabilizer | Yes | | Maximum resolution | 1920 x 1080 pixels | | Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) | | Supported video modes | 1080p | | Video compression formats | H.264, M-JPEG, MPEG4 | | Frame rate | 60 fps | | Video streaming | Yes | | Total megapixels | 2 MP | | Audio |
|---|
| Sample rate | 48 kHz | | Built-in microphone | Yes | | Audio system | 2-way | | Audio formats supported | ADPCM, G.711, G.726, LC-AAC, OPUS, PCM | | Network |
|---|
| Bluetooth | No | | Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.3af, IEEE 802.3at | | Quality of Service (QoS) support | Yes | | Streaming method | Multicast | | Ethernet LAN | Yes | | Cabling technology | 10/100Base-T(X) | | Wi-Fi | No | | Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP | | Storage |
|---|
| Card reader integrated | Yes | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC | | Flash memory | 512 MB | | Ports & interfaces |
|---|
| Terminal block port | Yes | | RS-485 ports | 1 | | Microphone in | Yes | | Ethernet LAN (RJ-45) ports | 1 | | Connectivity technology | Wired | | Security |
|---|
| Alert notification type | E-mail | | Video motion detection | Yes | | IP address filtering | Yes | | HTTPS encryption | Yes | | Active tampering alarm | Yes | | Password protection | Yes | | Management features |
|---|
| Remotely operated | Yes | | Power |
|---|
| Power source type | PoE | | Power consumption (Power over Ethernet (PoE)) | 9.1 W | | Power over Ethernet (PoE) | Yes | | Power consumption (typical) | 4.5 W | | Power consumption (max) | 9.5 W | | Certificates |
|---|
| Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 | | Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C | | Storage temperature (T-T) | -30 - 50 °C | | Operating relative humidity (H-H) | 10 - 85% | | Weight & dimensions |
|---|
| Width | 82 mm | | Depth | 210 mm | | Height | 66 mm | | Weight | 950 g | | Packaging content |
|---|
| Number of cameras | 1 | | Quick installation guide | Yes | | Technical details |
|---|
| Lens type | Varifocal | | Lens mount interface | CS mount | | Removable IR-cut filter | Yes | | Other features |
|---|
| Video compression formats | H.264, M-JPEG, MPEG4 | | Noise detection | Yes | | Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |
|
|
|
