PTZ
Camera |
Image Sensor: 1/2.8"
60fps low lux CMOS sensor |
|
Effective Picture
Elements: 2 megapixels |
|
Output Resolution:
auto, 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30,
720p/60 |
|
Optical Zoom:
30X |
|
Digital Zoom:
12X |
|
Lens Focal Length: f =
4.3 mm (wide) - 129 mm (tele) |
|
Iris: F = 1.6 (wide) -
4.7 (tele) |
|
View of Angle: DFOV =
76 (wide) - 3 (tele) |
|
Minimum Illumination:
IRE50 0.47 lux (60fps) ; 0.23 lux (30fps) |
|
Preset Number: 10
locations by remote (256 via RS-232) |
|
Minimum Working
Distance: 1.2 meter at tele-end (30X) ; 0.1 meter at wide-end
(1X) |
|
White Balance:
auto/manual (2500 - 10000) |
|
Gain:
auto/manual |
|
Electronic Shutter: 1/5
- 1/32,000 s |
|
Backlight Compensation
(BLC): off / on |
|
Exposure: auto /
shutter priority / iris priority / manual |
|
Noise Reduction: off /
low / medium / high |
|
Frequency: auto / 50 Hz
/ 60 Hz |
|
S/N Ratio: >50
dB |
|
Horizontal Resolution:
Center (800 TV lines) ; Corner (600 TV lines) |
Pan & Tilt
Parameters |
Pan Rotation: -175
(left) +175 (right) |
|
Tilt Rotation: -30
(down) +90 (up) |
|
Pan Control Speed: 2 -
50/sec |
|
Tilt Control Speed: 2 -
50/sec |
|
Preset Speed: pan
160/sec ; tilt 160/sec |

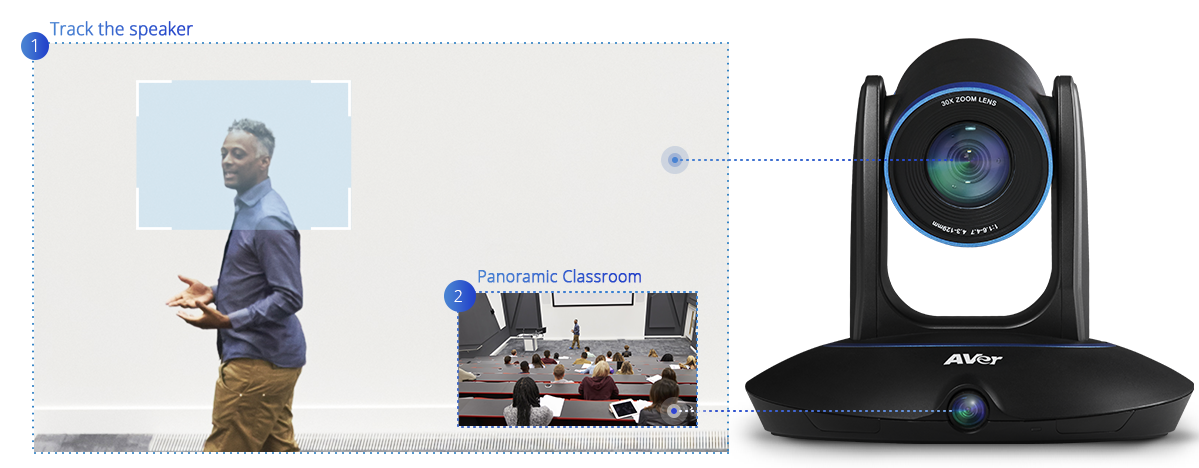

Panoramic Camera
(Full View) |
Image Sensor: 1/2.8"
60fps low lux CMOS sensor |
|
Effective Picture
Elements: 2 megapixels |
|
Output Resolution:
auto, 1080p/60, 1080p/30, 720p/60 |
|
Lens Focal Length: 2.12
mm |
|
White Balance:
auto |
|
Exposure:
auto |
|
FOV: DFOV = 120, HFOV =
110, VFOV = 74.5 |
Interface /
Streaming / Protocol |
Video Output: 3G-SDI*2,
HDMI*1, IP (RJ45) |
|
Video Output
Capability: up to 1080p/60fps |
|
Remote Control: RS-232,
IP |
|
Baud Rate: 115200 /
9600 / 4800 / 2400 bps |
|
Network Interface: 10 /
100 / 1000 base-T, support Wake-on-LAN |
|
Network Video Compress
Format: H.264 |
|
Network Protocol: RTSP,
RTMP, ONVIF |
|
IP Video Streaming:
dual video streaming (PTZ and panoramic view) |
|
Control Protocol: VISCA
/ Pelco-D / Pelco-P |
|
Power: power adapter DC
12V |
System |
Remote IR: IR
sensor |
|
Audio: PCM, AAC-LC,
G.711 |
|
LED: power (blue = on,
red = off) |
|
Security: Kensington
slot |
|
Infrared Remote:
receiver on front of camera |
|
Power Adapter: AC 110V
- AC 220V to DC 12V/5A |
|
Consumption: 24 W
(max.) |
|
Operating Temperature:
0
- +40 |
|
Operating Humidity: 20%
- 80% |
|
Storage Temperature:
-20
- +60 |
|
Storage Humidity: 20% -
95% |
|
Dimensions: L = 201 mm,
W = 210 mm, H = 176 mm |
|
Weight: 1.75
kg |
|
Accessories: remote
control, 12V/5A power adapter, quick guide |
Web
UI |
Browser IP access
(Chrome, Firefox, IE, etc.) |
Warranty |
Camera: 3
years |
|
Accessories: 1
year |
