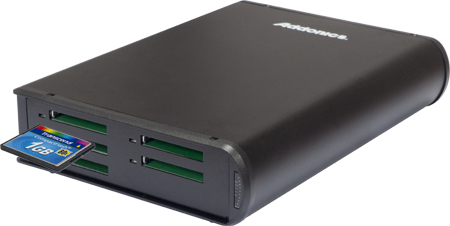

Overview

This Sapphire 5-slot CF (Compact Flash) drive is a unique and flexible platform for creating your own solid state drive (SSD) using commercially available high-speed CF card. The five CF cards can be configured to appear as five independent drives. They can set up as a high performance, fault tolerant RAID group or to form a large capacity solid state drive. There are choice of models with connection to high-speed 6G eSATA or the ubiquitous USB 3.0 / eSATA connection. When connecting via eSATA,When connecting via eSATA, the Sapphire CF drive can be used as a bootable device.It is the ideal solution for improving storage performance, lowering the power consumption and improving the overall system reliability for application environments with frequent shocks and vibrations.

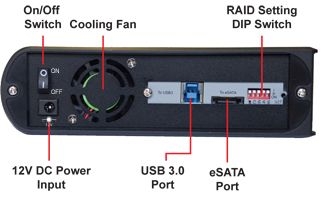

Rear View

Features

• Install up to five (5) CF*(Compact Flash) cards
• CF cards are added or removed from each slot without any special tool
• Choice of models with eSATA port or eSATA and USB 3.0 / 2.0 port
• LED to show IO activity on each CF card
• Low power consumption, ~ 1 watt excluding the CF media
• OS independent, can be used on any system
• Complete Plug and Play, no software driver required

Model: S5CFEU3

• Five CF cards are connected to an integrated Hardware Port Multiplier HPM-XU (AD5HPMREU) inside the unit
• Connect to system via eSATA and USB 3.0/2.0 port
• CF cards can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID 5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID or as five individual drives without RAID
• Individual drive setting requires connecting to Port Multiplier compatible controller or USB port
• RAID setting via software utility or via dip switches on the back of the unit
• RAID diagnostic via utility software
• maximum throughput up to 3 Gbps

Specifications

Contents

Sapphire 5-Slot CF drive with built-in 5-Port HPM-XU(AD5HPMREU), 110/240V AC/DC 12V power adapter (AAP12V3A-US), 3-foot eSATA cable (AAESATA100C), 6-foot USB 3.0 A-B cable (AAU3AB6F), software CD disc, user guide

Overview

This Sapphire 5-slot CF (Compact Flash) drive is a unique and flexible platform for creating your own solid state drive (SSD) using commercially available high-speed CF card. The five CF cards can be configured to appear as five independent drives. They can set up as a high performance, fault tolerant RAID group or to form a large capacity solid state drive. There are choice of models with connection to high-speed 6G eSATA or the ubiquitous USB 3.0 / eSATA connection. When connecting via eSATA,When connecting via eSATA, the Sapphire CF drive can be used as a bootable device.It is the ideal solution for improving storage performance, lowering the power consumption and improving the overall system reliability for application environments with frequent shocks and vibrations.

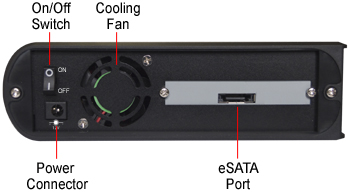

Rear View

Features

• Install up to five (5) CF*(Compact Flash) cards
• CF cards are added or removed from each slot without any special tool
• Choice of models with eSATA port or eSATA and USB 3.0 / 2.0 port
• LED to show IO activity on each CF card
• Low power consumption, ~ 1 watt excluding the CF media
• OS independent, can be used on any system
• Complete Plug and Play, no software driver required

Model: S5CFES6

• Five CF cards are connected to an integrated 5-Port 6G Port Multiplier (AD5SAPM6G) inside the unit
• Connect to system via eSATA port
• Maximum throughput up to 6Gbps when connecting to 6G eSATA port. (actual performance depends on the CF card)
• Must be connected to PM compatible controller(when connect to non-PM compatible controller, only first CF card can be detected)
• CF cards appear as five independent drive to the OS
• The five CF cards can form a RAID using the RAID utility from the OS or the host controller

Specifications

Contents

Sapphire 5-Slot CF drive with built-in5-Port 6G PortMultiplier (AD5SAPM6G), 110/240V AC/DC 12V power adapter (AAP12V3A-US), 3-foot eSATA cable (AAESATA100C), software CD disc, user guide

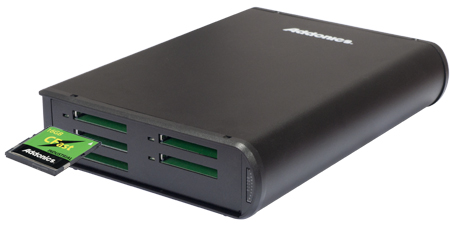

Overview

This Sapphire 5-slot CFast drive is a unique and flexible platform for creating your own solid state drive (SSD) using commercially available high-speed CFast card. The five CFast cards can be configured to appear as five independent drives. They can set up as a high performance, fault tolerant RAID group or to form a large capacity solid state drive. There are choice of models with connection to high-speed 6G eSATA or the ubiquitous USB 3.0 / eSATA connection. When connecting via eSATA, the Sapphire CFast drive can be used as a bootable device.It is the ideal solution for improving storage performance, lowering the power consumption and improving the overall system reliability for application environments with frequent shocks and vibrations

Rear View

Features

Overview

This Sapphire 5-slot CFast drive is a unique and flexible platform for creating your own solid state drive (SSD) using commercially available high-speed CFast card. The five CFast cards can be configured to appear as five independent drives. They can set up as a high performance, fault tolerant RAID group or to form a large capacity solid state drive. There are choice of models with connection to high-speed 6G eSATA or the ubiquitous USB 3.0 / eSATA connection. When connecting via eSATA, the Sapphire CFast drive can be used as a bootable device.It is the ideal solution for improving storage performance, lowering the power consumption and improving the overall system reliability for application environments with frequent shocks and vibrations

Rear View

Features

Overview

This Pocket READ ONLY UDD25 is a high performance READ only device that blocks any WRITE commands. Comes with a media slot to accommodate most standard 2.5" HDD or SSD, this device can also read 1.8" HDD/SSD and other flash media such as M2 card, mSATA SSD, CFast, CF or slim SATA SSD by using various Addonics optional2.5" flash adapters. It is a great tool for sharing drives or flash media containing important data among different users or for forensic application. This READER essentially treats any hard drive or SSD as a READ only media, similar to the CD or DVD disc.The Pocket READ ONLY UDD25 is equipped with USB 3.0 interface for easy connection to many Notebook, Desktop, Sever or computing equipment.

The storage media can be inserted or removed from the READER like a floppy disc without restarting the system. practically any storage media that is the same size as the 2.5" hard drive and with the same SATA connector can be accessed by this Pocket READ ONLY UDD25. Designed to be fully portable, the Pocket READ ONLY UDD25 is powered directly from a computer via the ubiquitous USB 3.0 / 2.0 port.

Front view

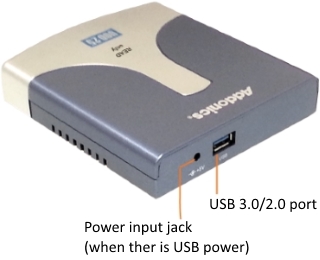

Rear view

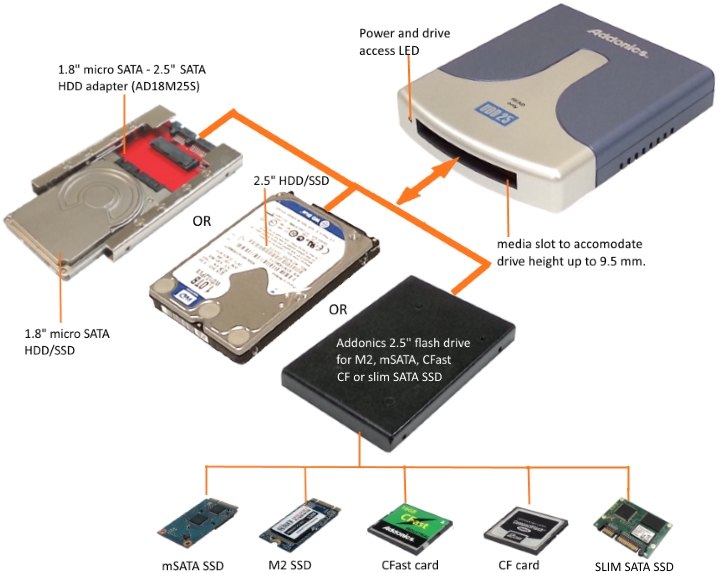

The following Addonics optional 2.5" flash drive kit can READ to M2, mSATA, CFast or CF cards via this Pocket READ ONLY UDD25 device:

• M2 card in 2.5" M2 drive kit (AD25M2SSD)
• mSATA SSD in 2.5" mSATA drive kit (AD25MSD)
• CFast card in 2.5" CFast drive kit (AD25CFASTD-N)
• CF card in 2.5" CF drive kit (AD25CFD-N)
• Slim SATA SSD 2.5" HDD adapter (AA25SEMBK)

note: the flash cards shown above are for illustration purpose and are not part of the 2.5" flash drive adapter.

Features

• READ only device
• Protect drive against virus contamination or data tempering
• WRITE disabled at hardware level. No software hacking to circumvent the WRITE PROTECT function
• No volatile memory
• Drive appears to OS as READ only device. Options to format, delete and other commands that alter the content, partition table or MBR of the drive are all disabled by the OS (see screen shots from Windows OS below)
• READ standard 2.5" SATA HDD/SSD or storage media with same dimension and connectors of the standard 2.5" SATA HDD
• Read M2, mSATA, CFast and CF card using optional Addonics2.5" flash drive kit(these adapters are included in the PRO model: PU25U3WP-4F)
• Read 1.8" HDD/SSD with optional 1.8"- 2.5" SATA adapter (AD18M25S) or slim SATA SSD with optional slim SATA - SATA adapter (AA25SEMBK)
• Media can be inserted or removed like using a floppy disc without restarting the computer
• Supported drive height from 7 - 9.5 mm
• Connect to system via USB 3.0 / 2.0 port
• Support USB 3.0 and 2.0 speed*, up to 5 Gbps data transfer* with USB 3.0 connection
• Comes with all necessary cables: USB 3.0 male A - male A cable (AAU3AA3F)
• Portable - compact size and weight less than 6 oz
• Powered from USB port or optional external power adapter (AAPAC5V)
• Complete Plug and Play, no software driver to install
• Media can be used as a boot device (for CF card, it may need to be fixed disk type depending on the OS)
• Compatible with all Windows OS (XP or newer release), Mac OS X and later release, Linux kernel 2.4 and later

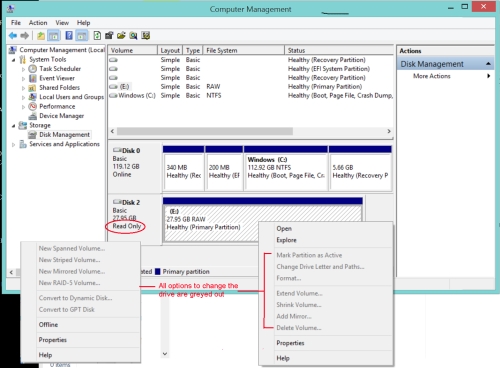

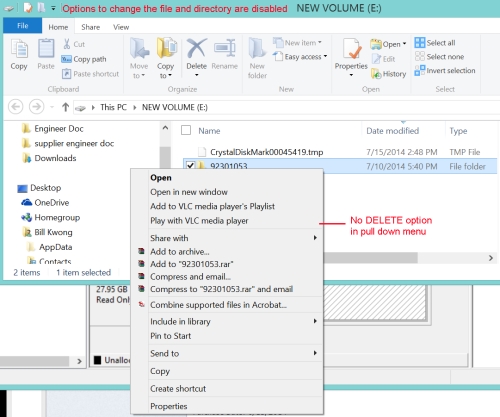

Sample of Windows 8 screen shots showing options to format, delete and other commands that alter the content or structure of the drive are all disabled by the OS

Specifications

• Drive slot accommodates drive thickness up to 9.5 mm
• Device interface connectors: USB 3.0 type A female
• Combo LED for power and drive access
• Powered from USB port or via external power adapter (AAPAC5V)
• Dimension (W x L x H): ~ 118 x 137 x 26 mm (4.65 x 5.39 x 1.02 in.)
• Weight: ~159 g (5.6 oz.)
• Operating temperature and humidity: 0 - 65 C, 5 - 90 %RH
• Storage temperature and humidity: -20 - 75 C, 0 - 95 %RH (non-condensing)

Contents

Pocket READ ONLY UDD25 with USB 3.0 connection, 1M USB 3.0 male A - male A cable (AAU3AA3F), 2.5" M2 Flash drive (AD25M2SSD), 2.5" mSATA flash drive (AD25MSD), 2.5" CFast flash drive (AD25CFASTD-N), 2.5" CF flash drive (AD25CFD-N), user guide.
