The DCS-7517 has a built-in 802.3af compliant PoE module that simplifiesinstallation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Five Year Warranty

D-Link stands behind the quality of the DCS-7517 with an includedlimited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

*5-Year Warranty is for U.S. only

Features

Image Date Product description Price Buy
22/11

GoPro Hero+ Action Camera


- 8.0MP, 1080p, 60FPS, 16:9, Built-In MIC, Built-In Speaker, Wifi, MicroSD/HC/XC Slot, 1160mAh, USB

Overview



Description

HERO+ captures immersive 1080p60 video and 8MP photos and features Wi-Fi and Bluetooth for easy access to the GoPro App and Smart Remote.



Specifications

  • Ultrawide-Angle Glass Lens
  • Wi-Fi and Bluetooth Connectivity
  • Supports 1080p, 60 Frames Per Ssecond Video
  • Camera Type - Action Camera
  • Action Camera - True
  • Colour - Grey
  • Movie Recording - Full HD
  • Video Frames Per Second - 60, 50, 30, 25
  • Resolution (Pixels) - 1920 x 1080
  • Megapixels (Still) - 8.0
  • Lens Type - Wide Angle
  • Expandable Memory Up To - 64GB
  • Expandable Memory Format - microSD
  • Battery Life - Up to 2 1/2 Hours
  • Rechargeable - True
  • Time Lapse - True
  • Wi-Fi - Yes
  • Micro USB Ports - 1
Link contains in-depth information about this product Link contains a picture of this product    NA
22/11

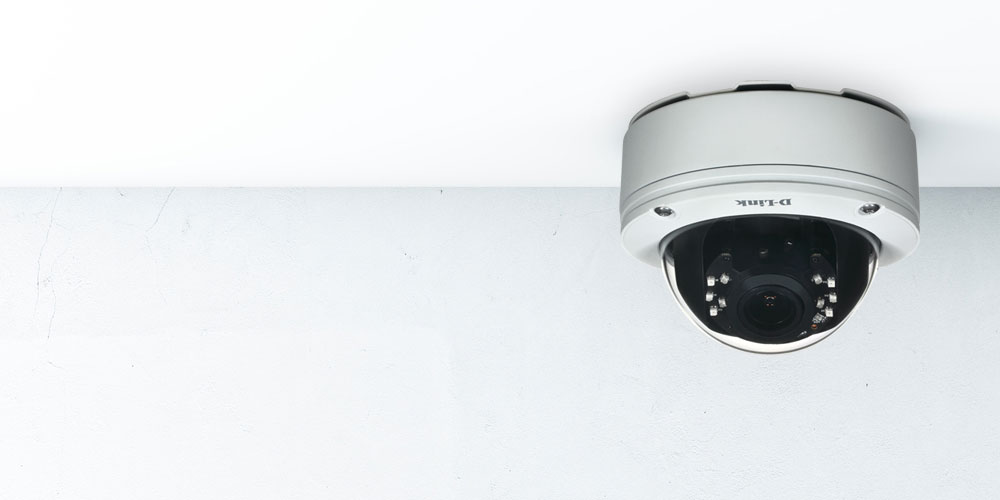

D-Link DCS-6517 5MP Varifocal Outdoor Dome Network Camera


- 5MP, 4xDigital Zoom, 1/3.2" CMOS Sensor, Built-In Infrared Cut Removable Filter, IK-10 , H.264, IP66, PoE

Overview



The D-Link DCS-6517 5 Megapixel Varifocal Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for businesses and enterprises. The camera uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video in all conditions. Combined with its power over Ethernet (PoE) capability this truly is a versatile solution that can be used in a wide range of applications.

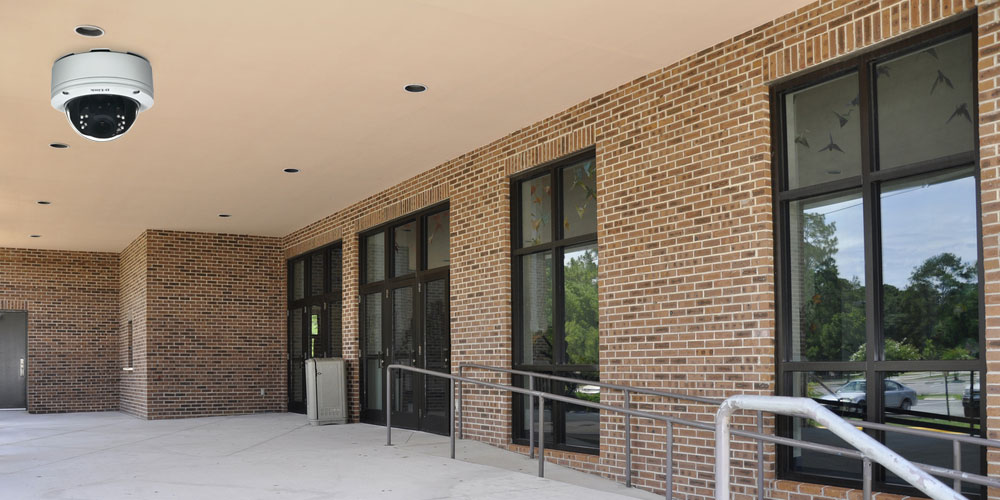

Built for the Outdoors

Specially built for outdoor use, the DCS-6517 has an IP66 weatherproof housing that protects it from dirt and rain. The durable housing has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that are prone to vandalism.

Continuous Monitoring

The DCS-6517 also has built-in IR LED illuminators with a 20 metre range, allowing the camera to keep watch even in complete darkness. To maximise bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording.

Flexible Connectivity

The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Robust Management Software

Includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Specifications

Camera

Camera Hardware Profile

1/3.2 5 Megapixel CMOS sensor

20 metre IR illumination distance

Built-in Infrared-Cut Removable (ICR) Filter module

Minimum illumination:

0.5 Lux Color mode

0.1 Lux Black and White mode

0 Lux Black and White mode with IR LED on

Minimum object distance 0.3 m

3 ~ 10.5 mm DC iris vari-focal lens

Aperture F1.4

Angle of view

(H) 26.94 to 67.23

(V) 20.17 to 48.88

Shutter Speed: 1/2.5 ~ 1/10,000

4x Digital zoom

Camera Housing

IP66 compliant weatherproof housing

IK-10 compliant vandal-proof housing

Included sunshield

Image Features

Configurable image size, quality, frame rate, and bit rate

Time stamp and text overlays

3 Configurable motion detection windows

Tamper detection

Configurable privacy mask zones

Configurable exposure, brightness, saturation, contrast, sharpness, white balance, WDR, flip and mirror

Video Compression

Simultaneous H.264/MJPEG format compression

H.264 multicast streaming

JPEG for still images

Video Resolution 16:9 1920x1080, 1280x720, 960 x 540, 640 x 360 at up to 30 fps

4:3 - 2560x1920, 2048x1536, 1600x1200, 1280x960, 800 x 600, 640 x 480, 320 x 240 at up to 15 fps

Audio Support

AAC

G.711

External Device Interfaces

10/100 BASE-TX Ethernet port with PoE

1 DI / 1 DO

Reset button

Video Out (BNC)

microSD card Slot (SD/SDHC)

Audio input / output

Network

Network Protocols

IPv6

IPv4

TCP/IP

UDP

ICMP

DHCP client

NTP client (D-Link)

DNS client

DDNS client (D-Link)

SMTP client

FTP client

HTTP / HTTPS

Samba client

PPPoE

UPnP port forwarding

RTP / RTSP/ RTCP

IP filtering

QoS

CoS

Multicast

ONVIF compliant

SNMP

Security

Administrator and user group protection

Remote client access control

HTTP and RTSP authentication

HTTPS encryption for web access

System Management

System Requirements for Web Interface

Browser: Internet Explorer 7 or higher, Firefox, Chrome, Safari

Event Management

Motion detection

Event notification and uploading of snapshots/video clips via e-mail or FTP

Supports multiple HTTP, SMTP, and FTP servers

Multiple event notifications

Multiple recording methods for easy backup

Remote Management

Take snapshots/video clips and save to local hard drive

Configuration interface accessible via web browser

OS Support

Operating System: Windows 10/8/7/2000/Vista/XP

D-ViewCam System Requirements

Operating System: Windows 10/8/7/2000/Vista/XP

Web Browser: Internet Explorer 7 or higher

Protocol: Standard TCP/IP

D-ViewCam Software Functions

Remote management/control of up to 32 cameras

Supports all management functions provided in web interface

Viewing of up to 32 cameras on one screen

Scheduled motion triggered, or manual recording options

General

Weight

1.25 kg (2.75 lbs)

Power

Input: 12 V DC 1.5 A. 50/60 Hz, IEEE 802.3af PoE Class 0

Power Consumption

Max:11.6 W (PoE, heater on)

Temperature

Operating: -40 to 50 C (-40 to 122 F)

Storage: -20 to 70 C (-4 to 158 F)

Humidity

Operating: 20% to 90% non-condensing

Storage: 5% to 95% non-condensing

Certifications

CE

CE LVD

FCC

C-Tick

Link contains in-depth information about this product Link contains a picture of this product    NA
22/11

D-Link DCS-7517 5MP Day & Night Outdoor Network Camera


- 5MP, 15FPS, 2560x1920, 4xDigital Zoom, Built-In IR Illuminator, Day/Night IR Filter, WDR, Outdoor Ready, Digital PTZ, IP66, PoE

Overview



The D-Link DCS-7517 is a 5Megapixel High Definition Day & Night Outdoor Bullet IP Camera designed for capturing extra detail in areas such license plates, faces and currency.

Camera Overview

The D-Link DCS-7517 5 Megapixel Day & Night Outdoor Network Camera is a high definitionprofessional surveillance and security solution suitable for small, medium, and largeenterprises. The camera uses a high resolution 1/3 5 megapixel sensor with digital WDRimage enhancement to deliver balanced video in varying lighting conditions. With 2560 x 1920resolution, the DCS-7517 captures more detail in areas such as license plates, faces and currency.The rugged design makes this camera ideal for deployment in a wide variety of surveillanceapplications.

High-Quality Streaming & Recording

To maximize bandwidth efficiency and improve image quality, the DCS-7517 provides real-timevideo compression using the H.264 and MJPEG codecs, and supports three separate profiles forsimultaneous video streaming and recording. This versatility enables a wide variety of securityapplications, such as monitoring public areas to detect incidents and to coordinate responses,enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Continuous Monitoring

The DCS-7517s digital wide dynamic range (WDR) video enhancement gives you improvedimage quality in environments with uneven or difficult lighting, so you can identify subjectsthat are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slidesout of the way to use all available light. The DCS-7517 also has built-in IR LED illuminators witha 90 foot range, allowing the camera to keep watch even in complete darkness. These featureswork together to give you a reliable surveillance camera capable of monitoring an area 24hours a day.

Video Management Software

The DCS-7517 5 Megapixel Day & Night Outdoor Network Camera includesD-ViewCam, a complete surveillance software package that enables youto view, manage, and record from up to 32 cameras on a single computerin a central location. Recordings and e-mail alerts can be triggered throughmotion detection or events triggered by digital input devices, keepingadministrators informed of any unusual activity.

Flexible Connectivity

Maximum Resolution

5 Megapixel (2560 x 1920)

Environment Capabilities

Outdoor-Ready

Warranty

5-Year Warranty

Light Conditions

Built-in IR Illuminator

Day/Night IR Filter

Wide Dynamic Range (WDR)

Operating Temperature Range

-40 to 50 C

Network Connectivity

10/100 Ethernet Port

Power Options

Power over Ethernet (PoE)

Pan/Tilt/Zoom Functionality

Digital PTZ

Available Accessories

Mounting options

Interoperability

Onvif-Compliant

Unified D-Link API

Frame Rate at Maximum Resolution

15 FPS

 Specifications




Camera

Camera Hardware Profile

1/3.2 5 Megapixel CMOS sensor

90 feet IR illumination distance

Automatic Infrared-Cut Filter module for night viewing

Minimum illumination:

0.5 lux (color)

0.1 lux (B/W)

0 lux / (IR-LED)

Minimum object distance: 11.8

2.8 to 12 mm motorized zoom Varifocal DC Auto Iris Lens

Aperture: F 1.8

Angle of view:

(H) 25 - 85

(V) 17 - 65

Shutter Speed: 1/2.5 to 1/10,000

4x digital zoom

Camera Housing

IP66 compliant weatherproof housing

Includes sunshield

Image Features

Configurable image size, quality, frame rate, and bit rate

Time stamp and text overlays

3 configurable motion detection windows

Tamper detection

Configurable privacy mask zones

Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, flip and mirror

Video Compression

Simultaneous H.264/MJPEG format compression

Multicast streaming

JPEG for still images

Video Resolution

16:9 - 1920 x 1080, 1280 x 720, 960 x 540 at up to 30 fps

4:3 - 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960 at up to 15 fps

Audio Support

AAC

G.711

External Device Interface

10/100 BASE-TX Ethernet port with PoE

1 DI / 1 DO

Reset button

Video Out (BNC)

microSD card Slot (SD/SDHC)

Audio input / output

Network

Network Protocols

IPv6

IPv4

TCP/IP

UDP

ICMP

DHCP client

NTP client (D-Link)

DNS client

DDNS client (D-Link)

SMTP client

FTP client

HTTP / HTTPS

Samba client

PPPoE

UPnP port forwarding

RTP / RTSP/ RTCP

IP filtering

QoS

CoS

Multicast

ONVIF compliant

SNMP

Security

Administrator and user group protection

Remote client access control

HTTP and RTSP authentication

HTTPS encryption for web access

System Management

System Requirements for Web Interface

Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari

Event Management

Motion detection

Event notification and uploading of snapshots/video clips via e-mail or FTP

Supports multiple HTTP, SMTP and FTP servers

Multiple event notifications

Multiple recording methods for easy backup

Remote Management

Take snapshots/video clips and save to local hard drive

Configuration interface accessible via web browser

OS Support (for setup utility)

Operating System: Windows 8/7/Vista

D-ViewCam System Requirements

Operating System: Microsoft Windows 8/7/Vista

Web Browser: Internet Explorer 8 or higher

Protocol: Standard TCP/IP

D-ViewCam Software Functions

Remote management/control of up to 32 cameras

Supports all management functions provided in web interface

Viewing of up to 32 cameras on one screen

Scheduled motion triggered, or manual recording options

General

Weight

2.75 lbs (1.25 kg) 5% for camera only, without sunshield and mounting bracket

Power

External power adapter: 12 V DC 1.5 A. 50/60 Hz, IEEE

PoE: 802.3af Class 0

Power Consumption

Max: 12.48 W

Temperature

Operating: -40 to 122 F (-40 to 50 C)

Storage: -4 to 158 F (-20 to 70 C)

Humidity

Operating: 20% to 80% non-condensing

Storage: 5% to 95% non-condensing

Certifications

CE

CE LVD

ICES-003

FCC

C-Tick

Link contains in-depth information about this product Link contains a picture of this product    NA
