10/05
|
Sony EVI-D90P Standard Definition PTZ Camera - White
- 1/4-Type EXview HAD CCD, 1-1/10,000s Shutter Speed, 4.1mm (Wide) To 73.8mm (Tele) F1.4-3.0 28x Optical Zoom (12x Digital Zoom), Auto WBOverview
This smartly styled PTZ (pan/tilt/zoom) camera is ideal for a wide range of
security, video conferencing, distance learning and remote monitoring
applications.
The
-type EXview HAD CCD sensor ensures crisp Standard Definition picture quality,
even in dim ambient lighting conditions.
The
stepper motor enables smooth pan/tilt/zoom operation. 28x optical zoom range
allows frame-filling close-ups, while image stabilisation reduces the effect of
shaky images caused by wind or vibration.
Equally
suitable for standard or ceiling mounting, the camera is available in a choice
of black (EVI-D90P) or white (EVI-D90P/W) finishes.
Features
-
Crisp, clear SD images
The -type EXview HAD CCD sensor captures crisp
Standard Definition images. Shutter speed, gain and white balance are
adjustable for excellent performance under virtually any lighting
conditions.
-
Powerful 28x optical zoom
The 28x optical zoom range is complemented by
12x digital zoom for frame-filling close-ups of small objects, with every
detail seen clearly. A choice of manual, AF or infinity focus modes gives full
installation flexibility in any monitoring situation.
-
Fast PTZ operation
The stepper motor assures smooth, rapid movement
to the target position over a wide pan/tilt angle range.
-
Image stabiliser
Outdoor mounting (requires optional dome
housing) can often cause shaky, blurred images from wind, vibration and other
environmental factors. Image stabilisation distinguishes unwanted camera
movement from motion in the scene itself for smooth, clear, more natural
pictures.
-
6 presets
Pan/tilt/zoom settings plus focus, AE and white
balance mode can be stored as six position presets for instant
recall.
-
Standard or ceiling mounting
Installation flexibility is increased by a
choice of standard or ceiling mounting options. The cameras E-Flip function
automatically detects mounting orientation so output images are always the
right side up.
-
Control remotely
Camera settings and PTZ can be controlled from a
remote PC via RS-232C/RS-422 (VISCA) protocols.
-
Supplied IR remote
Easily control pan/tilt/zoom settings using the
supplied infrared remote commander.
-
Stylish design
The cameras smart, sleek design fits
unobtrusively into a wide range of security and monitoring
environments.
Specifications
|
sensor |
1/4-type EXview HAD
CCD |
|
Signal system -
SD |
NTSC/PAL |
|
Lens - Focal
length |
f=3.5 mm (wide) to 98.0
mm (tele) |
|
F1.35 to
F3.7 |
|
Lens - Optical
zoom |
28x |
|
Lens - Digital
zoom |
12x |
|
Min. object
distance |
10 mm (wide) - 1,500 mm
(tele) *Default: 300 mm |
|
Horizontal viewing
angle |
55.8 degrees (wide) to
2.1 degrees (tele) |
|
Focus
systems |
Auto, One-push AF,
Manual, Infinity |
|
|
|
|
Min.
illumination |
0.65 lx (F1.35, 50
IRE) |
|
Shutter
speed |
1 to 1/10,000
s |
|
Gain |
Auto/Manual/Max. AE
Gain Limit (-3 to 28 dB, 2 dB steps) |
|
White
balance |
Auto, Indoor, Outdoor,
One-push, Manual |
|
Wide-D |
Yes |
|
Exposure
control |
Auto, Manual, Priority
mode (shutter priority & iris priority), Bright, EV compensation, Slow
Shutter AE |
|
Auto
ICR |
Yes |
|
|
|
|
S/N
ratio |
More than 50 dB (3D
Noise Reduction) |
|
Pan/Tilt - Angle -
Pan |
170 |
|
Pan/Tilt - Angle -
Tilt |
+90/-20 |
|
Pan/Tilt - Max.
speed - Pan |
100/sec |
|
Pan/Tilt - Max.
speed - Tilt |
90/sec |
|
Preset
positions |
6 |
|
Video output -
SD |
VBS,
Y/C |
|
Camera control -
Interface |
RS-232C/RS-422 |
|
|
|
|
Camera control -
Protocol |
VISCA |
|
Power
requirements |
DC 12
V |
|
Power
consumption |
8
W |
|
Operating
temperature |
0C to 40C (32F to
104F) |
|
Storage
temperature |
-20C to +60C (-4F to
+140F) |
|
|
|
|
Mass |
1,460 g (3 lb 3
oz) |
|
Dimensions (W x H x
D) |
145 x 164 x 164 mm (5
3/4 x 6 1/2 x 6 1/2 inches) |
|
Body
colour |
Black,
White |
|
Supplied
accessories |
AC
adaptor |
|
AC power
cable |
|
IR remote commander
unit |
|
Ceiling
bracket |
|
Operating
instructions |
|
RS-422 connector
plug | |
|
|
|
10/05
|
Sony ILCE-7SM2B Alpha a7S MKII 12.2MP Mirrorless Full-Frame Digital Camera - Body Only, Black
- 12.2 MP, 35mm Full-Frame "Exmor" CMOS Sensor, 4K Movie Recording, 5-Axis IS, 169-Point AFFeatures
-
Sensitivity
to ISO 409600 and wide dynamic range refine stills/movies
-
4K
movie recording featuring full pixel readout with no binning in full-frame
format
-
5-axis
image stabilisation
-
169-point
Fast Intelligent AF
-
Pro-level
movie functions such as S-Gamut3.Cine/S-Log3 and 120fps Full HD recording
support professional workflow
-
0.78x
magnification XGA OLED Tru-Finder™
Extreme sensitivity, wide dynamic range
With sensitivity settings that can extend up to ISO 4096009plus
extra-wide dynamic range, the 7S II can record images in spectacular and subtle
detail, from shadows to highlights, under virtually any lighting conditions. The
remarkable clarity and lack of noise in stills and movies that you shoot help to
realize results that youve been aiming for.
Exmor® CMOS for extra sensor perception
Capture stills and movies of richer, more natural gradation. The 35 mm
full-frame 12.2-megapixel10image
sensor achieves wide dynamic range with very low noise throughout a vast ISO
50-4,096,001 sensitivity span. Large pixels, gapless on-chip lens structure and
other light capture advances allow use of extra-high shutter speeds for
low-light shooting.

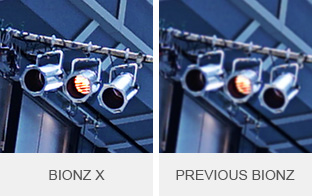

Smart, speedy BIONZ X™ image processing engine
The newly refined image processing algorithm of the BIONZ X optimizes image
sensor performance for superior depiction of details in stills and movies
throughout all sensitivity ranges. This image processing engine realizes image
quality of such fine nuance and minimal noise, particularly at the mid- to
high-sensitivity setting.

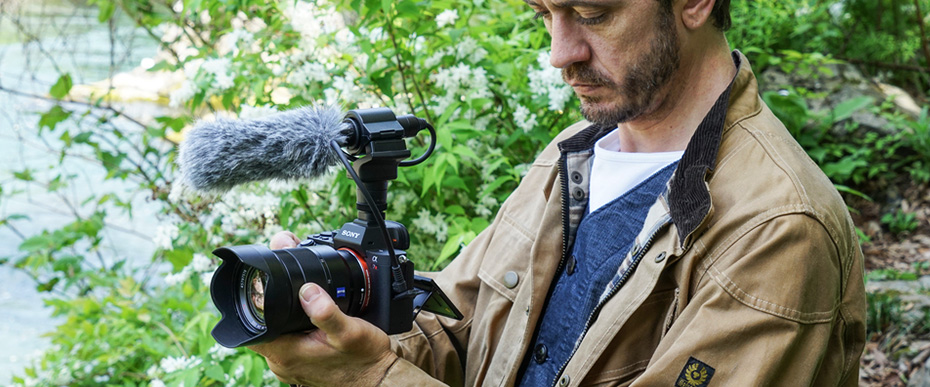

Internal 4K movie recording and XAVC S format 11
The 7S II can record 4K (QFHD: 3,840 x 2,160) movies internally in full-frame
format. Full pixel readout12without
pixel binning produces 4K movies with less moir and jaggies. Support for XAVC S
format11enables
4K recording at a maximum of 100 Mbps, for highly detailed footage with less
impact from compression noise. * Internal recording and HDMI output, both at 4K
resolution, are available in full-frame format.
S-Gamut3.Cine/S-Log3 and S-Gamut3/S-Log3
With these new profiles, dynamic range can be widened up to 1,300% for
smoother gradationsand color grading, correction and handling is easy. S-Log3
gamma tonal reproduction is better from shadow to mid-tone (18% gray). The
cameras 14-stop latitude in S-Log3 setting is impressive. S-Gamut3.Cine
reproduces the wide color gamut of DCI-P3 color space. S-Gamut3 reproduces
almost all actual colors suitable for archiving.

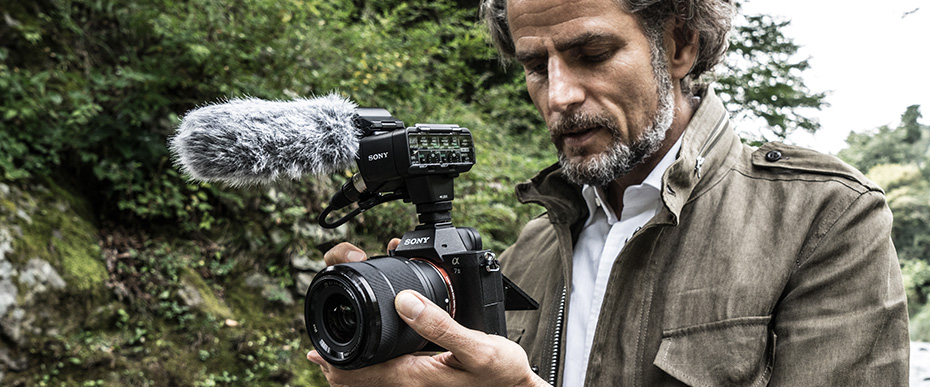

Movie functions improve professional workflow
With new functions such as 120fps Full HD recording, 4x/5x slow motion
recording and Gamma Display Assist joining enhanced Zebra function, time
code/user bit editing and other moviemaking capabilities in its feature set, the
7S II solidly supports professional workflow, giving you greater latitude to
produce more moving visions than ever before.

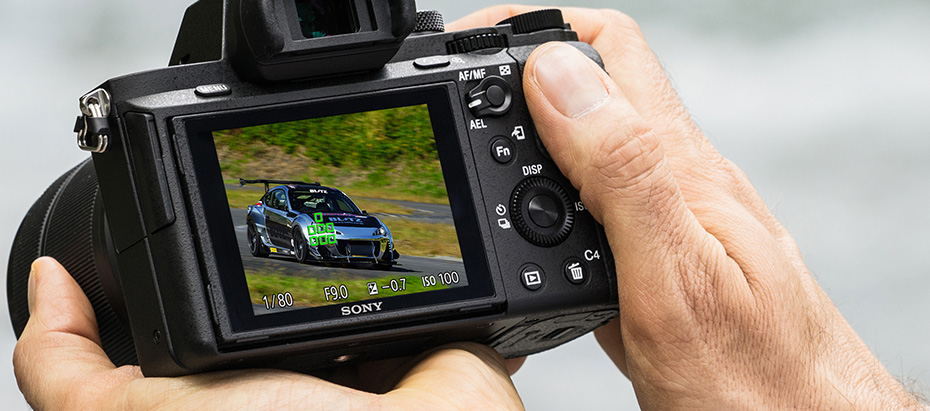

Fast Intelligent AF for levels as low as EV -4
With 169 AF points (25 contrast-detection points, plus nine central AF points
each divided into 16 segments, for a total of 25+(9x16)), this speedy, accurate
system ensures subject detection accuracy when shooting stills even under
low-visibility conditions with lighting as low as EV -4. Moreover, AF speed for
shooting Full HD movies is twice as fast as in the α7S.

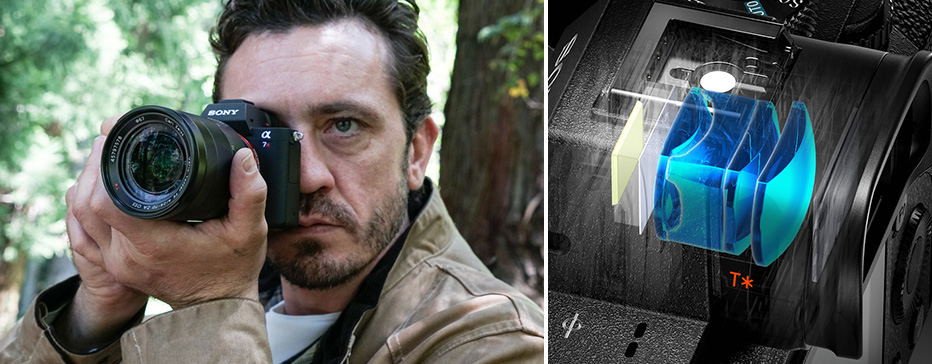

0.78x magnification XGA OLED Tru-Finder™
With the world’s highest 14 magnification and ZEISS® T* Coating, this
electronic viewfinder delivers stunning clarity and contrast with minimal
reflection and instantly shows how exposure compensation, white balance and
other settings affect images. You can also use Gamma Display Assist and Zebra
functions while shooting movies using the viewfinder.

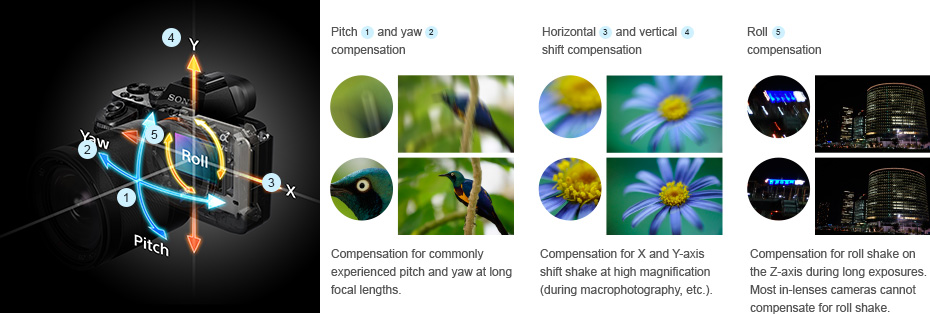

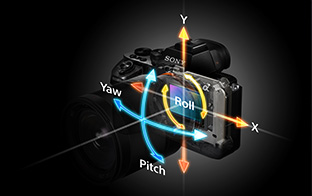

5-axis optical image stabilization
Equivalent to using a 4.5-stop 13 faster shutter speed, this system is
effective at compensating for five types of camera shake. The camera integrates
extraordinary image stabilization and sensitivity to light to let you use a
greater range of shutter speed/ISO/aperture settings to express what you aim to
capture in handheld stills or movies.
Silent Shooting
Silent Shooting mode lets you mute shutter sound whenever noiseless operation
is required, such as when shooting wildlife or concert photos. This function can
be used with 5fps15continuous
shootingso you dont miss a crucial momentand can be assigned to a customizable
button, so it can be turned on and off more intuitively.

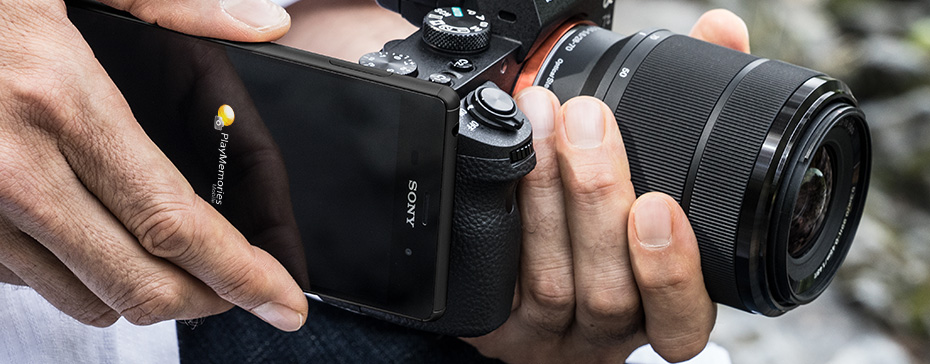

Wi-Fi® / NFC™ simplifies sharing
With Wi-Fi® and NFC (Near Field Communication) built into the α7S II, you
can instantly transfer a photo or MP4 movie to your NFC-enabled smartphone or
tablet simply by touching it with the camera, then easily upload the photo or
movie to your favorite SNS (social networking site).
Supports 14-bit uncompressed RAW format
New compatibility with 14-bit uncompressed RAW format lets you choose the
optimal format for your needs. The camera thereby ensures supreme quality of
tonal gradation to maximise the benefit of the image sensor's wide dynamic
range.
New Gamma Display Assist function
This new function lets you view images with natural contrast while recording
in S-Log gamma setting, converting S-Log2 and S-Log3 into ITU709 (800%) gamma
for monitoring16images
or checking focus while enlarging an image, on the LCD screen or viewfinder.
120fps Full HD and 4x/5x slow motion recording
Featuring full pixel readout without pixel binning, 120fps (100fps)
capability and ultra-high sensitivity, the α7S II shoots low-noise,
high-frame-rate Full HD movies like no other camera. 120fps (100fps) capability
also allows internal recording of 4x/5x slow motion movies with frame rate set
at 30p (25p) or 24p.
Supported in Capture One Express (for Sony) One of the world’s best
RAW converters by Phase One
Capture One Express (for Sony) is one of the worlds best RAW converters,
rendering precise colors and incredible detail. It contains flexible digital
asset management, all the essential adjustment tools and fast, responsive
performance in one customizable and integrated solution. *Please direct all
inquiries on purchase, usage and support on Capture One solutions to Phase
One.
Enhanced Zebra function
This function makes it easier to monitor exposure, especially when shooting
in S-Log gamma setting. Select a video signal level target from 0 to 109, apply
a range to it, then the zebra pattern indicates image areas reaching that level
or range. The new wider video signal level selection and ability to assign a
range simplify exposure adjustment.
Picture Profile
Its very useful to tailor the look of your movies even before shooting them
by adjusting image characteristics via Picture Profile settings for gradation,
color adjustment and detail. Save and recall up to nine profiles (PP1-PP9) of
adjusted parameters with other settings, including new ones for
S-Gamut3.Cine/S-Log3 and S-Gamut3/S-Log3.
Clean HDMI Output
This function supports 4K17and
Full HD and allows uncompressed movie output to an external recorder or monitor.
The image can also be recorded in the camera18even
while signals are output using this function. The included cable protector
guards jacks and prevents cables from disengaging accidentally, so you can shoot
with greater assurance.
Tough magnesium alloy body
Designed for solid reliability and steady handling, the α7S II’s compact
body is built to withstand the rigors of shooting in the field, thanks to an
internal structure and top, front, and rear covers all made of strong, rigid
magnesium alloy.
500,000-cycle shutter durability
The cameras shutter passes the test of high durability and endurance through
500,00019cycles,
as a shutter braking mechanism reduces mechanical front/rear curtain vibration
by about 50%20, minimizing
camera shake, image blur and shutter sound. Use of the electronic front curtain
cuts vibration even more.
Meticulously crafted controls |
Controls are smoothly crafted for you to operate intuitively and adjust
immediately even as you look through the viewfinder. The front and rear dials
have been particularly refined and positioned for easier, more efficient
handling and turning. Also, a new mode dial locking mechanism prevents
inadvertent changes of shooting mode at all times.
ISO Auto Minimum Shutter Speed
Prevent blur in a shot of a moving subject by setting a shutter speed at
which ISO sensitivity starts changing when ISO AUTO (while in P or A mode, or in
Multi Frame NR) is selected.
Expand Flexible Spot
Expand Flexible Spot has been added to AF Area selection. If the selected AF
point is not positioned on your subject, the α7S II automatically uses AF
points surrounding the selected point to support precise focus.
More precise white balance adjustment
The α7S II offers more white balance adjustment steps (twice as many on the
amber-blue axis; four times as many on the green-magenta axis) than the α7S, so
you can finely tune white balance with more subtle precision for more natural
colors.
Enhanced Eye AF
Now also available in AF-C focus mode, Eye AF automatically detects and
tracks an eye of even a moving subject for more framing freedom.
Compatibility with wide-ranging mountable lenses 21
5-axis image stabilization lets you enjoy unparalleled handheld shooting
freedom with more of your favorite mountable lenses. The short flange-back
distance in the E-mount α7S II extends compatibility with a range of
lenses.
Focus Magnifier & Peaking function
You can clearly magnify the image to simplify manual fine-tuning of the focus
whether shooting still images or movies. The Peaking function can also be
activated to colorize the most sharply focused areas of your image for quick
confirmation.
Bright Monitoring
This function that boosts image brightness by changing shutter speed, for
example, can be assigned to a customizable button for easy access when shooting
a starry sky or other dark scene.
Creative Style
Creative Style settings bring out the character of your scene. Simply select
any of 13 settings (Vivid, Portrait, etc.) and the camera will adjust image
parameters. You can also fine-tune contrast, saturation22and
sharpness to suit your preference.
Picture Effect (13 modes)
Convert everyday scenes into works of art by applying innovative Picture
Effect modes that adjust camera parameters and apply advanced image processing
with real-time previews for most effects. You can choose from 13 modes,
including Toy Camera, Posterization, HDR Painting, Miniature, Watercolor and
Illustration.
PlayMemories Camera Apps™ add personal touches
Sonys application download service lets you add new functions and
capabilities to your camera. There are apps for photo and movie effects to
enhance and express your creativity, and others to allow your smartphone to
function as a cameras remote control, for example.
Works with iMovie and Final Cut Pro X
This product is compatible with Final Cut Pro X and iMovie.23
Specifications
|
GENERAL |
|
|
Camera
type |
Interchangeable lens
digital camera |
|
Lens
compatibility |
Sony E-mount
lenses |
|
|
|
|
IMAGE SENSOR
|
|
|
Type |
35mm full frame
(35.623.8mm), "Exmor" CMOS sensor |
|
Number of pixels
(effective) |
Approx. 12.2
Megapixels |
|
Number of pixels
(total) |
Approx. 12.4
Megapixels |
|
Image sensor aspect
ratio |
3:02 |
|
Color
filter |
R, G, B primary
color |
|
Anti-Dust
function |
Yes |
|
Anti-Dust
system |
Charge protection
coating on optical filter and image sensor shift
mechanism |
|
Anti-Dust operation
(auto) |
Cleaning
Mode |
|
|
|
|
RECORDING SYSTEM
(STILL IMAGE) |
|
|
Recording
format |
JPEG (DCF Ver. 2.0,
Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3
format) |
|
Image size (pixels)
[3:2] |
35mm full frame L: 4240
x 2832 (12M), M: 2768 x 1848 (5.1M), S: 2128 x 1416 (3.0M); APS-C L: 2768
x 1848 (5.1M), M: 2128 x 1416 (3.0M), S: 1376 x 920
(1.3M) |
|
Image size (pixels)
[16:9] |
35mm full frame L: 4240
x 2384 (10M), M: 2768 x 1560 (4.3M), S: 2128 x 1200 (2.6M); APS-C L: 2768
x 1560 (4.3M), M: 2128 x 1200 (2.6M), S: 1376 x 776
(1.1M) |
|
Image size (pixels)
[Sweep Panorama] |
Wide: horizontal 12416
x 1856 (23M), vertical 5536 x 2160 (12M), Standard: horizontal 8192 x 1856
(15M), vertical 3872 x 2160 (8.4M) |
|
Image quality
modes |
RAW, RAW & JPEG,
JPEG Extra fine, JPEG Fine, JPEG Standard |
|
14bit
RAW |
Yes |
|
Uncompressed
RAW |
Yes |
|
Effect |
Posterization(Color),
Posterization(B/W), Pop Color, Retro Photo, Partial Color(R/G/B/Y), High
Contrast Monochrome, Toy Camera(Normal/Cool/Warm/Green/Magenta), Soft
High-key, Soft Focus(High/Mid/Low) |
|
HDR
Painting(High/Mid/Low), Rich-tone Monochrome,
Miniature(Auto/Top/Middle(H)/Bottom/Right/Middle(V)/Left), Watercolor,
Illustration(High/Mid/Low) |
|
Creative
Style |
Standard, Vivid,
Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene,
Autumn leaves, Black & White, Sepia,Style Box(1-6), (Contrast (-3 to
+3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3
steps)) |
|
Profile |
Yes (Off / PP1-PP9)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode, Saturation, Color
Phase, Color Depth, Detail, Copy, Reset |
|
Dynamic Range
functions |
Off, Dynamic Range
Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure
Difference, Exposure Difference Level (1-6 EV, 1.0 EV
step)) |
|
Color
space |
sRGB standard (with
sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS
Color |
|
Delete |
Yes |
|
|
|
|
RECORDING SYSTEM
(MOVIE) |
|
|
Recording
format |
XAVC S, AVCHD format
Ver. 2.0 compliant, MP4 |
|
Video
compression |
XAVC S:MPEG-4
AVC/H.264, AVCHD: MPEG-4 AVC/H.264, MP4: MPEG-4
AVC/H.264 |
|
Audio recording
format |
XAVC S:LPCM 2ch; AVCHD:
Dolby Digital (AC-3) 2ch, Dolby Digital Stereo Creator; MP4: MPEG-4 AAC-LC
2ch |
|
Effect |
Posterization (Color),
Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High
Contrast Monochrome, Toy Camera(Normal/Cool/Warm/Green/Magenta), Soft
High-key |
|
Creative
Style |
Standard, Vivid,
Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene,
Autumn leaves, Black & White, Sepia,Style Box(1-6), (Contrast (-3 to
+3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3
steps)) |
|
Profile |
Yes (Off / PP1-PP9)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2, S-Log3), Black Gamma, Knee, Color Mode, Saturation, Color
Phase, Color Depth, Detail, Copy, Reset |
|
Color
space |
xvYCC standard
(x.v.Color when connected via HDMI cable) compatible with TRILUMINOS
Color |
|
|
|
|
MOVIE RECORDING
SYSTEM (XAVC S 4K) |
|
|
3840 x 2160 (30p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (25p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (24p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (30p,
60M) |
Approx.
60Mbps |
|
3840 x 2160 (25p,
60M) |
Approx.
60Mbps |
|
3840 x 2160 (24p,
60M) |
Approx.
60Mbps |
|
|
|
|
MOVIE RECORDING
SYSTEM (XAVC S HD) |
|
|
1920 x 1080 (120p,
100M) |
Approx.
100Mbps |
|
1920 x 1080 (100p,
100M) |
Approx.
100Mbps |
|
1920 x 1080 (120p,
60M) |
Approx.
60Mbps |
|
1920 x 1080 (100p,
60M) |
Approx.
60Mbps |
|
1920 x 1080 (60p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (50p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (30p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (25p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (24p,
50M) |
Approx.
50Mbps |
|
|
|
|
MOVIE RECORDING
SYSTEM (AVCHD) |
|
|
1920 x 1080 (60p, 28M,
PS) |
Approx. 28Mbps(Maximum
bit-rate) |
|
1920 x 1080 (50p, 28M,
PS) |
Approx. 28Mbps(Maximum
bit-rate) |
|
1920 x 1080 (60i, 24M,
FX) |
Approx. 24Mbps(Maximum
bit-rate) |
|
1920 x 1080 (50i, 24M,
FX) |
Approx. 24Mbps(Maximum
bit-rate) |
|
1920 x 1080(60i, 17M,
FH) |
Approx. 17Mbps(Average
bit-rate) |
|
1920 x 1080 (50i, 17M,
FH) |
Approx. 17Mbps(Average
bit-rate) |
|
1920 x 1080 (24p, 24M,
FX) |
Approx. 24Mbps(Maximum
bit-rate) |
|
1920 x 1080 (25p, 24M,
FX) |
Approx. 24Mbps(Maximum
bit-rate) |
|
1920 x 1080 (24p, 17M,
FH) |
Approx. 17Mbps(Average
bit-rate) |
|
1920 x 1080 (25p, 17M,
FH) |
Approx. 17Mbps(Average
bit-rate) |
|
|
|
|
MOVIE RECORDING
SYSTEM (AVC MP4) |
|
|
1920 x 1080 (60p,
28M) |
Approx.
28Mbps |
|
1920 x 1080 (50p,
28M) |
Approx.
28Mbps |
|
1920 x 1080 (30p,
16M) |
Approx.
16Mbps |
|
1920 x 1080 (25p,
16M) |
Approx.
16Mbps |
|
1280 x 720 (30p,
6M) |
Approx.
6Mbps |
|
1280 x 720 (25p,
6M) |
Approx.
6Mbps |
|
|
|
|
HIGH FRAME RATE
RECORDING |
|
|
1920 x 1080 (30p,
16M) |
Approx.
16Mbps |
|
1920 x 1080 (25p,
16M) |
Approx.
16Mbps |
|
1920 x 1080 (24p,
12M) |
Approx.
12Mbps |
|
|
|
|
MOVIE FUNCTION
|
|
|
Audio Level
Display |
Yes |
|
Audio Rec
Level |
Yes |
|
PAL/NTSC
Selector |
Yes |
|
Dual Video
REC |
Yes |
|
TC/UB |
Yes(TC Preset/UB
Preset/TC Format/TC Run/TC Make/UB Time Rec) |
|
Auto Slow
Shutter |
Yes |
|
REC
Control |
Yes |
|
HDMI Info.
Display |
ON/OFF
selectable |
|
HDMI
Output |
3840 x 2160(25p), 1920
x 1080(50p), 1920 x 1080(50i), 1920 x 1080(24p), 1920 x 1080(60p), 1920 x
1080(60i), 3840 x 2160(30p), 3840 x 2160(24p), YCbCr 4:2:2 8bit / RGB
8bit |
|
Gamma Disp.
Assist |
Yes |
|
|
|
|
RECORDING SYSTEM
|
|
|
Media |
Memory Stick PRO Duo,
Memory Stick PRO-HG Duo, Memory Stick Micro(M2), SD memory card, SDHC
memory card (UHS-I compliant), SDXC memory card (UHS-I compliant), microSD
memory card, microSDHC memory card, microSDXC memory
card |
|
Noise
reduction |
Long exposure NR:
On/Off, available at shutter speeds longer than 1 sec.; High ISO NR:
Normal/Low/Off |
|
Multi Frame
NR |
Auto/ISO 100 to
409600 |
|
|
|
|
WHITE BALANCE
|
|
|
Modes |
Auto/ Daylight/ Shade/
Cloudy/ Incandescent/ Fluorescent / Flash/ Underwater/ Color Temperature
& color filter / Custom |
|
AWB micro
adjustment |
Yes |
|
Bracketing |
3 frames, H/L
selectable |
|
|
|
|
FOCUS SYSTEM
|
|
|
Type |
Contrast-detection AF
*1 |
|
Focus
sensor |
"Exmor" CMOS
sensor |
|
Focus
point |
169 points
(contrast-detection AF) |
|
Sensitivity
range |
EV-4 to EV20 (ISO100
equivalent with F2.0 lens attached) |
|
AF
mode |
AF-S (Single-shot AF),
AF-C (Continuous AF), DMF (Direct Manual Focus), Manual
Focus |
|
Focus
area |
Wide (169
points(contrast-detection AF))/ Zone/ Center/ Flexible Spot (S/M/L)/
Expanded Flexible Spot / Lock-on AF (Wide/ Zone/ Center/ Flexible Spot
(S/M/L)/ Expanded Flexible Spot) |
|
Eye-start
AF |
Yes (only with LA-EA2
or LA-EA4 attached(Sold separately)) |
|
Lock-on
AF |
Yes |
|
Eye
AF |
Yes |
|
Other
features |
Focus
lock |
|
AF
illuminator |
Yes(with Built-in LED
type) |
|
AF illuminator
range |
Approx. 0.3m - approx.
3.0m (with FE 28-70mm F3.5-5.6 OSS attached) |
|
AF micro
adjustment |
Yes, (Sold separately)
with LA-EA2 or LA-EA4 |
|
|
|
|
EXPOSURE CONTROL
|
|
|
Metering
type |
1200-zone evaluative
metering |
|
Metering
sensor |
"Exmor" CMOS
sensor |
|
Metering
sensitivity |
EV-3 to EV20 (at ISO100
equivalent with F2.0 lens attached) |
|
Modes |
Multi-segment,
Center-weighted, Spot |
|
Exposure
modes |
AUTO(iAuto/Superior
Auto), Programmed AE(P), Aperture priority(A), Shutter-speed priority(S),
Manual(M), Movie/ High Frame Rate(Programmed AE(P)/ Aperture priority(A)/
Shutter-speed priority(S)/ Manual(M)), Sweep Panorama, Scene
Selection |
|
Scene
Selection |
Portrait, Sports
Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night
Portrait, Anti Motion Blur |
|
Exposure
compensation |
+/- 5.0EV(1/3 EV, 1/2
EV steps selectable) (with exposure compensation dial : +/- 3EV (1/3 EV
steps)) |
|
Bracketing |
Bracket: Cont.,
Bracket: Single, 3/5/9 frames selectable. With 3 or 5 frames, in 1/3, 1/2,
2/3, 1.0, 2.0, or 3.0 EV increments, with 9 frames, in 1/3, 1/2, 2/3, or
1.0 EV increments |
|
AE
Lock |
Locked when shutter
button is pressed halfway. Available with AE lock button.
(On/Off/Auto) |
|
ISO sensitivity
(Recommended Exposure Index) |
Still images: ISO
100-102400 (ISO numbers up from ISO 50 to ISO 409600 can be set as
expanded ISO range.), AUTO (ISO 100-12800, selectable lower limit and
upper limit) |
|
Movies: ISO 100-102400
equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO
range.), AUTO (ISO 100-12800, selectable lower limit and upper
limit) |
|
|
|
|
VIEWFINDER
|
|
|
Type |
1.3 cm (0.5 type)
electronic viewfinder (color) |
|
Number of
dots |
2,359,296
dots |
|
Brightness
control |
Auto/Manual (5 steps
between -2 and +2) |
|
Color temperature
control |
Manual (5
steps) |
|
Field
coverage |
100% |
|
Magnification |
Approx. 0.78 x (with
50mm lens at infinity, -1m-1) |
|
Diopter
adjustment |
-4.0 to
+3.0m-1 |
|
Eye
point |
Approx. 23mm from the
eyepiece lens, 18.5mm from the eyepiece frame at -1m-1 (CIPA
standard) |
|
Display
Contents |
Graphic Display,
Display All Info., No Disp. Info., Digital Level Gauge,
Histogram |
|
|
|
|
LCD SCREEN
|
|
|
Type |
7.5cm (3.0-type) type
TFT |
|
Number of dots
(total) |
1,228,800
dots |
|
Brightness
control |
Manual (5 steps between
-2 and +2), Sunny Weather mode |
|
Adjustable
angle |
Up by approx. 107
degrees, Down by approx. 41 degrees |
|
WhiteMagic |
Yes |
|
Display
Contents |
Graphic Display,
Display All Info, No Disp. Info, Digital Level Gauge, Histogram, For
viewfinder |
|
Real-time
image-adjustment display |
On/Off |
|
Quick
Navi |
Yes |
|
Focus
Check |
Yes Focus Magnifier
(35mm full frame: 4.2x, 8.3x, APS-C: 2.7x, 5.4x) |
|
Zebra |
Yes (selectable level +
range or lower limit as custom setting) |
|
Peaking
MF |
Yes (Level setting:
High/Mid/Low/Off, Color: White/Red/Yellow) |
|
Marker
Display |
Yes (Center/ Aspect/
Safety Zone/ Guideframe) |
|
Grid
Line |
Yes (Rule of 3rds Grid/
Square Grid/ Diag. + Square Grid/ Off) |
|
|
|
|
FACE DETECTION
|
|
|
Modes |
On/On (Regist.
Faces)/Off |
|
Face
registration |
Yes |
|
Face
selection |
Yes |
|
Max. number of
detectable |
8 |
|
|
|
|
AUTO OBJECT FRAMING
|
|
|
Still
images |
Yes |
|
|
|
|
OTHER FEATURES
|
|
|
Smile
Shutter |
Smile shutter
(selectable from 3 steps) |
|
ISO AUTO Min.
SS |
Yes |
|
Bright
Monitoring |
Yes |
|
Copyright
Info |
Yes |
|
PlayMemories Camera
Apps |
Yes |
|
Help
guide |
Yes |
|
Clock Function,
Setting |
Yes |
|
Area
Setting |
Yes |
|
Shop Front
Mode |
Yes |
|
Video Light
Mode |
Yes |
|
Zoom Ring
Rotate |
Yes |
|
Eye-Fi
ready |
Yes
*2 |
|
|
|
|
CLEAR IMAGE ZOOM
|
|
|
Still
images |
Approx.
2x |
|
Movies |
Approx.
2x |
|
|
|
|
DIGITAL ZOOM
|
|
|
Smart zoom (Still
images) |
35mm full frame:
M:approx. 1.5x, S:approx. 2x; APS-C: M:approx. 1.3x, S:approx.
2x |
|
Digital zoom (Still
images) |
35mm full frame:
L:approx. 4x, M:approx. 6.1x, S:approx. 8x; APS-C: L:approx. 4x, M:approx.
5.2x, S:approx. 8x |
|
Digital zoom
(Movie) |
35mm full frame:
approx. 4x; APS-C: approx. 4x |
|
|
|
|
SHUTTER
|
|
|
Type |
Electronically-controlled,
vertical-traverse, focal-plane type |
|
Shutter
speed |
Still images:1/8000 to
30 sec, Bulb, Movies: 1/8000 to 1/4(1/3 steps) up to 1/60 in AUTO mode (up
to 1/30 in Auto slow shutter mode) |
|
Flash sync.
speed |
1/250 sec.
*3 |
|
Electronic Front
Curtain Shutter |
Yes(ON/OFF) |
|
Silent
Shooting |
Yes(ON/OFF) |
|
|
|
|
STEADYSHOT INSIDE
(IMAGE STABILIZATION) |
|
|
Type |
Image Sensor-Shift
mechanism with 5-axis compensation (Compensation depends on lens
specifications) |
|
Compensation
effect |
4.5 steps (based on
CIPA standard. Pitch/yaw shake only. With Sonnar T* FE 55mm F1.8 ZA lens
mounted. Long exposure NR off.) |
|
|
|
|
FLASH
|
|
|
Control |
Pre-flash
TTL |
|
Flash
compensation |
+/- 3.0 EV (switchable
between 1/3 and 1/2 EV steps) |
|
Flash
bracketing |
3/5/9 frames
selectable. With 3 or 5 frames, in 1/3, 1/2, 2/3, 1.0, 2.0, 3.0 EV
increments, with 9 frames, in 1/3, 1/2, 2/3, 1.0 EV
increments. |
|
Flash
modes |
Flash off, Autoflash,
Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable),
Wireless *4, Hi-speed sync. *4 |
|
External
flash |
Sony System Flash
compatible with Multi Interface Shoe, attach the shoe adaptor for flash
compatible with Auto-lock accessory shoe |
|
FE level
lock |
Yes |
|
|
|
|
DRIVE
|
|
|
Drive
modes |
Single Shooting,
Continuous shooting, Speed Priority Continuous shooting, Self-timer,
Self-timer (Cont.), Bracket: Single, Bracket: Cont., WB Bracket/DRO
Bracket |
|
Self-timer |
10 sec. delay/5 sec.
delay/2 sec. delay/Continuous self-timer (3 frames after 10 sec. delay/5
frames after 10 sec. delay/3 frames after 5 sec. delay/5 frames after 5
sec. delay/3 frames after 2 sec. delay/5 frames after 2 sec.
delay)/Bracketing self-timer (Off/2 sec. delay/5 sec. delay/10sec.
delay) |
|
Speed (approx.
max) |
Continuous mode:max.
2.5 fps; Speed Priority Continuous shooting: max. 5 fps
*5 |
|
No. of frame
recordable* (approx.) |
Speed Priority
Continuous shooting: JPEG Extra fine L: 64 frames, Continuous mode: JPEG
Extra fine L: 100 frames, Speed Priority Continuous shooting: JPEG Fine L:
200 frames, Continuous mode: JPEG Fine L: 200 frames, Speed Priority
Continuous shooting: JPEG Standard L: 200 frames *5
*6 |
|
Continuous mode: JPEG
Standard L: 200 frames, Speed Priority Continuous shooting: RAW: 31
frames, Continuous mode: RAW: 59 frames, Speed Priority Continuous
shooting: RAW&JPG: 26 frames, Continuous mode: RAW&JPG: 34 frames
*5 *6 |
|
Speed Priority
Continuous shooting: RAW(Uncompressed): 24 frames, Continuous mode:
RAW(Uncompressed): 29 frames, Speed Priority Continuous shooting:
RAW(Uncompressed)&JPG: 24 frames, Continuous mode:
RAW(Uncompressed)&JPG: 28 frames * 5*6 |
|
|
|
|
PLAYBACK
|
|
|
Modes |
Single (with or without
shooting information Y RGB histogram & highlight/shadow warning),
9/25-frame index view, Enlarged display mode (L: 13.3x, M: 8.7x, S: 6.7x,
Panorama (Standard): 25.6x, Panorama (Wide): 38.8x), Auto Review (10/5/2
sec,Off) |
|
Image orientation
(Auto/Manual/Off selectable), Slideshow, Panorama scrolling, Folder
selection (Date/ Still/ MP4/ AVCHD/XAVC S HD/XAVC S 4K), Forward/Rewind
(movie), Delete, Protect |
|
|
|
|
WI-FI
|
|
|
View on
Smartphone |
Yes |
|
Send to
Computer |
Yes |
|
View on
TV |
Yes |
|
|
|
|
NFC
|
|
|
One-touch
remote |
Yes |
|
One-touch
sharing |
Yes |
|
|
|
|
INTERFACE
|
|
|
PC
interface |
Mass-storage, MTP, PC
remote |
|
Multi / Micro USB
Terminal |
Yes
*7 |
|
NFC |
Yes (NFC forum Type 3
Tag compatible) |
|
Wireless
LAN(built-in) |
Yes (Wi-Fi Compatible,
IEEE 802.11b/g/n(2.4GHz band)) *8 |
|
HD
output |
HDMI micro connector
(Type-D), BRAVIA Sync(Control for HDMI), PhotoTV HD, 4K movie output/4K
still image PB |
|
Multi Interface
Shoe |
Yes
*9 |
|
Mic
Terminal |
Yes (3.5 mm Stereo
minijack) |
|
Remote
Control |
Yes (RMT-DSLR2 (sold
separately)) |
|
Headphone
Terminal |
Yes (3.5 mm Stereo
minijack) |
|
Vertical Grip
Connector |
Yes |
|
PC
Remote |
Yes |
|
|
|
|
AUDIO
|
|
|
Microphone |
Built-in stereo
microphone or XLR-K2M/XLR-K1M/ECM-XYST1M(sold
separately) |
|
Speaker |
Built-in,
monaural |
|
|
|
|
PRINT
|
|
|
Compatible
standards |
Exif Print, Print Image
Matching III, DPOF setting |
|
|
|
|
CUSTOM FUNCTION
|
|
|
Custom key
settings |
Yes |
|
Programmable
Setting |
Yes (Body 2 sets
/memory card 4 sets) |
|
|
|
|
LENS COMPENSATION
|
|
|
Lens
compensation |
Peripheral Shading,
Chromatic Aberration, Distortion |
|
|
|
|
POWER
|
|
|
Battery |
One rechargeable
battery pack NP-FW50 |
|
Still
images |
Approx. 310 shots
(Viewfinder) / approx. 370 shots (LCD monitor) (CIPA standard)
*10 |
|
Movies (actual
recording) |
Approx. 55 min
(Viewfinder)/ Approx. 60 min (LCD monitor) (CIPA standard) *11
*12 |
|
Movies (continuous
recording) |
Approx. 95 min
(Viewfinder)/ Approx. 100 min (LCD monitor) (CIPA standard) *11
*13 |
|
Internal battery
charge |
Yes |
|
USB power
supply |
Yes |
|
External
power |
AC Adaptor AC-PW20
(sold separately) |
|
|
|
|
POWER CONSUMPTION
|
|
|
With
Viewfinder |
Still images: approx.
3.0W(with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx.
4.9W(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
With LCD
screen |
Still images: approx.
2.5W(with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx.
4.6W(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
|
|
|
WEIGHT
|
|
|
With battery and Memory
Stick PRO Duo included (g) |
Approx. 627
g |
|
With battery and Memory
Stick PRO Duo included (oz.) |
Approx. 1 lb 6.1
oz |
|
Body only
(g) |
Approx. 584
g |
|
Body only
(oz.) |
Approx. 1 lb 4.6
oz |
|
|
|
|
DIMENSIONS
|
|
|
Excluding protrusions
(WxHxD) (mm) |
Approx. 126.9mm x
95.7mm x 60.3 mm |
|
Excluding protrusions
(WxHxD) (inch) |
Approx. 5 x 3 7/8 x 2
3/8 inches |
|
|
|
|
SUPPLIED ACCESSORY
|
|
|
Power
cord |
Yes |
|
Rechargeable Battery
NP-FW50 |
Yes |
|
Cable
Protector |
Yes |
|
AC Adaptor
AC-UD10 |
Yes |
|
Battery Charger
BC-VW1 |
Yes |
|
Shoulder
strap |
Yes |
|
Body
cap |
Yes |
|
Accessory shoe
cap |
Yes |
|
Eyepiece
cup |
Yes |
|
Micro USB
cable |
Yes |
Features and specifications are subject to change
without notice.
*1
When using phase-detection AF, limited lenses will be compatible initially.
Expansion is planned by body firmware update.
*2
Eye-Fi cards can be used only in the countries where they are purchased. Use
Eye-Fi cards in accordance with the law of the countries where the cards were
puchased.
*3
With compatible Sony external flash
*4
With compatible external flash
*5
Varies according to shooting conditions or memory card used
*6
Continuous drive (Hi) in Drive mode
*7
Supports Micro USB compatible device.
*8
(Configuration method/Access method) WPS or manually /infrastructure mode. When
connecting to smartphones, the camera can always work as a base without a
wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK)
*9
Sony accessories for the Accessory Shoe can be attached.
*10
The LCD screen is turned on, shot once every 30 seconds, operate zoom
alternately between W and T ends, flash strobe once every two times, turn power
off and on once every ten times.
*11
Continuous movie recording is possible for approximately 29 minutes (limited by
product specifications).
*12
Indication recording time, which is defined by repeating the cycle: Power on,
start recording, zoom , stand-by and power off.
*13
The total movie recording time. When the limit of the continuous movie recording
time (29 minutes) is reached, let the camera continue movie recording by
pressing the MOVIE button again. No other operation such as zoom are
performed.
|
|
|
|
10/05
|
Sony ILCE7RM2B Alpha a7R MKII Mirrorless Full Frame Digital Camera - Body Only - Black
- 42.4MP, 35mm Full-Frame EXMOR R CMOS Sensor, 399-Point AF, 5-Axis IS, ISO 102,400, 4K QFHD Video, Wi-FiFeatures
-
World's
first*1 42.4-megapixel*2 back-illuminated 35mm with full-frame EXMOR R™ CMOS
sensor delivers crisp resolution, high sensitivity and fast response
-
Fast
Hybrid AF system with 399-point wide focal plane phase-detection AF coverage
for sharp focus
-
5-axis
image stabilisation reduces blur for stills and movies - making every shot
crystal clear
-
Experience
high sensitivity of up to ISO 102400*3 with low-noise performance and wide
dynamic range
-
The
world's first digital camera to offer higher-resolution 4K (QFHD: 3840 x 2160)
movie reading featuring full pixel readout without pixel binning in Super 35mm
format
-
The
XGA OLED Tru-Finder with ZEISS® T* Coating is the world's largest*4
viewfinder, delivering a magnification of 0.78x for crystal clear image
preview and playback across the entire display area
*1 Among digital still cameras equipped with a 35mm full-frame
image sensor. As of June 2015 based on Sony research.
*2
Approximate effective megapixels.
*3
ISO 100-25600 expandable to ISO 50-102400 for shooting still images.
*4
Among digital still cameras. The viewfinder magnification is approx. 0.78x (with
50mm lens at infinity, -1m-1). As of June 2015 based on Sony
research.
Overview
 An
Incomparable New Image Sensor
The new alpha7R II is truly a game changer. Taking outstanding, high-quality
images have never been easier with the world's first*1back-illuminated
35mm full-frame CMOS image sensor, allowing the camera to deliver sharp and
clear shots. Boasting a stunning resolution of 42.4-megapixel*2,
prepare to watch your images come to life with powerful dynamism.
*1Among digital still cameras
equipped with a 35mm full-frame image sensor. As of June 2015 based on Sony
research.
*2Approximate effective
megapixels.
 Keep
Objects In Sharp Focus
Thanks to an advanced image sensor and AF algorithm, objects will always be
extremely sharp when you take pictures. The alpha7R II's Fast Hybrid AF system
delivers superior AF coverage, speed and tracking performance for well defined
focus within the entire frame.
 Say
Goodbye to Blurry Shots
Shaky shots are the bane of any photographer - especially when it comes to
handheld shots, unpredictable action or when you're in motion. The 7R II's
5-axis image stabilisation is fine-tuned to match the 42.4-megapixel*2performance,
so whether you're snapping faraway objects or capturing low-light scenes, you
will still enjoy full-frame glory with minimal blurriness at all times.
*2Approximate effective
megapixels.
 High
Sensitivity For Low Noise Performance
With high sensitivity up to ISO 102400*3,
you can feel assured even when working in low light conditions. Noise is
minimised to reveal finer details in all your images.
*3ISO 100-25600 expandable to
ISO 50-102400 for shooting still images.
 Higher-Resolution
4K Movie Recording
Optimised for recording 4K (QFHD: 3,840 x 2,160) movies, particularly in
super 35mm format, the 7R II processes readout data from every pixel without
pixel binning. The result? Visibly sharp, finer, more subtle detail than typical
4K movies. It's high resolution - but even better than before.
 World's
Highest Viewfinder Magnification
Thanks to a viewfinder magnification of 0.78x, the 7R II stands as a market
leader*4among
digital still cameras. The XGA OLED Tru-Finder provides views of cutting-edge
definition, contrast and depth throughout the entire display. ZEISS T* Coating
ensures absolutely minimal reflection on the viewfinder, so the 7R IIs
extraordinary 42.4-megapixel*2performance
is apparent at all times
*2Approximate effective
megapixels.
*4The viewfinder
magnification is approx. 0.78x (with 50mm lens at infinity, -1m-1). As of June
2015 based on Sony research.
BIONZ X™ Engine With Advanced Image Processing
Technologies
With heightened processing speed, BIONZ X™ image processor reproduces
textures and details in real life, and suppresses visual noise in specific areas
to ensure sharp images. This results in realistic images with rich tonal
gradations and a natural three-dimensional appearance, giving you sharp and
outstanding picture quality with every snap.
Silent Shooting
Silent Shooting features an electronic shutter that causes no vibration, so
you can shoot high-resolution images without camera shake. This mode also
operates without a sound, so it's very convenient for shooting without
disrupting indoor performances and outdoor wildlife, and in all other situations
where silence is essential.
Tough Magnesium Alloy Body
Designed for solid reliability and steady handling, the alpha7R II's compact
body is built to withstand the rigors of shooting in the field, thanks to an
internal structure and top, front, and rear covers all made of strong, rigid
magnesium alloy.
Wi-Fi®/NFC Simplifies Sharing
Sharing photos and movies is now easier with the One-Touch Sharing function.
Simply by touching the camera to an Android™ smartphone or tablet*5, you can
wirelessly transfer media from device to device. Made possible by built-in
Wi-Fi® and NFC (Near Field Communication) technology that also works with
pre-installed Smart Remote Control*6 to enable remote control of your camera
from the smartphone or tablet.
*5Requires installation of
the latest free downloadable PlayMemories Mobile app (www.sony.net/pmm/)
*6If the mobile device is not
compatible with NFC, the camera can still connect via Wi-Fi
PlayMemories Camera Apps Add Personal Touches
PlayMemories Mobile features easy-to-use camera apps that work seamlessly
together. "Smart Remote Control" allows you to control the camera with your
smartphone which you can transfer immediately to your smartphone or tablet using
"Sync to Smartphone". For that picture perfect shot every time, "My Best
Portrait" lets you adjust skin tone and smoothness for that flawless
complexion.
Compatible With Wide Range Of Mountable Lenses
5-axis image stabilisation lets you enjoy unparalleled handheld shooting
freedom with more of your favourite mountable lenses. The short flange-back
distance in the E-mount 7R II extends compatibility with a range of lenses.
Wide-Range Of Accessories
Professional level options open up new possibilities. Further expand your
shooting pleasure and give your photography a professional edge with accessories
specially designed for the alpha7R II.
Specifications
|
GENERAL |
|
|
Camera
type |
Interchangeable lens
digital camera |
|
Lens
compatibility |
Sony E-mount
lenses |
|
|
|
|
IMAGE SENSOR
|
|
|
Type |
35mm full frame
(35.924.0mm), "ExmorR" CMOS sensor |
|
Number of pixels
(effective) |
Approx. 42.4
megapixels |
|
Number of pixels
(total) |
Approx. 43.6
megapixels |
|
Image sensor aspect
ratio |
3:02 |
|
Color
filter |
R, G, B primary
color |
|
Anti-Dust
function |
Yes |
|
Anti-Dust
system |
Charge protection
coating on optical filter and image sensor shift
mechanism |
|
Anti-Dust operation
(auto) |
Cleaning
Mode |
|
|
|
|
RECORDING SYSTEM
(STILL IMAGE) |
|
|
Recording
format |
JPEG (DCF Ver. 2.0,
Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3
format) |
|
Image size (pixels)
[3:2] |
35mm full frame L: 7952
x 5304 (42M), M: 5168 x 3448 (18M), S: 3984 x 2656 (11M); APS-C L: 5168 x
3448 (18M), M: 3984 x 2656 (11M), S: 2592 x 1728
(4.5M) |
|
Image size (pixels)
[16:9] |
35mm full frame L: 7952
x 4472 (36M), M: 5168 x 2912 (15M), S: 3984 x 2240 (8.9M); APS-C L: 5168 x
2912 (15M), M: 3984 x 2240 (8.9M), S: 2592 x 1456
(3.8M) |
|
Image size (pixels)
[Sweep Panorama] |
Wide: horizontal 12,416
x 1,856 (23M), vertical 5,536 x 2,160 (12M), Standard: horizontal 8,192 x
1,856 (15M), vertical 3,872 x 2,160 (8.4M) |
|
Image quality
modes |
RAW, RAW & JPEG,
JPEG Extra fine, JPEG Fine, JPEG Standard |
|
14bit
RAW |
Yes |
|
Effect |
13 types: Posterization
(Color), Posterization (B/W), Pop Color, Retro Photo, Partial Color
(R/G/B/Y), High Contrast Monochrome, Toy
Camera(Normal/Cool/Warm/Green/Magenta) |
|
Soft High-key , Soft
Focus(High/Mid/Low), HDR Painting(High/Mid/Low), Rich-tone Monochrome,
Miniature(Auto/Top/Middle(H)/Bottom/Right/Middle(V)/Left), Watercolor,
Illustration(High/Mid/Low) |
|
Creative
Style |
Standard, Vivid,
Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene,
Autumn leaves, Black & White, Sepia,Style Box(1-6), (Contrast (-3 to
+3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3
steps)) |
|
Profile |
Yes (Off / PP1-PP7)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2), Black Gamma, Knee, Color Mode, Saturation, Color Phase,
Color Depth, Detail, Copy, Reset |
|
Dynamic Range
functions |
Off, Dynamic Range
Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure
Difference, Exposure Difference Level (1-6 EV, 1.0 EV
step)) |
|
Color
space |
sRGB standard (with
sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS
Color |
|
Delete |
Yes |
|
|
|
|
RECORDING SYSTEM
(MOVIE) |
|
|
Recording
format |
XAVC S, AVCHD format
Ver. 2.0 compliant, MP4 |
|
Video
compression |
XAVC S:MPEG-4
AVC/H.264, AVCHD: MPEG-4 AVC/H.264, MP4: MPEG-4
AVC/H.264 |
|
Audio recording
format |
XAVC S: LPCM 2ch;
AVCHD: Dolby Digital (AC-3) 2ch, Dolby Digital Stereo Creator; MP4: MPEG-4
AAC-LC 2ch |
|
Effect |
Posterization (Color),
Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High
Contrast Monochrome, Toy Camera(Normal/Cool/Warm/Green/Magenta), Soft
High-key |
|
Creative
Style |
Standard, Vivid,
Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene,
Autumn leaves, Black & White, Sepia,Style Box(1-6), (Contrast (-3 to
+3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3
steps)) |
|
Profile |
Yes (Off / PP1-PP7)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2), Black Gamma, Knee, Color Mode, Saturation, Color Phase,
Color Depth, Detail, Copy, Reset |
|
Color
space |
xvYCC standard
(x.v.Color when connected via HDMI cable) compatible with TRILUMINOS
Color |
|
|
|
|
MOVIE RECORDING
SYSTEM (XAVC S 4K) |
|
|
3840 x 2160 (30p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (25p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (24p,
100M) |
Approx.
100Mbps |
|
3840 x 2160 (30p,
60M) |
Approx.
60Mbps |
|
3840 x 2160 (25p,
60M) |
Approx.
60Mbps |
|
3840 x 2160 (24p,
60M) |
Approx.
60Mbps |
|
|
|
|
MOVIE RECORDING
SYSTEM (XAVC S HD) |
|
|
1280 x 720 (120p,
50M) |
Approx.
50Mbps |
|
1280 x 720 (100p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (60p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (50p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (30p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (25p,
50M) |
Approx.
50Mbps |
|
1920 x 1080 (24p,
50M) |
Approx.
50Mbps |
|
|
|
|
MOVIE RECORDING
SYSTEM (AVCHD) |
|
|
1920 x 1080 (60p, 28M,
PS) |
Approx. 28Mbps (Maximum
bit-rate) |
|
1920 x 1080 (50p, 28M,
PS) |
Approx. 28Mbps (Maximum
bit-rate) |
|
1920 x 1080 (60i, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (50i, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (60i, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (50i, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (24p, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (25p, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (24p, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (25p, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
|
|
|
MOVIE RECORDING
SYSTEM(AVC MP4) |
|
|
1920 x 1080 (60p,
28M) |
Approx.
28Mbps |
|
1920 x 1080 (50p,
28M) |
Approx.
28Mbps |
|
1920 x 1080 (30p,
16M) |
Approx.
16Mbps |
|
1920 x 1080 (25p,
16M) |
Approx.
16Mbps |
|
1280 x 720 (30p,
6M) |
Approx.
6Mbps |
|
1280 x 720 (25p,
6M) |
Approx.
6Mbps |
|
MOVIE FUNCTION
|
|
|
Audio Level
Display |
Yes |
|
Audio Rec
Level |
Yes |
|
PAL/NTSC
Selector |
Yes |
|
Dual Video
REC |
Yes |
|
TC/UB |
Yes (TC Preset/ UB
Preset/ TC Format/ TC Run/ TC Make/ UB Time Rec) |
|
AF Tracking
Duration |
Yes |
|
AF Drive
Speed |
Yes |
|
Auto Slow
Shutter |
Yes |
|
REC
Control |
Yes |
|
HDMI Info.
Display |
ON/OFF
selectable |
|
HDMI
Output |
3840 x 2160(25p), 1920
x 1080(50p), 1920 x 1080(50i), 1920 x 1080(24p), 1920 x 1080(60p), 1920 x
1080(60i), 3840 x 2160(30p), 3840 x 2160(24p), YCbCr 4:2:2 8bit / RGB
8bit |
|
|
|
|
RECORDING SYSTEM
|
|
|
Media |
Memory Stick PRO Duo,
Memory Stick PRO-HG Duo, Memory Stick Micro(M2), SD memory card, SDHC
memory card (UHS-I compliant), SDXC memory card (UHS-I compliant), microSD
memory card, microSDHC memory card, microSDXC memory
card |
|
Noise
reduction |
Long exposure NR:
On/Off, available at shutter speeds longer than 1 sec.; High ISO NR:
Normal/Low/Off |
|
Multi Frame
NR |
Auto/ISO 100 to
102400 |
|
|
|
|
WHITE BALANCE
|
|
|
Modes |
Auto/ Daylight/ Shade/
Cloudy/ Incandescent/ Fluorescent < Warm White/ Cool White/ Day White/
Daylight>/ Flash/ Underwater/ Color Temperature & color filter /
Custom |
|
AWB micro
adjustment |
Yes |
|
Bracketing |
3 frames, H/L
selectable |
|
|
|
|
FOCUS SYSTEM
|
|
|
Type |
Fast Hybrid
AF(phase-detection AF/contrast-detection AF) *5 |
|
Focus
sensor |
"ExmorR" CMOS
sensor |
|
Focus
point |
35mm full frame: 399
points (phase-detection AF), APS-C: 357 points (phase-detection AF)/ 25
points (contrast-detection AF) |
|
Sensitivity
range |
EV-2 to EV20 (ISO100
equivalent with F2.0 lens attached) |
|
AF
mode |
AF-A(Automatic AF),
AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus),
Manual Focus |
|
Focus
area |
Wide (399 points
(phase-detection AF), 25 points (contrast-detection AF))/ Zone/ Center/
Flexible Spot (S/M/L)/ Expanded Flexible Spot/ Lock-on AF ( Wide/ Zone/
Center/ Flexible Spot (S/M/L)/Expanded Flexible Spot) |
|
Eye-start
AF |
Yes (only with LA-EA2
or LA-EA4 attached(Sold separately)) |
|
Lock-on
AF |
Yes |
|
Eye
AF |
Yes |
|
Other
features |
Predictive control,
Focus lock |
|
AF
illuminator |
Yes (with Built-in LED
type) |
|
AF illuminator
range |
Approx. 0.3m - approx.
3.0m (with FE 28-70mm F3.5-5.6 OSS attached) |
|
AF micro
adjustment |
Yes (Sold separately)
with LA-EA2 or LA-EA4 |
|
|
|
|
EXPOSURE CONTROL
|
|
|
Metering
type |
1200-zone evaluative
metering |
|
Metering
sensor |
"ExmorR" CMOS
sensor |
|
Metering
sensitivity |
EV-3 to EV20 (at ISO100
equivalent with F2.0 lens attached) |
|
Modes |
Multi-segment,
Center-weighted, Spot |
|
Exposure
modes |
AUTO (iAuto/Superior
Auto), Programmed AE (P), Aperture priority (A), Shutter-speed priority
(S), Manual (M), Movie (Programmed AE (P)/ Aperture priority (A)/
Shutter-speed priority (S)/ Manual (M)), Sweep Panorama, Scene
Selection |
|
Scene
Selection |
Portrait, Sports
Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night
Portrait, Anti Motion Blur |
|
Exposure
compensation |
+/- 5.0EV(1/3 EV, 1/2
EV steps selectable) (with exposure compensation dial : +/- 3EV (1/3 EV
steps)) |
|
Bracketing |
Bracket: Cont.,
Bracket: Single, 3/5/9 frames selectable. With 3 or 5 frames, in 1/3, 1/2,
2/3, 1.0, 2.0, or 3.0 EV increments, with 9 frames, in 1/3, 1/2, 2/3, or
1.0 EV increments |
|
AE
Lock |
Locked when shutter
button is pressed halfway. Available with AE lock button.
(On/Off/Auto) |
|
ISO sensitivity
(Recommended Exposure Index) |
Still images: ISO
100-25600 (ISO numbers up from ISO 50 to ISO 102400 can be set as expanded
ISO range.), AUTO (ISO 100-6400, selectable lower limit and upper limit);
Movies: ISO 100-25600 equivalent, AUTO (ISO 100-6400, selectable lower
limit and upper limit) |
|
|
|
|
VIEWFINDER
|
|
|
Type |
1.3 cm (0.5 type)
electronic viewfinder (color) |
|
Number of
dots |
2,359,296
dots |
|
Brightness
control |
Auto/Manual (5 steps
between -2 and +2) |
|
Color temperature
control |
Manual (5
steps) |
|
Field
coverage |
100% |
|
Magnification |
Approx. 0.78x (with
50mm lens at infinity, -1m-1) |
|
Diopter
adjustment |
-4.0 to
+3.0m-1 |
|
Eye
point |
Approx. 23mm from the
eyepiece lens, 18.5mm from the eyepiece frame at -1m-1 (CIPA
standard) |
|
Display
Contents |
Graphic Display,
Display All Info., No Disp. Info., Digital Level Gauge,
Histogram |
|
|
|
|
LCD SCREEN
|
|
|
Type |
7.5cm (3.0-type) type
TFT |
|
Number of dots
(total) |
1,228,800
dots |
|
Brightness
control |
Manual (5 steps between
-2 and +2), Sunny Weather mode |
|
Adjustable
angle |
Up by approx. 107
degrees, Down by approx. 41 degrees |
|
WhiteMagic |
Yes |
|
Display
Contents |
Graphic Display,
Display All Info, No Disp. Info, Digital Level Gauge, Histogram, For
viewfinder |
|
Real-time
image-adjustment display |
On/Off |
|
Quick
Navi |
Yes |
|
Focus
Check |
Yes (Focus
Magnifier) |
|
Zebra |
Yes |
|
Peaking
MF |
Yes (Level setting:
High/Mid/Low/Off, Color: White/Red/Yellow) |
|
Marker
Display |
Yes (Center/ Aspect/
Safety Zone/ Guide frame) |
|
Grid
Line |
Yes (Rule of 3rds
Grid/Square Grid/Diag. + Square Grid/Off) |
|
|
|
|
FACE DETECTION
|
|
|
Modes |
On/ On (Regist. Faces)/
Off |
|
Face
registration |
Yes |
|
Face
selection |
Yes |
|
Max. number of
detectable |
8 |
|
|
|
|
AUTO OBJECT FRAMING
|
|
|
Still
images |
Yes |
|
|
|
|
OTHER FEATURES
|
|
|
Smile
Shutter |
Smile shutter
(selectable from 3 steps) |
|
ISO AUTO Min.
SS |
Yes |
|
Bright
Monitoring |
Yes |
|
Copyright
Info |
Yes |
|
PlayMemories Camera
Apps |
Yes |
|
Help
guide |
Yes |
|
Clock
Function,Setting |
Yes |
|
Area
Setting |
Yes |
|
Shop Front
Mode |
Yes |
|
Video Light
Mode |
Yes |
|
Zoom Ring
Rotate |
Yes |
|
Eye-Fi
ready |
Yes
*6 |
|
|
|
|
CLEAR IMAGE ZOOM
|
|
|
Still
images |
Approx.
2x |
|
Movies |
Approx.
2x |
|
|
|
|
DIGITAL ZOOM
|
|
|
Smart zoom (Still
images) |
35mm full frame: M:
approx. 1.5x, S: approx. 2x; APS-C: M: approx. 1.3x, S: approx.
2x |
|
Digital zoom (Still
images) |
35mm full frame: L:
approx. 4x, M: approx. 6.2x, S: approx. 8x; APS-C: L: approx. 4x, M:
approx. 5.2x, S: approx. 8x |
|
Digital zoom
(Movie) |
35mm full frame:
approx. 4x; APS-C: approx. 4x |
|
|
|
|
SHUTTER
|
|
|
Type |
Electronically-controlled,
vertical-traverse, focal-plane type |
|
Shutter
speed |
Still images: 1/8000 to
30 sec, Bulb, Movies: 1/8000 to 1/4(1/3 steps) up to 1/60 in AUTO mode (up
to 1/30 in Auto slow shutter mode) |
|
Flash sync.
speed |
1/250 sec.
*7 |
|
Electronic Front
Curtain Shutter |
Yes
(ON/OFF) |
|
Silent
Shooting |
Yes
(ON/OFF) |
|
|
|
|
STEADYSHOT INSIDE
(IMAGE STABILIZATION) |
|
|
Type |
Image Sensor-Shift
mechanism with 5-axis compensation (Compensation depends on lens
specifications) |
|
Compensation
effect |
4.5 steps (based on
CIPA standard. Pitch/yaw shake only. With Sonnar T* FE 55mm F1.8 ZA lens
mounted. Long exposure NR off.) |
|
|
|
|
FLASH
|
|
|
Control |
Pre-flash
TTL |
|
Flash
compensation |
+/- 3.0 EV (switchable
between 1/3 and 1/2 EV steps) |
|
Flash
bracketing |
3/5/9 frames
selectable. With 3 or 5 frames, in 1/3, 1/2, 2/3, 1.0, 2.0, 3.0 EV
increments, with 9 frames, in 1/3, 1/2, 2/3, 1.0 EV
increments |
|
Flash
modes |
Flash off, Autoflash,
Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable),
Wireless *8, Hi-speed sync. *8 |
|
External
flash |
Sony System Flash
compatible with Multi Interface Shoe, attach the shoe adaptor for flash
compatible with Auto-lock accessory shoe |
|
FE level
lock |
Yes |
|
|
|
|
DRIVE
|
|
|
Drive
modes |
Single Shooting,
Continuous shooting (Hi/Lo selectable), Self-timer, Self-timer (Cont.),
Bracket: Single, Bracket: Cont., White Balance bracket, DRO
bracket |
|
Self-timer |
10 sec. delay/5 sec.
delay/2 sec. delay/Continuous self-timer (3 frames after 10 sec. delay/5
frames after 10 sec. delay/3 frames after 5 sec. delay/5 frames after 5
sec. delay/3 frames after 2 sec. delay/5 frames after 2 sec.
delay)/Bracketing self-timer (Off/2 sec. delay/5 sec. delay/10sec.
delay) |
|
Speed (approx.,
max.) |
Continuous shooting:
Hi: max. 5 fps, Lo: max. 2.5 fps *9 |
|
No. of frame
recordable* (approx.) |
JPEG Extra fine L: 24
frames, JPEG Fine L: 30 frames, JPEG Standard L: 37 frames, RAW: 23
frames, RAW & JPG: 22 frames *9 *10 |
|
|
|
|
PLAYBACK
|
|
|
Modes |
Single (with or without
shooting information Y RGB histogram & highlight/shadow warning),
9/25-frame index view, Enlarged display mode (L: 24.9x, M: 16.2x, S:
12.5x, Panorama (Standard): 25.6x, Panorama (Wide): 38.8x), Auto Review
(10/5/2 sec, Off) |
|
Image orientation
(Auto/Manual/Off selectable), Slideshow, Panorama scrolling, Folder
selection (Date/ Still/ MP4/ AVCHD/ XAVC S HD/ XAVC S 4K), Forward/Rewind
(movie), Delete, Protect |
|
|
|
|
WI-FI
|
|
|
View on
Smartphone |
Yes |
|
Send to
Computer |
Yes |
|
View on
TV |
Yes |
|
|
|
|
NFC
|
|
|
One-touch
remote |
Yes |
|
One-touch
sharing |
Yes |
|
|
|
|
INTERFACE
|
|
|
PC
interface |
Mass-storage, MTP, PC
remote |
|
Multi / Micro USB
Terminal |
Yes
*11 |
|
NFC |
Yes (NFC forum Type 3
Tag compatible) |
|
Wireless LAN
(built-in) |
Yes (Wi-Fi Compatible,
IEEE 802.11b/g/n(2.4GHz band) ) *12 |
|
HD
output |
HDMI micro connector
(Type-D), BRAVIA Sync (Control for HDMI), PhotoTV HD, 4K movie output/ 4K
still image PB |
|
Multi Interface
Shoe |
Yes
*13 |
|
Mic
Terminal |
Yes (3.5 mm Stereo
minijack) |
|
Remote
Control |
Yes (RMT-DSLR2 (sold
separately)) |
|
Headphone
Terminal |
Yes (3.5 mm Stereo
minijack) |
|
Vertical Grip
Connector |
Yes |
|
PC
Remote |
Yes |
|
|
|
|
AUDIO
|
|
|
Microphone |
Built-in stereo
microphone or XLR-K2M/ XLR-K1M/ ECM-XYST1M (sold
separately) |
|
Speaker |
Built-in,
monaural |
|
|
|
|
PRINT
|
|
|
Compatible
standards |
Exif Print, Print Image
Matching III, DPOF setting |
|
|
|
|
CUSTOM FUNCTION
|
|
|
Custom key
settings |
Yes |
|
Programmable
Setting |
Yes (Body 2 sets/
memory card 4 sets) |
|
|
|
|
LENS COMPENSATION
|
|
|
Lens
compensation |
Peripheral Shading,
Chromatic Aberration, Distortion |
|
|
|
|
POWER
|
|
|
Battery |
One rechargeable
battery pack NP-FW50 |
|
Still
images |
Approx. 290 shots
(Viewfinder)/ Approx. 340 shots (LCD monitor) (CIPA standard)
*14 |
|
Movies (actual
recording) |
Approx. 50 min
(Viewfinder)/ Approx. 55 min (LCD monitor) (CIPA standard) *15
*16 |
|
Movies (continuous
recording) |
Approx. 95 min
(Viewfinder)/ Approx. 95 min (LCD monitor) (CIPA standard) *15
*17 |
|
Internal battery
charge |
Yes |
|
USB power
supply |
Yes |
|
External
power |
AC Adaptor AC-PW20
(sold separately) |
|
|
|
|
POWER CONSUMPTION
|
|
|
With
Viewfinder |
Still images: Approx.
3.2W (with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: Approx. 4.9W
(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
With LCD
screen |
Still images: Approx.
2.7W (with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: Approx. 4.9W
(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
|
|
|
WEIGHT
|
|
|
With battery and Memory
Stick PRO Duo included (g) |
Approx. 625
g |
|
With battery and Memory
Stick PRO Duo included (oz.) |
Approx. 1 lb 6.0
oz |
|
Body only
(g) |
Approx. 582
g |
|
Body only
(oz.) |
Approx. 1 lb 4.5
oz |
|
|
|
|
DIMENSIONS
|
|
|
Excluding protrusions
(WxHxD) (mm) |
Approx. 126.9 x 95.7 x
60.3 mm |
|
Excluding protrusions
(WxHxD) (inch) |
Approx. 5 x 3 7/8 x 2
3/8 inches |
|
|
|
|
SUPPLIED ACCESSORY
|
|
|
Power
cord |
Yes |
|
Rechargeable Battery
NP-FW50 |
Yes |
|
Cable
Protector |
Yes |
|
AC Adaptor
AC-UD10 |
Yes |
|
Battery Charger
BC-VW1 |
Yes |
|
Shoulder
strap |
Yes |
|
Body
cap |
Yes |
|
Accessory shoe
cap |
Yes |
|
Eyepiece
cup |
Yes |
|
Micro USB
cable |
Yes |
Features and specifications are subject to change
without notice.
*1
When using phase-detection AF, limited lenses will be compatible initially.
Expansion is planned by body firmware update.
*2
Eye-Fi cards can be used only in the countries where they are purchased. Use
Eye-Fi cards in accordance with the law of the countries where the cards were
puchased.
*3
With compatible Sony external flash
*4
With compatible external flash
*5
Varies according to shooting conditions or memory card used
*6
Continuous drive (Hi) in Drive mode
*7
Supports Micro USB compatible device.
*8
(Configuration method/Access method) WPS or manually /infrastructure mode. When
connecting to smartphones, the camera can always work as a base without a
wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK)
*9
Sony accessories for the Accessory Shoe can be attached.
*10
The LCD screen is turned on, shot once every 30 seconds, operate zoom
alternately between W and T ends, flash strobe once every two times, turn power
off and on once every ten times.
*11
Continuous movie recording is possible for approximately 29 minutes (limited by
product specifications).
*12
Indication recording time, which is defined by repeating the cycle: Power on,
start recording, zoom , stand-by and power off.
*13
The total movie recording time. When the limit of the continuous movie recording
time (29 minutes) is reached, let the camera continue movie recording by
pressing the MOVIE button again. No other operation such as zoom are
performed
|
|
|
|
10/05
|
Sony ILCE7M2B Alpha a7 MKII Mirroless Full Frame Digital Camera - Body Only - Black
- 24.3MP, 35mm Full Frame "Exmor" CMOS Sensor, 7.5cm (3.0-type) TFT LCD, 1/8000, ISO 100-25600, Wi-FiFeatures
-
Eliminate
shaky photos with the 5-axis image stabilization - the world's first*1
full-frame camera with such capabilities
-
The
high performance fast hybrid autofocus allows for rapid, accurate subject
tracking, making for a smoother photographic experience
-
The
24.3-megapixel*2 35mm full-frame Exmor™ CMOS sensor delivers incredible
high-resolution images, with superb sensitivity even in low light
conditions
-
The
BIONZ X™ image processing engine delivers stunning detail reproduction and
minimises noise for clear, precise shooting
-
Professional
video features such as XAVC-S*3 recording and excellent audio capabilities
make quality movie making possible
-
Experience
enhanced connectivity with the NFC and Wifi capabilities, as well as Sony's
PlayMemories Camera Applications*4
*1 Among 35 mm full-frame interchangeable-lens cameras,
according to Sony research as of November 2014.
*2
Approximate effective megapixels
*3
XAVC-S recording requires an SDXC memory card rated at Class 10 or higher.
*4
Requires a valid Sony Entertainment Network account. Some apps require a fee.
Availability of PlayMemories Camera Apps and each app varies according to
country or region.
Overview
Incredibly Sharp Images, Every Time
Say goodbye to fuzzy photos with the 7 II - the world's first* full-frame
camera with 5-axis stabilisation. The movement of the full-frame image sensor
allows the alpha7 II to detect and compensate for five types of camera shake,
including roll, pitch and yaw, as well as horizontal and vertical shake,
eliminating any blurry photos that may occur when shooting in sub-optimal
conditions. Plus, the live view functionality allows you to see the corrected
images on the screen, so you can fine tune each shot even when using a telephoto
or macro lens with this interchangeable lens camera. Now, you
can be sure of pin-sharp photos, even sans tripod.
* Among 35 mm full-frame interchangeable-lens cameras according
to Sony research as of November 2014.
Speedy Subject Tracking For Precision Photo-taking
The alpha7 II's newly-enhanced Fast Hybrid AF System is both 30% faster and
1.5 times more accurate than its predecessor, delivering speedy, reliable
tracking that you can always depend on. It makes use of the wide-area 117-point
focal plane phase detection AF sensor, 25 high-precision contrast-detection AF,
and advanced algorithms to accurately detect and focus on subject positions -
even while they are in motion. No more unintentionally out-of-focus
captures.
Capture Stunning High-Resolution Images With Superb
Sensitivity
The 24.3-megapixel* 35mm full-frame Exmor CMOS sensor delivers extraordinary
image quality. Be prepared for superb sensitivity, a wide dynamic range, and
minimal noise throughout the ISO spectrum, made possible thanks to the high
resolution and larger pixel sizes. The full-frame sensor also allows for
impressively-rendered photos and beautiful bokeh effects.
* Approximate effective megapixels
 Sony is the world's No. 1 manufacturer of image sensors for digital
cameras and video recorders (based on Sony research from April 2012 to March
2013 that shows Sony has a 50% market share)
Beautiful Detail Reproduction In Every Shot
The BIONZ X™ image processor's ability to handle huge amounts of
high-resolution data facilitates the faithful reproduction of natural-looking
textures and details for remarkably realistic images. Diffraction reduction
technology makes it possible to capture fine details even with small aperture
settings, while area specific noise reduction renders noise almost
imperceptible, even in low light conditions.
Advanced Features For Professional-grade Movie
Production
Take incredible Full HD videos at a high bit rate of 50Mbps with the XAVC-S*
video recording capabilities. Adjust the tone of your videos using the
convenient Picture Profiles function, and use the wide dynamic range created by
the advanced S-Log2 gamma to make the most of the rich detail in your videos.
Plus, Sony's unrivalled sound expertise manifests itself in 32 precise levels of
recording, including real-time and lip-sync settings, so you can make movies
just like the pros.
* XAVC-S recording requires an SDXC memory card rated at Class
10 or higher.
Advanced
Connectivity On The Go
|
Link up your mobile phone to your 7 II via Wi-Fi or NFC and expand your
photo-taking capabilities. Install Sony's PlayMemories Camera Applications* and
the possibilities become endless. Manually set correction values for lens
peripheral shading, chromatic aberration, and more!
* Requires a valid Sony Entertainment Network account. Some apps
require a fee. Availability of PlayMemories Camera Apps and each app varies
according to country or region.
Exceptionally Compact And Lightweight Body
As the saying goes; good things come in small packages. The 7 II is light,
compact, and packs a powerful punch. Achieve outstanding image quality, no
matter where you go.
High-Contrast, High-Resolution XGA OLED Tru-Finder
With its high contrast capabilities and incredibly high resolution, the XGA
OLED Tru-Finder viewfinder faithfully reproduces captured shots, an essential
function for minute adjustments and fine-tuned focusing. Plus, its APS-C
compatibility allows for full-coverage viewing even when APS-C lenses are
used.
Convenient Tiltable LCD Screen
Never worry about the sun's glare on your LCD screen again. Sony's White
Magic™ screen allows for exceptional visibility under intense sunlight. Plus,
the tiltable screen conveniently lets you view your photos from any angle.
Meticulously Crafted Controls With Enhanced Grip And Shutter
Button
Experience greater comfort and stability with the new enhanced grip on the 7
II. Its adjusted height and shape helps keep the camera steady even when using a
bulky telephoto lens. Plus, the shutter button has been enlarged and shifted
forwards for more natural shooting. Don't forget the ten customisable buttons -
they can be assigned to any of 56 different functions.
Rigidity Of Camera (Robust Magnesium Alloy Body + Robust Lens
Mount)
Designed to be both durable and lightweight, the robust magnesium body and
lens mount allows for easy handling of large and heavy lenses, including
telephoto and video lenses. Now you can take your camera on an adventure without
worry.
Dust & Moisture Resistant
Intrepid explorers can rest easy - the main buttons and dials on the alpha7
II have been sealed to keep out moisture and dust, with interlocking dual-layer
covers and body seams for extra protection. Whether you're hiking up the
Himalayas or frolicking on the beach, your camera will stay safe and sound.
Compatible With Wide Range of Mountable Lenses
New 5-axis stabilisation lets you enjoy unparalleled handheld shooting
freedom with more of your favourite mountable lenses. The short flange-back
distance in the E-mount 7 II contributes to broaden lens compatibility.
Wide-range Of Accessories
No photographer's arsenal is complete without a host of accessories. Sony has
a number that are specially designed for the 7 II, including carrying cases and
replacement eye-piece cups. Shutterbugs who prize stability will also like the
VG-C2EM Vertical Grip, which enhances stability and camera control.
* When using a third-party mount adapter, performance,
functionality and operation are not guaranteed and Sony will take no
responsibility if a malfunction occurs.
Specifications
|
GENERAL |
|
|
Camera
type |
Interchangeable lens
digital camera |
|
Lens
compatibility |
Sony E-mount
lenses |
|
|
|
|
IMAGE SENSOR
|
|
|
Type |
35mm full frame
(35.823.9mm), "Exmor" CMOS sensor |
|
Number of pixels
(effective) |
Approx. 24.3
megapixels |
|
Number of pixels
(total) |
Approx. 24.7
megapixels |
|
Image sensor aspect
ratio |
3:02 |
|
Color
filter |
R, G, B primary
color |
|
Anti-Dust
function |
Yes |
|
Anti-Dust
system |
Charge protection
coating on optical filter and image sensor shift
mechanism |
|
Anti-Dust operation
(auto) |
JPEG (DCF Ver. 2.0,
Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3
format) |
|
|
|
|
RECORDING SYSTEM
(STILL IMAGE) |
|
|
Recording
format |
JPEG (DCF Ver. 2.0,
Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3
format) |
|
Image size (pixels)
[3:2] |
35mm full frame L: 6000
x 4000 (24M), M: 3936 x 2624 (10M), S: 3008 x 2000 (6.0M); APS-C L: 3936 x
2624 (10M), M: 3008 x 2000 (6.0M), S: 1968 x 1312
(2.6M) |
|
Image size (pixels)
[16:9] |
35mm full frame L: 6000
x 3376 (20M), M: 3936 x 2216 (8.7M), S: 3008 x 1688 (5.1M); APS-C L: 3936
x 2216 (8.7M), M: 3008 x 1688 (5.1M), S: 1968 x 1112
(2.2M) |
|
Image size (pixels)
[Sweep Panorama] |
Wide: horizontal 12,416
x 1,856 (23M), vertical 5,536 x 2,160 (12M), Standard: horizontal 8,192 x
1,856 (15M), vertical 3,872 x 2,160 (8.4M) |
|
Image quality
modes |
RAW, RAW & JPEG,
JPEG Extra fine, JPEG Fine, JPEG Standard |
|
14bit
RAW |
Yes |
|
Effect |
Posterization (Color),
Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High
Contrast Monochrome, Toy Camera(Normal/Cool/Warm/Green/Magenta), Soft
High-key |
|
Soft
Focus(High/Mid/Low), HDR Painting(High/Mid/Low), Rich-tone Monochrome,
Miniature(Auto/Top/Middle(H)/Bottom/Right/Middle(V)/Left), Watercolor,
Illustration(High/Mid/ Low) |
|
Profile |
Yes (Off / PP1-PP7)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2), Black Gamma, Knee, Color Mode, Saturation, Color Phase,
Color Depth, Detail, Copy, Reset |
|
Dynamic Range
functions |
Off, Dynamic Range
Optimizer (Auto/Level (1-5)), Auto High Dynamic Range (Auto Exposure
Difference, Exposure Difference Level (1-6 EV, 1.0 EV
step)) |
|
Color
space |
sRGB standard (with
sYCC gamut) and Adobe RGB standard compatible with TRILUMINOS
Color |
|
Delete |
Yes |
|
|
|
|
RECORDING SYSTEM
(MOVIE) |
|
|
Recording
format |
XAVC S, AVCHD format
Ver. 2.0 compliant, MP4 |
|
Video
compression |
XAVC S:MPEG-4
AVC/H.264, AVCHD: MPEG-4 AVC/H.264, MP4: MPEG-4
AVC/H.264 |
|
Audio recording
format |
XAVC S:LPCM 2ch, AVCHD:
Dolby Digital (AC-3) 2ch, Dolby Digital Stereo Creator, MP4: MPEG-4 AAC-LC
2ch |
|
Effect |
Posterization (Color),
Posterization (B/W), Pop Color, Retro Photo, Partial Color (R/G/B/Y), High
Contrast Monochrome, Toy Camera(Normal/Cool/Warm/Green/Magenta), Soft
High-key |
|
Creative
Style |
Standard, Vivid,
Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene,
Autumn leaves, Black & White, Sepia,Style Box(1-6), (Contrast (-3 to
+3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3
steps)) |
|
Profile |
Yes (Off / PP1-PP7)
Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709
[800%], S-Log2), Black Gamma, Knee, Color Mode, Saturation, Color Phase,
Color Depth, Detail, Copy, Reset |
|
Color
space |
xvYCC standard
(x.v.Color when connected via HDMI cable) compatible with TRILUMINOS
Color |
|
|
|
|
MOVIE RECORDING
SYSTEM (XAVC S) |
|
|
1920 x 1080 (60p,
50M) |
Approx. 50Mbps (Average
bit-rate) |
|
1920 x 1080 (50p,
50M) |
Approx. 50Mbps (Average
bit-rate) |
|
1920 x 1080 (30p,
50M) |
Approx. 50Mbps (Average
bit-rate) |
|
1920 x 1080(25p,
50M) |
Approx. 50Mbps (Average
bit-rate) |
|
1920 x 1080 (24p,
50M) |
Approx. 50Mbps (Average
bit-rate) |
|
|
|
|
MOVIE RECORDING
SYSTEM (AVCHD) |
|
|
1920 x 1080 (60p, 28M,
PS) |
Approx. 28Mbps (Maximum
bit-rate) |
|
1920 x 1080 (50p, 28M,
PS) |
Approx. 28Mbps (Maximum
bit-rate) |
|
1920 x 1080 (60i, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (50i, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (60i, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (50i, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (24p, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (25p, 24M,
FX) |
Approx. 24Mbps (Maximum
bit-rate) |
|
1920 x 1080 (24p, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
1920 x 1080 (25p, 17M,
FH) |
Approx. 17Mbps (Average
bit-rate) |
|
|
|
|
MOVIE RECORDING
SYSTEM(AVC MP4) |
|
|
1440 x 1080
(30fps) |
Approx.12Mbps (Average
bit-rate) |
|
1440 x 1080
(25fps) |
Approx. 12Mbps (Average
bit-rate) |
|
VGA (640 x 480,
30fps) |
Approx. 3Mbps (Average
bit-rate) |
|
VGA (640 x 480,
25fps) |
Approx. 3Mbps (Average
bit-rate) |
|
|
|
|
MOVIE FUNCTION
|
|
|
Audio Level
Display |
Yes |
|
Audio Rec
Level |
Yes |
|
PAL/NTSC
Selector |
Yes |
|
Dual Video
REC |
Yes |
|
TC/UB |
Yes(TC Preset/UB
Preset/TC Format/TC Run/TC Make/UB Time Rec) |
|
Auto Slow
Shutter |
Yes |
|
REC
Control |
Yes |
|
HDMI Info.
Display |
On/Off
Selectable |
|
HDMI
Output |
1920 x 1080(50p), 1920
x 1080(50i), 1920 x 1080(24p), 1920 x 1080(60p), 1920 x 1080(60i), YCbCr
4:2:2 8bit / RGB 8bit |
|
|
|
|
RECORDING SYSTEM
|
|
|
Media |
Memory Stick PRO Duo,
Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD memory card, SDHC
memory card (UHS-I compliant), SDXC memory card (UHS-I
compliant) |
|
Noise
reduction |
Long exposure NR:
On/Off, available at shutter speeds longer than 1 sec., High ISO NR:
Normal/Low/Off |
|
Multi Frame
NR |
Auto/ISO 100 to
51200 |
|
|
|
|
WHITE BALANCE
|
|
|
Modes |
Auto/ Daylight/ Shade/
Cloudy/ Incandescent/ Fluorescent < Warm White/ Cool White/ Day White/
Daylight>/ Flash / Underwater/ Color Temperature & color filter /
Custom |
|
AWB micro
adjustment |
Yes |
|
Bracketing |
3 frames, H/L
selectable |
|
|
|
|
FOCUS SYSTEM
|
|
|
Type |
Fast Hybrid
AF(phase-detection AF/contrast-detection AF)*5 |
|
Focus
sensor |
"Exmor" CMOS
sensor |
|
Focus
point |
35mm full frame: 117
points (phase-detection AF), APS-C: 99 points (phase-detection AF)/ 25
points (conotrast-detection AF) |
|
Sensitivity
range |
EV-1 to EV20 (ISO100
equivalent with F2.0 lens attached) |
|
AF
mode |
AF-S (Single-shot AF),
AF-C ( Continuous AF), DMF (Direct Manual Focus), Manual
Focus |
|
Focus
area |
Wide (117 points
(phase-detection AF), 25 points(contrast-detection AF))/ Zone/ Center/
Flexible Spot (S/M/L)/ Lock-on AF ( Wide/ Zone/ Center/ Flexible Spot
(S/M/L)) |
|
Eye-start
AF |
Yes (only with LA-EA2
or LA-EA4 attached(Sold separately)) |
|
Lock-on
AF |
Yes |
|
Eye
AF |
Yes |
|
Other
features |
Predictive control,
Focus lock |
|
AF
Illuminator |
Yes(with Built-in LED
type) |
|
AF Illuminator
range |
Approx. 0.3m - approx.
3.0m (with FE 28-70mm F3.5-5.6 OSS attached) |
|
AF micro
adjustment |
Yes, (Sold separately)
with LA-EA2 or LA-EA4 |
|
|
|
|
EXPOSURE CONTROL
|
|
|
Metering
type |
1200-zone evaluative
metering |
|
Metering
sensor |
"Exmor" CMOS
sensor |
|
Metering
sensitivity |
EV-1 to EV20 (at ISO100
equivalent with F2.0 lens attached) |
|
Modes |
Multi-segment,
Center-weighted, Spot |
|
Exposure
modes |
AUTO(iAuto/Superior
Auto), Programmed AE(P), Aperture priority(A), Shutter-speed priority(S),
Manual(M), Movie (Programmed AE(P)/ Aperture priority(A)/ Shutter-speed
priority(S)/ Manual (M)), Sweep Panorama, Scene
Selection |
|
Scene
Selection |
Portrait, Sports
Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night
Portrait, Anti Motion Blur |
|
Exposure
compensation |
+/- 5.0EV(1/3 EV, 1/2
EV steps selectable)(with exposure compensation dial : +/- 3EV (1/3 EV
steps)) |
|
Bracketing |
Bracket: Cont./Bracket:
Single, With 1/3 EV, 1/2 EV, 2/3 EV, 1.0 EV, 2.0 EV, 3.0 EV increments,
3/5 frames selectable |
|
AE
Lock |
Locked when shutter
button is pressed halfway. Available with AE lock button.
(On/Off/Auto) |
|
ISO sensitivity
(Recommended Exposure Index) |
Still images: ISO
100-25600 equivalent (1/3 EV step), (ISO numbers up from ISO 50 can be set
as expanded ISO range.), AUTO (ISO 100-6400, selectable lower limit and
upper limit), Movies: ISO 200-25600 equivalent (1/3 EV step)/ AUTO (ISO
200-6400, selectable lower limit and upper limit) |
|
|
|
|
VIEWFINDER
|
|
|
Type |
1.3 cm (0.5 type)
electronic viewfinder (color) |
|
Number of
dots |
2,359,296
dots |
|
Brightness
control |
Auto/Manual (5 steps
between -2 and +2) |
|
Color temperature
control |
Manual (5
steps) |
|
Field
coverage |
100% |
|
Magnification |
Approx. 0.71 x (with
50mm lens at infinity, -1m-1) |
|
Diopter
adjustment |
-4.0 to
+3.0m-1 |
|
Eye
point |
Approx. 27mm from the
eyepiece lens, 22mm from the eyepiece frame at -1m-1 (CIPA
standard) |
|
Display
Contents |
Graphic Display,
Display All Info., No Disp. Info., Digital Level Gauge,
Histogram |
|
|
|
|
LCD SCREEN
|
|
|
Type |
7.5cm (3.0-type) type
TFT |
|
Number of dots
(total) |
1,228,800
dots |
|
Brightness
control |
Manual (5 steps between
-2 and +2), Sunny Weather mode |
|
Adjustable
angle |
Up by approx. 107
degrees, Down by approx. 41 degrees |
|
WhiteMagic |
Yes |
|
Display
Contents |
Graphic Display,
Display All Info, No Disp. Info, Digital Level Gauge, Histogram for
viewfinder |
|
Real-time
image-adjustment display |
On/Off |
|
Quick
Navi |
Yes |
|
Focus
Check |
Yes Focus Magnifier
(35mm full frame: 5.9x, 11.7x, APS-C: 3.8x, 7.7x) |
|
Zebra |
Yes |
|
Peaking
MF |
Yes (Level setting:
High/Mid/Low/Off, Color: White/Red/Yellow) |
|
Marker
Display |
Yes(Center/Aspect/Safety
Zone/Guideframe) |
|
Grid
Line |
Yes(Rule of 3rds
Grid/Square Grid/Diag. + Square Grid/Off) |
|
|
|
|
FACE DETECTION
|
|
|
Modes |
On/On (Regist.
Faces)/Off |
|
Face
registration |
Yes |
|
Face
selection |
Yes |
|
Max. number of
detectable |
8 |
|
|
|
|
AUTO OBJECT FRAMING
|
|
|
Still
images |
Yes |
|
|
|
|
OTHER FEATURES
|
|
|
Smile
Shutter |
Smile shutter
(selectable from 3 steps) |
|
Play Memories Camera
Apps |
Yes |
|
Help
guide |
Yes |
|
Clock Function,
Setting |
Yes |
|
Area
Setting |
Yes |
|
Shop Front
Mode |
Yes |
|
Zoom Ring
Rotate |
Yes |
|
Eye-Fi
ready |
Yes*6 |
|
|
|
|
CLEAR IMAGE ZOOM
|
|
|
Still
images |
Approx.
2x |
|
Movies |
Approx.
2x |
|
|
|
|
DIGITAL ZOOM
|
|
|
Smart zoom (Still
images) |
35mm full frame:
M:approx 1.5x, S:approx 2x, APS-C: M:approx 1.3x, S:approx
2x |
|
Digital zoom (Still
images) |
35mm full frame:
L:approx 4x, M:approx 6.1x, S:approx 8x, APS-C: L:approx 4x, M:approx
5.2x, S:approx 8x |
|
Digital zoom
(Movie) |
35mm full frame: approx
4x, APS-C: approx 4x |
|
|
|
|
SHUTTER
|
|
|
Type |
Electronically-controlled,
vertical-traverse, focal-plane type |
|
Shutter
speed |
Still images:1/8000 to
30 sec, Bulb, Movies: 1/8000 to 1/4(1/3 steps), up to 1/60 in AUTO mode
(up to 1/30 in Auto slow shutter mode) |
|
Flash sync.
speed |
1/250
sec.*7 |
|
Electronic Front
Curtation shutter |
Yes(On/Off) |
|
|
|
|
STEADYSHOT INSIDE
(IMAGE STABILIZATION) |
|
|
Type |
Image Sensor-Shift
mechanism with 5-axis compensation (Compensation depends on lens
specifications) |
|
Compensation
effect |
4.5 steps (based on
CIPA standard. Pitch/yaw shake only. With Sonnar T* FE 55mm F1.8 ZA lens
mounted. Long exposure NR off.) |
|
|
|
|
FLASH
|
|
|
Control |
Pre-flash
TTL |
|
Flash
compensation |
+/- 3.0 EV (switchable
between 1/3 and 1/2 EV steps) |
|
Flash
bracketing |
1/3, 1/2, 2/3, 1.0,
2.0, 3.0 EV steps, 3/5 frames selectable |
|
Flash
modes |
Flash off, Autoflash,
Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (on/off selectable),
Wireless*8 , Hi-speed sync.*8 |
|
External
flash |
Sony System Flash
compatible with Multi Interface Shoe, attach the shoe adaptor for flash
compatible with Auto-lock accessory shoe |
|
FE level
lock |
Yes |
|
|
|
|
DRIVE
|
|
|
Drive
modes |
Single Shooting,
Continuous shooting (Hi/Lo selectable), Self-timer (10/2 sec delay
selectable), Self-timer (Cont.)(with 10 sec delay 3/5 frames selectable),
Bracket: Single, Bracket: Cont., White Balance bracket, DRO
bracket |
|
Speed (Approx.,
max.) |
Continuous shooting:
Hi: max. 5 fps, Lo: max. 2.5 fps*9 |
|
No. of frame
recordable* (approx.) |
(Continuous shooting
Hi: JPEG Extra fine L: 50 frames, Continuous mode Lo: JPEG Extra fine L:
69 frames, Continuous shooting Hi: JPEG Fine L: 77 frames, Continuous mode
Lo: JPEG Fine L: 200 frames, Continuous shooting Hi: JPEG Standard L: 80
frames)*9 *10 |
|
|
(Continuous mode Lo:
JPEG Standard L: 200 frames, Continuous shooting Hi: RAW: 25 frames,
Continuous mode Lo: RAW: 30 frames, Continuous shooting Hi: RAW&JPG:
23 frames, Continuous mode Lo: RAW&JPG: 27 frames)*9
*10 |
|
|
|
|
PLAYBACK
|
|
|
Modes |
Single (with or without
shooting information Y RGB histogram & highlight/shadow warning),
9/25-frame index view, Enlarged display mode (L: 18.8x, M: 12.3x, S: 9.4x,
Panorama (Standard): 25.6x, Panorama (Wide): 38.8x) |
|
|
Auto Review (10/5/2
sec,Off), Image orientation (Auto/Manual/Off selectable), Slideshow,
Panorama scrolling, Folder selection (Date/ Still/ MP4/ AVCHD/XAVC S),
Forward/Rewind (movie), Delete, Protect |
|
|
|
|
WI-FI
|
|
|
View on
Smartphone |
Yes |
|
Send to
Computer |
Yes |
|
View on
TV |
Yes |
|
NFC |
|
|
One-touch
remote |
Yes |
|
One-touch
sharing |
Yes |
|
|
|
|
INTERFACE
|
|
|
PC
interface |
Mass-storage, MTP, PC
remote |
|
Multi / Micro USB
Terminal |
Yes*11 |
|
NFC |
Yes (NFC forum Type 3
Tag compatible) |
|
Wireless
LAN(built-in) |
Yes(Wi-Fi Compatible,
IEEE 802.11b/g/n(2.4GHz band))*12 |
|
HD
output |
HDMI micro connector
(Type-D), BRAVIA Sync(Control for HDMI), PhotoTV HD, 4K Still Image
PB |
|
Multi Interface
Shoe |
Yes*13 |
|
Mic
Terminal |
Yes(3.5 mm Stereo mini
jack) |
|
Remote
Control |
Yes(RMT-DSLR2 (sold
separately)) |
|
Headphone
Terminal |
Yes(3.5 mm Stereo mini
jack) |
|
Vertical Grip
Connector |
Yes |
|
PC
Remote |
Yes |
|
|
|
|
AUDIO
|
|
|
Microphone |
Built-in stereo
microphone or XLR-K2M/ECM-XYST1M(sold separately) |
|
Speaker |
Built-in,
monaural |
|
|
|
|
PRINT
|
|
|
Compatible
standards |
Exif Print, Print Image
Matching III, DPOF setting |
|
|
|
|
CUSTOM FUNCTION
|
|
|
Custom key
settings |
Yes |
|
Programmable
Setting |
Yes (Body 2 sets
/memory card 4 sets) |
|
|
|
|
LENS COMPENSATION
|
|
|
Lens
compensation |
Peripheral Shading,
Chromatic Aberration, Distortion |
|
|
|
|
POWER
|
|
|
Battery |
One rechargeable
battery pack NP-FW50 |
|
Still
images |
Approx. 270 shots
(Viewfinder)/ Approx. 350 shots (LCD monitor)(CIPA
standard)*14 |
|
Movies (actual
recording) |
Approx. 60 min
(Viewfinder)/ Approx. 65 min (LCD monitor)(CIPA standard)*15
*16 |
|
Movies (continuous
recording) |
Approx. 100 min
(Viewfinder)/ Approx. 100 min (LCD monitor)(CIPA standard)*15
*17 |
|
Internal battery
charge |
Yes |
|
External
power |
AC Adaptor AC-PW20
(sold separately) |
|
|
|
|
POWER CONSUMPTION
|
|
|
With
Viewfinder |
Still images: approx.
3.5W(with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx.
4.2W(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
With LCD
screen |
Still images: approx.
2.6W(with FE 28-70mm F3.5-5.6 OSS lens attached), Movies: approx.
4.2W(with FE 28-70mm F3.5-5.6 OSS lens attached) |
|
|
|
|
WEIGHT
|
|
|
With battery and Memory
Stick PRO Duo included (g) |
Approx. 599
g |
|
With battery and Memory
Stick PRO Duo included (oz.) |
Approx. 1 lb 5.1
oz |
|
Body only
(g) |
Approx. 556
g |
|
Body only
(oz.) |
Approx. 1 lb 3.6
oz |
|
|
|
|
DIMENSIONS
|
|
|
Excluding protrusions
(WxHxD) (mm) |
Approx. 126.9 x 95.7 x
59.7 mm |
|
Excluding protrusions
(WxHxD) (inch) |
Approx. 5 x 3 7/8 x 2
3/8 inches |
|
|
|
|
SUPPLIED ACCESSORY
|
|
|
Power
cord |
Yes |
|
Rechargeable Battery
NP-FW50 |
Yes |
|
AC Adaptor
AC-UD10 |
Yes |
|
Shoulder
strap |
Yes |
|
Body
cap |
Yes |
|
Accessory shoe
cap |
Yes |
|
Eyepiece
cup |
Yes |
|
Micro USB
cable |
Yes |
Features and specifications are subject to change without
notice.
*5
When using phase-detection AF, limited lenses will be compatible initially.
Expansion is planned by body firmware update.
*6
Eye-Fi cards can be used only in the countries where they are purchased. Use
Eye-Fi cards in accordance with the law of the countries where the cards were
puchased.
*7
With compatible Sony external flash
*8
With compatible external flash
*9
Varies according to shooting conditions or memory card used
*10
Continuous drive (Hi) in Drive mode
*11
Supports Micro USB compatible device.
*12
(Configuration method/Access method) WPS or manually /infrastructure mode. When
connecting to smartphones, the camera can always work as a base without a
wireless access point. (Security: WEP/WPA-PSK/WPA2-PSK)
*13
Sony accessories for the Accessory Shoe can be attached.
*14
The LCD screen is turned on, shot once every 30 seconds, operate zoom
alternately between W and T ends, flash strobe once every two times, turn power
off and on once every ten times.
*15
Continuous movie recording is possible for approximately 29 minutes (limited by
product specifications).
*16
Indication recording time, which is defined by repeating the cycle: Power on,
start recording, zoom , stand-by and power off.
*17
The total movie recording time. When the limit of the continuous movie recording
time (29 minutes) is reached, let the camera continue movie recording by
pressing the MOVIE button again. No other operation such as zoom are
performed.
|
|
|
|
Previous Page
|
Next Page
|
|
