15/02
|
Olympus TG870 Digital Camera - White - 16MP, 5x Optical Zoom, 3.74 to 18.7mm (21 to 105mm), 3.0"TFT LCD, Image Stabilisation, Face Detection, AF Tracking, Waterproof, DustproofStylus TG-870 Tough A camera fitting to extreme outdoor environmentsThe
TG-870 is a Tough camera capable of capturing active scenes in the
great outdoors. Its optical 5x zoom lens starting from an ultra-wide
21mm [1] makes it easy to capture vast landscapes, and a 180° flip-up
monitor helps shooting in narrow spots. It is also equipped with more
Art Filters than the previous model[2], making it more enjoyable and
convenient to use. Tough Capabilities & Ultra-wide 21mm Lens
The
TG-870 is waterproof, dustproof, shockproof, and crushproof, letting
you take photos anywhere, whether you are skiing on the slopes, on a
severe trek, or snorkeling off of a reef. This model also features a
wide 21mm[1] lens that can be used to capture selfies against majestic
landscapes.

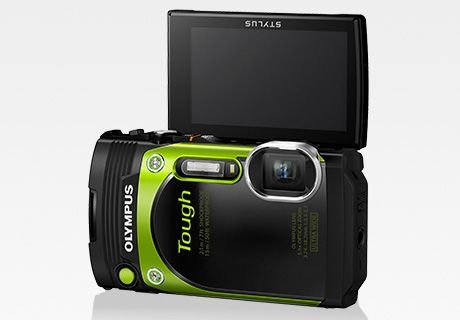

Advanced 180-degree Flip-up Monitor
By flipping the monitor up, you can view the subject from a variety of angles when shooting.
Sportcam Mode The
TG-870 features Sportcam mode for outdoor sports enthusiasts. When
combined with the Sport Holder and face button, versatile movie
recording is possible.

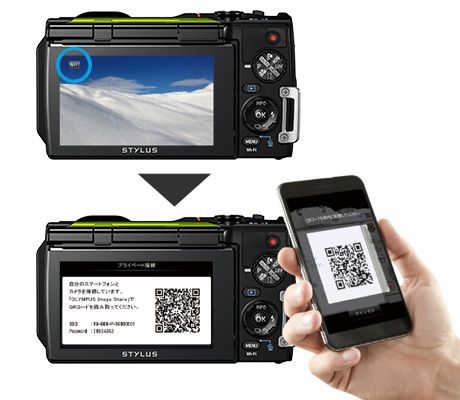

Built-in Wi-Fi & GPS
This
model is equipped with built-in Wi-Fi for easy photo sharing. It also
possesses high-precision positioning functions such as the Assist GPS,
useful in creating records of your outdoor activities and travels.
An Expanded Wealth of Expression
The addition of New Art Filters and Live Composite make a wide range of expressions possible. Specifications Specifications
Number of effective pixels
|
Number of effective pixels on camera |
16 million dots |
|
Total number of pixels |
16.80 million dots |
Image element
|
Type |
1/2.3-inch CMOS sensor |
Lens
|
Construction |
8 groups, 10 elements |
|
Focal length (35mm equivalent) |
3.74 to 18.7mm (21 to 105mm) |
|
Maximum aperture |
W3.5 to T5.7 |
|
Magnification |
Optical zoom: 5x
Super Resolution Zoom: 10x[1]
Digital zoom: 4x |
|
Shooting range (from lens tip) |
Normal: W0.1m to 8, T0.1m to 8
(Super Macro: 0.01m to 0.1m) |
Recording (Still)
|
Recording format |
JPEG (DCF standard), Exif 2.3, PRINT Image Matching III |
|
Number of recorded pixels (at 4:3) |
16M, 8M, 3M, VGA |
|
Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
Recording (Movie)
|
Recording (Movie) |
MOV / H.264[2] |
|
Number of recorded pixels |
1080 60P (1920 × 1080)
1080P (1920 × 1080)
720P (1280 × 720)
VGA (640 × 480) |
|
Movie audio recording format |
Stereo Linear PCM |
|
High-speed movie |
120fps: 640 × 480 / 854 × 480
240fps: 480 × 360 / 640 × 360 |
Memory
|
Supported recording media |
SD / SDHC / SDXC card (supported for UHS-I speed class) |
|
Internal memory |
37MB (area used by user) |
LCD monitor
|
Size / type |
3.0-inch TFT colour LCD, tilting monitor |
|
No. of dots |
Approx. 920K dots |
ISO sensitivity
|
Auto / High sensitivity Auto |
Available / Available |
|
Fixed |
ISO: 125, 200, 400, 800, 1600, 3200, 6400, Auto, High |
Focusing
|
AF mode |
CMOS Contrast Detection (with AF Illuminator)
Face Detection, AF Tracking |
Image Stabilisation
|
Type |
Equipped with lens-shift image stabilisation |
Shooting mode
|
Type |
Program Auto (P), Intelligent Auto (iAUTO), Super Macro, Scene
Modes (SCN), Art Filter, Sportcam, Panorama, Self Portrait |
|
Scene Modes |
-
Portrait
-
ePortrait
-
Landscape
-
Interval Shooting
-
Live Composite
-
Hand-Held Starlight
-
Night Scene
-
Night + Portrait
-
Sport
-
Indoor
-
Sunset
-
Fireworks
-
Cuisine
-
Documents
-
Beach & Snow
-
Underwater Snapshot
-
Underwater Wide 1
-
Underwater Wide 2
-
Underwater Macro
-
Backlight HDR
-
Self Portrait
|
|
Art Filter |
-
Pop Art
-
Soft Focus
-
Pale & Light Colour
-
Light Tone
-
Grainy Film
-
Pin Hole
-
Diorama
-
Cross Process
-
Gentle Sepia
-
Dramatic Tone
-
Key Line
-
Watercolor
-
Vintage
|
|
Picture mode |
Vivid, Natural, Flat, Fish Eye, Sparkle[3], Reflection, Fragmented[3], Art Filter |
Exposure
|
Shutter speed |
1/2 - 1/2000 sec. (Night Scene: Longest 4 Sec) |
|
Metering system |
Digital ESP Metering, Spot Metering |
|
Exposure compensation |
±2.0EV, step: 1/3EV |
White Balance
|
White balance mode |
Auto, One-touch, Cloudy, Sunlight, Incandescent, Fluorescent, Underwater |
Self-timer
|
Self-timer |
2 sec, 12 sec, custom |
Built-in flash
|
Shooting range |
W: 0.12m to 4.0m (ISO1600)
T: 0.1m to 2.5m (ISO1600) |
|
Flash mode |
Auto, Red-Eye Reduction, Fill-in, OFF, LED |
Toughness
|
Waterproof |
Equivalent to JIS / IEC protection class 8 (IPX8) |
|
Dustproof |
Equivalent to JIS / IEC protection class 6 (IP6X) |
Interface
|
Computer (USB) |
Windows Vista (SP2), Windows 7 (SP1), Windows 8, Windows 8.1, Windows 10, Mac OS OS X v10.8 to v10.10 |
|
Printer |
Available |
|
TV |
Available
-
HDMI Micro Connector (Type D) compatible
|
Power supply
|
AC adapter |
F-5AC USB-AC Adapter (sold separately) |
|
Battery |
LI-50B Lithium Ion Rechargeable Battery |
Maximum number of shots
|
Maximum number of shots (CIPA standards) |
Approx. 300
|
Size / Weight
|
Size (CIPA compliant) |
112.9mm × 64.1mm × 27.6mm |
|
Weight (CIPA compliant) |
221g
-
Including battery and card
|
|
|
|
|
15/02
|
Olympus TG870 Digital Camera - Green - 16MP, 5x Optical Zoom, 3.74 to 18.7mm (21 to 105mm), 3.0"TFT LCD, Image Stabilisation, Face Detection, AF Tracking, Waterproof, DustproofStylus TG-870 Tough A camera fitting to extreme outdoor environmentsThe
TG-870 is a Tough camera capable of capturing active scenes in the
great outdoors. Its optical 5x zoom lens starting from an ultra-wide
21mm [1] makes it easy to capture vast landscapes, and a 180° flip-up
monitor helps shooting in narrow spots. It is also equipped with more
Art Filters than the previous model[2], making it more enjoyable and
convenient to use. Tough Capabilities & Ultra-wide 21mm Lens
The
TG-870 is waterproof, dustproof, shockproof, and crushproof, letting
you take photos anywhere, whether you are skiing on the slopes, on a
severe trek, or snorkeling off of a reef. This model also features a
wide 21mm[1] lens that can be used to capture selfies against majestic
landscapes.
Advanced 180-degree Flip-up Monitor
By flipping the monitor up, you can view the subject from a variety of angles when shooting.
Sportcam Mode The
TG-870 features Sportcam mode for outdoor sports enthusiasts. When
combined with the Sport Holder and face button, versatile movie
recording is possible.
Built-in Wi-Fi & GPS
This
model is equipped with built-in Wi-Fi for easy photo sharing. It also
possesses high-precision positioning functions such as the Assist GPS,
useful in creating records of your outdoor activities and travels.
An Expanded Wealth of Expression
The addition of New Art Filters and Live Composite make a wide range of expressions possible. Specifications Specifications
Number of effective pixels
|
Number of effective pixels on camera |
16 million dots |
|
Total number of pixels |
16.80 million dots |
Image element
|
Type |
1/2.3-inch CMOS sensor |
Lens
|
Construction |
8 groups, 10 elements |
|
Focal length (35mm equivalent) |
3.74 to 18.7mm (21 to 105mm) |
|
Maximum aperture |
W3.5 to T5.7 |
|
Magnification |
Optical zoom: 5x
Super Resolution Zoom: 10x[1]
Digital zoom: 4x |
|
Shooting range (from lens tip) |
Normal: W0.1m to 8, T0.1m to 8
(Super Macro: 0.01m to 0.1m) |
Recording (Still)
|
Recording format |
JPEG (DCF standard), Exif 2.3, PRINT Image Matching III |
|
Number of recorded pixels (at 4:3) |
16M, 8M, 3M, VGA |
|
Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
Recording (Movie)
|
Recording (Movie) |
MOV / H.264[2] |
|
Number of recorded pixels |
1080 60P (1920 × 1080)
1080P (1920 × 1080)
720P (1280 × 720)
VGA (640 × 480) |
|
Movie audio recording format |
Stereo Linear PCM |
|
High-speed movie |
120fps: 640 × 480 / 854 × 480
240fps: 480 × 360 / 640 × 360 |
Memory
|
Supported recording media |
SD / SDHC / SDXC card (supported for UHS-I speed class) |
|
Internal memory |
37MB (area used by user) |
LCD monitor
|
Size / type |
3.0-inch TFT colour LCD, tilting monitor |
|
No. of dots |
Approx. 920K dots |
ISO sensitivity
|
Auto / High sensitivity Auto |
Available / Available |
|
Fixed |
ISO: 125, 200, 400, 800, 1600, 3200, 6400, Auto, High |
Focusing
|
AF mode |
CMOS Contrast Detection (with AF Illuminator)
Face Detection, AF Tracking |
Image Stabilisation
|
Type |
Equipped with lens-shift image stabilisation |
Shooting mode
|
Type |
Program Auto (P), Intelligent Auto (iAUTO), Super Macro, Scene
Modes (SCN), Art Filter, Sportcam, Panorama, Self Portrait |
|
Scene Modes |
-
Portrait
-
ePortrait
-
Landscape
-
Interval Shooting
-
Live Composite
-
Hand-Held Starlight
-
Night Scene
-
Night + Portrait
-
Sport
-
Indoor
-
Sunset
-
Fireworks
-
Cuisine
-
Documents
-
Beach & Snow
-
Underwater Snapshot
-
Underwater Wide 1
-
Underwater Wide 2
-
Underwater Macro
-
Backlight HDR
-
Self Portrait
|
|
Art Filter |
-
Pop Art
-
Soft Focus
-
Pale & Light Colour
-
Light Tone
-
Grainy Film
-
Pin Hole
-
Diorama
-
Cross Process
-
Gentle Sepia
-
Dramatic Tone
-
Key Line
-
Watercolor
-
Vintage
|
|
Picture mode |
Vivid, Natural, Flat, Fish Eye, Sparkle[3], Reflection, Fragmented[3], Art Filter |
Exposure
|
Shutter speed |
1/2 - 1/2000 sec. (Night Scene: Longest 4 Sec) |
|
Metering system |
Digital ESP Metering, Spot Metering |
|
Exposure compensation |
±2.0EV, step: 1/3EV |
White Balance
|
White balance mode |
Auto, One-touch, Cloudy, Sunlight, Incandescent, Fluorescent, Underwater |
Self-timer
|
Self-timer |
2 sec, 12 sec, custom |
Built-in flash
|
Shooting range |
W: 0.12m to 4.0m (ISO1600)
T: 0.1m to 2.5m (ISO1600) |
|
Flash mode |
Auto, Red-Eye Reduction, Fill-in, OFF, LED |
Toughness
|
Waterproof |
Equivalent to JIS / IEC protection class 8 (IPX8) |
|
Dustproof |
Equivalent to JIS / IEC protection class 6 (IP6X) |
Interface
|
Computer (USB) |
Windows Vista (SP2), Windows 7 (SP1), Windows 8, Windows 8.1, Windows 10, Mac OS OS X v10.8 to v10.10 |
|
Printer |
Available |
|
TV |
Available
-
HDMI Micro Connector (Type D) compatible
|
Power supply
|
AC adapter |
F-5AC USB-AC Adapter (sold separately) |
|
Battery |
LI-50B Lithium Ion Rechargeable Battery |
Maximum number of shots
|
Maximum number of shots (CIPA standards) |
Approx. 300
|
Size / Weight
|
Size (CIPA compliant) |
112.9mm × 64.1mm × 27.6mm |
|
Weight (CIPA compliant) |
221g
-
Including battery and card
|
|
|
|
|
15/02
|
Olympus TG870 Digital Camera - Black - 16MP, 5x Optical Zoom, 3.74 to 18.7mm (21 to 105mm), 3.0"TFT LCD, Image Stabilisation, Face Detection, AF Tracking, Waterproof, DustproofStylus TG-870 Tough A camera fitting to extreme outdoor environmentsThe TG-870 is a Tough camera capable of capturing active scenes in the great outdoors. Its optical 5x zoom lens starting from an ultra-wide 21mm [1] makes it easy to capture vast landscapes, and a 180° flip-up monitor helps shooting in narrow spots. It is also equipped with more Art Filters than the previous model[2], making it more enjoyable and convenient to use. Tough Capabilities & Ultra-wide 21mm Lens
The TG-870 is waterproof, dustproof, shockproof, and crushproof, letting you take photos anywhere, whether you are skiing on the slopes, on a severe trek, or snorkeling off of a reef. This model also features a wide 21mm[1] lens that can be used to capture selfies against majestic landscapes.
Advanced 180-degree Flip-up Monitor
By flipping the monitor up, you can view the subject from a variety of angles when shooting.
Sportcam Mode The TG-870 features Sportcam mode for outdoor sports enthusiasts. When combined with the Sport Holder and face button, versatile movie recording is possible.
Built-in Wi-Fi & GPS
This model is equipped with built-in Wi-Fi for easy photo sharing. It also possesses high-precision positioning functions such as the Assist GPS, useful in creating records of your outdoor activities and travels.
An Expanded Wealth of Expression
The addition of New Art Filters and Live Composite make a wide range of expressions possible. Specifications Specifications
Number of effective pixels
|
Number of effective pixels on camera |
16 million dots |
|
Total number of pixels |
16.80 million dots |
Image element
|
Type |
1/2.3-inch CMOS sensor |
Lens
|
Construction |
8 groups, 10 elements |
|
Focal length (35mm equivalent) |
3.74 to 18.7mm (21 to 105mm) |
|
Maximum aperture |
W3.5 to T5.7 |
|
Magnification |
Optical zoom: 5x
Super Resolution Zoom: 10x[1]
Digital zoom: 4x |
|
Shooting range (from lens tip) |
Normal: W0.1m to 8, T0.1m to 8
(Super Macro: 0.01m to 0.1m) |
Recording (Still)
|
Recording format |
JPEG (DCF standard), Exif 2.3, PRINT Image Matching III |
|
Number of recorded pixels (at 4:3) |
16M, 8M, 3M, VGA |
|
Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
Recording (Movie)
|
Recording (Movie) |
MOV / H.264[2] |
|
Number of recorded pixels |
1080 60P (1920 × 1080)
1080P (1920 × 1080)
720P (1280 × 720)
VGA (640 × 480) |
|
Movie audio recording format |
Stereo Linear PCM |
|
High-speed movie |
120fps: 640 × 480 / 854 × 480
240fps: 480 × 360 / 640 × 360 |
Memory
|
Supported recording media |
SD / SDHC / SDXC card (supported for UHS-I speed class) |
|
Internal memory |
37MB (area used by user) |
LCD monitor
|
Size / type |
3.0-inch TFT colour LCD, tilting monitor |
|
No. of dots |
Approx. 920K dots |
ISO sensitivity
|
Auto / High sensitivity Auto |
Available / Available |
|
Fixed |
ISO: 125, 200, 400, 800, 1600, 3200, 6400, Auto, High |
Focusing
|
AF mode |
CMOS Contrast Detection (with AF Illuminator)
Face Detection, AF Tracking |
Image Stabilisation
|
Type |
Equipped with lens-shift image stabilisation |
Shooting mode
|
Type |
Program Auto (P), Intelligent Auto (iAUTO), Super Macro, Scene
Modes (SCN), Art Filter, Sportcam, Panorama, Self Portrait |
|
Scene Modes |
-
Portrait
-
ePortrait
-
Landscape
-
Interval Shooting
-
Live Composite
-
Hand-Held Starlight
-
Night Scene
-
Night + Portrait
-
Sport
-
Indoor
-
Sunset
-
Fireworks
-
Cuisine
-
Documents
-
Beach & Snow
-
Underwater Snapshot
-
Underwater Wide 1
-
Underwater Wide 2
-
Underwater Macro
-
Backlight HDR
-
Self Portrait
|
|
Art Filter |
-
Pop Art
-
Soft Focus
-
Pale & Light Colour
-
Light Tone
-
Grainy Film
-
Pin Hole
-
Diorama
-
Cross Process
-
Gentle Sepia
-
Dramatic Tone
-
Key Line
-
Watercolor
-
Vintage
|
|
Picture mode |
Vivid, Natural, Flat, Fish Eye, Sparkle[3], Reflection, Fragmented[3], Art Filter |
Exposure
|
Shutter speed |
1/2 - 1/2000 sec. (Night Scene: Longest 4 Sec) |
|
Metering system |
Digital ESP Metering, Spot Metering |
|
Exposure compensation |
±2.0EV, step: 1/3EV |
White Balance
|
White balance mode |
Auto, One-touch, Cloudy, Sunlight, Incandescent, Fluorescent, Underwater |
Self-timer
|
Self-timer |
2 sec, 12 sec, custom |
Built-in flash
|
Shooting range |
W: 0.12m to 4.0m (ISO1600)
T: 0.1m to 2.5m (ISO1600) |
|
Flash mode |
Auto, Red-Eye Reduction, Fill-in, OFF, LED |
Toughness
|
Waterproof |
Equivalent to JIS / IEC protection class 8 (IPX8) |
|
Dustproof |
Equivalent to JIS / IEC protection class 6 (IP6X) |
Interface
|
Computer (USB) |
Windows Vista (SP2), Windows 7 (SP1), Windows 8, Windows 8.1, Windows 10, Mac OS OS X v10.8 to v10.10 |
|
Printer |
Available |
|
TV |
Available
-
HDMI Micro Connector (Type D) compatible
|
Power supply
|
AC adapter |
F-5AC USB-AC Adapter (sold separately) |
|
Battery |
LI-50B Lithium Ion Rechargeable Battery |
Maximum number of shots
|
Maximum number of shots (CIPA standards) |
Approx. 300
|
Size / Weight
|
Size (CIPA compliant) |
112.9mm × 64.1mm × 27.6mm |
|
Weight (CIPA compliant) |
221g
-
Including battery and card
|
|
|
|
|
15/02
|
Panasonic HC-VX980MGNK 4K Ultra HD Camcorder - Black SD/SDHC/SDXC Memory Card Slot, 4K Video Recording/4K Photo Mode, 20x Optical Zoom, 3.0" LCD Monitor, WiFi, 4K Cropping, HDR Movie4K Ultra HD Camcorder HC-VX980Your memories in everlasting 4K Capture precious moments as 4K video or photo - with the LEICA Dicomar lens, clear quality is yours - that result in unique final footage with Wireless Multi Camera recording. Regardless of the situation, HDR Movie gives you crisp detail in bright dark areas of the film. Overview 4K Video Recording
Preserve your memories in all their beauty
With four times the resolution of Full-HD, this compact Panasonic camcorder records in 4K resolution. That means you'll have detailed, true-to-life scenes in any shooting situation. You can even capture impressive 4K still images of special or unique moments with 4K Photo mode. Panasonic's high-speed, high-precision autofocus technology makes 4K shooting easy for everyone. Smooth zooming With Smooth Zoom, you get smooth zooming without any zoom blur. It's also easy to zoom in on an off-center subject without maneuvering the camera angle. Exact panning Enjoy smooth and exact panning, too, by simply selecting the start and end points. Easy tracking You can choose a person to be tracked from a video, and the camcorder automatically keeps the object in the cropped area. Convenient stabilizer Even after shooting, you can compensate for shaking thanks to automatic adjustment of the cropping position. The result is more stable, clear footage.
Note: Results are recorded in MP4 1080/25p mode. High-Quality Core Technologies
Clear optics
In addition to rendering crisp images, the remarkable LEICA Dicomar lens produces the subtle nuances and shading that LEICA lenses are renowned for, with minimized ghosting and flaring.
Accurate scenes
By increasing the read-out speed of the recording, the advanced BSI Sensor with approx. 8M effective pixels suppresses distortion to give an accurate rendering of the scene.
Crystal Engine 4K
The Crystal Engine 4K features a high-speed, large-scale integrated circuit to process the huge volume of 4K data quickly and accurately while reducing noise. Level Footage at All Times
The Level Shot function automatically detects and corrects the tilting of images so you can shoot carefree. The setting can be adjusted to one of three levels – OFF, Normal or Strong* – for the shooting condition.
Not available with 4K mode.
Clear, Blurless Results
HYBRID O.I.S.+ uses five-axis correction to thoroughly suppress blurring caused by unwanted shaking – whether you are shooting with a wide angle or at high zoom. This lets you capture crisp, clear images in 4K and other formats, in virtually every shooting situation. Wireless Multi Camera
Add extra emotion to your footage
Enjoy a new kind of shooting style that lets you add even more emotion to your movies. Using Wi-Fi, you can link to as many as three smartphones and simultaneously record up to two of them as sub-windows. These sub-window images can be interchanged, and their display positions can be switched. This lets you shoot from a variety of angles and viewpoints, to capture a higher level of emotional impact.
Note: This function is not available with 4K mode nor with 24p mode. HDR (High Dynamic Range) Movie
Get clear shots with excellent detail
Enjoy crisper, clearer videos thanks to the HDR Movie function. It combines two images taken with different exposures to suppress blown highlights and blocked shadows. Even in difficult shooting situations, such as backlighting, you can easily capture natural videos with excellent gradation. A dedicated HDR button enables quick mode changes when necessary.
Note: This function is not available with 4K mode nor with 24p format. | SENSOR SECTION |
SENSOR FOR MAIN CAMERA |
Image Sensor |
1/2.3-inch BSI MOS Sensor |
| Total Pixels |
18.91 megapixels |
| Effective Pixels [Motion Image] |
4K: 8.29 megapixels [16:9], Full-HD: 6.10 megapixels [16:9] (Level Shot Function OFF or Normal) |
| Effective Pixels [Still Image] |
7.00 megapixels [3:2] |
| Effective Pixels [Still Image] |
8.29 megapixels [16:9] |
| Effective Pixels [Still Image] |
6.22 megapixels [4:3] |
| SENSOR FOR SUB CAMERA |
Image Sensor |
– |
| Total Pixels |
– |
| LENS SECTION |
LENS FOR MAIN CAMERA |
F Value |
F1.8 (WIDE) / F3.6 (TELE) |
| Optical Zoom |
20x |
| Focal Length |
4.08 – 81.6 mm |
| 35 mm Film Camera Equivalent [Motion Image (16:9)] |
4K: 30.8 – 626 mm (Level Shot Function OFF), Full-HD: 37.0 – 752 mm (Level Shot Function OFF or Normal) |
| 35 mm Film Camera Equivalent [Still Image] |
34.5 – 690.3 mm [3:2] |
| 35 mm Film Camera Equivalent [Still Image] |
30.8 – 626 mm [16:9] |
| 35 mm Film Camera Equivalent [Still Image] |
37.6 – 752.8 mm [4:3] |
| Filter Diameter |
49 mm |
| Lens Brand |
Leica Dicomar Lens |
| LENS FOR SUB CAMERA |
F Value |
– |
| Focal Length |
– |
| 35 mm Film Camera Equivalent [Motion Image] |
– |
| CAMERA SECTION |
Standard Illumination |
1400 lx |
| Minimum Illumination |
2 lx (Scene Mode Low Light 1/25), 1 lx (Night Mode (Color)), 0 lx (Night Mode (IR)) |
| Focus |
Auto / Manual |
| Zoom |
Intelligent Zoom OFF |
20x |
| Intelligent Zoom ON |
4K: 25x, Full-HD: 40x |
| Digital Zoom |
60x / 1500x (The maximum value of zoom magnification can be set in two patterns) |
| White Balance |
Auto / White Set / Sunny / Cloudy / Indoor1 / Indoor2 |
| Shutter Speed |
Motion Image |
Auto Slow Shutter ON : 1/25 – 1/8000 (50p / 50i / 25p), 1/24 – 1/8000 (24p) |
| Motion Image |
Auto Slow Shutter OFF : 1/50 – 1/8000 (50p / 50i / 25p), 1/48 – 1/8000 (24p) |
| Still Image |
1/2 – 1/2000 |
| Iris |
Auto / Manual |
| Image Stabilizer |
HYBRID O.I.S.+ with Active Mode, O.I.S. Lock, Level Shot Function (Strong mode: 2K only) |
| HDR Movie (Except 4K Mode) |
Yes |
| Creative Control (Except 4K Mode) |
Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec |
| RECORDING SECTION |
Recording Media |
SD/SDHC/SDXC Memory Card |
| Recording Format |
[AVCHD] AVCHD Progressive |
| Recording Format |
[iFrame / MP4] MP4 |
| Compression Method |
MPEG-4 AVC/H.264 |
| Recording/ Playback Mode |
AVCHD |
1080/50p (28Mbps / VBR), (1920 x 1080/50p) |
| AVCHD |
PH (24Mbps / VBR), (1920 x 1080/50i) |
| AVCHD |
HA (17Mbps / VBR), (1920 x 1080/50i) |
| AVCHD |
HG (13Mbps / VBR), (1920 x 1080/50i) |
| AVCHD |
HE (5Mbps / VBR), (1920 x 1080/50i) |
| MP4 |
2160p/25p(72M) (72Mbps / VBR), (3840 x 2160) |
| MP4 |
2160p/24p(72M) (72Mbps / VBR), (3840 x 2160) |
| MP4 |
1080p/50p(50M) (50Mbps / VBR), (1920 x 1080) |
| MP4 |
1080p/50p(28M) (28Mbps / VBR), (1920 x 1080) |
| MP4 |
1080p/24p(50M) (50Mbps / VBR), (1920 x 1080) |
| MP4 |
720p/25p(9M) (9Mbps / VBR), (1280 x 720) |
| iFrame |
960 x 540/25p (28Mbps / VBR) |
| Actual Recordable Time with Supplied Battery |
Approx. 45 min (4K MP4) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (50p mode) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (PH mode) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (HA mode) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (HG mode) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (HE mode) |
| Actual Recordable Time with Supplied Battery |
Approx. 50 min (2160p/24p) |
| Actual Recordable Time with Supplied Battery |
Approx. 1 h 0 min (1080p/24p) |
| Actual Recordable Time with Supplied Battery |
Approx. 50 min (MP4 50M) |
| Actual Recordable Time with Supplied Battery |
Approx. 55 min (MP4 28M) |
| Actual Recordable Time with Supplied Battery |
Approx.1 h 0 min (MP4 720p) |
| Actual Recordable Time with Supplied Battery |
Approx. 1 h 0 min (iFrame) |
| Thumbnail Display |
20 thumbnails/page, 9 thumbnails/page, 1 thumbnail/page |
| Audio Recording System |
AVCHD: Dolby Digital (5.1ch / 2ch) |
| Audio Recording System |
iFrame, MP4: AAC (2ch) |
| Microphone |
5.1ch Surround, Zoom, Focus and Stereo Microphone |
| Speaker |
Dynamic type |
| STILL IMAGE SECTION |
Recording Format |
JPEG (DCF/Exif2.2) |
| Recording Image Size |
Still Image |
[16:9] 25.9megapixels (6784 x 3816), 14 megapixels (4992 x 2808), 2.1 megapixels (1920 x 1080) |
| Still Image |
[3:2] 20 megapixels (5472 x 3648), 10.6 megapixels (3984 x 2656), 2.0 megapixels (1728 x 1152) |
| Still Image |
[4:3] 20.4 megapixels (5216 x 3912), 10.9 megapixels (3808 x 2856), 0.3 megapixels (640 x 480) |
| Simultaneous Recording |
4K MP4: [16:9] 20.4 megapixels (6016 x 3384), 8.3 megapixels (3840 x 2160) |
| Simultaneous Recording |
Other than 4K MP4: [16:9] 14.0 megapixels (4992 x 2808), 2.1 megapixels (1920 x 1080) |
| Flash |
– |
| GENERAL SECTION |
Power Supply |
3.6V (Battery) / 5.0V (AC Adaptor) |
| Power Consumption |
Max. 7.1W (Recording) / Max. 7.7W (Charging) |
| Dimensions (W x H x D) |
Approx. 65 x 73 x 139 mm (2.559 x 2.874 x 5.472 inch) |
| Weight (w/o battery and SD card) |
Approx. 351g (0.774 lb) |
| LCD Monitor |
3.0-inch Wide LCD monitor (460,800 dots) |
| Touch Panel |
Yes |
| View Finder |
– |
| Manual Ring / Dial |
Yes (Dial) |
| Interface |
AV |
Yes |
| HDMI |
Yes (micro) |
| Microphones (stereo mini) |
Yes |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| USB Charge |
Yes |
| LED Video Light |
Yes |
| Accessory Shoe |
Yes (cold) |
| Lens Cover |
Yes (Auto) |
| On-Screen Display Language |
English, Chinese Traditional, Thai, Arabian, Persian, Hindi, Chinese Simplified |
| Wi-Fi |
Standard |
IEEE 802.11b/g/n |
| Frequency |
2.4GHz band |
| NFC |
– |
| STANDARD ACCESSORY |
AC Adaptor |
Yes |
| AC Cable |
– |
| DC Cable |
Yes (USB Type) |
| Rechargeable Battery Pack |
Yes (1,940mAh) |
| Battery Charger |
– |
| IR Remote |
– |
| HDMI Cable |
Yes (micro) |
| AV Multi Cable |
– |
| AV Cable |
– |
| Shoe adaptor |
Yes |
| Lens Hood |
Yes |
| USB Cable |
Yes |
| Editing Software |
HD Writer AE 5.3 (Download) |
|
|
|
|
15/02
|
Panasonic DMC-TZ80GN-S Lumix Digital Camera - Black/Silver - 18.1MP, 30x Optical Zoom, 3.0"TFT LCD, Optical Image Stabilizer, WiFi, 4K Video, 4K PhotoLumix DMC-TZ80GN30x Zoom Travel Camera with 4K Take this pocket-sized camera on your next trip. It's powerful 30x zoom lens and 4K Video/Photo recording capability let you save your travel memories in exactly the form you want. Overview 30x zoom pocket-sized travel camera
The new LUMIX TZ80 easily slips into a pocket for travelling. And even with its compact size, the TZ80 features a host of attractive functions for travellers, from an indispensable ultra zoom to Panasonic's newest 4K video / photo technology. It brings you every detail, from intricate landscapes to faraway subjects and spur-of-the-moment shots. Capture all those travel memories before they pass you by, and save them in the exact form you want. High image quality even in low light conditions
With the 18.1-megapixel High Sensitivity MOS sensor and Venus Engine (the same engine as in LUMIX's high-end system cameras), you can take stunning pictures even in dimly lit environments.
Capture more details when you shoot in RAW format. The image data retains the original color and light information captured by the sensor, with only minimal processing. Now you can edit these high quality images directly and be amazed by the results. Get closer with 30x zoom LEICA DC lens
The LUMIX TZ80 brings you right up against the action. The 24mm LEICA DC VARIO-ELMAR lens has a 30x optical zoom* so you will always have an intimate view, and captured picture, of what piques your interest.
35mm camera equivalent: 24-720mm. Unmissable moments with 4K PHOTO
Thanks to 4K technology inside the LUMIX TZ80, 4K PHOTO allows you to capture the perfect moment in 30fps, and select your best photo after shooting. Shoot, select and save. With 4K PHOTO mode on the LUMIX TZ80, make moments, truly unmissable. 4K Video. Life in vivid detail
With the stunning power of 4K Video, the LUMIX TZ80 allows you to record your journey in up to 4x the quality of Full HD. More excitement, more detail and even more memories to look back on; again and again.
When recording videos in 4K, use a card rated as UHS Speed Class 3. Light Composition
Light Composition function synthesises the images by choosing and saving a brighter pixel. This makes it possible to produce more luxurious, dramatic image of situations such as fireworks or night scenery in camera with ease.
4K Live Cropping
4K Live Cropping enables unique video expressions that were previously difficult to record. Only the recording frame moves while the camera maintains a fixed position. This allows stable panning, and lets you zoom in on a subject that is not in the image's center position. Shoot now, focus later
Imagine being able to decide exactly what you want in focus, even after you've taken the photo. The Post Focus function on the LUMIX TZ80 gives you the power to do just that. Simply capture the scene, review the image and touch the part of the photo you'd like to be pin sharp. It's simple, stunning and all inside the LUMIX TZ80. See it all
Sometimes, harsh sunlight makes even the brightest camera screens difficult to see. The LUMIX TZ80 features a Live View Finder which automatically turns on when you lift the camera to your eye, so you can see every detail and capture the shot you're looking for.
The Control Ring also provides comfortable control. In addition to giving you smooth manual control of the aperture, shutter speed, zoom and focus, it can be customised to handle your favourite settings. High speed auto-focusing with DFD technology
Panasonic's Depth From Defocus (DFD) Auto Focus (AF) technology instantly calculates the distance between the items inside the frame and drives the focus of the lens in one fast, continuous movement. This system results in faster AF speeds up to 0.1 seconds and a burst shooting speed with AFC of 5 fps. It also increases the stability of continuous focusing when shooting video.
Focusing in low light conditions — Low Light AF
Low Light Auto Focus makes it possible to set focus on the subject more precisely in such as moonlight even without AF assist lamp. Furthermore, the LUMIX TZ80 newly integrates the Low Light AF to let you shoot a star in the night sky with auto focus by accurate calculation of the contrast value in a smaller AF zone. 5-axis correction / Tilt correction
The HYBRID O.I.S. (Optical Image Stabiliser) + with 5-axis correction* gives you blur-less one-handed video shooting. It detects and compensates for the camera's 5 types of movement – horizontal, vertical, axis of rotation, vertical rotation and horizontal rotation.
The Level Shot Function* detects the image's horizontal line and maintains it even if the camera is tilted. It takes stable video even in high-angle, blind recording.
HYBRID O.I.S.+ and Level Shot Function do not work in 4K video recording. | Metrics |
Dimensions (W x H x D) |
112.0 x 64.0 x 38.0 mm |
| Dimensions (W x H x D) |
(4.41 x 2.52 x 1.50 inch) |
| Weight |
Approx. 282 g with Battery and SD Memory Card (0.6217 lb) |
| Weight |
Approx. 240 g without Battery and SD Memory Card (0.5291 lb) |
| Optics |
Pixels |
Camera Effective Pixels |
18.1 Megapixels |
| Sensor |
Sensor Size / Total Pixels / Filter |
1/2.3-type High Sensitivity MOS Sensor / 18.9 Total Megapixels / Primary Color Filter |
| Lens |
Aperture |
F3.3 - 6.4 / Multistage Iris Diaphragm |
| Aperture |
(Still Image: F3.3 - 8.0 (W), F6.4 - 8.0 (T), Motion Picture: F3.3 - 8.0 (W), F6.4 - 8.0 (T)) |
| Optical Zoom |
30x |
| Focal Length |
f = 4.3 - 129mm |
| Focal Length |
(24 - 720mm in 35mm equiv. in 4:3) |
| Focal Length |
(25 - 750mm in 35mm equiv. in 3:2) |
| Focal Length |
(26 - 780mm in 35mm equiv. in 16:9) |
| Focal Length |
(28 - 840mm in 35mm equiv. in 1:1) |
| Focal Length |
(33 - 990mm in 35mm equiv. in 4K Photo recording) |
| Focal Length |
(26 - 780mm in 35mm equiv. in 16:9 video recording / O.I.S. Off / Level Shot function Off) |
| Focal Length |
(28 - 840mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function Off) |
| Focal Length |
(30 - 900mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function On) |
| Focal Length |
(33 - 990mm in 35mm equiv. in 4K video recording) |
| Extra Optical Zoom (EZ) |
42.5x (4:3 / 9M (M)), 61.2x (4:3 / 4.5M (S)) |
| Intelligent Zoom |
60x |
| Lens |
LEICA DC VARIO-ELMAR |
| Lens |
12 elements in 9 groups |
| Lens |
(5 Aspherical Lenses / 10 Aspherical surfaces) |
| Optical Image Stabilizer |
5-Axis HYBRID O.I.S. +* |
| Optical Image Stabilizer |
* 5-Axis compensation works in video recording except for 4K video or high-speed video recording. |
| Digital Zoom |
Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.) |
| Focus |
Focusing Area |
Normal: Wide 50 cm - infinity / Tele 200 cm - infinity |
| Focusing Area |
AF Macro / MF / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 200 cm - infinity |
| AF Assist Lamp |
Yes (On / Off) |
| Focus |
AF / AF Macro / Macro Zoom * Each available
with AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF Quick AF,
Continuous AF (during motion picture recording), Eye Sensor AF, Touch
AF/AE Function, |
| Focus |
Touch Shutter, Touch Pad AF, MF Assist,
Touch MF Assist, AF+MF, Focus Peaking, One Shot AF (Set the Fn button in
custom menu to AF-ON), Low Light AF |
| Post Focus |
Yes |
| AF Metering |
Face/Eye Detection / Tracking / 49-area / 1-area |
| AF Metering |
(Full area touch is available) |
| Shutter |
Shutter Speed [Still Image] |
Approx. 4 - 1/2,000 sec (Mechanical Shutter) |
| Shutter Speed [Still Image] |
Approx. 1 - 1/16,000 sec (Electronic Shutter) |
| Shutter Speed [Still Image] |
Artistic Nightscape (Approx. 60 sec) |
| Shutter Speed [Motion Picture] |
Approx. 1/25 - 1/16,000 sec |
| Shutter Speed [Motion Picture] |
Approx. 1/2 - 1/16,000 sec (Creative Video M Mode / MF Mode) |
| Finder |
Viewfinder |
0.20" LVF (Live View Finder) (1,166k dots equiv.), Field of View: Approx. 100%, Lens 19.6x |
| Viewfinder |
Magnification: Approx. 2.59x / 0.46x (35 mm camera equivalent) |
| Recording |
File |
File Format |
Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF |
| File Format |
Motion Picture: AVCHD Progressive, AVCHD, MP4 |
| Recording Modes |
Mode Dial / Mode Button |
Intelligent Auto, P, A, S, M, Creative Video, C (Custom), Panorama Shot, Scene Guide, Creative Control |
| Creative Control mode |
Expressive, Retro, Old Days, High Key, Low
Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky
Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy
Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter,
One Point Color, Sunshine (22 filters) |
| Still Image Scene Guide |
Clear Portrait, Silky Skin, Backlit
Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face,
Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset
Glow, Glistening Water, Clear Nightscape, Cool Night Sky, Warm Glowing
Nightscape, Artistic Nightscape, Glittering Illuminations, Handheld
Night Shot, Clear Night Portrait, Soft Image of a Flower, Appetizing
Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, Monochrome |
| Continuous Shooting Mode (Approx.) |
[AFS] SH: 40 frames/sec*, H: 10 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
[AFC] H: 5 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
* Electronic shutter only. |
| 4K Photo Mode (*2) |
4K Burst: 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Burst (S/S): 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Pre-Burst: 30 frames/sec, approx. 2 sec |
| 4K Photo Mode (*2) |
(Depending on memory card size and battery power) |
| 4K Photo Mode (*2) |
Exif Information: Yes |
| 4K Photo Mode (*2) |
Selectable Aspect Ratio: Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable) |
| 4K Photo Mode (*2) |
Exposure Mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual |
| 4K Photo Mode (*2) |
Marking Function: Yes (in 4K Burst (S/S) mode) |
| Motion Picture Recording (*2) |
4K Video |
3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| HD Video |
1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| STD Video |
640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| High Speed Video |
1280 x 720 pixels, 25p (HD: MP4) (Sensor Output is 100fps) |
| High Speed Video |
640 x 480 pixels, 25p (VGA: MP4) (Sensor Output is 200fps) |
| Continuous Recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 105 min |
| AVCHD |
FHD/50i: Approx. 110 min |
| MP4 |
4K/25p: Approx. 90 min |
| MP4 |
FHD/50p: Approx. 110 min |
| Actual recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 50 min |
| AVCHD |
FHD/50i: Approx. 55 min |
| MP4 |
4K/25p: Approx. 45 min |
| MP4 |
FHD/50p: Approx. 55 min |
| Exposure Parameters |
Exposure |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation |
1/3 EV step, +/-5 EV (+/-3 EV for motion picture) |
| Auto (AE) Bracketing |
3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV |
| Light Metering |
Intelligent Multiple / Center Weighted / Spot |
| ISO Sensitivity |
Still Image: Auto / i.ISO / 80 / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 (Extended ISO) |
| ISO Sensitivity |
Motion Picture: Auto / 80 / 100 / 200 / 400 / 800 / 1600 / 3200 |
| ISO Sensitivity |
(Changeable to 1/3 EV step) |
| Picture Quality |
Still Picture Recording |
[4:3] 4896x3672 (18M) (L) / 3456x2592 (9M) (M) / 2400x1800 (4.5M) (S) |
| Still Picture Recording |
[3:2] 4896x3264 (16M) (L) / 3456x2304 (8M) (M) / 2400x1600 (4M) (S) |
| Still Picture Recording |
[16:9] 4896x2752 (13.5M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S) |
| Still Picture Recording |
[1:1] 3664x3664 (13.5M) (L) / 2592x2592 (7M) (M) / 1824x1824 (3.5M) (S) |
| Image Quality |
RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| White Balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / Color Temperature |
| White Balance |
(2-axis Adjustable) |
| Photo Style |
Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom |
| Picture Adjustment |
Contrast, Sharpness, Noise Reduction, Saturation* |
| Picture Adjustment |
* Except for Monochrome mode. |
| Other |
Digital Red Eye Correction (Red-Eye Removal) |
Yes (On / Off) |
| GPS |
- |
| Wi-FI |
IEEE 802.11b/g/n |
| Wi-FI |
2412 MHz - 2462 MHz (1-11 ch) |
| Wi-FI |
WPA / WPA2 |
| Wi-FI |
Infrastracture Mode / WPS |
| NFC |
- |
| Zoom in Motion Picture |
Yes |
| Self Timer |
2 sec / 10 sec / 10 sec (3 images) |
| Self Shot Mode |
- |
| Playback |
Display |
Playback Mode |
All, Slideshow, Filtering Play (Picture Only, Video Only, 4K PHOTO, Post Focus, Category Selection, Favorite), Calendar |
| Thumbnails / Zoomed Playback |
12,30-thumbnails / Yes |
| Set Favorites / Rotate Image |
Yes / Yes |
| Show Histogram/ Show Highlights |
Yes / Yes |
| DPOF Print Setting / Set Protection |
Yes / Yes |
| Edit |
Retouch |
- |
| RAW Processing |
- |
| Resize/ Cropping |
Yes / Yes |
| Copy / Title Edit / Text Stamp |
- / Yes / Yes |
| Video Divide |
Yes |
| Creating Still Pictures from a Motion Picture |
Yes |
| PictBridge Support |
Single / Multi / All / DPOF / Favorites |
| Setup |
OSD language |
Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified) |
| Others |
Monitor |
LCD Monitor |
7.5cm (3.0") TFT Screen LCD Display (1040k dots), Static Touch Control, AF Coating |
| LCD Monitor |
Field of View: Approx. 100%, Wide Viewing-angle |
| Flash |
Built- in- Flash |
Auto*, Auto/Red-eye Reduction*, Forced On,
Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction,
Forced Off * For iA, iA+ mode only. |
| Built- in- Flash |
0.6 - 5.6m (Wide / ISO Auto), 2.0 - 2.9m (Tele / ISO Auto) |
| Media |
Recording Media |
SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Recording Media |
(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
| Built- in- Memory |
- |
| Audio |
Microphone / Speaker |
Stereo / Mono |
| Interface |
Interface |
microHDMI typeD (*3), USB2.0 Micro-B |
| Power |
Power |
Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included) |
| Power |
AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable) |
| Battery life (approx.) |
320 pictures (rear monitor) / 280 pictures (LVF) (CIPA Standard) (*1) |
| Standard Package |
Included Software |
· The software to process RAW file on PC is
not bundled with DMC-TZ80. To do this, SILKYPIX Developer Studio is
available for download at Ichikawa Soft Laboratory's website using PC
connected to the Internet. |
| Included Software |
· The DMC-TZ80 Operating Instructions for
advanced features is available for downloaded at Panasonic LUMIX
Customer Support Site using PC, smartphone or tablet connected to the
Internet. |
| Included Software |
· The software for PC is not bundled with
DMC-TZ80. Please use the software pre-installed to the PC or other
general image viewing software to browse pictures. |
| Standard Accessories |
Battery Pack, AC Adaptor, USB Cable, Hand Strap |
| NOTE |
*1 |
| NOTE |
Recording conditions by CIPA standard |
| NOTE |
- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when monitor is on. |
| NOTE |
- Using a Panasonic SDHC Memory Card |
| NOTE |
- Using the supplied battery. |
| NOTE |
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) |
| NOTE |
- Recording once every 30 seconds with full flash every second recording. |
| NOTE |
- Rotating the zoom lever from Tele to Wide or vice versa in every recording. |
| NOTE |
- The number of recordable pictures varies depending on the recording interval time. |
| NOTE |
- If the recording interval time becomes longer, the number of recordable pictures decreases. |
| NOTE |
- CIPA is an abbreviation of [Camera & Imaging Products Association]. |
| NOTE |
*2 |
| NOTE |
- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. |
| NOTE |
- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. |
| NOTE |
- Actual recordable time is the time
available for recording when repeating actions such as switching the
power supply [ON] / [OFF], starting/stopping recording, zoom operation
etc. |
| NOTE |
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. |
| NOTE |
- Use a card with SD Speed Class with "UHS-I
Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K]
or [4K PHOTO]. |
| NOTE |
(SD speed class is the speed standard regarding continuous writing.) |
| NOTE |
- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [4K] is 15 minutes. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB. |
| NOTE |
- Maximum time to record High Speed motion pictures continuously with [MP4] in [HD] is 7 minutes 29 seconds. |
| NOTE |
- Maximum time to record High Speed motion pictures continuously with [MP4] in [VGA] is 3 minutes 44 seconds. |
| NOTE |
*3 |
| NOTE |
For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible". |
|
|
|
|
15/02
|
Panasonic DMC-TZ110GNS Lumix Digital Camera - Black/Silver - 20.1MP, 10x Optical Zoom, 3.0" TFT LCD, WiFi, Optical Image Stabilizer, 4K PhotoLUMIX Digital Camera DMC-TZ110Overview Small Size, Big Adventure
The
LUMIX TZ110 has been designed with power and function in perfect
balance. A crystal-clear LEICA zoom lens accompanies a stylish
pocket-sized shape. No more bulky camera bags or weighty equipment, just
power and portability in perfect harmony. Capture Everything Day and Night 1-inch large High Sensitivity MOS Sensor
Just
because the sun goes down, doesn’t mean your camera has to as well.
Keep capturing into the night, with the powerful 1-inch 20.1-megapixel
MOS sensor of the TZ110. More detail, more colour and more clarity, even
in low light. Advanced Venus Engine Image Processor
LUMIX
TZ110 incorporates the same Venus Engine as the LUMIX high-end system
cameras. It enables high quality image capture and high speed signal
processing required for 4K video recording. Integrating superior noise
reduction systems, LUMIX TZ110 enables shooting at max. ISO12800 /
Extended ISO25600. Sensitivity, gradation performance, resolution and
colour reproduction are dramatically improved to achieve even higher
picture quality. Stunning Shots Are Closer Than You Think Powerful 10x optical zoom
When you just can't get closer, the powerful 10x optical zoom of the LUMIX TZ110 helps you get the shot. Featuring
a world-famous LEICA DC VARIO-ELMARIT lens, its powerful zoom offers
incredible flexibility, ranging from 25mm-250mm (35mm camera equiv.).
Perfect for capturing the sights; both near and far. Shoot Now, Focus Later
Imagine
being able to decide exactly what you want in focus, even after you've
taken the photo. The Post Focus function on the LUMIX TZ110 gives you
the power to do just that. Simply capture the scene, review the image
and touch the part of the 4K PHOTO you'd like to be pin sharp. It's simple, stunning and all inside the LUMIX TZ110. 4K Video: Life in Vivid Detail
The
stunning power of the LUMIX TZ80’s 4K Video allows you to record your
journey in up to four times the resolution quality of Full HD. You get
more excitement, more detail and even more memories to look back on with
vivid clarity. Unmissable moments with 4K PHOTOThanks
to 4K technology inside the TZ110, 4K PHOTO allows you to capture the
perfect moment in 30fps, and select your best photo after shooting.
Shoot, select and save. With 4K PHOTO mode on the LUMIX TZ110, make
moments, truly unmissable. Light CompositionThe
Light Composition function synthesises the images by choosing and saving
a brighter pixel, making it easy to produce more luxurious, dramatic
image of situations such as fireworks or night scenery. 4K Live Cropping4K
Live Cropping enables a unique style of filming, where only the
recording frame moves while the camera maintains a fixed position. This
gives you stable panning and lets you zoom in on a subject that is not
in the image's center position. See It All with High-Precision LVF
Sometimes,
harsh sunlight makes even the brightest camera screens difficult to
see. The LUMIX TZ110 features a 0.2-inch 1,166K-dot LVF(Live View
Finder) which automatically turns on when you lift the camera to your
eye, so you can see every detail and capture the shot you're looking
for. RAW data development in camera
The LUMIX TZ110
can shoot images in RAW-format and even develop them inside the camera,
to adjust the following settings: Colour Space Setting (sRGB /
AdobeRGB), White Balance, Exposure Compensation, Photo Style,
Intelligent D-range Control, Contrast, Highlight / Shadow, Saturation,
Noise Reduction, Intelligent Resolution, Sharpness. High speed auto-focusing with DFD technology
Panasonic's
Depth From Defocus (DFD) Auto Focus (AF) technology instantly
calculates the distance between the items inside the frame and drives
the focus of the lens in one fast, continuous movement. This system
results in faster AF speeds up to 0.1 seconds and a burst shooting speed
with AFC of 6 fps. It also increases the stability of continuous
focusing when shooting video.
Focusing in low light conditions — Star Light AF
Low
Light Auto Focus makes it possible to set focus on the subject more
precisely in such as moonlight even without AF assist lamp. Furthermore,
the LUMIX TZ110 newly integrates the Starlight AF to let you shoot a
star in the night sky with auto focus by accurate calculation of the
contrast value in a smaller AF zone. 5-axis correction / Tilt correction
The HYBRID O.I.S. (Optical Image Stabiliser) + with 5-axis correction* gives you blur-less one-handed video shooting. It
detects and compensates for the camera's 5 types of movement –
horizontal, vertical, axis of rotation, vertical rotation and horizontal
rotation.
The Level Shot Function* detects the image's
horizontal line and maintains it even if the camera is tilted. It takes
stable video even in high-angle, blind recording.
HYBRID O.I.S.+ and Level Shot Function do not work in 4K video recording. Specifications: | Metrics |
Dimensions (W x H x D) |
110.5 x 64.5 x 44.3 mm |
| Dimensions (W x H x D) |
(4.35 x 2.54 x 1.74 inch) |
| Weight |
Approx. 310g with Battery and SD Memory Card (0.681lb) |
| Weight |
Approx. 268 g without Battery and SD Memory Card (0.590 lb) |
| Optics |
Pixels |
Camera Effective Pixels |
20.1 Megapixels |
| Sensor |
Sensor Size / Total Pixels / Filter |
1-type High Sensitivity MOS Sensor / 20.9 Total Megapixels / Primary Color Filter |
| Lens |
Aperture |
F2.8 - 5.9 / Multistage Iris Diaphragm |
| Aperture |
(Still Image: F2.8 - 8.0 (W), F5.9 - 8.0 (T), Motion Picture: F2.8 - 8.0 (W), F5.9 - 8.0 (T)) |
| Optical Zoom |
10x |
| Focal Length |
f = 9.1 - 91mm |
| Focal Length |
(27 - 270mm in 35mm equiv. in 4:3) |
| Focal Length |
(25 - 250mm in 35mm equiv. in 3:2) |
| Focal Length |
(26 - 260mm in 35mm equiv. in 16:9) |
| Focal Length |
(32 - 320mm in 35mm equiv. in 1:1) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 4:3 4K Photo recording) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 3:2 4K Photo recording) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 16:9 4K Photo recording) |
| Focal Length |
(40 - 400mm in 35mm equiv. in 1:1 4K Photo recording) |
| Focal Length |
(26 - 260mm in 35mm equiv. in 16:9 video recording / O.I.S. Off / Level Shot function Off) |
| Focal Length |
(28 - 280mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function Off) |
| Focal Length |
(31 - 310mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function On) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 4K video recording) |
| Extra Optical Zoom (EZ) |
14x (3:2 / 10M (M)), 20x (3:2 / 5M (S)) |
| Intelligent Zoom |
20x |
| Lens |
LEICA DC VARIO-ELMARIT |
| Lens |
12 elements in 10 groups |
| Lens |
(5 Aspherical Lenses / 9 Aspherical surfaces) |
| Optical Image Stabilizer |
5-Axis HYBRID O.I.S. +* |
| Optical Image Stabilizer |
* 5-Axis compensation works in video recording except for 4K video or high-speed video recording. |
| Digital Zoom |
Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.) |
| Focus |
Focusing Area |
Normal: Wide 50 cm - infinity / Tele 70 cm - infinity |
| Focusing Area |
AF Macro / MF / Intelligent Auto / Motion Picture: Wide 5 cm - infinity / Tele 70 cm - infinity |
| AF Assist Lamp |
Yes (On / Off) |
| Focus |
AF / AF Macro / Macro Zoom * Each available
with AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF Quick AF,
Continuous AF (during motion picture recording), Eye Sensor AF, Touch
AF/AE Function, |
| Focus |
Touch Shutter, Touch Pad AF, MF Assist,
Touch MF Assist, AF+MF, Focus Peaking, One Shot AF (Set the Fn button in
custom menu to AF-ON), Low Light AF, Starlight AF, AF/AE Lock Button |
| Post Focus |
Yes |
| AF Metering |
Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area / Pinpoint |
| AF Metering |
(Full area touch is available) |
| Shutter |
Shutter Speed [Still Image] |
Still Image: |
| Shutter Speed [Still Image] |
Approx. 60 - 1/2,000 sec (Mechanical Shutter) |
| Shutter Speed [Still Image] |
Approx. 1 - 1/16,000 sec (Electronic Shutter) |
| Shutter Speed [Still Image] |
Time (Approx. 120 sec) |
| Shutter Speed [Motion Picture] |
Motion Picture: |
| Shutter Speed [Motion Picture] |
Approx. 1/25 - 1/16,000 sec |
| Shutter Speed [Motion Picture] |
Approx. 1/2 - 1/16,000 sec (Creative Video M Mode / MF Mode) |
| Finder |
Viewfinder |
0.20" LVF (Live View Finder) (1,166k dots equiv.), Field of View: Approx. 100%, Lens 19.6x |
| Viewfinder |
Magnification: Approx. 2.59x / 0.46x (35 mm camera equivalent) |
| Recording |
File |
File Format |
Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF |
| File Format |
Motion Picture: AVCHD Progressive, AVCHD, MP4 |
| Recording Modes |
Mode Dial / Mode Button |
Intelligent Auto, P, A, S, M, Creative Video, C (Custom), Panorama Shot, Scene Guide, Creative Control |
| Creative Control mode |
Expressive, Retro, Old Days, High Key, Low
Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky
Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy
Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter,
One Point Color, Sunshine (22 filters) |
| Still Image Scene Guide |
Clear Portrait, Silky Skin, Backlit
Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face,
Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset
Glow, Glistening Water, Clear Nightscape, Cool Night Sky, Warm Glowing
Nightscape, Artistic Nightscape, Glittering Illuminations, Handheld
Night Shot, Clear Night Portrait, Soft Image of a Flower, Appetizing
Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, Monochrome |
| Continuous Shooting Mode (Approx.) |
[AFS] SH: 50 frames/sec*, H: 10 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
[AFC] H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
* Electronic shutter only. |
| 4K Photo Mode (*2) |
4K Burst: 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Burst (S/S): 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Pre-Burst: 30 frames/sec, approx. 2 sec |
| 4K Photo Mode (*2) |
(Depending on memory card size and battery power) |
| 4K Photo Mode (*2) |
Exif Information: Yes |
| 4K Photo Mode (*2) |
Selectable Aspect Ratio: Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable) |
| 4K Photo Mode (*2) |
Exposure Mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual |
| 4K Photo Mode (*2) |
Marking Function: Yes (in 4K Burst (S/S) mode) |
| Motion Picture Recording (*2) |
4K Video |
3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| 4K Video |
3840 x 2160 pixels, 24p (4K: 100Mbps / MP4) (Sensor Output is 24fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 24p (FHD: 24Mbps / AVCHD) (Sensor Output is 24fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| HD Video |
1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| STD Video |
640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| High Speed Video |
1920 x 1080 pixels, 25p (FHD: MP4) (Sensor Output is 100fps) |
| Continuous Recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 105 min |
| AVCHD |
FHD/50i: Approx. 110 min |
| MP4 |
4K/25p: Approx. 90 min |
| MP4 |
FHD/50p: Approx. 110 min |
| Actual recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 50 min |
| AVCHD |
FHD/50i: Approx. 55 min |
| MP4 |
4K/25p: Approx. 45 min |
| MP4 |
FHD/50p: Approx. 55 min |
| Exposure Parameters |
Exposure |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation |
1/3 EV step, +/-5 EV (+/-3 EV for motion picture) |
| Auto (AE) Bracketing |
3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV |
| Light Metering |
Intelligent Multiple / Center Weighted / Spot |
| ISO Sensitivity |
Still Image: Auto / i.ISO / 80* / 100* / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600* |
| ISO Sensitivity |
Motion Picture: Auto / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 |
| ISO Sensitivity |
(Changeable to 1/3 EV step) |
| ISO Sensitivity |
* Extended ISO |
| Picture Quality |
Still Picture Recording |
[4:3] 4864x3648 (17.5M) (L) / 3456x2592 (9M) (M) / 2432x1824 (4.5M) (S) |
| Still Picture Recording |
[3:2] 5472x3648 (20M) (L) / 3888x2592 (10M) (M) / 2736x1824 (5M) (S) |
| Still Picture Recording |
[16:9] 5472x3080 (17M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S) |
| Still Picture Recording |
[1:1] 3648x3648 (13.5M) (L) / 2592x2592 (6.5M) (M) / 1824x1824 (3.5M) (S) |
| Image Quality |
RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| White Balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / White Set3 / White Set4 / Color Temperature |
| White Balance |
(2-axis Adjustable) |
| Photo Style |
Standard, Vivid, Natural, Monochrome,
Scenery, Portrait, Custom, Cinelike D*, Cinelike V* * When Creative
Video mode is selected. |
| Picture Adjustment |
Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, Filter Effect** |
| Picture Adjustment |
* Except for Monochrome mode. ** For Monochrome mode only. |
| Other |
Digital Red Eye Correction (Red-Eye Removal) |
Yes (On / Off) |
| GPS |
- |
| Wi-FI |
IEEE 802.11b/g/n |
| Wi-FI |
2412 MHz - 2462 MHz (1-11 ch) |
| Wi-FI |
WPA / WPA2 |
| Wi-FI |
Infrastracture Mode / WPS |
| NFC |
- |
| Zoom in Motion Picture |
Yes |
| Self Timer |
2 sec / 10 sec / 10 sec (3 images) |
| Self Shot Mode |
- |
| Playback |
Display |
Playback Mode |
All, Slideshow, Filtering Play (Picture Only, Video Only, 4K PHOTO, Post Focus, Category Selection, Favorite), Calendar |
| Thumbnails / Zoomed Playback |
12,30-thumbnails / Yes |
| Set Favorites / Rotate Image |
Yes / Yes |
| Show Histogram/ Show Highlights |
Yes / Yes |
| DPOF Print Setting / Set Protection |
Yes / Yes |
| Edit |
Retouch |
- |
| RAW Processing |
Yes |
| Resize/ Cropping |
Yes / Yes |
| Copy / Title Edit / Text Stamp |
- / Yes / Yes |
| Video Divide |
Yes |
| Creating Still Pictures from a Motion Picture |
Yes |
| PictBridge Support |
Single / Multi / All / DPOF / Favorites |
| Setup |
OSD language |
Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified) |
| Others |
Monitor |
LCD Monitor |
7.5cm (3.0") TFT Screen LCD Display (1040k dots), Static Touch Control, AF Coating |
| LCD Monitor |
Field of View: Approx. 100%, Wide Viewing-angle |
| Flash |
Built- in- Flash |
Auto*, Auto/Red-eye Reduction*, Forced On,
Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction,
Forced Off * For iA, iA+ mode only. |
| Built- in- Flash |
0.6 - 8.0m (Wide / ISO Auto), 0.7 - 3.8m (Tele / ISO Auto) |
| Media |
Recording Media |
SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Recording Media |
(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
| Built- in- Memory |
- |
| Audio |
Microphone / Speaker |
Stereo / Mono |
| Interface |
Interface |
microHDMI typeD (*3), USB2.0 Micro-B |
| Power |
Power |
Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included) |
| Power |
AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable) |
| Battery life (approx.) |
300 pictures (rear monitor) / 260 pictures (LVF) (CIPA Standard) (*1) |
| Standard Package |
Included Software |
· The software to process RAW file on PC is
not bundled with DMC-TZ110. To do this, SILKYPIX Developer Studio is
available for download at Ichikawa Soft Laboratory's website using PC
connected to the Internet. |
| Included Software |
· The DMC-TZ110 Operating Instructions for
advanced features is available for downloaded at Panasonic LUMIX
Customer Support Site using PC, smartphone or tablet connected to the
Internet. |
| Included Software |
· The software for PC is not bundled with
DMC-TZ110. Please use the software pre-installed to the PC or other
general image viewing software to browse pictures. |
| Standard Accessories |
Battery Pack, AC Adaptor, USB Cable, Hand Strap, Strap Adaptor |
| NOTE |
*1 |
| NOTE |
Recording conditions by CIPA standard |
| NOTE |
- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when monitor is on. |
| NOTE |
- Using a Panasonic SDHC Memory Card |
| NOTE |
- Using the supplied battery. |
| NOTE |
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) |
| NOTE |
- Recording once every 30 seconds with full flash every second recording. |
| NOTE |
- Rotating the zoom lever from Tele to Wide or vice versa in every recording. |
| NOTE |
- The number of recordable pictures varies depending on the recording interval time. |
| NOTE |
- If the recording interval time becomes longer, the number of recordable pictures decreases. |
| NOTE |
- CIPA is an abbreviation of [Camera & Imaging Products Association]. |
| NOTE |
*2 |
| NOTE |
- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. |
| NOTE |
- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. |
| NOTE |
- Actual recordable time is the time
available for recording when repeating actions such as switching the
power supply [ON] / [OFF], starting/stopping recording, zoom operation
etc. |
| NOTE |
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. |
| NOTE |
- Use a card with SD Speed Class with "UHS-I
Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K]
or [4K PHOTO]. |
| NOTE |
(SD speed class is the speed standard regarding continuous writing.) |
| NOTE |
- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [4K] is 15 minutes. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB. |
| NOTE |
- Maximum time to record High Speed motion pictures continuously with [MP4] in [FHD] is 7 minutes 29 seconds. |
| NOTE |
*3 |
| NOTE |
For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible". |
|
|
|
|
15/02
|
Panasonic DMC-TZ110GNK Lumix Digital Camera - Black - 20.1MP, 10x Optical Zoom, 3.0" TFT LCD, WiFi, Optical Image Stabilizer, 4K PhotoLUMIX Digital Camera DMC-TZ110Overview Small Size, Big Adventure
The LUMIX TZ110 has been designed with power and function in perfect balance. A crystal-clear LEICA zoom lens accompanies a stylish pocket-sized shape. No more bulky camera bags or weighty equipment, just power and portability in perfect harmony. Capture Everything Day and Night 1-inch large High Sensitivity MOS Sensor
Just because the sun goes down, doesn’t mean your camera has to as well. Keep capturing into the night, with the powerful 1-inch 20.1-megapixel MOS sensor of the TZ110. More detail, more colour and more clarity, even in low light. Advanced Venus Engine Image Processor
LUMIX TZ110 incorporates the same Venus Engine as the LUMIX high-end system cameras. It enables high quality image capture and high speed signal processing required for 4K video recording. Integrating superior noise reduction systems, LUMIX TZ110 enables shooting at max. ISO12800 / Extended ISO25600. Sensitivity, gradation performance, resolution and colour reproduction are dramatically improved to achieve even higher picture quality. Stunning Shots Are Closer Than You Think Powerful 10x optical zoom
When you just can't get closer, the powerful 10x optical zoom of the LUMIX TZ110 helps you get the shot. Featuring a world-famous LEICA DC VARIO-ELMARIT lens, its powerful zoom offers incredible flexibility, ranging from 25mm-250mm (35mm camera equiv.). Perfect for capturing the sights; both near and far. Shoot Now, Focus Later
Imagine being able to decide exactly what you want in focus, even after you've taken the photo. The Post Focus function on the LUMIX TZ110 gives you the power to do just that. Simply capture the scene, review the image and touch the part of the 4K PHOTO you'd like to be pin sharp. It's simple, stunning and all inside the LUMIX TZ110. 4K Video: Life in Vivid Detail
The stunning power of the LUMIX TZ80’s 4K Video allows you to record your journey in up to four times the resolution quality of Full HD. You get more excitement, more detail and even more memories to look back on with vivid clarity. Unmissable moments with 4K PHOTOThanks to 4K technology inside the TZ110, 4K PHOTO allows you to capture the perfect moment in 30fps, and select your best photo after shooting. Shoot, select and save. With 4K PHOTO mode on the LUMIX TZ110, make moments, truly unmissable. Light CompositionThe Light Composition function synthesises the images by choosing and saving a brighter pixel, making it easy to produce more luxurious, dramatic image of situations such as fireworks or night scenery. 4K Live Cropping4K Live Cropping enables a unique style of filming, where only the recording frame moves while the camera maintains a fixed position. This gives you stable panning and lets you zoom in on a subject that is not in the image's center position. See It All with High-Precision LVF
Sometimes, harsh sunlight makes even the brightest camera screens difficult to see. The LUMIX TZ110 features a 0.2-inch 1,166K-dot LVF(Live View Finder) which automatically turns on when you lift the camera to your eye, so you can see every detail and capture the shot you're looking for. RAW data development in camera
The LUMIX TZ110 can shoot images in RAW-format and even develop them inside the camera, to adjust the following settings: Colour Space Setting (sRGB / AdobeRGB), White Balance, Exposure Compensation, Photo Style, Intelligent D-range Control, Contrast, Highlight / Shadow, Saturation, Noise Reduction, Intelligent Resolution, Sharpness. High speed auto-focusing with DFD technology
Panasonic's Depth From Defocus (DFD) Auto Focus (AF) technology instantly calculates the distance between the items inside the frame and drives the focus of the lens in one fast, continuous movement. This system results in faster AF speeds up to 0.1 seconds and a burst shooting speed with AFC of 6 fps. It also increases the stability of continuous focusing when shooting video.
Focusing in low light conditions — Star Light AF
Low Light Auto Focus makes it possible to set focus on the subject more precisely in such as moonlight even without AF assist lamp. Furthermore, the LUMIX TZ110 newly integrates the Starlight AF to let you shoot a star in the night sky with auto focus by accurate calculation of the contrast value in a smaller AF zone. 5-axis correction / Tilt correction
The HYBRID O.I.S. (Optical Image Stabiliser) + with 5-axis correction* gives you blur-less one-handed video shooting. It detects and compensates for the camera's 5 types of movement – horizontal, vertical, axis of rotation, vertical rotation and horizontal rotation.
The Level Shot Function* detects the image's horizontal line and maintains it even if the camera is tilted. It takes stable video even in high-angle, blind recording.
HYBRID O.I.S.+ and Level Shot Function do not work in 4K video recording. Specifications: | Metrics |
Dimensions (W x H x D) |
110.5 x 64.5 x 44.3 mm |
| Dimensions (W x H x D) |
(4.35 x 2.54 x 1.74 inch) |
| Weight |
Approx. 310g with Battery and SD Memory Card (0.681lb) |
| Weight |
Approx. 268 g without Battery and SD Memory Card (0.590 lb) |
| Optics |
Pixels |
Camera Effective Pixels |
20.1 Megapixels |
| Sensor |
Sensor Size / Total Pixels / Filter |
1-type High Sensitivity MOS Sensor / 20.9 Total Megapixels / Primary Color Filter |
| Lens |
Aperture |
F2.8 - 5.9 / Multistage Iris Diaphragm |
| Aperture |
(Still Image: F2.8 - 8.0 (W), F5.9 - 8.0 (T), Motion Picture: F2.8 - 8.0 (W), F5.9 - 8.0 (T)) |
| Optical Zoom |
10x |
| Focal Length |
f = 9.1 - 91mm |
| Focal Length |
(27 - 270mm in 35mm equiv. in 4:3) |
| Focal Length |
(25 - 250mm in 35mm equiv. in 3:2) |
| Focal Length |
(26 - 260mm in 35mm equiv. in 16:9) |
| Focal Length |
(32 - 320mm in 35mm equiv. in 1:1) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 4:3 4K Photo recording) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 3:2 4K Photo recording) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 16:9 4K Photo recording) |
| Focal Length |
(40 - 400mm in 35mm equiv. in 1:1 4K Photo recording) |
| Focal Length |
(26 - 260mm in 35mm equiv. in 16:9 video recording / O.I.S. Off / Level Shot function Off) |
| Focal Length |
(28 - 280mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function Off) |
| Focal Length |
(31 - 310mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function On) |
| Focal Length |
(37 - 370mm in 35mm equiv. in 4K video recording) |
| Extra Optical Zoom (EZ) |
14x (3:2 / 10M (M)), 20x (3:2 / 5M (S)) |
| Intelligent Zoom |
20x |
| Lens |
LEICA DC VARIO-ELMARIT |
| Lens |
12 elements in 10 groups |
| Lens |
(5 Aspherical Lenses / 9 Aspherical surfaces) |
| Optical Image Stabilizer |
5-Axis HYBRID O.I.S. +* |
| Optical Image Stabilizer |
* 5-Axis compensation works in video recording except for 4K video or high-speed video recording. |
| Digital Zoom |
Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.) |
| Focus |
Focusing Area |
Normal: Wide 50 cm - infinity / Tele 70 cm - infinity |
| Focusing Area |
AF Macro / MF / Intelligent Auto / Motion Picture: Wide 5 cm - infinity / Tele 70 cm - infinity |
| AF Assist Lamp |
Yes (On / Off) |
| Focus |
AF / AF Macro / Macro Zoom * Each available
with AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF Quick AF,
Continuous AF (during motion picture recording), Eye Sensor AF, Touch
AF/AE Function, |
| Focus |
Touch Shutter, Touch Pad AF, MF Assist,
Touch MF Assist, AF+MF, Focus Peaking, One Shot AF (Set the Fn button in
custom menu to AF-ON), Low Light AF, Starlight AF, AF/AE Lock Button |
| Post Focus |
Yes |
| AF Metering |
Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area / Pinpoint |
| AF Metering |
(Full area touch is available) |
| Shutter |
Shutter Speed [Still Image] |
Still Image: |
| Shutter Speed [Still Image] |
Approx. 60 - 1/2,000 sec (Mechanical Shutter) |
| Shutter Speed [Still Image] |
Approx. 1 - 1/16,000 sec (Electronic Shutter) |
| Shutter Speed [Still Image] |
Time (Approx. 120 sec) |
| Shutter Speed [Motion Picture] |
Motion Picture: |
| Shutter Speed [Motion Picture] |
Approx. 1/25 - 1/16,000 sec |
| Shutter Speed [Motion Picture] |
Approx. 1/2 - 1/16,000 sec (Creative Video M Mode / MF Mode) |
| Finder |
Viewfinder |
0.20" LVF (Live View Finder) (1,166k dots equiv.), Field of View: Approx. 100%, Lens 19.6x |
| Viewfinder |
Magnification: Approx. 2.59x / 0.46x (35 mm camera equivalent) |
| Recording |
File |
File Format |
Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF |
| File Format |
Motion Picture: AVCHD Progressive, AVCHD, MP4 |
| Recording Modes |
Mode Dial / Mode Button |
Intelligent Auto, P, A, S, M, Creative Video, C (Custom), Panorama Shot, Scene Guide, Creative Control |
| Creative Control mode |
Expressive, Retro, Old Days, High Key, Low
Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky
Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy
Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter,
One Point Color, Sunshine (22 filters) |
| Still Image Scene Guide |
Clear Portrait, Silky Skin, Backlit
Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face,
Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset
Glow, Glistening Water, Clear Nightscape, Cool Night Sky, Warm Glowing
Nightscape, Artistic Nightscape, Glittering Illuminations, Handheld
Night Shot, Clear Night Portrait, Soft Image of a Flower, Appetizing
Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, Monochrome |
| Continuous Shooting Mode (Approx.) |
[AFS] SH: 50 frames/sec*, H: 10 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
[AFC] H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
* Electronic shutter only. |
| 4K Photo Mode (*2) |
4K Burst: 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Burst (S/S): 30 frames/sec, max. 15 min |
| 4K Photo Mode (*2) |
4K Pre-Burst: 30 frames/sec, approx. 2 sec |
| 4K Photo Mode (*2) |
(Depending on memory card size and battery power) |
| 4K Photo Mode (*2) |
Exif Information: Yes |
| 4K Photo Mode (*2) |
Selectable Aspect Ratio: Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable) |
| 4K Photo Mode (*2) |
Exposure Mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual |
| 4K Photo Mode (*2) |
Marking Function: Yes (in 4K Burst (S/S) mode) |
| Motion Picture Recording (*2) |
4K Video |
3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| 4K Video |
3840 x 2160 pixels, 24p (4K: 100Mbps / MP4) (Sensor Output is 24fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 24p (FHD: 24Mbps / AVCHD) (Sensor Output is 24fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby) |
| HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC) |
| HD Video |
1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| HD Video |
1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| STD Video |
640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC) |
| High Speed Video |
1920 x 1080 pixels, 25p (FHD: MP4) (Sensor Output is 100fps) |
| Continuous Recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 105 min |
| AVCHD |
FHD/50i: Approx. 110 min |
| MP4 |
4K/25p: Approx. 90 min |
| MP4 |
FHD/50p: Approx. 110 min |
| Actual recordable Time (Motion Pictures) |
AVCHD |
FHD/50p: Approx. 50 min |
| AVCHD |
FHD/50i: Approx. 55 min |
| MP4 |
4K/25p: Approx. 45 min |
| MP4 |
FHD/50p: Approx. 55 min |
| Exposure Parameters |
Exposure |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation |
1/3 EV step, +/-5 EV (+/-3 EV for motion picture) |
| Auto (AE) Bracketing |
3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV |
| Light Metering |
Intelligent Multiple / Center Weighted / Spot |
| ISO Sensitivity |
Still Image: Auto / i.ISO / 80* / 100* / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600* |
| ISO Sensitivity |
Motion Picture: Auto / 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 |
| ISO Sensitivity |
(Changeable to 1/3 EV step) |
| ISO Sensitivity |
* Extended ISO |
| Picture Quality |
Still Picture Recording |
[4:3] 4864x3648 (17.5M) (L) / 3456x2592 (9M) (M) / 2432x1824 (4.5M) (S) |
| Still Picture Recording |
[3:2] 5472x3648 (20M) (L) / 3888x2592 (10M) (M) / 2736x1824 (5M) (S) |
| Still Picture Recording |
[16:9] 5472x3080 (17M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S) |
| Still Picture Recording |
[1:1] 3648x3648 (13.5M) (L) / 2592x2592 (6.5M) (M) / 1824x1824 (3.5M) (S) |
| Image Quality |
RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| White Balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / White Set3 / White Set4 / Color Temperature |
| White Balance |
(2-axis Adjustable) |
| Photo Style |
Standard, Vivid, Natural, Monochrome,
Scenery, Portrait, Custom, Cinelike D*, Cinelike V* * When Creative
Video mode is selected. |
| Picture Adjustment |
Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, Filter Effect** |
| Picture Adjustment |
* Except for Monochrome mode. ** For Monochrome mode only. |
| Other |
Digital Red Eye Correction (Red-Eye Removal) |
Yes (On / Off) |
| GPS |
- |
| Wi-FI |
IEEE 802.11b/g/n |
| Wi-FI |
2412 MHz - 2462 MHz (1-11 ch) |
| Wi-FI |
WPA / WPA2 |
| Wi-FI |
Infrastracture Mode / WPS |
| NFC |
- |
| Zoom in Motion Picture |
Yes |
| Self Timer |
2 sec / 10 sec / 10 sec (3 images) |
| Self Shot Mode |
- |
| Playback |
Display |
Playback Mode |
All, Slideshow, Filtering Play (Picture Only, Video Only, 4K PHOTO, Post Focus, Category Selection, Favorite), Calendar |
| Thumbnails / Zoomed Playback |
12,30-thumbnails / Yes |
| Set Favorites / Rotate Image |
Yes / Yes |
| Show Histogram/ Show Highlights |
Yes / Yes |
| DPOF Print Setting / Set Protection |
Yes / Yes |
| Edit |
Retouch |
- |
| RAW Processing |
Yes |
| Resize/ Cropping |
Yes / Yes |
| Copy / Title Edit / Text Stamp |
- / Yes / Yes |
| Video Divide |
Yes |
| Creating Still Pictures from a Motion Picture |
Yes |
| PictBridge Support |
Single / Multi / All / DPOF / Favorites |
| Setup |
OSD language |
Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified) |
| Others |
Monitor |
LCD Monitor |
7.5cm (3.0") TFT Screen LCD Display (1040k dots), Static Touch Control, AF Coating |
| LCD Monitor |
Field of View: Approx. 100%, Wide Viewing-angle |
| Flash |
Built- in- Flash |
Auto*, Auto/Red-eye Reduction*, Forced On,
Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction,
Forced Off * For iA, iA+ mode only. |
| Built- in- Flash |
0.6 - 8.0m (Wide / ISO Auto), 0.7 - 3.8m (Tele / ISO Auto) |
| Media |
Recording Media |
SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Recording Media |
(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) |
| Built- in- Memory |
- |
| Audio |
Microphone / Speaker |
Stereo / Mono |
| Interface |
Interface |
microHDMI typeD (*3), USB2.0 Micro-B |
| Power |
Power |
Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included) |
| Power |
AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable) |
| Battery life (approx.) |
300 pictures (rear monitor) / 260 pictures (LVF) (CIPA Standard) (*1) |
| Standard Package |
Included Software |
· The software to process RAW file on PC is
not bundled with DMC-TZ110. To do this, SILKYPIX Developer Studio is
available for download at Ichikawa Soft Laboratory's website using PC
connected to the Internet. |
| Included Software |
· The DMC-TZ110 Operating Instructions for
advanced features is available for downloaded at Panasonic LUMIX
Customer Support Site using PC, smartphone or tablet connected to the
Internet. |
| Included Software |
· The software for PC is not bundled with
DMC-TZ110. Please use the software pre-installed to the PC or other
general image viewing software to browse pictures. |
| Standard Accessories |
Battery Pack, AC Adaptor, USB Cable, Hand Strap, Strap Adaptor |
| NOTE |
*1 |
| NOTE |
Recording conditions by CIPA standard |
| NOTE |
- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when monitor is on. |
| NOTE |
- Using a Panasonic SDHC Memory Card |
| NOTE |
- Using the supplied battery. |
| NOTE |
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) |
| NOTE |
- Recording once every 30 seconds with full flash every second recording. |
| NOTE |
- Rotating the zoom lever from Tele to Wide or vice versa in every recording. |
| NOTE |
- The number of recordable pictures varies depending on the recording interval time. |
| NOTE |
- If the recording interval time becomes longer, the number of recordable pictures decreases. |
| NOTE |
- CIPA is an abbreviation of [Camera & Imaging Products Association]. |
| NOTE |
*2 |
| NOTE |
- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. |
| NOTE |
- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. |
| NOTE |
- Actual recordable time is the time
available for recording when repeating actions such as switching the
power supply [ON] / [OFF], starting/stopping recording, zoom operation
etc. |
| NOTE |
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. |
| NOTE |
- Use a card with SD Speed Class with "UHS-I
Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K]
or [4K PHOTO]. |
| NOTE |
(SD speed class is the speed standard regarding continuous writing.) |
| NOTE |
- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [4K] is 15 minutes. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB. |
| NOTE |
- Maximum time to record High Speed motion pictures continuously with [MP4] in [FHD] is 7 minutes 29 seconds. |
| NOTE |
*3 |
| NOTE |
For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible". |
|
|
|
|
15/02
|
Kingston 512GB HyperX Savage USB Flash Drive - Trend-Setting Design, Multi-Platform Compatibility, Read 350MB/s, Write 250MB/s, USB3.1
|
|
|
|
Previous Page
|
Next Page
|
|
