1-Chip DLP Projector

8,500 Lumens WUXGA

Overview

Vivid Picture Quality With High Brightness

The new PT-DZ870EK Series features many of the advanced functions in Panasonic’s flagship 3-chip DLP™ Projectors. With its superior performance and expanded application flexibility, the Series will set a new standard for 1-chip DLP™ Projectors.

Bright 8,500 lm From a Compact Body

A unique Dual Lamp drive system has helped to make the body compact, while two newly developed, high output, 420 W Lamps provide high brightness of 8,500 lm.

Dynamic Iris For A High 10,000:1* Contrast Ratio

Panasonic’s Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1* contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.

The New Dynamic RGB Booster Enhances Both Brightness And Colour Reprodction

Panasonic’s RGB Booster achieves high image quality with levels of colour reproduction and brightness that make each colour stand out. It combines Panasonic’s proprietary Vivid Colour Control technology with a Lamp Modulation Drive System for a 1-chip DLP™ Projector that produces bright and vivid colours. This has been further advanced in the PT-DZ870EK Projectors with the development of the Dynamic RGB Booster. Images are analysed frame by frame, and scene-linking and real time modulation are used to achieve high brightness and vivid colour reproduction.

Conventional System

Because the Lamp power was fixed, colour reproduction was enhanced by sacrificing brightness.

Dynamic RGB Booster

Images are analysed frame by frame, and the Lamp output is modulated to match each scene. This achieves optimal brightness and colour reproduction for a wide variety of scenes.

Lamp Modulation Drive System

With the advanced Lamp Modulation technology, the Projector is able to control the Lamp intensity for each of the red, green, blue, and white segments of the colour wheel separately. Because the actual light output is controlled in relation to each colour segment, light usage is optimised and colour balance is obtained without lowering the brightness. This results in bright vivid images with increased colour fidelity.

Detail Clarity Process 3 Gives Natural Clarity To Even The Finest Details

This unique Panasonic circuit optimises the sharpness of each image, based on the super high, high, medium, and low frequency components of the extracted image information. The resulting images have a more natural, lifelike expression.

System Daylight View 2 for Enhanced Colour Perception

This unique Panasonic technology optimises image quality to improve the colour perception of the projected image in bright rooms. With a brightness of 8,500 lm, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images.

DICOM Simulation Mode

This imaging mode is similar to DICOM Part 14, which is a medical imaging standard. It reproduces x-ray images with remarkable clarity.

This product is not a medical instrument. Do not use it for actual medical diagnosis.

Rec,709 Mode For HDTV Projection

Optimal colour reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected.

Waveform Monitor Function

When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With the PT-DZ870EK Series Projector you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer.

Full-HD Ready WUXGA Resolution

The PT-DZ870EK features native WUXGA resolution for Full HD viewing.
This brings you lifelike projection of intricate, highly detailed images.

Advanced Technologies For Excellent Image Quality

3D Colour Management System
Full 10-bit Image Processing
Progressive Cinema Scan (3:2 Pull Down)
Dynamic Sharpness Control
Digital Noise Reduction
IP Conversion
AI Scene Control
2:2 Pull Down Mode
sRGB Compatibility

Panasonic's Original Dual Lamp System

This system eliminates the interruption if a Lamp should fail (in Dual-Lamp operation mode). The Lamp Relay mode also operates the Lamps alternately to enable 24/7 projection.*

If the Projector is to be operated continuously 24 hours a day / 7 days a week, use the Dual-Lamp optical system’s alternating Lamp operation (lamp changer) function. The Projector cannot be operated continuously 24 hours a day / 7 days a week in Dual-Lamp mode. Allow a minimum of two hours per week of non-operation time per Lamp if using the Dual-Lamp mode.

Long Lamp Life Contributes To Low TCO

The PT-DZ870EK Series Projectors lower the total cost of ownership because they have a Lamp replacement cycle of up to 4,000 hours.*

With the LAMP POWER set to ECO mode in Dual Lamp operation. The usage environment affects the Lamp replacement cycle.

Filter Less Dust Resistant Optical Engine

A Heat Pipe Cooling System Maintains Stable Operation up to 45°C

A new optical cooling system featuring a heat pipe block suppresses temperature rises inside the Projector and allows stable operation up to an ambient temperature of 45°C (113°F).* The use of this heat pipe cooling system also achieves quiet operation, enabling viewers to concentrate on the presentation or on quiet movie scenes.

The operating temperature range is 0°C to 45°C (32°F to 113°F) when used in locations from 1,400 m to 2,700 m (4,953 ft to 8,858 ft) above sea level. If the ambient temperature exceeds 35°C (95°F), the light output may be reduced to protect the Projector.

Dust Resistant Optical Block

The optical block, the heart of the Projector, is hermetically sealed to resist the effects of dust and other particles in the air, which makes it possible to remove the Air Filters for optics. It also contributes to the low TCO.

Easy Lamp Replacement

For easier maintenance, you can replace the Lamp from the rear. This makes it easy to replace a Lamp unit while the Projector is still in the mounting bracket or dual stacked.

The Lamp Filter must be replaced at the same time as the Lamp.

DIGITAL LINK Transmits Digital Signals up to 100m (320ft) With A Single Cable

DIGITAL LINK - The Single Cable Solution

Equipped with a DIGITAL LINK terminal, the PT-DZ870EK Series allows transmission of HDMI, uncompressed HD digital video and control signals (Ethernet, RS-232C) for up to 100 metres (328 feet) through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling mounted and other permanent installations.

Note: Audio signals cannot be transmitted because the PT-DZ870EK Series has no speaker or audio output terminal.

Optional ET-YFB100G Digital Interface Box for Easy Setup

By combining the optional ET-YFB100G Digital Interface Box, with its HDMI and other input terminals, uncompressed HD digital video and control signals can be transmitted up to 100 m (328 feet) over a single CAT5e (STP) cable or higher. It allows Projector connection with only one cable, making it ideal for ceiling mounted and other permanent installations.

Also, because control signals can be simultaneously transmitted, the ET-YFB100G input signal can easily be switched with the wireless Remote Control that is included with the Projector. The Projector can be controlled by either serial or LAN communication.

Also Supports Other Manufacturers’ Peripheral Equipment

DIGITAL LINK is an original function added to technology based on the transmission standards used in Crestron’s DigitalMedia 8G+, Extron’s XTP Systems, etc. Used together with the new ET-YFB100G Digital Interface Box, or other compatible equipment, the installation of this Projector is easier than ever, without any need for external receivers.

Art-Net* Compatible

The PT-DZ870EK Series Projector is compatible with the Art-Net protocol for lighting management.

Art-Net compatibility lets you connect the Projector to the lighting console, and operate functions such as shutter on/off, input change, power on/off, etc., together with the light control.

Art-Net is a protocol for transmitting the lighting control protocol DMX512 over the Ethernet.

Multi-Screen Support System Seamlessly Connects Multiple Screens

The Multi-Screen Support System optimally adjusts multiple screens: Edge Blending, Colour Matching and Multi-Screen Processor.

Edge Blending

The edges of adjacent screens can be blended and their luminance controlled.

Colour Matching

This function corrects for slight variations in the colour reproduction range of individual Projectors. The PC software assures easy, accurate control.

Multi-Screen Processor

The PT-DZ870EK Series Projectors can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.

Multi-Unit Brightness Control

This function automatically corrects the brightness fluctuations that occur over time in the individual Projectors of a multi-screen system. Up to eight Projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 Projectors by using

Multi-Unit Brightness Control

Geometric Adjustment For Specially Shaped Screens (PT-DZ870EK)

This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using only the Remote Control, with no external equipment needed.
New 4-Corner Adjustment and Keep Aspect Off functions also simplify fine adjustment.

Optional Upgrade Kit (ET-UK20) Featuring Geometry Manager Pro (PT-DZ870EK)

The new Geometry Manager Pro software included in the optional upgrade kit ET-UK20 supports Colour Matching, Edge Blending, Uniformity Correction, and other useful functions for Multi-Projector set ups (max. 32 units).
It also allows creative masking using four lines or bitmap data. And its flexible and complex geometric adjustment capability suits a wide variety of screen shapes.

Active 3D Projection Capability

The series is compatible with both passive and active 3D projection systems.

It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.

Active 3D Projection Capability

Frame Sequential

Images for each of the left and right eyes are transmitted, alternately at the rate of 60 frames per second.

Frame Packing

Images for the left and right eyes are transmitted in one frame, while the resolution for each remains as it is.

Side by Side

Images for the left and right eyes are transmitted in one frame, while horizontal resolution is reduced by half.

Top and Bottom

Images for the left and right eyes are transmitted in one frame, while the vertical resolution is reduced by half.

Line by Line

Images for the left and right eyes are allocated, to odd numbered lines and even numbered lines.

Simultaneous

Images for the left and right eyes are transmitted by using two cables.

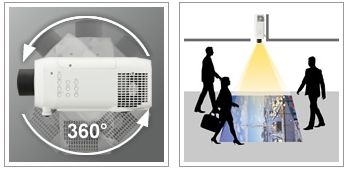

Flexible Installation

The wide adjustment range of the powered

horizontal / vertical lens shift function can be easily adjusted with the Remote Control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens centered design contributes to easy installation.

Portrait Mode Capability (optional)

Portrait projection is possible by mounting the optional

ET-LAD120P or ET-LAD120PW Lamp units, updating the Projector's firmware to MAIN Ver. 2.00 or later, and installing the Projector with its terminal side surface facing downward. Portrait mode adds more solutions for projection mapping, staging, and other needs.

Note: Please contact your sales representative for information on portrait orientation.

(Contact Information)

Please contact the sales representative with regard to the frame for portrait orientation. Installation is possible only with the terminal side facing downward. Horizontal rotation and vertical rotation are both limited to 15 degrees. Also, the Lamp replacement cycle is 1,000 hours with the LAMP POWER set to NORMAL mode in Dual Lamp operation, and is affected by the usage environment.

To check the firmware version, press the button on the Remote Control. [MAIN VERSION] of the firmware can be checked on the [STATUS] menu screen.

The ET-LAD120P and ET-LAD120PW cannot be used when the Projector is in landscape orientation.

Multiple Terminals With HD-SDL Compatibility

The PT-DZ870EK Series has an array of terminals, including 3D sync, DVI-D and HDMI terminals.
The PT-DZ870EK also features an SDI (SD-, HD-, and 3G-SDI) input terminal.

Easy Remote Monitoring And Control Over a LAN

Web browser on a Computer connected through a wired LAN system lets you remotely operate Projectors and check their status. An email messaging function can also notify you when a Lamp needs replacement, and indicate the overall Projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic Projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of Projectors.

A Wide Selection Of Optional Lenses

Choose from a wide line up of lenses for your system, including Long Throw Zoom Lenses and an Ultra Short Throw Lens for rear projection use. The additional Lenses make it easy to adapt your Projector to the installation site. The Lenses attach and detach with one-touch ease.

Panasonic’s new ET-DLE030 ultra-short-throw lens enables 100-inch projection from a 0.82 m (2.7 ft) distance.** It’s a powerful solution for the hassles of installation in a narrow space.

For detachable lenses as of July 2013.

For the PT-DZ870. 0.86 m (2.8 ft) for the PT-DW830 and 0.80 (2.6 ft) for the PT-DX100. The distance measures from the mirror surface to the screen.

Requires sufficient airflow space around the projector. This throw distance shows the case of the PT-DZ870.

For example, promotional images can be projected even in thenarrow space of a retail store showcase, where image projection is not possible with a general-purpose lens.

NOTE: The usage examples shown above are simulated images.

Other Valuable Features

P-in-P Function*
Mechanical Lens Shutter with Fade In/Out Effect
Scheduling Function
Direct Power Off
30 m Long-Range Wireless Remote Control
Anti-Theft Features with Chain Opening
Control Device Setup Function
ID Assignment for Up to 64 Units
Built-In Test Pattern
Selectable 10-Language On-Screen Menu(English, German, French, Spanish, Italian,Portuguese, Russian, Japanese, Chinese, Korean)
RoHS Directive Compliant

This function cannot be used with some input signals and selected inputs

Specifications

PT-EZ580E

The Smart Choice for bright, flexible and Economical Projection

Benefits of the PT-EZ580 Series

1. High Picture Quality

Bright and quiet operation with up to 6,200 lm* at 29 dB** on Eco mode
High 5,000:1*** contrast performance with iris
WUXGA (1,920 x 1,200) resolution for brilliant Full HD images (PT-EZ580/L)

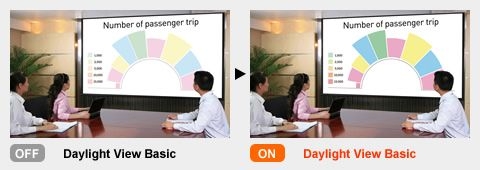

Daylight View Basic Function to correct images for clear projection in well-lit environments
Picture-in-Picture and Side-by-Side modes for simultaneous viewing of multiple sources

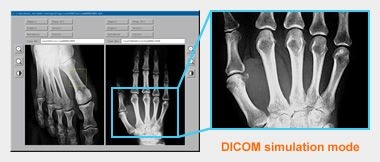

DICOM Simulation mode**** for medical presentations and training
Color Adjustment Function corrects variations between individual units set up for simultaneous projection

2. Low TCO and easy maintenance

Extended lamp replacement cycle of up to 4,500 hours*****
Reusable Eco Filter (17,000 hours),****** sealed optics, and dust-resistant cabinet
Easy access to lamp and filter for maintenance
Economical 335 W lamp draws just 0.3 W on Standby in Eco mode
Intelligent Lamp Control automatically controls brightness to reduce overall power consumption
Eco Management button on remote gives quick access to a range of Eco functions

3. System flexibility

DIGITAL LINK (based on HDBaseT™ technology) and DisplayPort single-cable connections*******
Powered lens shift, zoom, and focus via remote control.
Wide range of optional lenses are interchangeable with PT-EZ770 Series
Horizontal/vertical and corner keystone correction
Emulation function compatible with existing control systems when replacing legacy Panasonic and Sanyo projectors
Compatible with PJLink™, AMX, Extron, and Crestron Connected™ control systems
Mechanical lens shutter******** prevents distracting light leakage when on Standby
Direct Power Off function enables safe projector shutdown via breaker switch
Anti-theft features include a customizable startup logo, password protection, and security bar

Specifications

A Wide Selection of Optional Lenses

Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-
throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.

Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

Crestron Connected and AMX Device Discovery

The LAN terminal allows a computer connected to the network to use Crestron Connected™ application software to manage and control system devices. Besides, the AMX Device Discovery technology is built in the PT-EZ770 Series.

Mechanical Lens Shutter

The mechanical lens shutter completely blocks annoying light leakage when the projector is on standby or temporarily not in use, such as during a meeting.
Corner Keystone Correction Enables Angled Projection

All you need to do is designate four points as the corners of the projected image, and this function easily carries out horizontal and vertical keystone correction.

Lens-Centered Design

A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.

Abundant Terminals, Including HDMI, DVI-D Input, and DisplayPort

Extensive interfaces include HDMI and DVI-D input terminals, DisplayPort, DIGITAL LINK and two sets of computer (RGB) input terminals.*
The serial terminal (RS-232C) has an Emulate function that lets you continue using existing control systems when replacing previous Panasonic models. It is also possible to output audio during Standby mode. This is convenient when connecting an external audio system through the projector.

Supports YPBPR (YCBCR) signals.

Built-in 10-W Speaker

The PT-EZ770 Series projectors feature a high-output 10-watt monaural speaker that produces a large sound volume without requiring external speakers.
Side-by-Side and P-in-P Function* for Effective Presentations and Lectures

Two different image sources can be simultaneously displayed onto a single screen. You can also switch to P-in-P (Picture-in-Picture) mode and display a sub-window onto the main screen. The sub-window can be positioned anywhere on the screen for more flexible and effective image presentations.

This function is not effective for some source combinations.

Effective Theft Prevention with the Startup Logo

You can change the default Panasonic start up logo to any logo you want. A new logo can be easily uploaded by connecting a computer to the PT-EZ770 Series through the LAN or serial connection by using the Logo Transfer Software*. An abundance of other security measures are also included, such as a security bar, Key lock, and Security Password. This is very effective for preventing theft.

Other Features

Presentation support/control tools such as Presentation Timer, Freeze Function, and Digital Zoom
Projector identification system for remote control allocation of up to 64 projectors
Direct Power Off right after use
Built-in closed caption decoder (NTSC and 480i (YCBCR) only)

Lower Maintenance and Running Costs

A Dust-Resistant Cabinet Design and an Eco Filter that Needs No Replacement for 15,000 Hours

The cabinet is designed with a straight airflow path, from intake to exhaust.

The shielding of the lens section, where dust is likely to enter, has been further improved to keep dust out. And the sealing performance of the air filter unit and air intake duct has been increased to prevent the entry of dust from the filter periphery, resulting in a highly dust-resistant structure.

The Eco Filter unit, which efficiently captures dust in the intake airflow path, requires no replacement for up to15,000 hours.* This large, pleated Micro Cut Filter (electrostatic filter) uses an ion effect to trap minute dust particles, further raising the overall dust-trapping capability.

These features minimize the entry of dust into the optical block and maintain brightness over a long period of time, while reducing the hassle of maintenance. Also, in addition to achieving a long replacement cycle, the Eco Filter can be washed with water** and reused as an environmental consideration.

The usage environment affects the duration of the filter.

When washing with water, please follow the procedures listed in the operating instructions. Also, we recommend replacing the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.
Lamp Replacement Cycle of up to 4,500hours

The PT-EZ770 Series projectors feature a lamp replacement cycle of up to 4,500 hours.

This helps to lower operating costs by providing longer usage between lamp replacements.

This is the maximum value when the lamp power is set to Eco2. Increases in the lamp on cycle or extended use with the lamp continuously turned on will shorten the lamp replacement cycle. When the lamp power is set to Eco1, the lamp replacement cycle is 4,000 hours and 3,000 hours when setting to Normal. The usage environment affects the lamp replacement cycle.

Intelligent Lamp Control System Reduces Power Consumption

When the lamp power is set to Auto, the Intelligent Lamp Control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 58 %*. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops. As a result, power consumption is effectively reduced while excellent color reproduction is maintained.

With the lamp power set to Auto.
Eco Management Functions

A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions, and reduce the lamp power when there is no signal input. You can easily set the Eco Management functions according to operating conditions by using the ECO button on the remote control.

Easy Lamp and Air Filter Replacement

For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector.
The filter and lamp are easily replaced even after the projector is installed on the ceiling.

Quiet 29-dB* Design Does Not Interrupt Meetings or Classes

The quiet design keeps noise levels down to 29 dB,* so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes.

With the lamp power set to Eco2. 31 dB with lamp power set to Eco1. 37 dB with lamp power set to Normal.

Specifications

Specifications
