LUMIX Digital Camera DMC-FZ300

Overview

High Image Quality

25-600mm Zoom with Full-Range F2.8

The 25-600mm LEICA DC VARIO-ELMARIT lens boasts full-range F2.8. Regardless of how distant your subject is, or how fast it is moving, this lens won’t let it get away. And the constant F2.8 capability enhances low light shooting throughout the entire zoom range.

Also, Panasonic’s black box technology Nano Surface Coating boasts extremely low reflectance ratio and it is applied to the LUMIX FZ300 for exceptional optical performance with stunning clarity by minimising flaring and ghosting.

35mm camera equivalent: 25-600mm

High Image Quality Even in Low Light Conditions

The 12.1-megapixel High Sensitivity MOS Sensor in combination with the Venus Engine provides both: high quality image capture and high speed signal processing.
The superior noise reduction system enables crisp images even in low light conditions up to ISO 6400.
The Venus Engine also excels in diffraction compensation to make images crisp and clear even when shooting with a small aperture.

5-axis Correction /Tilt Correction

5-Axis HYBRID O.I.S.+ (Optical Image Stabiliser Plus)* gives you blur-less one-handed video shooting. It detects and compensates for the camera's 5 types of movement – horizontal, vertical, axis of rotation, vertical rotation and horizontal rotation. The Level Shot Function detects the image's horizontal line and maintains it even if the camera is tilted. It takes stable video even in high-angle, blind recording.

5-Axis HYBRID O.I.S. works in video recording except for 4K video recording.

4K Video and 4K Photo — Capture the Perfect Moment

Special moments you want to remember can occur at any time and should be captured in the best resolution possible. Now Panasonic's 4K technology is available for everyone. With the introduction of the new LUMIX FZ300, you will be able to record video in 4K (up to QFHD: 3840 x 2160 pixels, 25 fps, 100Mbit/s).

Furthermore, with the 4K Photo feature, you can extract the perfect photo out of a 4K video (30 frames / photos per second) sequence easily on the camera and save it as an 8-megapixel equivalent still image.

The LUMIX FZ300 is especially useful for both video and photo shooting.

4K Photo Modes — Free Your Creativity

The 4K Photo function can be used in three different modes, all allowing you to capture that perfect moment at a high burst rate of 30 frames / photos per second:

4K Burst

This is a function that you can use more like using photo burst shooting mode. The camera keeps on shooting 8-megapixel equivalent images at ultra high burst rate as long as the shutter button is pressed.

4K Burst S/S (Start/Stop)

This function is the standard 4K Photo function where you are able to record a 4K video to extract any frame / photo as an 8-megapixel equivalent image later. You can relax and wait for the moment to come.

4K Pre-Burst

The specialty of the '4K Pre-Burst' mode is that the camera starts recording a 4K video sequence one second before & after you press the shutter button. This allows you to capture an unpredictable moment which happens much faster than you are able to react.
You can get extra 60 photos to choose the best from.

4K Video — More Details Than Full HD

Whether you are watching movies or editing videos, 4K delivers a far more intense viewing experience than you have seen before. Its native resolution of 3,840 x 2,160 pixels is four times larger than Full HD, resulting in a much higher level of detail. Even if you export your footage filmed in 4K to a Full HD TV, the video files will have even better definition and crisper details than those filmed in Full HD.

When recording videos in 4K, use a card rated as UHS Speed Class 3.

Rugged Design

Splash/Dustproof Rugged Design

To be tough enough to withstand even heavy field use, the LUMIX FZ300 adopts a splash / dustproof rugged design. It comes with sealings onto every joint, dial, and button to pass the stringent test quality standards of our flagship DSLM (Digital Single Lens Mirrorless) cameras. You can trust the LUMIX FZ300 for outdoor photography under harsh weather conditions from marshy jungles to windy deserts.

1,440k-dot, 0.7x Large OLED LVF

The LUMIX FZ300 comes with a high-resolution (1,440k-dot) OLED Live View Finder which allows high visibility thanks to a 10,000:1 contrast and perfect framing even under direct sunlight conditions. High 0.7x magnification (35mm camera equivalent) makes it easy to see image details. Also with all your settings displayed right in front of your eye, your pictures will always come out exactly how you want them to.

3.0-inch Free-angle, Touch Panel Rear

The rear monitor with a high resolution of approximately 1,040k-dot features higher visibility even for sunny outdoor shooting. And, the tilt/swivel capability gives you the freedom to find unusual perspectives while maintaining easy operation and full image control.
Plus, touch control immediately lets you to set focus to the subject by just touching it on the screen and you can even release the shutter.

Everything in the Right Place

Not only does the LUMIX FZ300 feature a sophisticated body and a snug, hand-fitting grip, it also provides an intuitive level of operation. The rear/side dials control the main aperture and shutter speed settings, while easily switching to handle temporary WB and ISO adjustments. Settings can also be assigned to four function buttons.* In addition, the side lever on the left side of lens barrel makes it smoother to zoom when concentrating on the shutter operation with the right hand.

Four buttons on the body and five buttons on the menu.

Expandability for Flexible Usage

To offer more flexible usage, the LUMIX FZ300 can be combined with the DMW-FL580L External Flash, the DMW-MS2 Stereo/Shotgun Microphone, the DMW-LT55 Tele Conversion Lens, DMW-LC55 Close-up Lens and many other accessories. The expansive flexibility of LUMIX FZ300 goes far beyond the limit of conventional bridge camera.

High Speed Auto-Focusing with DFD

Capture even the fastest moving action thanks to Panasonic's Depth From Defocus (DFD) Auto Focus (AF) technology. The LUMIX FZ300 features this brand new technology instantly calculating the distance between the items inside the frame and drives the focus of the lens in one fast, continuous movement. This new system results in AF speeds up to 0.09 seconds* and a burst shooting speed with AFC of 6 frames per second. It also increases the stability of continuous focusing when shooting video.

CIPA standard. When using Live View Finder.

12 fps Burst Shooting

High speed burst shooting can be shot at 12 frames per second in 12.1-megapixel full resolution. Together with the quick start-up of approximately 0.88 second and short release time lag, the LUMIX FZ300 never lets you miss quick shooting opportunities.

Close-up Macro Shooting

Stunning macro shots can be shot with minimum focusing distance of 1cm with the LUMIX FZ300.

Unwire Your Creativity via Wi-Fi®

The connectivity features of LUMIX FZ300 expand the usability of the camera in many ways.

The camera can be controlled by using the 'Panasonic Image App' on your smartphone or tablet device enabling you to view the image, set the focus, release the shutter from a distance or review photographs on the large screen of your tablet. You can even share your images via social media.

Easy Sharing

Share your favourite moments easily by drag-and-drop on social media using your smartphone or tablet.

Geotagging

The LUMIX FZ300 knows exactly where it is by using the GPS log/tag of your smartphone or tablet. By geotagging your images, you will be able to have the information where the picture was taken automatically attached to the image.

RAW Data Development in Camera

The LUMIX FZ300 can shoot images in RAW-format and even develop them inside the camera, to adjust the following settings: Colour Space Setting (sRGB / AdobeRGB), White Balance, Exposure Compensation, Photo Style, Intelligent D-range Control, Contrast, Highlight / Shadow, Saturation, Noise Reduction, Intelligent Resolution, Sharpness.

Creative Panorama

Via a wide variety of filter effects, Creative Control adds special effects to photos and videos. Creative Panorama function allows you to create dynamic panoramic photos just by panning the camera. Either 'Standard (minimum distortion) ' or 'Wide (maximum angle of view) ' can be selectable.

High Speed Video in HD

You can record high-speed videos* at 100 fps in HD quality or 200 fps in VGA quality. You can capture scenes that can't be seen with the naked eye, and play them back in dramatic slow motion.

The recording format is 25p.

Specifications:


Metrics		Dimensions (W x H x D)	131.6 x 91.5 x 117.1 mm (5.18 x 3.60 x 4.61 inch)
		Weight	Approx. 691 g with Battery and SD Memory Card (1.52 lb)
		Weight	Approx. 640 g without Battery and SD Memory Card (1.41 lb)
Optics	Pixels	Camera Effective Pixels	12.1 Megapixels
	Sensor	Sensor Size / Total Pixels / Filter	1/2.3-inch High Sensitivity MOS Sensor / 12.8 Total Megapixels / Primary Color Filter
	Lens	Aperture	F2.8 / Multistage Iris Diaphragm (Still Image: F2.8 - 8.0, Motion Picture: F2.8 - 11.0)
		Optical Zoom	24x
		Focal Length	f = 4.5 - 108mm
		Focal Length	(25 - 600mm in 35mm equiv. in 4:3)
		Focal Length	(26 - 624mm in 35mm equiv. in 3:2)
		Focal Length	(27 - 648mm in 35mm equiv. in 16:9)
		Focal Length	(30 - 720mm in 35mm equiv. in 1:1)
		Focal Length	(28 - 672mm in 35mm equiv. in 4:3 4K Photo recording)
		Focal Length	(27 - 648mm in 35mm equiv. in 3:2 4K Photo recording)
		Focal Length	(27 - 648mm in 35mm equiv. in 16:9 4K Photo recording)
		Focal Length	(30 - 720mm in 35mm equiv. in 1:1 4K Photo recording)
		Focal Length	(27 - 648mm in 35mm equiv. in 16:9 video recording / O.I.S. Off / Level Shot function Off)
		Focal Length	(30 - 720mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function Off)
		Focal Length	(30 - 720mm in 35mm equiv. in 16:9 video recording / O.I.S. On / Level Shot function On)
		Focal Length	(27 - 648mm in 35mm equiv. in 4K video recording)
		Extra Optical Zoom (EZ)	29.4x (4:3 / 8M (M)), 46.9x (4:3 / 3M (S))
		Intelligent Zoom	48x
		Lens	LEICA DC VARIO-ELMARIT
		Lens	14 elements in 11 groups
		Lens	(5 Aspherical Lenses / 9 Aspherical surfaces / 3 ED Lenses / 1 Nano Surface Coating Lens)
		Changing of Zoom Speed	2-Speed Zoom
		Optical Image Stabilizer	5-Axis HYBRID O.I.S. +*
		Optical Image Stabilizer	* 5-Axis compensation works in video recording except for 4K video or high-speed video recording.
		Digital Zoom	Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.)
		Conversion Lens Compatibility	Yes
	Focus	Focusing Area	Normal: Wide 30 cm - infinity / Tele 200 cm - infinity
		Focusing Area	AF Macro / MF / Intelligent Auto / Motion Picture: Wide 1 cm - infinity / Tele 100 cm - infinity
		AF Assist Lamp	Yes (On / Off)
		Focus	AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
		Focus	Normal / AF Macro / Macro Zoom, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, Touch AF/AE Function, Touch Shutter, Touch Pad AF, MF Assist, Touch MF Assist,
		Focus	AF+MF, Focus Peaking, One Shot AF (Set the Fn button in custom menu to AF-ON), Low Light AF, Starlight AF, AF/AE Lock Button
		AF Metering	Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area / Pinpoint (Full area touch is available)
	Shutter	Shutter Speed	Still Image:
		Shutter Speed	Approx. 60 - 1/4,000 sec (Mechanical Shutter)
		Shutter Speed	Approx. 1 - 1/16,000 sec (Electronic Shutter)
		Shutter Speed	Bulb (Approx. 60 sec)
		Shutter Speed	Motion Picture:
		Shutter Speed	Approx. 1/25 - 1/16,000 sec (in 24p recording)
		Shutter Speed	Approx. 1/2 - 1/16,000 sec (Creative Video M Mode / MF Mode)
Recording	Finder	Viewfinder	0.39" OLED LVF (Live View Finder) (1440k dots), Field of View: Approx. 100%,
		Viewfinder	Magnification: Approx. 3.88x / 0.7x (35mm equiv.), Eye Sensor
	File	File Format	Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF
		File Format	Motion Picture: AVCHD, MP4
	Recording Modes	Mode Dial / Mode Button	Intelligent Auto, P, A, S, M, Creative Video, C (Custom), Panotama Shot, Scene Guide, Creative Control
		Creative Control mode	Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, Sunshine (22 filters)
		Still Image Scene Guide	Clear Portrait, Silky Skin, Backlit Softness, Clear in Backlight, Relaxing Tone, Sweet Child's Face, Distinct Scenery, Bright Blue Sky, Romantic Sunset Glow, Vivid Sunset Glow, Glistening Water, Clear Nightscape, Cool Night Sky, Warm Glowing Nightscape, Artistic Nightscape, Glittering Illuminations, Handheld Night Shot, Clear Night Portrait, Soft Image of a Flower, Appetizing Food, Cute Dessert, Freeze Animal Motion, Clear Sports Shot, Monochrome
		Continuous Shooting Mode (Approx.)	[AFS] SH: 60 frames/sec*, H: 12 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
		Continuous Shooting Mode (Approx.)	[AFC] H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)
		Continuous Shooting Mode (Approx.)	* Electronic shutter only.
		4K Photo Mode (*2)	4K Burst: 30 frames/sec, max. 29 min 59 sec
		4K Photo Mode (*2)	4K Burst (S/S): 30 frames/sec, max. 29 min 59 sec
		4K Photo Mode (*2)	4K Pre-Burst: 30 frames/sec, approx. 2 sec
		4K Photo Mode (*2)	(Depending on memory card size and battery power)
		4K Photo Mode (*2)	Exif Information: Yes
		4K Photo Mode (*2)	Selectable Aspect Ratio: Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable)
		4K Photo Mode (*2)	Exposure Mode: Program AE / Aperture Priority AE / Shutter Priority AE / Manual
		4K Photo Mode (*2)	Marking Function: Yes (in 4K Burst (S/S) mode)
	Motion Picture Recording (*2)	4K Video	3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC)
		4K Video	3840 x 2160 pixels, 24p (4K: 100Mbps / MP4) (Sensor Output is 24fps) (AAC)
		HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)
		HD Video	1920 x 1080 pixels, 24p (FHD: 24Mbps / AVCHD) (Sensor Output is 24fps) (Dolby)
		HD Video	1920 x 1080 pixels, 50i (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby)
		HD Video	1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)
		HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC)
		HD Video	1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC)
		HD Video	1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC)
		STD Video	640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC)
		High Speed Video	1280 x 720 pixels, 25p (HD: MP4) (Sensor Output is 100fps)
		High Speed Video	640 x 480 pixels, 25p (VGA: MP4) (Sensor Output is 200fps)
	Continuous recordable time (motion pictures)	AVCHD	FHD/50p: Approx. 170 min (rear monitor), 165 min (LVF)
		AVCHD	FHD/50i: Approx. 175 min (rear monitor), 170 min (LVF)
		MP4	4K/25p: Approx. 135 min (rear monitor), 130 min (LVF)
		MP4	FHD/50p: Approx. 170 min (rear monitor), 165 min (LVF)
	Actual recordable time (motion pictures)	AVCHD	FHD/50p: Approx. 85 min (rear monitor), 80 min (LVF)
		AVCHD	FHD/50i: Approx. 85 min (rear monitor), 85 min (LVF)
		MP4	4K/25p: Approx. 65 min (rear monitor), 65 min (LVF)
		MP4	FHD/50p: Approx. 85 min (rear monitor), 80 min (LVF)
	Exposure Parameters	Exposure	Program AE, Aperture Priority AE, Shutter Priority AE, Manual
		Exposure Compensation	1/3 EV step, +/-3 EV
		Auto (AE) Bracketing	3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV
		Light Metering	Intelligent Multiple / Center Weighted / Spot
		ISO Sensitivity	Still Image: Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400
		ISO Sensitivity	Motion Picture: Auto / 100 / 200 / 400 / 800 / 1600 / 3200/ 6400
		ISO Sensitivity	(Changeable to 1/3 EV step)
	Picture Quality	Still Picture Recording	[4:3] 4000x3000 (12M) (L) / 3264x2448 (8M) (M) / 2048x1536 (3M) (S)
		Still Picture Recording	[3:2] 4000x2672 (10.5M) (L) / 3264x2176 (7M) (M) / 2048x1360 (2.5M) (S)
		Still Picture Recording	[16:9]4000x2248 (9M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S)
		Still Picture Recording	[1:1] 2992x2992 (9M) (L) / 2448x2448 (6M) (M) / 1920x1920 (3.5M) (S)
		Image Quality	RAW / RAW+Fine / RAW+Standard / Fine / Standard
		White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / White Set3 / White Set4 / Color Temperature
		White Balance	(2-axis Adjustable)
		Photo Style	Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom, Cinelike D*, Cinelike V* * When Creative Video mode is selected.
		Picture Adjustment	Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, Filter Effect**
		Picture Adjustment	* Except for Monochrome mode. ** For Monochrome mode only.
		Aspect Bracketing	-
	Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On / Off)
		GPS	-
		Wi-FI	IEEE 802.11b/g/n
		Wi-FI	2412 MHz - 2462 MHz (1-11 ch)
		Wi-FI	WPA / WPA2
		Wi-FI	Infrastracture Mode / WPS
		NFC	-
		Zoom in Motion Picture	Yes
Self Timer		2 sec / 10 sec / 10 sec (3 images)
Self Shot Mode		No
Playback	Display	Playback Mode	All, Slideshow, Filtering Play (Picture Only, Video Only, 4K PHOTO, Category Selection, Favorite), Calendar
		Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
		Set Favorites / Rotate Image	Yes / Yes
		Show Histogram/ Show Highlights	Yes / Yes
		DPOF Print Setting / Set Protection	Yes / Yes
	Edit	Retouch	No
		RAW Processing	Yes
		Resize/ Cropping	Yes / Yes
		Copy / Title Edit / Text Stamp	No / Yes / Yes
		Video Divide	Yes
		Creating Still Pictures from a Motion Picture	Yes
		PictBridge Support	Single / Multi / All / DPOF / Favorites
Setup		OSD language	Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)
Others	Monitor	LCD Monitor	3.0" (7.5cm) Free-Angle TFT Screen LCD Display (1040k dots), AR Coating
		LCD Monitor	Field of View: Approx. 100%, Wide Viewing-angle
	Flash	Built- in- Flash	Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ mode only.
		Built- in- Flash	Flash Synchro: 1st / 2nd Slow Sync.
		Built- in- Flash	Synchronization for flash dimming and exposure compensation
		Built- in- Flash	0.3 - 8.8m (Wide / ISO Auto), 1.0 - 8.8m (Tele / ISO Auto)
	Media	Recording Media	SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard)
		Built- in- Memory	-
	Audio	Microphone / Speaker	Stereo / Mono
	Interface	Interface	microHDMI (*3), AV Output (PAL / NTSC), USB (AV/USB Multi)
		Remote Input	f2.5mm for Remote
		External Microphone Input	f3.5mm for External Microphone
	Power	Power	Li-ion Battery Pack (7.2V, 1200mAh, 8.7 Wh) (Included)
		Power	AC Adaptor (Input: 110 - 240V AC)
		Battery life (approx.)	380 pictures (rear monitor) / 360 pictures (LVF) (CIPA Standard) (*1)
	Standard Package	Included Software	PHOTOfunSTUDIO 9.7PE
		Included Software	SILKYPIX Developer Studio 4.3SE
		Included Software	LoiLoScope (trial version)
		Included Software	Adobe Reader
		Standard Accessories	Battery Charger, Battery Pack, USB Cable, Lens Hood, Lens Cap, Lens Cap String, Shoulder Strap, DVD
NOTE			*1
NOTE			Recording conditions by CIPA standard
NOTE			- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when monitor is on.
NOTE			- Using a Panasonic SDHC Memory Card
NOTE			- Using the supplied battery.
NOTE			- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE			- Recording once every 30 seconds with full flash every second recording.
NOTE			- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE			- The number of recordable pictures varies depending on the recording interval time.
NOTE			- If the recording interval time becomes longer, the number of recordable pictures decreases.
NOTE			- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE			*2
NOTE			- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
NOTE			- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
NOTE			- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
NOTE			- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures.
NOTE			- Use a card with SD Speed Class with "UHS-I Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [4K PHOTO].
NOTE			(SD speed class is the speed standard regarding continuous writing.)
NOTE			- Maximum time to record motion pictures continuously with [MP4] in [4K] is 29 minutes 59 seconds.
NOTE			- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB.
NOTE			- Maximum time to record High Speed motion pictures continuously is 7 minutes 29 seconds.
NOTE			*3
NOTE			For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible".

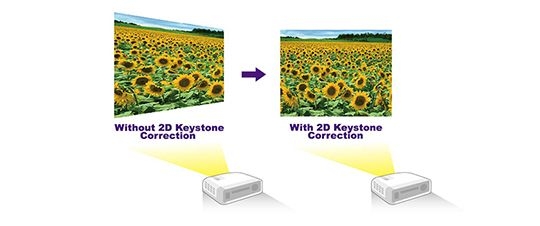

2D Keystone

2D keystone correction enhances installation flexibility by correcting the trapezoid effect via horizontal and vertical adjustments up to +-30 degrees. With it, the projector can be placed off center and the presenter can stand in front of the screen without blocking the image. The projector can also be placed anywhere on a u-shaped tabletop without moving the table or putting a stand in the center.




Corner Fit

Corner fit is a flexible and convenient way to align the picture perfectly by adjusting each corner of an image independently.

MHL Connectivity

With MHL, you can present your business proposals and share your ideas instantly using your Android smart device. Turn small screen into big screen by mirroring documents, photos, videos and any other content in your smart device onto the projection screen. Once connected to the projector, the smart device will be electrically charged so you don’t run out of battery power while presenting.

Power saving , Eco friendly

World-Leading SmartEco Technology for a Greener Environment

As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW705 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.

BenQ MS524 DLP 3D Projector

Eco Blank Mode

The Eco Blank mode allows you to blank the projection. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.All you need to do is press the "Eco Blank Mode" button on the keypad or the "Blank" button on the remote control.You don't have to worry it's always fully lamp power consumption while you pause movie then leave.



Full Power On
100% Lamp Power
Attention on the Projection Screen



Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.



Normal Mode
350W Projector Power Consumption
by Average



SmartEco Mode
Enhanced Details in Darkened Scenes
261W Projector Power Consumption
by Average

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.



Source Detected
100% Lamp Power



No Source Detected
30% Lamp Power

0.5W in Standby Mode

When inactive, the MW705 keeps power consumption to a minimum with <0.5W standby power, achieving what was once a challenge for earlier projector models. This technological advancement in energy saving helps lower energy costs.

Under 6W in Network Standby Mode

With the MW705 under the mode, all it takes is less than 6W to keep the MW705 connected to the network even after it’s powered off. IT managers can retain full control over the projector’s daily maintenance and repair tasks while saving a significant amount of the earth’s energy resources.

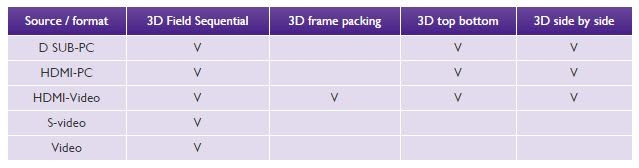

Supports Various 3D Formats

BenQ education projectors are standard-equipped with DLP Link™-supported 3D projection to offer students the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MW705 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.





Closed Captioning

Display subtitles in video content without the need for an external closed-captioning device with the MW705. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.



Thoughtful Teaching Template Design

To make your teaching job easier, BenQ has added the teaching template function to the MW705. Now, with three different line pattern designs to choose from – Letter Formation, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.

BenQ DLP®Projectors? Long-Lasting Image Perfection with DLP Technology

Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar® statuette), is the leading projection technology used in 90% of world’s digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is today the #1 bestselling DLP

Long Lasting

The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed DLP engine design mean that BenQ DLP Projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change.

BenQ DLP Projector



Non-DLP Projector

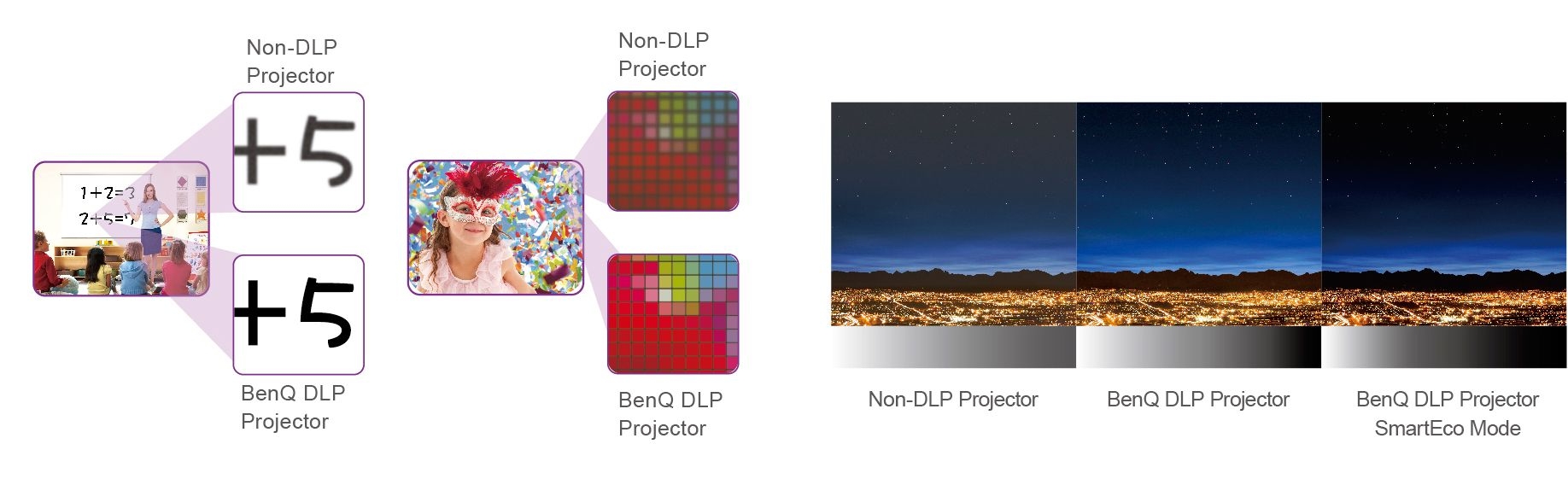

Razor-Sharp

Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco™ Technology.



Specifications

Projection System	DLP
Native Resolution	WXGA (1280x800)
Brightness*	4000 ANSI Lumen
Contrast Ratio	13000:1
Display Color	1.07 Billion Colors
Lens	F=2.56~2.68, f=22.04~24.14mm
Throw Ratio	1.55~1.7 (Wide 87"±3% @ 2.9m)
Image Size (Diagonal)	60" ~ 300"
Zoom Ratio	1.1x
Lamp Type	240W
Lamp Mode (Normal / Economic / SmartEco / LampSave / LumenCare)	3000/4000/6000/7500(80%~30%) hours
Projection Offset	Vertical: 100% ±5%
Resolution Support	VGA(640 x 480) to WUXGA_RB(1920 x 1200)*RB = Reduced blanking
Horizontal Frequency	15K-102KHz
Vertical Scan Rate	23-120Hz
Interface	Computer in (D-sub 15pin) x1( integrate with component) HDMI x2 (HDMI with MHL2.0 x1, HDMI x 1) HDMI x 1) MHL x 1(HDMI with MHL2.0) Monitor out x 1 Composite Video in (RCA) x 1 S-Video in x 1 Audio in (Mini Jack) x 1 Audio in (L/R) x1 Audio out (Mini Jack) x 1 Speaker 2W x 1 USB (Type A) x 1 (1.5A power supply) RS232 (DB-9pin) x 1 IR Receiver x2 (Front+Top)
Dimensions(W x H x D)	331.0 x 114.4 x 246.2 (without foot) 331.0 x 129.4 x 246.2 (with foot)
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
3D Support and Compatibility	Frame Sequential: Up to 60Hz 720p Frame Packing: Up to 24 Hz 1080p Side by Side: Up to 24Hz 1080p Top Bottom: Up to 60Hz 1080p
Weight	3Kg
Power Supply	AC100 to 240V, TBD A, 50 to 60 Hz
Picture Modes	**Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2
Accessories (Standard)	Carry bag Power Cord (by region) Remote Control w Battery VGA cable User Manual CD QSG Lens Cover Warranty Card (by region)
Aspect Ratio	Native 16:10 (5 aspect ratio selectable)
Keystone Adjustment	2D, Vertical & Horizontal ± 40 degrees; Auto vertical keystone ± 30 degrees
Audible Noise Normal Economic Mode	33/29 dBA (Normal/Economic mode)
Accessories(Optional)	Spare Lamp Kit Video Streaming Dongle - QCast Ceiling mount kit Carry bag 3D Glasses
EnvironmentalNotice	Lamp in this product contains mercury. To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
PointWrite Camera Module
Power consumption	350W(Normal), 261W(Eco), Standby <0.5W
Software
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ TraditionalChinese (28 Languages)
