Vandal-proof Mini Dome

1.3/2/3 Megapixel Network Camera

Consumer-level network camera with mini-sized and

exquisite design, deliver outstanding image quality.



MS-C2173-PNA



Specifications:




Milesight MS-C2172-FPNA - 1.3MP, WDR, Remote Focus, Zoom, IP66, IR Dome Camera

Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @F1.2, B/W: 0Lux with IR on
B/W: 0Lux with IR on
WDR WDR
Focal Length 3-10.5mm/[email protected], P-Iris(optional)
Mount M12
Field of View H88°-H28.2°(3-10.5mm)
Shutter time 1/100000s-1/5s
IR Distance 20m
Video
Max. Image Resolution 1280×960
Frame Rate 30fps(1280×960), 30fps(1280×720), 30fps(704×576)

Video CompressionH.264/MJPEG

Video Bit Rate 16Kbps~16Mbps (CBR/VBR adjustable)
Image Settings Saturation/Brightness/Contrast/Sharpness
Web access Support IE/Firefox/Chrome/Safari Browse
Audio
Audio Stream Build-in Microphone
Audio Compression G.711/AAC
Network
Communication 1 RJ45 10M/100M Ethernet port
Network Protocols TCP/IP?UDP?RTP?RTSP?RTCP?HTTP?HTTPS?DNS?DDNS?DHCP?FTP?NTP?SMTP?SNMP?UPNP?SIP etc
System
Intelligent Video Motion detection, Privacy mask, Backlight compensation, 3D Noise Reduction, ROI
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion detection, Network disconnect, etc
Event Action FTP upload/SMTP upload/SD card record/SIP Phone
System Compatibility ONVIF ProfileS/PSIA
General
Working Temperature -30?~60?
Working Humidity 0~90%(non-condensing)
Power Supply PoE/DC12V±10%
Power Consumption 5W MAX, 7W MAX (with IR on)

Housing Vandal-proof IK10-rated metal housing
Weather Proof IP66
Dimensions F143×106 mm
Weight 1100g
Warranty 2 years



Overview

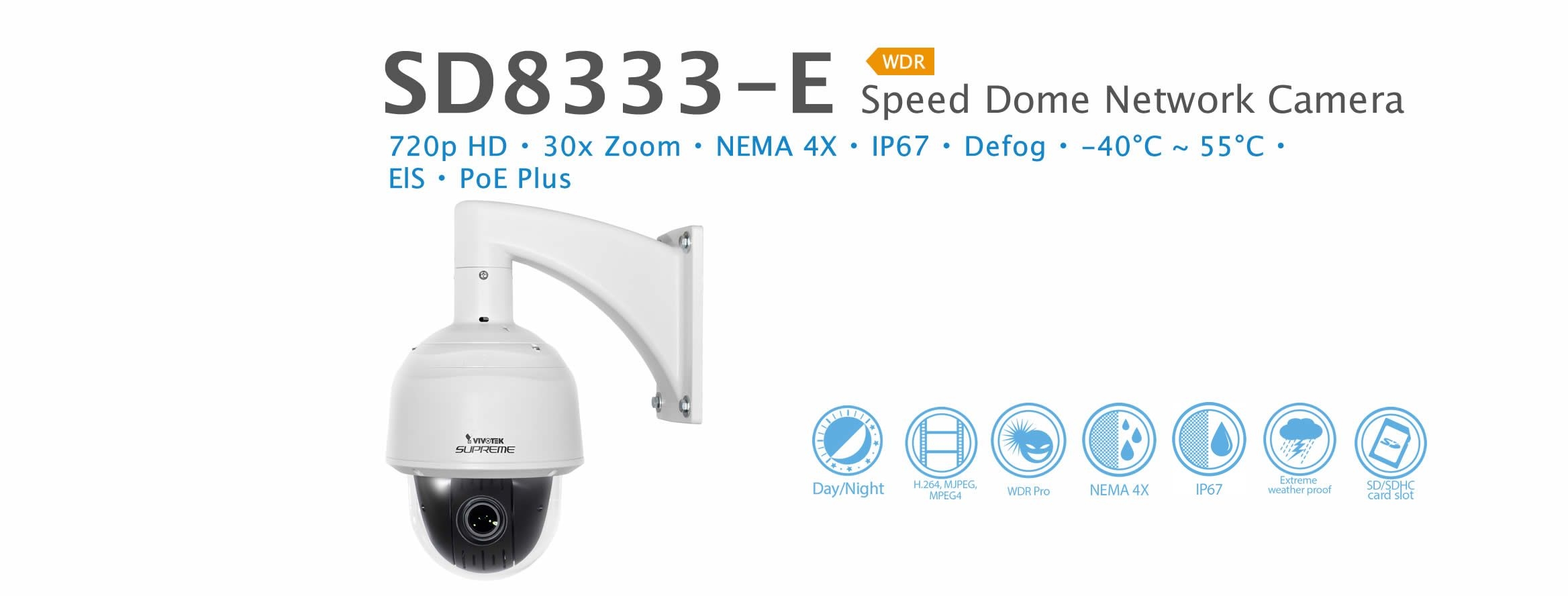

VIVOTEK SD8333-E is part of the SUPREME series product line offering 720p HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8333-E is able to capture details at top-notch quality. The IP67- and NEMA 4X-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8333-E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 60 fps @ 720p. Boasting WDR Pro technology, the SD8333-E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8333-E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

Key Features

• 720p HD CMOS Sensor
• 60 fps @ 720p HD
• 30x Zoom Lens
• Removable IR-cut Filter for Day & Night Function
• 360° Continuous Pan and 220° Tilt
• Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
• WDR Pro for Unparalleled Visibility in High Contrast Environments
• Weather-proof IP67-rated and NEMA4X Housing
• -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
• Audio Detection for Instant Alerts
• Auto Tracking for Moving Objects
• Built-in 802.3at Compliant PoE Plus
• 3D Privacy Masks for Additional Protection
• Built-in SD/SDHC/SDXC Card Slot for On-board Storage
• Defog

Specifications

System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB
Camera Features
Image Sensor	1/3" Progressive CMOS
Maximum Resolution	1280x720
Lens Type	30x Optical Zoom, Auto Focus
Focal Length	f = 4.3~129 mm (30x zoom)
Aperture	F1.6 ~ F4.7
Auto-iris	DC-iris
Field of View	2.1° ~ 57.8° (Horizontal) 1.2° ~ 34.5° (Vertical) 2.4° ~ 67.3° (Diagonal)
Shutter Time	1 sec. to 1/10,000 sec.
WDR Technology	WDR Pro
Day/Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.15 Lux @ F1.6 (Color) 0.0048 Lux @ F1.6 (B/W)
Pan Speed	0.05° ~ 450° / sec
Pan Range	360 endless
Tilt Speed	0.05° ~ 450° / sec
Tilt Range	220° (-110° ~ +110°)
Preset Locations	256 preset locations, 40 presets per tour
Pan/tilt/zoom Functionalities	48x digital zoom (4x on IE plug-in, 12x built-in) Auto pan mode Auto patrol mode
On-board Storage	SD/SDHC/SDXC card slot
Video
Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 60 fps @ 1280x720 MPEG-4: 60 fps @ 1280x720 MJPEG: 60 fps @ 1280x720 (Up to 30 fps in WDR mode)
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 50 dB
Dynamic Range	110 dB
Video Streaming	Adjustable resolution, quality and bitrate Zoom enhancement for better image quality under limited bandwidth
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) Scheduled profile settings Defog
Audio
Audio Capability	Audio input/output (full duplex)
Compression	AAC, G.711, G.726
Interface	External microphone input External line output
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10Base-T / 100BaseTX Ethernet (RJ-45) * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Triple-window video motion detection
Auto-Tracking	Auto-tracking on moving object
Alarm and Event
Alarm Triggers	Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
General
Connectors	RJ-45 cable connector for Network/PoE connection Audio input Audio output AC 24V power input Digital input*4 Digital output*2 RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
LED Indicator	System power and status indicator
Power Input	PoE plus (IEEE 802.3at compliant) High Power PoE AC 24V
Power Consumption	PoE plus: Max. 19W AC 24V: Max. 48W (heater on) Max. 19W (heater off) High Power PoE: Max. 48W (heater on) Max. 19W (heater off)
Dimensions	Ø: 205 mm x 321 mm
Weight	Net: 3974 g
Casing	Weather-proof IP67- and NEMA 4X-rated mated housing Built-in electrical dehumidifier device (SD8333-EM)
Safety Certifications	CE, FCC Class A, VCCI, C-Tick, NEMA 4X
Operating Temperature	-5°C ~ 55°C (PoE Plus) -40°C ~ 55°C (AC 24V) -40°C ~ 55°C (High Power PoE)
Warranty	36 months
System Requirements
Operating System	Microsoft Windows 7/Vista/XP/2000
Web Browser	Mozilla Firefox 7~10 (Streaming only) Internet Explorer 9.x or 10.x
Other Players	VLC: 1.1.11 or above Quicktime: 7 or above
Included Accessories
CD	User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
Others	Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bag
