Image Date Product description Price Buy
10/11

Addonics 8GB CFast Card - MLC, Enterprise Grade

8G CFast card, MLC, enterprise grade and ind. temp.
 Link contains in-depth information about this product    NA
10/11

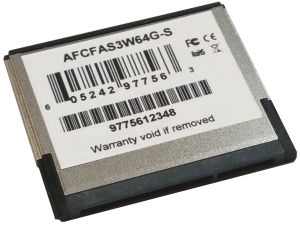

Addonics 64GB CFast Card - SLC, Industrial Grade and Temp.

Industrial CFast SLC SSD

AFCFAS3W64G-S

Overview

Addonics' new CFast SSD, redefines the high speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Industrial class CFast card is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial CFast card boost the durability of the card to over 7 times that of commercial grade MLC SSD. This highly durable CFast card is ideal for mission critical applications that are deployed in different industries such as data center, finance and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics CFast card is also available in Enterprise class CFast that is made of MLC flash. This offers a more economical solution for applications or equipment operating in industrial temperature range . For detail information on the Enterprise grade MLC type of CFast card, please visit the following product Enterprise CFast card product web page.

Features

  • Industrial class CFast SLC SSD
  • Great for the following industries: data center, finance, aero space, manufacturing and others that require high durability and wide operating temperature range
  • Choice of 4GB - 64GB capacities
  • SATA III 6.0Gbps interface
  • Durability up to 7 times of an average MLC flash
  • Data transfer rate:
    • 4G and 8G -  up to 105MB/s sequential READ and 90 MB/s sequential WRITE
    • 16G, 32G and 634G - up to 530MB/s sequential READ and 150 MB/s sequential WRITE
  • Size of CF-1
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AASFICFAST4G 4GB SLC $55.00 105 MB/sec 90 MB/sec -40°C to +85°C
AASFICFAST8G 8GB SLC $105.00 105 MB/sec 90 MB/sec -40°C to +85°C
AFCFAS3W16G-S 16GB SLC $199.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W32G-S 32GB SLC $396.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W64G-S 64GB SLC $679.00 530 MB/sec 150 MB/sec -40°C to +85°C

Specifications

  • Flash type: SLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 330mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 3,410TBW for 64GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 3,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC

 Link contains in-depth information about this product Link contains a picture of this product    NA
10/11

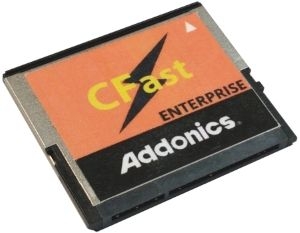

Addonics 64GB CFast Card, MLC, Enterprise Grade

Enterprise CFast MLC SSD

AFCFAS3W64G-M

Overview

Addonics' new CFast SSD, redefines the high-speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Enterprise class CFast SSD is designed to work in a much wider temperature environment, making it suitable for factory or application in non-temperature controlled operation condition. This Enterprise class of CFast SSD uses MLC flash memory and is thus more cost-effective than the Addonics industrial grade CFast SSD that is made of SLC flash. Designed with the latest SATA 3.0 interface, the Enterprise CFast can deliver data speed over 320 MB/sec and is more than 3 times faster than the fastest Compact Flash (CF) card in the market.

The Addonics CFast SSD is also available in SLC flash to boost the durability of the card to over 7 times that of a typical commercial grade MLC flash. For detail information on the in industrial grade SLC type of CFast card, please visit the following product CFast SLCproduct web page.




 Features

  • Enterprise class CFast MLC SSD
  • Great for the following applications: Industrial Embedded Systems, Medical Solutions, Point-of-Sales, Gaming Industry, Automation Solutions, and others
  • Choice of 16G - 64GB capacities
  • SATA III 3.0Gbps interface
  • MLC flash type
  • Data transfer rate
    • Read Seq. up to 320MB/s
    • Write Seq. up to 165MB/s
  • Industrial operating temperature: -40°C to +85°C
  • Size of CF-1
  • TeraBytes Written (TBW): 635 TBW for 256GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AFCFAS3W16G-M 16GB MLC $45.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W32G-M 32GB MLC $65.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W64G-M 64GB MLC $107.00 320 MB/sec 165 MB/sec -40°C to +85°C

Specifications:

  • Flash type: MLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 300mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 635 TBW for 256GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 2,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC



 Link contains in-depth information about this product Link contains a picture of this product    NA
10/11

Addonics 32GB CFast Card, SLC, Industrial Grade and Temp.

Industrial CFast SLC SSD

Overview

Addonics' new CFast SSD, redefines the high speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Industrial class CFast card is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial CFast card boost the durability of the card to over 7 times that of commercial grade MLC SSD. This highly durable CFast card is ideal for mission critical applications that are deployed in different industries such as data center, finance and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics CFast card is also available in Enterprise class CFast that is made of MLC flash. This offers a more economical solution for applications or equipment operating in industrial temperature range . For detail information on the Enterprise grade MLC type of CFast card, please visit the following product Enterprise CFast card product web page.

Features

  • Industrial class CFast SLC SSD
  • Great for the following industries: data center, finance, aero space, manufacturing and others that require high durability and wide operating temperature range
  • Choice of 4GB - 64GB capacities
  • SATA III 6.0Gbps interface
  • Durability up to 7 times of an average MLC flash
  • Data transfer rate:
    • 4G and 8G -  up to 105MB/s sequential READ and 90 MB/s sequential WRITE
    • 16G, 32G and 634G - up to 530MB/s sequential READ and 150 MB/s sequential WRITE
  • Size of CF-1
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AASFICFAST4G 4GB SLC $55.00 105 MB/sec 90 MB/sec -40°C to +85°C
AASFICFAST8G 8GB SLC $105.00 105 MB/sec 90 MB/sec -40°C to +85°C
AFCFAS3W16G-S 16GB SLC $199.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W32G-S 32GB SLC $396.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W64G-S 64GB SLC $679.00 530 MB/sec 150 MB/sec -40°C to +85°C




 Link contains in-depth information about this product Link contains a picture of this product    NA
10/11

Addonics 32GB CFast Card - SLC, Enterprise Grade

Enterprise CFast MLC SSD

AFCFAS3W32G-M

Overview

Addonics' new CFast SSD, redefines the high-speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Enterprise class CFast SSD is designed to work in a much wider temperature environment, making it suitable for factory or application in non-temperature controlled operation condition. This Enterprise class of CFast SSD uses MLC flash memory and is thus more cost-effective than the Addonics industrial grade CFast SSD that is made of SLC flash. Designed with the latest SATA 3.0 interface, the Enterprise CFast can deliver data speed over 320 MB/sec and is more than 3 times faster than the fastest Compact Flash (CF) card in the market.

The Addonics CFast SSD is also available in SLC flash to boost the durability of the card to over 7 times that of a typical commercial grade MLC flash. For detail information on the in industrial grade SLC type of CFast card, please visit the following product CFast SLCproduct web page.







 Features

  • Enterprise class CFast MLC SSD
  • Great for the following applications: Industrial Embedded Systems, Medical Solutions, Point-of-Sales, Gaming Industry, Automation Solutions, and others
  • Choice of 16G - 64GB capacities
  • SATA III 3.0Gbps interface
  • MLC flash type
  • Data transfer rate
    • Read Seq. up to 320MB/s
    • Write Seq. up to 165MB/s
  • Industrial operating temperature: -40°C to +85°C
  • Size of CF-1
  • TeraBytes Written (TBW): 635 TBW for 256GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AFCFAS3W16G-M 16GB MLC $45.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W32G-M 32GB MLC $65.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W64G-M 64GB MLC $107.00 320 MB/sec 165 MB/sec -40°C to +85°C



 Link contains in-depth information about this product Link contains a picture of this product    NA
10/11

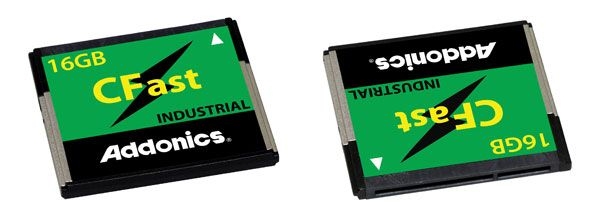

Addonics 16GB CFast Card, SLC, Industrial Grade and Temp.

Industrial CFast SLC SSD

AFCFAS3W16G-S

Overview

Addonics' new CFast SSD, redefines the high speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Industrial class CFast card is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial CFast card boost the durability of the card to over 7 times that of commercial grade MLC SSD. This highly durable CFast card is ideal for mission critical applications that are deployed in different industries such as data center, finance and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics CFast card is also available in Enterprise class CFast that is made of MLC flash. This offers a more economical solution for applications or equipment operating in industrial temperature range . For detail information on the Enterprise grade MLC type of CFast card, please visit the following product Enterprise CFast card product web page.



 Features


  • Industrial class CFast SLC SSD
  • Great for the following industries: data center, finance, aero space, manufacturing and others that require high durability and wide operating temperature range
  • Choice of 4GB - 64GB capacities
  • SATA III 6.0Gbps interface
  • Durability up to 7 times of an average MLC flash
  • Data transfer rate:
    • 4G and 8G -  up to 105MB/s sequential READ and 90 MB/s sequential WRITE
    • 16G, 32G and 634G - up to 530MB/s sequential READ and 150 MB/s sequential WRITE
  • Size of CF-1
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AASFICFAST4G 4GB SLC $55.00 105 MB/sec 90 MB/sec -40°C to +85°C
AASFICFAST8G 8GB SLC $105.00 105 MB/sec 90 MB/sec -40°C to +85°C
AFCFAS3W16G-S 16GB SLC $199.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W32G-S 32GB SLC $396.00 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W64G-S 64GB SLC $679.00 530 MB/sec 150 MB/sec -40°C to +85°C

Specifications

  • Flash type: SLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 330mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 3,410TBW for 64GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 3,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC
 Link contains in-depth information about this product Link contains a picture of this product    NA
10/11

Addonics 16GB CFast Card - MLC, Read 320MB/s, Write 165MB/s,

Enterprise CFast MLC SSD

AFCFAS3W16G-M

Overview

Addonics' new CFast SSD, redefines the high-speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Enterprise class CFast SSD is designed to work in a much wider temperature environment, making it suitable for factory or application in non-temperature controlled operation condition. This Enterprise class of CFast SSD uses MLC flash memory and is thus more cost-effective than the Addonics industrial grade CFast SSD that is made of SLC flash. Designed with the latest SATA 3.0 interface, the Enterprise CFast can deliver data speed over 320 MB/sec and is more than 3 times faster than the fastest Compact Flash (CF) card in the market.

The Addonics CFast SSD is also available in SLC flash to boost the durability of the card to over 7 times that of a typical commercial grade MLC flash. For detail information on the in industrial grade SLC type of CFast card, please visit the following product CFast SLCproduct web page.



Features

  • Enterprise class CFast MLC SSD
  • Great for the following applications: Industrial Embedded Systems, Medical Solutions, Point-of-Sales, Gaming Industry, Automation Solutions, and others
  • Choice of 16G - 64GB capacities
  • SATA III 3.0Gbps interface
  • MLC flash type
  • Data transfer rate
    • Read Seq. up to 320MB/s
    • Write Seq. up to 165MB/s
  • Industrial operating temperature: -40°C to +85°C
  • Size of CF-1
  • TeraBytes Written (TBW): 635 TBW for 256GB



Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AFCFAS3W16G-M 16GB MLC $45.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W32G-M 32GB MLC $65.00 320 MB/sec 165 MB/sec -40°C to +85°C
AFCFAS3W64G-M 64GB MLC $107.00 320 MB/sec 165 MB/sec -40°C to +85°C

Specifications

  • Flash type: MLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 300mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 635 TBW for 256GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 2,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC

 Link contains in-depth information about this product Link contains a picture of this product    NA
