MicCon MS-C3363-FPNA Remote Focus/Zoom Mini Bullet Series - 2 Megapixel Full HD WDR Weatherproof, 1/3" Progressive Scan CMOS, H.264 Format, ICR, Motion Detection - White Remote Focus/Zoom Mini Bullet Series
1.3/2/3MP Remote Focus/Zoom Mini Weatherproof Network IR Camera
Specifications
Camera
| Name |
2MP Full HD WDR Remote Focus/Zoom Mini Weatherproof Network IR Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
Color:0.07Lux @(F1.2, AGC ON)
B/W: 0Lux with IR on |
| WDR |
WDR-Pro |

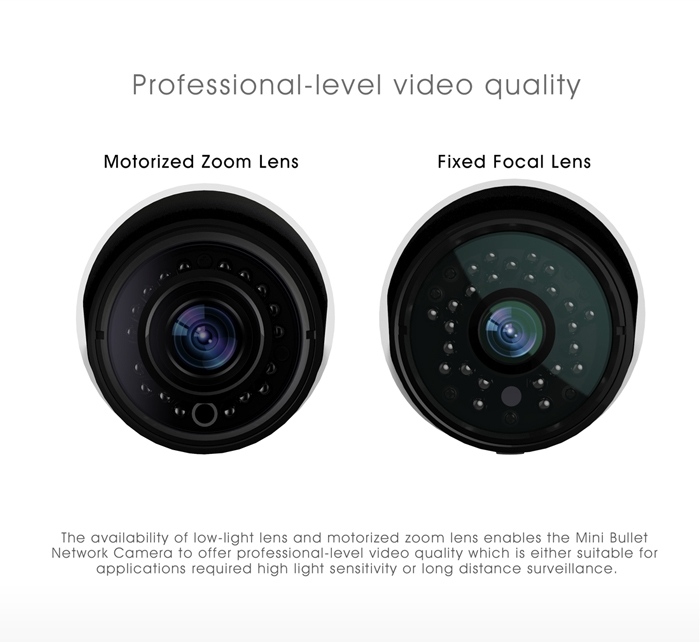

| Lens |
2.8-12mm (14)/ 7-22mm(optional) (14) |
| Field of View |
H80-H25 |
| Shutter time |
1/100000s-1/5s |
| IR Distance |
15m |
Video
| Max. Image Resolution |
19201080 |
| Frame Rate |
30fps(19201080), 30fps(16001200),30fps(1280960)
30fps(1280720),30fps(704576) |
| Video Compression |
H.264/MJPEG/MPEG-4 |
| Video Bit Rate |
16Kbps16Mbps (CBR/VBR adjustable) |
| Image Settings |
Saturation/Brightness/Contrast/Sharpness |
| Web access |
Support IE/Firefox/Chrome/Safari Browser |
Network
| Communication |
1 RJ45 10M/100M Ethernet port |
| Network Protocols |
TCP/IPUDPRTPRTSPRTCPHTTPHTTPSDNSDDNSDHCPFTPNTPSMTPUPNPSIP etc |
System
| Intelligent Video |
Motion detection, Privacy mask, Backlight compensation, 3D Noise Reduction, ROI |
| SIP/VoIP Support |
Yes, Voice&Video-over-IP |
| Event Trigger |
Motion detection, Network disconnect etc |
| Event Action |
FTP upload/SMTP upload/SD card record/SIP Phone |
| System Compatibility |
ONVIF ProfileS/PSIA |
General
| Working Temperature |
-30~60 |
| Working Humidity |
0~90%(non-condensing) |
| Power Supply |

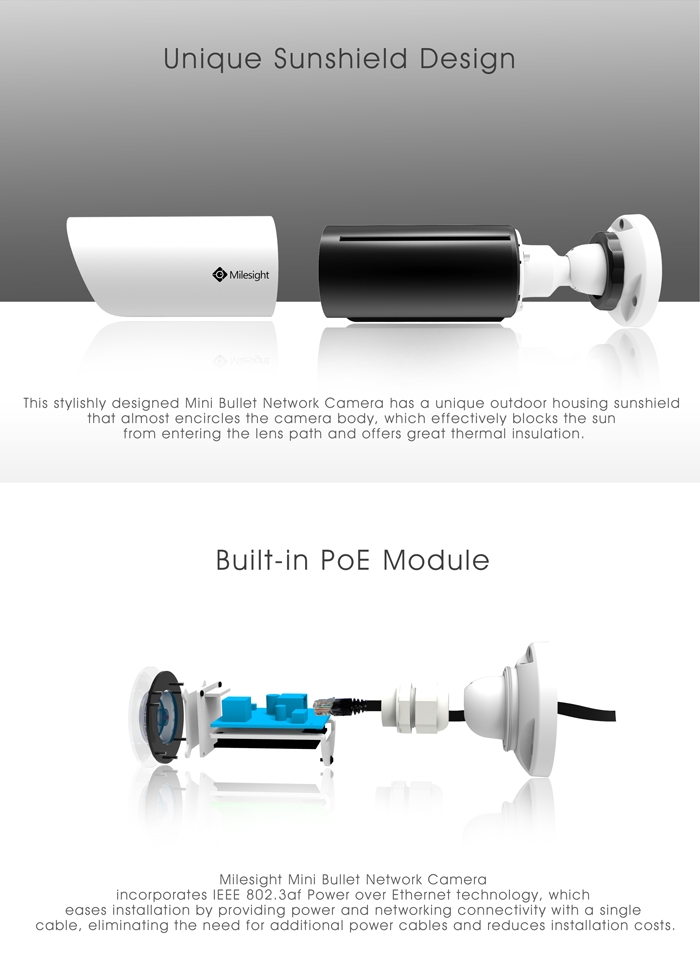

PoE |
| Power Consumption |
2.8W MAX
5.8W MAX (with IR on) |
| Housing |

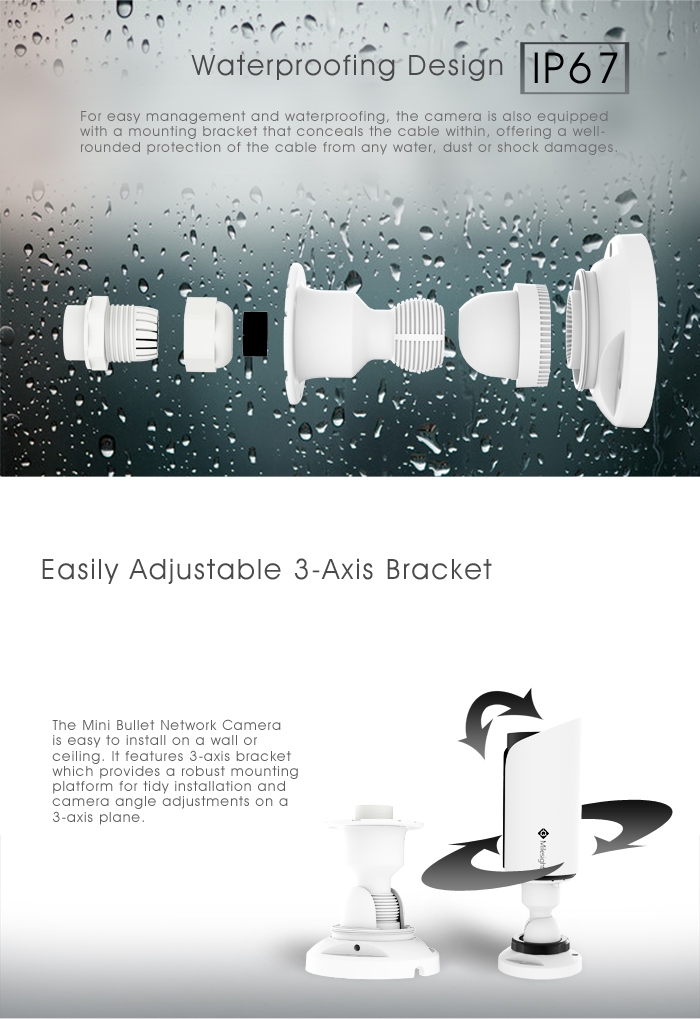

Up to IP67 rating for weather-resistant performance |
| Dimensions |
65210 mm |
| Weight |
765 g |
| Warranty |
2 years |
|
|
|
