24/07
|
Epson C13S042548 Photo Paper, Glossy - 200gsm, 4" x 6", 100 Sheets - C13S042548
|
|
|
|
24/07
|
Sony VPLFHZ700L Laser LCD Projector - 1920x1200, 5600 Lumens, 8000;1, 20,000 Hours, 2xMini D-Sub, 1xDVI, 1xHDMI, RJ45, RS232C VPL-FHZ700L
7,000 lumens WUXGA 3LCD Laser projector
Overview
The worlds brightest* 3LCD projector comes with a long-lasting laser light source, and offers high WUXGA image quality, versatile installation options and lowered running costs.
The VPL-FHZ700L combines exceptional picture quality and brightness with the reliability, extended operating life and reduced running costs of laser projection.
Delivering crisp, brighter images with a class-leading 7,000 lumens brightness, the VPL-FHZ700L features a powerful, highly efficient laser light source that offers a nominal 20,000* hours operating time.
With no waiting time for lamps to warm up or cool down, switching on/off is virtually instantaneous. Together with the long-life 3LCD panel and advanced filter system, the laser light source cuts the need for regular maintenance visits. Theres also a range of energy-saving features that contribute to a reduction in lifetime ownership costs compared with conventional projectors.
Its high brightness and minimal maintenance needs make the VPL-FHZ700L a compelling presentation choice in a wide range of applications from boardrooms and lecture theatres to museums, exhibitions and retail spaces.
Installer-friendly features like free-angle installation and edge blending also assist with integration into a wide range of corporate, educational, public sector and entertainment environments.
1 As of March 2014
2 With Auto Light Dimming feature enabled. Actual hours may vary depending on usage.
Features
Laser light source projector with Sony 3LCD BrightEra Panel Technology
The VPL-FHZ700L combines a highly efficient laser light source with Sonys advanced 3LCD BrightEra technology. This unique combination delivers exceptionally bright, pictures with excellent colour accuracy and stability, plus high efficiency and significantly greater durability for reduced total cost of ownership.
Clear, bright, punchy presentations in any lighting conditions
Add more detail, impact and realism to presentations with very high 7000 lumen brightness. Get your message across in large boardrooms, auditoriums or retail spaces even when ambient light levels are high.
Crisp, detail-packed WUXGA resolution images
See the finest detail in PC presentations, videos or multimedia signage with WUXGA (1920 x 1200) 16:10 resolution.
Up to 20,000* hours operation with virtually no maintenance
The advanced laser light source offers a typical 20,000 hours operation without maintenance or replacement, reducing lifetime running costs compared with traditional projectors. 20,000 hours filter replacement cycles keep the projector in peak operating condition while reducing maintenance trips even further.
Wide range of Lens Shift, Zoom, Throw Ratio
Generous zoom, throw and lens shift adjustments give more flexibility for positioning the projector where you need it: close to ceilings, near the screen or even horizontally offset. Extend throw ratio even further with a choice of optional lenses.
360 free-angle installation capability
Enjoy supreme installation flexibility: position the projector freely at any angle or its side or even upside down.
Connectivity via HDBaseT
The projector allows simple connectivity using an HDBaseT digital interface, multi signal transmission system, providing a single cable, cost-effective, long-distance, and high-quality digital transmission solution.
Create super-size displays with Edge Blending
Seamlessly join accurately colour-matched images from multiple projectors, simplifying creation of stunning super-size displays for retail, corporate and live event applications.
Project onto non-flat surfaces with Image Warping
Easily correct image geometry for natural-looking projections even on convex or concave surfaces. Corner and edge correction can be easily adjusted with the supplied remote and on-screen menu.
Advanced energy-saving features
Advanced light source and control technology enables robust energy-saving features. Greater brightness control in Auto Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Light output Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.
1. With Auto Light Dimming feature enabled. Actual hours may vary depending on usage.
2. HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Technical Specifications
Please be aware that the features/specifications can differ from country to country
Display System
| Display System |
3 LCD system |
Display device
| Size of effective display area |
0.95 (24.1 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10 |
| Number of pixels |
6,912,000 (1920 x 1200 x 3) pixels |
Projection lens
| Focus |
Powered / Manual (Depend on lens) |
| Zoom - Powered/Manual |
Powered / Manual (Depend on lens) |
| Lens shift - Powered/Manual |
Powered / Manual (Depend on lens) |
Light source
Filter cleaning / replacement cycle (Max.) *1
| Filter cleaning / replacement cycle (Max.) |
20000 H *2 (cleaning) |
Screen size
| Screen size |
40 to 600 (1.02 m to 15.24 m) (measured diagonally) (Depend on lens) |
Light output
| Lamp mode: High |
7000 lm |
| Lamp mode: Standard |
5600 lm |
Color light output
| Lamp mode: High |
7000 lm |
| Lamp mode: Standard |
5600 lm |
Contrast ratio (full white / full black) *2
| Contrast ratio (full white / full black) |
8000:1 |
Displayable scanning frequency
| Horizontal |
14 kHz to 93 kHz |
| Vertical |
47 Hz to 93 Hz |
Display resolution
| Computer signal input |
Maximum display resolution: UXGA 1600 x 1200 dots*3 |
| Video signal input |
NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p |
Color system
| Color system |
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
Keystone correction (Max.)
| Vertical |
+/- 30 degrees |
| Horizontal |
+/- 30 degrees |
OSD language
| OSD language |
24-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Farsi, Finnish, Indonesian, Hungarian, Greek) |
INPUT OUTPUT (Computer/Video/Control)
| INPUT A |
RGB / Y PB PR input connector: 5BNC (female) |
| INPUT B |
RGB input connector: Mini D-sub 15-pin (female) |
| INPUT C |
DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP |
| INPUT D |
HDMI input connector: HDMI 19-pin, HDCP support |
| INPUT E |
Optional adaptor slot (For Digital Interface Adaptor BKM-PJ10)*4 |
| S VIDEO IN |
S-video input connector: Mini DIN 4-pin |
| VIDEO IN |
Video input connector: BNC |
| OUTPUT |
Monitor output connector*5: Mini D-sub 15-pin (female) |
| REMOTE |
RS-232C connector: D-sub 9-pin (female) |
| LAN |
RJ-45, 10BASE-T/100BASE-TX |
| Control S |
Control S input connector: Stereo mini jack, Plug in power DC 5V
Control S output connector: Stereo mini jack |
Acoustic noise
| Lamp mode: Standard |
33 dB |
Operating temperature / Operating humidity
| Operating temperature / Operating humidity |
0C to 40C (32F to 104F) / 35% to 85% (no condensation) |
Storage temperature / Storage humidity
| Storage temperature / Storage humidity |
-10C to +60C (14F to +140F) / 20% to 80%no condensation) |
Power requirements
| Power requirements |
AC 100 V to 240 V, 5.0 A to 2.1 A, 50/60 Hz |
Power consumption
| AC 100 V to 120 V |
Lamp mode: High: 497 W |
| AC 220 V to 240 V |
Lamp mode: High: 476 W |
Power Consumption (Standby Mode)
| AC 100 V to 120 V |
0.1 W (when Standby mode is set to Low) |
| AC 220 V to 240 V |
0.5 W (when Standby mode is set to Low) |
Power Consumption (Networked Standby Mode)
| AC 100 V to 120 V |
12.2 W (LAN)
13.8 W (optional HDBaseT adaptor)
13.8 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard") |
| AC 220 V to 240 V |
8.4 W (LAN)
10.0 W (optional HDBaseT adaptor)
10.0 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard") |
Standby Mode / Networked Standby Mode Activated
| Standby Mode / Networked Standby Mode Activated |
After about 2 minutes |
Heat dissipation
| AC 100 V to 120 V |
1696 BTU/h |
| AC 220 V to 240 V |
1624 BTU/h |
Dimensions (W x H x D)
| Dimensions (W x H x D) (without protrusions) |
Approx. 530 x 204 x 545 mm (20 7/8 x 8 1/32 x 21 15/32 inches) |
Mass
| Mass |
Approx. 22 kg (47 lb) |
Supplied accessories
Optional Accessories
| Projection lenses |
VPLL-4008/Z4011/Z4015/Z4019/Z4025/Z4045/Z4007/ZM42/FM22/ZM102 |
| Projection lens adapter |
PK-F500LA1, PK-F500LA2 |
Notes
| *1 |
The figures are the expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used. |
| *2 |
The value is average. |
| *3 |
Available for VESA Reduced Blanking signal. |
| *4 |
HDBaseT 3play (Video, Control, Ethernet) |
| *5 |
From INPUT A and INPUT B. |
|
|
|
|
24/07
|
Logitech PTZ Pro Camera w. Remote
- Full HD 1080p, H.264 UVC 1.5, 10x Lossless Zoom, 260-Degree Pan/130-Degree Tilt(Motorized), USB2.0Overview
Professional Video for Meeting Rooms and Spaces Logitech PTZ Pro Camera is a premium HD video camera with pan, tilt, and zoom
(PTZ) capabilities. It's ideal for conference rooms, education, healthcare, and
other professional meeting spaces. Set up in minutes with plug-and-play
simplicity and a single USB cable-to-host connection. Certifications with
leading VC applications ensure integration with most conferencing software.
For Any Environment
If youre considering video for a meeting space, conference, classroom, or
training environment, you can count on PTZ Pro Camera. It is suitable for large
and small spaces or any office or professional situation that requires
professional-quality video.
Certified For Business
Certifications ensure PTZ Pro Camera works with most VC applications. Chances
are its compatible with the application you already use. Certifications include:
Certified for Skypefor Business; Optimized for Microsoft
Lync; Skype certified; Cisco Jabber and
WebEx compatible.
Capture All The Action
Get full visibility in any room or space. PTZ Pro Camera provides 1080p video
with 90-degree field of view, 260-degree pan and 130-degree tilt. Zoom wide or
zero in with 10x full HD lossless zoom. The high-precision lens automatically
focuses on people and objects to deliver sharp resolution.
Remote Control For Easy Operation
Control functions such as pan, tilt, and zoom using the hand-held remote.
Recall up to three preset viewing angles easily. You can also operate the camera
from a remote location using software such as Skype for Business and Microsoft,
Lync.
Specifications
Camera:
- HD 1080p video quality at 30 frames/second
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- 90-degree Field of View
- Motorized 260-degree pan, 130-degree tilt
- Full HD 10X lossless zoom controlled from remote
- 3 camera preset positions plus home position button
- PTZ far-end camera control of ConferenceCam products in supported
apps
- ZEISS optics with autofocus
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
- Camera mount, table or wall
Remote Control:
Dimensions
Camera:
- Height x Width x Depth: 130 mm x 130 mm x 150 mm
Weight: 590 g
Remote:
- Height x Width x Depth: 50 mm x 120 mm x 9.8 mm
Weight: 48 g
Package Contents
- Camera
Remote control
10-foot USB cable with power adapter
connection
Power adapter with regional plugs
Mount
Quick start
guide
Warranty card
Warranty Information
2-Year Limited Hardware Warranty
Part Number
System Requirements
-
Windows 7, Windows 8.1, 10 or higher
Mac OS X 10.7
or higher
Google Chromebook version 29.0.1547.70
- Platform 4319.79.0 with:
-
2.4 GHz Intel Core 2 Duo processor
2 GB RAM or more
Hard
drive space for recorded videos
USB 2.0 port (USB 3.0 ready)
-
Note: For full HD support, please check with your software application
provider for system requirements.
|
|
|
|
24/07
|
Canon SX610HSW PowerShot Digital Camera - White
- 20.2MP, 18x Optical Zoom, 4.5-81.0mm (35mm Equivalent; 25-450 mm), 3.0" sRGB PureColor II G LCD, Image Stabilisation PowerShot SX610 HS
The Superzoom you can take anywhere with 18x zoom lens. With a slim new design and impressive 18x zoom, the PowerShot SX610HS puts you in the driving seat of your photography. With full manual controls, creative filters and a dedicated mobile connect button, you will be able to exercise your creativity in any spontaneous moment with the SX610HS.
At a glance
Optical Quality
Capture quality images from a distance with a 20.2 MP, 25mm wide, 18x optical zoom lens.
Hybrid Auto
Hybrid Auto mode records 4 seconds of video before each shot then compiles them all into a single video.
Connected to your World
With built in NFC and Wi-Fi its so easy to share your happy snaps to your favourite social media platforms.
Creative Shot
Expand your creative photography skills through applying a range of artistic presets such as toy camera or fish eye effect.
Remote Shooting
Capture images remotely and view live images from the camera via your phone and the Camera Connect app.
HD Movies
Bring your memories to life as you experience videos on Full HD quality in 30p/MP4 recording.
Specifications
Detailed Specifications
Image Sensor
Type
1/2.3 type back-illuminated CMOS
Effective Pixels
Approx. 20.2M [8]
Colour Filter Type
Primary Colour
Image Processor
Type
DIGIC 4+ with iSAPS technology
Lens
Focal Length
4.5 81.0 mm (35 mm equivalent: 25 450 mm)
Zoom
Optical 18xZoomPlus 36xDigital Approx. 4.0x (with Digital Tele-Converter Approx. 1.6x or 2.0x).Combined Approx. 72x [1]
Maximum f/number
f/3.8 f/6.9
Construction
11 elements in 8 groups (1 UD lens, 1 double-sided aspherical UA lens, 1 double-sided aspherical lens)
Image Stabilisation
Yes (lens shift-type), Approx. 2.5-stop [7]. Intelligent IS plus 4-axis Enhanced Dynamic IS
Focusing
Type
TTL
AF System/Points
AiAF (Face Detection / 9-point), 1-point AF (fixed to centre)
AF Modes
Single, Continuous, Servo AF/AE [4], Tracking AF
AF Point Selection
Size (Normal, Small)
AF Lock
Yes
AF Assist Beam
Yes
Closest Focusing Distance
5 cm (W) from front of lens in Macro
Exposure Control
Metering modes
Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (Centre)
AE Lock
Yes
Exposure Compensation
+/- 2 EV in 1/3 stop increments. Enhanced i-Contrast for automatic dynamic range correction
ISO sensitivity
AUTO, 100, 200, 400, 800, 1600, 3200
Shutter
Speed
1 1/2000 sec. (factory default) 15 1/2000 sec. (total range varies by shooting mode
White Balance
Type
TTL
Settings
Auto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom.
LCD Monitor
Monitor
7.5 cm (3.0) sRGB PureColor II G LCD (TFT). Approx. 922,000 dots
Coverage
Approx. 100%
Brightness
Adjustable to one of five levels. Quick-bright LCD
Flash
Modes
Auto, Manual Flash On / Off, Slow Synchro
Slow Sync Speed
Fastest speed 1/2000 sec.
Red-Eye Reduction
Yes
Flash Exposure Compensation
Face Detection FE, Smart Flash Exposure
Flash Exposure Lock
Yes
Built-in Flash Range
50 cm 3.5 m (W) / 1.0 m 2.0 m (T)
External Flash
Canon High Power Flash HF-DC2
Shooting
Modes
Hybrid Auto, Creative Shot, SCN (Smart Auto (32 scenes detected), P, Portrait, Smart Shutter (Smile, Wink Self-Timer, FaceSelf-Timer), High-speed Burst (5.0 MP), Handheld Night Scene, Low Light (5.0 MP), Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long Shutter)
Modes in Movie
Smart Auto (21 scenes detected), P, Portrait, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks
Photo Effects
My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red)
Drive modes
Single, Continuous, Self-Timer
Continuous Shooting
Approx. 2.5 shots/sec. High-speed Burst (5.0 MP): Approx. 7.2 shots/sec. (all speeds are until memory card becomes full)[2][3]
Recording Pixels / Compression
Image Size
4:3 - (L) 5184 x 3888, (M1) 3648 x 2736, (M2) 2048 x 1536, (S) 640 x 480 16:9 - (L) 5184 x 2912, (M1) 3648 x 2048, (M2) 1920 x 1080, (S) 640 x 360 3:2 - (L) 5184 x 3456, (M1) 3648 x 2432, (M2) 2048 x 1368, (S) 640 x 424 1:1 - (L) 3888 x 3888, (M1) 2736 x 2736, (M2) 1536 x 1536, (S) 480 x 480 Resize in playback (M2, S)
Compression
Superfine, Fine
Movies
(Full HD) 1920 x 1080, 30 fps, (HD) 1280 x 720, 30 fps, (L) 640 x 480, 30 fps Miniature Effect (HD, L) 6 fps, 3 fps, 1.5 fps Hybrid Auto Movie (HD) 30 fps
Movie Length
(Full HD & HD) Up to 4 GB or 29 min. 59 sec. [5] (L) Up to 4 GB or 1 hour [3]
File Types
Still Image Type
JPEG compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant
Movies
MP4 [Video: MPEG4-AVC / H.264, Audio: MPEG4 AAC-LC (monaural)]
Direct Print
Canon Printers
Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
PictBridge
Yes (via USB or Wireless LAN)
Other Features
GPS
GPS via mobile (linked to compatible smartphone)
Red-Eye Correction
Yes, during shooting and playback
Intelligent Orientation Sensor
Yes, with Auto Rotate
Histogram
Yes
Playback zoom
Approx. 2x 10x
Self Timer
Approx. 2 or 10 sec. or Custom
Menu Languages
English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese, Hebrew
Interface
Computer
Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)
Other
HDMI Micro Connector, A/V output (PAL/NTSC)
Computer/Other
Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only), with Dynamic NFC support [6]
Memory Card
Type
SD, SDHC, SDXC
Supported Operating Systems
PC & Macintosh
Windows 8 / 8.1 / 7 SP1 Mac OS X 10.8 / 10.9 For Wi-Fi connection to a PC: Windows 8 / 8.1 / 7 SP1 only Mac OS X 10.8.2 or later / 10.9
Software
Other
CameraWindow DC Map Utility Image Transfer Utility
Power Source
Batteries
Rechargeable Li-ion Battery NB-6LH (battery and charger supplied)
Battery life
Approx. 270 shots Eco Mode: Approx. 400 shots Approx. 300 min. playback
A/C Power Supply
Optional, AC Adapter Kit ACK-DC40
Accessories
Cases / Straps
Soft Case DCC-1570 Travel Case DCC-2500 PowerShot Accessory Organizer
Flash
High Power Flash HF-DC2
Power Supply & Battery Chargers
AC Adapter Kit ACK-DC40 Battery Charger CB-2LYE
Other
Canon AV cable AVC-DC400 Interface Cable IFC-400PCU
Physical Specifications
Operating Environment
0 40 C, 10 90% humidity
Dimensions (WxHxD)105.3 x 61.0 x 26.7 mm
Weight
Approx. 191 g (including battery and memory card)
Footnotes
PowerShot SX610 HS
All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.Subject to change without notice.[1] Depending on the image size selected.[2] Under conditions where the flash does not fire.[3] Depending on memory card speed / capacity / compression setting.[4] Some settings limit availability.[5] The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.[6] Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts[7] Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.[8] Image processing may cause a decrease in the number of pixels.
|
|
|
|
24/07
|
AXIS 0758-001 Day/Night FIxed Dome with Support - For Optimized IR with Built-In Adaptable IR Illuminators And WDR Day/Night Fixed Dome with Support For OptimizedIR with Built-In Adaptable IR Illuminators and WDR - Forensic Capture. IK10 Vandal-Resistant Outdoor Casing. Vari-Focal 2.8-10mm P-IRIS Lens Remote Focus
Axis offers the market's broadest and most consistent range of high-quality network cameras. Based on open IP standards, Axis network cameras connect to any kind of IP network, including the Internet, and enable remote viewing and recording from anywhere in the world. They also provide advanced video analytics features, such as motion detection, audio detection and tampering alarm.
Specifications
|
Display & Graphics
|
|
Colour Support:
|
Colour
|
|
Effective Camera Resolution:
|
1 Megapixel
|
|
General Information
|
| Brand Name: |
AXIS |
| Manufacturer Part Number: |
0758-001 |
| Manufacturer Website Address: |
http://www.axis.com |
| Manufacturer: |
Axis Communications |
| Marketing Information: |
Axis offers the market's broadest and most consistent range of high-quality network cameras.
Based on open IP standards, Axis network cameras connect to any kind of IP network, including the Internet, and enable remote viewing and recording from anywhere in the world. They also provide advanced video analytics features, such as motion detection, audio detection and tampering alarm.
|
| Product Model: |
P3224-LVE |
| Product Name: |
P3224-LVE Network Camera |
| Product Type: |
Network Camera |
|
Interfaces/Ports
|
| Network (RJ-45): |
Yes |
|
Network & Communication
|
| Connectivity Technology: |
Cable |
| Remote Management: |
Yes |
|
Physical Characteristics
|
| Form Factor: |
Dome |
| |
Wall Mount |
|
Technical Information
|
| HD Recording: |
Yes |
|
Video
|
| Maximum Video Resolution: |
1280 x 720 |
| Video Formats: |
H.264 |
| |
Motion JPEG |
|
|
|
|
24/07
|
Dahua CAM-HFW4100SP/6 1.3 Megapixel Camera 6mm Lens, CMOS, 25/30FPS, Day/Night, IP66, PoEDAHUA 1.3MP CAMERA, 6MM LENS,CMOS, 25/30FPS, DAY/NIGHT, IP66, POE, 2YR
|
|
|
|
24/07
|
Dahua CAM-SD40212SHN/PTZ 2 Megapixe PTZ Dome Camera - 12x Optical Zoom 5.1mm-61.2mm, 25/30FPS, Day/NightDAHUA 2MP PTZ DOME CAMERA, 12X OPTICAL ZOOM 5.1MM-61.2MM, 25/30FPS, DAY/NIGHT, 2YR
|
|
|
|
24/07
|
Dahua CAM-HDBW5202PDI/VF 2 Megapixel Dome Camera - 3~9mm VF Motorised Lens, CMOS, 25/30FPS, Micro SD, IP66, PoEDAHUA 2MP DOME CAMERA, 3~9MM VF MOTORISED LENS, CMOS, 25/30FPS, MICRO SD, IP66, POE, 2YR
|
|
|
|
24/07
|
Dahua CAM-HDBW5202P/VF 2 Megapixel Dome Camera - 3~9mm VF Motorised Lens, CMOS, 25/30FPS, Micro SD, IP66, PoECAM-HDBW5202P/VF 2 Megapixel Dome Camera - 3~9mm VF Motorised Lens, CMOS, 25/30FPS, Micro SD, IP66, PoE
|
|
|
|
24/07
|
Dahua CAM-HDBW5100P/VF 1.3 Megapixel Dome Camera - 2.7~9MM VF Motorised Lens, CMOS, 25/30FPS, Micro SD, IP66CAM-HDBW5100P/VF 1.3 Megapixel Dome Camera - 2.7~9MM VF Motorised Lens, CMOS, 25/30FPS, Micro SD, IP66
|
|
|
|
24/07
|
Dahua CAM-HDBW4300EP/3.6 3 Megapixel Dome Camera - 3.6mm Lens, CMOS, 20FPS, Day/Night, IP66, PoEDAHUA 3MP DOME CAMERA, 3.6MM LENS, CMOS, 20FPS, DAY/NIGHT, IP66, POE, 2YR
|
|
|
|
24/07
|
Dahua CAM-HDBW4200EP/3.6 2 Megapixel Dome Camera - 3.6mm Lens, CMOS, 25/30FPS, Day/Night, IP66, PoECAM-HDBW4200EP/3.6 2 Megapixel Dome Camera - 3.6mm Lens, CMOS, 25/30FPS, Day/Night, IP66, PoE
|
|
|
|
24/07
|

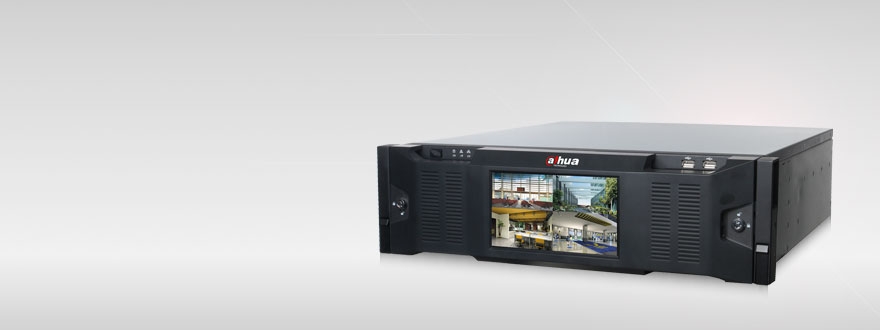

Dahua NVR-6064DR 64 Channel Super Network Video Recorder - 16x SATA Ports, Up to 64TB, 1x eSATA Port, 4-Port 10/100/1000, Support RAID 0,1,5,6,10,50,60, 6 HDMI, 1x VGA (Default; 2 HDMI+1 VGA ) 64 Channel Super Network Video Recorder
NVR6064DR
Features
- Up to 64 channel IP camera input
- Max 192Mbps incoming bandwidth
- Up to 32ch@1080P, 64ch@720P, 64ch@D1 realtime recording
- Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync (Default: 2 HDMI or 1 HDMI +1 VGA)
- Support 16 hot-swap SATA HDDs to better its scalability and flexibility
- Support RAID0/1/5/6/10/50/60
- Human-oriented Dahua UI
- Compatible with Dahua SDK and seamless integrated to other platforms
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.3 conformance
- Redundant power supply module adopted (DH-NVR6064DR)
- Front LCD display (DH-NVR6064D/DH-NVR6064DR)
Specifications
| Model |
DH-NVR6064 |
DH-NVR6064D |
DH-NVR6064DR |
| System |
| Main Processor |
Intel Core i3 Processors |
| Operating System |
Embedded LINUX |
| Motherboard |
Embedded Board (Support 7x24 operation) |
| Memory |
2GB DDR3 (up to 8GB) |
| Case |
Hot-dipped galvanized sheet steel (1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design |
| Fan |
Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation |
| Interface |
Local GUI & WEB GUI |
| Video & Audio |
| Input |
32ch@1080P/128ch@720P/128ch@D1 |
| Transmission |
32ch@1080P/128ch@720P/128ch@D1 |
| Recording |
32ch@1080P/128ch@720P/128ch@D1 |
| Preview |
6ch@1080P/12ch@720P/20ch@D1(Screen 1~2 )
+16ch@1080P/16ch@720P/16ch@D1(Screen 3~6) (Optional) |
| Playback |
4ch@1080P/9ch@720P/16ch@D1 (Screen 1) |
| Recording Resolution |
8Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA |
| Audio |
1ch Mic in, 1/1ch audio in/out |
|
Recording
|
|
Recording Mode
|
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
|
| Alarm Recording |
Video loss, Camera blank, Motion detection, External alarm |
| Backup Mode |
Network download / USB HDD / USB CD&DVD-RW / eSATA Device |
| Display |
| Interface |
6 HDMI, 1 VGA (Default: 2 HDMI+1 VGA ) |
| Video Output |
6 HDMI, or 1ch VGA(or built-in LCD) & 5ch HDMI sync video output (Default: 2 HDMI, or 1 VGA(or built-in LCD) & 1ch HDMI sync video output ) |
| Multi-screen Display |
The 1st screen: 1/4/6/8/9/16/25/36/64
The 2nd-6th screens: 4 |
| Privacy Masking |
4 customized zones for privacy masking for each area |
| Storage |
| Internal HDD |
16 SATA ports, up to 64TB |
| HDD Mode |
Single, Raid 0/1/5/6/10/50/60 (Support global HDD Hot-standby) |
| HDD Installation |
Independent HDD rack, support hot swap |
| Network |
| Interface |
4 RJ-45 ports (10/100/1000Mbps) |
| Ethernet Port |
4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports |
| MD & Alarm |
| Motion Detection |
Zones: 396(2218), Sensitivity: 1~6 (level 6 is highest) |
| Alarm Input |
16ch, low level effective, green terminal interface |
| Relay Output |
8ch, Relay contact (1A@24VDC), NO/NC programmable, green terminal interface |
| Auxiliary Interface |
| Front cover |
Support hot swap, 7" inch HD LCD (1920 x 1080 / 1280 x 1024 / 1024 x 768) (Model D & -DR) |
| USB |
4 USB ports (2 on the front-panel, 2 on the rear panel), USB2.0 |
| eSATA |
1 eSATA port |
| RS485 |
1 port, for PTZ control |
| General |
| Power Supply |
AC 100V~240V, 47~63Hz |
AC 100V~240V, 47~63Hz , Redundant |
| Power Consumption |
10W~200W (Include HDD) |
| Working Environment |
-10C~55C |
| Working Humidity |
10%~80% ( non-condensation) |
| Dimension (WDH) |
3U, 485mm448mm133.2mm |
| Weight |
20kg (without HDD) |
| Installation |
Rack-mounted |
|
|
|
|
24/07
|

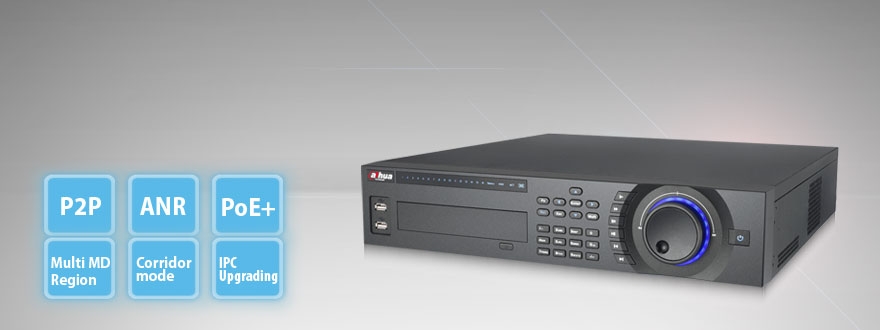

Dahua NVR-4832/16P 32 Channel 2U 16 PoE Network Video Recorder - 8x SATA Ports, Up to 32TB, 1x eSATA Port, 16-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA/TV Simultaneous Video Output 32CH 2U 16PoE Network Video Recorder
NVR4832-16P
Features
- Up to 16/32 channel IP camera input
- H.264/MJPEG dual codec decoding
- Max 200Mbps incoming bandwidth
- Up to 5Mp resolution preview&playback
- HDMI/VGA/TV simultaneous video output
- 16 channel synchronous realtime playback, GRID interface
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- 3D intelligent positioning with Dahua PTZ camera
- Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,3 USB(1 USB3.0)
- Support IPC UPnP, 16PoE ports
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4816-16P |
DH-NVR4832-16P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA,1 BNC |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/1080P(19201080) / 720P(1280720) / D1 (704576/704480)&etc. |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
16channel |
| Relay Output |
4channel |
| Playback & Backup |
| Sync Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner/eSATADevice |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
16 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
8 SATA ports, up to 32TB |
| External HDD |
1 eSATA port |
| Auxiliary Interface |
| USB |
3 ports (1 Rear USB3.0, 2 Front USB2.0) |
| RS232 |
1 port, For PC communication& Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100V~240V,50/60HZ |
| Power Consumption |
40W(without HDD) |
| Working Environment |
-10C ~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
2U, 440mm460mm89mm |
| Weight |
6.5KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4816/16P 16 Channel 2U 16 PoE Network Video Recorder - 8x SATA Ports, Up to 32TB, 1x eSATA Port, 16-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA/TV Simultaneous Video Output 16CH 2U 16PoE Network Video Recorder
NVR4816-16P
Features
- Up to 16/32 channel IP camera input
- H.264/MJPEG dual codec decoding
- Max 200Mbps incoming bandwidth
- Up to 5Mp resolution preview&playback
- HDMI/VGA/TV simultaneous video output
- 16 channel synchronous realtime playback, GRID interface
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- 3D intelligent positioning with Dahua PTZ camera
- Support 8 SATA HDDs up to 32TB, 1 eSATA up to 16TB,3 USB(1 USB3.0)
- Support IPC UPnP, 16PoE ports
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4816-16P |
DH-NVR4832-16P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA,1 BNC |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/1080P(19201080) / 720P(1280720) / D1 (704576/704480)&etc. |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
16channel |
| Relay Output |
4channel |
| Playback & Backup |
| Sync Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner/eSATADevice |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
16 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
8 SATA ports, up to 32TB |
| External HDD |
1 eSATA port |
| Auxiliary Interface |
| USB |
3 ports (1 Rear USB3.0, 2 Front USB2.0) |
| RS232 |
1 port, For PC communication& Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100V~240V,50/60HZ |
| Power Consumption |
40W(without HDD) |
| Working Environment |
-10C ~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
2U, 440mm460mm89mm |
| Weight |
6.5KG(without HDD) |
|
|
|
|
24/07
|

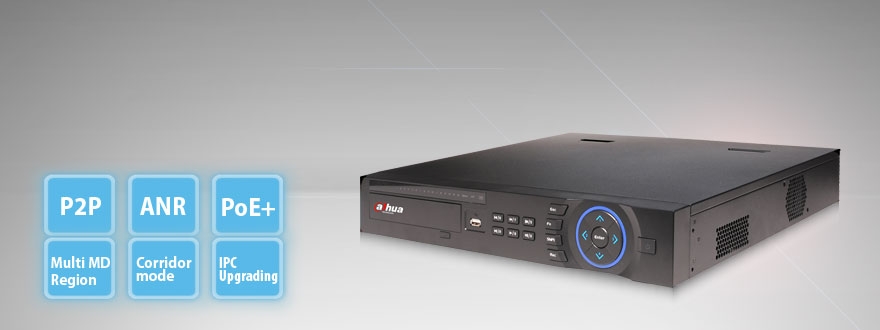

Dahua NVR-4432/16P 32 Channel 1.5U 16 PoE Network Video Recorder - 4x SATA Ports, Up to 16TB, 1x eSATA Port, 1-Port 10/100/1000, 16-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA/TV Simultaneous Video NVR4432-16P
32CH 1.5U 16PoE Network Video Recorder
NVR4432-16P
Features
Up to 16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,2 USB(1 USB3.0)
Support IPC UPnP, 16PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4416-16P |
DH-NVR4432-16P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA,1 BNC |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/1080P(19201080) / 720P(1280720) / D1 (704576/704480)&etc. |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
16channel |
| Relay Output |
4 channel |
| Playback & Backup |
| Sync Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner/eSATA Device |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
16 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
4 SATA ports, up to 16TB |
| External HDD |
1 eSATA port |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 |
1 port, For PC communication& Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100V~240V,50/60HZ |
| Power Consumption |
NVR: 40W (without HDD) |
| PoE: Max 25.5W for single port |
| Working Environment |
-10C ~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
1.5U, 440mm410mm70mm |
| Weight |
6KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4416/16P 16 Channel 1.5U 16 PoE Network Video Recorder - 4x SATA Ports, Up to 16TB, 1x eSATA Port, 1-Port 10/100/1000, 16-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA/TV Simultaneous Video NVR-4416/16P
16CH 1.5U 16PoE Network Video Recorder
NVR4416-16P
Features
Up to 16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,2 USB(1 USB3.0)
Support IPC UPnP, 16PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4416-16P |
DH-NVR4432-16P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA,1 BNC |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/1080P(19201080) / 720P(1280720) / D1 (704576/704480)&etc. |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
16channel |
| Relay Output |
4 channel |
| Playback & Backup |
| Sync Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner/eSATA Device |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
16 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
4 SATA ports, up to 16TB |
| External HDD |
1 eSATA port |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 |
1 port, For PC communication& Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100V~240V,50/60HZ |
| Power Consumption |
NVR: 40W (without HDD) |
| PoE: Max 25.5W for single port |
| Working Environment |
-10C ~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
1.5U, 440mm410mm70mm |
| Weight |
6KG(without HDD) |
|
|
|
|
24/07
|

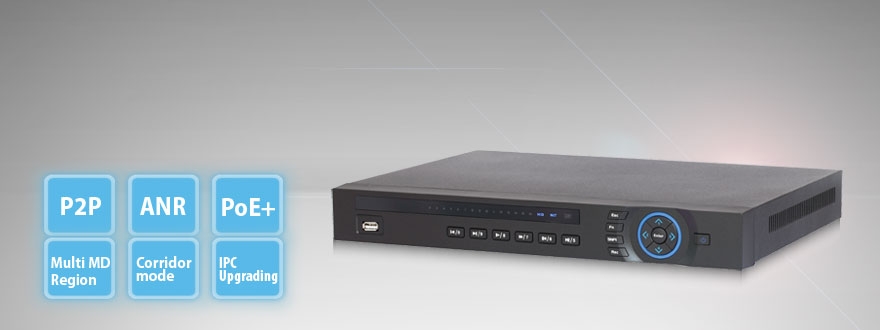

Dahua NVR-4232/8P 32 Channel 1U 8 PoE Network Video Recorder - 2x SATA Port, Up to 8TB, 1-Port 10/100/1000, 8-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output 32CH 1U 8PoE Network Video Recorder
NVR4232-8P
Features
Up to 8/16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Support IPC UPnP,8PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4208-8P |
DH-NVR4216-8P |
DH-NVR4232-8P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
8 channel |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9 |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/ 1080P(19201080) / 720P(1280720) / D1 (704576/704480) |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection,MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
4 channel |
| Alarm Output |
2 channel |
| Playback & Backup |
| Sync Playback |
1/4/9 |
1/4/9/16 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
8 ports (IEEE802.3af) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
2 SATA ports, up to 8TB |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 |
1 port, For PC communication&Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100~240V, 50/60 Hz |
| Power Consumption |
NVR: 60W(without HDD) |
| PoE: Max.25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
1U, 375mm285mm50mm |
| Weight |
2.5KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4216/8P 16 Channel 1U 8 PoE Network Video Recorder - 2x SATA Ports, Up to 8TB, 1-Port 10/100/1000, 8-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output 16CH 1U 8PoE Network Video Recorder
NVR4216-8P
Features
Up to 8/16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Support IPC UPnP,8PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4208-8P |
DH-NVR4216-8P |
DH-NVR4232-8P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
8 channel |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9 |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/ 1080P(19201080) / 720P(1280720) / D1 (704576/704480) |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection,MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
4 channel |
| Alarm Output |
2 channel |
| Playback & Backup |
| Sync Playback |
1/4/9 |
1/4/9/16 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
8 ports (IEEE802.3af) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
2 SATA ports, up to 8TB |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 |
1 port, For PC communication&Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100~240V, 50/60 Hz |
| Power Consumption |
NVR: 60W(without HDD) |
| PoE: Max.25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
1U, 375mm285mm50mm |
| Weight |
2.5KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4208/8P 8 Channel 1U 8 PoE Network Video Recorder - 2x SATA Ports, Up to 8TB, 1-Port 10/100/1000, 8-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output 8CH 1U 8PoE Network Video Recorder
NVR4208-8P
Features
Up to 8/16/32 channel IP camera input
H.264/MJPEG dual codec decoding
Max 200Mbps incoming bandwidth
Up to 5Mp resolution preview&playback
HDMI/VGA simultaneous video output
4/8/16 channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 2 SATA HDDs up to 8TB, 2 USB(1 USB3.0)
Support IPC UPnP,8PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4208-8P |
DH-NVR4216-8P |
DH-NVR4232-8P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
8 channel |
16 channel |
32 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4/8/9 |
1/4/8/9/16 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp25601920/3Mp20481536/ 1080P(19201080) / 720P(1280720) / D1 (704576/704480) |
| Record Rate |
200Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email,FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection,MD Zones: 396(2218), Video Loss & Camera Blank |
| Alarm Input |
4 channel |
| Alarm Output |
2 channel |
| Playback & Backup |
| Sync Playback |
1/4/9 |
1/4/9/16 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
| PoE |
8 ports (IEEE802.3af) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
2 SATA ports, up to 8TB |
| Auxiliary Interface |
| USB |
2 ports (1 Rear USB3.0, 1 Front USB2.0) |
| RS232 |
1 port, For PC communication&Keyboard |
| RS485 |
1 port, For PTZ control |
| General |
| Power Supply |
AC 100~240V, 50/60 Hz |
| Power Consumption |
NVR: 60W(without HDD) |
| PoE: Max.25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90%RH / 86~106kpa |
Dimension
(WDH) |
1U, 375mm285mm50mm |
| Weight |
2.5KG(without HDD) |
|
|
|
|
24/07
|

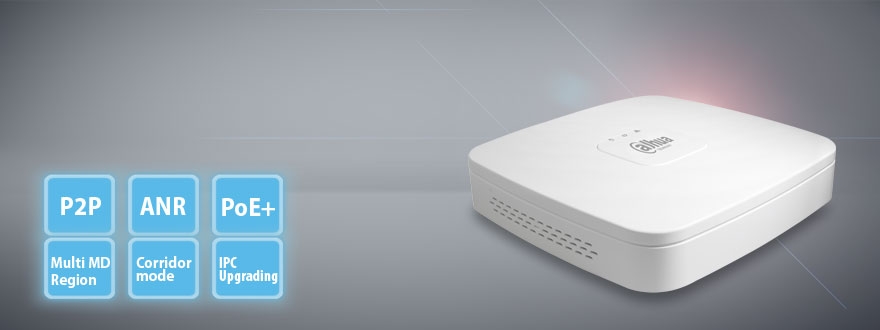

Dahua NVR-4116/P 16 Channel Smart 1U 4 PoE Network Video Recorder - 1x SATA Port, Up to 4TB, 1-Port 10/100, 4-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output NVR4116-P
16CH Smart 1U 4POE Network Video Recorder
NVR4116-P
Features
Up to 4/8/16 channel IP camera input
Max 80Mbps incoming bandwidth
H.264/MJPEG dual codec decoding
HDMI/VGA simultaneous video output
All channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 1 SATA HDD up to 4TB, 2 USB2.0
Support IPC UPnP, 4PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4104-P |
DH-NVR4108-P |
DH-NVR4116-P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
4 channel |
8 channel |
16 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp(25601920)/3Mp(20481536)/1080P(19201080)/720P(1280720)/D1 (704576/704480) |
| Record Rate |
80Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Playback & Backup |
| Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100Mbps) |
| PoE |
4 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
1 SATA port, up to 4TB |
| Auxiliary Interface |
| USB |
2 ports (2 Rear),USB2.0 |
| General |
| Power Supply |
Single, DC48V/1.5A |
| Power Consumption |
NVR: 10W(without HDD) |
| PoE: Max 25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90RH / 86~106kpa |
Dimension
(WDH) |
Smart 1U,205mm205mm45mm |
| Weight |
0.5KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4108/P 8 Channel Smart 1U 4 PoE Network Video Recorder - 1x SATA Port, Up to 4TB, 1-Port 10/100, 4-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output 8CH Smart 1U 4POE Network Video Recorder
NVR4108-P
Features
Up to 4/8/16 channel IP camera input
Max 80Mbps incoming bandwidth
H.264/MJPEG dual codec decoding
HDMI/VGA simultaneous video output
All channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 1 SATA HDD up to 4TB, 2 USB2.0
Support IPC UPnP, 4PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4104-P |
DH-NVR4108-P |
DH-NVR4116-P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
4 channel |
8 channel |
16 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp(25601920)/3Mp(20481536)/1080P(19201080)/720P(1280720)/D1 (704576/704480) |
| Record Rate |
80Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Playback & Backup |
| Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100Mbps) |
| PoE |
4 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
1 SATA port, up to 4TB |
| Auxiliary Interface |
| USB |
2 ports (2 Rear),USB2.0 |
| General |
| Power Supply |
Single, DC48V/1.5A |
| Power Consumption |
NVR: 10W(without HDD) |
| PoE: Max 25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90RH / 86~106kpa |
Dimension
(WDH) |
Smart 1U,205mm205mm45mm |
| Weight |
0.5KG(without HDD) |
|
|
|
|
24/07
|
Dahua NVR-4104/P 4 Channel Smart 1U 4 PoE Network Video Recorder - 1x SATA Port, Up to 4TB, 1-Port 10/100, 4-Port PoE+, H.264/MJPEG Dual Codec Decoding, HDMI/VGA Simultaneous Video Output 4/8/16CH Smart 1U 4POE Network Video Recorder
NVR4104-P
Features
Up to 4/8/16 channel IP camera input
Max 80Mbps incoming bandwidth
H.264/MJPEG dual codec decoding
HDMI/VGA simultaneous video output
All channel synchronous realtime playback, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ camera
Support 1 SATA HDD up to 4TB, 2 USB2.0
Support IPC UPnP, 4PoE ports
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Specifications
| Model |
DH-NVR4104-P |
DH-NVR4108-P |
DH-NVR4116-P |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video & Audio |
| IP Camera Input |
4 channel |
8 channel |
16 channel |
| Two-way Talk |
1channel Input, 1channel Output, RCA |
| Display |
| Interface |
1 HDMI,1 VGA |
| Resolution |
19201080, 12801024, 1280720, 1024768 |
| Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264/MJPEG |
| Resolution |
5Mp(25601920)/3Mp(20481536)/1080P(19201080)/720P(1280720)/D1 (704576/704480) |
| Record Rate |
80Mbps |
| Bit Rate |
48~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(2218), Video Loss & Camera Blank |
| Playback & Backup |
| Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device/Network/Internal SATA burner |
| Network |
| Ethernet |
1 RJ-45 port (10/100Mbps) |
| PoE |
4 ports (IEEE802.3at) |
| Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
| Max. User Access |
128users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD |
1 SATA port, up to 4TB |
| Auxiliary Interface |
| USB |
2 ports (2 Rear),USB2.0 |
| General |
| Power Supply |
Single, DC48V/1.5A |
| Power Consumption |
NVR: 10W(without HDD) |
| PoE: Max 25.5W for single port |
| Working Environment |
-10C~+55C / 10%~90RH / 86~106kpa |
Dimension
(WDH) |
Smart 1U,205mm205mm45mm |
| Weight |
0.5KG(without HDD) |
|
|
|
|
Previous Page
|
Next Page
|
|
