Camerafarm product archive #42176

Image Date Product description Price Buy
23/06

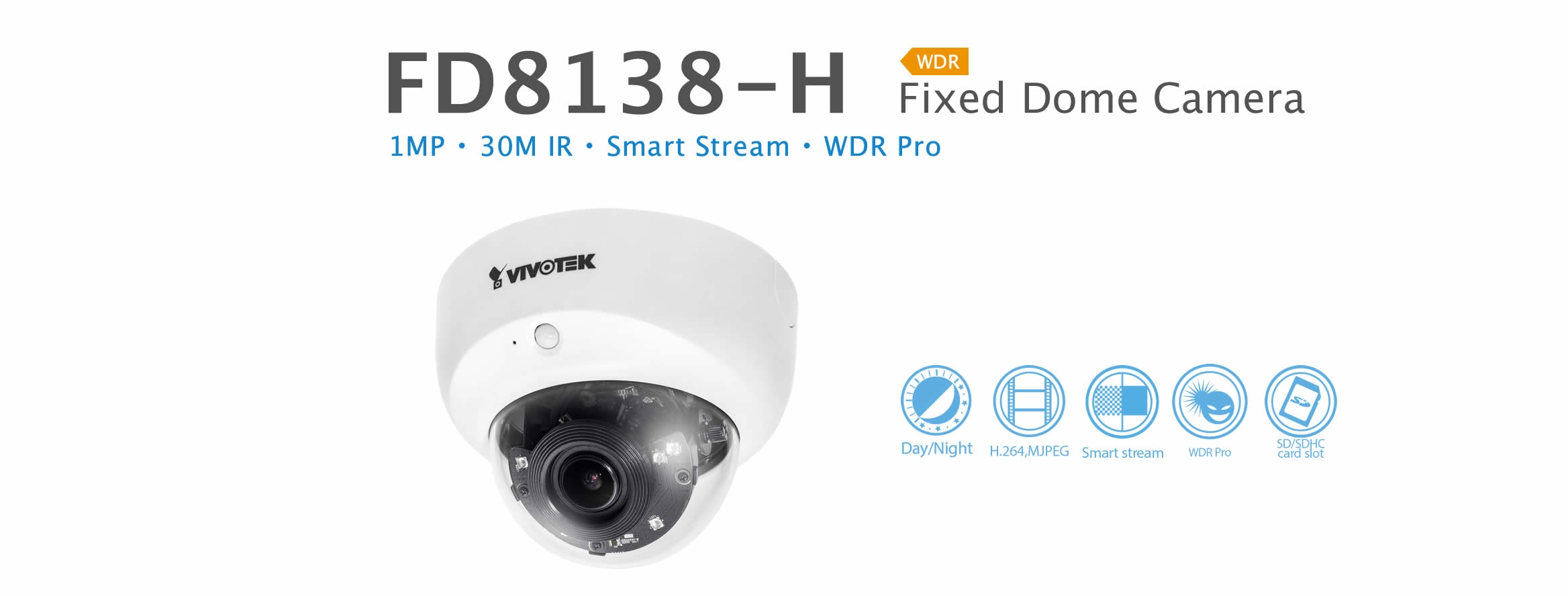

Vivotek FD8138-H Fixed Dome Camera - 1 Megapixel CMOS Sensor, 30 FPS @ 1280x800, 2.8~12 mm Vari-Focal, P-Iris Lens, Removable IR-Cut Filter For Day & Night Function, Two-Way Audio - White

FD8138-H

Overview

The VIVOTEK FD8138-H is a stylish, fixed-dome network camera designed for diverse indoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the FD8138-H is an all-in-one indoor camera capable of capturing high quality footage at 720P resolution, even in high-contrast lighting environments. As well as providing remarkably high image quality, the FD8138-H is also equipped with VIVOTEK Smart Stream, and 3DNR to save substantial bandwidth for our users.

To further enhance image quality, the FD8138-H also comes with a P-iris lens, which controls the iris with extreme precision via its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as superb image quality.

Key Features

  • 1-Megapixel CMOS Sensor
  • 30 fps @ 1280x800
  • 2.8 ~ 12 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Real-time H.264, and MJPEG Compression
  • Two-way Audio
  • WDR Pro for Clear Visibility in Extremely Bright and Dark Environments
  • 3D Noise Reduction
  • PIR
  • Supports Installation with Conduit Box

Specifications

Model FD8138-H
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 256MB
Camera Features
Image Sensor 1/3" Progressive CMOS
Maximum Resolution 1280x800
Lens Type Vari-focal, Manual Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-Iris
Field of View 33 ~ 87 (Horizontal)
21 ~ 54 (Vertical)
39 ~ 110 (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.27 Lux @ F1.8 (Color)
0.001 Lux @ F1.8 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*6
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264, MJPEG
Maximum Frame Rate H.264:
30 fps @ 1280x800
MJPEG:
30 fps @ 1280x800
Maximum Streams 3 simultaneous streams
S/N Ratio Above 61 dB
Dynamic Range 110 dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, seamless recording
Audio
Audio Capability Audio input/output (full duplex)
Compression G.711, G.726
Interface Built-in microphone Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors RJ-45 cable connector for Network/PoE connection
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE
DC 12V
Power Consumption PoE: Max. 9.7 W
DC 12V: Max. 9.96 W
Dimensions : 135 x 102 mm
Weight Net: 512g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: -10C ~ 50C (14F~ 122F)
Working Temperature: -20C ~ 50C (-4F~ 122F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x, 9.x, 10.x
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
Others Quick installation guide, warranty card, alignment sticker/desiccant bag, waterproof connector
Link contains in-depth information about this product Link contains a picture of this product    NA
23/06

Sony DSCHX90V Digital Camera - Black


- 18.2MP, 30x Optical Zoom, EV 2 To 16 (At ISO100 Equivalent), 3.0"TFT LCD, Optical SteadyShot, WiFi, Face Detection, OLED Tru-Finder Viewfinder

High-zoom Point and Shoot Camera


DSC-HX90V/B

Highlights

  • 30x Optical/60x Clear Image Zoom ZEISS Vario-Sonnar T* Lens
  • 18.2MP Exmor R CMOS Sensor for superb low light images
  • Built-in retractable OLED Tru-Finder viewfinder
  • Versatile video1 w/ high-quality XAVC S, AVCHD & MP4 formats
  • Simple connectivity to smartphones2 via Wi-Fi w/NFC

In The Box

  • Rechargeable Battery Pack (NP-BX1)
  • AC Adaptor (AC-UB10C / UB10D)
  • Micro USB cable
  • Wrist Strap
  • Instruction Manual

Features

30x optical zoom ZEISS  lens plus 60x Clear Image Digital Zoom

Get super close and clear with the premium ZEISS  Vario-Sonnar T* lens from wide angle (24mm equivalent) to 30x optical zoom plus 60x Clear Image digital zoom. The ZEISS T* coating reduces undesirable reflection, such as ghosting and flare, on the lens surface, while 30x optical zoom allows you to get closer to your subject. With Clear Image Zoom the powerful BIONZ  X processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images. Clear Image Zoom doubles optical zoom for closer photos.

Superb 18.2MP image quality

The DSC-HX90V features an 18.2 megapixel backside illuminated Exmor R  CMOS image sensor with a BIONZ  X image processor. This brings out the full resolving power of the cameras professional ZEISS  Vario-Sonnar T* Lens to deliver high resolution, and stunning low-light sensitivity with improved image clarity and drastically reduced grain for both stills and movie.

Built-in retractable OLED Tru-Finder viewfinder

View every scene in rich detail with the high contrast and bright, pop-up OLED Tru-Finder with approx. 638k dots resolution. The electronic viewfinder faithfully displays what will appear in your recording, including the effects of your camera settings, so you can accurately monitor the results. Use of aspherical lenses in the eyepiece optics raises performance and minimizes size, while a convenient eye sensor automatically switches between EVF and LCD screen, for easy operation.

High-quality movies1 w/ XAVC S, AVCHD and MP4 codes

Capture high quality HD movies1 in the XAVC S format. With 50Mbps Full HD (1920x1080) 60p high quality video recording, XAVC S enables beautiful video recording with minimal compression noise even in scenes with a lot of movement. Linear PCM is adopted for audio compression delivering incredible audio to match your video. The camera also records in AVCHD, ideal for HDTV and Blu-ray Disc burning, or your choice of highly compressed MP4 HD video ideal for web.

Simple connectivity to smartphones via Wi-Fi2 and NFC3

Wi-Fi  connectivity allows you to control your camera with your compatible Smartphone or Tablet2. Frame your image on your devices LCD and control the cameras shutter. You can even transfer the images taken directly to your mobile device for quick editing and uploading - sharing has never been easier. With NFC3 (near field communication) - connectivity has been simplified to one-touch. Simply touch the camera to the compatible NFC enabled device to connect.

5-axis image stabilization greatly reduces blur

Get remarkably sharp images with Sonys Optical SteadyShot image stabilization for both stills and video. Additionally, intelligent Active Mode combines 5-axis* image stabilization with Sony's advanced frame-analysis technology to greatly reduce blur caused by camera shake when shooting movies allowing you to move along with the action and get clear images of your subject in motion even when zoomed in.

Selfie-ready multi-angle 3 Xtra Fine LCD display

Selfies have never been easier with a beautiful 3 (921k dots) Xtra Fine LCD Display that rotates up approx. 180. Easily frame for selfies or to shoot objects like pets at eye-level without having to get down on the ground. Simply scroll through menus and preview life thanks to the large display which delivers brilliant-quality still images and movies while enabling easy focusing operation.

P/A/S/M modes, customizable settings & Memory Recall mode

For creative flexibility, you can enter Program Auto (P), Aperture Priority (A), Shutter Speed Priority (S) or Manual Exposure (M) mode for manual shooting. MR (Memory Recall) mode is available for quick manual adjustment and a control ring - that can be assigned with various functions - such as manual focusing or step zooming, allow for superior control of your shooting experience.

Enhance features w/ downloadable camera apps

Get creative with PlayMemories Camera Apps4 by applying exciting artistic effects or retouching images with professional results, and then easily upload your photos to Facebook  or Instagram. Enjoy added functionality with apps that include Time Lapse, Smart Remote Control, and Direct Upload.

Map your images with GPS tagged photos

Built-in GPS records location data and camera direction as you shoot movies and photos. With the GPS Log and the supplied PlayMemories Home software, you can track a photographic journey and later view the path and images on a map, showing you where they were taken. Images can also be displayed on Google Earth.

Capture the decisive moment with up to 10fps

Never miss that decisive moment; like a bat hitting a baseball or a fleeting smile. Capture full 18.2 megapixel resolution images at up to 10 frames per second, with an ultra-fast shutter lag of Approx. 0.008 sec.

Keep your subject in focus with Lock-On AF

Lock-On AF (Auto Focus) gives you the ability to select a focus point with subject recognition, then allows the camera to track and keep your subject in sharp focus even when in motion.

Product Specifications

Advanced Features

  • Image Stabilization : Optical SteadyShot
  • Photo Creativity : Yes
  • Intelligent Auto : Yes
  • Sweep Panorama : Intelligent Sweep Panorama (360)
  • Anti Motion Blur : Yes
  • Wi-Fi : Yes
  • Face Detection : Yes (eight faces max)
  • Smile Shutter technology : Yes
  • Picture Effects : Toy camera, Pop Color, Posterization, Retro Photo, Soft High-key, Partial Color, High Contrast Mono.
  • Superior Auto : Yes

Convenience Features

  • Red-Eye Reduction : On / Off
  • Erase/Protect : Erase: Single / Select / Date / Folder Protect: Single / Folder / Date

Drive System

  • Continuous Shooting Speed : Approx. 10 fps (for up to 10 shots)
  • Shutter Speeds : iAuto (4" - 1/2000) / Program Auto (1" - 1/2000) / Aperture Priority (8" - 1/2000) / Shutter Priority (30" - 1/2000) / Manual (30" - 1/2000)
  • Self-timer : Off / 10sec. / 5sec. / 2sec. / 3 consecutive shots with 10sec. 5sec. or 2sec. delay selectable / 3 consecutive bracketing shots with 10sec. 5sec. or 2sec. delay selectable
  • Drive Mode : Single, Continuous shooting, Self-timer, Self-timer(cont.) Bracket: Continuous, Single, White balance, DRO bracketing

Exposure System

  • D-Range Optimizer : Off, Dynamic Range Optimizer (Auto/Level 1-5), Auto High Dynamic Range: Off, Auto Exposure Difference, Exposure difference Level (1.0-6.0EV, 1.0EV step)
  • Exposure Compensation : +/- 3.0 EV (1/3 EV step)
  • Minimum Illumination : [Movie]: Auto: 6lux (Shutter Speed 1/30)
  • Exposure Settings : [Still] Intelligent Auto, Superior Auto, Program Auto, Aperture Priority,Shutter Speed Priority, Manual Exposure, MR(Memory Recall) 1,2,3, Movie Mode(Program Auto,Aperture Priority,Shutter Speed Priority,Manual Exposure), Panorama, Scene Selection
  • Scene Mode(s) : Portrait, Advanced Sports Shooting, Landscape, Sunset, Night Scene, Handheld Twilight, Night Portrait, Anti Motion Blur, Pet Mode, Gourmet, Beach, Snow, Fireworks, Soft Skin, High Sensitivity
  • Metering Modes : Multi Pattern, Center Weighted, Spot
  • Metering Sensitivity : EV 2 to 16 (at ISO100 equivalent)
  • ISO : [Still Image] Auto(ISO80-3200, selectable with upper / lower limit),80/100/200/400/800/1600/3200,Multi-Frame NR:Auto(ISO80-3200 same as selected range in Auto), 100/200/400/800/1600/3200/6400*3/12800*3
  • Noise Reduction : Long exposure NR High ISO NR: Normal / Low Multi Frame NR: Auto, ISO100-12800
  • Creative Style : Standard, Vivid, Portrait, Landscape, Sunset, Black & White, Sepia
  • ISO Sensitivity (Movie) : [Movie] Auto (ISO80-3200, selectable with upper / lower limit),80/100/200/400/800/1600/3200
  • White Balance Mode : Auto / Daylight / Shade / Cloudy / Incandescent / Fluor.: Cool White / Fluor.: Day White / Fluor.: Daylight / Flash / Custom / One Push, One Push Set

Flash

  • Flash Modes : Auto / Flash On / Slow Synchro / Flash Off / Rear Sync.
  • Flash Coverage : ISO Auto: Approx.0.3m to 5.4m (11 13/16 inches to 17 ft 8 19/32 inches) (W) / Approx.2.5m to 3.0 m (8 ft 2 27/64 inches to 9 ft 10 7/64 inches) (T)

Focus Control

  • AF Illuminator : Auto / Off
  • Focus Area : Wide / Center / Flexible Spot (S/M/L) / Expanded Flexible Spot
  • AF Modes : Single-shot AF, Continuous AF (Advanced sports & Movie Only), DMF, Manual Focus

Imaging Sensor

  • Processor : BIONZ  X
  • Pixel Gross : 21.1MP
  • Color Filter System : RGB primary color mosaic filters
  • Effective Picture Resolution : 18.2MP
  • Imaging Sensor : 1/2.3" (7.82mm) Exmor R  CMOS sensor

Interface

  • NFC : Yes (NFC forum Type 3 Tag compatible, One-touch remote, One-touch sharing)
  • HD Output : Multi / Micro USB Terminal Hi-Speed USB (USB2.0) Micro HDMI
  • Wi-Fi : Yes (IEEE802.11b/g/n (2.4GHz band))

LCD Display

  • LCD Type : 3.0'' (7.5 cm) (4:3) / 921,600 dots / Xtra Fine / TFT LCD
  • Angle Adjustment : Up by approx. 180 degrees
  • Histogram : Yes (On / Off)
  • Brightness Control : Manual (5 steps)

Optics/Lens

  • Digital Zoom : Still Image: 18M Approx.120x / 10M Approx. 161x / 5.0M Approx. 226x / VGA Approx. 459x / 13M (16:9) Approx.120x / 2.1M (16:9) Approx. 306x Movie: Approx. 120x
  • Optical Zoom : 30x (Optical Zoom during movie recording)
  • Macro Mode : Yes (Auto)
  • Minimum Focus Distance : iAuto: AF (W: Approx. 5cm (0.16 ft.) to Infinity, T: Approx. 250cm (8.20 ft.) to Infinity) / Program Auto: AF (W: Approx. 5cm (0.16 ft.) to Infinity, T: Approx. 250cm (8.20 ft.) to Infinity)
  • Lens Groups-Elements : 11 elements in 10 groups (including 5 aspheric elements)
  • Lens Type : ZEISS Vario-Sonnar T* Lens
  • Aperture (Max.) : F3.5 (W) - 6.4 (T)
  • Steady Shot Mode:Active : Yes
  • Clear Image Zoom : Still Image:18M Approx. 60x / 10M Approx. 80x / 5.0M Approx. 113x / VGA Approx. 459x / 13M (16:9) Approx. 60x / 2.1M (16:9) Approx.153x Movie: Approx. 60x
  • Aperture : iAuto (F3.5-F6.3(W)) / Program Auto(F3.5-F6.3(W) ) / Manual (F3.5-F8.0(W)) / Aperture Priority(F3.5-F8.0(W)) / Sutter Priority(F3.5-F6.3(W))
  • Focal Length (35mm equivalent) : [Still Image 3:2] f=25-750mm, [Still Image 4:3] f=24-720mm, [Still Image 16:9] f=26.5-795mm, [Still Image 1:1] f=27.5-825mm [Movie 16:9] f=26.5-795mm (SteadyShot Standard), f=28-1180mm (SteadyShot Active), f=31-1210mm (SteadyShot InteligentActive), [Movie 4:3] f=32.5-975mm (SteadyShot Standard), f=34.5-1450mm (SteadyShot Active), 38-1480mm (SteadyShot InteligentActive)
  • Aperture Blade : Iris diaphragm (5 blades)

Power

  • Power Requirements : AC 100V to 240V, 50/60 Hz, 70mA
  • Battery Type : NP-BX1
  • Power Consumption (in Operation) : Approx. 1.4W with LCD monitor and approx. 1.5W with viewfinder (CIPA standard)
  • Power Consumption (in View Finder Operation) : Still Images: Monitor: Approx. 390 / Approx. 195min.; ViewFinder: Approx. 360 / Approx. 180min. Movie (Actual shooting): Monitor: Approx. 70min.; ViewFinder: Approx. 75min. (In [MP4 28M] mode, max. continuous shooting time is approx. 20 min. and max. file size is 4GB.) Movie (Continuous shooting): Monitor: Approx. 105min.; ViewFinder: Approx. 115min. (In [MP4 28M] mode, max. continuous shooting time is approx. 20 min. and max. file size is 4GB.)

Recording

  • Panorama Still Image Size : Sweep Panorama: Wide (7,152 x 1,080/4,912 x 1,920) Standard: (4,912 x 1,080/3,424 x 1,920), 360 (11,520 x 1,080)
  • Microphone/Speaker : Stereo / mono
  • Still Image Size 1:1 : 1:1 mode: 13M (3,664 x 3,664) / 7.5M (2,736 x 2,736) / 3.7M (1,920 x 1,920)
  • Audio Format : XAVC S: LPCM 2ch AVCHD: Dolby Digital (AC-3) 2ch (Dolby Digital Stereo Creator) MP4: MPEG-4 AAC-LC 2ch
  • Video Format : XAVC S / AVCHD format Ver.2.0 compatible / MP4
  • Video Mode : AVCHD: 28M PS (1,920 x 1,080/60p) 24M FX (1,920 x 1,080/60i) 17M FH (1,920 x 1,080/60i) 24M FX (1,920 x 1,080/24p) 17M FH (1,920 x 1,080/24p) XAVC S: 60p 50M (1,920 x 1,080/60p) 30p 50M (1,920 x 1,080/30p) 24p 50M(1,920 x 1,080/24p) MP4: 28M (1,920 x 1,080/60fps) 16M (1,920 x 1,080/30fps) 6M (1,280 x 720/30fps)
  • Color Space : sRGB
  • Still Image Size 16:9 : 16:9 mode: 13M (4,896 x 2,752) / 7.5M (3,648 x 2,056) / 2.1M (1,920 x 1,080)
  • Still Image Size 3:2 : 3:2 mode:16M (4,8963,264) / 8.9M (3,648 x 2,432) / 4.5M (2,592 x 1,728),
  • Still Image File Format : JPEG (DCF Ver.2.0, Exif Ver.2.3, MRF Baseline complians)
  • Media Type : Memory Stick Duo; Memory Stick PRO Duo; Memory Stick PRO Duo(High Speed); Memory Stick PROHG Duo; Memory Stick Micro; Memory Stick Micro (Mark2); SD Memory Card; SDHC Memory Card(UHS-I); SDXC Memory Card(UHS-I); microSD Memory Card; microSDHC Memory Card; microSDXC Memory Card
  • Still Image Max Effective Resolution : Approx. 18.2 Megapixels
  • Still Image Size 4:3 : 4:3 mode: 18M (4,896 x 3,672) / 10M (3,648 x 2,736) / 5M (2,592 x 1,944) / VGA
  • Wind Noise Reduction : Off / On

Viewfinder

  • Magnification : Approx. 0.5x with 50mm lens at infinity, -1m-1(diopter) (35mm equiv.)
  • Diopter Adjustment : -4.0 to +3.0m-1

Weights and Measurements

  • Dimensions (Approx.) : W x H x D: 4 1/8" x 2 3/8" x 1 7/16" (102.0 x 58.1 x 35.5mm)
  • Weight (Approx.) : Approx. 8.6oz (245g) (Battery and Memory Stick DUO are included)
  • Weight(Approx) (Main unit only) : Approx. 7.7oz (218g)
Link contains in-depth information about this product Link contains a picture of this product    NA
