Epson EB-585W

• Brighter images Now with up to 3,300 lumens white brightness and colour brightness.
• Longer lamp life Up to 6,000 hours^# lamp life in ECO mode.
• Higher contrast ratio Now with 10,000:1 across the entire range.
• Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android  mobile devices.
• Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
• Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
• New projector control tool bar Allows user to control the projector (eg switch sources, zoom, volume up/down etc) using the interactive pen.
• No driver installation required Installation has never been easier (driver installation is required for Mac).
• Advanced Networking Capability Enables users to monitor, control and present from a remote location.
• Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
• 16W Built-in Speaker Built in audio with the power to fill the room.

Higher Brightness



With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.

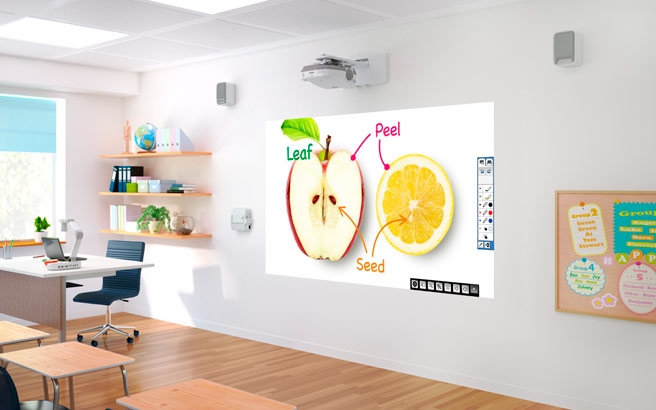

Ultra Short Throw Benefits



Bigger Image



The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.

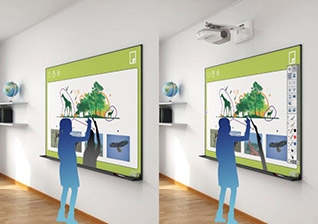

Significantly Reduced Shadow Interference

You no longer need to worry about obscuring the information on screen with shadows cast by your body.

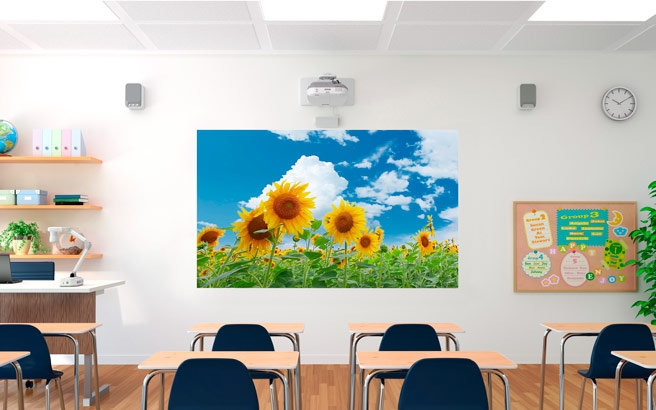

Classroom Friendly Design



These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.

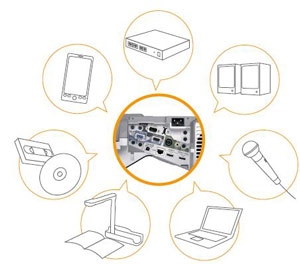

Wide Ranging Interface



Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.



One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.





Mobile Device Compatibility



Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.

Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.







EASY INSTALLATION AND MAINTENANCE

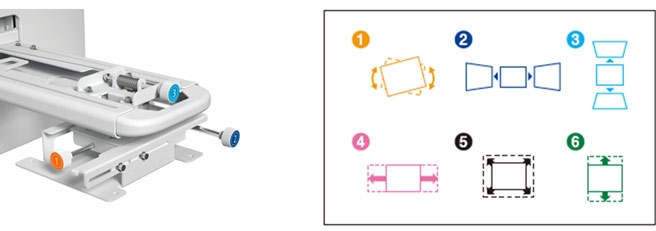

Easy Installation and Adjustment



Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.

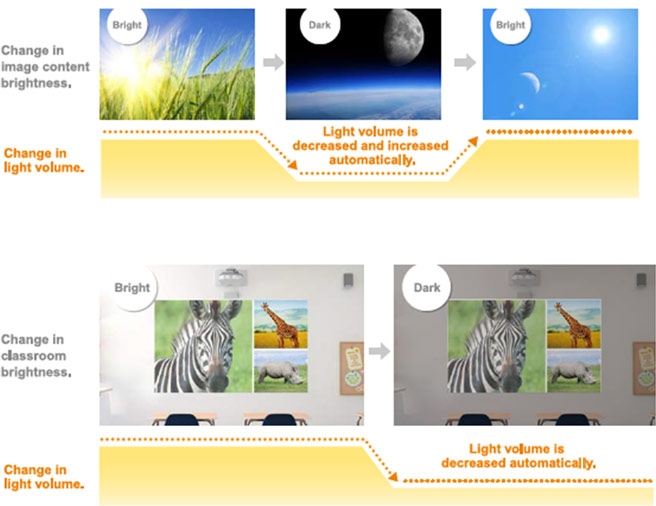

Lamp Regulator Function



This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

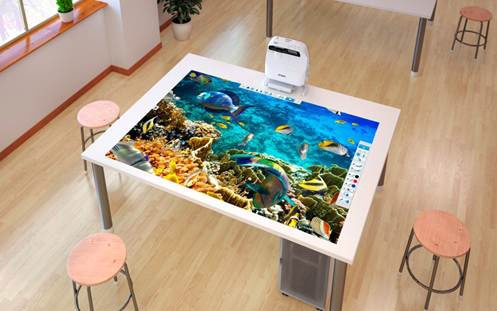

Table Top Projection



These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.





Longer Lamp Life



The long 10,000 hours lamp life^# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.





Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.

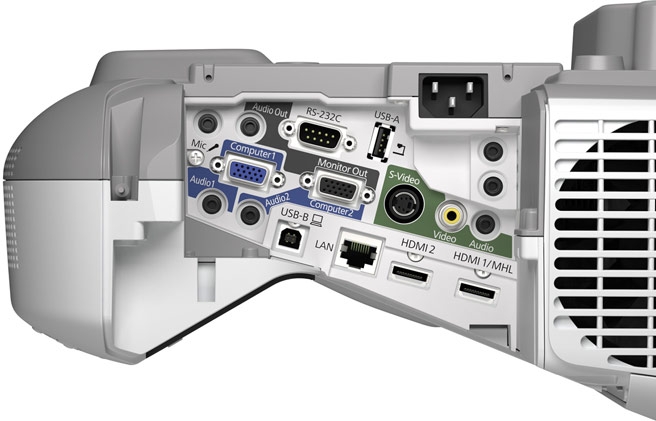

Connectivity Panel



Specifications:

PRODUCT NAME	Epson EB-585W
PRODUCT CODE	V11H602053
TECHNOLOGY
Projection Technology	Epson 3LCD, 3-chip technology
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.59-inch with MLA
OPTICAL
Zoom Ratio	1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance)	60" to 100" [34.8 to 59.7cm] 74.3" screen 43.8 cm
Throw Ratio	0.27 (Zoom:Wide) 0.37 (Zoom:Tele)
Projection Lens Type	No Optical Zoom / Focus (Manual)
Projection Lens F Number	1.80
Projection Lens Focal Length	3.71mm
Focus Method	Manual Focus
Offset	6.0:-1
White Light Output	3,300 lumens
Colour Light Output	3,300 lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	10,000:1
Keystone Correction	Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit
CONNECTIVITY
Video I/O - Input	Analog: 2x RGB D-sub 15pin *Computer 2 in common with Monitor Out 1x RCA Composite 1x Min DIN 4pin S-Video
Video I/O - Output	Analog: 1x RGB D-sub 15pin *In common with Computer 2 input. Output signal: Computer 1 only
Digital Input	Digital: 2x HDMI (1 supports MHL)
Audio I/O - Input	3x Stereo mini
Audio I/O - Output	1x Stereo mini
Mic I/O - Input	1x Stereo mini
Control I/O	1x RS-232C D-sub 9pin
USB I/O	1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings) 1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O:	1x RJ45 (100Mbps) Wired LAN 1x USB Type A (for Optional ELPAP07 LAN unit)
Wireless Connectivity	Optional ELPAP07 Wireless LAN unit
Speaker Output	Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network	Yes
EasyMP Network Projection	Yes
EasyMP Network Multi PC Projection	Yes
Message Broadcasting	Yes
Firmware update	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable

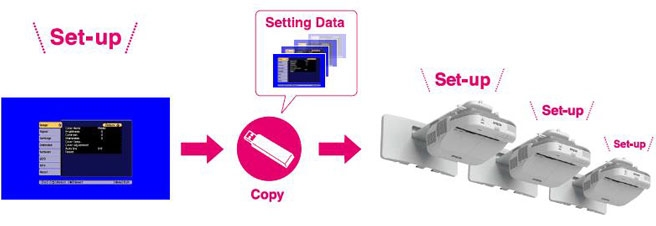

Copy OSD settings	Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection	Yes
Wireless LAN Security	WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off	Yes
Direct Power On	Yes
Security	* Kensington  - lock provision * Padlock & Security cable hole * Wireless LAN unit lock * Password protect function (Power On, Network, Protection of User logo)
Colour Modes	Dynamic, Theatre
Integrated Mount included	Yes
GENERAL
Dimensions (excl feet) WxDxH	367 x 375 x 155mm
Weight	5.3kg
Lamp Warranty	1 Year (or 750 hours)*
Projector Warranty	3 Years
Lamp Hours	4,000 hours (Normal) 6,000 hours (ECO)
Lamp Type	245W UHE
Power Consumption: Lamp On	358W (Normal) 270W (ECO)
Power Consumption: Networked Standby	4.3W
Power Consumption: Energy Saving	0.44W
Air Filter maintenance cycle	up to 5000 hours
Fan Noise Level	Power consumption Normal: 35dB Power consumption ECO: 28dB
* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Power Cable	Yes 5M
Password Protect sticker	YES
Remote Control	YES
Battery for Remote Control	AA x 2
Setting Plate	YES
PRODUCT OPTIONS	Item Code	Description
	V13H010L80	ELPLP80 Lamp 245W UHE for EB-580/580e/585W/585We/585Wi/595Wi/595Wie

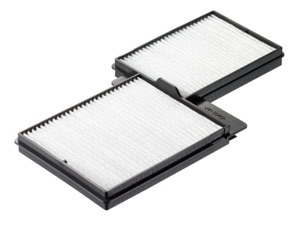

	V13H134A40	ELPAF40 Air filter
	V12H003P13	ELPFP13 Extension pole/suspension adaptor
	V12H003P14	ELPFP14 Extension pole/suspension adaptor
	V12H516040	ELPMB29 Table mount
	V12H525001	ELPKC31 USB extension cable
	V12H418P13	ELPAP07 USB Wireless LAN adaptor
	V12H005M09	ELPAP09 USB Quick wireless USB key
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

• 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
• Crisp Clear Resolution Featuring XGA image resolution (4:3).
• Maximise the display Split screen function allows content from two separate sources to be displayed side by side on the same screen.
• Long Lasting, low cost lamp priced at $99 RRP inc GST Up to 10,000 hours in ECO mode.
• Versatile Connectivity Newly added dual HDMI ports (the HDMI 2 port is MHL compatible) increases digital compatibility.
• Horizontal Keystone Slider The Horizontal Keystone slider allows for quick and easy adjustments to correct image distortion.
• Control4 support Newly added Control4 supports to dim the lights, lower the screen and turn on the projector with one touch control.
• Auto Power on Simply plug in a source device via VGA and the projector will power on.
• Convenient collaboration for BYOD classrooms Wirelessly share and compare students work from multiple devices, simultaneously, with EasyMP  software / Multi-PC Projection function.

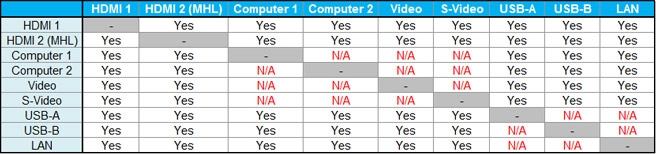

Maximise the display with split screen



Split Screen allows inputs from two separate sources to be displayed side by side on the same screen. For example, images from a document camera and PC could be projected at the same time.





Long Lasting low cost lamp



Enjoy up to 10,000 hours lamp life in ECO mode. The new lamp priced at $99 RRP inc GST will offer lowered maintenance cost while delivering bright vivid images. Even when ceiling mounted changing the lamp is quick and easy thanks to the well placed access points.





Versatile Connectivity



Not only does the wide-ranging interface correspond with conventional analogue sources, it boasts two HDMI inputs. One of which also acts as a MHL (Mobile High Definition Link) terminal (HDMI 2 port).

MHL is an innovative technology allowing you to mirror high definition content and charge an Android device via a single MHL cable.

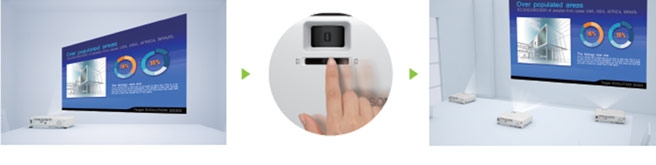

Horizontal Keystone Slider



The Horizontal Keystone slider allows for quick and easy adjustments to correct image distortion. With a single touch a broad range of placement options become available.





Epson iProjection App



Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is required).









Conveniently collaborate with Multi PC Projection



The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.



Advanced Networking



With the EB-965H, its possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (RJ45) and wirelessly (via optional wireless LAN unit ELPAP07).







Control4 support

The new EB-965H now comes with Control4  SDDP (Simple Device Discovery Protocol) automation technology offering wider range of connectivity.

Turning the projector ON, lowering the screen, dimming the lights, controlling speaker volume, and performing other tasks can be all automated by simply selecting options on the classroom computer screen.

Additionally, EB-965H can also be controlled and managed with AMX, Crestron and Extron technology.

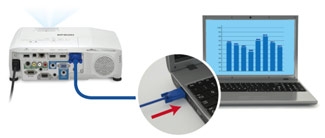

Auto Power on



The EB-965H comes with an Auto Power feature, providing a quick start to any meeting or class. To start automatically, simply connect to a source device via VGA while the projector is in standby. There is no need to reach for the power button or go looking for the remote control.

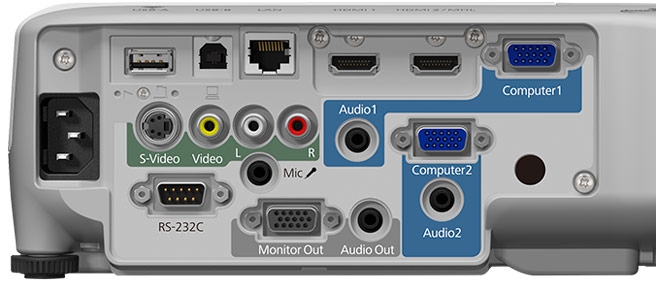

Connectivity Panel





Specifications



PRODUCT NAME	Epson EB-965H
PRODUCT CODE	V11H682053
WHAT'S IN THE BOX
	1.8m Computer Cable, 1.8m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual
TECHNOLOGY
Projection System	Epson 3LCD, 3-chip technology
LCD Panel	0.63-inch with MLA (D7)
OPTICAL
Zoom	1 - 1.6
Screen Size	30" to 300"
Projection Distance	60" screen 1.69 m
Throw Ratio	1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
Projection Lens F Number	1.51 - 1.99
Projection Lens Focal Length	18.2 mm - 29.2 mm
Focus Method	Manual
Offset	8.6:1
Colour Light Output	3,500 Lumens
White Light Output	3,500 Lumens
Resolution	XGA
Native Aspect Ratio	4:3
Contrast Ratio	10,000:1
Lamp Hours	Normal/Eco: 5,000 Hours/10,000 Hours
Lamp Type	200W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Auto Keystone Correction	Yes
Horizontal Slide Keystone Correction	Yes
Split Screen	Yes
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer	2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device	USB Type A Ver.2.0
Input: Three-In-One USB Display	1 x USB 2.0 type B
Input: Digital	2 x HDMI (1 x MHL)
Input: Audio	1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control	1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera	1 x USB 2.0 type B
Network I/O:	1 x RJ45 (100Mbps)
Wireless Connectivity	Optional Accessory(ELP-AP07)
Output: Video	D-sub 15 pin (black molding)
Output: Audio	Stereo mini jack x 1
Speaker Output	16W
ADVANCED FEATURES
EasyMP Network & Control	Yes (with optional Wireless LAN Unit)
EasyMP Network Projection	Yes (with optional Wireless LAN Unit)
PC Free Presentations	Photo / Motion JPEG
USB Plug 'n Play	Yes
Projector Control	Control 4, AMX, Crestron, Extron
AV Mute Slide	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Padlock Security cable hole Wireless LAN Unit Lock Password protect function
Colour Modes	Dynamic, Theatre
GENERAL
Dimensions D x W x H (excluding feet)	269 x 297 x 87 mm
Weight	2.9kg
Lamp Warranty	12 months or 750 hours*
Projector Warranty	3 Years
Power Consumption: Lamp on	Normal/Eco: 287/215W
Power Consumption: Standby	0.26W (communication off)
Noise Level	Normal/Eco: 37/29dB
Whichever comes first. For more information visit Epson Projector Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
