Embedded Linux, built-in PoE switch, H.264, 3MP, local display, pentaplex operations, plug and play, remote management







The NVR203-008P is a network video recorder (NVR) with a built-in Power over Ethernet (PoE) switch. By integrating the NVR with the switch, it reduces the space and does not require any additional device, making the system easy to install and operate. The Linux-based NVR solution supports easy plug-and-play with MESSOA megapixel cameras, providing HD video up to 3MP resolution in H.264 compression that can be managed through web, CMS and mobile APP. It also includes free MESSOA DDNS for convenient access to the NVR in a dynamic IP address environment, making it a versatile solution in a cost-effective package for small-scale installations.







The built-in PoE not only saves the hassle of finding a compatible PoE switch for the NVR, it also provides power to IP cameras over a single cable, which greatly minimizes cabling requirements and making installation much more simplified.





Hassle-free installation in three simple steps. Simply connect all the MESSOA cameras and devices, turn on the system with the zero configuration, one-click setup, and the system is ready to go without the need for any complicated wiring or network configuration.





Record superior quality video streams up to 1080p resolution at high frame rates provided in H.264 compression, delivering greater detail and much smoother video display for better identification and view experience than conventional CCTV systems.





Operation also requires no effort as the NVR supports local display through either VGA or HDMI. High-definition video streamed from the megapixel cameras in maximum Full HD 1080p resolution can be viewed live right on the local screen.





The robustness and stability of the embedded Linux NVR system allows for five simultaneous operations at the same time, including local live view, recording, setup, network configuration and data backup for meeting the multi-tasking surveillance needs.





Instead of a hard to remember IP address or URL to access your computer remotely, use our free dynamic DNS to keep track of your dynamic IP address. You will always be able to access your computer even if your IP address is dynamically assigned.



System
IP Camera Inputs	8 channels
Operating System	Embedded Linux
Operations	Live, Recording, Playback, Backup & Remote Access
Control Mode	USB mouse, Webpage, CMS
Camera Compliant	MESSOA IP Cameras, ONVIF, RTSP
Video
Decompression	H.264 HP/MP/BP
Resolution	Up to 3MP(2048x1536)
Audio
Input	1 x RCA
Output	1 x RCA
Audio Recording	Yes
Display
Display Mode	Full screen / Multi-screen / PIP / Sequence
Output	1 x HDMI (up to 1920x1080, 60Hz), 1 x VGA (up to 1920x1080, 60Hz)
Sequence	Yes
OSD	GUI
Remote View	Yes, Via IE Web Viewer, CMS
Mobile Viewing on Smartphone/Tablet PC	Yes (iOS & Android)
Recording
Recording Mode	Continuous, scheduled, alarm, motion
Recording Capability	Up to 240 fps at Full HD(1920x1080)
Pre Recording	5 seconds
Post Recording	0 ~ 255
Playback & Backup
Display Mode	Full screen / Multi-screen
Playback Capability	up to 8 channel simultaneous playback
Playback Control	Play / Pause / Step / Fast forward / Rewind / Fast rewind
Search Control	By Camera, Date/Time, Events
Export	Through USB / Webpage / CMS
Internal Storage*	Up to 2 x SATA HDDs
Network
Support	TCP/IP, SMTP, DHCP, DDNS, PPPoE, UDP, RTP, RTSP, NTP
Ethernet	1x10/100Mbps (WAN), 1-8 ports 10/100Mbps with PoE (LAN)
PoE
Standards	IEEE 802.3af
Max. PoE Output per Port	15W
Total PoE Budget	60W
I/O
USB	2; For backup device and mouse control
Alarm	4 Alarm in, 1 Alarm out
RS485	1; Support Pelco D, Pelco P
Security
Watermark	Yes
User Privilege	3 Levels of User Access Support
Environmental
Power Supply	Input: AC100~240V, 50 / 60 Hz Output: DC12V (NVR), DC48V (PoE switch)
Power Consumption (Max.)	Mainboard: 55W PoE device: 60W
Dimensions	355 (W) x 72 (H) x 264 (D) mm
Temperature	0C ~ 40C

*SATA HDD not included



Embedded Linux, built-in PoE switch, H.264, 1080p, local display, pentaplex operations, plug and play, remote management





The NVR203-004P is a network video recorder (NVR) with a built-in Power over Ethernet (PoE) switch. By integrating the NVR with the switch, it reduces the space and does not require any additional device, making the system easy to install and operate. The Linux-based NVR solution supports easy plug-and-play with MESSOA megapixel cameras, providing HD video up to 1080p resolution in H.264 compression that can be managed through web, CMS and mobile APP. It also includes free MESSOA DDNS for convenient access to the NVR in a dynamic IP address environment, making it a versatile solution in a cost-effective package for small-scale installations.







The built-in PoE not only saves the hassle of finding a compatible PoE switch for the NVR, it also provides power to IP cameras over a single cable, which greatly minimizes cabling requirements and making installation much more simplified.





Hassle-free installation in three simple steps. Simply connect all the MESSOA cameras and devices, turn on the system with the zero configuration, one-click setup, and the system is ready to go without the need for any complicated wiring or network configuration.





Record superior quality video streams up to 1080p resolution at high frame rates provided in H.264 compression, delivering greater detail and much smoother video display for better identification and view experience than conventional CCTV systems.



Operation also requires no effort as the NVR supports local display through either VGA or HDMI. High-definition video streamed from the megapixel cameras in maximum Full HD 1080p resolution can be viewed live right on the local screen.





The robustness and stability of the embedded Linux NVR system allows for five simultaneous operations at the same time, including local live view, recording, setup, network configuration and data backup for meeting the multi-tasking surveillance needs.

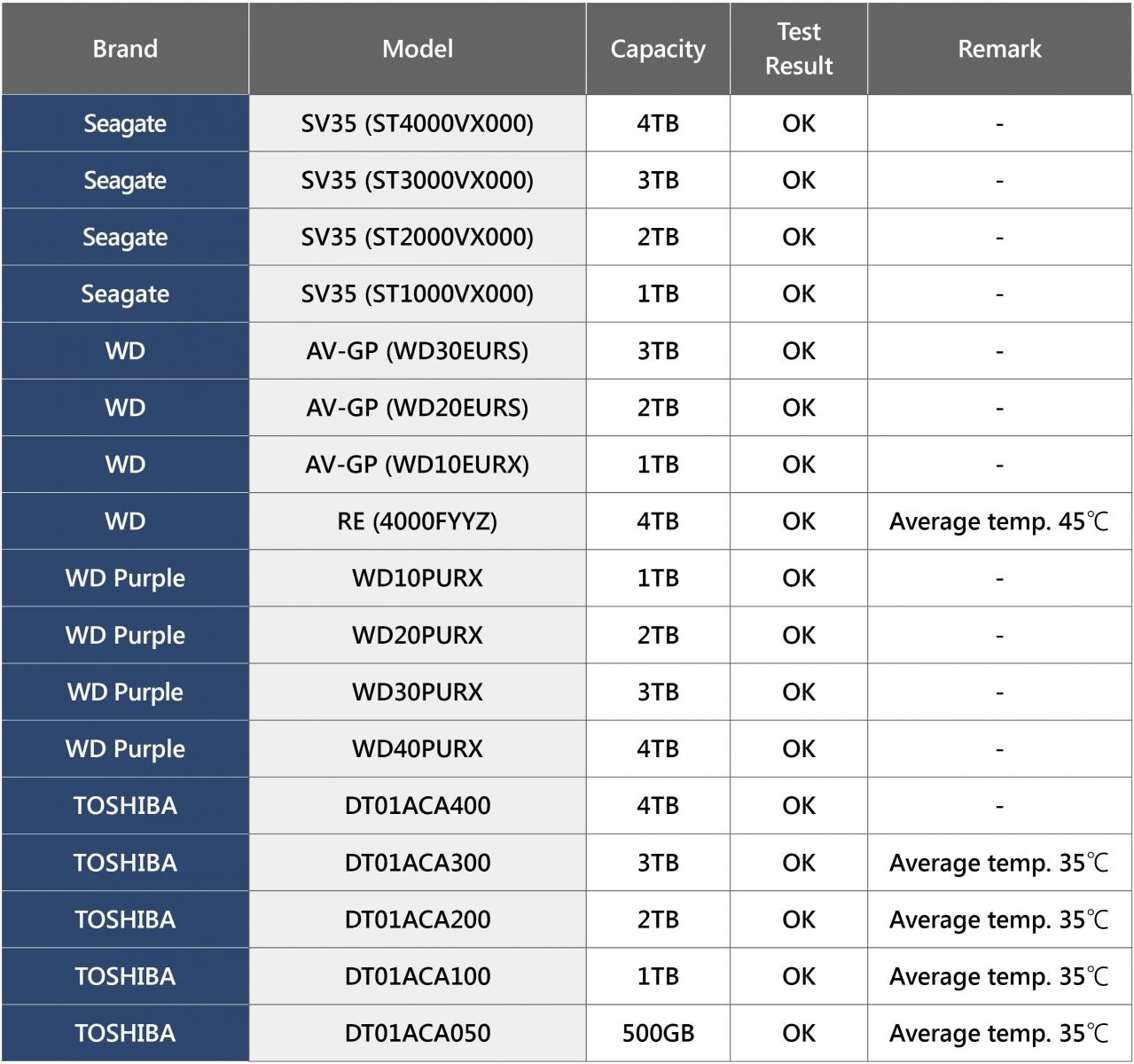

Tested-compatible HDD List

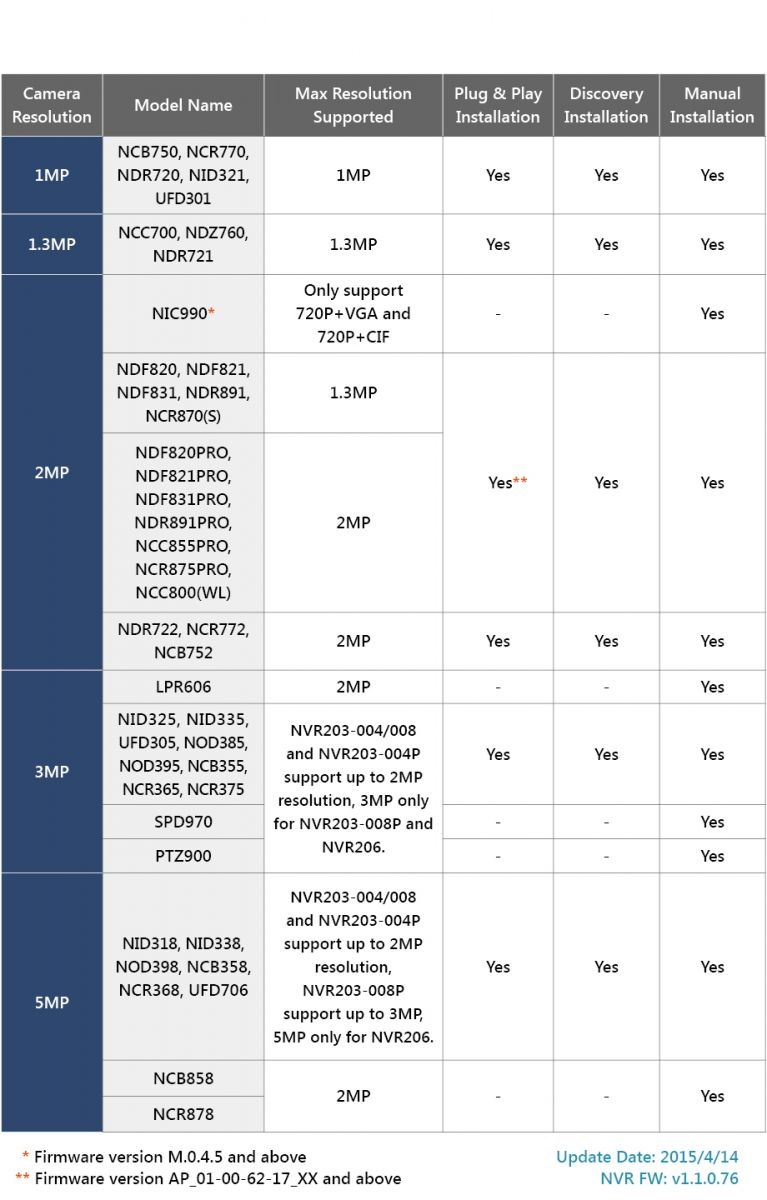

Simply through a finger click, users can easily add any ONVIF supported IP camera to NVR.





Instead of a hard to remember IP address or URL to access your computer remotely, use our free dynamic DNS to keep track of your dynamic IP address. You will always be able to access your computer even if your IP address is dynamically assigned.



System
IP Camera Inputs	4 channels
Operating System	Embedded Linux
Operations	Live, Recording, Playback, Backup & Remote Access
Control Mode	USB mouse, Webpage, CMS
Camera Compliant	MESSOA IP Cameras, ONVIF, RTSP
Video
Decompression	H.264 HP/MP/BP
Resolution	Up to 1080P (1920x1080)
Audio
Input	1 x RCA
Output	1 x RCA
Audio Recording	Yes
Display
Display Mode	Full screen / Multi-screen / PIP / Sequence
Output	1 x HDMI (up to 1920x1080, 60Hz), 1 x VGA (up to 1920x1080, 60Hz)
Sequence	Yes
OSD	GUI
Remote View	Yes, Via IE Web Viewer, CMS
Mobile Viewing on Smartphone/Tablet PC	Yes (iOS & Android)
Recording
Recording Mode	Continuous, scheduled, alarm, motion
Recording Capability	Up to 120 fps at Full HD (1920x1080)
Pre Recording	5 seconds
Post Recording	0 ~ 255
Playback & Backup
Display Mode	Full screen / Multi-screen
Playback Capability	up to 4 channelsimultaneous playback
Playback Control	Play / Pause / Step / Fast forward / Rewind / Fast rewind
Search Control	By Camera, Date/Time, Events
Export	Through USB / Webpage / CMS
Internal Storage*	Up to 2 x SATA HDDs
Network
Support	TCP/IP, SMTP, DHCP, DDNS, PPPoE, UDP, RTP, RTSP, NTP
Ethernet	1x10/100Mbps (WAN), 1-4 ports 10/100Mbps with PoE (LAN)
PoE
Standards	IEEE 802.3af
Max. PoE Output per Port	15W
Total PoE Budget	60W
I/O
USB	2; For backup device and mouse control
Alarm	4 Alarm in, 1 Alarm out
RS485	1; Support Pelco D, Pelco P
Security
Watermark	Yes
User Privilege	3 Levels of User Access Support
Environmental
Power Supply	Input: AC100~240V, 50 / 60 Hz Output: DC12V (NVR), DC48V (PoE switch)
Power Consumption (Max.)	Mainboard: 48W PoE device: 60W
Dimensions	355 (W) x 72 (H) x 264 (D) mm
Temperature	0C ~ 40C

*SATA HDD not included

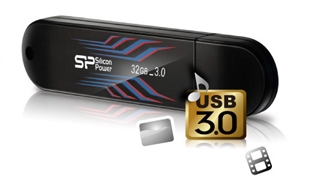

Compared to conventional USB 2.0, USB 3.0 Blaze B10 can effectively deliver read speed up to 200MB/s.write speed up to 80MB/s. Transfer time of high-res data files such as videos, photos, music, etc is significantly reduced, making sharing and carrying rich digital contents quicker and easier.

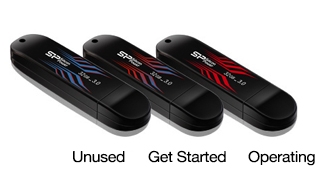

Blaze B10 is designed with futuristic pattern using heat-sensitive ink; color of the pattern will gradually change from Turkish blue to blazing red according to operating temperature of the drive, adding personality and fun to transferring. Its retail packaging will include a heat-sensitive sticker for users to test out the cool color-changing effect of Blaze B10.








The SP Widget Software, which features seven powerful backup and security functions with NIS (Norton Internet Security) antivirus software (60-day trial), is available free for users to enjoy the value-added service of security and convenience.





128GB: Up to Read 200 MBs/ Write 80 MBs

64GB: Up to Read 120 MBs/ Write 50 MBs

32GB: Up to Read 90 MBs/ Write 40 MBs

16GB: Up to Read 40 MBs/ Write 20 MBs

8GB: Up to Read 40 MBs/ Write 10 MBs



Color changes while operating temperature is higher than 31C

True plug and play, no external power required

LED indicates the usage status

SP Widget free download provided
