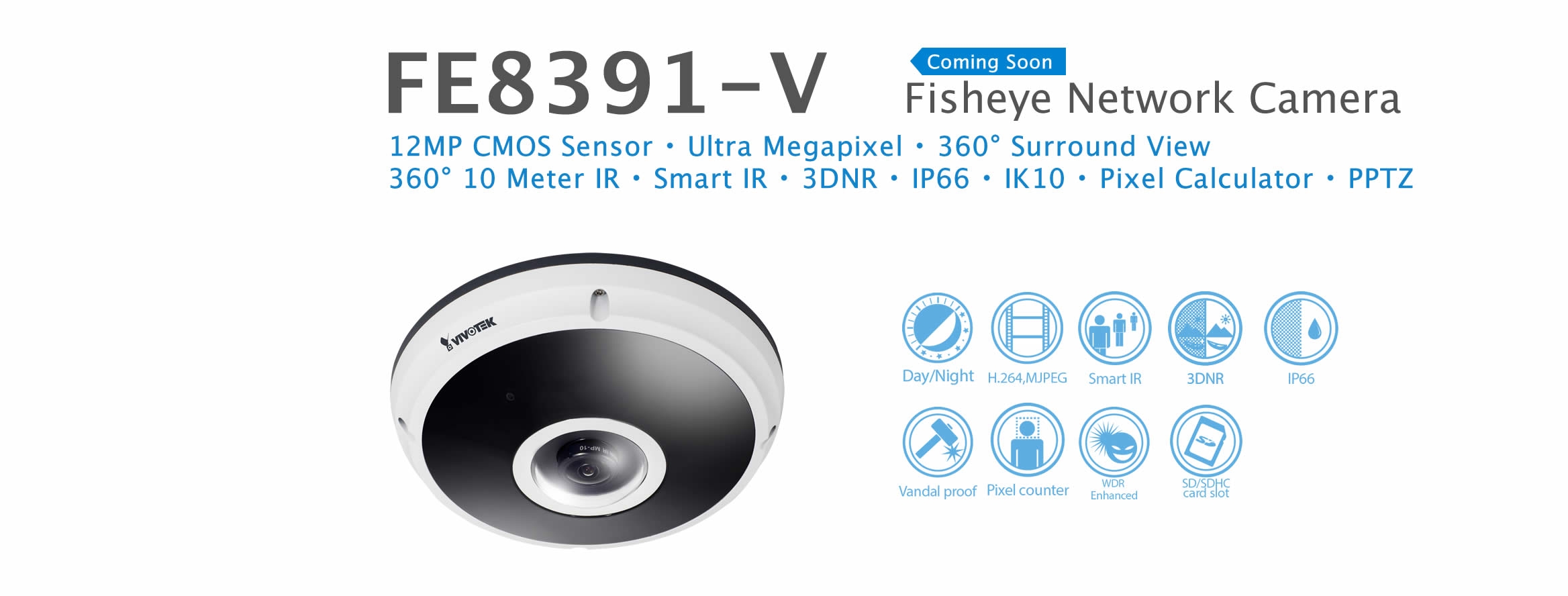

Vivotek FE8391-V Fisheye Network Camera - 12 Megapixel CMOS Sensor, 360 Degree Surround View, 360 Degree 10 Meter IR, Smart IR, 3DNR, IP66, IK10, PPTZ FE8391-V
Fisheye Network Camera
12MP CMOS Sensor - Ultra Megapixel - 360 Degree Surround View - 360 Degree 10 Meter IR - Smart IR - 3DNR - IP66 - IK10 - Pixel Calculator - PPTZ
Overview
VIVOTEK FE8391-V is the latest Ultra-Megapixel fisheye fixed dome network camera from VIVOTEK, featuring a detailed 12-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180 panoramic view (wall mount) or 360 surround view (ceiling/wall/floor mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE8391-V camera feature a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in IR LEDs in FE8391-V enable the camera to provide uniformly 360 surround illumination for clear viewing up to 10 meters, even in completely dark environments.
Key Features
- 12-Megapixel CMOS Sensor
- 12 fps @ 2944x2944
- 1.5 mm Fisheye Lens for 180 Panoramic View and 360 Surround View
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264 and MJPEG Compression
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- 3D Noise Reduction for Low-light Conditions
- ePTZ for Data Efficiency
- 802.3at PoE Compliant
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Pixel Calculator for Image Clarity Measurement
- Support Local Dewarping
- 360 10 Meter IR
- Panoramic PTZ Function with Speed Dome
Specifications
|
System Information
|
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
256 MB |
| RAM |
1GB |
| Camera Features |
| Image Sensor |
1/2.3" Progressive CMOS in 4072x3046 |
| Maximum Resolution |
2944x2944 |
| Lens Type |
Fixed-focal |
| Focal Length |
F=1.5 mm |
| Aperture |
F2.8 |
| Field of View |
180 (horizontal)
180 (vertical)
180 (diagonal) |
| Shutter Time |
1/5 sec. to 1/8,000 sec. |
| WDR Technology |
WDR Enhanced |
| Day/Night |
Removable IR-cut filter for day & night function |
| Minimum Illumination |
0.75 Lux, 30 IRE (Color)
0.01 Lux, 30 IRE (BW) |
| Preset Locations |
20 |
| Pan/tilt/zoom Functionalities |
ePTZ: 12x digital zoom |
| IR Illuminators |
Built-in IR illuminators, effective up to 10 meters
with Smart IR
IR LED*6 |
| On-board Storage |
MicroSD/SDHC/SDXC card slot |
| Video |
| Compression |
H.264, MJPEG |
| Maximum Frame Rate |
12fps @ 2944x2944 |
| Maximum Streams |
4 Simultaneous Streams |
| S/N Ratio |
56dB |
| Dynamic Range |
60dB |
| Video Streaming |
Adjustable resolution, quality and bitrate
Configurable video cropping for bandwidth saving |
| Image Settings |
Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness,, pixel calculator, 3D-Noise reduction, 2D-Noise reduction, white balance, exposure control, gain, backlight compensation, privacy masks |
| Audio |
| Audio Capability |
Audio input/output (full duplex) |
| Compression |
AAC, G.711, G.726 |
| Interface |
Built-in Microphone
External Microphone input
External Line output |
| Effective Range |
5 meters |
| Network |
| Users |
Live viewing for up to 10 clients |
| Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface |
10Base-T/100 BaseTX Ethernet (RJ-45) |
| ONVIF |
Supported, specification available at www.onvif.org |
| Intelligent Video |
| Video Motion Detection |
5 window video motion detection |
| Alarm and Event |
| Alarm Triggers |
Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events |
Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| General |
| Connectors |
RJ-45 for Network/PoE connection
Audio input *1
Audio output *1
DC 12V Power input
Digital input *1
Digital ouput *1 |
| LED Indicator |
System power and status indicator |
| Power Input |
12V DC
IEEE 802.3at PoE Class 4 |
| Power Consumption |
DC12V 21.7W / POE 23.4W |
| Dimensions |
: 160 x 51.2 mm |
| Weight |
805 g |
| Casing |
Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing |
| Safety Certifications |
CE, LVD, VCCI, C-Tick, UL, FCC Class A |
| Operating Temperature |
Starting Temperature: -25C ~ 50C (-13F ~ 122F)
Working Temperature: -40C ~ 50C (-40F ~ 122F) |
| Warranty |
36 months |
| System Requirements |
| Operating System |
Microsoft Windows 7/Vista/XP/2000/8 |
| Web Browser |
Mozilla Firefox: 7 or above (streaming only)
Chrome: 17 or above (streaming only)
Safari: 5.1.4 or above (streaming only)
Internet Explorer 7.x, 8.x, 9.x, 10, 11 |
| Other Players |
VLC: 1.1.11 or above
QuickTime: 7 or above |
| Included Accessories |
| CD |
User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel, VAST CMS (90-day free trial version), Calibration Tool |
| Others |
Quick installation guide, warranty card, alignment sticker, waterproof connector, desiccant bag, RJ45 coupler, software CD, Cable management bracket |
|
|
|
