27/04
|

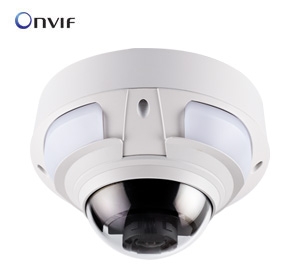

GeoVision GV-VD2540-E Outdoor IP Dome Camera - 1/2.8" Progressive Scan Super Low Lux CMOS, Dual Streams From H.264 And MJPEG, Up to 30 fps at 1920 x 1080, Two-Way Audio - White GV-VD2540-E 2MP H.264 3x Zoom Super Low Lux WDR IR Arctic Vandal Proof IP Dome
GV-VD2540-E is an outdoor camera designed with IK10+ vandal resistance, IP67 ingress protection and tolerance to extreme temperatures. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera is equipped with a super low lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. This night vision is further enhanced with its high power LEDs with up to 25 m (82 ft.) effective distance.
Features
- 1/2.8" progressive scan super low lux CMOS
- Min. illumination at 0.02 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
- Motorized varifocal lens for remote focus/zoom adjustment
- 3-axis mechanism (pan / tilt / roll)
- Day and night function (with removable IR-cut filter)
- High power IR LEDs
- Intelligent IR
- IR distance up to 25 m (82 ft)
- External microphone
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- DC 12V / AC 24V / PoE+ (IEEE 802.3at)
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Note:
1. The power adapter can be excluded upon request.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
|
|
|
|
27/04
|

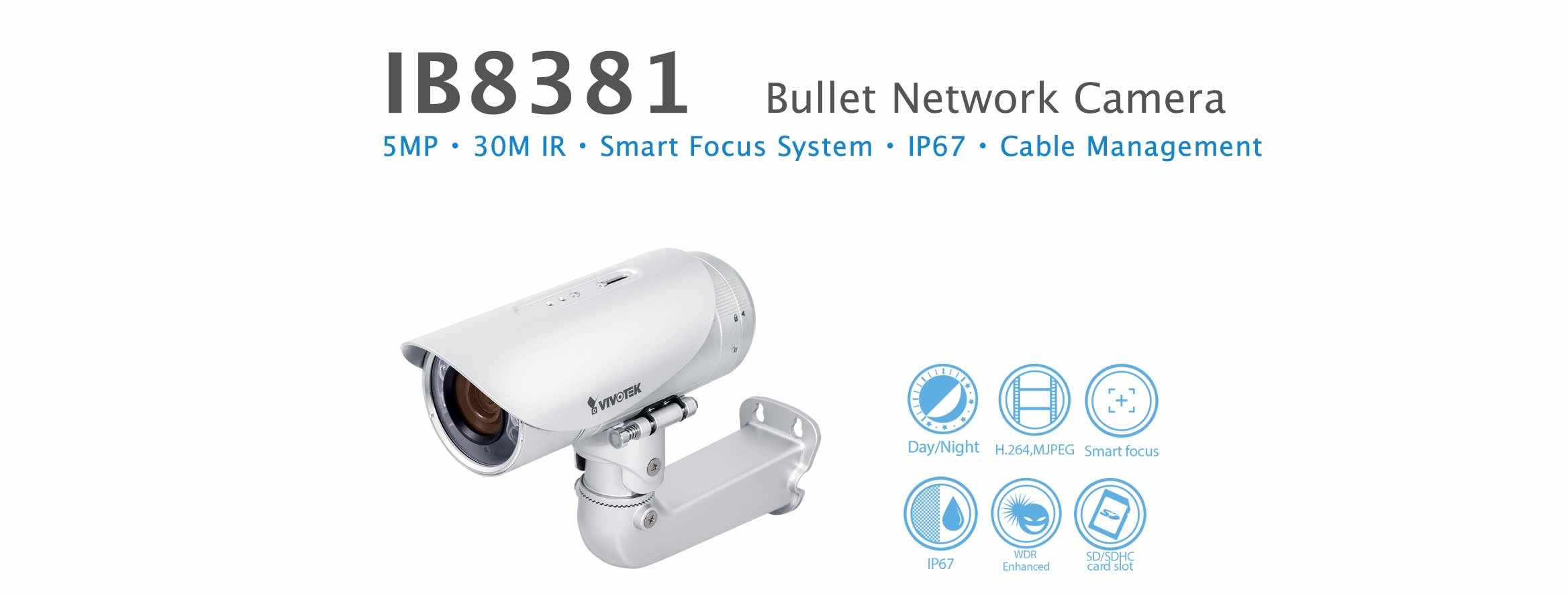

Vivotek IB8381 Bullet Network Camera - 5 Megapixel CMOS Sensor, 25FPS, Removable IR-Cut Filter For Day & Night Function, Real-time H.264, And MJPEG Compression, Two-Way Audio, Weather-Proof - Silver
Overview
VIVOTEK IB8381 is a brand-new professional outdoor bullet network camera offering up to 25 fps @ 5-Megapixel or 30 fps @ 1080p resolution with superb image quality. Equipped with new image technology, IB8381 provides excellent image quality with more details. Featuring 3D Noise Reduction technology and Smart Stream technology, IB8381 can be used to optimize resolution on a desired object or area to maximize bandwidth usage.
The IP67-rated housing is also designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions.
Key Features
- 5-Megapixel CMOS Sensor
- 25fps @ 5MP
- 3 ~ 9 mm Vari-focal, P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environment
- Smart Focus System for Remote and Precise Focus Adjustment
- Weather-proof IP67-rated Housing
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Mounting Bracket with Cable Management for Protected Installation
Specifications
|
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
|
| Focal Length |
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 31 ~ 67 (horizontal)
- 24 ~ 50 (vertical)
- 40 ~ 90 (diagonal)
|
| Shutter Time |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.2 Lux @ F1.2 (Color)
- 0.001 Lux @ F1.2 (B/W)
|
| Pan / Tilt / Zoom |
- ePTZ
- 48x digital zoom ( 4x on IE plug-in, 12x built-in )
|
| IR Illuminators |
- Built-in IR illuminators, effective up to 30 meters with Smart IR
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264:
- 25 fps at 2560x1920
- 30 fps at 1920x1080
- MJPEG:
- 25 fps at 2560x1920
- 30 fps at 1920x1080
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
|
| Image Settings |
- Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, seamless recording, smart stream, 3DNR
|
|
Audio
| Audio Capability |
- Audio input/output (full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
|
| Interface |
- 10 Base-T / 100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
- File upload via HTTP, SMTP, FTP, NAS server and SD card
|
|
General
| Smart Focus System |
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- AC 24V power input
- DC 12V power input
- Digital input*1
- Digital output*1
- Analog video output
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- 24V AC
- 12V DC
- IEEE 802.3at PoE
|
| Power consumption |
- Max. 10.86W (DC 12V)
- Max. 12.13W (AC 24V)
- Max. 12.36W (PoE)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP67-rated housing
|
| Safety Certifications |
- CE, C-Tick, FCC Class A, LVD, UL, VCCI
|
| Operating Temperature |
- Starting Temperature: -10C ~ 50C (14F~ 122F)
- Working Temperature: -20C ~ 50C (-4F~ 122F)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7 / Vista / XP / 2000
|
| Browser |
- Mozilla Firefox 7~10 ( Streaming only )
- Internet Explorer 7 / 8 / 9 / 10
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
27/04
|
Olympus Stylus Tough TG-4 Digital Camera - Black
- 16MP, 6x Optical Zoom, 35mm Equivalent Lens Focal Length, 3.0" LCD, Image Stabilisation, TruePic VII, Full HD 1080p, Shockproof, Waterproof
Stylus Tough TG-4
New Flagship Tough for 2015, brand new features for capturing above and below water.
The Olympus Stylus Tough TG-4 continues the flagship line of tough cameras and delivers the best performance of any camera in the tough camera category to date. It also brings to the market an .ORF RAW capability - a feature not seen previously in any Stylus tough camera. Added to what is still the brightest f/2.0 lens on the market for surperior lower light shooting, the TG-4 is a fantastic addition to your busy lifestyle.
16MP
RAW Capture
1080p
FULL HD
3.0”
460k
TruePic VII
Advanced image processor
Features
Built tough to cater for even the most adventurous.
Shockproof to 2.1m, waterproof to 15m, crushproof to 100kg, freezeproof to -10, and dustproof too, the TG-4 will continue to shine even in the most extreme conditions. This allows for worry-free shooting giving you confidence to push yourself and your camera to new limits.
Tough with RAW, the ultimate combination.
To maximise the latitude of the TG-4's imaging sensor, the camera provides an alternative to JPEGs with Olympus' .ORF RAW format that allows for flexibility in post processing. The .ORF file can initially be opened in Olympus Viewer 3 with future compatibility to come from other third party image editing manufacturers.
Custom modes for ultimate flexibility.
Find yourself relying on a particular series of settings that you wish you could always come back to in an instant and use whenever you want? The TG-4 sports two custom modes that allow you to preset your settings so that you can bring them up quickly and easily.
Dedicated Underwater Modes for Easiest Capture
Often getting your colours correct underwater can be challenging when photographing colourful subject material which is why the TG-4 includes a dedicated underwater mode that has a number of different settins that maximise your chance to take that next underwater masterpiece.
GPS - Pinpoint location accuracy when shooting.
The TG-4 sports the latest version of its location module. Utilising the GLONASS method of position, the TG-4 can accurately pinpoint where you were when you look at photo when inabled in the camera. The camera records positioning data that is embedded into the camera's back end data.
Maximum Macro Flexibility
Drawing upon Olympus' proud scientific imaging background, the TG-4 has some of the most functional close up and macro modes on the market. This will ensure that you get that next close up you need without fuss.
Control, Capture & Transfer over WiFi
The TG-4 utilises Olympus' O.I Share app for iOS and Android devices. This allows for remote control of the camera over WiFi and even allows you to transfer your photos so that you can quickly upload to your favourite social media platforms.
Specifications
Sensor Information
Total Pixels Effective
16
ISO Range
125-6400 + High
Technology
Image Processor
TruePic VII
Lens Unit
Lens Configuration
9 lenses in 7 groups
Aspherical Lens Elements
Yes
Lens Coating
Multi-coating
Filter Diameter
40.5mm(with CLA-T01)
35mm equivalent Lens Focal Length
25-100mm
Super Resolution Zoom
Yes 2x
Closest Focusing Distance Normal
10cm
Closest Focusing Distance Macro
1cm
Lens Aperture Range
f/2 - 4.9
Still Image Shooting
Stills Compression Method
JPEG, Olympus RAW is also selectable (.ORF)
Stills Timer Modes
12/2seconds/Custom self shutter
Image Stabilisation
Focusing
Focusing Modes
Face Detect iESP/Spot/tracking
Exposure, White Balance & Quality
Shutter Speed Range
Auto: 1/2-1/2000 (Night Scene: Longest 4Sec)
Exposure Compensation
Yes
Selectable Image Quality Settings
Yes
Drive
Sequential Shooting
Approx.5 fps / 100 images (16M) Approx. 15 fps / 100 images (3M) Approx. 60 fps / 100 images (3M)
Movie Recording
Recording Modes
1080p, 720p, VGA, HS120fps, HS240fps, Time Lapes Movie *When shooting 1080p/720p movies,Use SDHCclass6(speed class)/SDXCclass6 or higher. *High-Speed Movie Size HS120fps: 640x480 HS240fps: 320x240 *Time Lapse Movie Size 720p
Movie Lengths
1080p,720pcontinuously up to 29 min. or up to 4GB VGA up to 4GB HS120fps: continuously up to 20sec HS240fps: continuously up to 20sec
Sound Recording System
Linear PCM
Still Image Playback
Slide Show
Single/Index-view/Enlargement/Slide-show
Storage Media
Type
SD/SDHC/SDXC Card (supported for UHS-I speedclass) Internal Memory
Flash
Flash Working Range
W:0.2m-7.9m(ISO 1600) T:0.2m-3.1m(ISO 1600)
Flash Modes
Auto/Red-Eye Reduction/Fill-in/OFF/LED
Slave Mode (No Pre-Flash)
Yes
Shooting Aids / Connectivity
Toughness
Waterproofing & Class
15m/50ft: JISC0920/IEC60529 IPX8
Dustproofing & Class
JISC0920/IEC60529 IP6X
Box Contents
Included in Box
Camera, Strap, USB Cable, Battery, AC Adapter
Optional Accessories
Extra Optional Accessories
Underwater Housing, Adapter Ring, Tele Converter, Fish eye Converter, LED Light Guide
Battery
Battery Life Movie
60 min
|
|
|
|
27/04
|
Olympus Stylus Tough TG-4 Digital Camera - Red
- 16MP, 6x Optical Zoom, 35mm Equivalent Lens Focal Length, 3.0" LCD, Image Stabilisation, TruePic VII, Full HD 1080p, Shockproof, Waterproof
Stylus Tough TG-4
New Flagship Tough for 2015, brand new features for capturing above and below water.
The Olympus Stylus Tough TG-4 continues the flagship line of tough cameras and delivers the best performance of any camera in the tough camera category to date. It also brings to the market an .ORF RAW capability - a feature not seen previously in any Stylus tough camera. Added to what is still the brightest f/2.0 lens on the market for surperior lower light shooting, the TG-4 is a fantastic addition to your busy lifestyle.
16MP
RAW Capture
1080p
FULL HD
3.0”
460k
TruePic VII
Advanced image processor
Features
Built tough to cater for even the most adventurous.
Shockproof to 2.1m, waterproof to 15m, crushproof to 100kg, freezeproof to -10, and dustproof too, the TG-4 will continue to shine even in the most extreme conditions. This allows for worry-free shooting giving you confidence to push yourself and your camera to new limits.
Tough with RAW, the ultimate combination.
To maximise the latitude of the TG-4's imaging sensor, the camera provides an alternative to JPEGs with Olympus' .ORF RAW format that allows for flexibility in post processing. The .ORF file can initially be opened in Olympus Viewer 3 with future compatibility to come from other third party image editing manufacturers.
Custom modes for ultimate flexibility.
Find yourself relying on a particular series of settings that you wish you could always come back to in an instant and use whenever you want? The TG-4 sports two custom modes that allow you to preset your settings so that you can bring them up quickly and easily.
Dedicated Underwater Modes for Easiest Capture
Often getting your colours correct underwater can be challenging when photographing colourful subject material which is why the TG-4 includes a dedicated underwater mode that has a number of different settins that maximise your chance to take that next underwater masterpiece.
GPS - Pinpoint location accuracy when shooting.
The TG-4 sports the latest version of its location module. Utilising the GLONASS method of position, the TG-4 can accurately pinpoint where you were when you look at photo when inabled in the camera. The camera records positioning data that is embedded into the camera's back end data.
Maximum Macro Flexibility
Drawing upon Olympus' proud scientific imaging background, the TG-4 has some of the most functional close up and macro modes on the market. This will ensure that you get that next close up you need without fuss.
Control, Capture & Transfer over WiFi
The TG-4 utilises Olympus' O.I Share app for iOS and Android devices. This allows for remote control of the camera over WiFi and even allows you to transfer your photos so that you can quickly upload to your favourite social media platforms.
Specifications:
Sensor Information
Total Pixels Effective
16
ISO Range
125-6400 + High
Technology
Image Processor
TruePic VII
Lens Unit
Lens Configuration
9 lenses in 7 groups
Aspherical Lens Elements
Yes
Lens Coating
Multi-coating
Filter Diameter
40.5mm(with CLA-T01)
35mm equivalent Lens Focal Length
25-100mm
Super Resolution Zoom
Yes 2x
Closest Focusing Distance Normal
10cm
Closest Focusing Distance Macro
1cm
Lens Aperture Range
f/2 - 4.9
Still Image Shooting
Stills Compression Method
JPEG, Olympus RAW is also selectable (.ORF)
Stills Timer Modes
12/2seconds/Custom self shutter
Image Stabilisation
Stabilisation Method
Sensor Shift
Focusing
Focusing Modes
Face Detect iESP/Spot/tracking
Exposure, White Balance & Quality
Shutter Speed Range
Auto: 1/2-1/2000 (Night Scene: Longest 4Sec)
Exposure Compensation
Yes
Selectable Image Quality Settings
Yes
Drive
Sequential Shooting
Approx.5 fps / 100 images (16M) Approx. 15 fps / 100 images (3M) Approx. 60 fps / 100 images (3M)
Movie Recording
Recording Modes
1080p, 720p, VGA, HS120fps, HS240fps, Time Lapes Movie *When shooting 1080p/720p movies,Use SDHCclass6(speed class)/SDXCclass6 or higher. *High-Speed Movie Size HS120fps: 640x480 HS240fps: 320x240 *Time Lapse Movie Size 720p
Movie Lengths
1080p,720pcontinuously up to 29 min. or up to 4GB VGA up to 4GB HS120fps: continuously up to 20sec HS240fps: continuously up to 20sec
Sound Recording System
Linear PCM
Still Image Playback
Slide Show
Single/Index-view/Enlargement/Slide-show
Storage Media
Type
SD/SDHC/SDXC Card (supported for UHS-I speedclass) Internal Memory
Flash
Flash Working Range
W:0.2m-7.9m(ISO 1600) T:0.2m-3.1m(ISO 1600)
Flash Modes
Auto/Red-Eye Reduction/Fill-in/OFF/LED
Slave Mode (No Pre-Flash)
Yes
Shooting Aids / Connectivity
Toughness
Waterproofing & Class
15m/50ft: JISC0920/IEC60529 IPX8
Dustproofing & Class
JISC0920/IEC60529 IP6X
Box Contents
Included in Box
Camera, Strap, USB Cable, Battery, AC Adapter
Optional Accessories
Extra Optional Accessories
Underwater Housing, Adapter Ring, Tele Converter, Fish eye Converter, LED Light Guide
Battery
Battery Life Movie
60 min
|
|
|
|
27/04
|
NEC PA522UG WUXGA LCD Projector - 1920x1200, 5000 Lumens, 5,000;1, 3000Hrs, VGA, HDMI, DisplayPort, RJ45 NEC PA522UG LCD Projector/ WUXGA/ 5000ANSI/ 5000:1/ HDMI, DP, HDBase T/ 1x 10W Speaker/ 3D Ready
Delivering many unique features, NECs new PA Series is the worlds first projector range to offer a 4K interface for multi-screen display capability. Outstanding picture quality is guaranteed with NECs 3rd generation Sweetvision, high brightness levels and NECs unique scaler chip. The new PA522UG offers rich connectivity with a wide range of inputs and unrivalled installation capability making it ideal for corporates, higher education, museums and signage applications in large rooms and auditoriums.
Overview
- Perfect Image quality
- Easy way to a big picture
- Widest application support
- Very low cost of ownership
- Free Download of Multi-Display Management Software
- Free Display Note Presenter Licence
Specifications
| Model |
PA522UG |
| Platform |
Large Venue |
| Classification |
Education / Corporate |
| Projection System |
LCD |
| Native Resolution |
1920 x 1200 (WUXGA) |
| Brightness (Ansi Lumens) |
5000 |
| Aspect Ratio (Native) |
16:10 |
| Contrast Ratio |
5,000:1 |
| Lens Type |
Interchangable (Does Not Include Lens) |
| Throw Ratio |
N/A |
| Display Area |
N/A |
| Zoom Ratio |
Variable |
| Lamp Life (Standard/Eco hrs) |
3000 / 4000 |
| Connectivity (input) |
DP (1). HDBaseT (1), HDMI (2), Componant (1), VGA (1) |
| Network Connectivity |
HDBaseT |
| USB |
N/A |
| Speakers |
10W x 1 |
| Dimensions (W x H x D mm) |
499 x 142 x 359 |
| Weight (Kg) |
8.4 |
| Accessories |
IR Remote Control; Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual |
| Warranty |
5 Years |
|
|
|
|
27/04
|
NEC PA572WG WXGA LCD Projector - 1280x800, 5700 Lumens, 5,000;1, 3000Hrs, VGA, DisplayPort, HDMI, RJ45, Speakers NEC PA572WG LCD Projector/ WXGA/ 5700ANSI/ 5000:1/ HDMI, DP, HDBase T/ 1x 10W Speaker/ 3D Ready
Overview
Delivering many unique features, NECs new PA Series is the worlds first projector range to offer a 4K interface for multi-screen display capability. Outstanding picture quality is guaranteed with NECs 3rd generation Sweetvision, high brightness levels and NECs unique scaler chip. The new PA572WG offers rich connectivity with a wide range of inputs and unrivalled installation capability making it ideal for corporates, higher education, museums and signage applications in large rooms and auditoriums.
- Perfect Image quality
- Easy way to a big picture
- Widest application support
- Very low cost of ownership
- Free Download of Multi-Display Management Software
- Free Display Note Presenter Licence
Specifications
| Model |
PA572WG |
| Platform |
Large Venue |
| Classification |
Education / Corporate |
| Projection System |
LCD |
| Native Resolution |
1280 x 800 (WXGA) |
| Brightness (Ansi Lumens) |
5700 |
| Aspect Ratio (Native) |
16:10 |
| Contrast Ratio |
5,000:1 |
| Lens Type |
Interchangable (Does Not Include Lens) |
| Throw Ratio |
N/A |
| Display Area |
N/A |
| Zoom Ratio |
Variable |
| Lamp Life (Standard/Eco hrs) |
3000 / 4000 |
| Connectivity (input) |
DP (1). HDBaseT (1), HDMI (1), Componant (1), VGA (1) |
| Network Connectivity |
HDBaseT |
| USB |
N/A |
| Speakers |
10W x 1 |
| Dimensions (W x H x D mm) |
499 x 142 x 359 |
| Weight (Kg) |
8.4 |
| Accessories |
IR Remote Control; Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual |
| Warranty |
5 Years |
|
|
|
|
27/04
|
NEC PH1000UG Installation WUXGA DLP Venue Projector - 1920x1200, 11000 Lumens, 2000;1, 2000Hrs, VGA, DisplayPort, HDMI, RCA, RS232
Installation Projector, 11000 lumens: PH1000UG - Overview
The PH1000UG, a high end 3-Chip installation projector is ideal for installations that demand the highest levels of heavy duty usage and unique picture quality in highest resolution.
Five optional bayonet lenses and an integrated stacking/rigging frame make it ideal for Rental/Staging, Large Corporate, High Education, Conference Room, Museum and Signage.
- Display content that demands attention - with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
- Installation is easy, even in challenging venues - motorised Lens Shift with vertical and horizontal adjustment and Lens Memory makes setting up the perfect installation image easy.
- Simple Connectivity - due to the vast number of connectors featured with this projector, including an innovative DisplayPort terminal and a host of networking, analogue and digital connection terminals.
- Time saving network control - for cost saving convenient maintenance and management of content and scheduling.
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralised location.
- Special Characteristics - Digital 3D Reform; 3D Stacking; AMX Beacon; Blanking; Crestron RoomView; DICOM Simulation ; Direct Power-Off Function; Edge Blending Function (03.2012); Free Tilt; Full Metal Cabinet; Geometric Correction ; Help Function; Keystone Correction (H=40, V=30); LAN control; Lens Memory; Lens Shift (vertical -0.4 max/+0.55 max, horizontal 0.2 max.); Lens Shutter; Metal Cabinet; NaViSet Administrator 2 ; OPS module support; OSD with 27 languages; Optional User Logo; Outstanding Multimedia and Network Functions; PIP/Side by Side, HDMI - Input; PJ LINK; Password Security System; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; SNMP; Seamless Switching; Stacking Function; Test Pattern; Windows 7 Network Projector; Complete shut-off switch; Intelligent Power Management
Specifications:
- Type: DLP
- Brightness [ANSI Lumen]: 11000
- Contrast: 2000:1
- Resolution: 1920 x 1200
- Lamp Life [h]: 2000
- Distance [m]: 1.1 - 74
- Weight [kg]: 39
Projection Technology
3-Chip - (0.96") DLP Technology
Native Resolution
1920 x 1200 (WUXGA)
Contrast Ratio 1
2000:1
Brightness 1
11000 ANSI Lumen (approx. 75% in Eco Mode )
Lamp
2-Lamp System (2 x 400 W AC)
Lamp Life [hrs]
2000
Lens
6 optional bayonet lenses with lens memory
Projection Distance [m]
1.1 (NP25FL) - 74 (NP29ZL)
Screen Size (diagonal) [cm] / [inch]
Maximum: 1,270 / 500"; Minimum: 203 / 80"
Zoom
Motorized
Focus Adjustment
Motorized
Supported Resolutions
1920 x 1200; 1920 x 1080 (HDTV 1,080i/60, HDTV 1,080i/50); 1600 x 1200 (UXGA); 1400 x 1050 (SXGA); 1280 x 1024 (SXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (Mac 21"); 1024 x 768 (XGA) compressed; 832 x 624 (Mac 16"); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (DVD progressive); 720 x 480 (SDTV 480p); 640 x 480 (VGA/Mac 13")
Frequency
Horizontal: 15108 kHz (RGB: 24 kHz); Vertical: 48 120 Hz
CONNECTIVITY
RGB (analogue)
Input: 1 x 5BNC, shared with Component Signal (YPbPr); 2 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Digital
Input: 1 x DisplayPort; 1x HDMI (V.1.3) supporting HDCP
Video
Input: 1 x RCA
S-Video
Input: 1 x Mini DIN 4-pin
Control
Input: 1 x D-Sub 9 pin (RS-232), Network
Option Slot
Input: 1 x Slot for optional STv2 or HD/SD-SDI Module
USB
2 x Type A (USB 2.0 high speed)
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
REMOTE CONTROL
Input:
1 x 3.5 mm Stereo Mini Jack
Remote Control
Aspect Ratio; Auto Adjust; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select
ELECTRICAL
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
0.5 Power Savings Mode; 1050 Normal Dual Lamp Mode; 490 Eco Single Lamp Mode; 580 Normal Single Lamp Mode; 60 Network Stand-By Mode; 840 Eco Dual Lamp Mode
MECHANICAL
Dimensions (W x H x D) [mm]
578 x 235 x 558 (without lens and feet)
Weight [kg]
39
Fan Noise [dB (A)]
41 Normal Single Lamp Mode; 41 Eco Single Lamp Mode
ERGONOMICS
Safety and Ergonomics
CE; ErP; RoHS ; TV GS
ADDITIONAL FEATURES
Special Characteristics
3D Stacking; AMX Beacon; Blanking; Crestron RoomView; DICOM Simulation ; Digital 3D Reform; Direct Power-Off Function; Edge Blending Function (03.2012); Free Tilt; Full Metal Cabinet; Geometric Correction ; Help Function; Keystone Correction (H=40, V=30); LAN control; Lens Memory; Lens Shift (vertical -0.4 max/+0.55 max, horizontal 0.2 max.); Lens Shutter; Metal Cabinet; NaViSet Administrator 2 ; OPS module support; Optional User Logo; OSD with 27 languages; Outstanding Multimedia and Network Functions; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; Seamless Switching; SNMP; Stacking Function; Test Pattern; Windows 7 Network Projector
GREEN FEATURES
Energy Efficiency
Complete shut-off switch; Intelligent Power Management
Ecological Standards
ErP compliant; RoHs compliant; WEEE
WARRANTY
Projectors
3 years pan-European service
Lamp
6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents
IR Remote Control (RD - 455E); Projector; Quick Setup Guide; Stacking Holder; Users Manual on CD-ROM
OPTIONAL ACCESSORIES
Optional Accessories
5 optional bayonet lenses; Air Filter (NP03FT); Hardcase (100012934); HD/SD-SDI Module; Lamp (NP22LP); STv2 PC; Wireless LAN module NP02LM2 (Europe), NP02LM3 (Russia)
Lenses
NP25FL (0.67:1); NP26ZL (1.39-1.84:1); NP27ZL (1.87-2.56:1); NP28ZL (2.56-4.16:1); NP29ZL (4.16-6.96:1)
|
|
|
|
27/04
|
ACTi PMAX-0503 Pole Mount ACTi PMAX-0503 Pole Mount
|
|
|
|
27/04
|
ACTi PMAX-0314 Heavy Duty Wall Mount - For Outdoor Domes B8X, B9X, D7X, D8X, E7X, E8X, I7X PMAX-0314 Heavy Duty Wall Mount - For Outdoor Domes B8X, B9X, D7X, D8X, E7X, E8X, I7X
|
|
|
|
27/04
|
NEC PH1400UG WUXGA Venue LCD Projector - 1920x1200, 13500 Lumens, 2000;1, 2000Hrs, VGA, BNC, RCA, DisplayPort, HDMI, S-Video Installation Projector, 13500 lumens: PH1400UG
Overview
The PH1000UG, a high end 3-Chip installation projector is ideal for installations that demand the highest levels of heavy duty usage and unique picture quality in highest resolution.
Five optional bayonet lenses and an integrated stacking/rigging frame make it ideal for Rental/Staging, Large Corporate, High Education, Conference Room, Museum and Signage.
- Display content that demands attention - with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
- Installation is easy, even in challenging venues - motorised Lens Shift with vertical and horizontal adjustment and Lens Memory makes setting up the perfect installation image easy.
- Simple Connectivity - due to the vast number of connectors featured with this projector, including an innovative DisplayPort terminal and a host of networking, analogue and digital connection terminals.
- Time saving network control - for cost saving convenient maintenance and management of content and scheduling.
- Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralised location.
- Special Characteristics - Digital 3D Reform; 3D Stacking; AMX Beacon; Blanking; Crestron RoomView; DICOM Simulation ; Direct Power-Off Function; Edge Blending Function (03.2012); Free Tilt; Full Metal Cabinet; Geometric Correction ; Help Function; Keystone Correction (H=40, V=30); LAN control; Lens Memory; Lens Shift (vertical -0.4 max/+0.55 max, horizontal 0.2 max.); Lens Shutter; Metal Cabinet; NaViSet Administrator 2 ; OPS module support; OSD with 27 languages; Optional User Logo; Outstanding Multimedia and Network Functions; PIP/Side by Side, HDMI - Input; PJ LINK; Password Security System; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; SNMP; Seamless Switching; Stacking Function; Test Pattern; Windows 7 Network Projector; Complete shut-off switch; Intelligent Power Management
Specifications:
- Type: DLP
- Brightness [ANSI Lumen]: 13500
- Contrast: 2000:1
- Resolution: 1920 x 1200
- Lamp Life [h]: 2000
- Distance [m]: 1.1 - 74
- Weight [kg]: 39
Projection Technology
3-Chip - (0.96") DLP Technology
Native Resolution
1920 x 1200 (WUXGA)
Contrast Ratio 1
2000:1
Brightness 1
13500 ANSI Lumen
Lamp
2-Lamp System (2 x 465 W AC)
Lamp Life [hrs]
2500; 3000 (Eco Mode )
Lens
6 optional bayonet lenses with lens memory
Projection Distance [m]
1.1 (NP25FL) - 74 (NP29ZL)
Screen Size (diagonal) [cm] / [inch]
Maximum: 1,270 / 500"; Minimum: 203 / 80"
Zoom
Motorised
Focus Adjustment
Motorised
Supported Resolutions
1920 x 1200; 1920 x 1080 (HDTV 1,080i/60, HDTV 1,080i/50); 1400 x 1050 (SXGA); 1280 x 1024 (SXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (Mac 21''); 1024 x 768 (XGA) compressed; 1000 x 1200 (UXGA); 832 x 624 (Mac 16''); 800 x 600 (SVGA); 720 x 576 (DVD progressive); 720 x 480 (DVD progressive); 720 x 480 (SDTV 480p); 640 x 480 (VGA/Mac 13'')
3D: 1920 x 1080
Frequency
Horizontal: 15108 kHz (RGB: 24 kHz); Vertical: 48 120 Hz
CONNECTIVITY
RGB (analogue)
Input: 1 x 5BNC, shared with Component Signal (YPbPr); 2 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Digital
Input: 1 x BNC 3DSync; 1 x DisplayPort; 1 x DVI (3D Input); 1x HDMI (V.1.3) supporting HDCP
Output: 1 x BNC 3DSync
Video
Input: 1 x RCA
S-Video
Input: 1 x Mini DIN 4-pin
Control
Input: 1 x D-Sub 9 pin (RS-232), Network
Option Slot
Input: 1 x Slot for optional STv2 or HD/SD-SDI Module
USB
2 x Type A (USB 2.0 high speed)
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM
REMOTE CONTROL
Input
1 x 3.5 mm Stereo Mini Jack
Remote Control
Aspect Ratio; Auto Adjust; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select
ELECTRICAL
Power Supply
200-240 V AC; 50 - 60 Hz
Power Consumption [W]
0.5 Power Savings Mode; 1215 Normal Dual Lamp Mode; 585 Eco Single Lamp Mode; 60 Network Stand-By Mode; 705 Normal Single Lamp Mode; 985 Eco Dual Lamp Mode
MECHANICAL
Dimensions (W x H x D) [mm]
558 x 235 x 578 (without lens and feet)
Weight [kg]
39
Fan Noise [dB (A)]
44 Eco Mode ; 48
ERGONOMICS
Safety and Ergonomics
CE; ErP; RoHS ; TV GS
ADDITIONAL FEATURES
Special Characteristics
Active 3D; AMX Beacon; Crestron RoomView; DICOM Simulation ; Digital 3D Reform; Direct Power-Off Function; Edge Blending Function; Free Tilt; Full Metal Cabinet; Geometric Correction ; Help Function; Keystone Correction (H=40, V=30); LAN control; Lens Memory; Lens Shift(vertical -0.4 max/+0.55 max, horizontal 0.2 max.); Lens Shutter; NaViSet Administrator 2 ; OPSmodule support; Optional User Logo; OSD with 27 languages; Outstanding Multimedia and Network Functions; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; Seamless Switching; SNMP; Stacking Function; Test Pattern; Windows 7 Network Projector
GREEN FEATURES
Energy Efficiency
Complete shut-off switch; Intelligent Power Management
Ecological Standards
ErP compliant; RoHs compliant; WEEE
WARRANTY
Projectors
3 years conditional warranty
Lamp
6 months, max. 1000 hrs
SHIPPING CONTENT
Shipping Contents
Anti-theft cap for LAN Unit; Dustproof Sponge Ring; IR Remote Control (RD - 465E); Power Cord (1.8 m); Power Cord Stopper; Projector; Quick Setup Guide; Stacking Holder; Users Manual
OPTIONAL ACCESSORIES
Optional Accessories
3G HDSDI Board; 5 optional bayonet lenses; Air Filter (NP03FT); Hardcase (100012934); Lamp (NP25LP); STv2 PC; Wireless LAN module NP02LM2 (Europe), NP02LM3 (Russia)
Lenses
NP25FL (0.67:1); NP26ZL (1.39-1.84:1); NP27ZL (1.87-2.56:1); NP28ZL (2.56-4.16:1); NP29ZL (4.16-6.96:1); NP32ZL (0.9-1.1:1
|
|
|
|
Previous Page
|
Next Page
|
|
