Model	B210
Product Type	Zoom Box
Maximum Resolution	10MP
Application Environment	Indoor/Outdoor
Image Sensor	Progressive Scan CMOS
Day / Night	Yes
Low Light Sensitivity	Standard
Minimum Illumination	Color: 0.1 lux, B/W: 0.05 lux at F2.2
Mechanical IR Cut Filter	Yes
IR LED	No
Lens	Zoom, f6.3-63mm / F2.2-3.5, P-Iris, Auto focus
Zoom Ratio	10x optical
Lens Mount	Board mount
Horizontal Viewing Angle	50.6-4.59
Compression	H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution	7 fps at 3648 x 2736 7 fps at 3648 x 2160 7 fps at 2592 x 1944 7 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240
Horizontal Resolution (TV lines)	1550 TVL
Multi-Streaming	Dual streams
Wide Dynamic Range	Basic WDR (70 dB)
Digital Noise Reduction	2D+3D DNR
S/N Ratio	52 dB
Audio	2-way (Line-in, Line-out)
Network Protocol & Service	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Pan, Tilt or Zoom protocol	Visca, Pelco-D, Pelco-P
Network Connector	RJ-45
Digital Input/Output	1/1
Serial Port	RS-485, RS-422
Local Storage	MicroSDHC/MicroSDXC memory card slot (card not included)
Power Source	DC 12V; PoE Class 3
Environmental Casing	Optional housing (IP66)
Bundled Accessories	No
Mount Type	Wall, Ceiling, Corner, Pole
Software Based Analytics (require PC based Smart Search Tool, IVS Server or ALPR Server)	Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, Speed Detection
GPS Position	Manual setting
Client PC Operating System	Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP
PC Web Browser	IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime
ONVIF Compliant	Yes
Heater	Yes
Fan	No
Starting Temperature	-10C ~ 50C (14F ~ 122F) within 30 minutes
Operating Temperature	-20C ~ 50C (-4F ~ 122F)
Approvals	CE, FCC, UL (for optional PoE injector and power adapter)
Warranty	3 Years
Product Availability	ACTi : Now Distributor : Now



The LUMIX DMC-SZ10 packs a 12x Optical zoom lens and 180 Degree Tiltable monitor featuring selfie functions. Capture memorable scenes and share themw ith Wi-Fi connectivity.







As soon as you tilt the monitor upward 180, the most optimal selfie settings are automatically made. Combining them with the Soft Skin mode, Slimming mode and Defocusing mode gives you more attractive, more distinctive selfies. The large 2.7-inch, approx. 460k-dot monitor lets you share the fun of viewing images with family and friends, too.





The DMC-SZ10 is equipped with 24mm ultra wide-angle lens with powerful 12x optical zoom (35mm camera equivalent: 24-288mm) to boost high versatility despite the cameras slim, stylish profile.





You can connect the camera to your smartphone / tablet by displaying the QR code on the camera screen.



With the "Panasonic Image App", you can utilize a smartphone / tablet as controller to zoom, set the focus and shoot from a distance.



You can instantly upload and share your images on social media using the "Panasonic Image App" on a smartphone / tablet.



You can tag the location information to the image by utilizing the GPS log of a smartphone / tablet and share it to the preferred social media.







The 16-megapixel CCD sensor offers high-resolution image so you can crop the part you want to enlarge from the picture after shooting.



Blurring image due to handshake often occurs in shooting using high zoom, however, the Optical Image Stabilizer minimizes it without causing deterioration of image quality.



You can record dynamic HD videos in 1280 x 720p. Recording videos can be started with a press of an independent motion picture button, which is convenient for you to switch photo / video shooting instantly.



Creative Shooting



With a variety of filter effects, Creative Control lets you add artistic and original expression to photos and videos. Creative Panorama function allows you to create dynamic vertical / horizontal panoramic photo with a unique touch just by swiveling the camera.



Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect*, Miniature Effect*, Soft Focus**, Star Filter**, One Point Color



Cannot be used in Creative Panorama.
Cannot be used in video recording.



These three effects can be used when taking selfies to give you more attractive portraits. Soft Skin mode makes skin look brighter and smoother. Slimming mode sharpens facial lines. And Defocusing mode keeps the subject in clear focus while gently softening the background.



Metrics	Dimensions (W x H x D)	99 x 59.9 x 29.8 mm/(3.90 x 2.36 x 1.17 inch)
	Weight	Approx. 163 g without Battery and SD Memory Card (0.36 lb)/Approx. 177 g with Battery and SD Memory Card (0.39 lb)
Pixels	Camera Effective Pixels	16 Megapixels
Sensor	Sensor Size / Total Pixels / Filter	1/2.33-type CCD Sensor / Total Pixel Number 16.6 Megapixels / Primary Color Filter
Lens	Aperture	F3.1 - 6.3 / 2-step (F3.1 / 7.8 (W), F6.3 / 16.3 (T))
	Optical Zoom	12x
	Focal Length	f = 4.3 - 51.6mm (24 - 288mm in 35mm equiv.)/(26 - 314mm in 35mm equiv. in 16:9 video recording)
	Extra Optical Zoom (EZ)	16.9x (4:3 / 8M), 27.0x (4:3 / under 3M)
	Intelligent Zoom	24x
	Lens	8 elements in 8 groups/(4 Aspherical Lenses / 8 Aspherical surfaces / 1 ED Lenses)
	2- Speed Zoom	-
	Optical Image Stabilizer/Five Axis Correction	O.I.S. (On / Off) / No
	Digital Zoom	Max. 4x
	Conversion Lens Compatibility	-
Focus	Focusing Area	Normal / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 150 cm - infinity
	AF Assist Lamp	Yes (On/Off)
	Focus	Normal/Quick AF (Always On), Continuous AF (only for motion picture)
	AF Metering	Face / 1-area / 9-area
Shutter	Shutter Speed	Approx. 8 - 1/2000 sec/Starry Sky Mode: 15, 30, 60 sec
Finder	Viewfinder	-
File	File Format	Still Image: JPEG (DCF/Exif2.3)/Motion Picture: QuickTime Motion JPEG
Recording Modes	Mode Dial / Mode Button	Intelligent Auto, Normal Picture, Panorama Shot, Scene, Creative Control
	Creative Control mode	Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color (15 filters)
	Still Image Scene Mode	Portrait, Soft Skin, Scenery, Sports, Night Portrait, Night Scenery, Food, Baby1*, Baby2*, Pet*, Sunset, High Sensitivity, Glass Through, HDR, Starry Sky * Birthday only.
	Continuous Shooting Mode	Full-Resolution Image (Unlimited Consecutive Shooting): 1.4 frames/sec/High-speed Burst: Approx. 3.5 frames / sec/(recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9, 2.5M for 1:1)
Motion Picture Recording (*2)	HD Video	1280 x 720 pixels, 30fps (HD / Motion JPEG)
	STD Video	640 x 480, 30fps (VGA / Motion JPEG)/320 x 240, 30fps (QVGA / Motion JPEG)
	High Speed Video	-
Continuous recordable time (motion pictures)	AVCHD	-
	MP4	-
Actual recordable time (motion pictures)	AVCHD	-
	MP4	-
Exposure Parameters	Exposure	Auto (Program AE)
	Exposure Compensation	1/3 EV step, +/-2 EV
	Auto (AE) Bracketing	-
	Light Metering	Intelligent Multiple
	ISO Sensitivity	Auto / i.ISO / 100 / 200 / 400 / 800 / 1600/High Sensitivity Mode (ISO1600 - 6400)
Picture Quality	Still Picture Recording	[4:3] 4608x3456 (16M) / 3264x2448 (8M EZ) / 2048x1536 (3M EZ) / 640x480 (0.3M EZ)/[3:2] 4608x3072 (14M) / 3264x2176 (7M EZ) / 2048x1360 (2.5M EZ)/[16:9] 4608x2592 (12M) / 1920x1080 (2M EZ)/[1:1] 3456x3456 (12M) / 1536x1536 (2.5M EZ)
	Image Quality	-
	White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set
	Photo Style / Film Mode	-
	Color Mode / Color Effect / My color	-
	Picture Adjustment	-
	Aspect Bracketing	-
Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On/Off)
	GPS	-
	Wi-FI	IEEE 802.11b/g/n/2412 MHz 2462 MHz (1-11 ch)/WPA / WPA2/Infrastracture Mode / WPS/Wi-Fi Button
	NFC	-
	Zoom in Motion Picture	Yes
	Self Timer	2 sec / 10 sec
	Self Shot Mode	-
Display	Playback Mode	Normal Play, Slide Show, Category Selection, Calendar
	Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
	Calendar Display / Dual- Image Playback	Yes (Menu / Zoom Lever) / No
	Set Favorites / Rotate Image	No / No
	Show Histogram	-
	Show Highlights	-
	DPOF Print Setting / Set Protection	No / Yes
Edit	Retouch	Creative Retouch
	Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
	Copy / Title Edit / Text Stamp	Yes / No / No
	Cut Animation	-
	Video Divide	-
	PictBridge Support	Single / Multi / All
Setup	OSD language	Japanese, English, German, French, Italian, Spanish
Monitor	LCD Monitor	6.4cm (2.7") TFT Screen LCD Display (460K dots)/Field of View: Approx. 100%/Power Monitor mode, AUTO Power Monitor mode, High-angle Mode
Flash	Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off/0.6 - 5.2m (Wide / ISO Auto), 1.5 - 2.6m (Tele / ISO Auto)
Media	Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
	Built- in- Memory	Approx. 80MB
Audio	Microphone / Speaker	Mono / Mono
Interface	Interface	AV Output (PAL/NTSC), USB (AV/USB Multi)
Power	Power	Li-ion Battery Pack (3.6V, 690mAh, 2.5 Wh) (Included)/AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable)
	Battery life (approx.)	200 pictures (CIPA Standard)*1
Standard Package	Included Software	* The DMC-SZ10 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet./* The software for PC is not bundled with DMC-SZ10. Please use the software pre-installed to the PC or other general image viewing software to browse pictures.
	Standard Accessories	Battery Pack, AC Adaptor, USB Cable, Hand Strap
NOTE		*1
NOTE		Recording conditions by CIPA standard
NOTE		- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on.
NOTE		- Using a Panasonic SDHC Memory Card
NOTE		- Using the supplied battery.
NOTE		- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE		- Recording once every 30 seconds with full flash every second recording.
NOTE		- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE		- The number of recordable pictures varies depending on the recording interval time.
NOTE		- If the recording interval time becomes longer, the number of recordable pictures decreases.
NOTE		- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE		*2
NOTE		- Use a card with SD Speed Class with "Class 6" or higher when recording motion pictures. SD speed class is the speed standard regarding continuous writing.
NOTE		- Motion pictures can be recorded continuously for up to 15 minutes.
NOTE		- Motion pictures can be recorded continuously up to 2 GB.
NOTE		- The maximum available recording time for up to 2 GB only is displayed on the screen.



The LUMIX DMC-SZ10 packs a 12x Optical zoom lens and 180 Degree Tiltable monitor featuring selfie functions. Capture memorable scenes and share themw ith Wi-Fi connectivity.







As soon as you tilt the monitor upward 180°, the most optimal selfie settings are automatically made. Combining them with the Soft Skin mode, Slimming mode and Defocusing mode gives you more attractive, more distinctive selfies. The large 2.7-inch, approx. 460k-dot monitor lets you share the fun of viewing images with family and friends, too.





The DMC-SZ10 is equipped with 24mm ultra wide-angle lens with powerful 12x optical zoom (35mm camera equivalent: 24-288mm) to boost high versatility despite the camera’s slim, stylish profile.





You can connect the camera to your smartphone / tablet by displaying the QR code on the camera screen.



With the "Panasonic Image App", you can utilize a smartphone / tablet as controller to zoom, set the focus and shoot from a distance.



You can instantly upload and share your images on social media using the "Panasonic Image App" on a smartphone / tablet.



You can tag the location information to the image by utilizing the GPS log of a smartphone / tablet and share it to the preferred social media.







The 16-megapixel CCD sensor offers high-resolution image so you can crop the part you want to enlarge from the picture after shooting.



Blurring image due to handshake often occurs in shooting using high zoom, however, the Optical Image Stabilizer minimizes it without causing deterioration of image quality.



You can record dynamic HD videos in 1280 x 720p. Recording videos can be started with a press of an independent motion picture button, which is convenient for you to switch photo / video shooting instantly.



Creative Shooting



With a variety of filter effects, Creative Control lets you add artistic and original expression to photos and videos. Creative Panorama function allows you to create dynamic vertical / horizontal panoramic photo with a unique touch just by swiveling the camera.



Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect*, Miniature Effect*, Soft Focus**, Star Filter**, One Point Color



Cannot be used in Creative Panorama.
Cannot be used in video recording.



These three effects can be used when taking selfies to give you more attractive portraits. Soft Skin mode makes skin look brighter and smoother. Slimming mode sharpens facial lines. And Defocusing mode keeps the subject in clear focus while gently softening the background.



Metrics	Dimensions (W x H x D)	99 x 59.9 x 29.8 mm/(3.90 x 2.36 x 1.17 inch)
	Weight	Approx. 163 g without Battery and SD Memory Card (0.36 lb)/Approx. 177 g with Battery and SD Memory Card (0.39 lb)
Pixels	Camera Effective Pixels	16 Megapixels
Sensor	Sensor Size / Total Pixels / Filter	1/2.33-type CCD Sensor / Total Pixel Number 16.6 Megapixels / Primary Color Filter
Lens	Aperture	F3.1 - 6.3 / 2-step (F3.1 / 7.8 (W), F6.3 / 16.3 (T))
	Optical Zoom	12x
	Focal Length	f = 4.3 - 51.6mm (24 - 288mm in 35mm equiv.)/(26 - 314mm in 35mm equiv. in 16:9 video recording)
	Extra Optical Zoom (EZ)	16.9x (4:3 / 8M), 27.0x (4:3 / under 3M)
	Intelligent Zoom	24x
	Lens	8 elements in 8 groups/(4 Aspherical Lenses / 8 Aspherical surfaces / 1 ED Lenses)
	2- Speed Zoom	-
	Optical Image Stabilizer/Five Axis Correction	O.I.S. (On / Off) / No
	Digital Zoom	Max. 4x
	Conversion Lens Compatibility	-
Focus	Focusing Area	Normal / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 150 cm - infinity
	AF Assist Lamp	Yes (On/Off)
	Focus	Normal/Quick AF (Always On), Continuous AF (only for motion picture)
	AF Metering	Face / 1-area / 9-area
Shutter	Shutter Speed	Approx. 8 - 1/2000 sec/Starry Sky Mode: 15, 30, 60 sec
Finder	Viewfinder	-
File	File Format	Still Image: JPEG (DCF/Exif2.3)/Motion Picture: QuickTime Motion JPEG
Recording Modes	Mode Dial / Mode Button	Intelligent Auto, Normal Picture, Panorama Shot, Scene, Creative Control
	Creative Control mode	Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color (15 filters)
	Still Image Scene Mode	Portrait, Soft Skin, Scenery, Sports, Night Portrait, Night Scenery, Food, Baby1*, Baby2*, Pet*, Sunset, High Sensitivity, Glass Through, HDR, Starry Sky * Birthday only.
	Continuous Shooting Mode	Full-Resolution Image (Unlimited Consecutive Shooting): 1.4 frames/sec/High-speed Burst: Approx. 3.5 frames / sec/(recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9, 2.5M for 1:1)
Motion Picture Recording (*2)	HD Video	1280 x 720 pixels, 30fps (HD / Motion JPEG)
	STD Video	640 x 480, 30fps (VGA / Motion JPEG)/320 x 240, 30fps (QVGA / Motion JPEG)
	High Speed Video	-
Continuous recordable time (motion pictures)	AVCHD	-
	MP4	-
Actual recordable time (motion pictures)	AVCHD	-
	MP4	-
Exposure Parameters	Exposure	Auto (Program AE)
	Exposure Compensation	1/3 EV step, +/-2 EV
	Auto (AE) Bracketing	-
	Light Metering	Intelligent Multiple
	ISO Sensitivity	Auto / i.ISO / 100 / 200 / 400 / 800 / 1600/High Sensitivity Mode (ISO1600 - 6400)
Picture Quality	Still Picture Recording	[4:3] 4608x3456 (16M) / 3264x2448 (8M EZ) / 2048x1536 (3M EZ) / 640x480 (0.3M EZ)/[3:2] 4608x3072 (14M) / 3264x2176 (7M EZ) / 2048x1360 (2.5M EZ)/[16:9] 4608x2592 (12M) / 1920x1080 (2M EZ)/[1:1] 3456x3456 (12M) / 1536x1536 (2.5M EZ)
	Image Quality	-
	White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set
	Photo Style / Film Mode	-
	Color Mode / Color Effect / My color	-
	Picture Adjustment	-
	Aspect Bracketing	-
Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On/Off)
	GPS	-
	Wi-FI	IEEE 802.11b/g/n/2412 MHz 2462 MHz (1-11 ch)/WPA / WPA2/Infrastracture Mode / WPS/Wi-Fi Button
	NFC	-
	Zoom in Motion Picture	Yes
	Self Timer	2 sec / 10 sec
	Self Shot Mode	-
Display	Playback Mode	Normal Play, Slide Show, Category Selection, Calendar
	Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
	Calendar Display / Dual- Image Playback	Yes (Menu / Zoom Lever) / No
	Set Favorites / Rotate Image	No / No
	Show Histogram	-
	Show Highlights	-
	DPOF Print Setting / Set Protection	No / Yes
Edit	Retouch	Creative Retouch
	Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
	Copy / Title Edit / Text Stamp	Yes / No / No
	Cut Animation	-
	Video Divide	-
	PictBridge Support	Single / Multi / All
Setup	OSD language	Japanese, English, German, French, Italian, Spanish
Monitor	LCD Monitor	6.4cm (2.7") TFT Screen LCD Display (460K dots)/Field of View: Approx. 100%/Power Monitor mode, AUTO Power Monitor mode, High-angle Mode
Flash	Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off/0.6 - 5.2m (Wide / ISO Auto), 1.5 - 2.6m (Tele / ISO Auto)
Media	Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
	Built- in- Memory	Approx. 80MB
Audio	Microphone / Speaker	Mono / Mono
Interface	Interface	AV Output (PAL/NTSC), USB (AV/USB Multi)
Power	Power	Li-ion Battery Pack (3.6V, 690mAh, 2.5 Wh) (Included)/AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable)
	Battery life (approx.)	200 pictures (CIPA Standard)*1
Standard Package	Included Software	* The DMC-SZ10 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet./* The software for PC is not bundled with DMC-SZ10. Please use the software pre-installed to the PC or other general image viewing software to browse pictures.
	Standard Accessories	Battery Pack, AC Adaptor, USB Cable, Hand Strap
NOTE		*1
NOTE		Recording conditions by CIPA standard
NOTE		- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on.
NOTE		- Using a Panasonic SDHC Memory Card
NOTE		- Using the supplied battery.
NOTE		- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE		- Recording once every 30 seconds with full flash every second recording.
NOTE		- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE		- The number of recordable pictures varies depending on the recording interval time.
NOTE		- If the recording interval time becomes longer, the number of recordable pictures decreases.
NOTE		- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE		*2
NOTE		- Use a card with SD Speed Class with "Class 6" or higher when recording motion pictures. SD speed class is the speed standard regarding continuous writing.
NOTE		- Motion pictures can be recorded continuously for up to 15 minutes.
NOTE		- Motion pictures can be recorded continuously up to 2 GB.
NOTE		- The maximum available recording time for up to 2 GB only is displayed on the screen.





4/3-inch High Sensitivity MOS Sensor



The DMC-LX100 is designed to render its breathtaking gradation and rich textures in all their natural beauty. It newly incorporates a 4/3-inch large High Sensitivity MOS sensor with multiple aspect ratios. By keeping the resolution to 12.8-megapixel* (in 4:3 setting), the amount of light is maintained to improve the S/N ratio, making it possible to capture clear images with minimum noise even when shot at ISO25600. Take the DMC-LX100, with its stunning image quality packed into a compact body, everywhere you go.



Sensor total pixel is 16.8-megapixel.





The newly developed LEICA DC VARIO-SUMMILUX lens boasts an F1.7-2.8 brightness, high speed and high detail and resolution corner-to-corner. The lens unit consists of 11 elements in 8 groups with 5 aspherical lenses including 2 ED lenses. To fit the camera body with its large 4/3-inch sensor, a new structure was designed that moves the entire lens group while Panasonic’s original centering technology enhances the lens alignment sharpness. This lens also produces stunningly beautiful defocusing together with the large MOS sensor.





Turn the aperture ring with your left hand and operate the shutter speed dial with your right hand. These two controls adjust the exposure, which is critical for picture quality. Then aim the camera and look into the 2,764k-dot equivalent high resolution LVF (Live View Finder). Your right hand will naturally rest on the exposure compensation dial. With the DMC-LX100, the photographer and the camera quickly become one.







For more creative freedom, the DMC-LX100 integrates a variety of artistic functions. Its fully open aperture creates beautiful defocus effects, the slow shutter speed lets you leave attractive light traces in the image, and Creative Control filters can be added as desired. The Monochrome Filter of the Photo Style function enables expressive monochrome photography, and the Creative Control filters can be applied to panorama photos. Combining these and other functions allows virtually unlimited expression.





Enjoy true-to-life, high-resolution 4K video recording*. It ushers in a new form of creative 4K Photo by letting you cut out magical moments in 3840 x 2160 8-megapixel equivalent from 4K video footage. Once the 4K Photo mode is entered, the luminance level is adjusted to 0-255, which is suitable for photos. You can also choose either 4:3 or 3:2 in addition to 16:9 with the aspect switch.



4K video can be recorded for up to 15 minutes. When recording videos in 4K, use a card rated as UHS Speed Class 3.





The newly developed LEICA DC VARIO-SUMMILUX lens features optimization of optical design and 5 aspherical glass lenses, which are made possible by Panasonic's unique aspherical lens mold technology. This combines with the large MOS sensor to give your photos a shallow depth of field with an impressive defocus effect featuring invisible edge lines and onion ring. The newly adopted 9-aperture diaphragm also helps to produce bokeh with a smooth, circular shape.





The Venus Engine features Multi Process NR, Three Dimensional Color Control and Aperture Filter to achieve high color reproduction and high resolution images with natural description. The combination of the High Sensitivity MOS sensor and the Venus Engine achieves stunning picture quality that rivals that of D-SLRs.





The DMC-LX100 features multiple aspect ratio image recording. The Multi-aspect ratio function in LUMIX is "Multi-aspect" in the true sense because it lets you record images in the 4:3, 3:2 or 16:9 aspect ratio with the same angle of view. The aspect can be set quickly with the aspect switch on the lens barrel.





Stunning macro shots can be shot with a minimum focusing distance of 3cm (wide) and 30cm (tele). You can shoot close-ups with the DMC-LX100 to express the spectacular details of flowers, insects and so on. POWER O.I.S. (Optical Image Stabilizer) effectively compensates for the handshake.





A variety of advanced functions are featured on the DMC-LX100 to expand the potential of advanced photographers. It allows direct, intuitive control with dedicated rings and dials such as the aperture ring, control ring for zooming or focusing, shutter speed dial and exposure compensation dial.





The DMC-LX100 integrates an LVF (Live View Finder) with 2,764k-dot equivalent high resolution and approx. 100% color reproduction.* It assures stable framing and superb visibility even under strong sunlight. The Eye Sensor AF starts auto focusing by just looking into the LVF so you won't miss any shooting opportunities. A 3.0-inch 921k-dot rear monitor is also available.



Based on the Adobe RGB color space, Panasonic in-house comparison based on the CIE 1931 x, y color space.



New DFD (Depth From Defocus) technology shortens the time to set focus. It instantaneously calculates the distance to the subject by evaluating 2 images with different sharpness levels. As a result, ultra high speed AF of approx. 0.14 sec* is achieved.



CIPA standard. The zoom position is in wide range. When using Live View Finder.





High shutter speed at max. 1/4000 sec with a mechanical shutter enables you to capture spur-of-the-moment of fast moving subject. Max. 1/16000 sec with an electronic shutter lets you open the aperture even outdoors, and reduce washouts even under strong sunlight.





High-speed burst shooting is possible at 11 fps in full resolution. Together with a quick start-up and a short release time lag, the DMC LX100 will make sure you catch those fleeting shooting opportunities.





The Control Ring gives you intuitive manual focusing. For more practical control over focusing, the Focus Peaking function shows the peak of focus in MF and AF+MF mode. The Focus Peaking function is also available for remote photo/video shooting with a smartphone or tablet via Wi-Fi®.





The Level Gauge lets the camera detect the horizontal / vertical angle of view which is convenient to make level in composition.





The Aspect Bracket function lets the camera take an image in all aspect ratios – 4:3, 3:2, 16:9 and 1:1 – simultaneously.



Taking advantage of digital photography, a WB (White Balance) bracket is available that records 3 images with different white balance parameters at a single shutter release.

The Monochrome Filter (Ye/Or/R/G) of the Photo Style function creates rich expression using the limited hues of monochrome images.



The Multi Exposure function lets you take up to 4 exposures in a single frame. You can layer subjects that wouldn't ordinarily appear in the same frame.





Highlight and shadow can be adjusted to achieve desired images without the use of image processing software. 3 patterns of settings can be customized in addition to 3 preset patterns (Higher Contrast, Lower Contrast, Brighten Shadow).



The DMC-LX100 can develop RAW-format images inside the camera, to adjust the following settings: Color Space Setting (sRGB / AdobeRGB), White Balance, Exposure Compensation, Photo Style, Intelligent D-range Control, Contrast, Highlight / Shadow, Saturation, Noise Reduction, Intelligent

Resolution, Sharpness



Creative Control filters let you add artistic and original expression to photos and videos. Now it is possible to apply one of these filters even in P/A/S/M mode. You can also create vertical / horizontal panoramic photos with a unique touch just by swiveling the camera.



[Filter Effects] Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, Sunshine



With the "Panasonic Image App", you can utilize a smartphone / tablet as controller to zoom, set the focus and shoot from a distance.

Simply touching an NFC-compatible smartphone / tablet to the camera, or scanning the QR code connects Wi-Fi®.

You can instantly upload and share your images on social media using the "Panasonic Image App" on a smartphone / tablet.

You can tag the location information to the image by utilizing the GPS log of a smartphone / tablet and share it to the preferred social media.





A practical external flash unit (GN10 ISO200·m / GN7 ISO100·m) that is the same color as the camera body can be mounted on the DMC-LX100. With a separately purchased DMW-FL360L / FL580L, wireless control and LED video light functions are available. On the shoe, the DMW-VF1 OVF (Optical View Finder) can be mounted.



The DMC-LX100 features an outstanding 4K video recording capability (QFHD 4K: 3840 x 2160, 25 fps / 24 fps in MP4). You can use 4K video as high-speed burst shots, and cut out magical moments with 8-megapixel resolution. The DMC-LX100 also supports full-HD 1920 x 1080 50p videos in AVCHD Progressive format or MP4 format.



4K video can be recorded for up to 15 minutes. When recording videos in 4K, use a card rated as UHS Speed Class 3.
Motion pictures in AVCHD can be recorded for up to 29 minutes 59 seconds.
Motion pictures in MP4 (FHD/HD/VGA) can be recorded for up to 29 minutes 59 seconds or up to 4 GB.



The DMC-LX100 lets you enjoy expressive video recording by manually setting the aperture and shutter speed. In addition, you can add different artistic effects to your videos by applying a Creative Control filter.



Leave the camera for stationary recording of subjects such as astronomical observation, flowers coming into bloom or scudding clouds. The series of consequent images can be combined in the camera to produce a time lapse video.





The Stop Motion Animation function enables producing a stop motion (stop frame) video in camera with the pictures that are sequentially shot while moving the object by degrees. This effect makes the object appear as if it is moving by itself.



Metrics		Dimensions (W x H x D)	114.8 x 66.2 x 55.0 mm
		Dimensions (W x H x D)	(4.52 x 2.61 x 2.17 inch)
		Weight	Approx. 351 g without Battery and SD Memory Card (0.77 lb)
		Weight	Approx. 393 g with Battery and SD Memory Card (0.86 lb)
Optics	Pixels	Camera Effective Pixels	12.8 Megapixels
	Sensor	Sensor Size / Total Pixels / Filter	4/3-inch High Sensitivity MOS Sensor / Total Pixel Number 16.84 Megapixels / Primary Color Filter
	Lens	Aperture	F1.7 - 2.8 / 9 Diaphragm Blades (F1.7 - 16.0 (W), F2.8 - 16.0 (T))
		Optical Zoom	3.1x
		Focal Length	f = 10.9 - 34mm
		Focal Length	(24 - 75mm in 35mm equiv in 4:3, 3:2, 16:9)
		Focal Length	(28 - 88mm in 35mm equiv. in 1:1)
		Focal Length	(28 - 87mm in 35mm equiv. in 4:3 in 4K Photo recording)
		Focal Length	(27 - 84mm in 35mm equiv. in 3:2 in 4K Photo recording)
		Focal Length	(26 - 81mm in 35mm equiv. in 16:9 in 4K video / 4K Photo recording)
		Focal Length	(32 - 101mm in 35mm equiv. in 1:1 in 4K Photo recording)
		Extra Optical Zoom (EZ)	4.3x (4:3 / 6.5M (M)), 6.2x (4:3 / 3M (S))
		Intelligent Zoom	6.2x
		Lens	LEICA DC VARIO-SUMMILUX
		Lens	11 elements in 8 groups
		Lens	(5 Aspherical Lenses / 8 Aspherical Surfaces / 2 Dual-sided Aspherical Surface ED Lenses)
		Optical Image Stabilizer	POWER O.I.S.
		Digital Zoom	Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.)
		Conversion Lens Compatibility	-
	Focus	Focusing Area	Normal: 50 cm - infinity
		Focusing Area	AF Macro / MF / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 30 cm - infinity
		AF Assist Lamp	Yes (On / Off)
		Focus	AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
		Focus	Normal / AF Macro, Quick AF On / Off (on in Intelligent Auto), Low Light AF, AF/AE Lock Button, AF Area Select, AF Tracking, Eye Sensor AF, Focus Peaking, One Shot AF (Set the Fn button in custom menu to AF-ON)
		AF Metering	Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area (flexible / scalable) / Pinpoint
	Shutter	Shutter Speed	Still Image:
		Shutter Speed	Approx. 60 - 1/4,000 sec (Mechanical Shutter)
		Shutter Speed	Approx. 1 - 1/16,000 sec (Electronic Shutter)
		Shutter Speed	Time (Approx. 120 sec)
		Shutter Speed	Motion Picture:
		Shutter Speed	Approx. 1/25 - 1/16,000 sec
		Shutter Speed	Approx. 1/2 - 1/16,000 sec (M Mode / MF Mode)
	Finder	Viewfinder	0.38" LVF (Live View Finder) (2764k dots equivalent), Field of View: Approx. 100%
		Viewfinder	Magnification: Approx. 1.39x / 0.7x (35mm equiv.), Eye Sensor
Recording	File	File Format	Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF
		File Format	Motion Picture: AVCHD, MP4
	Recording Modes	Mode Dial / Mode Button	Intelligent Auto (by iA Button)
		Mode Dial / Mode Button	P, A, S, M (by Aperture Ring and Shutter Speed Dial)
		Filter (Creative Control)	Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, Sunshine (22 filters)
		Still Image Scene Mode / Scene Guide	(Panorama mode can be selected in drive mode.)
		Continuous Shooting Mode (Approx.)	[AFS] SH: 40 frames/sec*, H: 11 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
		Continuous Shooting Mode (Approx.)	[AFC] H: 6.5 frames/sec, M: 6.5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
		Continuous Shooting Mode (Approx.)	* Electronic shutter only.
		4K Photo Mode	Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable)
	Motion Picture Recording (*2)	4K Video	3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC)
		4K Video	3840 x 2160 pixels, 24p (4K: 100Mbps / MP4) (Sensor Output is 24fps) (AAC)
		HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)
		HD Video	1920 x 1080 pixels, 24p (FHD: 24Mbps / AVCHD) (Sensor Output is 24fps) (Dolby)
		HD Video	1920 x 1080 pixels, 25p (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby)
		HD Video	1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)
		HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC)
		HD Video	1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC)
		HD Video	1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC)
		STD Video	640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC)
		High Speed Video	-
	Continuous recordable time (motion pictures)	AVCHD	Approx. 120 min (FHD/50p), Approx. 125 min (FHD/50i)
		MP4	Approx. 90 min (4K/25p), Approx. 120 min (FHD/50p)
	Actual recordable time (motion pictures)	AVCHD	Approx. 60 min (FHD/50p), Approx. 60 min (FHD/50i)
		MP4	Approx. 45 min (4K/25p), Approx. 60 min (FHD/50p)
	Exposure Parameters	Exposure	Program AE, Aperture Priority AE, Shutter Priority AE, Manual
		Exposure Compensation	1/3 EV step, +/-3 EV
		Auto (AE) Bracketing	3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV
		Light Metering	Intelligent Multiple / Center Weighted / Spot
		ISO Sensitivity	Auto / i.ISO / 100 (Extended ISO) / 200 / 400 / 800 / 1600 / 3200/ 6400 / 12800 / 25600
		ISO Sensitivity	(Changeable to 1/3 EV step)
	Picture Quality	Still Picture Recording	[4:3] 4112x3088 (12.5M) (L) / 2976x2232 (6.5M) (M) / 2048x1536 (3M) (S)
		Still Picture Recording	[3:2] 4272x2856 (12M) (L) / 3120x2086 (6.5M) (M) / 2112x1408 (3M) (S)
		Still Picture Recording	[16:9] 4480x2520 (11M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S)
		Still Picture Recording	[1:1] 3088x3088 (10M) (L) / 2240x2240 (5M) (M) / 1536x1536 (2.5M) (S)
		Image Quality	RAW / RAW+Fine / RAW+Standard / Fine / Standard
		White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / White Set3 / White Set4 / Color Temperature
		White Balance	(2-axis Adjustable)
		Photo Style	Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom
		Picture Adjustment	Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, Filter Effect**
		Picture Adjustment	* Except for Monochrome mode. ** For Monochrome mode only.
	Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On / Off)
		GPS	-
		Wi-FI	IEEE 802.11b/g/n
		Wi-FI	2412 MHz - 2462 MHz (1-11 ch)
		Wi-FI	WPA / WPA2
		Wi-FI	Infrastracture Mode / WPS / Wi-Fi Direct
		Wi-FI	Wi-Fi Button
		NFC	ISO/IEC 18092, NFC-F (Passive Mode)
		Zoom in Motion Picture	Yes
		Self Timer	2 sec / 10 sec / 10 sec (3 images)
		Self Shot Mode	-
Playback	Display	Playback Mode	All, Slideshow, Filtering Play (Picture Only, Video Only, Category Selection, Favorite), Calendar
		Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
		Calendar Display / Dual- Image Playback	Yes / No
		Set Favorites / Rotate Image	Yes / Yes
		Show Histogram	Yes
		Show Highlights	Yes
		DPOF Print Setting / Set Protection	Yes / Yes
	Edit	Retouch	No
		RAW Processing	Yes
		Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
		Copy / Title Edit / Text Stamp	No / Yes / Yes
		Cut Animation	Yes
		Video Divide	Yes
		PictBridge Support	Single / Multi / All / DPOF / Favorites
Setup		OSD language	Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)
Others	Monitor	Rear Monitor	3.0" (7.5cm) TFT Screen LCD Display (921k dots), AR Coating
		Rear Monitor	Field of View: Approx. 100%, Wide Viewing-angle
	Flash	Flash (Bundled)	GN7 ISO100m / GN10 ISO200m
		Flash (Bundled)	Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA mode only.
		Flash (Bundled)	Flash Synchro: 1st / 2nd Slow Sync.
		Flash (Bundled)	Synchronization for flash dimming and exposure compensation
		Flash (Bundled)	0.6 - 14.1m (Wide / ISO Auto), 0.3 - 8.5m (Tele / ISO Auto)
	Media	Recording Media	SD Memory Card, SDHC Memory Card, SDXC Memory Card
		Recording Media	(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
		Built- in- Memory	-
	Audio	Microphone / Speaker	Stereo / Mono
	Interface	Interface	microHDMI, AV Output (PAL / NTSC), USB (AV/USB Multi)
		Remote Input	-
		External Microphone Input	-
	Power	Power	Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included)
		Power	AC Adaptor (Input: 110 - 240V AC)
		Battery life (approx.)	350 pictures (rear monitor) / 320 pictures (LVF) (when not using flash), 300 pictures (rear monitor) / 270 pictures (LVF) (when using flash, CIPA Standard)*1
	Standard Package	Included Software	PHOTOfunSTUDIO 9.6PE
		Included Software	SILKYPIX Developer Studio
		Included Software	LoiLoScope (trial version)
		Included Software	Adobe Reader
		Standard Accessories	Battery Charger, Battery Pack, AC Cable, USB Cable, Lens Cap, Lens Cap String, Hot Shoe Cover, External Flash, Flash Storage Bag, Shoulder Strap, DVD
NOTE			*1
NOTE			Recording conditions by CIPA standard
NOTE			- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on.
NOTE			- Using a Panasonic SDHC Memory Card
NOTE			- Using the supplied battery.
NOTE			- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE			- Recording once every 30 seconds with full flash every second recording.
NOTE			- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE			- The number of recordable pictures varies depending on the recording interval time.
NOTE			- If the recording interval time becomes longer, the number of recordable pictures decreases.
NOTE			- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE			*2
NOTE			- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
NOTE			- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
NOTE			- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
NOTE			- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures.
NOTE			- Use a card with SD Speed Class with "UHS-I Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K].
NOTE			(SD speed class is the speed standard regarding continuous writing.)
NOTE			- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds.
NOTE			- Maximum time to record motion pictures continuously with [MP4] in [4K] is 15 minutes.
NOTE			- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB.



The LUMIX DMC-FT30 offers extra toughness by extending its waterproof performance to 8 m / 26 ft. A variety of special modes, including Time Lapse Shot and Creative Panorama, and a host of attractive filters effects, are added to expand the shooting experience.



Waterproof and Tough for Active Lifestyles



Enjoy easy, casual shooting with style both in town and during outdoor adventures. This model is optimal for both.



Waterproof Down to 8 m / 26 ft
Shockproof Up to 1.5 m / 5 ft
Freezeproof Down to -10 °C / 14 °F
Dustproof





The 220MB built-in memory provides extra memory for a maximum of 34 shots when the memory card fills up.



The Red Color Reproduction of Advanced Underwater Mode compensates for the red color which is easily lost in underwater shooting to look underwater picture more natural. Sports, Snow and Beach & Surf Mode can also be selected easily and quickly from the menu.



Metrics	Dimensions (W x H x D)	103.7 x 58.3 x 19.7 mm/(4.08 x 2.30 x 0.77 inch)
	Weight	Approx. 125g without Battery and SD Memory Card (0.28 lb)/Approx. 144g with Battery and SD Memory Card (0.32 lb)
Pixels	Camera Effective Pixels	16.1 Megapixels
Sensor	Sensor Size / Total Pixels / Filter	1/2.33-type CCD Sensor / 16.6 Total Megapixels / Primary Color Filter
Lens	Aperture	F3.9 - 5.7 / 2-step (F3.9 / 9.0(W), F5.7 / 13.0(T))
	Optical Zoom	4x
	Focal Length	f=4.5 - 18.0mm (25 - 100mm in 35mm equiv.)/(29-108mm in 35mm equiv. in video recording)
	Extra Optical Zoom (EZ)	5.1x (4:3 / 10M), 7.2x (4:3 / 5M), 9.0x (under 3M)
	Intelligent Zoom	8x
	Lens	LUMIX DC VARIO/11 elements in 10 groups/(5 Aspherical Lenses / 9 Aspherical surfaces / 1 ED Lens)
	2- Speed Zoom	-
	Optical Image Stabilizer/Five Axis Correction	MEGA O.I.S. (On with Active Mode (Only for Motion Picture) /Off) / No
	Digital Zoom	Max. 4x
	Conversion Lens Compatibility	-
Focus	Focusing Area	Normal: Wide 50 cm - infinity / Tele 100 cm - infinity/]Macro / Intelligent AUTO/ motion picture: Wide 5 cm - infinity / Tele 100cm - infinity
	AF Assist Lamp	Yes (On/Off), LED light in motion picture
	Focus	Normal, AF Macro, Macro Zoom/Quick AF (Always On), Continuous AF(only for motion picture)/AF Tracking
	AF Metering	Face / AF Tracking / 23-Area / 1-Area / Spot
Shutter	Shutter Speed	approx. 8 - 1/1300 sec/15sec / 30sec / 60sec in Sarry Sky mode
Finder	Viewfinder	-
File	File Format	Still Image: JPEG(DCF/Exif2.3), DPOF/Motion picture: MP4
Recording Modes	Mode Dial / Mode Button	Intelligent AUTO, Normal Picture,Creative Control, Sports, Snow, Beach&Surf, Advanced Underwater,/Panorama Shot, SCN
	Creative Control mode	Expressive, Retro, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, One Point Color
	Still Image Scene Mode	Portrait, Soft Skin, Scenery, Night Portrait, Night Scenery, Food, Baby1, Baby2, Pet, Sunset, High Sensitivity, Starry Sky, Glass Through
	Continuous Shooting Mode	Full-Resolution Image, approx. 1.3 frames/sec/High-speed Burst Mode: approx. 8 frames/sec/(recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9, 2.5M for 1:1)/Flash burst shooting
Motion Picture Recording (*2)	HD Video	1280 x 720 pixels, 25 fps (HD: 10Mbps / MP4)
	STD Video	640 x 480 pixels, 25 fps (VGA: 4Mbps / MP4)
	High Speed Video	-
Continuous recordable time (motion pictures)	AVCHD	-
	MP4	approx. 100 min (HD)
Actual recordable time (motion pictures)	AVCHD	-
	MP4	approx. 50 min (HD)
Exposure Parameters	Exposure	Auto(Program AE)
	Exposure Compensation	1/3 EV step, +/-2 EV
	Auto (AE) Bracketing	1/3 -1EV step, Max +/-1EV, 3 frames
	Light Metering	Intelligent Multiple
	ISO Sensitivity	I.ISO / 100 / 200 / 400 / 800 / 1600/High Sensitivity mode (ISO 1600-6400)
Picture Quality	Still Picture Recording	[4:3] 4608x3456 (16M) / 3648x2736 (10M EZ) / 2560x1920 (5M EZ) / 2048x1536 (3M EZ) / 1280x960 (1M EZ) /640x480 (0.3M EZ)/[3:2] 4608x3072 (14M)/[16:9] 4608x2592 (12M)/[1:1] 3456x3456 (12M)
	Image Quality	-
	White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set
	Photo Style / Film Mode	-
	Color Mode / Color Effect / My color	Color Mode : Standard, Black&White, Sepia, Vivid( Normal only), Happy (only in iA Mode)
	Picture Adjustment	-
	Aspect Bracketing	-
Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On/Off)
	GPS	-
	Wi-FI	-
	NFC	-
	Zoom in Motion Picture	Yes
	Self Timer	2 sec / 10 sec
	Self Shot Mode	-
Display	Playback Mode	All,, Slideshow, Filtering Play (Picture Only, Video Only, Category Selection, Select Date, Favorites), Calendar
	Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
	Calendar Display / Dual- Image Playback	Yes / No
	Set Favorites / Rotate Image	Yes / No
	Show Histogram	-
	Show Highlights	-
	DPOF Print Setting / Set Protection	Yes / Yes
Edit	Retouch	Creative Retouch / Auto Retouch / Color Reproduction
	Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
	Copy / Title Edit / Text Stamp	Yes / No / Yes
	Cut Animation	-
	Video Divide	Yes
	PictBridge Support	Single / Multi / All / Favorites / DPOF
Setup	OSD language	Japanese, English, German, French, Italian, Spanish
Monitor	LCD Monitor	6.75cm (2.7") TFT Screen LCD Display (230K dots)/Field of View : approx. 100%/AUTO Power Monitor mode, Power Monitor mode, High Angle mode
Flash	Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off,/0.3 - 4.4m (Wide / i.ISO), 1.0 - 3.0m (Tele/ i.ISO)
Media	Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
	Built- in- Memory	Approx.220MB
Audio	Microphone / Speaker	Mono / Mono
Interface	Interface	AV Output (PAL/NTSC), USB(AV/USB Multi)
Power	Power	Li-ion Battery Pack (3.6V / 680mAh / 2.5Wh)/AC Adaptor (Input: 110-240V AC)(Optional)
	Battery life (approx.)	250 pictures (CIPA Standard)*1
Standard Package	Included Software	PHOTOfunSTUDIO 9.0 SE
	Standard Accessories	Battery Pack, Battery Charger, AC Cable, USB Cable, Hand Strap, CD-ROM
NOTE		*1
NOTE		Recording conditions by CIPA standard
NOTE		- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE		- Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.
NOTE		- Using a Panasonic SD Memory Card (32 MB).
NOTE		- Using the supplied battery.
NOTE		- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE		- Recording once every 30 seconds with full flash every second recording.
NOTE		- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE		- Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases.
NOTE		*2
NOTE		- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
NOTE		- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
NOTE		- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
NOTE		- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures.
NOTE		SD speed class is the speed standard regarding continuous writing.
NOTE		- Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB.

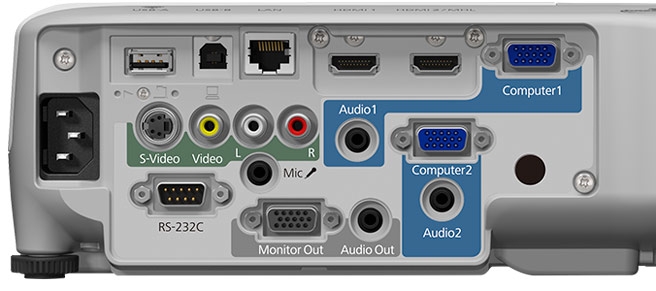

Epson EB-945H mid-range projector provides ultra-bright image quality. With 3,000 lumens both in high colour brightness and in white brightness driven by 3LCD, 3-chip technology. The EB-945H mid-range projector is ideal for delivering large and engaging presentation content in the classroom or office with versatile digital connectivity. The EB-945H now comes equipped with MHL connectivity via HDMI for a more complete digital solution. The long lasting lamp, projecting up to 10,000 lamp hours in ECO mode gives an extended period of reliable performance. Suitable for desktop use with convenient table top placement or using the optional ceiling mount (ELP-MB23), the EB-900 Series offers flexible installation in any environment.







The Panasonic PT-DW740ES WUXGA Fixed Installation Projector uses a unique optical engine to produce a full 7,000 lumens of brightness for clear, high-quality images even in light rooms. With a host of user-friendly terminals and advanced management functions to provide highly reliable, hassle-free use, the Panasonic PT-DW740ES is ideal for a wide variety of applications, from education and business to stage performance.  Available in Black or Silver.



The new lamp drive system has helped to make the body compact while providing high brightness of 7,000 lm for the PT-DW740.

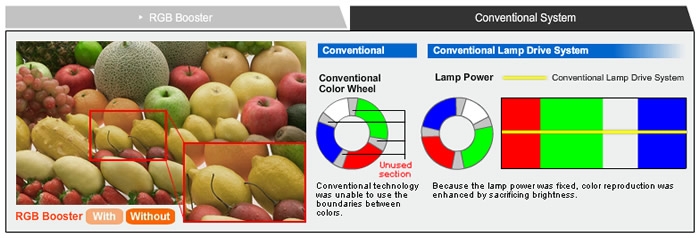

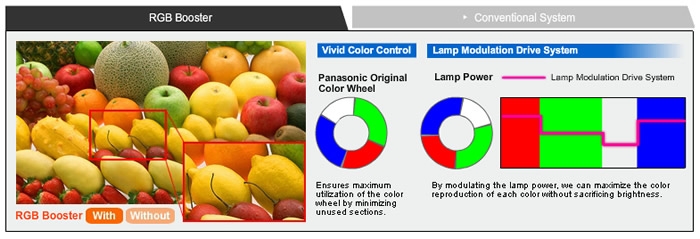

The RGB Booster achieves high image quality with levels of colour reproduction and brightness that make each colour stand out. It combines Panasonic's proprietary Vivid Colour Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP™ projector that produces bright and vivid colours.





This unique control technology optimizes the use of the colour segment areas of the color wheel. It increases the brightness of each RGB colour by minimizing the unallocated portions between the colours, to achieve truly vivid colouring.



With the advanced lamp modulation technology, the projector is able to control the lamp intensity for each of the red, green, blue, and white segments of the colour wheel separately. Because the actual light output is controlled in relation to each colour segment, light usage is optimized and colour balance is obtained without lowering the brightness. This results in bright vivid images with increased colour fidelity.

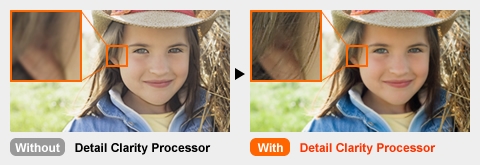

This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three-dimensional appearance with crisp, clear detail.







Image details are less clear when a projector is used in a room with the lights on. Panasonic's System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves, and colour corrections.



This produces crisper, more stunning images with vivid colours even under bright conditions.

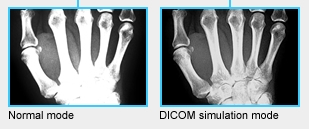

This imaging mode is similar to DICOM part 14, which is a medical imaging standard.



It reproduces X-ray images with remarkable clarity.1

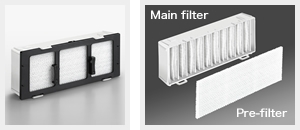

The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles. The pre-filter has a honeycomb configuration and the main filter is pleated to achieve a large surface area that raises its dust collecting performance.



Thanks to these features, the Eco Filter has a replacement cycle of up to 12,000 hours,2 which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.

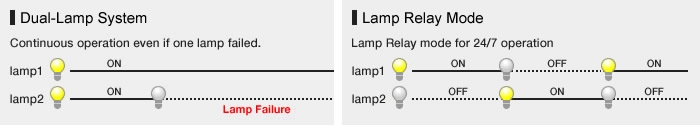

The Dual-Lamp System eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation.







An Eco Filter is replaced from the side and lamps are replaced from the back panel. Both of them are replaced very easily even after the projector is installed on the ceiling.

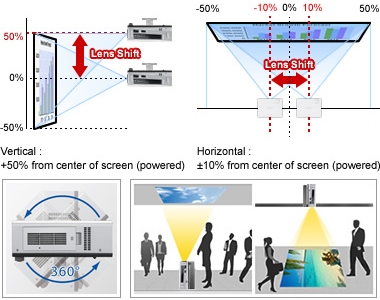

The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation.



It lets you easily make adjustments with the remote control.



The unit can also be rotated 360 degrees vertically.



This means you can install it at any angle you want, to accommodate different installation conditions.







Choose from a wide lineup of optional lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The lenses attach and detach with one-touch ease.



A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site.

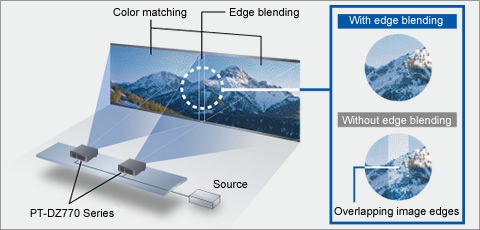

The Multi-Screen Support System optimally adjusts multiple screens: Edge blending, color matching and multi-screen processor.



The edges of adjacent screens can be blended and their luminance controlled.



This function corrects for slight variations in the colour reproduction range of individual projectors.



The PT-DW740 can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time.

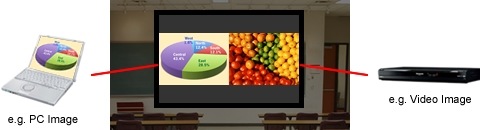

The PT-DW740 can simultaneously display images from two sources onto a single screen.4 For example, you can display a PC image on the left and a video image on the right.



Taking advantage of the wide-screen projection, this function gives you a host of new application possibilities to explore.

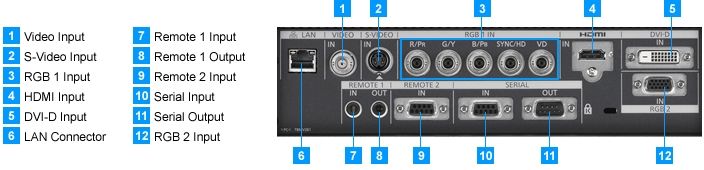

The wide-ranging terminals include 2 sets of RGB inputs (compatible with Y/PB/PR signals), an HDMI input, and a DVI-D input. A serial input/output terminal (RS-232C compliant) that allows remote operation from a PC, similar to that of a wireless remote control, and a remote terminal for input switching by contact control and standby ON/OFF operation also make it possible to configure a remote operation system.

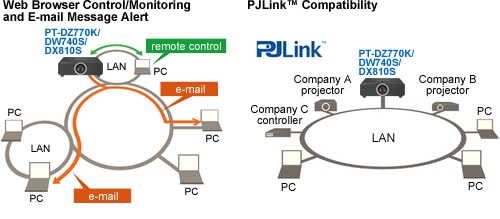

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status.



An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.







The LAN terminal allows a computer connected to the network to use Crestron RoomView™ application software to manage and control system devices. Besides, The AMX Device Discovery technology is built into the PT-DW740.



1. This product is not a medical instrument. Do not use it for actual medical diagnosis.



2. The usage environment affects the duration of the filter.



3. When washing with water, please follow the procedures listed in the operating instructions.Also, we recommend replacing the filter with a new one after it has been washed and reused twice.If the filter is not sufficiently clean after washing, replace it with a new one.



4. This function is not effective for some source combinations.





Power Supply: 120 V AC, 7.5 A, 50 / 60 Hz, 220–240 V AC, 4.3 A, 50 / 60 Hz



Power Consumption: (120 V AC) 790 W (0.2 W with Standby mode set to ECO, 6 W with standby mode set to Normal); (220-240 V AC)(760 W (0.3 W with standby mode set to ECO*, 8 W with standby mode set to NORMAL)



LCD Panel Size: 16.5 mm (0.65") diagonal (16:10 aspect ratio)



LCD Display Method: DLP™ chip × 1, DLP™ projection system



Pixels: 1,024,000 (1,280 × 800) × 1, total of 1,024,000 pixels



Lens: Powered zoom / focus lenses (throw ratio (1.8 – 2.5:1), Powered focus F 1.7–1.9, f 25.6 – 35.7 mm



Lamp: 300 W (max. 310 W) UHM lamps (× 2) (dual lamp system)



Screen Size (diagonal): 1.27–15.24 m (50– 600 inches), 16:10 aspect ratio



Brightness: 7,000 lm (dual lamp, Lamp mode: Normal)



Centre-to-corner Uniformity: 90%



Contrast: 2,500:1 (full on / full off, contrast mode: High, brightness: 3,500 lumens)



Resolution: 1,280 × 800 pixels



Scanning Frequency: HDMI / DVI-D; RGB; YPBPR (YCBCR); Video / S-Video. See PDF for details on frequency measures.



Optical Axis Shift: Vertical: +60% (powered), horizontal: ±10% (powered)



Keystone Correction Range: Vertical: ±40°



Installation: Ceiling / floor, front / rear



Terminals: HDMI IN; DVI-D IN; RGB 1 IN; RGB 2 IN; VIDEO IN; S-VIDEO IN; SERIAL IN; SERIAL OUT; REMOTE 1 IN; REMOTE 1 OUT; REMOTE 2 IN; LAN



Power Cord Length: 3.0m (9ft 10 in)



Noise Level: 39 dB (dual lamp operation, LAMP MODE: NORMAL), 35 dB (dual lamp operation, LAMP MODE: ECO)



Cabinet Materials: molded plastic



Dimensions (W x H x D): 498 × 175 × 466 mm (19-19 / 32 × 6-7 / 8 × 18-11 / 32") (with supplied lens)



Weight: Approx. 16.3 kg (with supplied lens)



Operating Temperature: 0 – 45 °C



Operating Humidity: 20%– 80% (no condensation)
