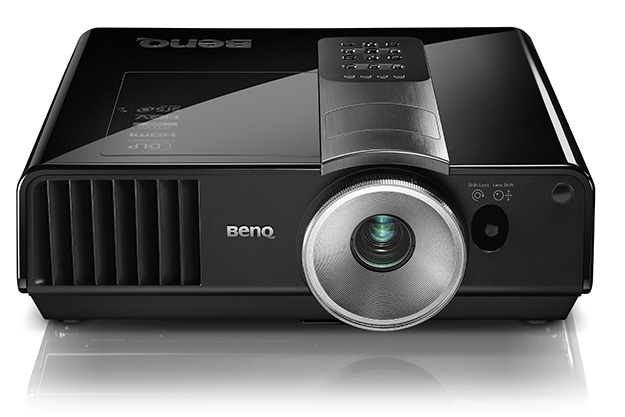

SH963
Brilliant Image Quality for Large-Sized Space
BenQ SH963 Full HD high brightness projector offers high brightness projection with Full HD image quality. The higher the resolution, the better the image quality. Full HD resolution will give you 100% dot-to-dot viewing quality-distortion-free.
Features
Brilliant Image Performance
6000 ANSI Lumens
It doesnt matter where you are, with 6000 ANSI lumen high brightness, the SH963 will always give you the best clarity under the brightest lights! So, take advantage! Stay in control and enjoy perfect presentations and the nest interactions with your audience!
Full HD 1080p Magnificence
With the BenQ SH963, business presentations will never look the same ! The SH963 supports multiple video formats including 480p, 576p, 720p, 1080i and 1080p - giving you the flexibility to present in the video formats with Full HD quality. The BenQ SH963 sets a new standard of video presentation that delivers 5X more detail than traditional 480p projectors.
HD 480p (800x480 pixel) - Full HD (1920x1080 pixel)
High Contrast Ratio
The combined expertise of BenQs projector know-hows delivers an astounding 8,300:1 contrast at the highest to significantly improve the black level for superbly rendered image definition.
High Contrast - Low Contrast
Hollywood Quality Video (HQV) Processing
A sophisticated image-processing engine, HQV converts standard definition (SD) and regular HD video sources to Full HD-like image quality with 80% precisely scaled picture quality. HQV works with both analog and digital video sources.
Without HQV - With HQV - Chroma Transiton Enhancedment

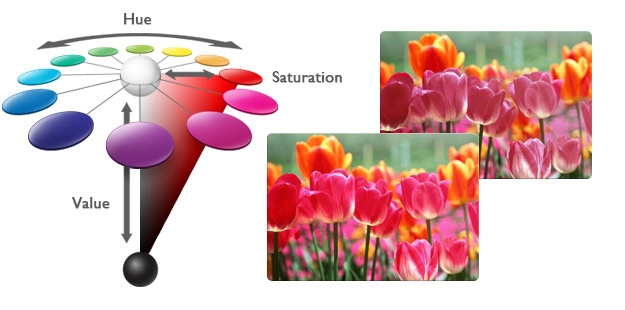

Independent 3D Color Management for Six Primary Colors
BenQs exclusive 3D color management tool ensures 100% uncompromised color customization with the freedom to independently fine-tune the hue, grain and saturation levels of all six primary colors (R/G/B/C/M/Y).
Diversified Options for Control, Manage and Display

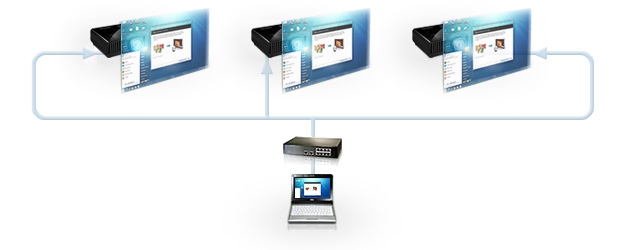

LAN Control Centralized Projector Management
LAN Control enables IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. The SH963 offers seamless support for the Crestron and PJ-Link Control system.
Upper Lamp Door for Easy Lamp Access
The upper lamp door is designed for IT managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.

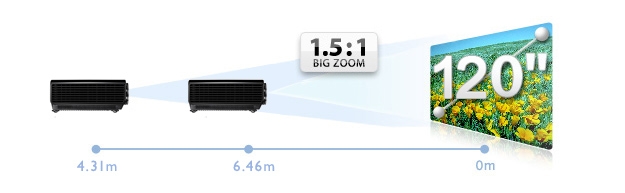

Big Zoom for Extra Projector Installation Flexibility
SH963 1.5x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector setting re-construction costs to your budget list, youll get to save the money for better use.
BenQ DLP Projectors? Long-Lasting Image Perfection with DLP Technology
Timeless Image Quality:
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Non-DLP Projector
Orginal Color - After 2000 Hours of Use - After New Lamp Installed
BenQ DLP Projector
Original Color - After 2000 Hours of Use - After New Lamp Installed
DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQs SmartEco Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
Razor-Sharp Clarity with Ultra-Readability:
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.
Non-DLP Projector | BenQ DLP Projector
Vibrant, True-to-Life Colors:
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
Non-DLP Projector | BenQ DLP Projector
(All photos portraying projection scenarios are simulated.)
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
BenQ DLP® Projectors? Long-Lasting Image Perfection with DLP Technology
Timeless Image Quality:
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Specifications
| Projection System |
DLP |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness* |
6000AL |
| Contrast Ratio |
8300:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.48~2.81, f=24.1~36.15mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.62~2.43(55.7"@ 2m) |
| Image Size (Diagonal) |
28"~300" |
| Zoom Ratio |
1.5:1 |
| Lamp Type |
350W x 2 |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
2000/2500/NA hours |
| Keystone Adjustment |
2D, Vertical & Horizontal 30 degrees |
| Projection Offset |
Vertical: 120%(5%); Horizontal: 40%(5%) |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~92KHz |
| Vertical Scan Rate |
23~85Hz |
| Dimensions(W x H x D) |
443 x 167 x 355 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
13KG |
| Audible Noise |
44/40/41/38 db (Dual Brightness / Dual Reliable / Single Alternative / Single Eco) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
940W (typical), Standby<0.5W |
| On-Screen Display Languages |
ENGLISH/ / FRANAIS/ ESPAOL/ DEUTSCH/ ITALIANO/ / / / / Nederlands/ Portugus/ svenska/ etina/ polski/ / Trke (17 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Ceilling Mount
3D Glasses |
