24/02
|
Unitek Y-2165B On-The-Go Dock + SD Card Reader - To Suit Smartphones/Tablet - Silver Unitek OTG Dock + SD Card Reader for Smart Phone/Tablet
Description
The Unitek OTG Dock provides a convenient way to access expanded storage on your Android device using the OTG standard.
The elegant, white device-stand connects to your Android phone or tablet using the attached Micro USB cable, opening up access to the 3 onboard USB ports and single SD card slot. Yes, your device may already have a MicroSD card slot, but now you can connect full-sized SD cards from an LCD camera, or a USB flash drive, even a portable USB HDD full of movies or music.
This presents a myriad of potential uses whether for backing up, transferring, editing or sending your photos, or simply enjoying some entertainment either at home or on the go. For extra productivity try connecting a mouse and mini-keyboard to the USB ports and your Android device suddenly becomes a full mobile office.
Features
- OTG Transfer Protocol: compatible with all Smartphones & Tablets supporting the OTG standard
- Provides 3 USB ports and 1 SD Card reader slot
- Unique OTG port allows Smartphone and tablets to act as a host for other USB devices like a USB flash drive, digital camera, mouse or keyboard
- Ergonomic device-stand design enables you to effortlessly read, watch movies, record video and much more
- New extension block design adds stability and ensures a slim, portable form factor
Specifications:
- 4 downstream (3 USB2.0 A Female & 1 SD Card Reader)
- 1 upstream ports (USB2.0 Micro B Male 5pin)
- Supports movie background playing and other operations working simultaneously
- Support SDHC (32G) / SDXC (64G)
- Plug and play, supports hot swap
- Compliant with USB 2.0, transmission rate up to 480Mbps
Packing Contents:
- 1 X OTG Smart Phone/Tablet Dock + SD Card Reader
- 1 X USB2.0 AM to Micro B Cable
|
|
|
|
24/02
|
Olympus TG860 Tough Digital Camera - Orange
- 16MP, 5x Optical Zoom, 4x Digital Zoom, 3.74-18.7mm (35mm Equivalent 21-105mm), 3.0" 180 Degree Flip Screen, Image Stabilization, 1080P HD Movie TG-860
16 MP
BSI CMOS
SENSOR
WiFi
GPS
BUILT-IN
50FT
15M
WATERPROOF
FULL
HD VIDEO
1080/60P
Overview
Tough
Is Only The Beginning
Dependably
RUGGED.
Surprisingly Sophisticated.
The new TG-860 is the camera you’ll want to have along for every adventure. Its brawny exterior is built to withstand harsh weather and rough treatment, while its powerful mix of image processing power, creative flexibility, and up-to-the-minute connectivity – with built-in WiFi and GPS – make this camera the perfect choice for capturing action-packed photos and videos. Wherever you take the TG-860, share-worthy shots are sure to follow.
Push Your Limits
The TG-860 blasts right through previous limitations on rugged camera technology. Now waterproof to 50ft/15m, this compact powerhouse boasts an ultra-wide angle, super-sharp 21mm (equivalent) lens to get everyone in the shot, a full 180-degree flip LCD monitor perfect for selfies, and integrated WiFi and enhanced GPS functionality for fast geotagging of your adventure locations. A second tripod baseplate even allows for easy vertical mounting.
Accessorize
Customize your TG-860 so that it’s ready to go when you are. The new Sport Holder lets you attach the camera to backpack straps or a chest harness – perfect for POV action videos – while the Underwater Case makes the TG-860 the perfect companion for even deeper dives (up to 147ft/45m). Add carabineer straps, floating foam wrist straps, protective cases and more for a complete outdoor photography system.
Features
DIVE DEEPER
Whether you’re an extreme adventurer or a family on the go, the TG-860’s robust construction comes in handy. This Tough camera boasts increased waterproof capability to depths of 50ft/15m. It’s freezeproof to 14°F/-10°C, shockproof to 7ft/2.1m, crushproof to 220lbf/100kgf, and dustproof, so this camera will capture amazing photos in any condition. No matter where your adventures take you, you won’t believe the shots you’ll bring home!

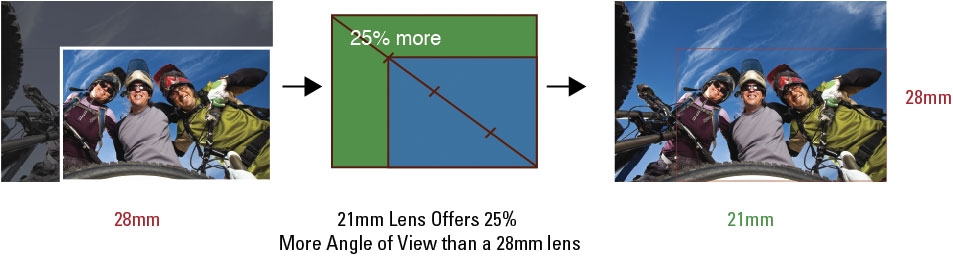

Wide-Angle
WOW
When you take a great shot, especially in a scenic outdoor location, you want the photo to reflect every gorgeous detail. The TG-860’s ultra-wide angle lens captures more of every scene – at 21mm (equivalent), it’s 25% wider than 28mm competitors! The lens is enhanced with Olympus-quality high refractive index glass to help minimize chromatic aberration. What you capture is more of what you saw.

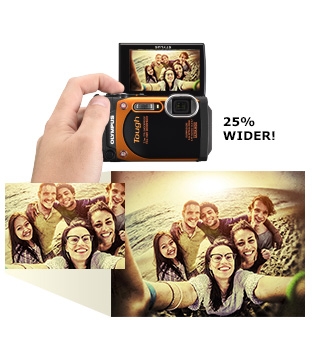

Perfect Point Of View
Overhead shots. Low-angle shots. Selfies. Groupies! All types of shots are easier than ever thanks to the TG-860’s exclusive 180-degree flip LCD monitor. Two custom function buttons, one on the front and one on the back, allow you to configure the shutter release and other controls for maximum convenience, enabling selfie shooting with either hand. The TG-860 helps you nail unique images from just about any perspective.

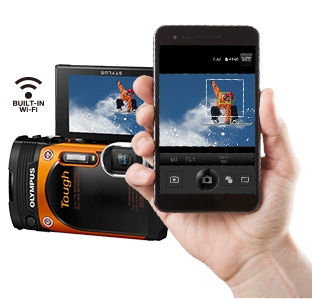

Shoot And Share From Anywhere
The TG-860’s built-in WiFi keeps you connected no matter how far you roam, and the camera’s enhanced GPS function pinpoints your location in seconds via multiple satellite positioning systems. With Olympus’ advanced OI.Share app, you can control multiple camera functions remotely from your smartphone, easily transfer shooting info and GPS coordinates from the TG-860 to your phone, and by using the OI.Track app, include them when you share your images.
Shoot Faster
Never miss the moment! The TG-860’s quick-to-use Sportcam Mode is all about action, putting four video options right at your fingertips: 60p Movie for full HD quality, High-Speed Movie for slow-motion playback, Time Lapse Movie for short videos of long adventures, and Sport Burst to facilitate sequential shooting with interval settings. Add in the TG-860’s two customizable function buttons and the 180-degree flip monitor and you’re ready to score amazing images and jaw-dropping movies from any angle.
Specifications
DIVE DEEPER
Model Name: Olympus TG-860
Model Description: Tough, 16M CMOS, 21mm (equivalent) Ultra-Wide Lens, 3.0” HVGA, 180° Tilt LCD, WiFi, GPS, OI.Share2.5, OI.Track1.1.1
Image Sensor: 16 Megapixel, BSI-CMOS, 1/2.3
CCD Sensitivity: ISO 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / AUTO / HIGH
Image Processor: TruePic VII
Waterproof: 50ft (15m)
Shockproof: 7ft (2.1m)
Crushproof: 220lbf (100kgf)
Freezeproof: 14°F (-10°C)
Dustproof: Yes
Scratchproof: No
When the Flip LCD is closed
WIDE-ANGLE WOW
Focal Length: 3.74 - 18.7mm (35mm equivalent 21 - 105mm)
Aperature Range: F3.5 (W) - F5.7 (T)
Shutter Speed: Auto: 1/2 - 1/2000 (Night Scene: Longest 4 Sec)
Zoom: Still: 5x Optical Zoom, 4x Digital Zoom, 2x Super Resolution Zoom; Video: 5x Optical Zoom, 4x Digital Zoom
Image Stabilization: Still: Lens Shift; Video: Hybrid (Lens Shift + Digital) 5 axis
PERFECT POINT OF VIEW
Monitor Type: 180° Flip LCD
Monitor Size: 3.0” (16:9)
Monitor Resolution: 460K Dots
Touchscreen: No
Monitor Backlight Boost: Yes
Monitor Brightness Adjustment: ±2 Steps
SHOOT AND SHARE FROM ANYWHERE
WiFi: Yes
GPS: Yes
Eye-Fi Card Compatible: Yes
LED Illuminator: Yes
Battery Type: Lithium-Ion Rechargeable Battery (LI-50B)
Battery Life: Still: 300 shots; Video: 90 min (continuous video shooting)
SHOOTFASTER
Mode Dial - Shooting Modes: Intelligent Auto (iAUTO), Program Auto (P), Super Macro, Scene Modes (19), Art Filters (7), Sportcam, Panorama, Self Portrait
Continuous Sequential Shooting: Approx. 2.5 fps / 200 images (16M); Approx. 7 fps / 7 images (16M); Approx. 20 fps / 60 images (3M); Approx. 60 fps / 60 images (3M)
Interval Sequential Shooting: 1-99 frames; 0-60 min start timer; 10 sec-60 min interval time
Sportcam Mode: Full HD 60p Movie, High-Speed Movie, Time Lapse Movie, Sport Burst
STILLS AND VIDEO WORTH SHARING
Picture Modes: Vivid, Natural, Muted, Fish Eye, Sparkle*, Reflection, Fragmented*, Pop Art, Soft Focus, Pale&Light Color, Grainy Film, Pin Hole, Diorama, Dramatic Tone
Still image only
Scene Modes: Portrait, ePortrait, Landscape, Interval Shooting, Hand-Held Starlight, Night Scene, Night+Portrait, Sport, Indoor, Sunset, Fireworks, Cuisine, Documents, Beach&Snow, Underwater Snapshot, Underwater Wide 1, Underwater Wide 2, Underwater Macro, Backlight HDR
Art Filters: Pop Art, Soft Focus, Pale&Light Color, Grainy Film, Pin Hole, Diorama, Dramatic Tone
Panorama: Smart Panorama: Standard and Full 360° Views
Still Image Edit: Resize, Crop, Redeye Fix, Shadow Adjustment
Video File Format: MOV/H.264
Video Modes:
1080 60p, 720 60p, 480 60p, 1080p, 720p, 480p, VGA, HS120fps (4:3) / (16:9), HS240fps (4:3) / (16:9)
When shooting 1080 60p / 720 60p / 1080p / 720p movies, use SDHCclass6 (speed class) / SDXCclass6 or higher
High-Speed Movie Size HS120fps: 640x480 (4:3) / 854x480 (16:9), HS240fps: 480x360 (4:3) / 640x360 (16:9)
Time-Lapse Movie Size 1080p, 720p, 480p
Video Recording Time: 1080 60p, 720 60p, 1080p, 720p: continuously up to 29 min. or up to 4GB. Others: up to 4GB.
Audio Recording: Linear PCM
Microphone: Yes (Stereo)
Speaker: Yes
Video Edit: Yes
ADDITIONAL INFORMATION
4-Arrow Key: Yes
Direct Buttons: 5 (OK, Menu, Movie, Play, Face)
LEDs: 2 (Status, Self / AF Illuminator / Macro)
Self-timer: 2 sec, 12 sec, Custom Self-timer (1-30 sec start timer, 1-10 pictures, 1-3 sec interval)
AF: CMOS Contrast Detection
AF Focus Mode: Face Detection iESP AF, Spot AF, AF Tracking
AF Lock: Yes (Underwater Snap, Underwater Wide1, Underwater Macro, Super Macro, Sportcam)
AF Illuminator: Built-in AF Illuminator
AF Tracking: Yes
Face Detection: Yes (up to 8)
Still Image File Format: JPEG: 16M(4:3/3:2/16:9/1:1), 8M(4:3/3:2/16:9/1:1), 3M(4:3/3:2/16:9/1:1), VGA(4:3/3:2/16:9/1:1)
Distortion Compensation: Yes
Auto-Connect USB: USB 2.0 High-Speed (USB Mass Storage)
Outer Connectors: Multi-terminal (USB Connector, DC Jack, Audio/Video Output), HDMI Type D
DC Coupler: BPC-13
PictBridge: Yes
PictBridge Easy Print: Yes
Removable Media Card: SD, SDHC, SDXC
Internal Memory: 37MB
Internal Memory Backup: Yes
Flash Modes: Auto, Red-Eye Reduction, Fill-in, Off, LED
External Flash: Yes (Wireless)
Dimensions: 4.4 W x 2.5 H x 1.1 D (112.9mm W x 64.1mm H x 27.6mm D)
Weight: 7.7oz (224g)
OS Support: Windows 8.1, Windows 8, Windows 7 SP1, Windows Vista SP2, Windows XP SP3, Mac OS OS X v10.5 - v10.10
Bundled Items: TG-860 Digital Camera, Premium Wrist Strap, LI-50B Rechargable Lithium-Ion Battery, USB Cable and AC Adapter, Quick Start Guide, Waterproof Instructions, CD-ROM with Instruction Manual and Olympus Viewer 3 Software, Warranty Card
|
|
|
|
24/02
|
Olympus TG860 Tough Digital Camera - Black
- 16MP, 5x Optical Zoom, 4x Digital Zoom, 3.74-18.7mm (35mm Equivalent 21-105mm), 3.0" 180 Degree Flip Screen, Image Stabilization, 1080P HD Movie TG-860
Colour: Black
16 MP
BSI CMOS
SENSOR
WiFi
GPS
BUILT-IN
50FT
15M
WATERPROOF
FULL
HD VIDEO
1080/60P
Overview
Tough
Is Only The Beginning
Dependably
Rugged.
Surprisingly Sophisticated.
The new TG-860 is the camera you’ll want to have along for every adventure. Its brawny exterior is built to withstand harsh weather and rough treatment, while its powerful mix of image processing power, creative flexibility, and up-to-the-minute connectivity – with built-in WiFi and GPS – make this camera the perfect choice for capturing action-packed photos and videos. Wherever you take the TG-860, share-worthy shots are sure to follow.
Push Your Limits
The TG-860 blasts right through previous limitations on rugged camera technology. Now waterproof to 50ft/15m, this compact powerhouse boasts an ultra-wide angle, super-sharp 21mm (equivalent) lens to get everyone in the shot, a full 180-degree flip LCD monitor perfect for selfies, and integrated WiFi and enhanced GPS functionality for fast geotagging of your adventure locations. A second tripod baseplate even allows for easy vertical mounting.
Accessorize Your Gear
Customize your TG-860 so that it’s ready to go when you are. The new Sport Holder lets you attach the camera to backpack straps or a chest harness – perfect for POV action videos – while the Underwater Case makes the TG-860 the perfect companion for even deeper dives (up to 147ft/45m). Add carabineer straps, floating foam wrist straps, protective cases and more for a complete outdoor photography system.
Dive Deeper
Whether you’re an extreme adventurer or a family on the go, the TG-860’s robust construction comes in handy. This Tough camera boasts increased waterproof capability to depths of 50ft/15m. It’s freezeproof to 14°F/-10°C, shockproof to 7ft/2.1m, crushproof to 220lbf/100kgf, and dustproof, so this camera will capture amazing photos in any condition. No matter where your adventures take you, you won’t believe the shots you’ll bring home!
Wide-Angle
WOW
When you take a great shot, especially in a scenic outdoor location, you want the photo to reflect every gorgeous detail. The TG-860’s ultra-wide angle lens captures more of every scene – at 21mm (equivalent), it’s 25% wider than 28mm competitors! The lens is enhanced with Olympus-quality high refractive index glass to help minimize chromatic aberration. What you capture is more of what you saw.
Perfect Point Of View
Overhead shots. Low-angle shots. Selfies. Groupies! All types of shots are easier than ever thanks to the TG-860’s exclusive 180-degree flip LCD monitor. Two custom function buttons, one on the front and one on the back, allow you to configure the shutter release and other controls for maximum convenience, enabling selfie shooting with either hand. The TG-860 helps you nail unique images from just about any perspective.
Shoot And Share From Anywhere
The TG-860’s built-in WiFi keeps you connected no matter how far you roam, and the camera’s enhanced GPS function pinpoints your location in seconds via multiple satellite positioning systems. With Olympus’ advanced OI.Share app, you can control multiple camera functions remotely from your smartphone, easily transfer shooting info and GPS coordinates from the TG-860 to your phone, and by using the OI.Track app, include them when you share your images.
Shoot Faster
Never miss the moment! The TG-860’s quick-to-use Sportcam Mode is all about action, putting four video options right at your fingertips: 60p Movie for full HD quality, High-Speed Movie for slow-motion playback, Time Lapse Movie for short videos of long adventures, and Sport Burst to facilitate sequential shooting with interval settings. Add in the TG-860’s two customizable function buttons and the 180-degree flip monitor and you’re ready to score amazing images and jaw-dropping movies from any angle.
Specifications
DIVE DEEPER
Model Name: Olympus TG-860
Model Description: Tough, 16M CMOS, 21mm (equivalent) Ultra-Wide Lens, 3.0” HVGA, 180° Tilt LCD, WiFi, GPS, OI.Share2.5, OI.Track1.1.1
Image Sensor: 16 Megapixel, BSI-CMOS, 1/2.3
CCD Sensitivity: ISO 125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / AUTO / HIGH
Image Processor: TruePic VII
Waterproof: 50ft (15m)
Shockproof: 7ft (2.1m)
Crushproof: 220lbf (100kgf)
Freezeproof: 14°F (-10°C)
Dustproof: Yes
Scratchproof: No
WIDE-ANGLE WOW
Focal Length: 3.74 - 18.7mm (35mm equivalent 21 - 105mm)
Aperature Range: F3.5 (W) - F5.7 (T)
Shutter Speed: Auto: 1/2 - 1/2000 (Night Scene: Longest 4 Sec)
Zoom: Still: 5x Optical Zoom, 4x Digital Zoom, 2x Super Resolution Zoom; Video: 5x Optical Zoom, 4x Digital Zoom
Image Stabilization: Still: Lens Shift; Video: Hybrid (Lens Shift + Digital) 5 axis
PERFECT POINT OF VIEW
Monitor Type: 180° Flip LCD
Monitor Size: 3.0” (16:9)
Monitor Resolution: 460K Dots
Touchscreen: No
Monitor Backlight Boost: Yes
Monitor Brightness Adjustment: ±2 Steps
SHOOT AND SHARE FROM ANYWHERE
WiFi: Yes
GPS: Yes
Eye-Fi Card Compatible: Yes
LED Illuminator: Yes
Battery Type: Lithium-Ion Rechargeable Battery (LI-50B)
Battery Life: Still: 300 shots; Video: 90 min (continuous video shooting)
SHOOTFASTER
Mode Dial - Shooting Modes: Intelligent Auto (iAUTO), Program Auto (P), Super Macro, Scene Modes (19), Art Filters (7), Sportcam, Panorama, Self Portrait
Continuous Sequential Shooting: Approx. 2.5 fps / 200 images (16M); Approx. 7 fps / 7 images (16M); Approx. 20 fps / 60 images (3M); Approx. 60 fps / 60 images (3M)
Interval Sequential Shooting: 1-99 frames; 0-60 min start timer; 10 sec-60 min interval time
Sportcam Mode: Full HD 60p Movie, High-Speed Movie, Time Lapse Movie, Sport Burst
STILLS AND VIDEO WORTH SHARING
Picture Modes: Vivid, Natural, Muted, Fish Eye, Sparkle*, Reflection, Fragmented*, Pop Art, Soft Focus, Pale&Light Color, Grainy Film, Pin Hole, Diorama, Dramatic Tone
Still image only
Scene Modes: Portrait, ePortrait, Landscape, Interval Shooting, Hand-Held Starlight, Night Scene, Night+Portrait, Sport, Indoor, Sunset, Fireworks, Cuisine, Documents, Beach&Snow, Underwater Snapshot, Underwater Wide 1, Underwater Wide 2, Underwater Macro, Backlight HDR
Art Filters: Pop Art, Soft Focus, Pale&Light Color, Grainy Film, Pin Hole, Diorama, Dramatic Tone
Panorama: Smart Panorama: Standard and Full 360° Views
Still Image Edit: Resize, Crop, Redeye Fix, Shadow Adjustment
Video File Format: MOV/H.264
Video Modes:
1080 60p, 720 60p, 480 60p, 1080p, 720p, 480p, VGA, HS120fps (4:3) / (16:9), HS240fps (4:3) / (16:9)
When shooting 1080 60p / 720 60p / 1080p / 720p movies, use SDHCclass6 (speed class) / SDXCclass6 or higher
High-Speed Movie Size HS120fps: 640x480 (4:3) / 854x480 (16:9), HS240fps: 480x360 (4:3) / 640x360 (16:9)
Time-Lapse Movie Size 1080p, 720p, 480p
Video Recording Time: 1080 60p, 720 60p, 1080p, 720p: continuously up to 29 min. or up to 4GB. Others: up to 4GB.
Audio Recording: Linear PCM
Microphone: Yes (Stereo)
Speaker: Yes
Video Edit: Yes
ADDITIONAL INFORMATION
4-Arrow Key: Yes
Direct Buttons: 5 (OK, Menu, Movie, Play, Face)
LEDs: 2 (Status, Self / AF Illuminator / Macro)
Self-timer: 2 sec, 12 sec, Custom Self-timer (1-30 sec start timer, 1-10 pictures, 1-3 sec interval)
AF: CMOS Contrast Detection
AF Focus Mode: Face Detection iESP AF, Spot AF, AF Tracking
AF Lock: Yes (Underwater Snap, Underwater Wide1, Underwater Macro, Super Macro, Sportcam)
AF Illuminator: Built-in AF Illuminator
AF Tracking: Yes
Face Detection: Yes (up to 8)
Still Image File Format: JPEG: 16M(4:3/3:2/16:9/1:1), 8M(4:3/3:2/16:9/1:1), 3M(4:3/3:2/16:9/1:1), VGA(4:3/3:2/16:9/1:1)
Distortion Compensation: Yes
Auto-Connect USB: USB 2.0 High-Speed (USB Mass Storage)
Outer Connectors: Multi-terminal (USB Connector, DC Jack, Audio/Video Output), HDMI Type D
DC Coupler: BPC-13
PictBridge: Yes
PictBridge Easy Print: Yes
Removable Media Card: SD, SDHC, SDXC
Internal Memory: 37MB
Internal Memory Backup: Yes
Flash Modes: Auto, Red-Eye Reduction, Fill-in, Off, LED
External Flash: Yes (Wireless)
Dimensions: 4.4” W x 2.5” H x 1.1” D (112.9mm W x 64.1mm H x 27.6mm D)
Weight: 7.7oz (224g)
OS Support: Windows 8.1, Windows 8, Windows 7 SP1, Windows Vista SP2, Windows XP SP3, Mac OS OS X v10.5 - v10.10
Bundled Items: TG-860 Digital Camera, Premium Wrist Strap, LI-50B Rechargable Lithium-Ion Battery, USB Cable and AC Adapter, Quick Start Guide, Waterproof Instructions, CD-ROM with Instruction Manual and Olympus Viewer 3 Software, Warranty Card
|
|
|
|
24/02
|
Messoa NID318 Indoor Dome Network Camera - 5 Megapixel, H.264, Triple Streaming, 10M, 3-Dimensional Lens Adjustment, Ultra Wide Dynamic Range, SDHC/SDXC Card Support - White NID318
1/3.2 Lumii sensor, H.264, triple streaming, 10m (33ft)
Features
Overview
MESSOA NID318 5MP Indoor IR Dome Network Camera features night vision for low profile, detail-demanding applications in low light. The 5-megapixel resolution allows maximum image detail and coverage for mission critical installations. Measuring 12.6cm in diameter while sticking out merely 5.6cm from the ceiling, the ultra-compact NID318 is ideal for discreet surveillance, while combining enhanced WDR and 3DNR to deliver optimized images in challenging lighting conditions. The camera also features a unique spherical lens stand, allowing installers to adjust the camera angle flexibly for achieving the desired field of view when mounted on ceiling.
10m Night Vision with Even IR Illumination
The camera is built in with high-power IR LED to deliver superior night vision up to 10 meters. The IR LED evenly illuminates the environment for effective indoor surveillance in complete darkness.
3-dimensional Lens Adjustment
The megapixel lens sits on top of a unique spherical stand featuring full-ranged, 3-dimensional pan/tilt maneuvering capability, which enables the installers to adjust the camera angle freely when mounted on ceiling.
Ultra Wide Dynamic Range
Compared with standard WDR, the new generation WDR features sophisticated algorithm to further expand its dynamic range of the lighting conditions. It allows the camera capturing greater scene details in high contrast settings or in scenes with extremely bright and dark areas
SDHC/SDXC Card Support
The camera supports onboard storage to record images and/or video clips with the built in memory card slot for high-capacity SDHC/SDXC card up to 64GB. Recording could be initiated upon motion-detected events or network loss. The saved data can be easily managed via remote access.
Specifications
Video
|
| Sensor Type |
1/3.2" progressive scan CMOS sensor |
| Active Pixels |
2592 x 1944 (HxV) |
| Compression |
H.264 / MJPEG |
| Streaming |
Triple simultaneous streams with multiple video profile |
| Resolution |
2592x1944, QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), VGA(640x480), 640x360, QVGA(320x240), 320x180 |
| Max. Frame Rate |
5MP 4:3 (2592x1944) at 12 fps
3MP 4:3 (2048x1536) at 15 fps
2MP Full HD 16:9 (1920x1080) at 30/25fps (NTSC/PAL) |
| Day/Night |
Mechanical (ICR) D/N Control |
| Day/Night Mode |
Auto / BW / Color |
| Shutter Time |
1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz) |
| Minimum Illumination |
IR LED OFF: Color: 0.4 lux at 50 IRE, 0.08 lux at 10 IRE, F1.8
(Shutter speed: 1/15 sec)
IR LED ON: 0 Lux |
| Bit Rate Control |
CBR, VBR |
Lens
|
| Lens Type |
Built-in; fixed focal |
| Focal Length |
f=2.8mm, F1.8 |
| View Angle |
H: 78 / V: 43 |
IR LEDs
|
| LED Quantity |
4pcs (850nm) |
| IR Distance |
10 meters (33 ft.) |
| IR turn on status |
Under 5 Lux by auto control |
| LED Life |
More than 10,000 hours |
Image Enhancement
|
| Image Settings |
AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation;
Configurable Brightness, Contrast, Hue, Saturation, and Sharpness,
Gamma Correction |
| WDR |
Enhanced Digital WDR |
| DNR |
3DNR |
| Privacy Zone |
Yes, up to 8 privacy zones |
| Image Orientation |
Mirror, Flip |
| Frequency Control |
NTSC (60Hz) / PAL (50Hz) |
| Date & Time Stamp |
Yes |
Intelligent Video & Event Management
|
| Motion Detection |
Yes, 3-level sensitivity |
| Ethernet Detection |
Network loss detection |
| Others |
Optimized i-frame (GOP) setting |
| Events |
Motion detection |
| Event Actions |
Event snapshot to remote FTP storage/email recipients,
HTTP event query, HTTP event client pulling |
| Store Category |
Event snapshot, Manual Snapshot, Manual Recording |
Local Storage*
|
| Memory Card Slot |
SDXC/SDHC card support (Card not included) |
| Memory Card Overwrite |
Yes |
Network
|
| Protocol |
ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP, IEEE802.1X |
| Ethernet |
IEEE 802.3, 10Base-T/100Base-TX Ethernet connection
for LAN / WAN, 1 x RJ45 |
| ONVIF |
Yes |
| Browser |
Internet Explorer, Chrome, Firefox |
| Security |
Multiple user access levels with password protection;
IP address filtering
IEEE 802.1X network access control, HTTPS encryption,
and digest authentication |
I/O & Controls
|
| Power |
All-in-one tail cable out, Female RJ-45 |
| Power LED Indicator |
System power and status indicator |
| Network |
Female RJ-45 |
| System Reboot |
Reset x 1 |
| Factory Default |
Default x 1, pressing 5 sec for loading factory default |
Power
|
| Power Requirement |
PoE (IEEE 802.3af), class 0 |
| Power Consumption (Max.) |
7W |
Mechanical
|
| Dimensions(xH) |
126mm x 56mm (4.96 x 2.20) |
| Weight |
300g (0.66 lb) |
| 3-Axis |
Yes |
| Pan/Tilt Adjustment |
Pan:-177~177(Max.), Tilt: 35-90(Max.),
Rotate: -177-177(Max.) |
Environmental
|
| Operating Temperature |
-10C ~ 50C (-14F ~ 122F) |
| Operating Humidity |
90% RH, non-condensing |
| Storage Temperature |
-20C ~ 60C (-4F ~ 140F) |
Regulatory
|
| Approvals |
CE, FCC, RoHS, UL/cUL |
Ordering Information
|
| Model No. |
NTSC: NID318-N3-MES; PAL: NID318-P3-MES |
| Accessories |
Surface mount: standard package support |
*
1. Memory card not included.
2. No memory card clot & local storage function for Argentina and Ecuador
|
|
|
|
24/02
|
Messoa NDR721 Indoor Dome Network Camera - 1.3 Megapixel, H.264, Triple Streaming, 5M (16FT) IR, ICR Day/Night, Digital WDR, Ultra Wide Dynamic Range, MicroSD/SDHC Card Slot - White NDR721
1/4 Lumii sensor, H.264, triple streaming,5m (16ft) IR, ICR day/night, digital WDR,Wi-Fi (optional), microSD/SDHC card slot
Features
Overview
MESSOA NDR721 is a 1.3MP Indoor IR Dome Network camera designed for indoor applications via plug-and-play integration with MESSOA Lite Series NVR. Measuring just 9cm in diameter, the ultra-compact camera is able to blend into the surroundings perfectly to meet special requirements for discreet surveillance. The megapixel video delivers wider coverage, while the built-in wide-angle IR LED ensures night vision up to 5m in total darkness. The camera also features Wi-Fi connectivity that can be directly applied with the existing Wi-Fi network or where a wired network connection may not be available.
Easy Plug-and-play NVR Solution Ready
The camera supports plug-and-play when joined with the MESSOA Lite Series NVR, making installation hassle-free. It is ideal for users who are new to IP technology but want to make an upgrade from the analog system.
Compact Design Ideal for Discreet Surveillance
The sleek, compact-designed housing allows the camera to be easily installed and blend in the environment for unobtrusive monitoring, which is perfectly suited where discreet, covert surveillance is required.
Ultra Wide Dynamic Range
Compared with standard WDR, the new generation WDR features sophisticated algorithm to further expand its dynamic range of the lighting conditions. It allows the camera to capture greater details in high contrast settings or in scenes with extremely bright and dark areas.
5m Night Vision with Even IR Illumination
The camera is built in with high-power IR LED to deliver superior night vision up to 5 meters. The IR LED ensures even illumination for effective indoor surveillance in complete darkness
Specifications
Video
|
| Sensor Type |
1/4" image sensor |
| Active Pixels |
1280 x 1024 (HxV) |
| Compression |
H.264 / MPEG4 / Motion JPEG |
| Streaming |
Simultaneously multi-profile streaming |
| Resolution |
1280x1024, 1024x768, 800x600,640x480,320x240, 160x120 (1.3M mode)
1280x720, 800x450, 640x360, 320x180 (16:9 mode) |
| Max. Frame Rate |
1.3MP (1280x1024) at 30 fps (NTSC)
1.3MP (1280x1024) at 25 fps (PAL) |
| Day/Night |
Mechanical (ICR) D/N Control |
| Day/Night Mode |
Auto/ Day/ Night |
| Shutter Time |
Range from 1/7s to 1/25,000s |
| Minimum Illumination |
IR LED Off (shutter speed: 1/30 sec):
0.1 Lux @10IRE; 0.5 Lux @50IRE
IR LED On: 0 lux |
| Bit Rate Control |
Multi-profile bit rate control: CBR/ VBR/ ECBR/ EVBR |
Lens
|
| Lens Type |
Built-in; Fixed Lens |
| Focal Length |
f=2.8 mm, F2.0 (Mega pixel lens) |
| View Angle |
H: 64.7/ V: 52.5 |
IR LEDs
|
| LED Quantity |
6pcs (850nm) |
| IR Distance |
5 meters (16.40ft.) |
| IR turn on status |
Under 10 Lux by auto control (light sensor), threshold adjustable in UI |
| LED Life |
More than 10,000 hours (50C) |
Audio
|
| Audio Communication |
One-way audio |
| Compression |
G.711, PCM, 64kHz |
| Audio In/Out |
Built-in microphone |
Image Enhancement
|
| Image Settings |
AWB, AES, AGC;
Flickerless Mode: On/ Off;
Exposure & Gain Mode: Auto/ Manual;
White Balance: Auto/ Fixed;
Sharpness, Saturation, Brightness, Contrast: 17 (level 0~16) level sensitivity;
Exposure Level: 15 (level 1~15) level sensitivity |
| Digital WDR |
Yes |
| Privacy Zone |
Yes; customized threshold privacy zone (up to 8) |
| Image Orientation |
Mirror, Flip |
| Frequency Control |
50Hz, 60Hz |
| Date & Time Stamp |
Yes |
Intelligent Video & Event Management
|
| Motion Detection |
Up to 3 customized threshold detection windows,
101 (0~ 100) detectd object size or level sensitivity |
| Audio Detection |
101 (0~ 100) level threshold |
| Ethernet Detection |
Network Fail detection |
| Others |
Snapshot, digital Zoom, Optimized i-frame setting |
| Events |
Motion detection, Audio detection, External alarm, Manual Trigger, Network Fail, Periodically Trigger |
| Event Actions |
File upload via FTP, SMTP and SAMBA;
Notification via FTP, and email;
Video and audio recording to SAMBA |
| Store Category |
Alarm / Motion / Schedule/ Un-interrupt recording
Stores video clips and snapshots |
Local Storage*
|
| Memory Card Slot |
Micro SD / Micro SDHC Card up to 32 GB |
| Memory Card Overwrite |
Yes |
Network
|
| Protocol |
IPv4, IPv6, HTTP, HTTPS, SMTP, FTP, DHCP, NTP,
TCP/IP, UDP, UPnP, RTSP/RTCP/RTP,DNS,DDNS, PPPoE, IGMP, ICMP, QoS, Bonjour, Samba, Multicast, ARP |
| Ethernet |
10Base-T/100Base-TX Ethernet connection for
LAN/WAN, RJ-45 |
| WiFi (optional) |
Once WiFi Dongle (802.11n with WPS function) inserted |
| PoE |
IEEE 802.3af, class 3 |
| ONVIF |
Yes |
| Browser |
IE Browser 8.0 or above, Chrome, Firefox, Safari |
| Security |
Three-level access with password protection |
I/O & Controls
|
| Power |
Terminal Block |
| Power LED Indicator |
Yes |
| Alarm In/Out |
Terminal Block 1 in / 1 out |
| Network |
RJ-45 with LEDs (Networkindicator) |
| Audio In/Out |
Build in microphone |
| Reset |
Within 5 sec for rebooting system; more than 10 sec untilredLEDstartstoflash for loading default |
| BicolorLED |
Power&SystemStatus |
Power
|
| Power Requirement |
DC 12V 10% / PoE (IEEE 802.3af, class 3) |
| Power Consumption |
7W |
Mechanical
|
| Dimensions (xH) |
90 mm x 49 mm (3.54 x 1.93 ) |
| Weight |
160g (0.354 lb) |
Battery Backed-up
Real-time Clock |
Yes; Internal RTC |
| Pan/Tilt Adjustment |
Tilt: from 32 to 90 (Max.) |
Environmental
|
| Operating Temperature |
0C ~ 40C (32F ~ 104F) |
| Operating Humidity |
20~ 80% RH |
| Storage Temperature |
-10C ~ 50C (14F~122F) |
Regulatory
|
| Approvals |
CE, FCC, RoHS |
Ordering Information
|
| Model No. |
NTSC: NDR721-N1-MES; PAL: NDR721-P1-MES |
| Accessories |
Surface mount: standard package support |
* 1. Memory card not included. 2. No memory card clot & local storage function for Argentina and Ecuador
|
|
|
|
24/02
|
Messoa NCR375 Outdoor Bullet Network Camera - 3 Megapixel, H.264, 20M (65FT) IR, Triple Streaming, Mechanical ICR Day/Night, Intelligent Detections, IP67, 3D Noise Reduction - White NCR375
1/3” Lumii sensor, H.264, 20M (65ft) IR, triple streaming, mechanical ICR day/night, intelligent detections, IP67
Features
Overview
The NCR375 is a professional 3-megapixel bullet camera designed to deliver the ultimate image sharpness and view coverage like no others for detail-demanding outdoor surveillance. A true day/night camera, the NCR375 features enhanced sensitivity backed by proprietary low light technology, 20 meter IR night vision and 3DNR to provide superior image clarity in low light conditions, even in complete darkness. The 3-axis cable management bracket provides a robust mounting platform for easy, tidy installation. The built-in heater coupled with the IP67-rated enclosure ensure the camera is suited for harsh environments.
Hyper Dynamic Range
Compared with standard WDR, the new-generation Hyper Dynamic Range features sophisticated algorithm to further expand its dynamic range of the lighting conditions. It allows the camera capturing greater scene details in high contrast settings or in scenes with extremely bright and dark areas.
Easy Installation with 3-axis Cable Management Bracket
The 3-axis cable management bracket provides a robust mounting platform for tidy installation and camera angle adjustments on a 3-axis plane. It also offers a well-rounded protection of the cable from any water, dust or shock damages.
3D Noise Reduction
The 3DNR technology takes traditional DNR a step further, removing digital artifacts and grainy appearance from frame to frame, while maintaining image sharpness at low light settings, which results in more efficient bandwidth utilization and less storage space consumption.
Infrared Illumination
The built-in 25M (82ft) IR LED lights objects evenly, reducing image noises and storage requirements. The IR illuminator activates automatically when the lighting dims to under 5 lux. In night mode, the illuminator enables the camera to capture images at 0 lux. The high-power LEDs also help minimize energy consumption.
Specifications
Video
|
| Sensor Type |
1/3" image sensor optimized for low-light performance |
| Active Pixels |
2304 x 1536 (HxV) |
| Compression |
H.264 / MJPEG |
| Streaming |
Triple simultaneous streams with multiple video profile |
| Resolution |
QXGA(2048x1536), 1080P, 1280x960, 720P, SVGA(800x 600), VGA(640x480), 640x360, QVGA(320x240), 320x180 |
| Max. Frame Rate |
3MP 4:3 (2048x1536) at 15 fps
2MP Full HD 16:9 (1920x1080) at 30/25 fps (NTSC/PAL) |
| Day/Night |
Mechanical (ICR) D/N Control |
| Day/Night Mode |
Auto/ BW/ Color |
| Shutter Time |
1/10,000s to 1/7.5s Selectable (60Hz);
1/10,000s to 1/6.25s Selectable (50Hz) |
| Minimum Illumination |
IR LED OFF:
Color: 0.3 lux at 50 IRE, 0.06 lux at 10 IRE, F2.0;
(Shutter speed: 1/15 sec)
IR LED ON: 0 Lux |
| Bit Rate Control |
CBR, VBR |
Lens
|
| Lens Type |
Built-in; Fixed focal |
| Focal Length |
f=2.8mm, F2.0 |
| Focus / Zoom |
Manual |
| View Angle |
H: 905%, V: 675% |
IR LEDs
|
| LED Quantity |
24 pcs (850nm) |
| IR Distance |
25 meters (82ft) |
| IR turn on status |
Under 5 Lux by auto control |
| LED Life |
More than 10,000 hours (50C) |
Image Enhancement
|
| Image Settings |
AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Configurable Brightness, Contrast, Hue, Saturation, and Sharpness
Gamma Correction |
| WDR |
Enhanced Digital WDR |
| DNR |
Configurable 3DNR setting |
| Privacy Zone |
Yes, up to 8 privacy zones |
| Image Orientation |
Mirror, Flip |
| Frequency Control |
NTSC(60Hz)/ PAL(50Hz) |
| Date & Time Stamp |
Yes |
| Intelligent Video & Event Management |
| Motion Detection |
Yes, 3-level sensitivity |
| Ethernet Detection |
Network loss detection |
| Others |
Optimized i-frame (GOP) setting |
| Events |
Motion detection, audio detection, ethernet detection, external alarm |
| Event Actions |
Event snapshot to remote FTP storage / email recipients,
HTTP event query, HTTP event client pulling |
| Store Category |
Event snapshot, Manual Snapshot, Manual Recording |
Network
|
| Protocol |
ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, UDP, UPnP, IEEE802.1X |
| Ethernet |
10Base-T/100Base-TX Ethernet connection for
LAN / WAN, RJ-45 |
| ONVIF |
Yes |
| Browser |
Internet Explorer, Chrome, Firefox |
| Security |
Multiple user access levels with password protection;
IP address filtering
IEEE 802.1X network access control, HTTPS encryption, and digest authentication |
I/O & Controls
|
| Power |
All-in-one tail cable out
2-pin Terminal block
Female RJ-45 10BASE-T/100BASE-TX PoE |
| Power LED Indicator |
System power and status indicator |
| Alarm In/Out |
Terminal block 1 in |
| Network |
RJ-45 with LED Indicator |
| System Reboot |
Reset x 1 |
| Factory Default |
Default x 1, pressing 5 sec for loading factory default |
Power
|
| Power Requirement |
AC 24V 10% / PoE (IEEE 802.3af) |
| Power Consumption (Max.) |
9.5W |
Mechanical
|
| Dimensions (WxDxH) |
91 x 244 x 83 mm (3.58 x 9.61 x 3.27) |
| Weight |
1000g (2.15 lb) |
| Protection |
IP67 Certified, IP68 Compliant |
Environmental
|
| Operating Temperature* |
(On-board heating device) -40C~50C (-40F~122 F) |
| Operating Humidity |
90% RH, non-condensing |
| Storage Temperature |
-40C~60C (-40F~140F) |
Regulatory
|
| Approvals |
CE, FCC, RoHS |
Ordering Information
|
| Model No. |
NTSC: NCR375-N2-MES; PAL: NCR375-P2-MES |
| Accessories |
Easily adjustable 3-axis and cable-concealed bracket
with standard package |
*Arctic power-on support by PoE at -40C
|
|
|
|
Previous Page
|
Next Page
|
|
