19/02

Vivotek VC8201 Split Type Camera System - 2 Camera Options 1 Mega Pixel, WDR Or 5MP Fisheye Camera, Built-in Microphone on Camera Units, Real-time H.264 and MJPEG Compression, 3D Noise Reduction

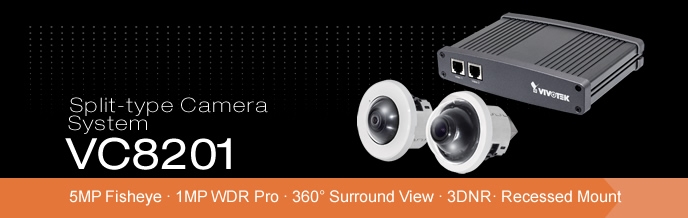

5MP Fisheye 1MP WDR Pro 360 Surround View 3DNR Recessed Mount Split-type Camera System VC8201

Overview

VIVOTEK VC8201 is a split-type camera system, which the camera unit and the video core are separated. With the separated design, it enables the camera unit to be much smaller, making installation easier as well as blending in decoration easily. In addition, the VC8201 can connect up to two 5-Megapixel camera units with 8-meter long cables, dramatically saving installation effort.

The camera units CU8131 and CU8171 are designed as recessed dome type, in order to fit in the decoration. The CU8131 is equipped with a 1MP sensor and features WDR Pro technology, allowing the camera to capture clear images with high-contrast scenes. The CU8171 is built with a 5MP sensor and fisheye lens to provide a 360 surround view without blind spots. The VC8201 can support different combinations of two camera units, making the installation more flexible.

Incorporating a number of advanced features of VIVOTEK cameras, including 3DNR, tamper detection, 802.3af compliant PoE, SD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the VC8201 is the best solution of indoor video surveillance.

Features

  • Supports Up to 2 Camera Units
  • 2 Camera Options: 1MP WDR or 5MP Fisheye Camera
  • Recessed Mount Camera Units
  • Built-in Microphone on Camera Units
  • Maximum 8 Meters Cable Connection
  • Real-time H.264 and MJPEG Compression
  • Built-in IEEE 802.3af Compliant PoE
  • 3D Noise Reduction

Specifications

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 256 MB
RAM
  • 512 MB
Camera Features
Image sensor
  • 1/3" Progressive CMOS (CU8131)
  • 1/2.5" Progressive CMOS in 2560x1920 (CU8171)
Maximum Resolution
  • 30 fps @ 1280x800 (CU8131)
  • 15 fps @ 1696x1696 (CU8171)
Focal Length
  • f=3.6mm (CU8131)
  • f=1.27mm (CU8171)
Aperture
  • F1.8 (CU8131)
  • F2.0 (CU8171)
Field of View
  • CU8131
    • 86 (horizontal)
    • 51 (vertical)
    • 103 (diagonal)
  • CU8171
    • 180 (horizontal)
    • 180 (vertical)
    • 180 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR Pro (CU8131)
  • WDR enhanced (CU8171)
Minimum Illumination
  • CU8131
    • 1.05 Lux @ F1.8, 50 IRE (Color)
  • CU8171
    • 0.66 Lux @ F2.0, 50 IRE (Color)
Tilt range
  • 70 (CU8131)
Pan / Tilt / Zoom
  • CU8131
    • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • CU8171
    • ePTZ: 12x digital zoom
On-board Storage
  • SD/SDHC/SDXC Card Slot
Video
Compression
  • H.264 & MJPEG
Video Source
  • Up to 2 VIVOTEK camera units
Maximum Streams
  • 3 simultaneous streams per camera unit
S/N Ratio
  • Above 53 dB (CU8131)
  • Above 62 dB (CU8171)
Dynamic Range
  • 110 dB (CU8131)
  • 57 dB (CU8171)
Video Streaming
  • Adjustable resolution, quality and bitrate
  • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality and bit rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings, 3D Noise Reduction
Audio
Audio Capability
  • Audio input
Compression
  • G.711
  • GSM-AMR
Interface
  • From camera unit
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Five-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 connector for Network/PoE connection
  • RJ-12 connector for camera unit connection *2
  • DC 12V power input
  • Digital input *2
  • Digital output *2
LED Indicator
  • System power and status indicator
Power input
  • DC 12V
  • IEEE 802.3af PoE
Power consumption
  • Max. 9.3 W (DC 12V)
  • Max. 10.8 W (PoE)
Dimensions
  • 145 mm (W) x 105 mm (D) x 32 mm (H) (VC8201)
  • : 60 mm x 93 mm (CU8131)
  • : 60 mm x 81 mm (CU8171)
Weight
  • Net: 360 g (VC8201)
  • Net: 58 g (CU8131)
  • Net: 51 g (CU8171)
Safety Certifications
  • CE, C-Tick, FCC Class B, LVD, VCCI
Operating Temperature
  • Starting Temperature:
    • VC8201: 0C ~ 50C ( 32F ~ 122F )
    • CU8131, CU8171: 0C ~ 40C ( 32F ~ 104F )
  • Working Temperature:
    • VC8201: -10C ~ 50C ( 14F ~ 122F )
    • CU8131, CU8171: -10C ~ 40C ( 14F ~ 104F )
Warranty
  • 24 Months
System Requirements
Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product    NA
19/02

Vivotek FE8180 Fisheye Fixed Dome Network Camera - 5 Megapixel CMOS Sensor, 30 FPS@1080p Full HD, 1.57mm Fisheye Lens for 180 Degree Panoramic View And 360 Degree Surround View - White

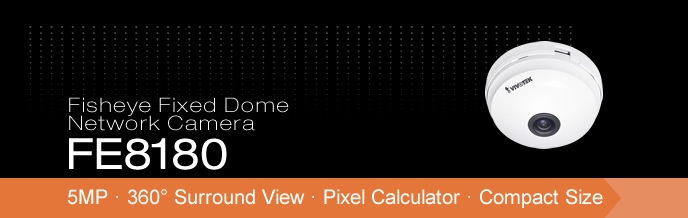

5MP 360 Surround View Pixel Calculator Compact Size Fisheye Network Camera FE8180

Overview

The VIVOTEK FE8180 is the world's smallest fisheye camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. A small camera with large functionality, the VIVOTEK FE8180, with a diameter of only 90 mm, is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 180 panoramic view (wall mount) or 360 surround view without blind spots (ceiling mount), the camera is able to provide full video coverage of wide, open areas, such as airport lobby, shopping malls, retail stores, offices and more.

The FE8180 offers various display layouts, including original surround view, panoramic view, and regional view to suit a variety of applications. In addition, in both the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge pixel calculation function helps the user to ensure the image quality of a desired area.

Features

  • 5-Megapixel CMOS Sensor
  • 30fps@1080pFullHD
  • 1.57 mm Fisheye Lens for 180 Panoramic View and 360 Surround View
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • ePTZ for Data Efficiency
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • Support Local or Client Side Dewarping
  • 3D Noise Reduction
  • 15 Tilt Mount Available
  • Support Installation with Conduit Box

Specifications

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/2.5" Progressive CMOS sensor in 1920 x 1920 resolution
Maximum Resolution
  • 1920x1920
Lens Type
  • Fixed-focal
Focal Length
  • f = 1.57 mm
Aperture
  • 2.2
Field of View
  • 180 (horizontal)
  • 180 (vertical)
  • 180 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR enhanced
Minimum Illumination
  • 0.18 Lux @ F2.2 ( Color )
Pan / Tilt / Zoom
  • ePTZ
  • 12x digital zoom ( 12x on IE plug-in )
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video
Compression
  • H.264, MJPEG
Maximum Frame Rate
  • In both compression modes:
    • 15 fps at 1920x1920
    • 30 fps at 1920x1080
Maximum Streams
  • 3 simultaneous streams
S/N Ratio
  • Above 62 dB
Dynamic Range
  • 57 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings, 3D noise reduction
  • Pixel calculator
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Five-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 cable connector for Network/PoE connection
LED Indicator
  • System power and status indicator
Power input
  • IEEE 802.3af PoE Class 1
Power consumption
  • Max. 3.6 W
Dimensions
  • : 90 mm x 37 mm
Weight
  • Net: 135 g
Safety Certifications
  • CE, C-Tick, FCC Class B, LVD, VCCI
Operating Temperature
  • Starting Temperature: 0C ~ 40C ( 32F ~ 104F )
  • Working Temperature: -10C ~ 40C ( 14F ~ 104F )
Warranty
  • 24 Months
System Requirements
Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7.x ,8.x, 9.x, 10.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
