Image Date Product description Price Buy
03/12

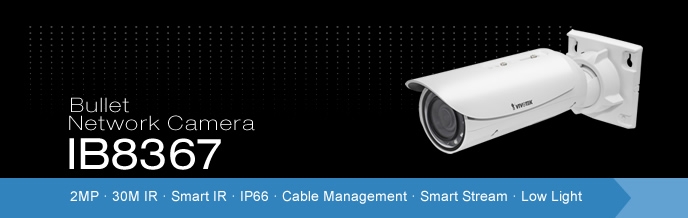

Vivotek IB8367 Bullet Network Camera - 2 Megapixel CMOS Sensor, 30FPS @ 1920x1080, 2.8~12mm Vari-focal, P-Iris Lens, Removable IR-Cut Filter For Day & Night Function, Two-Way Audio - White


2MP 30M IR Smart IR IP66 Cable Management Smart Stream Low Light Bullet Network Camera IB8367

Overview

VIVOTEK IB8367 is a stylish, bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IB8367 is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel, even in low light environment. IB8367 is also designed with VIVOTEK Smart Stream, 3DNR to save notable bandwidth for users.

Incorporating a number of advanced features standard for VIVOTEK cameras, the IB8367 are the ideal solutions for your outdoor surveillance needs.

Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • 2.8 ~ 12 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Real-time H.264, and MJPEG Compression
  • Two-way Audio
  • WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Weather-proof IP66-rated Housing
  • 3D Noise Reduction
  • Smart IR Technology to Avoid Overexposure

Specifications

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/2.8" Progressive CMOS
Maximum Resolution
  • 1920x1080 (2MP)
Lens Type
  • Vari-focal
Focal Length
  • f = 2.8 ~ 12 mm
Aperture
  • F1.8 ~ F2.85
Auto-iris
  • P-Iris
Field of View
  • 30 ~ 98 (Horizontal)
  • 21 ~ 54 (Vertical)
  • 40 ~ 121 (Diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR Enhanced
Day & Night
  • Removable IR-cut filter for day & night function
Minimum Illumination
  • 0.06 Lux @ F1.8 (Color)
  • 0.001 Lux @ F1.8 (B/W)
Pan / Tilt / Zoom
  • ePTZ
    • 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters
  • with Smart IR
  • IR LED*6
On-board Storage
  • SD/SDHC/SDXC card slot
Video
Compression
  • H.264 & MJPEG
Maximum Frame Rate
  • 30 fps @ 1920x1080 in both compression modes
Maximum Streams
  • 3 simultaneous streams
S/N Ratio
  • Above 58 dB
Dynamic Range
  • 60 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  • Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction
Audio
Audio Capability
  • Audio input /output (full duplex)
Compression
  • G.711
  • G.726
Interface
  • External microphone input
  • External line output
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface
  • 10 Base-T / 100 BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card
  • File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System
  • Manual focus
Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V power input
  • Digital input*1
  • Digital output*1
LED Indicator
  • System power and status indicator
Power input
  • DC 12V
  • IEEE 802.3af PoE Class 3
Power consumption
  • Max: 8.6 W (DC12V)
  • Max: 9.7 W (PoE)
Dimensions
    • : 82 x 283 mm
Weight
  • Net: 920 g
Casing
  • Weather-proof IP66-rated housing
Safety Certifications
  • CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature
  • Starting Temperature: -10C ~ 50C (14F~ 122F)
  • Working Temperature: -20C ~ 50C (-4F~ 122F)
Warranty
  • 36 Months
System Requirements
Operating System
  • Microsoft Windows 7/8/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7.x ,8.x, 9.x, 10.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
