2,600 lumens WXGA Desktop projector







The VPL-DW122 is packed with features optimised for the business and education markets at a reasonable price. The projector is compact and lightweight, with its simple design making it very easy to set up.

Sony 3LCD BrightEra panel technology provides bright and colourful projection. Plenty of interfaces allow easy connection, while a choice of Picture Modes optimises viewing with any source slide presentations, PC documents, pictures or videos. Theres a range of smart energy-saving features built in, including auto power saving function. And with a recommended lamp replacement time of 10,000 hours, downtime and maintenance costs are minimised.







The VPL-DW122 has a compact and lightweight body with a small footprint of approximately 315 x 75 x 230.5 mm (12 13/32 x 2 15/16 x 9 1/16 inches) and a light weight of approximately 2.5 kg (5.4 lb). This compact, lightweight projector is convenient for carrying around a meeting room or classroom.





The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10,000* hours. The recommended lamp replacement time is extended by 43%, compared to the previous model.





Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Lamp Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.





Widescreen WXGA (1280 x 800) 16:10 screen resolution, 3LCD BrightEra natural and vivid colour images, plus various Picture Modes for optimising image quality, make the projector one of the best in its class. Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, ensuring colourful and bright images. Sony's BrightEra panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.





The projector has six available picture modes for correct picture quality: Dynamic, Standard, Presentation, Blackboard, Game, and Cinema. With six picture modes and three brightness modes combined, the user can select the most suitable picture / brightness combination according to the picture source and environment, to create the optimal image.





Please be aware that the features/specifications can differ from country to country







A total classroom interactive solution, the MW853UST+ offers superior connectivity with ultra short-throw design, dual HDMI inputs and optional PointWrite interactivity. The 10000:1 ultra-sharp contrast ratio, 3200 ANSI lumen brightness and lamp life are enhanced by the SmartEco technology for long lasting, reliable and vibrant images. More, vertical lens shift design offers more installation flexibility.







Keeping students involved and engaged is a central practice in the BenQ Smart Classroom concept- simply integrating MW853UST+ with latest PointWrite technology is a great way to let multiple students contribute at once. BenQ brings interactive innovation and touch solutions to a new level of simplicity, ease and control, supporting flipped learning and engaging students like never before. Teachers now can turn any space into an interactive whiteboard and get up to 4 students to collaborate simutaneously with PointWrite pens or simply with fingers.





Interactive on any surface
Dual screen with multiple touch capabilities
Supports up to 4 pens/fingers
Effortless setup with only 1 second auto calibration

An ultra-fast 0.016-second response time for a smooth  writing experience



Calibration speed may vary depending on computer system.
The function is available with optional PointWrite Kit.







BenQ Dual Screen feature allows teachers to create an immersive learning experienced by connecting two PointWrite interactive projectors to project two seamlessly merged screens. This creates a super-sized space for learning the solar system, virtual field trip around the world, or simply a great big canvas for co-creation.

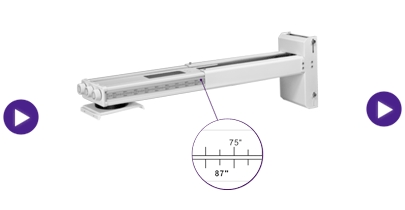

Designed to help ensure a fail-proof projector installation, BenQ has implemented extra help into its wall mount design. This installer-friendly ultra short-throw projector wall mount features an installation chart and a measuring ruler to help you find the most suitable projector-screen alignment and image position for your classroom.

Simple Steps to Installing BenQ’s Wall Mount

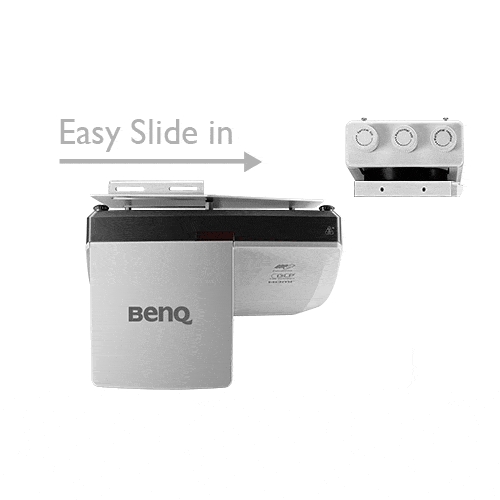

1. Slide in the projector to connect with the wall mount.





2. Check the measuring ruler for the desired projection image size and adjust





3. Make minor adjustments to the image.

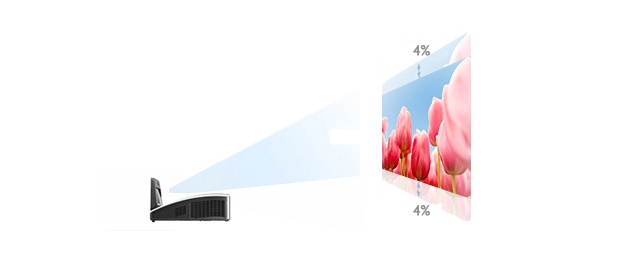

Lens Shift for Extra Room for Minor Miscalculations

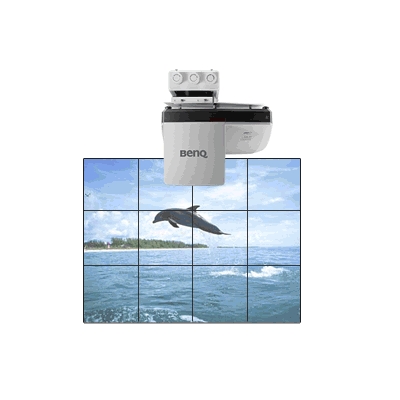

Lens shift offers the extra flexibility to overcome any minor miscalculations during projector installation. All you have to do is adjust the switch to shift the projected image up or down by 4%. With this helpful feature, you'll never have to worry about positioning the projector slightly out of place again!







Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life –SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.

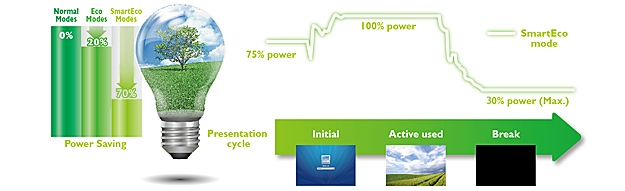

By detecting the input content to determine the amount of brightness required for optimum color and contrast performance, the SmartEco Mode is able to reduce lamp power while delivering the finest image quality. No compromise!









The Eco Blank Mode, which lowers power consumption up to 70%, can be used to blank the projection screen when the projector is not in use, in turn eliminating distractions in class and redirecting students focuses back on the teacher.





Power Attention on the Projection Screen





at the Lowest Attention on the Class Instructor





The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.





100% Lamp Power





30% Lamp Power

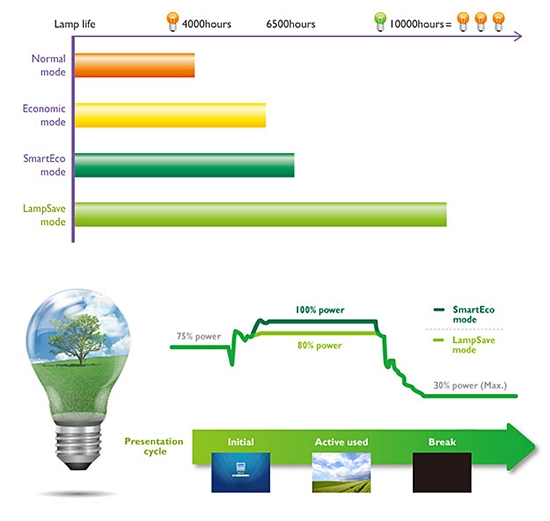

Less lamp replacements and maintenance translates into an overall lower cost of ownership. The LampSave Mode does exactly that by adjusting the lamp power dynamically by content level to extend projector lamp life significantly by up to 50% as compared to normal mode.









You don't need a big room or a lot of free ceiling space to create a big picture when you've got an ultra short-throw projector! Teachers can think outside the box to turn every corner into the perfect place for educational use.





Non Short-throw





Short-throw





An ultra short-throw projector keeps the projector light from shining directly into everyone's eyes. The intensity of the projector beam may be potentially harmful. So it's for the best to keep it out of the way.





Non Short-throw





Short-throw





BenQ MW853UST+ is built with latest DLP  technology to support 3D functionlity, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content.

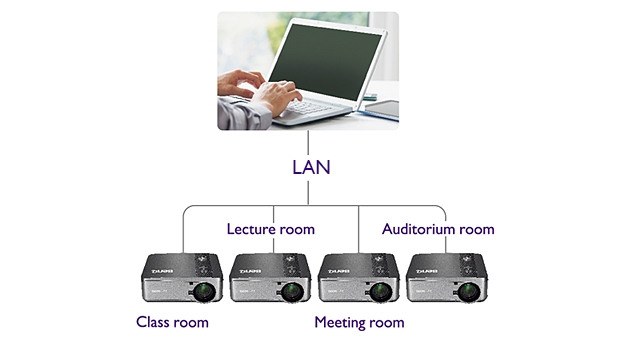

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. The MW853UST+ offers seamless support for the Crestron and AMX LAN Control system.







Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!



ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.







Projection System	DLP
Native Resolution	WXGA(1200*800)
Brightness*	3200AL
Contrast Ratio	10,000:1
Display Color	1.07 Billion Colors
Lens	F2.5,f=5.1mm
Aspect Ratio	Native 16:10 (5 aspect ratio selectable)
Throw Ratio	0.35
Image Size (Diagonal)	Optimization 80"-100" / Maximum 300
Zoom Ratio	Fix
Lamp Type	230W
Lamp(Normal/Economic Mode/SmartEco Mode)*	4000/5000/7000 hours
Keystone Adjustment	1D, Vertical +/- 40 degrees
Projection Offset	136%~144% (5%)
Resolution Support	VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency	15~102KHz
Vertical Scan Rate	23~120Hz
Interface	Computer in (D-sub 15pin) x 2(Shared with component) Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x 2 Audio in (Mini Jack) x 1 Audio out (Mini Jack) x 1 Audio L/R x 1 Speaker 10W x 2 USB (Type mini B) x 1 (PointWrite interactive module) USB (Type B) x1 ( FW download) USB(Type A) x1 (1A Power for PT01 Touch module) RJ45 x1 (LAN control) RS232 (DB-9pin) x 1 IR Receiver x1 (Front)
Dimensions(W x H x D)	373.3*287.5*130.2mm (w/o Mirror) 373.3*287.5*201mm(w Mirror)
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Weight	5KG(w/o wall mount)
Audible Noise	33/29 dBA (Normal/Economic mode)
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	typical 290W, stanby power <0.5W
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes	Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2
Accessories (Standard)	Remote Control w/ Battery : RCE012 Power Cord (by region) : 2.9M User Manual CD *1 Quick Start Guide *1 Warranty Card (by region) *1 VGA(D-sub 15pin) Cable *1 Dust filter(C SKU) *1 Wall mount kit (installation guide) *1
Accessories (Optional)	Spare Lamp Kit : 5J.J8M05.011 Wall Mount : WM04G4 3D Glasses : DGD24 Document Camera : S30 PointWrite kit : PW01U PointWrite Touch module : PT01



2,700 lumens XGA Short Throw projector





Low Total Cost of Ownership (TCO) for short throw, high brightness projector



The VPL-SX225 short throw projector has a number of features to present high quality images while keeping low TCO. The projector also needs only 75cm to display a large 80-inch image on the screen, which fits perfectly in front of a white board leaving plenty of space. With the fuss-free installation and achievement of less glares or shadows during presentation, the short throw projector offers excellent usability.



75cm for 80-inch image.



2700 lumen brightness with native XGA (1024 x 768) 4:3 screen resolution.



10000 hours in Low mode.



The wireless presentation capability makes it easy to present files from your tablet device or smart phone.



The VPL-SX225 offers a 0.46:1 throw ratio that produces a 2.03m (80-inch) diagonal screen size image from only 75cm (29-inch) away from the screen.



Thanks to the optical system projecting three basic colours constantly each, the projector offers excellent light efficiency, which ensures colourful and bright images. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms. The projector also has an excellent contrast ratio of 3000:1.



The VPL-SX225 features three brightness modes for different use 'High' for naturally white presentations in bright rooms, 'Standard' for everyday use, and 'Low' for video in darkened rooms.The native XGA (1024 x 768) 4:3 screen resolution panel is perfect for presentations direct from a laptop or PC.



The lamp driver optimally controls the wattage of the lamp and achieves a long-lasting lamp time of 10000 hours with the brightness of lamp mode low. The recommended lamp replacement time is extended more than 66%, compared to the previous model.



Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Picture Mode automaticallyadjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.



When the projector is installed on a LAN/Wireless LAN, presentations can be projected from any PC and Mac on the network. A tablet or smart phone can be connected at the same time. The wireless presentation capability makes it easy to present files from your tablet device or smart phone. You can project jpg, pdf and other supporting formats. Up to four users can project PC/Mac images simultaneously, while up to eight users can connect to one projector.For Windows/Mac, an application Projector Station for Network Presentation is provided. For tablet/smartphone, an application is provided by Pixelworks, downloaded from the web. For details, please visit the following website: http://PWPresenter.pixelworks.com



Projector Remote is simple remote control app for Sonys projectors.Networked projectors can be controlled by this remote app. Remote Control allows you to operate the projector with simple and easy-to-read buttons.



Networked control

Projector functions and status can also be managed and monitored remotely from any user's PC on the network.For Windows, an application Projector Station for Network Control is provided.



Insert a USB drive to effortlessly display photos, images and graphics with no PC needed.



The projector allows you to display pictures and audio* with one USB cable. You do not need to install any driver for this function. It is a convenient way to connect to the projector when you want to connect easily.
There is a time lag in video and audio. When not in simple use, it is recommended to use Line-in or HDMI-in.



The projector includes a 16W monaural speaker.
