die-cast, aluminum, epoxy power painted



Mechanical
Material	die-cast, aluminum, epoxy powder painted
Color	white
Dimensions (WxH)	150 x 61 mm (5.91 " x 2.40")
Weight	0.23 kg (0.51 lb)
Ordering Information
Model	SAD755M
Shipping size	640 x 355 x 315 mm (25.20" x 13.98" x 12.40"/ master carton, 20 units)
Shipping weight	4.8 kg (10.57 lb, 20 units)



L-type wall mount bracket, aluminum, white, compatible with Maven Series indoor, flat, and ptz dome models







Support up to 15kg (33 lb)

Compatible with MESSOA Network Camera: NID321, NID325, NID335, NID338, UFD301, UFD305, PTZ900



Wall mount bracket, conduit adaptor included, support up to 3Kg (6.61 lb.), for use with the NDF831/NDR891



Mechanical
Material	die-cast, aluminum, epoxy powder painted
Color	white
Dimensions (WxHxD)	wall mount bracket: 142 x 132 x 190 mm (5.59" x 5.20" x 7.48")
Weight	1.00 kg (2.2 lb)
Ordering Information
Model	SAD755BP
Shipping size	785 x 336 x 225 mm (30.91" x 13.23" x 8.86"/ master carton, 10 units) 150 x 142 x 200 mm (5.91" x 5.59" x 7.87"/ inner box, 1 unit)
Shipping weight	12.0 kg (26.4 lb, 10 units)/ 1.15kg (2.53 lb, 1 unit)



Corner Adaptor, Aluminum, White







10M (33ft.) IR, H.264, triple streaming, PoE, Wi-Fi, built-in mic & speaker, local storage





Featuring 2-megapixel full HD resolution at full frame rates, the NCC800 is designed for professional yet affordably priced indoor surveillance, targeting retail shops, small businesses or offices where image quality is emphasized. The built-in infrared LED gives true, maximized night visibility in complete darkness up to 10 meters.







Whether it is general overview or close-up focus, day or night, the NCC800 provides wider and clearer images in full HD video quality at full frame rates around the clock. Blurry images are minimized, and individuals and objects of interest come through in perfect clarity.





Leading the industry in illumination distance, the integrated infrared LED illuminator gives true, maximized visibility in complete darkness with uniform light distribution up to 10 meters (33ft.), suitable for low to no light applications or places required for 24/7 covert surveillance.





The NCC800 can be powered by either DC 12V or Power over Ethernet (PoE), adding flexibility to camera installations where power outlet is unavailable. Input and output ports are also included to allow connectivity to external devices such as switches, alarm relays, sensors, etc.





In addition to the standard Ethernet connection to a wired network, the NCC800 is also compatible with Wi-Fi connectivity and provides the high-speed, reliable wireless network connection without the hassle of complicated wiring.FF



Image System
Image Sensor	1/2.7" 2MP HD image sensor optimized for low-light performance
Image Compression	Triple Streaming : H.264 / MPEG4 / Motion JPEG
Maximum Frame rate	30 fps (NTSC) and 25 fps (PAL) in 2MP Full HD 1080p (1920x1080)
Lens	Built-in fixed lens f=3.1 mm, F=2.0(Mega pixel lens)
View Angle	H: 77 5%; V: 57 5%
Electrics
Shutter Time	Range from 1/10000s to 1/3.75s selectable (60Hz); Range from 1/10000s to 1/3.125s selectable (50Hz)
Audio	Two-way built-in MIC & Speaker; Mono Audio, Full-duplex, G.711 PCM 8kHz
Alarm	Triggered by external input
Day/Night Mode	D/N control: Auto Mode
Minimum Illumination	IR LED OFF: 0.2lux@10IRE / 1.1lux@50IRE (F2.0, 1/15s) IR LED ON: 0 Lux
IR LED	IR LED 9 pcs (850nm)
IR Distance	10 meters (33ft.)
IR Turn On Status	Under 10 Lux by auto-control
LED Life	More than 10,000 hours (50C)
Video Port	2-pin connector, 1.25mm wafer, 1.0Vp-p, 75
Video Output	NTSC: 720 X 480 @30fps; PAL: 720 X 576 @25fps
RTC	Real-Time clock calendar
Image Enhancement	Exposure Mode: Auto/Manual White Balance: Auto/Manual Backlight Compensation: 5x5 zones selectable Sharpness, Saturation, Brightness, Contrast: 255 level sensitivity
Features
Digital WDR	Yes; 5-level sensitivity
Privacy Zone	Yes; customized threshold privacy zone
Intelligent Video	Audio Detection/ Blur Detection/ Ethernet Detection/ Smart Encoding/ Smart Focus/ e-PTZ/ Event Management
Alarm Detection	Motion Detection: 5 x 5 zones, 5-level sensitivity or customized threshold Audio Detection: 5 level sensitivity or customized threshold Blur Detection: customized threshold External Input
Alarm Event	File upload via FTP, SMTP and SD Card Notification via email, HTTP and TCP External output activation Video and audio recording to SD Card
Image Orientation	Mirror, Flip
Bit Rate Mode	Primary stream bit rate control: CBR/VBR
Local Storage
Memory Card	Micro SD/ Micro SDHC Card up to 32 GB
SD Card Overwrite	Yes
Store Category	Alarm / Motion / Schedule/ Un-interrupt recording
Power Supply
Power Requirement	DC 12V 10% / PoE (IEEE 802.3af)
Power Connector	DC Jack (2.0mm)
Power Consumption(Max)	7.0W (NCC800) 7.5W (NCC800WL)
LED Indicator	x1 Power LED (Red)
Environmental
Operating Temperature	-10C ~ 50C (-14F ~ 122 F)
Operating Humidity	10~ 90% RH
Storage Temperature	-20C ~ 60C (-4F ~ 140 F)
Regulation	CE, FCC (class B), RoHS
Network
Ethernet	10Base-T/100Base-TX
Wireless	USB Wi-Fi Dongle (Optional); IEEE 802.11b/g/n
LED Indicator	x2 networking status (Green & Yellow)
Internet Protocol	IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, SSH, FTP, RTP,RTSP, ICMP, UPnP
Web Browser	IE browser 6.0 or above
I/O Connector
Alarm Port	Terminal block x1 In / x1 Out
Audio In / Out	3.5mm Phone Jack 1 In / 1 out
Power	DC 12V
Video	Video out x1, 2-pin to BNC video out
LAN	RJ-45 x1 (10Base-T/100Base-TX)
USB	USB port x1 (for USB Wi-Fi dongle)
Reset	Rebooting system within 5 sec.; restoring factory default up to 5 sec. or more
Memory Card	microSD/SDHC card slot
Mechanical
Dimensions (WxHxD)	76mm x 103mm x42mm (2.98x4.06x 1.66) (w/o bracket)
Weight	118g (without bracket)
Package Contents
Power Supply, Video Cable, Bracket, Document, CD-ROM and Others
Ordering Information
NTSC models	NCC800-HN1-US-MES NCC800-HN1-EU-MES NCC800WL-HN1-US-MES NCC800WL-HN1-EU-MES
PAL models	NCC800-HP1-EU-MES NCC800WL-HP1-EU-MES





GV-FER3403 is an outdoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling, wall, wall corner and the pole. The camera is equipped with an IR LED ring that provides infrared illumination under low-light situations. Its distorted hemispherical image of the camera can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System, providing advanced monitoring and video management features.



The following is a comparison of live view from a third-party fisheye camera and a GV-Fisheye camera with IR LED ring.

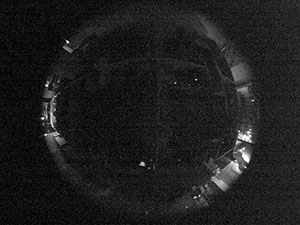

Third-Party Fisheye Camera

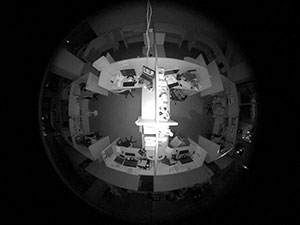

GV-Fisheye Camera with IR LED Ring







No memory card slot & local storage function for Argentina





Source Image





Single View





180 ° View





360 View





Quad View
