16/09
|
Genius FaceCam 2020 Webcam - 2 Megapixel, Superior HD720p, Precise Fixed Focus Lens, Adjustable Pan 360 & Tilts 90 Lens - Black Genius FaceCam 2020 HD720p Webcam
Features:
- Superior HD720P/2M pixel sensor
- Precise fixed focus lens
- Adjustable pan 360 and tilts 90 lens
- HD720P video in 1280 x 720, frame rate up to 30fps
- 2M video in 1600 x 1200, frame rate up to 30fps
- IPM (Image Protection Mechanism) feature
- Unique dangle clip, decrease the view angle to chat face to face
- True Plug & Play, no driver required
|
|
|
|
16/09
|
Vivotek SD8364E Speed Dome Network Camera - 1080p Full HD SONY CMOS Sensor, 30 fps @ 1080p Full HD; 60 fps @ 720p HD, Removable IR-Cut Filter For Day & Night Function, 30x Zoom Lens - White
1080p HD 30x Zoom NEMA 4X IP66 Defog -40C ~ 55C ElS PoE Plus Speed Dome Network Camera SD8364E
Overview
VIVOTEK SD8364E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 30x optical zoom lens, the SD8364E is able to capture details at top-notch quality. The IP66- and NEMA 4X-rated housing protects the camera body against rain, dust and corrosion within a wide temperature range between -40C to 55C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.
The SD8364E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8364E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8364E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.
As with all VIVOTEK true day/night cameras, the SD8364E features a removable IR-cut filter, maintaining clear images 24 hours a day. With Audio Detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8364E is the best choice for the most demanding outdoor surveillance applications.
Features
- 1080p Full HD SONY CMOS Sensor
- 30 fps @ 1080p Full HD; 60 fps @ 720p HD
- 30x Zoom Lens
- Removable IR-cut Filter for Day & Night Function
- 360 Continuous Pan and 220 Tilt
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Weather-proof IP66-rated and NEMA4X Housing
- -40C ~ 55C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Defog
Specifications
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| Image sensor |
|
| Maximum Resolution |
|
| Lens Type |
- 30x optical zoom, auto focus
|
| Focal Length |
- f = 4.3 ~ 129 mm (30x zoom)
|
| Aperture |
|
| Auto-iris |
|
| Field of View |
- 2.3 ~ 64 (horizontal)
- 1.3 ~ 36 (vertical)
- 2.6 ~ 73 (diagonal)
|
| Shutter Time |
- 1/1 sec. to 1/10,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| Minimum Illumination |
- 0.5 Lux @ F1.6, 30 IRE (Color), 1/30s
- 0.03 Lux @ F1.6, 30 IRE (B/W), 1/30s
- 0.14 Lux @ F1.6, 50 IRE (Color), 1/5s
- 0.01 Lux @ F1.6, 50 IRE ( B/W ), 1/5s
|
| Pan speed |
|
| Pan range |
|
| Tilt speed |
|
| Tilt range |
|
| Preset Locations |
- 256 preset locations, 40 presets per tour
|
| Pan / Tilt / Zoom |
- 48x digital zoom (4x on IE plug-in, 12x built-in)
- Auto pan mode
- Auto patrol mode
|
| On-board Storage |
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- H.264: 30 fps @ 1920x1080, 60 fps @ 1280x720
- MPEG-4: 30 fps @ 1920x1080, 60 fps @ 1280x720
- MJPEG: 30 fps @ 1920x1080, 60 fps @ 1280x720
- (Up to 30/60 fps in WDR mode)
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Zoom enhancement for better image quality under limited bandwidth
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
- Scheduled profile settings
- Defog
|
|
Audio
| Audio Capability |
- Audio input / Audio output (Full duplex)
|
| Compression |
|
| Interface |
- External microphone input
- External line output
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
|
| Interface |
- 10 Base-T / 100BaseTX Ethernet (RJ-45)
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
| Auto-Tracking |
- Auto-tracking on moving object
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
|
| Alarm Events |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- DC 12V power input
- Digital input*4
- Digital output*2
- RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
|
| LED Indicator |
- System power and status indicator
|
| Power input |
- PoE plus (IEEE 802.3at compliant)
- High Power PoE
- AC 24V
|
| Power consumption |
- PoE plus:
- AC 24V:
- Max. 48W (heater on)
- Max. 19W (heater off)
- High Power PoE:
- Max. 48W (heater on)
- Max. 19W (heater off)
|
| Dimensions |
|
| Weight |
|
| Casing |
- Weather-proof IP66- and NEMA 4X-rated metal housing
- Built-in electrical dehumidifier device (SD8364E-M)
|
| Safety Certifications |
- CE, C-Tick, FCC Class A, NEMA 4X, VCCI
|
| Operating Temperature |
- -5C ~ 55C (PoE Plus)
- -40C ~ 55C (AC 24V / High Power PoE)
|
| Warranty |
|
|
System Requirements
| Operating System |
- Microsoft Windows 7/Vista/XP/2000
|
| Browser |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 9.x or 10.x
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
16/09
|
Epson EB-1970W Portable Multimedia LCD Projector - WXGA, 5000 Lumens, 10,000;1, 4000Hrs, 2xVGA, 2xHDMI, 1xRCA, USB2.0, 1xRS232C, 1xRJ45, Speakers Epson EB-1970W
Corporate Portable Multimedia Projectors
The Ultimate Desktop Projection Solution for any Meeting Space
Overview
The Epson EB-1970W projector provides brilliant colour and amazing image quality with up to 5,000 lumens of colour brightness and up to 5,000 lumens of white brightness. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. The EB-1970W also features a newly developed lens with a greater sharpness and focus level. Wide-ranging connectivity including two HDMI inputs, MHL, and Control I/O. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether theyre used in the boardroom, or your living room, the Epson EB-1970W delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution Featuring WXGA (1280 x 800)
- Versatile Connectivity Easily integrate with any system with HDMI and MHL
- Wireless Functionality Wi-Fi
- Epson iProjection Wirelessly display and control content from your iPhone , iPad , iPod touch and Android devices
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Faroudja DCDi® Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.

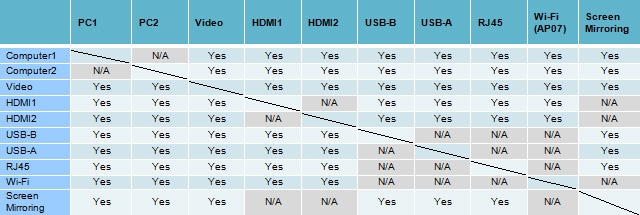

Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector
iProjection
Display and control content from your iPhone®, iPad® or iPod® touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS and Android Devices being able to join the network. Another additional feature has been built into the EB-1900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.
USB Display Function and USB Memory Slide Show
The EB-1965 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device*, making it possible to give presentations without the need for a PC.
Advanced Networking
With the EB-1900 Series, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.

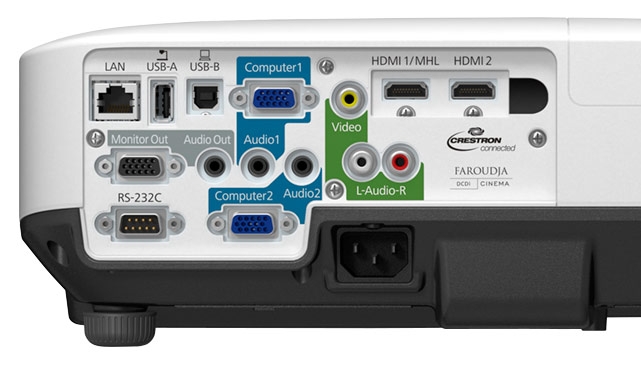

Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1970W |
| PRODUCT CODE |
V11H622053 |
|
WHAT'S IN THE BOX
|
|
| |
EB-1970W Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual |
|
TECHNOLOGY
|
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.76-inch with MLA |
|
OPTICAL
|
|
| Zoom |
1-1.6 (Optical Zoom) |
| Screen Size |
30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele) |
| Projection Distance |
120" screen 3.56 - 5.89 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
| Projection Lens F Number |
1.5-2.0 |
| Projection Lens Focal Length |
23mm - 38.4mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
|
|
|
| Colour Light Output |
5,000 Lumens |
| White Light Output |
5,000 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
280 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
|
CONNECTIVITY
|
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USB Type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
Included |
| WiDI/Miracast |
No |
| Output: Video |
1 x D-sub 15 pin (black moulding) |
| Output: Audio |
1 x Stereo mini jack |
| Speaker Output |
16W |
|
ADVANCED FEATURES
|
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Auto Power On |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Padlock & Security Cable Hole
Kensington -style lock provision
Wireless LAN Unit Lock
Password protect function |
| Colour Modes |
Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM |
| GENERAL |
|
| Dimensions D x W x H |
291 x 377 x 110 mm |
| Weight |
4.5kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 411/316W |
| Power Consumption: Standby |
0.34W (communication off) |
| Noise Level |
Normal/Eco: 39/31dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
Lamp ELPLP77 |
V13H010L77 |
| |
Air Filter ELPAF41 |
V13H134A41 |
| |
Quick Wireless Key ELPAP09 |
V12H005M09 |
| |
Ceiling Mount ELPMB23 |
V12H003B23 |
| |
Extension Pole 668-918 mm |
V12H003P13 |
| |
Extension Pole 918-1,168 mm |
V12H003P14 |
| |
Soft Carrying Case ELPKS68 |
V12H001K68 |
| |
Floor Standing Tripod Screen |
V12H002S2Y |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
16/09
|
Epson EB-1975W Portable Multimedia LCD Projector - WXGA, 5000 Lumens, 10,000;1, 4000Hrs, 2xVGA, 2xHDMI, 1xRCA, USB2.0, 1xRS232C, 1xRJ45, Speakers Epson EB-1975W
Corporate Portable Multimedia Projectors
The Ultimate Desktop Projection Solution for any Meeting Space
Overview
The Epson EB-1975W projector provides brilliant colour and amazing image quality with up to 5,000 lumens of colour brightness and up to 5,000 lumens of white brightness. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. The EB-1975W also features a newly developed lens with a greater sharpness and focus level. Wide-ranging connectivity including two HDMI inputs, MHL, and Control I/O. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether theyre used in the boardroom, or your living room, the Epson EB-1975W delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution Featuring WXGA (1280 x 800)
- Versatile Connectivity Easily integrate with any system with HDMI and MHL
- Endless Wireless Functionality Wi-Fi, WiDi and Miracast Certified
- Epson iProjection Wirelessly display and control content from your iPhone , iPad , iPod touch and Android devices
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projectors colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Faroudja DCDi® Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector
iProjection
Display and control content from your iPhone®, iPad® or iPod® touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
WiDi and Miracast Certified
Easy wireless transmission of full HD (1080p) video and 5.1 surround sound from PCs, smartphones and other devices without a complicated set up. With support for the screen mirroring, users can project their smartphone or tablet screens without a cable connection. Intel WiDi technology is supported across a range of Windows 7 and Windows 8 devices. These models also support Wi-Fi CERTIFIED Miracast to allow a peer-to-peer wireless screencasting, delivering audio and video from a smart device to the big screen. Miracast is supported by several smart device manufacturers using the Android 4.2 OS and above, as well as Windows 8.1. (iOS Devices not supported)
Advanced Networking
With the EB-1900 Series, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.
Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1975W |
| PRODUCT CODE |
V11H621053 |
|
WHAT'S IN THE BOX
|
|
| |
EB-1975W Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual |
|
TECHNOLOGY
|
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.76-inch with MLA |
|
OPTICAL
|
|
| Zoom |
1-1.6 (Optical Zoom) |
| Screen Size |
30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele) |
| Projection Distance |
120" screen 3.56 - 5.89 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
| Projection Lens F Number |
1.5-2.0 |
| Projection Lens Focal Length |
23mm - 38.4mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
|
|
|
| Colour Light Output |
5,000 Lumens |
| White Light Output |
5,000 Lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
280 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
|
CONNECTIVITY
|
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USB Type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
Included |
| WiDI/Miracast |
Included |
| Output: Video |
1 x D-sub 15 pin (black moulding) |
| Output: Audio |
1 x Stereo mini jack |
| Speaker Output |
16W |
|
ADVANCED FEATURES
|
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Auto Power On |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Padlock & Security Cable Hole
Kensington -style lock provision
Wireless LAN Unit Lock
Password protect function |
| Colour Modes |
Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM |
| GENERAL |
|
| Dimensions D x W x H |
291 x 377 x 110 mm |
| Weight |
4.6kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 411/316W |
| Power Consumption: Standby |
0.34W (communication off) |
| Noise Level |
Normal/Eco: 39/31dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
Lamp ELPLP77 |
V13H010L77 |
| |
Air Filter ELPAF41 |
V13H134A41 |
| |
Quick Wireless Key ELPAP09 |
V12H005M09 |
| |
Ceiling Mount ELPMB23 |
V12H003B23 |
| |
Extension Pole 668-918 mm |
V12H003P13 |
| |
Extension Pole 918-1,168 mm |
V12H003P14 |
| |
Soft Carrying Case ELPKS68 |
V12H001K68 |
| |
Floor Standing Tripod Screen |
V12H002S2Y |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
16/09
|
Epson EB-1980WU Portable Multimedia LCD Projector - WUXGA, 4400 Lumens, 10,000;1, 4000Hrs, 2xVGA, 2xHDMI, 1xRCA, 1xRS232C, USB2.0, 1xRJ45, Speakers Epson EB-1980WU
Corporate Portable Multimedia Projectors
The Ultimate Desktop Projection Solution for any Meeting Space
Overview
The Epson EB-1980WU projector provides brilliant colour and amazing image quality with up to 4,400 lumens of colour brightness and up to 4,400 lumens of white brightness. Plus up to WUXGA, all in a desktop form factor. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether theyre used in the boardroom, or your living room, the Epson 1980WU delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution WUXGA image resolution (1920 x 1200)
- Versatile Connectivity Easily integrate with any system with HDMI and MHL
- Split Screen Simultaneously project two images, video or still, side by side, from two different sources
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
- Remote Network Monitoring and Control Plus Message Broadcasting and built-in schedule functions with EasyMP software / Multi-PC Projection
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Brilliant widescreen images up to 300"
Introducing native WUXGA (1920 x 1200) resolution to 1980WU and 1985WU, which allows full HD 1080p resolution support, makes it easy to display larger-than-life Full HD up to 300". Wirelessly shared content via Miracast or WiDi from smartphones, tablets and PCs will look as good on the screen as it does on your device, but up to 300".
Faroudja DCDi Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector
Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS and Android Devices being able to join the network. Another additional feature has been built into the EB-1900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.
Advanced Networking
With the EB-1900 Series, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.
Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1980WU |
| PRODUCT CODE |
V11H620053 |
| WHAT'S IN THE BOX |
|
| |
EB-1980WU Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.76-inch with MLA |
| OPTICAL |
|
| Zoom |
1-1.6 (Optical Zoom) |
| Screen Size |
30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele) |
| Projection Distance |
120" screen 3.56 - 5.89 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
| Projection Lens F Number |
1.5-2.0 |
| Projection Lens Focal Length |
23mm - 38.4mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
| IMAGE |
|
| Colour Light Output |
4,400 Lumens |
| White Light Output |
4,400 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
280 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USB Type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
No |
| WiDI/Miracast |
No |
| Output: Video |
1 x D-sub 15 pin (black moulding) |
| Output: Audio |
1 x Stereo mini jack |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Auto Power On |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Padlock & Security Cable Hole
Kensington -style lock provision
Wireless LAN Unit Lock
Password protect function |
| Colour Modes |
Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM |
| GENERAL |
|
| Dimensions D x W x H |
291 x 377 x 110 mm |
| Weight |
4.5kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 411/316W |
| Power Consumption: Standby |
0.34W (communication off) |
| Noise Level |
Normal/Eco: 39/31dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
Lamp ELPLP77 |
V13H010L77 |
| |
Air Filter ELPAF41 |
V13H134A41 |
| |
Quick Wireless Key ELPAP09 |
V12H005M09 |
| |
Ceiling Mount ELPMB23 |
V12H003B23 |
| |
Extension Pole 668-918 mm |
V12H003P13 |
| |
Extension Pole 918-1,168 mm |
V12H003P14 |
| |
Soft Carrying Case ELPKS68 |
V12H001K68 |
| |
Floor Standing Tripod Screen |
V12H002S2Y |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
16/09
|
Epson EB-1985WU Portable Multimedia LCD Projector - WUXGA, 4800 Lumens, 10,000;1, 4000Hrs, 2xVGA, 2xHDMI, 1xRCA, USB2.0, RS232C, RJ45, Speakers Epson EB-1985WU
Corporate Portable Multimedia Projectors
The Ultimate Desktop Projection Solution for any Meeting Space
Overview
The Epson EB-1985WU projector provides brilliant colour and amazing image quality with up to 4,800 lumens of colour brightness and up to 4,800 lumens of white brightness. Plus up to WUXGA, full HD resolution, all in a desktop form factor. This powerful product also features Faroudja DCDi video processing to ensure your image always looks its best. The EB-1900 series also features a newly developed lens with a greater sharpness and focus level. Wide-ranging connectivity including two HDMI inputs, MHL, and Intel WiDi/Wi-Fi Certified Miracast Technology. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether theyre used in the boardroom, or your living room, the Epson 1985WU delivers bright, vivid images that will captivate any audience.
KEY FEATURES & BENEFITS
- 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Crisp Clear Resolution WUXGA image resolution (1920 x 1200)
- Versatile Connectivity Easily integrate with any system with HDMI and MHL
- Endless Wireless Functionality Wi-Fi, WiDi and Miracast Certified
- Epson iProjection Wirelessly display and control content from your iPhone, iPad, iPod touch and Android devices
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button
- Remote Network Monitoring and Control Plus Message Broadcasting and built-in schedule functions with EasyMP software / Multi-PC Projection
3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projectors colour brightness specification.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Brilliant widescreen images up to 300"
Introducing native WUXGA (1920 x 1200) resolution to 1980WU and 1985WU, which allows full HD 1080p resolution support, makes it easy to display larger-than-life Full HD up to 300". Wirelessly shared content via Miracast or WiDi from smartphones, tablets and PCs will look as good on the screen as it does on your device, but up to 300".
Faroudja DCDi Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.
Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.
MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
Works with MHL-enabled smartphones and tablets
Use the projector remote to control MHL-enabled devices
Supports Full HD 1080p video and 7.1 audio
Simultaneously charge your MHL-enabled device when it’s plugged into the projector
iProjection
Display and control content from your iPhone®, iPad® or iPod® touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
WiDi and Miracast Certified
Easy wireless transmission of full HD (1080p) video and 5.1 surround sound from PCs, smartphones and other devices without a complicated set up. With support for the screen mirroring, users can project their smartphone or tablet screens without a cable connection. Intel® WiDi technology is supported across a range of Windows 7 and Windows 8 devices. These models also support Wi-Fi CERTIFIED Miracast to allow a peer-to-peer wireless screencasting, delivering audio and video from a smart device to the big screen. Miracast is supported by several smart device manufacturers using the Android 4.2 OS and above, as well as Windows 8.1. (iOS Devices not supported)
Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS and Android Devices being able to join the network. Another additional feature has been built into the EB-1900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.
Advanced Networking
With the EB-1900 Series, its possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.
Connectivity Panel
Specifications
| PRODUCT NAME |
Epson EB-1985WU |
| PRODUCT CODE |
V11H619053 |
| WHAT'S IN THE BOX |
|
| |
EB-1985WU Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual |
| TECHNOLOGY |
|
| Projection System |
Epson 3LCD, 3-chip technology |
| LCD Panel |
0.76-inch with MLA |
| OPTICAL |
|
| Zoom |
1-1.6 (Optical Zoom) |
| Screen Size |
30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele) |
| Projection Distance |
120" screen 3.56 - 5.89 m |
| Throw Ratio |
1.38 (Zoom: Wide), 2.28 (Zoom: Tele) |
| Projection Lens F Number |
1.5-2.0 |
| Projection Lens Focal Length |
23mm - 38.4mm |
| Focus Method |
Manual Focus |
| Offset |
10:1 |
| IMAGE |
|
| Colour Light Output |
4,800 Lumens |
| White Light Output |
4,800 Lumens |
| Resolution |
WUXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Lamp Hours |
Normal/Eco: 3,000/4,000 Hours |
| Lamp Type |
260 W UHE |
| Keystone Correction |
Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees |
| CONNECTIVITY |
|
| Input: Video |
1 x RCA (Yellow) |
| Input: Computer |
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B |
| Input: USB Memory Device |
1 x USB Type A |
| Input: Three-In-One USB Display |
1 x USB 2.0 type B |
| Input: Digital |
2 x HDMI (1 x MHL) |
| Input: Audio |
1 x RCA (Red/White), 2 x Stereo mini jack |
| Input: Control |
1 x USB 2.0 type B, 1 x RS232C |
| Input: Epson USB Document Camera |
1 x USB 2.0 type B |
| Network I/O: |
1 x RJ45 (100Mbps) |
| Wireless Connectivity |
Included |
| WiDI/Miracast |
Included |
| Output: Video |
1 x D-sub 15 pin (black moulding) |
| Output: Audio |
1 x Stereo mini jack |
| Speaker Output |
16W |
| ADVANCED FEATURES |
|
| EasyMP Network & Control |
Yes |
| EasyMP Network Projection |
Yes |
| PC Free Presentations |
Yes |
| USB Plug 'n Play |
Yes |
| AV Mute Slide |
Yes |
| Instant Off |
Yes |
| Auto Power On |
Yes |
| Direct Power On/Off |
Yes |
| Security |
Padlock & Security Cable Hole
Kensington -style lock provision
Wireless LAN Unit Lock
Password protect function |
| Colour Modes |
Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM |
| GENERAL |
|
| Dimensions D x W x H |
291 x 377 x 110 mm |
| Weight |
4.6kg |
| Lamp Warranty |
12 months or 750 hours* |
| Projector Warranty |
3 Years |
| Power Consumption: Lamp on |
Normal/Eco: 411/316W |
| Power Consumption: Standby |
0.34W (communication off) |
| Noise Level |
Normal/Eco: 39/31dB |
| |
| * Which ever comes first. For more information visit Epson Projector Warranty |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
Lamp ELPLP77 |
V13H010L77 |
| |
Air Filter ELPAF41 |
V13H134A41 |
| |
Quick Wireless Key ELPAP09 |
V12H005M09 |
| |
Ceiling Mount ELPMB23 |
V12H003B23 |
| |
Extension Pole 668-918 mm |
V12H003P13 |
| |
Extension Pole 918-1,168 mm |
V12H003P14 |
| |
Soft Carrying Case ELPKS68 |
V12H001K68 |
| |
Floor Standing Tripod Screen |
V12H002S2Y |
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
Previous Page
|
Next Page
|
|
