Folksafe FS-4504SR-II 4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks - For UTP CAT5E/6 4-CH Passive Video Balun (Small And Compact), RJ45 And Detachable Terminal Blocks For UTP CAT5E/6
Description
Folksafe: FS-4504SR
4-CH Passive Video Balun
Dimensions: 180*102*33mm ( BNC connector+mounting bracket included)

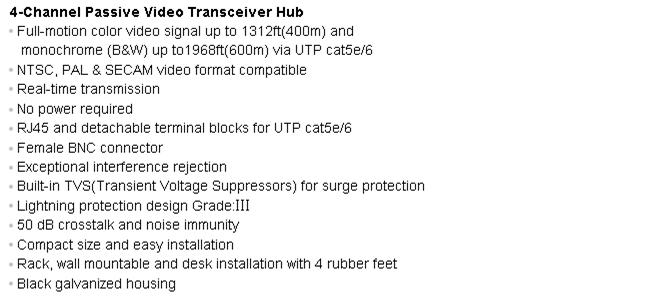

Overview

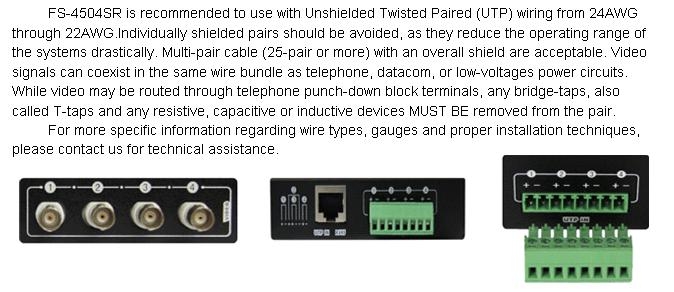

Wire and Cable Recommendations

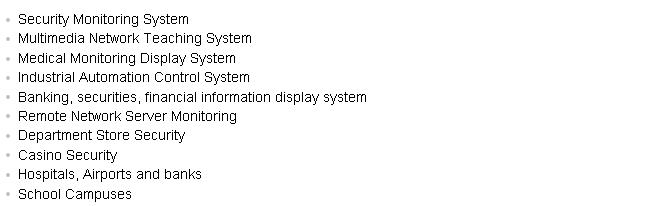

Applications
Features
Specifications
| Model |
FS-4504SR |
| Product Name |
4 Channel Passive Video Transceiver Hub |
| Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, female BNC 75 unbalanced |
| UTP, screw terminal block or RJ45 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
No external power required |
| Connector |
Video input/output |
Female BNC connector |
| Video output/input |
pluggable screw terminal block and RJ45 for UTP ( select one connection) |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Antistatic |
YES |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Dimensions(L*W*H) |
BNC connector & mounting bracket excluded |
| 180*85*32mm |
| Housing |
Galvanized |
| Body Color |
Black |
| Net Weight |
480g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
06/08
|
Folksafe FS-4301VP 1-CH Passive Video & Power Balun (Transmitter + Receiver), 12V/24V 1-CH Passive Video & Power Balun ( Transmitter + Receiver ), 12V/24V
FS-4301VP
Description
Folksafe: FS-4301VP
1-CH Passive Video & Power Balun
RJ45 Jack for UTP cat5e/6 cable
12V/24V DC/AC are both workable
Overview
Wire and Cable Recommendations

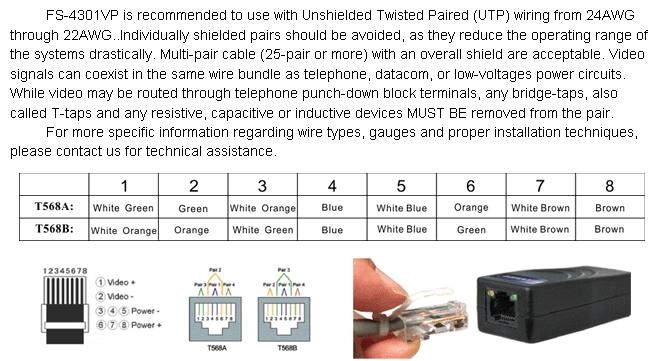

Applications
Features
Specifications
| Model |
FS-4301VP |
| Product Name |
Single Channel Passive Video and Power Transmitter & Receiver |
| Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, Male BNC 75 unbalanced UTP,RJ45 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
Power Input |
No external power required |
| Power transmission |
12V/24V,DC/AC, up to 820ft(250m) via UTP cat5e/6 |
| Connector |
Video input/output |
Male BNC connector |
| Video input/output |
RJ45 Jack |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Housing |
ABS engineering plastic |
| Body Color |
Black |
| Dimensions(L*W*H) |
60.4*29*20.4mm (BNC connector & cable excluded) |
| Net Weight |
60g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
06/08
|
Folksafe FS-4201SR 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Push Pin Terminal 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/ Push Pin Terminal
Description
Folksafe: FS-4201SR
1-CH Mini Passive Video Balun with mini-coax pigtail lead
Push pin terminal connection;too-less installation in less than 1 minute
Built-in TVS for surge protection
Overview
Wire and Cable Recommendations
Applications
Features
Specifications
| Model |
FS-4201SR |
| Product Name |
Single Channel Passive Video Transceiver |
| Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, Male BNC 75 unbalanced |
| UTP, two push-pins terminal block 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
No external power required |
| Connector |
Video input/output |
Male BNC connector |
| Video input/output |
Tool-less push-pin terminal block |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Housing |
ABS engineering plastic |
| Body Color |
Black |
| Dimensions(L*W*H) |
38.4*18.6*19.5mm (BNC connector & cable excluded) |
| Net Weight |
40g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
06/08
|
Folksafe FS-4103SR 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Screw Terminal 1-CH Mini Passive Video Balun with 15cm Mini-Coax Pigtail Lead/Screw Terminal
Description
Folksafe: FS-4103SR
- 1-CH Mini Passive Video Balun with mini-coax pigtail lead
- Screw terminal connection for UTP cat5e/6 cable
- Dimensions: 180*16*17mm (L*W*H BNC connector and pigtail included)
Overview

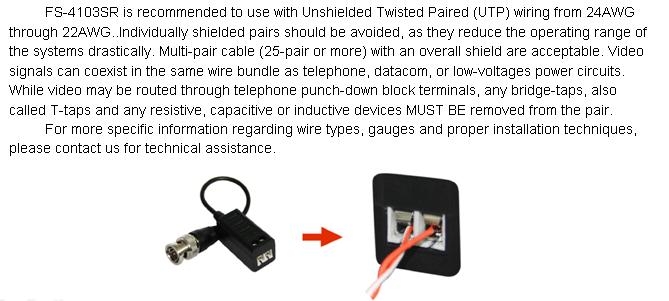

Wire and Cable Recommendations
Applications
Specifications
| Model |
FS-4103SR |
| Product Name |
Single Channel Passive Video Transceiver |
| Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, Male BNC 75 unbalanced UTP, Screw terminal 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
No external power required |
| Connector |
Video input/output |
Male BNC connector |
| Video input/output |
Screw terminal |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Housing |
ABS engineering plastic |
| Body Color |
Black |
| Dimensions (L*W*H) |
42.4*17.8*17.4mm (BNC connector & cable excluded) |
| Net Weight |
40g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
06/08
|
Folksafe FS-4102SR 1-CH Mini Passive Video Balun/Screw Terminal 1-CH Mini Passive Video Balun/Screw Terminal
FS-4102SR
Description
Model:FS-4102SR
1-CH Mini Passive Video Balun
Screw terminal connection for UTP cat5e/6 cable
Dimensions: 50*16*17mm

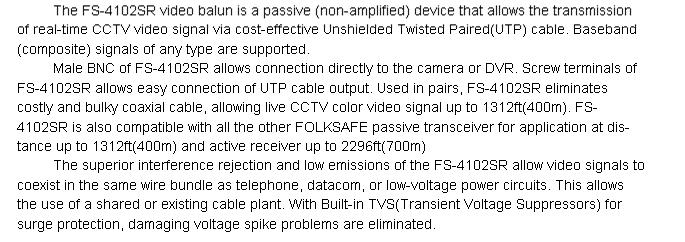

Overview
Wire and cable Recommendations
Applications
Specifications
| Model |
FS-4102SR |
| Product Name |
Single Channel Passive Video Transceiver |
| Applied devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, Male BNC 75 unbalanced UTP, Screw terminal 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
No external power required |
| Connector |
Video input/output |
Male BNC connector |
| Video input/output |
Screw terminal |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Housing |
ABS engineering plastic |
| Body Color |
Black |
| Dimensions(L*W*H) |
42.4*17.8*17.4mm (BNC connector excluded) |
| Net Weight |
20g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
06/08
|

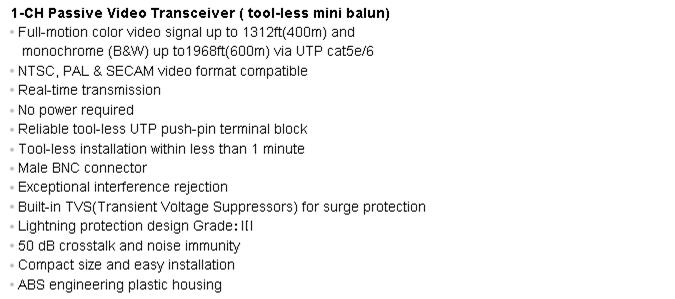

Folksafe FS-4100SR 1-CH Passive Video Transceiver (Tool-Less Mini Balun) 1-CH Mini Passive Video Balun/ Push Pin Terminal
Folksafe: FS-4100SR
- 1-CH Mini Passive Video Balun
- Push pin terminal connection
- Built-in TVS for surge protection

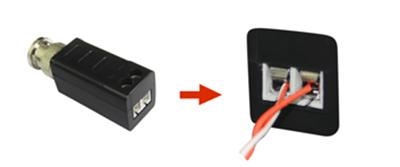

Overview

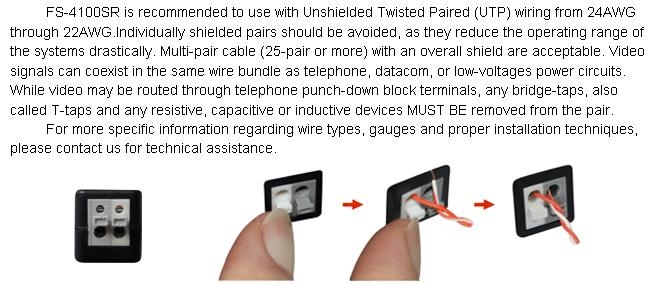

Wire and Cable Recommendations
Applications
Features
Specifications
| Model |
FS-4100SR |
| Product Name |
Single Channel Passive Video Transceiver |
| Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video |
Video Format |
PAL, NTSC, SECAM |
| Operating Frequency |
DC to 5MHz |
| Max Distance |
UTP Category 5e (24AWG) Color: 1312ft(400m) B&W: 1968ft(600m) |
| Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
| Impedance |
Coax, Male BNC 75 unbalanced |
| UTP, two push-pins terminal block 100 balanced |
| Attenuation |
1.5 dB typ Max |
| Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
| Category Type |
2 or better |
| Impedance |
100 20 ohms |
| DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
| Differential Capacitance |
19 pF/ft max (62 pF/m max) |
| Power |
No external power required |
| Connector |
Video input/output |
Male BNC connector |
| Video input/output |
Tool-less push-pin terminal block |
| Protection |
Surge Protection |
renewable solid state surge protection |
| Video Input |
2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Video Output |
2KV(different mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
| Mechanical |
Housing |
ABS engineering plastic |
| Body Color |
Black |
| Dimensions(L*W*H) |
35.1*16.7*18.7mm (BNC connector excluded) |
| Net Weight |
20g |
| Environmental |
Operating Temperature |
-20 ~ 70 C |
| Relative Humidity |
0~95% (non-condensing) |
| Storage Temperature |
-40 ~ 150 C |
|
|
|
|
Previous Page
|
Next Page
|
|
