03/06
|
NEC M282XG DLP Projector - XGA, 2800 LumenNEC M282XG DLP 2800 Lumen XGA
|
|
|
|
03/06
|
Panasonic DMC-TZ60GN-S Lumix TZ60 Digital Camera - Silver
- 18.1MP, 30x Optical Zoom, f = 4.3-129mm (24-720mm In 35mm Equivalent), 3.0" TFT LCD, Optical Image Stabilizer, Wi-Fi Lumix
DMC-TZ60GN
Fully Manual Operation with 30x LEICA Lens
The LUMIX DMC-TZ60 boasts a 30x optical zoom, EVF and Wi-Fi with NFC in an ultra slim body. Save your memories in remarkable quality with the 18.1-megapixel high sensitivity MOS sensor. A variety of manual shooting functions are also included to form this amazingly versatile camera.
Overview
Highlights
Touch Your Photography
In addition to its remarkable optical zoom power of 30x*, this camera features a large number of manual functions to boost your creativity, such as a LVF (Live View Finder), a Control Ring, RAW compatibility, and Focus Peaking, all in an ultra-compact body. This enables highly detailed shooting that covers everything from ordinary snapshots to travel scenes.
30x Optical Zoom in Ultra Compact Body
Crystalizing its optical technologies, Panasonic succeeded in integrating a 24mm ultra wide-angle 30x zoom lens (35mm equivalent: 24-720mm) in a slim, flat body. It lets you capture a variety of scenes from dynamic landscapes, to people or animals far away.
Built-in Live View Finder
This camera comes equipped with a 0.2-inch LVF (Live View Finder) with 200K-dot equiv. resolution and 100% field of view. It assures stable framing and high visibility of live view images even at high magnification and under strong sunlight. As an option, it can be set to 60 fps to smoothly display fast-moving subjects.
HYBRID O.I.S.+ and Level Shot Function
The HYBRID O.I.S.+ for video recording with 5-axis correction detects and effectively compensates for the camera's 5 types of movement – horizontal, vertical, axis of rotation, vertical rotation and horizontal rotation.
The Level Shot Function detects the horizontal line of the recording image and keeps it even if the camera is tilted. It lets you take stable video even in blind recording situations, such as high angle shots.
Easy Wi-Fi Connection with NFC / QR Code
This camera integrates Wi-Fi® connectivity with NFC technology to enjoy flexible shooting style and instant image sharing with easy operation. You can connect the camera with a smartphone / tablet simply by placing them near each other and following the simple guidance. Setting-up is extremely easy and finishes within a few seconds. Even if a smartphone / tablet is incompatible with NFC, it can be easily connected to the camera just by scanning the QR code displayed on the camera monitor.
To use this feature, it is recommended that you update your “Panasonic Image App” to the latest version.
Photo Shooting Performance
18.1-megapixel High Sensitivity MOS Sensor
The 18.1-megapixel High Sensitivity MOS sensor is integrated in the camera to realise both high quality image recording and high speed signal processing.
The superior NR (Noise Reduction) system in the Venus Engine enables deliberate noise reduction process without missing low-frequency noise in its large detection area. It results in the high sensitivity image recording even at ISO6400 (extended).
High Speed Response
High speed digital signal output technology is integrated to realise high speed consecutive shooting and full-HD video recording. It lets you shoot 10 fps in 18.1-megapixel full resolution with mechanical shutter and 5 fps with continuous AF. The actuator for AF lens motor uses a 240 fps high speed AF Drive, resulting in the higher speed AF by approx. 20% at wide and 30% at tele end*. It also contributes to the quick start-up and Light Speed AF to catch the most fleeting shooting opportunities.
Panasonic comparison with the DMC-ZS30 (TZ40) at LV11 brightness.
Unique Filter Effects Photos and Videos
With a variety of filter effects, Creative Control lets you add artistic and original expression to photos and videos.
Creative Panorama function allows you to create dynamic vertical / horizontal panoramic photos with a unique touch just by swiveling the camera.
[Filter Effects]
Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect*, Miniature Effect*, Soft Focus**, Star Filter** and One Point Color.
Cannot be used in Creative Panorama.
Cannot be used in video recording.
RAW Format Recording
This camera is capable of recording images in RAW. The software SILKYPIX Developer Studio 4.1 SE allows dramatically higher quality image development from RAW to JPEG. Even the images shot at high ISO setting can be produced sharply with minimum noise.
The software to process RAW file on PC is not bundled with DMC-ZS40(TZ60).
To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using PC connected to the Internet.
SILKYPIX®; It is a registered trademark of Ichikawa Soft Laboratory Co., Ltd.
Control Functions
Control Ring
Manual control is easy to try thanks to the Control Ring, which enables direct, intuitive control over frequently used settings: zooming, aperture, shutter speed, and filter of Creative Control. Manual focusing is also available with smooth Control Ring operation.
Manual Focus / Focus Peaking
For more precise control over focusing, this camera incorporates Focus Peaking function that shows the peak of focus in MF mode. You can see the peaking of focus while monitoring the subject in live view. You can also take advantage of this function when controlling the camera with your smartphone or tablet via Wi-Fi® in both photo / video recording.
Composition Guide
It is easy to shoot a photo in good composition by just choosing the most suitable pattern of composition – Rule of Thirds Offset, Diagonal Lines, Tunnel, Radiation1, Radiation2 or S-shape – and framing the subjects along the guided lines. The well-composed image has a stunning perspective and it will look dramatically refined. This function can be used when shooting not only with the monitor but also with LVF (Live View Finder).
Level Gauge
The Level Gauge lets the camera detect the horizontal / vertical angle of view which is convenient to make level in composition.
Video Shooting Performance
1920x 1080p Full-HD Video Recording in AVCHD and MP4 Format
This camera can record high-resolution full-HD 1,920 x 1,080 50p videos in AVCHD Progressive (MPEG-4 / H.264) format. Featuring the progressive full-HD video recording capability, subjects with fast motion or fine details are reproduced even more clearly.
30x Optical Zoom in Video Recording
The powerful 30x optical zoom with 2-step Zoom function is available in video recording. The advanced image stabiliser HYBRID O.I.S.+ is integrated to suppress hand-shake vibration effectively even when shooting using high zoom. The Level Shot Function detects the horizontal line of the recording image and keeps it, even if the camera is tilted. It lets you take stable video even in blind recording scenarios like high angle shooting.
High Speed Video 100 fps in HD
You can record high-speed videos at 100 fps in HD quality. You can capture scenes that can't be seen with the naked eye, and play them back in dramatic slow motion.
Stereo Microphone
Incorporating a stereo zoom microphone, the videos also come with the high-quality stereo sound of Dolby® Digital, to offer highly realistic sound to the video. Mechanical noise caused by a zooming operation is suppressed to improve the clearness. Also, the Auto Wind Cut function is available to block out most of the noise from background wind automatically making the human voice stand out.
Other features
UNWIRE YOUR CREATIVITY with Wi-Fi®
One-Touch Connection (NFC)
NFC (Near Field Communication) makes Wi-Fi® connection easier. By simply touching a NFC compatible smartphone or tablet to the camera, you can change it to a remote controller or transfer data to it.
On the Go (Shoot & Share)
Take full advantage of Wi-Fi® connectivity using the "Panasonic Image App" even when you are out.
Remote ShootingInstant Transfer
Geotagging
Remote View
Easy Share
At Home (Save & Playback)
Enjoy Wi-Fi® convenience at home.
Cloud Sync.
Auto Transfer
Wireless TV Playback
Wireless Print
GPS and GLONASS
The GPS (Global Positioning System) in the camera also complies with GLONASS (Global Navigation Satellite System) to further enhance its detection accuracy for its increased number of satellites.
Integrating the GPS function, it shows the name of the Country/Region, State/Prov., County/Township, City/Town/Village and Landmark using the internal data to give you useful and fun real-time information when taking photos while travelling.
iA (Intelligent Auto) / iA Plus Mode
For beginners, iA (Intelligent Auto) mode supports taking beautiful pictures with a variety of shooting-assist functions including i-Food mode and Intelligent Handheld Nightshot. The iA Plus mode lets you adjust defocusing area in the background, exposure compensation and white balance for more flexible control.
3.0-inch 920k-dot Monitor
The 3.0-inch large 920K-dot monitor assures high visibility in any lighting conditions, which is excellent for both shooting and playing back images.
AC / USB Battery Charging
The camera's battery can be recharged either via AC or USB to enhance your convenience.
Specifications
30x
Optical Zoom
18.1 Megapixels
High-sensitivity MOS Sensor
1920 x 1080p
FULL HD Video Recording
Specifications
| Metrics |
Dimensions (W x H x D) |
110.6 x 64.3 x 34.4 mm |
| Dimensions (W x H x D) |
(4.35 x 2.53 x 1.35 inch) |
| Weight |
Approx. 214 g without Battery and SD Memory Card (0.472 lb) * 213 g (XXX lb) for China |
| Weight |
Approx. 240 g with Battery and SD Memory Card (0.529 lb) * 239 g (XXX lb) for China |
| Optics |
Pixels |
Camera Effective Pixels |
18.1 Megapixels |
| Sensor |
Sensor Size / Total Pixels / Filter |
1/2.3-inch High Sensitivity MOS Sensor / Total Pixel Number 18.9 Megapixels / Primary Color Filter |
| Lens |
Aperture |
F3.3 - 6.4 / Multistage Iris Diaphragm (F3.3 - 8.0 (W), F6.4 - 8.0 (T)) |
| Optical Zoom |
30x |
| Focal Length |
f = 4.3 - 129mm (24 - 720mm in 35mm equiv.) |
| Focal Length |
(28 - 840mm in 35mm equiv. in 16:9 video recording / Level Shot function Off) |
| Focal Length |
(30 - 900mm in 35mm equiv. in 16:9 video recording / Level Shot function On) |
| Extra Optical Zoom (EZ) |
36.7x (4:3 / 12M), 45.0x (4:3 / 8M), 57.4x (4:3 / 5M), 71.7x (4:3 / under 3M) |
| Intelligent Zoom |
60x |
| Lens |
LEICA DC VARIO-ELMAR |
| Lens |
12 elements in 9 groups |
| Lens |
(5 Aspherical Lenses / 10 Aspherical surfaces / 3 ED Lenses) |
| 2- Speed Zoom |
Yes |
| Optical Image Stabilizer/Five Axis Correction |
HYBRID O.I.S. + (On / Off) / Yes |
| Digital Zoom |
Max. 4x |
| Conversion Lens Compatibility |
- |
| Focus |
Focusing Area |
Normal: Wide 50cm - infinity / Tele 200cm - infinity |
| Focusing Area |
AF Macro / MF / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 200 cm - infinity |
| AF Assist Lamp |
Yes (On/Off) |
| Focus |
Normal / AF Macro / Macro Zoom / MF |
| Focus |
Quick AF On / Off (on in Intelligent Auto), Continuous AF (only for motion picture) |
| Focus |
AF/AE Lock Button (Set the Fn button in custom menu to AF/AE lock) |
| Focus |
Focus Peaking, One Shot AF (Set the Fn button in custom menu to AF-ON), AF Area Select, AF Tracking |
| AF Metering |
Face / AF Tracking / 23-area / 1-area (flexible / scalable) |
| Shutter |
Shutter Speed |
Approx. 4 - 1/2,000 sec |
| Shutter Speed |
Starry Sky Mode: 15, 30 sec |
| Finder |
Viewfinder |
0.20" LVF (Live View Finder) (200K dots equiv.), Field of View: Approx. 100%, Lens 19.6x |
| Viewfinder |
Magnification: Approx. 2.56x / 0.46x (35 mm camera equivalent) |
| Recording |
File |
File Format |
Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF |
| File Format |
3D Image: MPO |
| File Format |
Motion Picture: AVCHD, MP4 |
| Recording Modes |
Mode Dial / Mode Button |
Intelligent Auto, P, A, S, M, C1 (Custom), C2 (Custom), Panorama Shot, Scene, Creative Control |
| Creative Control mode |
Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color (15 filters) |
| Still Image Scene Mode |
Portrait, Soft Skin, Scenery, Sports, Night Portrait, Night Scenery, Handheld Night Shot, Food, Baby1, Baby2, Pet, Sunset, High Sensitivity, Glass Through, HDR, Starry Sky, High Speed Video, 3D Photo |
| Continuous Shooting Mode |
Full-Resolution Image: 10 frames/sec, Max. 6 images |
| Continuous Shooting Mode |
with AF Tracking: 5 frames/sec, 2 frames/sec |
| Continuous Shooting Mode |
Intelligent Burst Shooting |
| Continuous Shooting Mode |
High-speed Burst: Approx. 60 frames / sec |
| Continuous Shooting Mode |
(recorded in 2.5M / 0.3M for 4:3, 3M / 0.3M for 3:2, 3.5M / 0.2M for 16:9, 2M / 0.2M for 1:1) |
| Continuous Shooting Mode |
Flash Burst Shooting |
| Continuous Shooting Mode |
Approx. 40 frames / sec |
| Continuous Shooting Mode |
(recorded in 5M / 3M / 0.3M for 4:3, 4.5M / 2.5M / 0.3M for 3:2, 3.5M / 2M / 0.2M for 16:9, 3.5M / 2.5M / 0.2M for 1:1) |
| Continuous Shooting Mode |
Flash Burst Shooting |
| Motion Picture Recording (*2) |
HD Video |
1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) |
| HD Video |
1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) |
| HD Video |
1280 x 720 pixels, 50p (HD: 17Mbps / AVCHD) (Sensor Output is 50fps) |
| HD Video |
1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) |
| HD Video |
1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) |
| STD Video |
640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) |
| High Speed Video |
1280 x 720 pixels, 25p (HD: MP4) (Sensor Output is 100fps) |
| High Speed Video |
640 x 480 pixels, 25p (VGA: MP4) (Sensor Output is 200fps) |
| Continuous recordable time (motion pictures) |
AVCHD |
Approx. 75 min (FHD/60p), Approx. 80 min (FHD/60i) |
| MP4 |
Approx. 90 min (FHD) |
| Actual recordable time (motion pictures) |
AVCHD |
Approx. 30 min (FHD/60p), Approx. 35 min (FHD/60i) |
| MP4 |
Approx. 40 min (FHD) |
| Exposure Parameters |
Exposure |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual |
| Exposure Compensation |
1/3 EV step, +/-2 EV |
| Auto (AE) Bracketing |
1/3-1EV step, Max. +/-1 EV, 3 frames |
| Light Metering |
Intelligent Multiple / Center Weighted / Spot |
| ISO Sensitivity |
Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 / 3200/ 6400* (* Extended ISO) |
| ISO Sensitivity |
High Sensitivity Mode (ISO1600 - 6400) |
| Picture Quality |
Still Picture Recording |
[4:3] 4896x3672 (18M) / 4000x3000 (12M EZ) / 3264x2448 (8M EZ) / 2560x1920 (5M EZ) / 2048x1536 (3M EZ) / 640x480 (0.3M EZ) |
| Still Picture Recording |
[3:2] 4896x3264 (16M) / 4000x2672 pixels (10.5M EZ) / 3264x2176 (7M EZ) / 2560x1712 (4.5M EZ) / 2048x1360 (2.5M EZ) / 640x424 (0.3M EZ) |
| Still Picture Recording |
[16:9] 4896x2752 (13.5M) / 4000x2248 (9M EZ) / 3264x1840 (6M EZ) / 2560x1440 (3.5M EZ) / 1920x1080 (2M EZ) / 640x360 (0.2M EZ) |
| Still Picture Recording |
[1:1] 3664x3664 (13.5M) / 2992x2992 (9M EZ) / 2448x2448 (6M EZ) / 1920x1920 (3.5M EZ) / 1536x1536 (2.5M EZ) / 480x480 (0.2M EZ) |
| Image Quality |
RAW / RAW+Fine / RAW+Standard / Fine / Standard |
| Image Quality |
(3D Mode: MPO+Fine / MPO+Standard) |
| White Balance |
Auto / Daylight / Cloudy / Shade / Incandescent / White Set |
| White Balance |
White Balance Adjustment (Except Auto) |
| Photo Style / Film Mode |
- |
| Color Mode / Color Effect / My color |
- |
| Picture Adjustment |
- |
| Aspect Bracketing |
- |
| Other |
Digital Red Eye Correction (Red-Eye Removal) |
Yes (On/Off) |
| GPS |
Yes (GPS / GLONASS) / GPS Log * Not available on products for China. |
| Wi-FI |
IEEE 802.11b/g/n |
| Wi-FI |
2412 MHz 2462 MHz (1-11 ch) |
| Wi-FI |
WPA / WPA2 |
| Wi-FI |
Infrastracture Mode / WPS / Wi-Fi Direct |
| Wi-FI |
Wi-Fi Button |
| NFC |
ISO/IEC 18092 (NFCIP-1) NFC-F |
| Zoom in Motion Picture |
Yes |
| Self Timer |
2 sec / 10 sec |
| Self Shot Mode |
- |
| Playback |
Display |
Playback Mode |
All, Slideshow, Filtering Play (Picture Only, Video Only, 3D Play, GPS Area Play*, Travel, Category Selection, Select Date, Favorite), Calendar |
| Playback Mode |
* Not available on products for China. |
| Thumbnails / Zoomed Playback |
12,30-thumbnails / Yes |
| Calendar Display / Dual- Image Playback |
Yes (Menu / Zoom Lever) / No |
| Set Favorites / Rotate Image |
Yes / No |
| Show Histogram |
Yes |
| Show Highlights |
- |
| DPOF Print Setting / Set Protection |
Yes / Yes |
| Edit |
Retouch |
Auto Retouch / Creative Retouch |
| Resize / Cropping / Aspect Conv. / Leveling |
Yes / Yes / No / No |
| Copy / Title Edit / Text Stamp |
Yes / Yes / Yes |
| Cut Animation |
Yes |
| Video Divide |
Yes |
| PictBridge Support |
Single / Multi / All / DPOF / Favorites |
| Setup |
OSD language |
English, Chinese (Traditional), Thai, Arabic, Persian, Vietnamese |
| Others |
Monitor |
LCD Monitor |
3.0" (7.5cm) TFT Screen LCD Display (920K dots), AR Coating |
| LCD Monitor |
Field of View: Approx. 100%, Wide Viewing-angle |
| LCD Monitor |
Power Monitor mode, AUTO Power Monitor mode |
| Flash |
Built- in- Flash |
Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off |
| Built- in- Flash |
0.6 - 6.4m (Wide / ISO Auto), 2.0 - 3.3m (Tele / ISO Auto) |
| Media |
Recording Media |
Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Built- in- Memory |
Approx. 12MB |
| Audio |
Microphone / Speaker |
Stereo / Mono |
| Interface |
Interface |
microHDMI, AV Output (PAL / NTSC), USB (AV/USB Multi) |
| Power |
Power |
Li-ion Battery Pack (3.6V, 1250mAh, 4.5 Wh) (Included) |
| Power |
AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable) |
| Battery life (approx.) |
300 pictures (CIPA Standard)*1 |
| Standard Package |
Included Software |
PHOTOfunSTUDIO 9.3PE |
| Included Software |
LoiLoScope (trial version) |
| Included Software |
Adobe Reader |
| Included Software |
The software to process RAW file on PC is not bundled with DMC-TZ60. |
| Included Software |
To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using |
| Standard Accessories |
Battery Pack, AC Adaptor, USB Cable, Hand Strap |
| NOTE |
*1 |
| NOTE |
Recording conditions by CIPA standard |
| NOTE |
- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on. |
| NOTE |
- Using a Panasonic SDHC Memory Card |
| NOTE |
- Using the supplied battery. |
| NOTE |
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) |
| NOTE |
- Recording once every 30 seconds with full flash every second recording. |
| NOTE |
- Rotating the zoom lever from Tele to Wide or vice versa in every recording. |
| NOTE |
- The number of recordable pictures varies depending on the recording interval time. |
| NOTE |
- If the recording interval time becomes longer, the number of recordable pictures decreases. |
| NOTE |
- CIPA is an abbreviation of [Camera & Imaging Products Association]. |
| NOTE |
*2 |
| NOTE |
- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. |
| NOTE |
- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. |
| NOTE |
- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc. |
| NOTE |
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. |
| NOTE |
SD speed class is the speed standard regarding continuous writing. |
| NOTE |
- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds in some Asian areas. |
| NOTE |
- Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB. |
|
|
|
|
03/06
|
Panasonic DMC-SZ8GN-K Lumix SZ8 Digital Camera - Black
- 16MP, 12x Optical Zoom, F = 4.3-51.6mm (24 - 288mm In 35mm Equivalent), 3.0" LCD, Image Stabilizer, Wi-Fi, HD720p Video Recording Lumix
DMC-SZ8GN
12x Optical Zoom and Built-in Wi-Fi in a Slim, Stylish Body
Overview
Highlights
12x Optical Zoom in a Stylish Body
The DMC-SZ8 is equipped with a 24mm ultra wide-angle lens with powerful 12x optical zoom (35mm camera equivalent: 24-288mm) to boost high versatility despite the cameras slim, stylish profile.
Easy Wi-Fi® Connection to Your Smartphone
You can easily connect the camera to your smartphone / tablet by displaying the QR code on the camera screen and using the "Panasonic Image App" on the smartphone / tablet to scan the QR code. Setting-up is extremely easy and finishes within a few seconds.
A wireless connection between the camera and the smartphone / tablet lets you use a variety of Wi-Fi® functions, such as Remote Shooting, Instant Transfer, and Geotagging
Unique Filter Effects Photos and Videos
With a variety of filter effects, Creative Control lets you add artistic and original expression to photos and videos. Creative Panorama function allows you to create dynamic vertical / horizontal panoramic photo with a unique touch just by swiveling the camera.
[Filter Effects]
Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect*, Miniature Effect*, Soft Focus**, Star Filter** and One Point Color.
Cannot be used in Creative Panorama.
Cannot be used in video recording.
3.0-inch 460K-dot Intelligent LCD
The 3.0-inch large 460K-dot LCD assures high visibility in any lighting conditions, which is excellent for both shooting and playing back images.
Photo Shooting Performance
16-megapixel CCD
The 16-megapixel CCD sensor captures high-resolution images so you can crop the part you want to enlarge from the picture after shooting.
Optical Image Stabilizer
Blurring images due to handshake often occurs in shooting using high zoom, however, the Optical Image Stabiliser minimises it without causing deterioration of image quality.
HDR (High Dynamic Range)
With the HDR (High Dynamic Range) mode, several photos are consecutively shot at different exposure levels to make a single composite picture without whiteout (over-exposure) or blackout (under-exposure) even in difficult lighting conditions.
Remote Shooting / Remote View
With “Panasonic Image App", remote shooting is available which means you gain extra control. Placing a camera at a shooting position, you can monitor it from a distance. What the camera is seeing is displayed on the smartphone / tablet and zooming, setting focus, shutter release and several recording settings such as exposure compensation are controllable with a smartphone / tablet.
Wi-Fi® Features - On the Go
Easy Share
You can instantly upload and share your images to social networking sites using the "Panasonic Image App" on a smartphone / tablet. Also, a new Photo Collage function has been added to the app to allow several images to be combined into a single image and shared.
Geotagging
You can tag the location information to the image by utilising the GPS log of a smartphone / tablet and share it to social networking sites.
Facebook is a registered trademark or trademark of Facebook, Inc.
Picasa is a registered trademark or trademark of Google Inc.
Flickr is a registered trademark or trademark of Yahoo! Inc.
Wireless Image Transfer
Instant Transfer
The Instant Transfer function allows you to transfer photo data to designated electronic devices automatically whenever the shutter is released. In playback mode, you can also touch the image displayed on the camera to transfer it directly to the smartphone / tablet right on the spot.
Auto Transfer
Images are transferred on your camera to a computer or other compliant devices while charging the battery via the wireless access point at home.
Other Features
720p HD Video Recording
The DMC-SZ8 records dynamic HD video in 1280 x 720p. Recording motion image can be started with a press of an independent motion picture button on the top of the camera, which is extremely convenient for users to switch between photo and video shooting instantly.
iA (Intelligent Auto) Mode
Panasonic incorporated the Intelligent Auto mode in pursuit of the ultimate ease of operation and the reduction of miss-shots. The mode is a comprehensive integration of Optical Image Stabilizer, Face Detection, Intelligent Scene Selector and Intelligent Exposure – the camera does all the work, leaving you free to compose shots, aim and shoot the subject.
AC / USB Battery Charging
The camera's battery can be recharged either via AC or via USB according to your convenience.
Specifications
12x
Optical Zoom
16 Megapixels
High-resolution CCD
15 Filter Effects
Creative Control

Specifications
| Metrics |

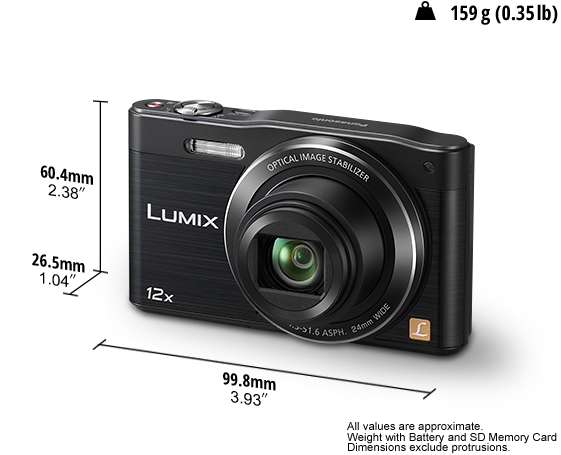

Dimensions (W x H x D) |
99.8 x 60.4 x 26.5 mm |
| Dimensions (W x H x D) |
(3.93 x 2.38 x 1.04 inch) |
| Weight |
Approx. 144 g without Battery and SD Memory Card (0.32 lb) |
| Weight |
Approx. 159 g with Battery and SD Memory Card (0.35 lb) |
| Optics |
Pixels |
Camera Effective Pixels |
16 Megapixels |
| Sensor |
Sensor Size / Total Pixels / Filter |
1/2.33-inch CCD Sensor / Total Pixel Number 16.6 Megapixels / Primary Color Filter |
| Lens |
Aperture |
F3.1 - 6.3 / 2-step (F3.1 / 7.8 (W), F6.3 / 16.3 (T)) |
| Optical Zoom |
12x |
| Focal Length |
f = 4.3 - 51.6mm (24 - 288mm in 35mm equiv.) |
| Focal Length |
(26 - 314mm in 35mm equiv. in 16:9 video recording) |
| Extra Optical Zoom (EZ) |
16.9x (4:3 / 8M), 27.0x (4:3 / under 3M) |
| Intelligent Zoom |
24x |
| Lens |
8 elements in 8 groups |
| Lens |
(4 Aspherical Lenses / 8 Aspherical surfaces / 1 ED Lenses) |
| 2- Speed Zoom |
- |
| Optical Image Stabilizer/Five Axis Correction |
O.I.S. (On / Off) / No |
| Digital Zoom |
Max. 4x |
| Conversion Lens Compatibility |
- |
| Focus |
Focusing Area |
Normal / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 150 cm - infinity |
| AF Assist Lamp |
Yes (On/Off) |
| Focus |
Normal |
| Focus |
Quick AF (Always On), Continuous AF (only for motion picture) |
| AF Metering |
Face / 1-area / 9-area |
| Shutter |
Shutter Speed |
Approx. 8 - 1/2000 sec |
| Shutter Speed |
Starry Sky Mode: 15, 30, 60 sec |
| Finder |
Viewfinder |
- |
| Recording |
File |
File Format |
Still Image: JPEG (DCF/Exif2.3) |
| File Format |
Motion Picture: QuickTime Motion JPEG |
| Recording Modes |
Mode Dial / Mode Button |
Intelligent Auto, Normal Picture, Panorama Shot, Scene, Creative Control |
| Creative Control mode |
Expressive, Retro, Old Days, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, |
| Creative Control mode |
Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color (15 filters) |
| Still Image Scene Mode |
Portrait, Soft Skin, Scenery, Sports, Night Portrait, Night Scenery, |
| Still Image Scene Mode |
Food, Baby1*, Baby2*, Pet*, Sunset, High Sensitivity, Glass Through, HDR, Starry Sky |
| Still Image Scene Mode |
* Birthday only. |
| Continuous Shooting Mode |
Full-Resolution Image (Unlimited Consecutive Shooting): 1.2 frames/sec |
| Continuous Shooting Mode |
High-speed Burst: Approx. 3 frames / sec |
| Continuous Shooting Mode |
(recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9, 2.5M for 1:1) |
| Motion Picture Recording (*2) |
HD Video |
1280 x 720 pixels, 30fps (HD / Motion JPEG) |
| STD Video |
640 x 480, 30fps (VGA / Motion JPEG) |
| STD Video |
320 x 240, 30fps (QVGA / Motion JPEG) |
| High Speed Video |
- |
| Continuous recordable time (motion pictures) |
AVCHD |
- |
| MP4 |
- |
| Actual recordable time (motion pictures) |
AVCHD |
- |
| MP4 |
- |
| Exposure Parameters |
Exposure |
Auto (Program AE) |
| Exposure Compensation |
1/3 EV step, +/-2 EV |
| Auto (AE) Bracketing |
- |
| Light Metering |
Intelligent Multiple |
| ISO Sensitivity |
Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 |
| ISO Sensitivity |
High Sensitivity Mode (ISO1600 - 6400) |
| Picture Quality |
Still Picture Recording |
[4:3] 4608x3456 (16M) / 3264x2448 (8M EZ) / 2048x1536 (3M EZ) / 640x480 (0.3M EZ) |
| Still Picture Recording |
[3:2] 4608x3072 (14M) / 3264x2176 (7M EZ) / 2048x1360 (2.5M EZ) |
| Still Picture Recording |
[16:9] 4608x2592 (12M) / 1920x1080 (2M EZ) |
| Still Picture Recording |
[1:1] 3456x3456 (12M) / 1536x1536 (2.5M EZ) |
| Image Quality |
- |
| White Balance |
Auto / Daylight / Cloudy / Shade / Incandescent / White Set |
| Photo Style / Film Mode |
- |
| Color Mode / Color Effect / My color |
- |
| Picture Adjustment |
- |
| Aspect Bracketing |
- |
| Other |
Digital Red Eye Correction (Red-Eye Removal) |
Yes (On/Off) |
| GPS |
- |
| Wi-FI |
IEEE 802.11b/g/n |
| Wi-FI |
2412 MHz 2462 MHz (1-11 ch) |
| Wi-FI |
WPA / WPA2 |
| Wi-FI |
Infrastracture Mode / WPS |
| Wi-FI |
Wi-Fi Button |
| NFC |
- |
| Zoom in Motion Picture |
Yes |
| Self Timer |
2 sec / 10 sec |
| Self Shot Mode |
- |
| Playback |
Display |
Playback Mode |
Normal Play, Slide Show, Category Selection, Calendar |
| Thumbnails / Zoomed Playback |
12,30-thumbnails / Yes |
| Calendar Display / Dual- Image Playback |
Yes (Menu / Zoom Lever) / No |
| Set Favorites / Rotate Image |
No / No |
| Show Histogram |
- |
| Show Highlights |
- |
| DPOF Print Setting / Set Protection |
No / Yes |
| Edit |
Retouch |
Creative Retouch |
| Resize / Cropping / Aspect Conv. / Leveling |
Yes / Yes / No / No |
| Copy / Title Edit / Text Stamp |
Yes / No / No |
| Cut Animation |
- |
| Video Divide |
- |
| PictBridge Support |
Single / Multi / All |
| Setup |
OSD language |
Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified) |
| Others |
Monitor |
LCD Monitor |
3.0" (7.5cm) TFT Screen LCD Display (460K dots) |
| LCD Monitor |
Field of View: Approx. 100% |
| LCD Monitor |
Power Monitor mode, AUTO Power Monitor mode, High-angle Mode |
| Flash |
Built- in- Flash |
Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off |
| Built- in- Flash |
0.6 - 5.2m (Wide / ISO Auto), 1.5 - 2.6m (Tele / ISO Auto) |
| Media |
Recording Media |
Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Built- in- Memory |
Approx. 80MB |
| Audio |
Microphone / Speaker |
Mono / Mono |
| Interface |
Interface |
AV Output (PAL / NTSC), USB (AV/USB Multi) |
| Power |
Power |
Li-ion Battery Pack (3.6V, 690mAh, 2.5 Wh) (Included) |
| Power |
AC Adaptor (Input: 110 - 240V AC) (Included, connect with USB cable) |
| Battery life (approx.) |
200 pictures (CIPA Standard)*1 |
| Standard Package |
Included Software |
* The DMC-SZ8 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
| Included Software |
* The software for PC is not bundled with DMC-SZ8. Please use the software pre-installed to the PC or other general image viewing software to browse pictures. |
| Standard Accessories |
Battery Pack, AC Adaptor, USB Cable, Hand Strap |
| NOTE |
*1 |
| NOTE |
Recording conditions by CIPA standard |
| NOTE |
- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on. |
| NOTE |
- Using a Panasonic SDHC Memory Card |
| NOTE |
- Using the supplied battery. |
| NOTE |
- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) |
| NOTE |
- Recording once every 30 seconds with full flash every second recording. |
| NOTE |
- Rotating the zoom lever from Tele to Wide or vice versa in every recording. |
| NOTE |
- The number of recordable pictures varies depending on the recording interval time. |
| NOTE |
- If the recording interval time becomes longer, the number of recordable pictures decreases. |
| NOTE |
- CIPA is an abbreviation of [Camera & Imaging Products Association]. |
| NOTE |
*2 |
| NOTE |
- Use a card with SD Speed Class with "Class 6" or higher when recording motion pictures. SD speed class is the speed standard regarding continuous writing. |
| NOTE |
- Motion pictures can be recorded continuously up to 2 GB. |
| NOTE |
- The maximum available recording time for up to 2 GB only is displayed on the screen. |
|
|
|
|
Previous Page
|
Next Page
|
|
