22/05
|
BenQ MW769 DLP Projector - 1280x800, 4200 Lemens, 13000;1, VGA, HDMI, USB Type-B, USB Mini-B, USB Type-A, RS232, LAN MW769
Projection Perfect for All Medium Sized Rooms
The BenQ MW769 is just the projector you need to perfect your presentation in all medium-sized rooms. The MW769 features WXGA resolution with 4200 ANSI lumen brightness, 13000:1 high contrast ratio, and a 1.5x big zoom, which makes installation more flexible and keeps your presentation lookin' great!
Key Features
- World-Leading SmartEco Technology
- 4200 ANSI Lumens
- 13000:1 High Contrast Ratio
- 1.5x Big Zoom Ratio for Installation Flexibility
- Blu-ray Full HD 3D Supported
Overview
Saving More on Power Consumption with BenQ's SmartEco Technology
The MW769 offers lower Total Cost of Ownership (TCO) and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life. SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporations are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power
Consumption
by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption
by Average
(Source: 2010 Philips white paper)
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
Full Power On
100% Lamp Power
Attention on the Projection
Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class
Instructor
No Source Detected Mode
The projector automatically switches to Eco Blank Mode within three minutes after it is turned on and no input source is detected. This eliminates unnecessary energy waste and prolongs the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
0.5W in Standby Mode
When inactive, the MW769 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for earlier projector models. This advancement in energy saving technology significantly helps extend the projector lamp life and lowers energy costs.

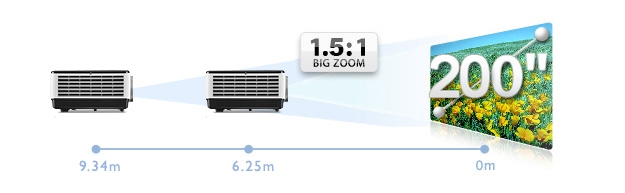

Diversified Options for Control and Management Big Zoom for Extra Projector Installation Flexibility
The MW769's 1.5x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector installation re-construction costs to your budget list, you'll get to save the money for better use.

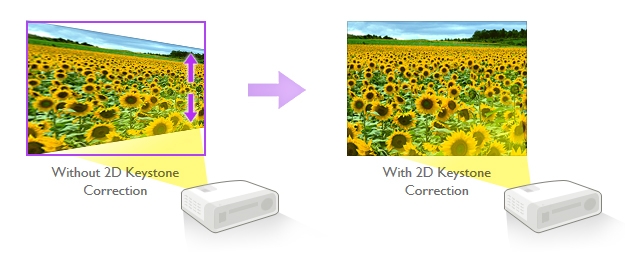

2D Keystone Correction
When the projector is placed off center, the 2D keystone correction feature gives you wider projector installation flexibility by correcting the trapezoid effect using horizontal and vertical adjustments.

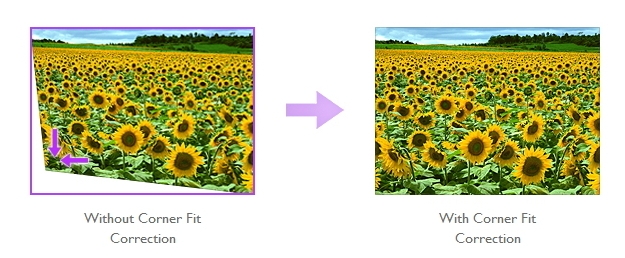

Corner Fit Correction
Corner Fit is a flexible and convenient way to correct picture dimensions by adjusting each corner of an image independently.

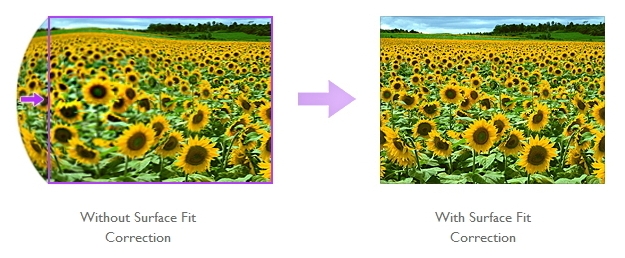

Surface Fit Correction
Featured in selected BenQ projectors, Surface Fit is designed to support projection on non-standard surfaces, such as concave and convex surfaces, offering you more projection possibilities.
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW769 offers seamless support for the Crestron and PJ-Link LAN Control systems.
Blu-ray Full HD 3D Support Supports Various 3D Formats
The MW769 comes standard-equipped with DLP Link™-supported 3D projection to offer the same amazing 3D effects as seen in 3D movie theaters. The 3D formats supported by the MW769 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. This incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.
Various 3D Formats Supported:
| Source / format |
3D Field Sequential |
3D frame packing |
3D top bottom |
3D side by side |
| D SUB-PC |
V |
|
V |
V |
| HDMI-PC |
V |
|
V |
V |
| HDMI-Video |
V |
V |
V |
V |
| S-video |
V |
|
|
|
| Video |
V |
|
|
Hassle-free Projector Maintenance
Upper lamp door for easy lamp access
The upper lamp door is designed for IT managers to be able to replace the projector lamp safely and quickly. Should the projector lamp go out in the middle of class, it can be replaced without major teaching delays.

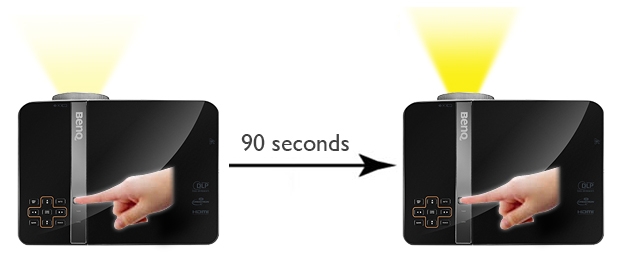

Thoughful Designs Instant Restart
The Instant Restart feature gives teachers a 90-second window to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.

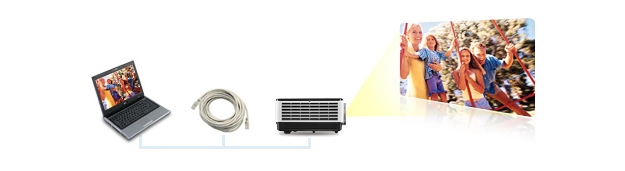

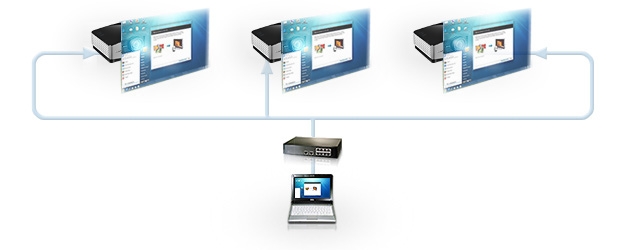

LAN Display
Through a single LAN cable to control and display projections, LAN Display offers a cost-effective solution for projector implementation management. This feature also offers simultaneous 4-1 or partial projection display options for better content management for discussions, presentations, training and classroom teaching.
Microphone Input Support
With the microphone input, you will no longer need to shout to get the attention of your audience. All you need to do is plug in a microphone or microphone headset to get your point across!
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
WXGA(1280x800) |
| Brightness* (ANSI Lumens) |
4200 ANSI Lumen |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.42~2.97, f=20.7~31.05mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
1.45~2.17 |
| Image Size (Diagonal) |
31" ~ 300" |
| Zoom Ratio |
1.5x |
| Lamp Type |
310W |
| Keystone Adjustment |
2D, V +/- 30 degree, H +/- 25 degree |
| Projection Offset |
Vertical: 125% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Dimensions (W x H x D mm) |
329x137.2x248.7mm (include feet)
329x127.2x248.7mm (exclude feet) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p |
| Weight |
8.6 lbs(3.9 Kg) |
| Audible Noise (Normal/Economic Mode) |
36/34 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240V, 4.2A, 50 to 60 Hz |
| Power Consumption |
400W(Normal), 340W(Eco), Standby<0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
| Accessories (Standard) |
Carry bag
Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region) |
| Accessories (Optional) |
Spare Lamp Kit
Ceiling mount kit |
|
|
|
|
22/05
|
Panasonic PT-DZ770 DLP Projector - WUXGA, 7000 Lumens, 2500;1, 12000Hrs, 1xDVI-D, 1xHDMI, 5xBNC, 3xVGA, 1xS-Video, Speakers 1-Chip DLP™ Projector
PT-DZ770
- 7,000 lumens of brightness, 2,500:1 contrast ration
- Advanced imaging technologies for vivid picture quality
- Eco-friendly, reliable and easy to maintain
- Flexible installation and multi-screen support
- Remote monitoring and control
Ideal for a wide range of applications; offering vivid picture quality and 7,000 lumens of brightness
Panasonic’s unique optical engine in the PT-DZ770EK produces 7,000 lm of brightness and high-quality images. This combines with a host of terminals and advanced management functions to provide high reliability and hassle-free maintenance. It is ideal for a wide variety of applications, from education and business to stage performance.
Vivid, bright picture quality in a compact body
The newly designee lamp drive system allows this projector to be incredibly compact, while still providing a high brightness of 7,000 lumens. You can be sure of outstanding image quality, thanks to the RGB Booster. It combines our proprietary Vivid colour Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP™ projector that produces bright and vivid colours. Colour perception is even further enhanced by System Daylight View 2, a feature that improves brightness perception by adjusting sharpness, gamma curves, and colour corrections. This produces crisper, more stunning images with vivid colours even under bright conditions.
Eco-friendly, reliable and easy to maintain
The Eco Filter has a replacement cycle of up to 12,000 hours,* which reduces the hassle of maintenance. And, as an environmental consideration, the filter can be washed with water and reused.** interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation and cools the DLP™ chip to improve performance and enable operation at high temperatures. This allows use in a wider variety of environments, while stabilizing performance and keeping the unit quiet even in harsh conditions.
Enjoy the ease of system integration flexibility
The wide adjustment range of the powered horizontal/ vertical lens shift function ensures convenience and versatility during installation. It lets you easily make adjustments with the remote control. As the unit can be rotated 360 degrees vertically, you are able install it at any angle you want, to accommodate different installation conditions. Choose from a wide lineup of optional lenses for your system, including short-throw zoom lens, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site. The Multi-Screen Support System optimally adjusts multiple screens: edge blending, colour matching and multi-screen processor.
Easy remote monitoring and control over a LAN
Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status. In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC. The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.
Detail Clarity Processor 3 RGB Booster System Daylight View 2 DiCOM Simulation Mode
Specifications:
| PANEL |
Panel Type |
DLP Projection System |
| Panel Size - Diagonal (mm) |
17 (16:10 aspect ratio) |
| Display Method |
DLP Chip 1 |
| Drive Method |
- |
| Pixels |
2,304,000 (1920 x 1200) |
| Pixel Configuration |
- |
| DISPLAY |
Lens |
PT-DZ770K: Powered Zoom / Powered Focus F 1.7 - 1.9, f 25.6 - 35.7 mm
PT-DZ770LK: Optional powered zoom / focus lenses and fixed-focus lens |
| Throw Ratio |
1.7 - 2.4:1 |
| Lamp (W) |
300 (Max. 310) UHM Lamp 2 (Dual Lamp System) |
| Lamp Replacement Cycle (hours) |
- |
| Screen Size - Diagonal (m) |
1.27 15.24 (16:10 aspect ratio)
1.27 5.08 with the ET-DLE055 |
| Colours |
- |
| Brightness (lumens) |
7000 (Dual Lamp, Lamp Mode: Normal) |
| Center-to-corner Uniformity (%) |
90 |
| Contrast Ratio |
2500:1 (Full On / Full Off, Contrast Mode: High) |
| Resolution (pixels) |
1920 x 1200 |
| SCANNING FREQUENCY |
SD-SDI |
- |
| HD-SDI |
- |
| Dual-link HD-SDI |
- |
| 3G-SDI |
- |
| HDMI / DVI-D |
f H : 15 91 kHz, f V : 50 85 Hz
Dot clock: 25 - 162 MHz or lower |
| RGB |
f H : 15 91 kHz, f V : 50 85 Hz
Dot clock: 150 MHz or lower |
| YP B P R (YC B C R) |
f H : 15.75 kHz, f V : 60 Hz [480i (525i)]
f H : 15.63 kHz, f V : 50 Hz [576i (625i)
f H : 31.50 kHz, f V : 60 Hz [480p (525p)] f H : 31.25 kHz, f V : 50 Hz [576p (625p)]
f H : 45.00 kHz, f V : 60 Hz [720 (750)/60p]
f H : 37.50 kHz, f V : 50 Hz [720 (750)/50p]
f H : 33.75 kHz, f V : 60 Hz [1035/60i]
f H : 33.75 kHz, f V : 60 Hz [1080 (1125)/60i]
f H : 28.13 kHz, f V : 50 Hz [1080 (1125)/50i]
f H : 28.13 kHz, f V : 25 Hz [1080/25p]
f H : 27.00 kHz, f V : 24 Hz [1080/24p]
f H : 27.00 kHz, f V : 48 Hz [1080/24sF]
f H : 33.75 kHz, f V : 30 Hz [1080/30p]
f H : 67.50 kHz, f V : 60 Hz [1080/60p]
f H : 56.25 kHz, f V : 50 Hz [1080/50p] |
| Video / S-Video |
f H : 15.75 kHz, f V : 60 Hz [NTSC / NTSC4.43 / PAL-M / PAL60]
f H : 15.63 kHz, f V : 50 Hz [PAL / PAL-N / SECAM] |
| OPTICAL OFFSET |
Optical Axis Shift |
Vertical: +50% (Powered)
Horizontal: 10% (Powered) |
| Keystone Correction Range |
Vertical: 40 (30 with the ET-DLE055 and ET-DLE080) |
| Keystone Correction Range with Optional Geometry Manager Pro |
- |
| Installation |
Ceiling / Floor, Front / Rear |
| BUILT-IN SPEAKER |
Size (cm) |
- |
| Output Power (W) |
- |

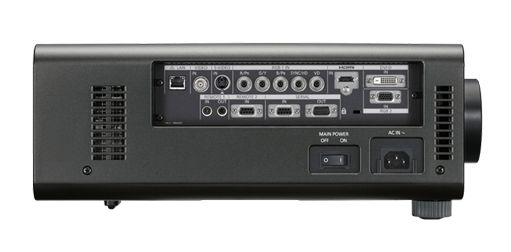

| TERMINALS |
SDI 1 In |
- |
| SDI 2 In |
- |
| 3D SYNC In / Out |
- |
| 3D SYNC Out |
- |
| DVI-D IN |
DVI-D 24-pin 1, DVI 1.0 compliant, HDCP compatible, for single link
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
VGA (640 480) WUXGA (1920 1200), compatible with noninterlaced signals only
Dot clock: 25 162 MHz |
| HDMI IN |
HDMI 19-pin 1, Deep Colour, HDCP compatible
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 480) WUXGA (1920 1200), compatible with noninterlaced signals only
Dot clock: 25 162 MHz |
| Computer 1 IN |
- |
| Computer 1 IN - RGB |
BNC 5
R: 0.7 Vp-p, 75 ohms
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms
B: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: High impedance, TTL (positive / negative)
Note: HD/SYNC, and VD terminals do not accept tri-level sync signals |
| Computer 1 IN - YP B P R (YC B C R) |
Y: 1.0 Vp-p (including sync signal), P B / P R (C B / C R ): 0.7 Vp-p, 75 ohms |
| Computer 2 IN |
- |
| Computer 2 IN - RGB |
D-sub HD 15-pin
R: 0.7 Vp-p, 75 ohms
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms
B: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: High impedance, TTL (positive / negative)
Note: HD/SYNC, and VD terminals do not accept tri-level sync signals |
| Computer 2 IN - YP B P R (YC B C R) |
Y: 1.0 Vp-p (including sync signal), P B / P R (C B / C R ): 0.7 Vp-p, 75 ohms |
Computer (RGB) 2 IN / 1 OUT
R, G, B / 5BNC / VIDEO IN |
- |
Trigger IN / OUT
3D Shutter OUT |
- |
| Video IN |
BNC 1, 1.0 Vp-p, 75 ohms |
| Video OUT |
- |
| S-Video IN |
Mini DIN 4-pin 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms |
| Audio IN |
- |
| Computer Audio IN 1 |
- |
| Computer Audio IN 2 |
- |
| Computer Audio IN 3 |
- |
| Video / S-Video Audio IN |
- |
| Monitor OUT |
- |
| Audio OUT |
- |
| Serial IN |
D-sub 9-pin 1 for external control (RS-232C compliant) |
| Serial OUT |
D-sub 9-pin 1 for link control (RS-232C compliant) |
| Remote 1 IN |
M3 Jack 1 for wired remote control |
| Remote 1 OUT |
M3 Jack 1 for link control |
| Remote 2 IN |
D-sub 9-pin 1 for external control (parallel) |
| LAN |
RJ-45 1 for network connection, 100Base-TX / 10Base-T, compliant with PJLink |
| USB |
- |
| Wireless |
- |
| Optional |
Zoom Lens (0.9 1.0:1) ET-DLE080
Zoom Lens (1.3 2.0:1) ET-DLE150
Zoom Lens (2.4 3.7:1) ET-DLE250
Zoom Lens (3.7 5.6:1) ET-DLE350
Zoom Lens (5.5 8.9:1) ET-DLE450
Fixed-focus Lens (0.8:1) ET-DLE055
Ceiling Mount Bracket ET-PKD56H (for high ceilings)
Ceiling Mount Bracket ET-PKD55S (for low ceilings)
Replacement Lamp Unit ET-LAD60AW (twin pack)
Replacement Filter Unit ET-EMF300 |
| POWER |
Power Supply (V AC) |
220 240, 4.5 A, 50 / 60 Hz |
| Power Consumption (W) |
810
0.3 Standby Mode: Eco
8 Standby Mode: Normal |
| Power Cord Length (m) |
3 |
| GENERAL |
Cabinet Materials |
Moulded Plastic |
| Dimensions - W x H x D (mm) |
51 x 176 x 23 |
| Weight (kg) |
Approx. 16.3 (with supplied lens)
Approx. 15.4 (without lens) |
| Operating Noise (dB) |
39 (Dual Lamp Operation - Lamp Power: Normal)
35 (Dual Lamp Operation - Lamp Mode: Eco) |
| Operating Temperature (o C) |
0 45 |
| Operating Humidity (%) |
20 80 (no condensation) |
| Filter |
- |
| Other |
- |
| REMOTE CONTROL UNIT |
Power Supply (V) |
3 DC (R6 / AA type battery 2) |
| Operation Range (m) |
Approx. 30 (when operated from directly in front of the signal receptor) |
| Weight - Including Batteries (g) |
Approx. 134 |
| ACCESSORIES |
Standard |
Power Cord
Power Cord Security Lock
Wireless / Wired Remote Control Unit
Batteries for Remote Control (R6 / AA type 2)
Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) |
| Optional |
Zoom Lens (0.8 0.9:1) ET-DLE080
Zoom Lens (1.3 1.9:1) ET-DLE150
Zoom Lens (2.3 3.6:1) ET-DLE250
Zoom Lens (3.6 5.4:1) ET-DLE350
Zoom Lens (5.4 8.6:1) ET-DLE450
Fixed-focus Lens (0.8:1) ET-DLE055
Ceiling Mount Bracket ET-PKD56H (for high ceilings)
Ceiling Mount Bracket ET-PKD55S (for low ceilings)
Lamp Replacement Unit ET-LAD60, ET-LAD60W (twin pack) |
|
|
|
|
22/05
|
GeoVision GV-HLPR-CAM-10R Hybrid LPR Camera - 1/3" B/W Progressive Scan CMOS, Dual Streams From H.264 Or MJPEG, Up To 30FPS @ 1280x1024, Two-Way Audio, Motion Detection, Built-In Heater And Fan
- 1.3" B/W progressive scan CMOS
- Dual streams from H.264 or MJPEG
- Up to 30 fps at 1280 x 1024
- Recognition for reflective License Plate only
- Maximum speed 120 km/h (75 mph)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in heater and fan
- Support for TV-out
- Two-way audio
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Power supplied through PoE (IEEE 802.3 at)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
Introduction
The GV-Hybrid LPR Camera 10R is a 1.3 MP B/W network camera designed solely for recognition of reflective license plates on vehicles traveling at 120 km/hr (74.6 mph) or less. With its high-power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture under low-light conditions. Under certain conditions, the GV-Hybrid Camera 10R can capture up to two lanes in a single shot.
The GV-Hybrid LPR Camera 10R can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.
Specifications
| Camera |
| Image Sensor |
1/3 B/W progressive scan CMOS |
| Picture Elements |
1280 (H) x 1024 (V) |
| Shutter Speed |
Automatic, Manual (1/500 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| S/N Ratio |
50 dB |
| Max. Speed |
120 km/h (75 mph) |
| Lens |
| Megapixel |
1.3MP |
| Lens Type |
Varifocal |
| Focal Length |
5 ~ 50 mm |
| Maximum Aperture |
F/1.6 |
| Mount |
CS |
| Image Format |
1/3 |
| Operation |
Focus |
Manual (w / lock) |
| Zoom |
Manual (w / lock) |
| Iris |
DC drive |
| IR LED Quantity |
4 high power IR LEDs |
| IR Distance |
6 ~ 12 m (19.7 ~ 39.4 ft) |
| Max. Torque (Focus/ Zoom Screws) |
0.049 N.m |
| Operation |
| Video Compression |
H.264, MJPEG |
| Video Stream |
Dual streams from H.264 and MJPEG |
| Frame Rate |
30 fps at 1280 x 1024
* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog |
| Audio Compression |
G.711, AAC (Optional) |
| Audio Support |
Two-way audio |
| Video Resolution |
| Main Stream |
4:3 |
1280 x 960, 640 x 480, 320 x 240 |
| 16:9 |
1280 x 720, 640 x 360, 448 x 252 |
| 5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
| Sub Stream |
4:3 |
640 x 480, 320 x 240 |
| 16:9 |
640 x 360, 448 x 252 |
| 5:4 |
640 x 512, 320 x 256 |
| TV-Out |
NTSC, PAL |
| Network |
| Interface |
10/100 Base-T Ethernet, RJ-45 connector |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
| Mechanical |
| Lens Mounting |
CS-Mount |
| Temperature Detector |
Yes |
| Camera Adjustment |
Pan |
0 ~ 330 |
| Tilt |
0 ~ 90 |
| Connectors |
Power |
PoE |
| Ethernet |
RJ-45 |
| Audio |
1 In (externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14") |
| Auto Iris |
N/A |
| Digital I/O |
N/A |
| TV-Out |
BNC connector (640 x 480 resolution) |
| LED Indicator |
1 LED (Status) |
| General |
| Operating Temperature |
-40 C ~ 50 C (-40 F ~ 122 F ) |
| Humidity |
10% to 90% (no condensing) |
| Power Source |
PoE (IEEE802.3at) |
| Max. Power Consumption |
48 W |
Dimensions
(L X W X H) |
Camera Body
(without mounting base) |
317.5 x 108.5 x 110.3 mm (12.5 x 4.27 x 4.34") |
| Cable Length |
1 m (3.28 ft) |
| Weight |
3.2 Kg (7.05 lb) |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 for metal casing |
| Heater On |
-40C ~ 8C (-40F ~ 46.4F) |
| Fan |
Constantly On |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet / PD |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
DC 48V, 600mA (34.2W Max.) |
| Web Interface |
| Installation Management |
Web-based configuration |
| Firmware Upgrade |
Remote upgrade through Web browser or upgrade using IP Device Utility (included in the Software DVD) |
| Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Recording Server |
| Smart Device Access |
- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad. |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
| GV-PA481 |
| PoE Standard |
IEEE 802.3at Power over Ethernet / PSE |
| PoE Power Output |
DC 48V, 1A (48W Max.) |
| Ethernet Cable Length |
Max 10 m (32.8 ft) from GV-PA481 to IP device, CAT5 |
| Power Input |
DC 48V, 1A |
| Operation Temperature |
-40 C ~ 50 C (-40 F ~ 122 F) |
| Dimensions (L x W x H) |
138 x 104 x 38 mm (5.43" x 4.09" x 1.5") |
| Weight |
610 g (1.342 lb) |
|
|
|
|
22/05
|
Swann ADS-446 720p PT IP Camera720p Wi-Fi and Local Network IP Camera / 16ft (5m) Night Vision / 1 -Way Audio with Built-in Microphone / View and Control Pan &ilt on Smartphone / Saves video in HD to a secure cloud server when triggered. Smart HD remote viewing surveillance system in a powerful pan &ilt IP camera - ‘Plug &lay’ wi-fi internet camera packed with features for home &usiness security Connect to the internet &martphone in minutes with SwannLink ‘ Peer-to-Peer’ technology
- Sends you alerts when activity is detected including facial detection, camera tampering &ntrusion
- Saves video in HD to a secure cloud server when triggered
- Remotely Pan up to 350 degrees horizontally &ilt up to 100 degrees vertically over the Internet or on your Smartphone or tablet
- Built for life on the move with the free SwannCloud app for viewing on PC, Mac, tablets Smartphones including iPhone, iPad &ndroid devices*
- Perfect for day/night surveillance with the ability to see &ear what’s happening 24/7
- Share videos through your social network at any time with ease
*Requires broadband internet &G/4G Smartphone. Video Resolution 720p 1280 x 720 Frame Rate Up to 30 fps (real-time) Night Vision Up to 16ft/5m Operating System Microsoft® Windows® XP/Vista/7/8 Mac® OS 10.7 &ater
|
|
|
|
22/05
|

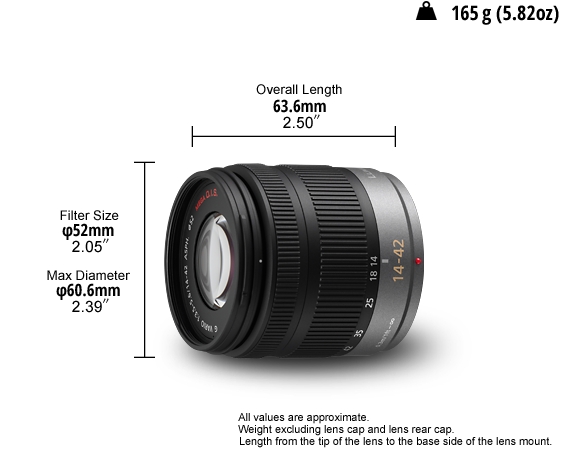

Panasonic Lumix H-FS014042E MFT 14-42mm F3.5-5.6 O.I.S Zoom Lens LUMIX G Vario 14-42mm / F3.5-5.6 ASPH./MEGA O.I.S
H-FS014042E
Micro Four Thirds 14-42mm Standard Zoom Lens/ 28-84mm ( 35mm camera equiv.)
Versatile, High Quality Standard Zoom Lens
Minimum focus distance of 30cm / 1ft over the entire zoom range

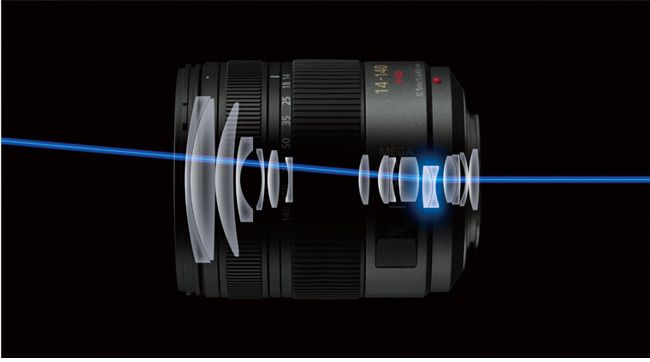

MEGA O.I.S.
(Optical Image Stabilizer)
Tracking Focus in Video Recording
Tracking focus in video recording with silent auto focus and exposure control
Specifications:
| Features |
Lens Construction |
12 elements in 9 groups (1 Aspherical lens) |
| Mount |
Micro Four Thirds mount |
| Optical Image Stabilizer |
Yes |
| Focal Length |
f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) |
| Aperture Type |
7 diaphragm blades / Circular aperture diaphragm |
| Aperture |
F3.5(Wide) - F5.6(Tele) |
| Minimum Aperture |
F22 |
| Closest Focusing Distance |
0.3m / 1ft |
| Maximum magnification |
Approx. 0.16x / 0.32x (35mm camera equivalent) |
| General |
Diagonal Angle of View |
75(W)29(T) |
| Filter Size |
52mm / 2.05 in |
| Max. Diameter |
60.6mm / 2.39 in |
| Overall Length |
Approx. 63.6mm / 2.50 in (from the tip of the lens to the base side of the lens mount) |
| Weight |
Approx. 165g / 5.82oz |
| Standard Accessories |
Lens Cap |
| Standard Accessories |
Lens Hood |
| Standard Accessories |
Lens Rear Cap |
| Standard Accessories |
Lens Storage Bag |
|
|
|
|
22/05
|
Generic 16GB Heart Shape USB Pen Flash Drive - Crystals Cute Heart Design, Metal + Crystal, USB2.0 - Silver Heart Shape USB Pen Drive 16GB - (Silver)
- Easy plug and play installation
- Compatible with Windows 7, Windows XP, Windows Vista, Mac OS 10+ and Linux
- Hi-Speed USB 2.0 port required for high speed transfer
- Crystals Cute heart design
- Materials: Metal + Crystal
- Compliance : For use with USB 2.0 and compatible with USB 1.1
- Simple Plug and Play operation, very convenient
|
|
|
|
22/05
|
Generic 16GB Heart Shape USB Pen Flash Drive - Crystals Cute Heart Design, Metal + Crystal, USB2.0 - Pink
|
|
|
|
22/05
|
Generic 16GB Heart Shape USB Pen Flash Drive - Crystals Cute Heart Design, Metal + Crystal, USB2.0 - Gold Heart Shape USB Pen Drive 16GB - (Gold)
- Easy plug and play installation
- Compatible with Windows 7, Windows XP, Windows Vista, Mac OS 10+ and Linux
- Hi-Speed USB 2.0 port required for high speed transfer
- Crystals Cute heart design
- Materials: Metal + Crystal
- Compliance : For use with USB 2.0 and compatible with USB 1.1
- Simple Plug and Play operation, very convenient
|
|
|
|
22/05
|
Generic 16GB Heart Shape USB Pen Flash Drive - Crystals Cute Heart Design, Metal + Crystal, USB2.0 - Blue Heart Shape USB Pen Drive 16GB - (Blue)
- Easy plug and play installation
- Compatible with Windows 7, Windows XP, Windows Vista, Mac OS 10+ and Linux
- Hi-Speed USB 2.0 port required for high speed transfer
- Crystals Cute heart design
- Materials: Metal + Crystal
- Compliance : For use with USB 2.0 and compatible with USB 1.1
- Simple Plug and Play operation, very convenient
|
|
|
|
22/05
|
Sony HDRPJ240 Camcorder - Black
- Memory Stick Micro (Mark 2), Micro SD/SDHC/SDXC Memory Card, HD 1080p, 27x Optical Zoom, 2.7"LCD, Image Stabilisation, 13lm Built-in Projector w. External Input Memory Stick Memory Camcorder (Black)
Model: HDRPJ240
The compact and lightweight HDR-PJ240E is the perfect Handycam for the home movies. Equipped with SteadyShot E-Active, an Exmor R CMOS Sensor and and built-in projector the HDR-PJ240E makes shooting and sharing your family blockbusters a breeze.
- Exmor R CMOS Sensor
- 13lm Built-in Projector with External Input
- Zeiss Tessar Lens with 29.8mm Wide Angle
- SteadyShot E-Active
- 54x Clear Image Zoom
- 50p/60p Recording
Specifications
| HD Video Codec |
AVCHD format ver.2.0 compatible:MPEG4-AVC/H.264 |
| STD Video Codec |
MP4: MPEG-4 AVC/H.264 |
| Video Mode |
HD:1920x1080/50p(PS), 50i(FX,FH), 1440x1080/50i(HQ,LP); MP4: 1280x720 25p |
| Media Storage Type |
Memory Stick Micro (Mark 2), Micro SD/SDHC/SDXC Memory Card(Class 4 or Higher) |
| Image Sensor |
1/5.8 type(3.1mm) back-illuminated Exmor R CMOS Sensor |
| Image Processor |
BIONZ X image processor |
| Lens / Filter Diameter |
ZEISS Vario-Tessar |
| Optical / Digital Zoom |
Optical Zoom: 27x, Digital Zoom: 320x, Clear Image Zoom: 54x |
| Audio Format |
Dolby Digital 2ch Stereo, Dolby Digital Stereo Creator; MPEG-4 AAC-LC 2ch |
| Zoom Mic |
Built-in Zoom Microphone |
| Maximum Still Image Resolution (Photo Mode) |
9.2 megapixels 16:9 (4032x2272) |
| Image Stabilisation |
Electrical SteadyShot image stabilization w/ Active mode (Wide to Tele) |
| LCD Screen Size & Type |
6.7cm(2.7 type) Clear Photo LCD display (230K) Wide(16:9) |
| Smile Shutter |
Off/Dual Capture/Always On |
| Intelligent Auto |
Portrait/Baby/Tripod/Backlight/Landscape/Spotlight/Twilight/Macro/Low light |
| Backlight Compensation |
Yes(Auto) |
| HDMI Terminal |
Yes (HDMI micro) |
| Projector input |
Yes (HDMI micro) |
| Dimensions (W x H x D) |
Approx. 2 3/8 inch 2 3/8 inch 5 1/8 inch (Approx. 59.0mm59.5mm128.0mm) |
| Mass (w/o Tape, Battery, etc.) |
Approx.210g |
| Rechargeable Battery Pack |
Yes (NP-BX1) |
|
|
|
|
Previous Page
|
Next Page
|
|
