Epson EH-TW9200

• 3 x Brighter Colours and reliable performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
• Full HD 1080p, widescreen performance For movies, games and more up to 300" on virtually any wall or screen
• Exquisite detail Up to 600,000:1 contrast ratio, plus Super-resolution technology
• Place the projector virtually anywhere 2.1x zoom and the widest horizontal lens shift available make it easy
• Versatile connectivity Two HDMI ports, RS-232, and more, for all your favorite devices
• Accurate picture quality THX display certification and ISF Calibration
• Anamorphic squeeze and zoom feature Ideal for use with fixed or sled anamorphic lens systems (sold separately)

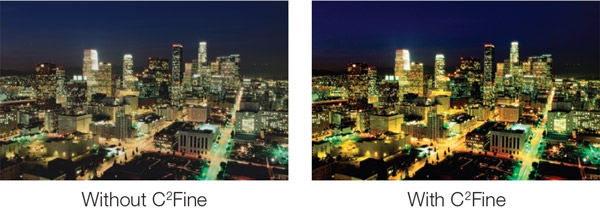

C²Fine technology delivers a higher contrast ratio for exquisite detail

C²Fine offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, and, when combined with the auto iris, this technology allows for contrast ratios up to 600,000:1.





Imaging Science Foundation (ISF) calibration and colour management



The Epson TW9200 features ISF certification for top video performance. And, it includes specific ISF picture memory modes, such as ISF Day and ISF Night, along with six other pre-named ISF memory modes and two additional modes. To prevent mis-adjustments that may inadvertently happen after installation and calibration, critical adjustments can be locked. To assist with properly adjusting colour saturation and hue (tint) using SMPTE colour bar test patterns, the TW9200 makes it possible to turn off the Red and Green imaging pixels, leaving only Blue. This allows the user to make adjustments without needing a gel filter. A Red-only mode is also provided.







THX display certification



Ensure accurate and exceptional picture quality exceptional performance standards for black levels, resolution, contrast, colour gamut and signal processing. The TW9200 also includes a Versatile Movie Mode setting; a playback setting that lets consumers experience studio colour, black levels and clean-signal processing with few calibration adjustments.

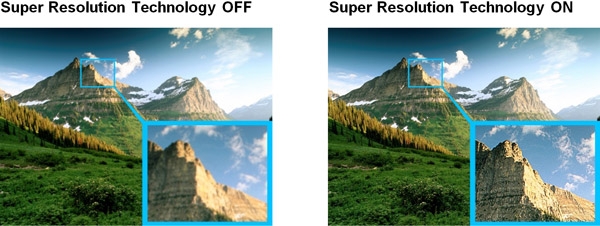

Super Resolution (now available in 2D and 3D)



Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.

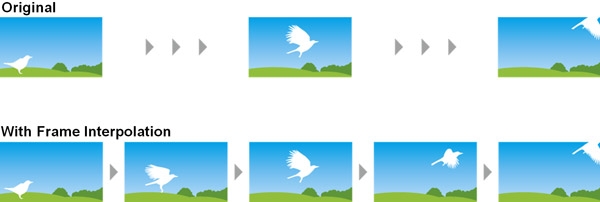

Frame Interpolation



Film is encoded on Blu-ray at 24 frames per second. FineFrame deconstructs and reconstructs these sources for a 1080p frame rate output of up to 120Hz, virtually eliminating flicker and frame-to-frame judder. The 4:4 pulldown function also makes corrections for improperly encoded sources, and features a reverse 2:3 pulldown detection and correction function.





Bright 3D Drive technology for 3D cinematic adventures



Enjoy thrilling 3D adventures right in the comfort of your living room. Featuring Bright 3D Drive technology, the TW9200 puts you right in the middle of the action. Epsons drive system minimizes the blackout time of 3D glasses and provides greater brightness when viewing 3D content.





2D-to-3D conversion



Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW9200 makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.





Two rechargeable RF 3D glasses included



Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life.



Advanced Auto Iris technology (2D and 3D)



Epson Auto Iris technology adjusts the aperture to provide optimum contrast and brightness for each scene.



Connectivity Panel



Specifications



PRODUCT NAME	Epson EH-TW9200
PRODUCT CODE	V11H587053
WHAT'S IN THE BOX
	EH-TW9200 Projector, Power Cable, Remote Control + Batteries, 3D Glasses + USB cable for charging x 2, 3D Glasses Charger, HDMI Cable Clamp x 2, User's Manual
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.74-inch wide panel with MLA (D9, C2 Fine, 12 bit, OD)
OPTICAL
Zoom	1-2.1
Screen Size	30" to 300" [0.87 to 9.03 m] (Zoom: Wide) 30" to 300" [1.88 to 19.15 m] (Zoom: Tele)
Lens Shift	Vertical: -96.3% to +96.3% (H Center, Manual) Horizontal: -47.1% to +47.1% (V Center, Manual)
Keystone Correction	Vertical: -30 to +30 degrees
Projection Distance	100" screen 2.98 - 6.36 m
Throw Ratio	1.34 (Zoom: Wide), 2.87 (Zoom: Tele)
Projection Lens F Number	2.3 - 3.6
Projection Lens Focal Length	22.5 mm - 47.2 mm
Focus Method	Manual
Colour Light Output	2,400 Lumens
White Light Output	2,400 Lumens
Resolution	1080p
Native Aspect Ratio	16:9
Contrast Ratio	600,000:1
Lamp Type	230 W UHE (E-TORL)
Colour Video Processing	Full 10bit (Partial 12bit)
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x Component Video
Input: Computer	1 x D-sub 15-pin (RGB)
Input: Digital	2 x HDMI
Input: Control	1 x RS232c, 1 x Trigger Out
ADVANCED FEATURES
WirelessHD	-
Super Resolution	Yes
3D Formats	Top-and-Bottom, Side-by-Side, Frame Packaging
2D to 3D Conversion	Yes
THX Certification	Yes
ISF Certification	Yes
Split Screen	Yes
Direct Power On	Yes
Security	Kensington  Lock Provision
Colour Modes	Dynamic, Living room, Natural, THX, Cinema, 3D Dynamic, 3D Cinema, 3D THX
GENERAL
Dimensions H x D x W	395 x 466 x 140 mm
Weight	8.4kg
Lamp Warranty	3 Years
Projector Warranty	3 Years
Power Consumption: Lamp on	334W
Power Consumption: Standby	0.39W
Noise Level	32dB
*For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L69	Replacement Lamp - ELPLP69
	V13H134A39	Replacement Filter - ELPAF39
	V12H548001	3D Glasses - ELPGS03
	V12H564C12	3D Glasses Charger - ELPAC01
	V12H526040	Low Profile Mount - ELPMB30
	V12H003B22	Ceiling Mount - ELPMB22
	V12H003P13	Extension Pole 668-918 mm
	V12H003P14	Extension Pole 918-1,168 mm

Panasonic V130: Full HD 38X Camcorder

• 32-1216mm 38X long zoom
• BSI Sensor for less blurring in low light
• Built-in creative effects add fun to your videos
• Image stabilizer reduces shake during recording



BSI Sensor



The BSI Sensor has improved high sensitivity performance to record easy-to-see, clear images even in dimly lit situations.





Intelligent 75x Zoom



The HC-V130 enables ultra-telephoto Intelligent 75x zoom shooting with a compact body. This powerful zoom brings faraway subjects right up close to capture dynamic images that fill the entire frame.





Creative Control



Filter effects - Miniature Effect, 8mm Movie, Silent Movie and Time Lapse Recording - makes it possible to capture impressive video that is matched to the shooting situation.





iA (intelligent Auto) Mode



This powerful function senses the shooting conditions and automatically makes the settings and activates functions that will deliver optimal results. iA does the bothersome settings for you and makes it easy to capture beautiful, well-focused images.



The functions included in iA may not be applied when conditions do not call for them.





8.9-megapixel Still Picture Recording



You can shoot still picture at high resolution 8.9 megapixels. This makes it possible to record important scenes in either video or still images.





Specifications



SENSOR SECTION
MAIN SENSOR
Image Sensor	1/5.8" BSI MOS Sensor
Total Pixels	2.51 megapixels
Effective Pixels (Motion Image)	2.12 megapixels [16:9]
Effective Pixels (Still Image)	2.12 megapixels [16:9]
SUB SENSOR
Image Sensor	-
Total Pixels	-
LENS SECTION
MAIN LENS
F Value	F1.8 (WIDE) / F4.2 (TELE)
Optical Zoom	38x
Focal Length	2.35 - 89.3 mm
35 mm Film Camera Equivalent (Motion Image)	32.9 - 1646 mm [16:9]
35 mm Film Camera Equivalent (Still Image)	32.9 - 1646 mm [16:9]
Filter Diameter	-
Lens Brand	Panasonic Lens
SUB LENS
F Value	-
Focal Length	-
35 mm Film Camera Equivalent (Motion Image)	-
CAMERA SECTION
Standard Illumination	1400 lx
Minimum Illumination	4 lx (Scene Mode Low Light 1/30), 1 lx (Color Night Rec)
Focus	Auto / Manual
Zoom
Intelligent Zoom OFF	38x
Intelligent Zoom ON	75x
Digital Zoom1	100 x / 2500 x (The maximum value of zoom magnification)
White Balance	Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set
Shutter Speed
Motion Image	[60i] / Auto Slow Shutter ON : 1/30 - 1/8000 / Auto Slow Shutter OFF : 1/60 - 1/8000
Still Image	-
Iris	Auto / Manual
Image Stabilizer	Image Stabilizer
Creative Control	Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec
RECORDING SECTION
Recording Media	SD/SDHC/SDXC Memory Card
Recording Format	[AVCHD] AVCHD / [iFrame / MP4] MP4
Compression Method	MPEG-4 AVC/H.264
Recording/ Playback Mode	HA (17Mbps / VBR), (1920 x 1080) / HG (13Mbps / VBR), (1920 x 1080) / HE (5Mbps / VBR), (1920 x 1080) / iFrame (28Mbps / VBR), (960 x 540) / MP4 (1.5Mbps / VBR), (640 x 360)
Thumbnail Display	20 thumbnails/page, 9 thumbnails/page, 1 thumbnail/page
Audio Recording System	HA, HG, HE: Dolby Digital (2ch) / iFrame, MP4: AAC (2ch)
Microphone	2ch Stereo
Speaker	Dynamic type
STILL IMAGE SECTION
Recording Format	JPEG (DCF/Exif2.2)
Recording Image Size
Still Image	[16:9] 8.9 megapixels (3968 x 2232), 2.1 megapixels (1920 x 1080)
Simultaneous Recording	-
Flash	-
GENERAL SECTION
Power Supply2	3.6V (Battery) / 5.0V (AC Adaptor)
Power Consumption	Max. 3.5W (Recording) / Max. 5.3W (Charging)
Dimensions (W x H x D)	Approx. 53 x 60 x 114 mm (2.087 x 2.362 x 4.488 inch)
Weight (w/o battery and SD card)	Approx. 181g (0.399lb)
LCD Monitor3	2.7" Wide LCDmonitor (230,400 dots)
View Finder	-
Manual Ring / Dial	-
Interface
AV	Yes
HDMI	Yes (mini)
Microphones (stereo mini)	-
Headphone (stereo mini)	-
USB	2.0 Hi-Speed
USB Charge	Yes
LED Video Light	-
Accessory Shoe	-
On-Screen Display Language	English, French, Spanish
Wi-Fi
Standard	-
Frequency	-
NFC	-
STANDARD ACCESSORY
AC Adaptor	Yes
AC Cable	-
DC Cable	-
Rechargeable Battery Pack	Yes (970 mAh)
Battery Charger	-
IR Remote	-
HDMI Cable4	-
AV Multi Cable	-
AV Cable	Yes
Shoe adaptor	-
Lens Hood	-
USB Cable	Yes
Lens cap	-
Stylus pen	-
Bandled Software	HD Writer LE 2.1
Further Specifications
NOTE	Specifications are subject to change without notice.

Panasonic V750: Enhanced Sound Full HD WiFi Enabled 20X Camcorder

• Super clear audio with a wind shielded microphone
• Level shot automatically corrects the horizon in your shot
• 5 Axis Hybrid Optical Imaging Stabilization keeps hand held shots steady
• NFC enabled WiFi connects with your mobile and home devices



Premium Picture Quality



An all-new lens, sensor and engine combine for powerful zooming and high sensitivity.





New BSI Sensor



The effective area is increased* to achieve the high image quality of 6.03M effective pixels. This gives you bright, beautiful shots even in dark places.



Crystal Engine Pro+



The information processing speed has advanced to about 1.5 times* the conventional speed. New Noise Reduction has reduced noise for crisp, vibrantly colorful Full-HD images.



Compared to the HC-V720.





Intelligent 50x Zoom / Optical 20x Zoom



The wide shooting range expands the breadth of photographic expression, extending from 29.5mm wide angle to Intelligent 50x zooming. This makes it possible to capture everything from panoramic scenery to telephoto images for obtaining dynamic images of subjects at a distance





5-Axis HYBRID O.I.S.+



HYBRID O.I.S. + uses five-axis correction to thoroughly suppress blurring all the way from wide-angle to powerful zoom shots. This lets you capture crisp, clear images, without blurring, in almost every shooting situation.





4-Drive Lens System



For the first time* in a consumer video camera, four lens groups are driven to achieve both high picture quality and a compact size.



As of January 6th, 2014





Level Shot Function



The Level Shot function automatically detects and corrects the tilting of captured images. 2014 models use hybrid processing based on an acceleration sensor plus a gyro sensor to improve tilt tracking by 30% for more stable shooting. Images are more level even when shooting in an unstable or awkward position, such as low angle or high angle.





High Quality Sound Recording



Wind Shield Zoom Microphone A special damping material is provided in the space between the mic and the mic net to suppress wind noise to less than 1/3 that of conventional models*, for clear recording always.



Compared to the HC-V720 Series.

High-Quality Audio Parts Four 6mm-diameter, high-S/N mics and aluminum electrolytic capacitors reduce sound distortion and increase clarity.





Full-HD Slow Motion Video



Records Full-HD (1920 x 1080) at 120 fps.* And the Intelligent Frame Creation of the New Crystal Engine Pro+ interpolates to an equivalent of 240 fps,* for smooth slow motion. Switches to slow motion while you touch the icon on the LCD screen during shooting.



For NTSC area:60/120/240fps







Remote Shooting / Remote View



The Panasonic Image App lets you use a smartphone or tablet as a live-view remote controller and operate the camcorder from a distance. Videos and photos inside the camera can be viewed on a smartphone or tablet, and uploaded to an SNS site.





Real Time Broadcasting



Built-in Wi-Fi function enables Real Time Broadcasting of important events via Ustream. This lets you deliver live images to people with Internet access around the world. There is also a function to send e-mail to notify the start of broadcasting to preregistered e-mail addresses.





Baby Monitor



Using Wi-Fi, you can check on the baby with a smartphone or tablet in another room. The Push Notification function alerts the smartphone or tablet if a voice sensor detects the baby waking up and making a sound, and you can even speak to the baby over the monitor.





Home Monitoring



When you are away from home, you can monitor and record there with high-quality live video, and speak to your family or pets using your smartphone or tablet.





Specifications



SENSOR SECTION
MAIN SENSOR
Image Sensor	1/2.3" NEW BSI MOS Sensor
Total Pixels	12.76 megapixels
Effective Pixels (Motion Image)	6.03 megapixels [16:9] (Level Shot Function OFF or Normal)
Effective Pixels (Still Image)	5.21 megapixels [3:2] / 6.03 megapixels [16:9] / 4.72 megapixels [4:3]
SUB SENSOR
Image Sensor	-
Total Pixels	-
LENS SECTION
MAIN LENS
F Value	F1.8 (WIDE) / F3.6 (TELE)
Optical Zoom	20 x
Focal Length	4.08 - 81.6 mm
35 mm Film Camera Equivalent (Motion Image)	29.5 - 612 mm [16:9] (Level Shot Function OFF or Normal)
35 mm Film Camera Equivalent (Still Image)	33.5 - 669.9 mm [3:2] / 29.5 - 612 mm [16:9] / 36.2 - 724.6 mm [4:3]
Filter Diameter	49 mm
Lens Brand	Panasonic Lens
SUB LENS
F Value	-
Focal Length	-
35 mm Film Camera Equivalent (Motion Image)	-
CAMERA SECTION
Standard Illumination	1400 lx
Minimum Illumination	2 lx (Scene Mode Low Light 1/30), 1 lx (Night Mode(Colour))
Focus	Auto / Manual
Zoom
Intelligent Zoom OFF	20 x
Intelligent Zoom ON	50 x
Digital Zoom1	60 x / 1500 x (The maximum value of zoom magnification)
White Balance	Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set
Shutter Speed
Motion Image	[60p / 60i] / Auto Slow Shutter ON : 1/30 - 1/8000 / Auto Slow Shutter OFF : 1/60 - 1/8000
Still Image	1/2 - 1/2000
Iris	Auto / Manual
Image Stabilizer	HYBRID O.I.S.+ with Active Mode, O.I.S. Lock, Level Shot Function
Creative Control	Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec
RECORDING SECTION
Recording Media	SD/SDHC/SDXC Memory Card
Recording Format	[AVCHD] AVCHD Progressive / [iFrame / MP4] MP4
Compression Method	MPEG-4 AVC/H.264
Recording/ Playback Mode	1080/60p (28Mbps / VBR), (1920 x 1080) / PH (24Mbps / VBR), (1920 x 1080) / HA (17Mbps / VBR), (1920 x 1080) / HG (13Mbps / VBR), (1920 x 1080) / HE (5Mbps / VBR), (1920 x 1080) / MP4/1080p(50M) (50Mbps / VBR), (1920 x 1080) / MP4/1080p(28M) (28Mbps / VBR), (1920 x 1080) / MP4/720p(9M) (9Mbps / VBR), (1280 x 720) / iFrame (28Mbps / VBR), (960 x 540)
Thumbnail Display	20 thumbnails/page, 9 thumbnails/page, 1 thumbnail/page
Audio Recording System	1080/60p, PH, HA, HG, HE: Dolby Digital (5.1ch / 2ch) / iFrame, MP4: AAC (2ch)
Microphone	5.1ch Surround, Zoom, Focus and Stereo Microphone
Speaker	Dynamic type
STILL IMAGE SECTION
Recording Format	JPEG (DCF/Exif2.2)
Recording Image Size
Still Image	[16:9] 24megapixels (6528 x 3672),12.6 megapixels (4736 x 2664), 2.1 megapixels (1920 x 1080) / [3:2] 20 megapixels (5472 x3648), 10.6 megapixels (3984 x 2656, 2.0 megapixels (1728 x 1152) / [4:3] 18 megapixels (4896 x 3672),8 megapixels (3264 x 2448), 0.3 megapixels (640 x 480)
Simultaneous Recording	[16:9] 12.6 megapixels (4736 x 2664), 2.1 megapixels (1920 x 1080)
Flash	Yes
GENERAL SECTION
Power Supply2	3.6V (Battery) / 5.0V (AC Adaptor)
Power Consumption	Max. 6.7W (Recording) / Max. 7.7W (Charging)
Dimensions (W x H x D)	Approx. 65 x 73 x 139 mm (2.559 x 2.874 x 5.472 inch)
Weight (w/o battery and SD card)	Approx. 353g (0.777 lb)
LCD Monitor3	3" Wide LCDmonitor (460,800 dots)
View Finder	-
Manual Ring / Dial	Yes (Dial)
Interface
AV	Yes
HDMI	Yes (mini)
Microphones (stereo mini)	Yes
Headphone (stereo mini)	Yes
USB	2.0 Hi-Speed
USB Charge	Yes
LED Video Light	Yes
Accessory Shoe	Yes (cold)
On-Screen Display Language	English, French, Spanish
Wi-Fi
Standard	IEEE 802.11b/g/n
Frequency	2.4GHz band
NFC	Yes
STANDARD ACCESSORY
AC Adaptor	Yes
AC Cable	-
DC Cable	Yes (USB Type)
Rechargeable Battery Pack	Yes (1,940mAh)
Battery Charger	-
IR Remote	-
HDMI Cable4	Yes (mini)
AV Multi Cable	-
AV Cable	-
Shoe adaptor	Yes
Lens Hood	-
USB Cable	Yes
Lens cap	-
Stylus pen	-
Bandled Software	HD Writer AE 5.1
Further Specifications
NOTE	Specifications are subject to change without notice.
