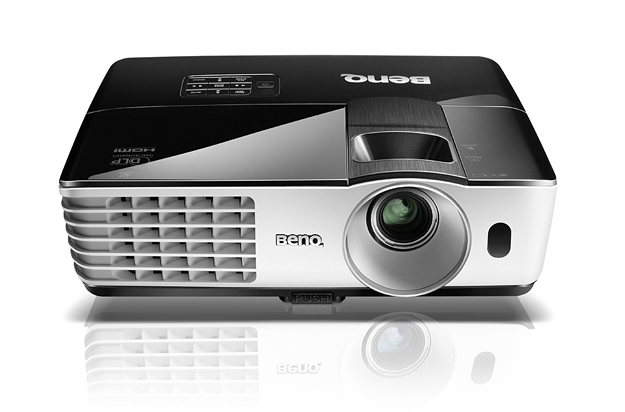

MW665
Via Your Own Device!
The BenQ MW665 is just the projector you need to perfect your presentation in all small to medium sized room. Featuring WXGA resolution with 3200 ANSI Lumens and 13000:1 high contrast ratio, the MW665 also offers multi wireless display with Qpresenter Pro App and keeps your presentation lookin' great!
Features
Brilliant Presentation via Your Smart Device
Wireless Display

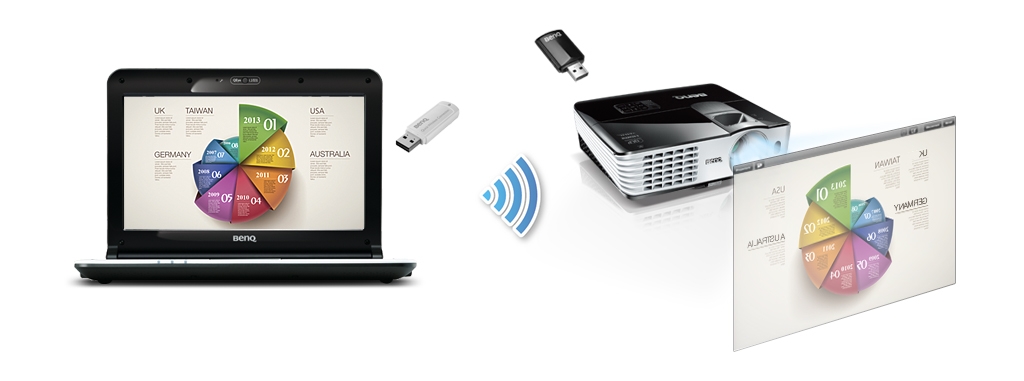

Insert a WiFi dongle into the USB flash drive slot to display contents from your PC, MAC, iPhone and iPad to MW665 through Wireless Display feature.
QPresenter Pro

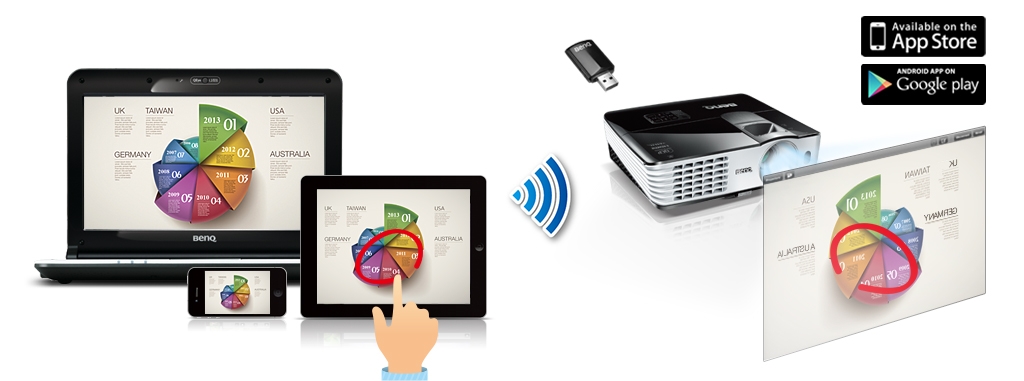

The QPresenter Pro software, developed with an accompanying APP, is designed to support wireless projection from computational and smart devices across all platforms from iOS to Android, by simply connecting the projector to a wireless dongle and linking the device to the projector via Wireless Display. This app can project various document formats, including PDF, PowerPoint, Word, Excel and image files.
work wirelessly with your smart phone or tablet or laptop
Qpresenter Quick Connection
Insert a WiFi dongle into MW665 and a Quick Wireless Connection USB into a laptop display contents from your PC with Quick Connection Driver to MW665 through Qpresenter Quick Connection feature. Without downloading any software and setting up steps, it is easier to seamlessly share control of the projector in a team presentation.
Saving More on Power Consumption with BenQs SmartEco Technology
Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power
Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by
Average
(Source: 2010 Philips white paper)
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
Full Power On
100% Lamp Power
Attention on the Projection
Screen
Eco Blank Mode On
30% Lamp Power
at the Lowest Attention on the Class
Instructor
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Audio Pass through
With the built-in speaker, the MW665 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.
0.5W in Standby Mode
When inactive, the MW665 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.
Thoughtful Design

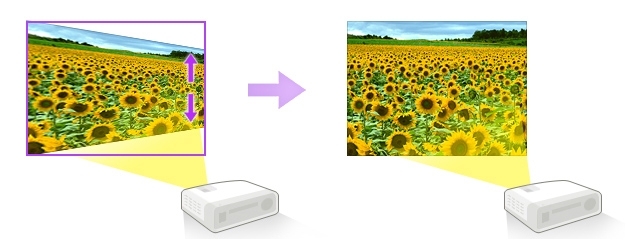

2D Keystone Correction
When the projector is placed off center, the 2D keystone correction feature gives you a wider projector installation flexibility by correcting the trapezoid effect using horizontal and vertical adjustments.
Without 2D Keystone
Correction
With 2D Keystone
Correction
USB Display
USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.
PC-Less Teaching

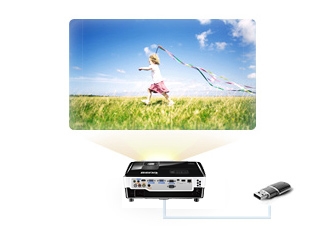

USB Drive Display allows teachers to teach light with a USB flash drive. All they need to do is save the files they need onto a USB flash drive and insert it in the MW665 to start teaching. File types supported are JPEG, JPG, BMP, PNG, GIF and TIFF.
LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW665 offers seamless support for the Crestron and PJ-Link LAN Control system.

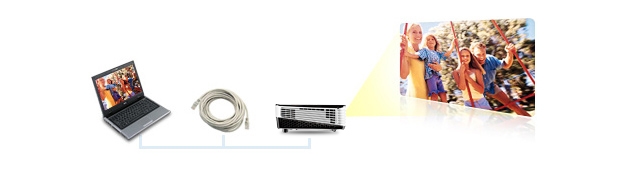

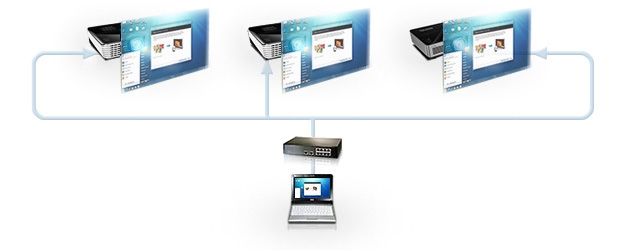

LAN Display
LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.
BenQ DLP® Projectors? Long-Lasting Image Perfection with DLP Technology
Timeless Image Quality:
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Non-DLP Projector
Original Color - After 2000 Hours of Use - After New Lamp Installed
BenQ DLP Projector
Original Color - After 2000 Hours of Use - After New Lamp Installed
DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
Razor-Sharp Clarity with Ultra-Readability:
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.
Non-DLP Projector
BenQ DLP Projector
Vibrant, True-to-Life Colors:
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
Non-DLP Projector | BenQ DLP Projector
(All photos portraying projection scenarios are simulated.)
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
WXGA(1280x800) |
| Brightness* |
3200AL |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F2.59-2.87 f=16.88-21.88 mm |
| Aspect Ratio |
Native 16:10 |
| Throw Ratio |
1.21~1.57(76.5" 3% @ 2m) |
| Image Size (Diagonal) |
44"-300" |
| Zoom Ratio |
1.3:1 |
| Lamp Type |
210W |
| Lamp Mode (Normal / Economic / SmartEco / LampSave / LumenCare) |
3500/5000/6500/10000/2000 hours |
| Keystone Adjustment |
2D, Vertical +/- 30 degrees, Horizontal +/- 25 degrees, under 3D timing only Vertical +/- 30 degrees |
| Projection Offset |
120% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
15K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2(Share with component)
Monitor out (D-sub 15pin) x 1
HDMI x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type A) x 1 (USB Reader & Wireless Display)
USB (Type mini B) x 1 (Download & UBS display)
RS232 (DB-9pin) x 1
RJ45 x 1
IR Receiver x2 (Front+Top)
|
| Dimensions(W x H x D) |
311.95 x 104.07 x 244.11 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24Hz 1080p
Side by Side: Up to 60Hz 1080i
Top Bottom: Up to 24Hz 1080p |
| Weight |
2.65kg (5.84lbs) |
| Audible Noise |
33/28 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
295W, Standby<0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Carry Bag
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Spare Lamp Kit
Ceilling Mount
3D Glasses |
