04/04
|
ICU HD-SP1311HTL Vari-Focal IR Outdoor Bullet Camera - 2 Megapixel Progress Scan CMOS, Full HD 1080p, True WDR (Double Scanning), True Day & Night with ICR, Full OSD Operation HD-SP1311HTL
Specifications
- 2MP Progress Scan CMOS
- Full HD (1080p) Resolution at 60 FPS (NTSC) or 50 FPS (PAL)
- True WDR (Double Scanning)
- 2.8-10mm MP DC AI VF Lens
- 42 LED's (Approx 40 Meter Range)
- IP 67 Rated
- True Day & Night with ICR
- Full OSD Operation
- 4 Axis Bracket
- DC 12V
|
|
|
|
04/04
|
ICU HD-SD364DL IR Indoor Dome Camera - 1/3" 960H CCD, 700TV Lines, No Noise, Ghosting Effect with DNR, 3D-DNR(Digital Noise Reduction), Day & Night - Black HD-SD364DL
General Feature
- 5th Generation DSP Chip
- 1/3" 960H CCD
- No Noise, Ghosting Effect with DNR
- 3D-DNR(Digital Noise Reduction)
- ø5 IR LED Built-in 28pcs
- Full OSD Operation * 3-Axis
- 0Lux(IR LED On)
- DC 12V(AC 24V / DC 12V)-Option
Features
Specifications:
|
MODEL
|
HD-SD364DL
|
|
Sensor type
|
1/3" 960H CCD
|
|
Effective pixels
|
976 (H) X 494 (V) approx. 480K pixels (NTSC)
976 (H) X 582 (V) approx. 570K pixels (PAL)
|
|
Total pixels
|
1020 (H) X 508 (V) approx. 520K pixels (NTSC)
1020 (H) X 596 (V) approx. 610K pixels (PAL)
|
|
Resolution
|
700TV Lines
|
|
Scanning system
|
2:1 Interlace
|
|
Min. illumination
|
0Lux(IR LED ON)
|
|
Video Output
|
1.0Vp-p Composite. 75 Ohms
|
|
S/N Ratio
|
52dB
|
|
AGC
|
Low / Middle / High
|
|
Sens-UP
|
OFF/AUTO (X2 ~ X256)
|
|
Backlight Compensation
|
OFF/BLC/HLC
|
|
D-WDR
|
OFF/INDOOR/OUTDOOR
|
|
Motion Detection
|
4 Zone
|
|
Privacy Masking
|
8 Zone
|
|
DIS(Digital Image Stabilizer)
|
OFF/ON
|
|
Day & Night
|
Auto(AGC)/Day/Night/Ext
|
|
White Balance
|
ATW/AWB/AWC->SET/Manual(1,800K ~ 11,000K)
|
|
3DNR(2D or 3D)
|
1 ~ 200 Level Selectable
|
|
Mirror
|
H-Rev / V-Rev / ROTATE
|
|
D-ZOOM
|
X32
|
|
SMART DZOOM
|
OFF/ON
|
|
DEFOG
|
OFF/MANUAL/AUTO
|
|
Blemish Compensation
|
Auto(512POINT)
|
|
Power Source
|
DC 12V
|
|
Power Consumption
|
IR LED ON:500mA Max
|
|
Lens
|
DC Auto Iris Varifocal Lens(2.8mm-12mm)
|
|
Storage Temperature
|
-20 ~ +60(Humidity : 20%RH ~ 95%RH)
|
|
Operating Temperature
|
-10 ~ +50(Humidity : 20%RH ~ 80%RH) |
|
Dimension
|
130mm(W) * 100mm(H) * 130mm(D)
|
|
Weight
|
600g
|
|
|
|
|
04/04
|
ICU HD-C100 HD-SDI To HDMI Converter HD-C100
HD-SDI to HDMI Converter
|
|
|
|
04/04
|
ICU HD-A024 Junction Box - For ICU Bullet Cameras Junction Box
HD-A024
Compatible with Bullet Cameras
|
|
|
|
04/04
|
ICU HD-A022 Junction Box - For ICU HD-SP138VTL Junction Box
HD-A022
Compatible with HD-SP138VTL
|
|
|
|
04/04
|
ICU HD-A017 Corner Mount Bracket (Outside Corner) - For ICU Bullet Cameras HD-A017
Corner Mount Bracket (Outside Corner)
Compatible with Bullet Cameras
|
|
|
|
04/04
|
ICU HD-A016 Corner Mount Bracket (Inside Corner) - For ICU Bullet Cameras HD-A016
Corner Mount Bracket (Inside Corner)
Compatible with Bullet Cameras
|
|
|
|
04/04
|
ICU HD-A015 Wall Mount Bracket - For ICU HD-SP350DTL HD-A015
Wall Mount Bracket
Compatible with HD-SP350DTL
|
|
|
|
04/04
|
ICU HD-A013 Junction Box - For ICU Bullet Cameras HD-A013
Junction Box
Compatible with Bullet Cameras
|
|
|
|
04/04
|
ICU HD-A012 Pendant Bracket - For ICU HD-SP138VTL, SP8350VTL HD-A012
Pendant Bracket
Compatible with HD-SP138VTL, SP8350VTL
|
|
|
|
04/04
|
ICU HD-A011 Wall Mount Bracket - For ICU HD-SP138VTL, SP8350VTLHD-A011 Wall Mount Bracket - For ICU HD-SP138VTL, SP8350VTL
|
|
|
|
04/04
|
GeoVision GV-FE2301 WDR Fisheye IP Camera - 2 Megapixel Progressive Scan CMOS, Up To 15FPS @ 1440x1376 For GV-FE2301, H.264 And MJPEG, Electronic Day/Night Function, Built-In Microphone And Speaker - White
Introduction
The GV-FE2301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE2301 seamlessly integrates with the GV-System, providing advanced monitoring and video management features.
The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE2301 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE2301 to be mounted into the ceiling, revealing a small portion of the camera.
Features
Key Features
- 2MP progressive scan CMOS
- Up to 15 fps at 1440 x1376 for GV-FE2301
- H.264 and MJPEG
- Electronic Day/Night function
- Wide Dynamic Range (WDR)
- Provides 360 and 180 degrees panorama view
- No mechanical moving parts
- Built-in micro SD card slot (SD/SDHC) for local storage
- Virtual PTZ function
- Auto Pan function
- Built-in Web server for monitoring through IE browser
- Different angle of view accessible by multiple users at the same time
- Built-in microphone and speaker
- One sensor input and alarm output
- DC 12V / AC 24V / PoE
- Playback from any view angle and zoom level
- Privacy mask to cover parts of the image that should not be viewable
- Visual automation
- Tampering alarm
- Text overlay
- 31 languages on Web interface
- ONVIF conformant
No memory card slot & local storage function for Argentina
Source Image
Single View
180 ° View
360 ° View
Quad View
|
|
|
|
04/04
|
GeoVision GV-FD2400 WDR Pro IR Fixed IP Dome Camera - 2 Megapixel, 1/3.2" Progressive Scan CMOS, Dual Streams From H.264 And MJPEG, Up to 30FPS @ 1920x1080, Two-Way Audio, Motion Detection - White GV-FD2400 2MP H.264 WDR Pro IR Fixed IP Dome
Features
- 1/3.2" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- 3-axis mechanism (pan / tilt / roll)
- Varifocal megapixel lens
- Intelligent IR
- Two-way audio
- One sensor input and alarm output
- TV-out support
- Built-in micro SD card slot (SD/SDHC) for local storage
- DC12V / AC24V / PoE
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Day and night function (with removable IR-cut filter)
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF (Profile S) conformant
No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Overview

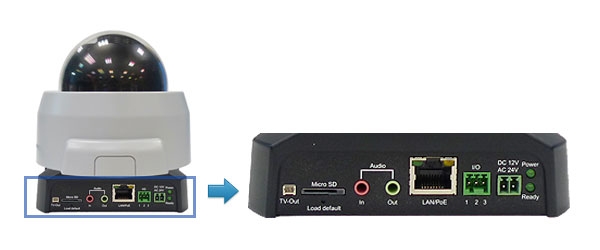

Rear Panel
Dimension
Hard-Ceiling Mount
In-Ceiling Mount
|
|
|
|
