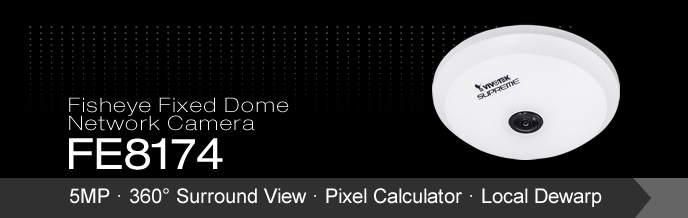

The FE8174 offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capabilities, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge Pixel Calculator function helps the user to ensure the image quality of a desired area.



As with all VIVOTEK true day/night cameras, the FE8174 features a removable IR-cut filter, maintaining clear images 24 hours a day. Together with 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance and iPad applications, the FE8174 is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.



System Information CPU Multimedia SoC (System-on-Chip) Flash 128 MB RAM 256 MB

Camera Features Image sensor 1/2.5" Progressive CMOS sensor in 2560 x 1920 resolution Maximum Resolution 1920x1920 Lens Type Fixed-focal Focal Length f = 1.5 mm Aperture 2.8 Field of View 180 (horizontal) 180 (vertical) 180 (diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR enhanced Day & Night Removable IR-cut filter for day & night function Minimum Illumination 0.03 Lux @ F2.8, 50 IRE ( Color ) 0.001 Lux @ F2.8, 50 IRE ( B/W ) Pan / Tilt / Zoom ePTZ 12x digital zoom ( 12x on IE plug-in ) On-board Storage MicroSD/SDHC/SDXC card slot

Video Compression H.264, MPEG-4 & MJPEG Maximum Frame Rate In all compression modes: 15 fps at 1920x1920 30 fps at 1920x1080 Maximum Streams 3 simultaneous streams S/N Ratio Above 62 dB Dynamic Range 57 dB Video Streaming Adjustable resolution, quality and bit rate Image Settings Adjustable image size, quality, and bit rate Pixel Calculator Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio Audio Capability Audio input / output ( full duplex ) Compression AAC G.711 G.726 Interface Built-in microphone External microphone input Effective Range 5 meters

Network Users Live viewing for up to 10 clients Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP Interface 10 Base-T / 100BaseTX Ethernet (RJ-45) ONVIF Supported, specification available at www.onvif.org

Intelligent Video Video Motion Detection Five-window video motion detection

Alarm and Event Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General Connectors RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 LED Indicator System power and status indicator Power input 12V DC IEEE 802.3af PoE Class 2 Power consumption Max. 5.1 W (DC 12V ) Max. 5.3 W (PoE ) Dimensions : 145 mm x 37 mm Weight Net: 358 g Safety Certifications CE, C-Tick, FCC Class A, LVD, UL, VCCI Operating Temperature Starting Temperature: -25C ~ 50C ( -13F ~ 122F ) Working Temperature: -40C ~ 50C ( -40F ~ 122F ) Warranty 36 Months

System Requirements Operating System Microsoft Windows 7 / Vista / XP / 2000 Browser Mozilla Firefox 7~10 ( Streaming only ) Internet Explorer 7/8/9 Other Players VLC: 1.1.11 or above QuickTime: 7 or above
