15/01
|
GeoVision GV-RG-64CH Recording Server USB DongleGeoVision GV-RG-64CH, Recording Server USB dongle
|
|
|
|
15/01
|
Verbatim 128GB Store `n` Go Pinstripe Flash Drive - USB2.0 - Black (Minimum Order Quantity is 10)
|
|
|
|
15/01
|
Verbatim 8GB Store `n` Go Micro USB Drive Plus - Flexible Protective Cover, Ruggedized SIP Design, Encapsulates & Protects From Water, Dust, & Debris, USB2.0 - RedMOQ (Minimum Order Quantity) is 12 Units, Must be ordered in multiples of 12.
8GB Store'n'Go Micro - USB2.0 - Red The Verbatim Micro+ USB Drive may be physically small but is certainly
tough! Weighing in at only 3 grams and only 4.4mm thick this is a micro
USB drive with a difference.
|
|
|
|
15/01
|
Verbatim 128GB Premium SDXC Memory Card, UHS-I V10 U1 Class 10
|
|
|
|
15/01
|
Verbatim 64GB Micro SDXC UHS-I Card - Class 10
- with Adapter
|
|
|
|
15/01
|

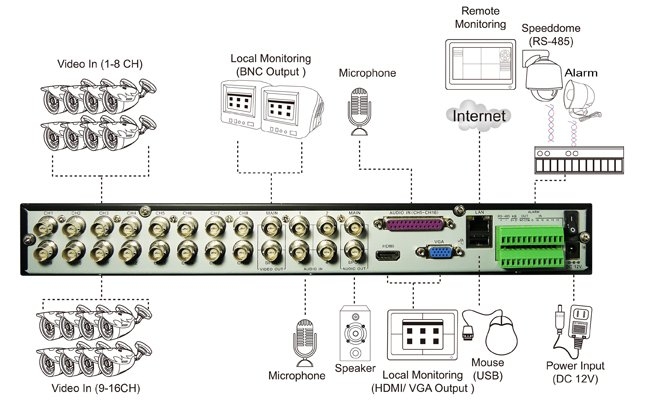

KGuard BR1601 16 Channel DVR System - Black
- H.264, Linux OS, NTSC/PAL, HDMI, VGA, 704x480 Resolution, up to 480fps All-In-One DVR: BR1601 DVR
This total surveillance package for home-and-small business owners includes all the required items for quick & easy DIY installation. To monitor and control surveillance video on your mobile devices, simply download the KGUARD exclusive software series – KView. Experience boundless surveillance at your fingertips!KGUARD 16 CH H.264 Standalone DVR System
BR1601 Features
- H.264 compression technology
- Advanced and friendly user interface with USB mouse control
- Supports simultaneous multi-channel playback with IE browser of videos recorded in different time frames
- Total online surveillance via IE/Safari browser for remote video & audio live view, playback, setup, backup and filing
- Built-in RS-485 port for PTZ control
- Pre-recording feature that allows additional images to be captured prior to the motion detected event
- Instant E-mail notification for alarm-triggered events
- Supports clock synchronization with NTP
- Real-time live display up to 16 cameras with 1080i high definition 1920x1080 (HDMI interface)
- Quad, single, 9 channels, 16 channels, sequence and PIP (Picture-In-a-Picture) display mode for live view
- User Authorization and Authentication Management
- Privacy masks for private area protection (max. 4 areas per channel)
- Free downloadable KView series for remote monitoring and control via iPhone, iPad and Android hand-held devices
- USB 2.0 interface for easy backup
- KGUARD DDNS Service (kguard.org) included
BR161 Specifications
|
|
| Model |
BR1601 |
| Video Format |
NTSC / PAL |
| Operating System |
LINUX |
Video
|
|
| Input / Output |
16 BNC Inputs /1 HDMI Output, 1 VGA Outpu, 2 BNC Outputs |
| Video Compression |
H.264 |
Audio
|
|
| Input / Output |
16 RCA Inputs / 2 RCA Outputs |
Display
|
|
| Resolution |
NTSC: 704x480 / PAL: 704x576 |
| Frame Rate |
NTSC: 480fps / PAL: 400fps |
Recording
|
|
| Resolution |
NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) |
| |
PAL: CIF(352x288) / HD1(704x288) / D1(704x576) |
| Frame Rate |
NTSC: 480fps-CIF / 240fps-HD1 / 120fps-D1 |
| |
PAL: 400fps-CIF / 200fps-HD1 / 100fps-D1 |
| Modes |
Always / Schedule / Motion Detection / Sensor Triggered / Remote Recording |
HDD
|
|
| Interface |
2 SATA Fixed HDD Racks |
| Capacity |
Up to 2TB |
Playback
|
|
| Search |
Time & Date / Event List / Time Bar |
| Channel |
Max. 16CH Simultaneous Playback / Network 4CH |
| Mode |
Play, Fast Forward, Fast Rewind, Frame by Frame |
Network
|
|
| Network Interface |
RJ45, 10M/100M, Supports TCP/IP, DHCP,DDNS, PPPoE |
| Network Function |
IE and Safari Browser Supported |
General
|
|
| USB Interface |
USB for Mouse and File Backup |
| PTZ Control |
Built-in RS-485 / supports PELCO-P & PELCO-D |
| Sensor & Alarm I/O |
16-Channels Inputs, 1-Channel Output |
| Backup |
USB to Flash Drive / Network |
| Power Supply |
DC12V / 4A |
| Working Temperature |
-10C ~ 50C (14F~122F) |
| Storage Temperature |
-20C ~ 70C (-4F~158F) |
| Working Humidity |
10%~90% |
BR1601 Package
- BR1601
- Adapter
- RCA to BNC Cable
- Remote Control
- USB Mouse
- Remote Control
- Software CD
- Quick Guide
- Power Cord
- Audio Cable
|
|
|
|
15/01
|
Sony VCTRBM1 Rollbar Mount - For Sony ActionCam Sony Rollbar Mount - for Action Cam
Record your next extreme adventure with Action Cam and this roll bar mount. It's perfect for roll bars, bicycle bars, and much more.
Product Specifications
Limited Warranty
-
Basic Specifications General
-
Material : PC+ABS PA PORON SUS
Color: Black
Weights and Measurements
|
|
|
|
15/01
|
Sony VPLLZ4015 Short Focus Zoom Lens - For Sony VPL-FH300L, FW300L, VPL-FX500L Projector VPLLZ4015
Short Focus Zoom Lens for VPL-FH300L/FW300L & VPL-FX500L
Overview
Short Focus Zoom Lens for VPL-FH300L/FW300L & VPL-FX500L larger venue projectors
Highlights:
| Optical Specifications |
Detail: |
| Projection Lens |
1.29 times zoom lens
f23.5 to 28.2 mm
F39.76-54.27 |
| Throw Ratio |
1.5-1.9:1 |
|
|
|
|
15/01
|

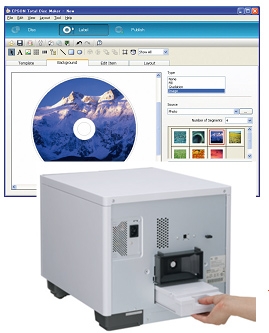

Epson PP-100AP DiscProducer - 100 disk Capacity, up to 95 disks/hour, up to 40x Write Speed, Mac/Windows Compatible Epson DiscProducer PP-100AP
The reliable Discproducer print-only model, Autoprinter, is ideal for use with high-speed duplication systems. It has all the features you need to print up to 100 customized discs at a time at a fast print speed of 95 discs per hour. And with its vibrant six-colour inkjet printing, precision AcuGrip™ robotic arm and easy-to-use software you get the high quality results you're looking for every time.
Features and Benefits
- 100 disc capacity
- Prints up to 95 discs per hour
- Highest quality printing in its class
- AcuGrip™ technology minimizes two disc feeding
- Six high capacity, cost-effective ink cartridges
- Low total cost of ownership
- Compact rugged construction for top reliabilit
Compatible with Mac and Windows OS
Best–in–class printing
The Epson Discproducer features a built–in Epson inkjet printer with Epson’s patented MicroPiezo technology. Using six colours instead of the common four, it delivers the highest print quality available in its class for crisp, clear text and vibrant graphics at up to 1440 x 1440 dpi resolution. In addition, ink level status is shown with a LED readout for each colour to prevent printing without ink.
Best–in–class Cost per Disc
Thanks to Epson's individual inks system, the cost of each produced media is low as you only need to replace the colour used and, depending on the print image, you can produce over 1,000 discs from one set of cartridges. And when a cartridge becomes empty, the PP-100AP automatically stops printing until it’s replaced to avoid miss-prints.
The Epson Discproducer also provides you with more affordable disc duplication and printing. Cost per Disc calculations are based on Epson's Internal Testing with a set of new ink cartridges.
Cost-effective mass printing
- Fast: With the Epson Discproducer™ PP-100AP, up to 50 media per hour can be printed in brilliant photo quality. If faster printing is more important to you, then the rate can be increased to as much as 95 media per hour.
Print capacity: Epson makes mass printing easy. Up to six Epson Discproducer™ PP-100APs can be controlled in parallel from one PC. In this way, you can increase your print capacity at each workstation to 300 media per hour with the highest quality setting or 570 media per hour in high-speed mode.
- Long-lasting: The Epson Discproducer™ PP-100AP has been designed to have a service life of more than 100,000 discs. The user friendly maintenance cartridges need to be changed after approx. 30,000, 60,000 and 90,000 discs. This will keep your Epson Discproducer™ PP-100AP in top condition. The sealed housing, which protects against dust, and the patented AcuGrip™ robotic arm also contribute to the exceptionally long service life.
- Photo quality: Epson’s Micro Piezo™ technology with six different colours also offers exceptional quality with large print quantities. Impress your clients with vivid, razor-sharp images printed on high-gloss, smudge-proof and waterproof media recommended by Epson. Economical: Enjoy the benefits of extremely low print costs. The low purchase price of the Epson Discproducer™ PP-100AP, the high volume ink tanks and the very long service life make this possible. One ink set can print the entire surface area of well over 1,000 discs. Separate colour cartridges minimise your operating costs as you only need to replace the colour that‘s used up.
Technology
AcuGrip™ Built to perform
Unlike other disc publishers, the Epson Discproducer features patented AcuGrip picking technology which ensures that only one disc is placed in the drive or printer even if two are stuck together. The arm has a guide that places it in the center of the disc. Then three independently powered fingers extend to separate the top disc from the remaining discs. Finally the peel off lever (or kicker lever) lifts the top disc for transportation. If more than one disc is lifted, they will be put in the reject stacker or the system will indicate an error has occurred. This technology not only increases the life of the product, but helps protect against the interruption of unattended production runs due to mechanical blockage.
Micro Piezo Print Head
MicroPiezo® print heads are at the heart of every Epson ink jet printer. These print heads spray ink through microscopic nozzles, or holes on the print head. Each of these nozzles has tiny, piezo electric elements, which vibrate tens of thousands of times per second, allowing the nozzle to fire ink droplets onto the disc at extremely rapid rates. No heat is involved in the printing. This ensures greater accuracy when firing ink droplets precisely onto the disc. And, it gives the printer greater control over ink droplet size. MicroPiezo technology ensures uniform, stable ink droplets with virtually no satellites or misting all of which means you get the high quality results you’d expect from Epson.
Building on the Strength and Experience of Epson Robotics
When you build industrial robots, you learn about quality, reliability and precision engineering. And Epson is a world-leader in the design, development and manufacture of such robots as for medical technology and airbag testing. That’s why our other products are so reliable – because they are built on the platform of knowledge and experience gained from the robotics environment. The Epson Discproducer™ is a perfect example. Its compact design, coupled with its dust-proof body and a minimum of moving parts, delivers precision performance, superb reliability and amazingly low running costs.
Effortless Operation
The Epson Discproducer™ PP-100AP is just as easy to operate as any office printer. The use of the software and hardware is intuitive, leaving you free to concentrate on your day-to-day work.
With the Total Disc Maker software, it is easy to create your own printed image for CD/DVD. Whether you want to use photographs, graphics, text or pre-existing templates, there are virtually no restrictions on your creativity.
In the final step, you can select the ideal
quality and speed setting for your project:
Quality: 50 media per hour
Speed: 75 media per hour
High-speed: 95 media per hour
The maintenance cartridge is very easy to change.
Specifications:
| PRODUCT TYPE |
Disc Publisher Autoprinter |
| PRODUCT NAME |
Epson DiscProducer PP-100AP |
| PRODUCT CODE |
C11CA93031 |
| MAIN UNIT |
|
PRINT SPEED
|
CD |
50 discs/hour, (level 1)
75 discs/hour, (level 2)
95 discs/hour, (level 3)
|
| |
|
|
| WRITING SPEED |
CD |
Maximum 40 x |
| |
DVD-R, DVD+R |
Maximum 12 x |
| |
DVD-R DL, DVD+R DL |
Maximum 8 x |
| POWER CONSUMPTION |
50 W (Operation), 30 W (Standby) |
| |
|
|
| ELECTRICAL |
Rated Voltage |
AC100V to AC240V |
| |
Frequency |
50hz to 60Hz |
| EXTERNAL DIMENSIONS |
377mm (w) x 465mm (d) x 348mm (h) (Excluding the AC cable & USB cable) |
| WEIGHT |
Approximately 22Kg
(Including stackers and ink cartridges, excluding the AC cable and discs) |
| ENVIRONMENTAL CHARACTERISTICS |
Temperature and Relative Humidity |
10 C to 35 C, 20% to 80% (no condensation) |
| STANDARDS |
Safety: AS/NZS CISPR 22 Class A |
| |
|
|
| EXPECTED LIFETIMES |
Ink Pad Life |
Approx. 30,000 printable discs ** |
| |
|
|
| HARDWARE |
| PRINTER MODE |
Print Head |
Black ink 180 Nozzles, Colour ink 180 Nozzles x 5 |
| |
Print Direction |
Bidirectional or unidirectional |
| |
Print Resolution |
Level1 (High-resolution): 1440 dpi 1440 dpi
Level2: 1440 dpi 720 dpi
Level3 (High-speed): 720 dpi 720 dpi
[dpi: dots per 25.4 mm (1 inch)] |
| PRINT AREA |
Standard setting for outside diameter |
116 mm |
| |
Outside diameter setting range |
70-119.4 mm |
| |
Standard setting for inside diameter |
45 mm |
| |
Inside diameter setting range |
18-50 mm |
| |
Guaranteed print area |
45-116 mm |
| |
Printable area of EPSON-specified discs |
25-116.5 mm (0.98 to 4.59 inches) |
| STACKER CAPACITY |
Stacker 1,2,3 |
50 discs (It's possible to print 100 discs without stopping by using both stackers 1 and 2.) |
| |
Stacker 4 |
5 discs |
| INTERFACE |
1 x USB 2.0 High speed Only |
|
| INK CARTRIDGE |
Ink Type |
Dye ink |
| |
Colours |
Yellow, Magenta, Cyan, Light Cyan, Light Magenta, Black |
| |
Yield *** |
1,000 discs or more (diameter 45 - 116 mm, 16.7% colour sharing, continuous printing, mode setting: Level 1) |
| |
Cost per disc |
Cost per Disc calculations are based on Epson's Internal testing. For further details please see Disc yields page. |
| SOFTWARE (WINDOWS) |
|
| |
Total Disc Maker |
Installed on the user's PC to publish discs. |
| |
Total Disc Monitor |
Displays the status of JOBs and devices. |
| |
Total Disc Setup |
Installed on user's PC to set-up PP-100AP. |
| |
TD Bridge system |
Incorporation tool to use with other applications, supplied free via the website on product registration. |
| LABEL EDITING |
Template |
Up to 58 templates |
| |
Background |
Full-filled, gradation, graphic, including EPSON original background files (up to 74 files) |
| |
Printing items |
|
| |
Text |
strings, automatic inserted strings (published date, created date, counter, number of sheets, number of pages), writing face gearing strings (date size, volume label/title), arch style strings |
| |
Graphic |
BMP, JPEG, TIFF, PNG, EPSON original graphic files (up to 81), trimming, transmit |
| |
Thumbnail |
tile, circle, gearing with writing surface |
| |
Folder list |
Create folder list automatically |
| |
Diagram |
Straight line, rectangle, oval |
| |
Export |
BMP, JPEG, TIFF, PNG |
| PUBLISHING |
|
Publishing modes (number of copies) |
| |
Batch mode: |
1- 100, 3 stackers used |
| |
Standard mode: |
1- 50, 2 stackers used |
| |
External output mode: |
1- 5 CDs/DVDs, 2 stackers & pick-up tray used |
| STATUS MONITOR |
Job monitoring |
Job status, Canceling, Pausing, Restarting |
| |
Device monitoring |
Ink remaining, Drive status, Printing status, Stacker status, Media remaining |
| SOFTWARE (MAC) |
|
| |
Total Disc Maker |
Installed on the user's PC to publish discs. |
| |
Total Disc Utility |
Displays the status of JOBs and devices and change the publish settings. Click here to register. |
| LABEL EDITING |
Printing items |
|
| |
Text |
strings, automatic inserted strings (published date, created date, counter, number of sheets, number of pages), writing face gearing strings (date size, volume label/title) |
| |
Graphic |
BMP, JPEG, TIFF, PNG, PDF, AI (For PDF and AI files are available only they can be previewed from Finder.) |
| |
Barcode |
JJAN8/EAN8,
JAN13/EAN13,
ITF,
CODE128,
PDF417.
QR(model 2),
CODE39,
NW-7
|
| |
Export |
BMP, JPEG, TIFF, PNG |
| PUBLISHING |
|
Publishing modes (number of copies) |
| |
Standard mode: |
1- 100 |
| |
Low volume mode: |
1-20 (Stacker 3 is used in this mode) |
| |
Data comparing |
Data comparing is selectable (audio CD not supported) |
| |
Label type |
Epson specified CD/DVD Label
CD/DVD Premium Label
CD/DVD Label |
| |
Number of discs |
1 disc to 100 discs (depends on publishing mode) |
| |
|
|
| STATUS MONITOR (Total Disc Utility) |
Job monitoring |
Job status, Canceling, Pausing, Restarting |
| |
Device monitoring |
Ink remaining, Drive status, Printing status, Stacker status, Media remaining |
| REQUIRED SYSTEM |
|
| REQUIRED PC ENVIRONMENT |
Operating System |
Windows 7, Vista SP1 or later; Windows XP SP2 or later, Windows 2000 SP4 or later , Server 2008 R2, Server 2008 SP2 or later; and Server 2003/2003 R2 SP2 or later (Windows XP and Server 2003/2003 R2 32 bit only) |
| |
CPU |
Intel Pentium 4 Processor 1.4GHz or higher (2.0GHz or higher for Server 2008) |
| |
Memory |
2Gb or larger (Vista: 1Gb or larger) |
| |
HDD |
30 Gb available space or larger, (50Gb available space Windows Server 2008) 7,200 rpm or more |
| |
Graphics environment |
XGA or more, 65,536 colors or more |
| |
Sound environment |
A sound device and a supported driver must be installed for music media. |
| |
No supported chipset list (ATI) |
ATI's Southbridge IXP (SB)460 or earlier chipsets not supported |
| |
Interface |
Universal Serial Bus Specifications Revision 2.0, Transmission speed: 480 Mbps (High-speed Device) |
| REQUIRED MAC ENVIRONMENT |
Operating System |
Mac OS 10.7.3 Lion, Mac OS 10.6.8 Snow Leopard |
| |
CPU |
Mac OS X 10.6.8 Snow Leopard : Intel Core Duo 1.83GHz or more, Mac OS X 10.7.3 Lion : Intel 64bit CPU |
| |
Memory |
Mac OS X 10.6.8 Snow Leopard : 1GB or larger, Mac OS X 10.7.3 Lion : 2GB or larger |
| |
HDD |
25GB available space or larger, HDD rotation speed: 7,200 rpm or more |
| |
Graphics environment |
Graphics environment: XGA or more |
| |
Interface |
Universal Serial Bus Specifications Revision 2.0, Transmission speed: 480 Mbps (High-speed Device) |
| SUPPORTED MEDIA |
|
| SIZE |
Outside diameter |
120 mm 0.3 mm |
| |
Inside diameter |
15 mm + 0.1/-0 mm |
| |
Thickness |
1.2 mm + 0.3/-0.1 mm |
| FORM |
|
Supports standard 12 cm (4.7 inch) discs
Does not support specially-shaped disks. |
| TYPE |
CD-R, DVD-R, DVD+R, DVD-R DL, DVD+R DL |
| LABEL TYPE |
Epson Specified CD/DVD Label
CD/DVD Premium Label
CD/DVD Label
|
| SURFACE |
Inkjet printable
(Note: As for printable glossy discs, only Epson recommended discs are supported) |
| CONSUMABLES |
|
| PRODUCT |
PRODUCT NAME |
PRODUCT CODE |
| Ink cartridge cyan |
PJIC1(C) |
C13S020447 |
| Ink cartridge light cyan |
PJIC2(LC) |
C13S020448 |
| Ink cartridge light magenta |
PJIC3(LM) |
C13S020449 |
| Ink cartridge magenta |
PJIC4(M) |
C13S020450 |
| Ink cartridge yellow |
PJIC5(Y) |
C13S020451 |
| Ink cartridge black |
PJIC6(K) |
C13S020452 |
|
|
|
|
15/01
|
Olympus LI-90B Rechargeable Lithium-Ion Battery - To Suit Panasonic SH-50, TG-2, XZ-2 Digital Camera LI-90B RECHARGEABLE LITHIUM-ION BATTERY
Rechargeable Lithium-Ion battery
Small and powerfull
Standard capacity of 1270mAh
Standard voltage of 3.6V
LI-90B Rechargeable Lithium-Ion battery
The battery can be recharged with the optional battery charger UC-90.
For recharging inside the camera either use the super-compact AC Adapter F-2AC which is supplied with the camera or the optional available F-3AC Adapter.
Features
- Rechargeable Lithium-Ion battery
- Standard capacity of 1270mAh
- Standard voltage of 3.6V
- Soft case protects the battery pack during storage and transportation
- Dedicated AC Adapter is required to recharge the battery in the camera
Compatible with
SH-50
TG-2
UC-90 Lithium-Ion Battery Charger for LI-90B
XZ-2
|
|
|
|
15/01
|
Olympus FL-600R Electronic Wireless Flash - Wide-Angle Lens Up to 9mm Using The Built-In Wide Panel - Black Electronic Flash FL-600R
The FL-600R secures a GN of 28(ISO200m) despite its small size and is compatible with bounce shooting. It is also compatible with a wide-angle lens up to 9mm using the built-in wide panel. In addition, it is compatible with the RC mode and can be used as a wireless flash.
| Guide Number |
GN 50 @ISO 200m / GN 36 @ISO 100m |
GN 17 @ISO 200m / GN 12 @ISO 100m
* Using the built-in wide panel |
| Firing Angle |
Covering the field angle of 12mm lens (equiv. to 24mm lens) |
Covering the field angle of 8mm lens (equiv. to 16mm lens)
* Using the built-in wide panel |
| Built-in Function |
Wide panel, Catch light plate |
| Flash Modes |
TTL-AUTO, AUTO, MANUAL, FP TTL-AUTO, FP MANUAL |
| Wireless (RC) function |
Flash mode : RC, SL AUTO, SL MANUAL |
| Channel : 4 channels |
| Group: 4 groups control |
| Bounce Angle |
Up&Down/Right&Left |
| Up / Down : up / 0~90 degrees, down / 0~7 degrees |
| Right / Left : Right / 0~180 degrees, Left / 0~180 degrees |
| LED |
Power : 1W |
| Color : White light |
| Firing Angle : approx. 30 degrees |
| Illuminance : 100 Lux at 1m |
| Control mode : AUTO, MANUAL *Full to 1/16, at 1EV steps |
Power Supply
*Recommendation |
AA(R6) 4 alkaline batteries |
| AA(R6) 4 NiMH batteries |
| Charging Time*1. |
Approx. 2.5 sec. [using AA alkaline batteries] |
| Approx. 2.0 sec. [using AA NiMH batteries] |
| Flash Emission Count*1. |
Approx. 280 times [using AA alkaline batteries] |
| Approx. 400 times [using AA NiMH batteries] |
| LED Emission Time*1. |
Approx. 2.8 hours [using AA alkaline batteries] |
| Approx. 4.0 hours [using AA NiMH batteries] |
| Size |
62(W)x104(H)x98(D) mm [excluding protrusions] |
| Weight |
255g [excluding batteries] |
| Box Contents |
Flash Stand, Soft Case, Instruction Manual, Olympus Worldwide Warranty Card |
|
|
|
|
15/01
|
Sony Carrying case for Music Cam MVACarrying case for Music Cam
Keep your Music Cam safe and sound
Soft carrying case for Music Cam with leather-look finish
- Protects your Music Cam from knocks and bumps
- Enjoy easy access so you can shoot quickly
- Get a smart, leather-look finish
Features - LCS-MVA
- Keep your Music Cam safe - this stylish yet durable case protects your camera from dust, drips, bumps, and scratches
- Quick to access - your lens can be uncovered in two ways, including a fast-access front opening for those spur of the moment video opportunities
- Looks good - the case has a leather-look finish embossed with the Sony logo, for added style on the go
Compatible Products
High Definition on Flash Memory (AVCHD)
|
|
|
|
15/01
|

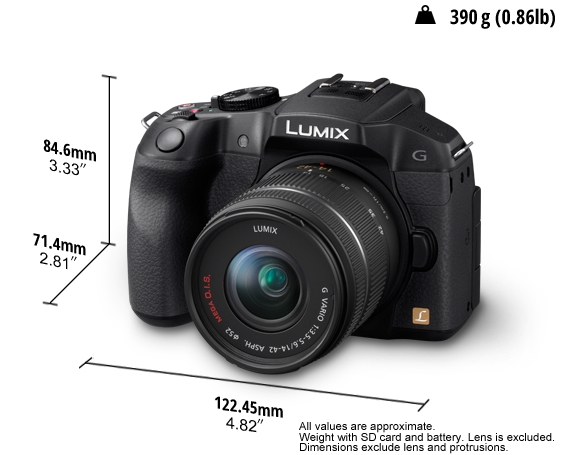

Panasonic DMC-G6WGN-K Digital SLR Camera - 16.05MP (Black)
- 3.0" Touchscreen LCD, Stabilizer, i.Dynamic, Live VIew
- Twin Lens Kit DMC-G6WGN-K
Higher Quality Shooting with Greater Mobility
The DMC-G6WGN-K realises real-to-life photo and video recording in even higher quality with the Digital Live MOS Sensor and the new Venus Engine. Its response is improved with Light Speed AF, high speed burst shooting at 7 fps and stunningly quick start-up of approximately 0.5 seconds, that ensures the user will never miss out on fleeting shooting opportunities.
Overview
Superior Picture Quality
The DMC-G6 integrates 16.05-megapixel Digital Live MOS Sensor with Venus Engine that features advanced noise reduction systems. Noise is removed in multiple steps according to the noise characteristics, realising both smoothness and sharpness according to the part of the image. In addition, the limit resolution is enhanced thanks to precise detail reproduction and advanced Intelligent D-Range Control that ensures beautiful gradation with a wider dynamic rang
Photo Performance
Creative Control
The popular Creative Control mode is upgraded by increasing its filter option from 14 (for DMC-G5) to 19 (for DMC-G6) adding new Old Days, Sunshine*, Bleach Bypass, Toy Pop, Fantasy in addition to the conventional Expressive, Retro, High Key, Sepia, High Dynamic, Soft Focus*, Dynamic Monochrome, Impressive Art, One Point Colour, Cross Process, Low Key, Toy Effect and Star Filter* and Miniature Effect mode. Effect parameter of each mode is also adjustable.
iA (intelligent Auto) / iA Plus Mode
For beginners of Digital Single Lens Mirrorless cameras, iA (Intelligent Auto) mode supports taking beautiful pictures with a variety of shooting-assist functions including AF Tracking, Intelligent D-range Control, Intelligent Scene Selector, Face Recognition and Intelligent ISO Control. The Intelligent Scene Selector now integrates Food Recognition mode. It detects food on the dish and captures it to look delicious. The iA Plus mode lets you adjust defocusing area in the background,
exposure compensation and white balance for more flexible control.
Clear Retouch
Clear Retouch makes it possible to erase unwanted objects or figures in an image by just tracing over them on monitor with a fingertip. They naturally disappear without destroying the image.
Scene Guide
The Scene Guide* offers 23 sample pictures shot by professional photographers. You can choose the one closer to the situation they are going to shoot and optimum parameters for shooting the scene will be automatically set. Furthermore, shooting procedure, technical advice and recommended interchangeable lens for the scene can be shown for you to learn photograph.
Video Performance
Manual Control (Creative Video Mode)
The P / A / S / M mode lets you enjoy professional-like expressive video recording. Videos can also be recorded in MP4 format for playback on a PC or other portable electronic devices without having to convert the files.
Touch AF & Touch AE
With the Full-Area Touch AF, users can set focus on any point in the field of view and realise quick and intuitive focusing operation with free frame composition. In addition, the newly adopted Touch AE (Auto Exposure) function, allows setting focus and exposure with a single touch of the subject displayed on the display monitor.
Touch Pad AF
With the Full-Area Touch Pad AF, it is possible to set focus on any point in the field which will realise quick and intuitive focus operations with free frame composition.
Function Lever & Mode Dial
The control on DMC-G6WGN-K is smooth and easy with optimum layout of operation devices. The newly added function lever allows direct adjustment of allotted function zoom*, exposure or aperture** control. This lever works for magnification in
playback mode and page flip in menu.
*When used with Power Zoom lenses H-PS14042 or H-PS45175.
** In M (Manual) mode.
Sophisticated Design
DMC-G6WGN-K is an innovative Digital Single Lens Mirrorless (DSLM) camera packing a host of cutting-edge functions. The compact, lightweight body profile is stylishly designed to achieve high mobility while pursuing comfort in operation.
Remote Shooting / Remote View
With Panasonic “Image App”, use your smartphone or tablet with a monitor that displays live smooth of 30 fps, it is possible to view shooting of photos or videos* remotely. From your smartphone or tablet, the user can control; shutter release, zoom**, focus and settings, shutter speed, aperture and exposure compensation.
* For remote shooting of video, start/stop recording is available over smartphone / tablet control
** With LUMIX G Power Zoom Lens H-PS14042 or H-PS45175.
Instant Transfer
The Instant Transfer function allows the camera to transfer the photo data to the designated electronic devices automatically whenever shutter is released. In playback mode, you can also touch the image displayed on the camera to transfer it
directly to the smartphone/tablet* right on the spot.
Installing "Image App" is needed in advance.
Wi-Fi® Features - On the Go
Easy Share
You can instantly upload and share your images on an SNS (Social Networking Service) using the "Panasonic Image App" on a smartphone / tablet.
Geotagging
In addition, it is possible to tag the location information to the image by utilising the GPS (Global Positioning System) log of a smartphone / tablet.
Facebook is a registered trademark or trademark of Facebook, Inc.
Picasa is a registered trademark or trademark of Google Inc.
Flickr is a registered trademark or trademark of Yahoo! Inc.
Wi-Fi® Features - At Home
Wireless TV Playback
he Wi-Fi Direct™ function allows direct playback of images on the DLNA (Digital Living Network Alliance) - compliant VIERA HDTV.
Wireless Print
You can print out recorded pictures wirelessly from a PictBridge (wireless LAN compatible) printer.
Cloud Sync.
With the Panasonic's exclusive Cloud Sync. Service, photos and videos can be synchronised among the compliant electronic devices you use.

Specifications
| TYPE |
Type |
Digital Single Lens Mirrorless camera |
| Recording media |
SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards) |
| Image sensor size |
17.3 x 13.0 mm (in 4:3 aspect ratio) |
| Lens Mount |
Micro Four Thirds mount |
| IMAGE SENSOR |
Type |
Live MOS Sensor |
| Total pixels |
18.31 Megapixels |
| Camera effective pixels |
16.05 Megapixels |
| Colour filter |
Primary colour filter |
| Dust reduction system |
Supersonic wave filter |
| RECORDING SYSTEM |
Recording file format |
Still Image: JPEG(DCF, Exif 2.3), RAW, |
| Recording file format |
MPO (When attaching 3D lens in Micro Four Thirds standard) |
| Recording file format |
Motion Image: AVCHD (Audio format: Dolby Digital 2ch) |
| Recording file format |
/ MP4 (Audio format AAC 2ch) |
| Aspect ratio |
4:3, 3:2, 16:9, 1:1 |
| Image quality |
RAW, RAW+Fine, RAW+Standard, Fine, Standard, |
| Image quality |
MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard) |
| Colour Space |
sRGB, Adobe RGB |
| File size(Pixels) |
Still Image |
[4:3] 4608x3456(L) / 3264x2448(M) / 2336x1752(S) / 1824x1368(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[3:2] 4608x3072(L) / 3264x2176(M) / 2336x1560(S) / 1824x1216(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[16:9] 4608x2592(L) / 3264x1840(M) / 1920x1080(S) / 1824x1024(When attaching 3D lens in Micro Four Third System standard) |
| Still Image |
[1:1] 3456x3456(L) / 2448x2448(M) / 1744x1744(S) / 1712x1712(When attaching 3D lens in Micro Four Third System standard) |
| Motion Image (MP4*1 : NTSC area) |
[Full HD]19201080, 60fps (sensor output is 60p, 28Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[Full HD]1920x1080, 30fps (sensor output is 30p, 20Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[HD]1280x720, 30fps (sensor output is 30p, 10Mbps) |
| Motion Image (MP4*1 : NTSC area) |
[VGA] 640x480, 30fps (sensor output is 30p, 4Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[Full HD] 19201080, 50fps (sensor output is 50p, 28Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[Full HD]1920x1080, 25fps (sensor output is 25p, 20Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[HD] 1280x720, 25fps (sensor output is 25p, 10Mbps) |
| Motion Image (MP4*1 : PAL*2 area) |
[VGA] 640x480, 25fps (sensor output is 25p, 4Mbps) |
| Motion Image (AVCHD Progressive : NTSC area) |
[Full HD]19201080, 60p (sensor output is 60p, 28Mbps) |
| Motion Image (AVCHD Progressive : PAL area) |
[Full HD] 19201080, 50p (sensor output is 50p, 28Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 1920x1080, 60i (sensor output is 60p, 17Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 19201080, 60i (sensor output is 30p, 24Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[Full HD] 19201080, 24p (sensor output is 24p, 24Mbps) |
| Motion Image (AVCHD*1 : NTSC area) |
[HD] 1280 x 720, 60p (sensor output is 60p, 17Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 50i (sensor output is 50p, 17Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 50i (sensor output is 25p, 24Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[Full HD] 1920x1080, 24p (sensor output is 24p, 24Mbps) |
| Motion Image (AVCHD*1 : PAL*2 area) |
[HD] 1280 x 720, 50p (sensor output is 50p, 17Mbps) |
| Continuous recordable time (Motion images)*2 |
AVCHD : Approx. 140 min with H-FS014042 |
| Continuous recordable time (Motion images)*2 |
AVCHD : Approx. 150 min with H-FS45150 |
| Actual recordable time (Motion images) |
AVCHD : Approx. 70 min with H-FS014042 |
| Actual recordable time (Motion images) |
AVCHD : Approx. 75 min with H-FS45150 |
| Flicker reduction |
[1/50] / [1/60] / [1/100] / [1/120] / OFF |
| WiFi FUNCTION |
WiFi |
IEEE 802.11b/g/n, 2412MHz - 2462MHz (11ch), Wi-Fi / WPA / WPA2, Infrastructure mode |
| NFC |
ISOIEC 18092NFCIP-1NFC-F |
| VIEWFINDER |
Type |
OLED Live View Finder (1,440,000 dots) |
| Field of view |
Approx. 100% |
| Magnification |
Approx. 1.4x / 0.7x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m -1 |
| Eye point |
Approx.17.5mm from eyepiece lens |
| Diopter adjustment |
-4.0~+4.0dpt |
| Eye sensor |
Yes |
| Eye sensor adjustment |
High / Low |
| FOCUS |
Type |
Contrast AF system |
| Focus mode |
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF |
| AF mode |
Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint |
| AF detective range |
EV -3 - 18 (ISO100 equivalent) |
| AF assist lamp |
YES |
| AF lock |
Set the Fn button in custom menu to AF lock |
| Others |
Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF/AE Function, Touch Pad AF, Touch shutter, Touch MF Assist, |
| EXPOSURE CONTROL |
Light metering system |
1728-zone multi-pattern sensing system |
| Light metering mode |
Intelligent Multiple / Center Weighted / Spot / |
| Metering range |
EV 0 - 18 (F2.0 lens, ISO100 equivalent) |
| Exposure mode |
Program AE, Aperture Priority AE, Shutter Priority AE, Manual, |
| ISO sensitivity (Standard Output Sensitivity) |
Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600(Extended) |
| ISO sensitivity (Standard Output Sensitivity) |
(Changeable to 1/3 EV step) |
| Exposure compensation |
1/3EV Step 5EV |
| AE lock |
Set the Fn button in custom menu to AE lock |
| AE bracket |
3,5,7 frame, in 1/3 or 2/3 or 1EV Step, Max.3 EV |
| WHITE BALANCE |
White balance |
Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Colour temperature setting |
| White balance adjustment |
Blue/amber bias, Magenta/green bias |
| Colour temperature setting |
2500-10000K in 100K |
| White balance bracket |
3 exposures in blue/ amber axis or in magenta/ green axis |
| SHUTTER |
Type |
Focal-plane shutter |
| Shutter speed |
Still Images: Bulb (Max.120), 1/4000 ~ 60 |
| Shutter speed |
Motion image: 1/16000 ~ 1/30 (NTSC), 1/16000 ~ 1/25 (PAL) |
| Self timer |
10sec, 3 images/ 2sec / 10sec |
| SCENE GUIDE |
Still image |
Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / |
| Still image |
Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Clear Night Portrait / |
| Still image |
Soft Image of a Flower / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome |
| Video |
Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / |
| Video |
Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Clear Night Portrait / Appetizing Food / Cute Dessert / |
| Video |
Freeze Animal Motion / Clear Sports Shot / Monochrome |
| BURST SHOOTING |
Burst speed |
SH : 40.0 frames/sec, H: 7.0 frames/sec(with AFS), 5.0 frames/sec(with AFC, In 1-area-focusing AF mode), M: 4.0 frames/sec (with Live View), L: 2.0 frames/sec (with Live View) |
| Number of recordable images |
9 images (when there are RAW files with the particular speed) |
| Number of recordable images |
Unlimited consecutive shooting (when there are no RAW files) |
| Number of recordable images |
(depending on memory card size, battery power, picture size, and compression) |
| BUILT-IN-FLASH |
Type |
TTL Built-in-Flash, GN10.5 equivalent (ISO 160 m), GN8.3 equivalent (ISO 100 m, Built-in Pop-up |
| Flash Mode |
Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, |
| Flash Mode |
Slow Sync., Slow Sync./Red-eye Reduction, Forced Off |
| Synchronization speed |
Less than 1/160 second |
| Flash synchronization |
1st. Curtain Sync, 2nd Curtain Sync. |
| LCD MONITOR |
Type |
TFT LCD with Touch monitor |
| Monitor size |
Free-angle 3.0inch (7.5cm)/ 3:2 Aspect / Wide-viewing angle |
| Pixels |
1036K dots |
| Filed of view |
Approx. 100% |
| Monitor adjustment |
Brightness, Contrast and Saturation, Red tint, Blue tint |
| LIVE VIEW |
Digital zoom |
2x, 4x |
| Extra Tele Conversion |
Still image: Max.2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) |
| Extra Tele Conversion |
Motion image: 2.4x (FHD/60p, FHD/60i, FHD/30p, FHD/24p in NTSC / FHD/50p, FHD/50i, FHD/25p, FHD/24p in PAL), 3.6x (HD/60p, HD/30p in NTSC / HD/50p, |
| Extra Tele Conversion |
HD/25p in PAL), 4.8x (VGA/30p in NTSC / VGA/25p in PAL) |
| Other functions |
Guide Lines (3 patterns) |
| Other functions |
Real-time Histogram |
| LEVEL GAUGE |
Level Gauge |
Yes (Built-in 3 shaft accelerometer sensor) |
| DIRECTION DETECTION FUNCTION |
Direction Detection Function |
Yes |
| FUNCTION BUTTON |
Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
WiFi / Q.MENU / AF/AE LOCK / LVF/Monitor Switch / One Push AE / Touch AE / Preview / Level Gauge / Focus Area Set / Photo Style / Aspect Ratio / Picture Size / Quality / Metering Mode / Focus Mode |
| Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
/ i.Dynamic / i.Resolution / HDR / Electronic Shutter / Flash Mode / Flash Adjust. / Ex. Tele Conv. / Digital Zoom / Stabiliser / Sensitivity / White Balance / AF Mode / Drive Mode / Restore to Default / Motion Pic. Set |
| Fn1, Fn2, Fn3, Fn4, Fn5, F6, F7 |
/ Picture Mode / Peaking / Function Lever / Histogram / Guide Line / Rec Area / Step Zoom / Zoom Speed |
| FUNCTION LEVER |
Function Lever |
Yes (AUTO/Zoom/EXP.) |
| CREATIVE CONTROL |
Still image |
Expressive / Retro / Old days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy POP/ |
| Still image |
Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Colour / Sun Shine |
| Video |
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy POP / |
| Video |
Bleach Bypass / Miniature Effect / Fantasy / One Point Colour |
| CREATIVE VIDEO MODE |
Exposure mode |
Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure / |
| PHOTO STYLE |
Still image and video |
Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom / |
| PLAYBACK |
Playback mode |
Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), |
| Playback mode |
Playback Mode (Normal/Picture/Video/3D Play/Category/Favourite), Title Edit, Location Logging, Clear Retouch, Text Stamp, Video Divide, Stop Motion Video, |
| Playback mode |
Time Lapse Video, Resize, Cropping, Rotate, Favourite, Print set, Protect, Face Recognition Edit |
| IMAGE PROTECTION / ERASE |
Protection |
Single / Multi, Cancel / |
| Erase |
Single / Multi / All / Except Favourite / |
| PRINT |
Direct print |
PictBridge compatiblePrint size, Layout, Date setting are selectable |
| INTERFACE |
USB |
USB 2.0 High Speed Multi |
| HDMI |
miniHDMI TypeC |
| HDMI |
Video: Auto / 1080i / 720p / 480p (576p in PAL system) |
| HDMI |
Audio: Stereo |
| Audio video output |
Monaural Type, NTSC/PAL, NTSC only for North America |
| Audio video output |
*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market. |
| Remote input |
2.5mm for Remote |
| External microphone input |
3.5mm for External microphone |
| Microphone |
Stereo, Wind-cut: AUTO / HIGH / STANDARD / LOW / OFF |
| Microphone |
Microphone level adjustable : 19 levels |
| Speaker |
Monaural |
| LANGUAGE |
OSD language |
Japanese, English, German, French, Italian, Spanish, Traditional Chinese |
| GENERAL |
POWER |
Battery |
Li-ion Battery Pack (7.2V, 1200mAh) (Included) |
| Battery |
Battery Charger |
| Battery life (CIPA standard) |
Approx. 330 images with H-FS014042 |
| Battery life (CIPA standard) |
Approx. 350 images with H-FS45150 |
| DIMENSIONS / WEIGHT |
Dimensions (W x H x D) |
122.45 x 84.6 x 71.4 mm / 4.82 x 3.33 x 2.81 inch(excluding protrusions) |
| Weight |
Approx. 340g / 0.75 lb Body only) |
| Weight |
Approx. 755g / 1.66lb (SD card, Battery, H-FS014042+FS45150 lenses included) |
| OPERATING ENVIRONMENT |
Operating temperature |
0 to 40 (32F to 104F) |
| Operating humidity |
10% RH to 80 RH |
| STANDARD ACCESSORIES |
Software |
PHOTOfunSTUDIO 9.2 PE |
| Software |
SILKYPIX Developer Studio 3.1 SE |
| Software |
LoiLoScope (trial version) |
| Software |
USB Driver |
| Standard accessories |
Body |
| Standard accessories |
LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH./MEGA O.I.S. |
| Standard accessories |
LUMIX G VARIO 45-150mm/F4.0-5.6 ASPH./MEGA O.I.S. |
| Standard accessories |
Lens Cap x 2 |
| Standard accessories |
Lens Hood x 2 |
| Standard accessories |
Lens Rear Cap x 2 |
| Standard accessories |
Battery Charger |
| Standard accessories |
Battery Pack |
| Standard accessories |
Body Cap |
| Standard accessories |
USB Connection Cable |
| Standard accessories |
Shoulder Strap |
| Standard accessories |
CD-ROM |
| INTERCHANGEABLE LENS-1 |
Lens name |
LUMIX G VARIO 14-42mm / F3.5-5.6 ASPH. / MEGA O.I.S. |
| Lens construction |
12 elements in 9 groups (1 Aspherical lens) |
| Mount |
Micro Four Thirds mount |
| Optical image stabiliser |
Yes |
| Focal length |
f=14mm to 42mm (35mm camera equivalent 28mm to 84mm) |
| Aperture type |
7 diaphragm blades / Circular aperture diaphragm |
| Aperture |
F3.5(Wide) - F5.6(Tele) |
| Minimum aperture |
F22 |
| Closest focusing distance |
0.3m / 1ft |
| Maximum magnification |
Approx. 0.16x / 0.32x (35mm camera equivalent) |
| Diagonal angle of view |
7529 |
| General |
Filter Size |
52mm / 2.05 in |
| Max. diameter |
60.6mm / 2.39 in |
| Overall length |
Approx. 63.6mm / 2.50 in (from the tip of the lens to the base side of the lens mount) |
| Weight [g] |
Approx. 165g |
| Weight [oz] |
Approx. 5.82oz |
| INTERCHANGEABLE LENS-2 |
Lens name |
LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S. |
| Lens construction |
12 elements in 9 groups (2 aspherical lenses , 1 UHR lens) |
| Nano surface coating |
- |
| Mount |
Micro Four Thirds mount |
| Optical image stabiliser |
Yes (MEGA O.I.S.) |
| Focal length |
f=45-150mm (35mm camera equivalent 90-300mm) |
| Aperture type |
7 diaphragm blades / Circular aperture diaphragm |
| Maximum aperture |
F4.0(Wide) - F5.6(TELE) |
| Minimum aperture |
F22 |
| Closest focusing distance |
0.9m / 3.0ft |
| Maximum magnification |
Approx. 0.17x / 0.35x (35mm camera equivalent) |
| Diagonal angle of view |
27(Wide) to 8.2(TELE) |
| General |
Filter size |
52mm / 2.05in |
| Max. diameter |
62mm / 2.44in |
| Overall length |
Approx. 73mm / 2.9in (from the tip of the lens to the base side of the lens mount) |
| Weight [g] |
Approx. 200g (excluding lens cap and lens rear cap) |
| Weight [oz] |
Approx. 7.1oz (excluding lens cap and lens rear cap) |
| NOTE |
*1 Use a card with SD Speed Class with "Class4" or higher |
| NOTE |
*2 Videos can be recorded continuously for up to 29 min 59 sec in Europe and some Asia areas. Continuous recording exceeding 4GB or 29 min 59 sec is not possible when recording MP4. For Full HD in MP4, the recordable time will drop below 29 min 59 sec. |
|
|
|
|
Previous Page
|
Next Page
|
|
