07/01
|
YODN Replacement Lamp - To Suit Sony VPL-EX100, VPL-EX120, VPL-EX145, VPL-EX175, VPL-SX125, VPL-SW125, VPL-EW130(LMP-E211) ProjectorYODN Lamp for Sony VPL-EX100/VPL-EX120/VPL-EX145/VPL-EX175/VPL-SX125/VPL-SW125/VPL-EW130(LMP-E211) YODN Lamp for Sony VPL-EX100/VPL-EX120/VPL-EX145/VPL-EX175/VPL-SX125/VPL-SW125/VPL-EW130(LMP-E211)---4 months warranty
|
|
|
|
07/01
|
YODN Replacement Lamp - To Suit BenQ PE8720, W10000, W9000 ProjectorReplacement Lamp - To Suit BenQ PE8720, W10000, W9000 Projector
|
|
|
|
07/01
|

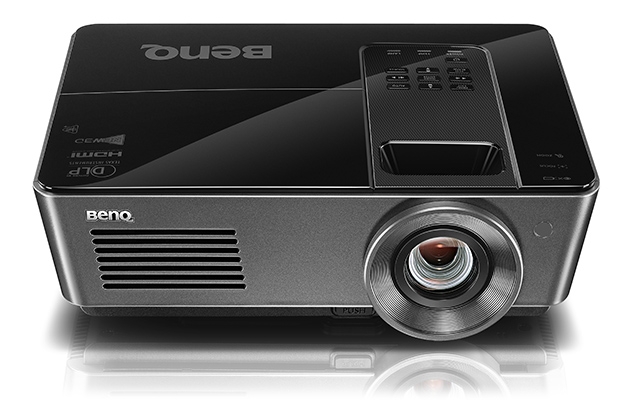

BenQ SH915 DLP Projector - 1920x1080, 4000 Lumens, 11000:1, 3500Hrs, VGA, HDMI, LAN, USB, Speakers SH915
It's Time to Keep the Lights On at Large Venue
The BenQ SH915 is the brightest choice for all your meetings. Light and compact with Full HD image resolution, 4000 ANSI lumen brightness and 11000:1 contrast ratio, the BenQ SH915 offers superior viewing experience even in rooms with the lights on.
Features
Brilliant Image Performance
4000 ANSI Lumens
It doesnt matter where you are, with 4000 ANSI lumen high brightness, the SH915 will always give you the best clarity under the brightest lights! So, take advantage! Stay in control and enjoy perfect presentations and the nest interactions with your audience!
(Simulated Photos)
(Simulated Photos)
High Contrast Ratio
The combined expertise of BenQ’s projector know-hows delivers an astounding 2,800:1 contrast at the highest to significantly improve the black level for superbly rendered image definition.
High Contrast - Low Contrast

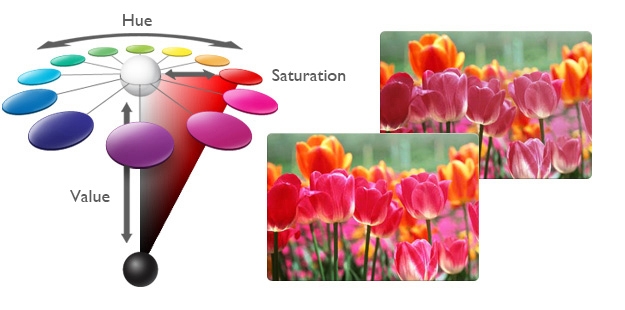

Independent 3D Color Management for Six Primary Colors
BenQ’s exclusive 3D color management tool ensures 100% uncompromised color customization with the freedom to independently fine-tune the hue, grain and saturation levels of all six primary colors (R/G/B/C/M/Y).
Original Color
(Simulated photos)
Red Saturation
Blu-ray Full HD 3D Supported
BenQ SH915 is built with latest DLP® technology to support 3D functionality, allowing schools, corporates and institutions to bring an immersive learning experience to their students and audiences with a simple preparation of 3D glasses and 3D content from your blu-ray player.
Diversified Options for Control, Manage and Display

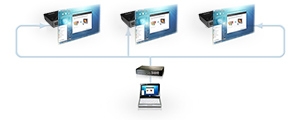

LAN Control Centralized Projector Management
LAN Control enables IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The SH915 offers seamless support for the Crestron and PJ-Link Control system.
Upper Lamp Door for Easy Lamp Access
The upper lamp door is designed for IT managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.

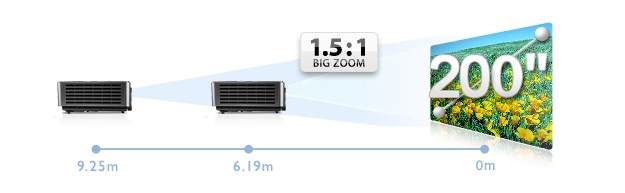

Big Zoom for Extra Projector Installation Flexibility
SH915 1.5x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector setting re-construction costs to your budget list, you’ll get to save the money for better use.
Quick Installation
With Quick Intall hotkey on the remote control, installer can quickly acces to installation related functions in the OSD menu.
Power Saving, Eco Friendly
Saving More on Power Consumption with BenQ’s SmartEco™ Technology
Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life –SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.
BenQ DLP® Projectors? Long-Lasting Image Perfection with DLP Technology
Timeless Image Quality:
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Non-DLP Projector
Original Color
After 2000 Hours of Use
After New Lamp Installed
BenQ DLP Projector
Original Color
After 2000 Hours of Use
After New Lamp Installed
DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
Razor-Sharp Clarity with Ultra-Readability:
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.
Non-DLP Projector
BenQ DLP Projector
Vibrant, True-to-Life Colors:
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
Non-DLP Projector
BenQ DLP Projector
(All photos portraying projection scenarios are simulated.)
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness* |
4000 ANSI Lumen |
| Contrast Ratio |
11000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.42-2.97, f=20.7-31.05mm |
| Aspect Ratio |
Native 16:9 (5 aspect ratio selectable) |
| Throw Ratio |
1.398 - 2.09 |
| Image Size (Diagonal) |
26" - 300" |
| Zoom Ratio |
1.5x |
| Lamp Type |
310W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
2500/3000/3500 hours |
| Keystone Adjustment |
1D, Vertical 30 degrees |
| Projection Offset |
Vertical: 130% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
15K-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2
HDMI x 2
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x1
Audio out (Mini Jack) x 1
Speaker 5W x 1
LAN(RJ-45) x1
USB (Type B) x 1
USB (Type A) x 2
USB (Type mini B) x 1
DC 12V Trigger (3.5mm Jack) x 1
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear) |
| Dimensions(W x H x D) |
360.1x119.9x259mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p |
| Weight |
8.14 lbs (3.7 Kg) |
| Audible Noise |
38/33 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240V, 3.8A, 50 to 60 Hz |
| Power Consumption |
370W(Normal), 300W(Eco), Standby<0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
| Accessories (Standard) |
Carry bag
Power Cord (by region)
Remote Control w Battery
VGA cable
User Manual CD
QSG
Lens Cover
Warranty Card (by region) |
| Accessories (Optional) |
Spare Lamp Kit
Ceiling mount kit
Carry bag |
|
|
|
|
07/01
|
BenQ MW824ST DLP Projector - 1280x800, 3200 Lumens, 13000;1, 4000Hrs, VGA, HDMI, USB, RS232, Speakers MW824ST
More Engagement, Less Energy Use
A wide array of connectivity options plus PointWrite and QWrite interactive features make the MW824ST a complete classroom interactive projector solution. A short-throw ratio, 13000:1 ultra-sharp contrast ratio, 3200 ANSI Lumens brightness and long lamp life ensure vibrant, reliable visual performance time and again. Also, featuring MHL function, it allows you to show the content from your Android devices to the big screen.
Key Features
- World-Leading SmartEco Technology
- LampSave Mode for Lower Replacement Cost
- Short-Throw Projection
- LAN Control with Crestron and PJ-Link
- MHL Connectivity
Overview
Power Saving , Eco Friendly World-Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW824ST brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Smart Eco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
(Source: Futuresource Consulting Ltd, 2010)
LampSave Mode
Projector lamp replacement costs make up the biggest part of the total cost of projector ownership. The LampSave Mode is designed to adjust the lamp power dynamically by content brightness level to extend projector lamp life significantly by 50%! The lamp replacement frequency is also reduced by up to 50% to lower the replacement costs.
LumenCare Mode
The LumenCare Mode, which adjusts projector lamp power in gain steps until full power is reached, effectively maximizes power saving and reduces brightness decay. It’s the first and only projection feature on market that ensures three years of consistent image brightness for optimal learning and teaching.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Full Power On
100% Lamp Power
Attention on the Projection Screen
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Good Things Come in Short Distance
Zero Eye-Blinding Lights
The short-throw projection distance keeps the projector light from shining directl into your eyes, allowing you to kkep your focas on your audience.
Zero Disruptions
Say goodbye to the shadows that often interrupt your presentation. With a projection distance this close, you and your audience can move freely without worrying about obstructions between the projector and the screen!
Interactive Learning with BenQ's Leading Technology PointWrite™ Technology Allows More Students Participation at Once
Keeping students involved and engaged is a central practice in the BenQ Classroom IQ concept-and PointWrite™ is a great way to let multiple students contribute at once. Teachers can get up to 4 students to come up to the board and collaborate simutaneously with PointWrite™ pens. Quizzes, board work, presentations and games will never be the same! PointWrite™ is effortless to set up and cost efficient, making it flexible, affordable option of multi-pens.

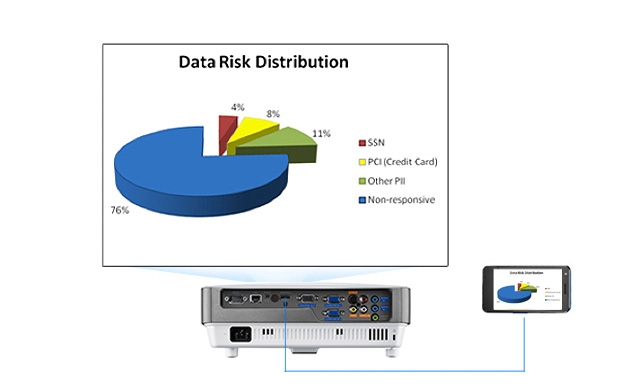

Thoughtful Design MHL Connectivity
With MHL connectivity, you can share your content from your Android devices on big screen. MW824ST features MHL function and allows you to mirror the data, photo and other contents from your android devices to big screen, Also, your device is being charged while you're using it, you don't have to worry about the power while presenting.
Blu-ray Full HD 3D Supported
BenQ MW824ST is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.
Hassle-Free Projector Maintenance Upper Lamp Door for Easy Lamp Access
The upper lamp door is designed for it managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.

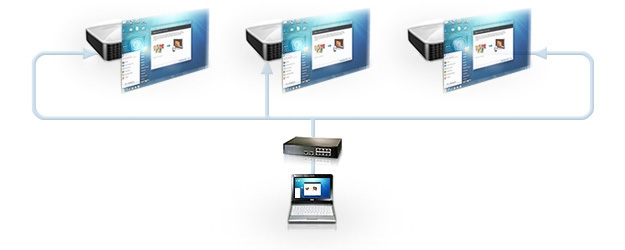

LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW824ST offers seamless support for the Crestron and PJ-Link LAN Control system.
Quick Installation
By pressing Quick Intall key on the remote control, installer can quickly acces to installation related functions in the OSD menu.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Projection System |
DLP |
| Native Resolution |
W X GA (1280 X 800) |
| Brightness* (ANSI Lumens) |
3200 ANSI Lumens |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F= 2.8, f = 7.51mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
0.52 (95" @ 1m) |
| Image Size (Diagonal) |
Optimization 72"-152", Maximum 300" |
| Zoom Ratio |
Fixed |
| Lamp Type |
210W |
| Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* |
4000/5000/6500/10000/4000(with 2100 of constant brightness) hours |
| Keystone Adjustment |
1D, Vertical 30 degrees |
| Projection Offset |
110% 5% |
| Resolution Support |
VGA (640 x 480) to UXGA (1600 x 1200) |
| Horizontal Frequency |
15-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1 (Share with MHL 1.2)
Audio in (Mini Jack) x 2
Audio out (Mini Jack) x 1
Audio L/R in (RCA) x 1
Speaker x 1 (10W)
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1
LAN (RJ45) x 1 |
| Dimensions (W x H x D mm) |
287.3 x 114.4 x 232.6mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 720p
Frame Packing: Up to 1080p
Side by Side: Up to 1080i/p
Top Bottom: Up to 1080p |
| Weight |
2.6kg (5.73bs) |
| Audible Noise (Normal/Economic Mode) |
32/28 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
Normal 270W, Eco 220W, Standby <0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 |
| Accessories (Standard) |
Lens Cover
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
PointWrite
Spare Lamp Kit
Ceilling Mount
Wall Mount
Carry bag
3D Glasses |
|
|
|
|
07/01
|
BenQ MW523 DLP Projector - 1280x800, 3000 Lumens, 13000;1, 10000Hrs, VGA, HDMI, RS232, USB, Speakers MW523
The Best Value Choice for Small-Medium Space
Featuring a brightness of 3000 ANSI Lumens, a high contrast ratio of 13000:1 and a WXGA resolution, the cost-effective and eco-friendly MW523 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Key Features
- World-Leading SmartEco Technology
- LampSave Mode for Lower Replacement Cost
- 0.5W in Standby Mode
- Blu-ray Full HD 3D Supported
- Quick Instal via Remote Control
Overview
Saving More on Power Consumption with BenQs SmartEco Technology
Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.
Smart Eco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
Enhanced Details in Darkened Scenes 163W Projector Power Consumption by Average
(Source: Futuresource Consulting Ltd, 2010)
LampSave Mode
Projector lamp replacement costs make up the biggest part of the total cost of projector ownership. The LampSave Mode is designed to adjust the lamp power dynamically by content brightness level to extend projector lamp life significantly by 50%! The lamp replacement frequency is also reduced by up to 50% to lower the replacement costs.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
0.5W in Standby Mode
When inactive, the MW523 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.
Blu-ray Full HD 3D Supported
BenQ MW523 is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.
Quick Installation
By pressing Test key on the remote control, installer can quickly acces to installation related functions in the OSD menu.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
| Model |
MW523 |
| Projection System |
DLP |
| Native Resolution |
WXGA(1280 x 800) |
| Brightness* (ANSI Lumens) |
3000 |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.55-3.06, f=21-25.6mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
1.49 -1.79 ( 99.6"@3.2m ) |
| Image Size (Diagonal) |
39"-300" |
| Zoom Ratio |
1.2:1 |
| Lamp Type |
190W |
| Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* |
4500/6000/6500/10000/NA hours |
| Keystone Adjustment |
1D, Vertical 40 degrees |
| Projection Offset |
125% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
15-102KHz |
| Vertical Scan Rate |
23-120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 2
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type B) x 1
RS232 (DB-9pin) x 1
IR Receiver x1 (Front) |
| Dimensions (W x H x D mm) |
302.8 x 111.8 x 221.8 (with feet)
302.8 x 103.8 x 221.8 (without feet) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| 3D Support and Compatibility |
Frame Sequential: Up to 720p
Frame Packing: Up to 1080p
Side by Side: Up to 1080i/p
Top Bottom: Up to 1080p |
| Weight |
2.3kg (5.06lbs) |
| Audible Noise (Normal/Economic Mode) |
32/30 dBA |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
Normal 240W, Eco 200W, Standby <0.5W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 |
| Accessories (Standard) |
Lens Cover
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Spare Lamp Kit
Ceilling Mount
3D Glasses
Carry bag |
|
|
|
|
07/01
|
TP-Link TL-SC3230N H.264 Wireless N Megapixel Surveillance Camera - 1.3 Megapixel (1280x1024) Resolution, 1/4" Progressive Scan CMOS Sensor, Supports 802.11b/g/n, 10x Digital Zoom, 2-Way Audio - White H.264 Wireless N Megapixel Surveillance Camera
TL-SC3230N
Highlights:
- Wireless N speeds of up to 150Mbps
- High Definition viewing at 1.3 Mega-pixel (1280 x 1024) resolution
- Micro SD card storage and Network Attached Storage (NAS) for convenient, safe video recording
- Advanced H.264 codec, ideal for fluid HD Video streaming
- Motion/audio detection and scheduled timer offer sensitive invasion alerts
Overview
What This Product Does
TL-SC3230N is a versatile solution for home & office monitoring to keep an eye on your home, kids or workplace; whatever it is that you care for most. With wireless N speeds up to 150Mbps, you can easily set it up to work wirelessly or using wires. Once set up, you can view live video from a Web browser or Smartphone, anywhere in the world! With a built-in micro SD card slot, video can be backed up, ensuring that you are never caught unaware.
Wireless Surveillance
IP cameras are usually installed on ceilings or walls, and consequently be connected to an Ethernet cable. A wireless connection allows you to put your IP Camera anywhere you need it, without the restrictions of network cables. TL-SC3230N is wireless with speeds of up to 150Mbps, ensuring smooth video transmission.
Smooth HD Video Streaming
TL-SC3230N adopts the H.264 codec which is an advanced video compression technology that greatly reduces the size of a digital video file without compromising video quality compared with video quantity. Using H.264 provides savings in network bandwidth and storage costs, as well as achieves much higher video quality for a given bit rate.
Multiple Storage Options
To provide multiple storage options making storage more reliable and convenient, TL-SC3230N is equipped with a micro SD Card slot for additional storage or back-up. This is in addition to existing options where users can store video content on their local PCs or NAS drives.
Multiple Remote Viewing Options
The TL-SC3230N provides users with abundant flexible remote viewing options. Users can look in on their cameras via the internet from their 3G mobile phones, laptops, or tablets, such as an Android phone or 3G enabled iPad .
64-channel Management Software
The TL-SC3230Ns bundled surveillance software assists users with managing multiple cameras at the same time. With it, video from 64 cameras can be displayed on one screen. Users can archive streamed video and audio straight to their hard drives, playback video, and monitor up to64 cameras on a single screen.
Features
- 1.3 megapixel progressive scan CMOS sensor produces high definition video quality
- Supports wireless 802.11b/g/n with speeds up to 150Mbps
- Micro SD card local storage and Network Storage(NAS) for convenient video recording
- H.264 and MJPEG video streaming for different quality requirements and bandwidth environments
- Multiple easy remote viewing options - view live video via 3G mobile phones, laptops or tablets
- Email or FTP notifications triggered by motion Detection, Audio Detection or Schedule Timer offer sensitive invasion alert
- 10 x digital zoom for detailed close-ups
- 2 way audio allows users to listen and speak remotely
- Advanced SSL/HTTPS encryption and IP filter protect users privacy from malicious intrusions
- Free bundled software supports simultaneous monitoring of up to 64 cameras
- Quick Universal Plug and Play Installation
Specifications
| CAMERA |
| Image Sensor |
1/4" Progressive scan CMOS sensor |
| Resolution |
1.3 Megapixel (1280 x 1024) |
| Lens |
F: 1.8, f: 4.3 mm |
| Viewing Angle |
Horizontal 47 |
| Digital Zoom |
10x Digital |
| Minimum Illumination |
0.5 Lux |
| VIDEO/IMAGE |
| Video Compression |
H.264, MJPEG |
| Frame Rate & Resolutions |
Max. 30 fps at 1280x1024 (SXGA), 1280x720 (HD 720)
Max. 30 fps at 640x480 (VGA), 320x240 (QVGA) |
| Video Streaming |
Simultaneous MJPEG, MPEG-4, H.264 and 3GPP (Dual streaming)
Controllable Frame rate and bandwidth
Support Unicast and Multicast
Support 3GPP/ISMA RTSP (Real Time Streaming Protocol) |
| Image Settings |
Rotation: Mirror, Flip, Mirror Flip
Configurable brightness, contrast, saturation
Overlay capabilities: time, date, text and privacy image |
| AUDIO |
| Audio Communication |
2-Way full duplex |
| Audio Input |
Built-in microphone |
| Audio Output |
Audio line output connector for external speaker |
| Audio Compression |
G.711 law, a law, and AMR |
| ALARM AND EVENT MANAGEMENT |
| Input Trigger |
Motion detection, audio detection, schedule and network link down |
| Notification Method |
E-mail, Micro SD card, NAS, FTP |
| NETWORK |
| Standards and Protocols |
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP3GPP/ISMA RTSP |
| Security |
Multiple password-protected user levels
HTTPS encryption
IP filter |
| WIRELESS |
| Wireless Data Rates |
IEEE 802.11 b/g/n , Up to 150Mbps |
| Frequency |
2.4-2.4835GHz |
| Wireless Transmit Power |
<20dBm (EIRP) |
| Wireless Encryption |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| INTERFACES |
| Network Interface |
RJ-45 for Ethernet 10/100 Base-T |
| Power Connector |
DC power jack |
| Audio Output |
3.5 mm jack for line out |
| Button |
Reset push button |
| Slot |
Micro SD/SDHC memory card slot |
| SURVEILLANCE MANAGEMENT |
| Users |
20 simultaneous unicast users
Unlimited number of users via multicast |
| Bundled Management Software |
Viewing and recording up to 64 cameras |
| MINIMUM SYSTEM REQUIREMENTS |
| Supported Browser |
Microsoft Internet Explorer 6 or higher
Firefox 2.0 or higher, Safari, Google Chrome |
| Supported OS |
Windows 2000/ 2003/XP/Vista/7 |
| GENERAL |
| External Power Supply |
12V DC, Max 12W |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-SC3230N
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Camera Mount Kit |
| Environment |
Operating Temperature: 0C~40C (32F ~104F)
Storage Temperature: -40C ~70C (-40F ~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Dimensions( H X W X D ) |
2.9*2.1*1.4 in (74.5*54.3*34.7mm) |
|
|
|
|
Previous Page
|
Next Page
|
|
