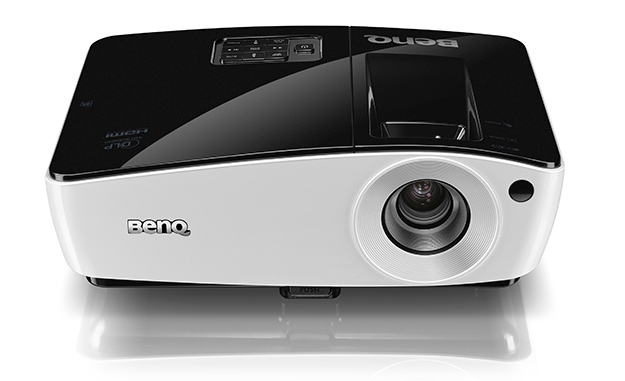

The BenQ MX661 is just the projector you need to perfect your presentation in all settings. Featuring XGA resolution with 3000 ANSI lumens and 13000:1 high contrast ratio, the MX661 also offers multi display for ultra-smooth connection, PC-less presentation and 3D ready projection to keep your presentation lookin' great!









As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MX661 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.





The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.





Full Power On
100% Lamp Power
Attention on the Projection Screen





Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor





The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.





296W Projector Power
Consumption by Average

Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average



(Source: 2010 Philips white paper)





The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.





Source Detected
100% Lamp Power





No Source Detected
30% Lamp Power





With the built-in speaker, the MX661 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.



When inactive, the MX661 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.







The upper lamp door is designed for it managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.





Automatic power off after the projector is turned on for over thirty minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.



Insert a WiFi dongle into the USB flash drive slot to display contents from your PC, MAC, iPhone and iPad to MX661 through Wireless Display feature.







USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

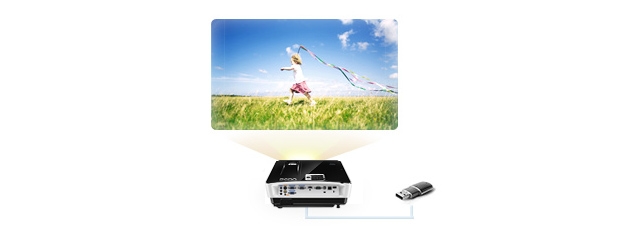

USB Drive Display allows teachers to teach light with a USB flash drive. All they need to do is save the files they need onto a USB flash drive and insert it in the MX661 to start teaching. File types supported are JPEG, JPG, BMP, Excel, Word and PowePoint.







ecoFACTS can tell you how eco-friendly BenQ products are!



Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!



ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.



Projection System	DLP
Native Resolution	XGA(1024x768)
Brightness*	3000AL
Contrast Ratio	13000:1
Display Color	1.07 Billion Colors
Lens	F=2.51-2.69, f=21.95-24.18mm
Aspect Ratio	Native 4:3 (5 aspect ratio selectable)
Throw Ratio	1.97-2.17 (50"@2m)
Image Size (Diagonal)	37"-300"
Zoom Ratio	1.1:1
Lamp Type	210W
Lamp(Normal/Economic Mode/SmartEco Mode)*	3500/5000/6500 hours
Keystone Adjustment	1D, Vertical 40 degrees
Projection Offset	130% 5%
Resolution Support	VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency	27K~102KHz
Vertical Scan Rate	23~120Hz
Interface	Computer in (D-sub 15pin)x 2(Share with component) Monitor out (D-sub 15pin)x 1 HDMI (1.4a)x 1 Composite Video in (RCA)x 1 S-Video in (Mini DIN 4pin)x 1 Audio in (Mini Jack)x 1 Audio out (Mini Jack) x 1 Microphone in (Mini Jack) x 1 Speaker2W x 1 LAN (RJ45) x 1 (LAN Control & LAN Display) USB (Type A)x 1 (USB Reader with Office Viewer & Wireless Display) USB (Type B) x 1 (Download & Page up/Down USB (Type mini B)x 1 (USB display & Download) RS232 (DB-9pin)x 1 IR Receiverx1 (Front)
Dimensions(W x H x D)	327.4 x 126 x 230.1 mm
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Weight	2.6KG
Audible Noise	34/32 dBA (Normal/Economic mode)
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	265W (typical), Standby<0.5W
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes	Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard)	Carry Bag Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable
Accessories (Optional)	Spare Lamp Kit Ceilling Mount 3D Glasses





- See more at: http://www.mitsubishi-presentations.com/ud740u/#sthash.6iAX7ZDu.dpuf

Vertical lens shift for simple set-up

Projects with or without a computer

Present via iPad, iPhone and Android devices to projector

Excellent contrast and brightness ratios



Thin Client Projector Enabling Access to the Cloud

When connected to a LAN, users can log-in to remote computers directly from the projector, retrieve stored images and play them back. This eliminates the need to carry around data and enables simple, no-fuss projection. The UD740U itself also functions as a terminal adapter enabling connection to a cloud through a computer or server. Applications and data can be used in the cloud infrastructure environment, helping to reduce the amount invested in school equipment. Amazingly Easy to Use and gives presenters access to information from their remote servers.

- See more at: http://www.mitsubishi-presentations.com/ud740u/#sthash.6iAX7ZDu.dpuf



When connected to a LAN, users can log-in to remote computers directly from the projector, retrieve stored images and play them back. This eliminates the need to carry around data and enables simple, no-fuss projection. The UD740U itself also functions as a terminal adapter enabling connection to a cloud through a computer or server. Applications and data can be used in the cloud infrastructure environment, helping to reduce the amount invested in school equipment. Amazingly Easy to Use and gives presenters access to information from their remote servers.







Used with a tablet incorporating the SidePad function or Wifi Doc, it is possible to expand the breadth of classroom communications even further.







Projections come to life with a higher contrast of 3000:1 ratio and 4100lm brightness. Images are clear and crisp even in large, brightly-lit venues. Built-in BrilliantColor™ and the Mitsubishi Electric color wheel ensure true-to-life colors. Whether the source is a computer, video player or other device, the DLP projector reproduces bright, colorful and vivid images.







UD740U flexibility allows you to present with or without a PC.  For computer-free presentations, attach a USB storage device directly to the projector. Convert PowerPoint into a special format using the PtG Converter and then save onto a USB device. Slides can also be put onto a USB device. Attach the USB directly to the projector for PC-less presentations. To reproduce images from a computer, simply use a USB or LAN cable.







The vertical lens shift eliminates the need to move the DLP projector to adjust the image projection. The lens shift also enables installation in virtually any setting. Using Audio Mix and the built-in 10W speaker, the voice of the presenter and audio from an external audio source can be delivered simultaneously. Distracting background fan noise is eliminated when in low lamp mode, delivering quiet 28dB operation.







Display computer images via wired or Wi-Fi LAN, or transmit via USB cable. Using LAN, up to four computers can be connected to a single projector. The DLP projector screen can be divided into quarters, reproducing all computer screens simultaneously. A RJ-45 LAN terminal enables remote operation. When used with Crestron RoomView™, it is possible to have integrated control of up to 250 projectors, including on/off control, message display and confirmation of lamp service hours.







Designed for native WUXGA (1920×1200) widescreen resolution.  Now you can view your projected images in full HD.





Present via iPad, iPhone and Android devices to projector. The SidePad app when used in combination with LAN Display System, the images being projected can be displayed on tablets or smartphones, and the computer can be operated from a tablet. Wifi Doc is application software that allows data stored on a tablet or smartphone (txt/pdf/ppt/xls/doc/jpeg files) to be sent directly to a projector and shown.





Remotely log-in to server directly from the projector to retrieve and present information. This eliminates the need to carry around data and enables simple, no-fuss projection.





Wireless presentations are possible when used with an optional wireless dongle accessory (WLI-UC-GNM offered as optional accessory and not included with projector).





Perfect for higher education or corporate applications, images can be rendered in stunning 3D—adding a new dimension to viewing scientific, architectural, and engineering imagery. 3D video content must be in field sequential format, a high end graphic card and special electronic shutter glasses are required





Connect the PC via a USB cable, eliminating the need for expensive VGA cables



For displaying images via a LAN, up to four computers can be connected to one projector. The projection screen can be divided into quarters, reproducing all computer screens simultaneously.





Eliminate the PC altogether when using a USB storage device. Supports JPEGS or PowerPoint converted PTG files Wireless Compatibility Wireless presentations are possible when used with an optional wireless dongle (not included)





HDMI input for true digital connections from both PC or video sources



Supports remote managment and control via built-in RJ45 connectivity port





Ability to project images on color backgrounds such as beige, light blue, light green, pink, blackboard and whiteboard. Projector automatically adjusts for color tone



Built into the projector to prevent theft and any unauthorized removal of the projector





Provides on-screen visual representation of text





Support audio mixing from multiple audio sources







Imaging Technology:
DLP 0.67"



Brightness/Lumens:

4100 ANSI Lumens



Native Resolution:

1920 x 1200



Maximum Resolution:

1920 x 1200



Viewable Size:

40"- 300"



Contrast Ratio:
3000:1 (On/Off)

Color Wheel:
5-Segment (R,G,B,W,Y)





AC Power Cable
Lens Cap
VGA (D-sub) Cable
Remote Control
Safety Manual
User Manual CD
Soft Carrying Case





9.0 lbs.

Dimensions: (W x H x D)
13.6" x 5.3" x 10.6"

Power Consumption:
405W/4.2A

Power Requirements:
AC 100-240V, 50/60Hz

Decibels:
28dBA (Low Mode)
34dBA (Standard Mode)





Lens Throw Ratio:
1.4 - 2.1

Zoom & Focus Adjustment:
PC/MAC Compatibility:
Yes

Scanning Frequency:
[H] 15-105 khz, [V] 50-120 Hz
[Dot Clock] max.165 MHz

Estimated Lamp Life Rating:
5000 hrs (Low Mode)
3000 hrs (Standard Mode)





NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i/p(1125i/p 60Hz), 1080i/p(1125i/p 50Hz)



RGB: Mini D-sub 15pin x2
Audio: Stereo mini jack (f3.5mm) x 2 (one for PC1, another one for PC2)
Video: RCA x 1 + S-VIDEO x 1
Digital: HDMI x 1
Video Audio: RCA jack (L/R) x 1
LAN(RJ-45)
USB type-A
USB type-B

RS-232 Communication Support: Yes
12V Trigger: N/A
Computer Monitor Loop-Out: Yes
Audio Speaker: Yes
Audio Out: Yes
USB Mouse Support: Yes
