31/10
|
GeoVision GV-VS11 Video Server - 1 Channel Full D1 Real-Time Video/Audio, Dual Streams, One-Way Audio, Tampering Alarm, USB Storage Recording
- H.264, MPEG4, MJPEG
- Dual streams
- 1-Channel full D1 real-time video / audio
- One-way audio
- Compact size
- 12V DC
- Tampering alarm
- USB storage recording
- Support UMTS / 3G / 3.5G
- Support over 50 PTZ models
- Support 29 languages on Web interface
GV-VS11 is a powerful H.264 Video Server with compact size and supports dual streams and multiple applications. It supports 1-channel full D1 real-time video and audio encoding, fully integrated with GV-NVR to form the most powerful IP surveillance solution. It also supports over 50 PTZ models to fulfill various project demands. It can record video to a local USB storage, forming the smallest video recorder. It can also active Tampering Alarm alerts when a tampering event happens to prevent crime events.
SPECIFICATIONS
| Video |
| Video Standard |
NTSC, PAL |
| Video Input |
1 channel |
| Compression |
H.264, MPEG 4, MJPEG |
| Frame Rate |
NTSC |
30 fps per channel |
| PAL |
25 fps per channel |
| Video Resolution |
NTSC |
Main Stream |
704 x 480, 704 x 480 de-interlace, 352 x 240, 176 x 112 |
| Sub Stream |
| PAL |
Main Stream |
704 x 576, 704 x 576 de-interlace, 352 x 288, 176 x 144 |
| SubStream |
| Video Streaming |
Configurable frame rate and bandwidth, Constant and variable bitrate |
| Video Adjustment |
Brightness, Contrast, Hue, Saturation |
| Dual Streams |
Yes |
| Audio |
| Audio Input |
1 channel |
| Compression |
G.711 |
| Audio Support |
One-way |
| Management |
| Event Management |
Trigger |
Schedule, Sensor Input, Motion Detection |
| Action |
Store Video (AVI format),
Send e-mails with captured images,
Upload captured images to FTP Server,
Monitor through Center V2 and VSM,
Activate relay outputs to control external devices
|
| Firmware Upgrade |
Remote upgrade by HTTP,
Firmware upgrade utility included in the Software DVD |
| Storage |
USB storage device (optional) |
| Client PC Requirements |
Microsoft IE 7.x or above running on Windows XP / 7 / Server 2008 |
| Security |
IP address filtering |
| Language |
Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hindi / Hungarian / Italian / Indonesian / Japanese / Norwegian / Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish |
| Network |
| Interface |
10/100 Base-T Ethernet,
802.11b/g/n Wireless LAN (optional),
Mobile broadband: UMTS, EDGE, etc. (optional) |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP |
| External Interface |
| Video Input |
1 BNC port |
| Audio Input |
1 RCA port |
| Sensor Input |
1 input |
| Alarm Output |
1 output |
| PTZ |
RS-485 +/- |
| Ethernet |
RJ-45, 10/100 Mbps |
| USB |
1 port (USB 2.0) |
| Power Input |
12V, 1.25A |
| Environment |
| Operation Temp. |
0 ~ 50 C / 32 ~ 122 F |
| Humidity |
0 ~ 85% RH (non-condensing) |
| Physical |
| Dimensions (L x W x H) |
100 x 69 x 40 mm / 3.94 x 2.72 x 1.57 in |
| Weight |
0.31 kg / 0.69 lbs |
| Applications |
| Network Storage |
GV-System, GV-Backup Center, GV-Recording Server |
| Mobile Phone Support |
GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone. |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Center V2, GV-VSM, GV-Control Center |
|
Note:
|
- The GV-VS11 does not support the PoE and GPS functions.
- The GV-VS11 does not support the USB2.0 to SATA / IDE cable for external USB storage connection.
- The GVVideo Server cannot work with the microphones that acquire power from the unit. Use microphones that have external power supply.
- Product design and specifications are subject to change without notice.
|
|
Options
|
| Optional devices can expand your GV-Video Server's capabilities and versatility. Contact your dealer for more information. |
| GV-Relay V2 |
Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts. |
| GV-WiFi USB Adaptor |
The WiFi USB Adaptor is designed to connect the GV IP devices, such as GV-Video Server or GV-Compact DVR, to the wireless network. |
|
| Supported Wireless LAN USB Adaptor |
| Vendors |
Model |
| EDIMAX |
EW-7711UAN |
| Pegatron |
WL-166N11 |
|
| Supported Mobile Broadband Device |
| Vendors |
Model |
| HUAWEI |
E169, E220, EC169C, E1750, E1756, EC189 (HSDPA/UMTS/EDGE/GPRS/GSM) |
| Novatel |
MC998D (HSDPA/UMTS/EDGE/GPRS/GSM) |
|
|
|
|
|
31/10
|
GeoVision GV-CA220 WDR Advanced Cube IP Camera - 2 Megapixel, 1/2.5" Progressive Scan CMOS, Dual Streams From H.264 And MJPEG, Up to 30 FPS @ 1920x1080, Two-Way Audio, Motion Detection - White GV-CA220 2MP H.264 WDR Advanced Cube IP Camera
- 1/2.5" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Passive infrared (PIR) sensor for detecting movement and activating the alarm LED
- Two-way audio
- Built-in Micro SD card slot (SDHC / SDXC) for local storage
- Wide Dynamic Range (WDR)
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- DC 5V / PoE
- Megapixel lens
- Smart device access
- 31 languages on Web interface
- ONVIF conformant
No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Overview
Panel
Dimensions
|
|
|
|
31/10
|
GeoVision GV-BX1500-3V Super Low LUX WDR D/N Box IP Camera - 1.3 Megapixel Progressive Scan Super Low Lux CMOS, Dual Streams From H.264 And MJPEG, Up To 30 FPS @ 1280x1024, 2-Way Audio, Motion Detection - White GV-BX1500 Series 1.3MP H.264 Super Low Lux WDR D/N Box IP Camera
- 1.3 Megapixel progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Built-in Micro SD card slot (SDHC / SDXC) for local storage
- Mini USB slot for WiFi Adapter or USB hard drive
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- DC 12V / PoE
- Removable IR-cut filter for Day/Night function
- Varifocal megapixel lens
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF conformant
No memory card slot & local storage function for Argentina
Introduction
The GV-BX1500 is a series of indoor IP cameras containing a varifocal and several fixed focal models. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.
|
|
Models
|
| Model |
Iris |
Focal Length (mm) |
Maximum Aperture |
Image Format |
|
GV-BX1500-0F
|
Fixed |
4 mm |
F/1.5 |
1/3" |
| GV-BX1500-1F |
Fixed |
8 mm |
F/1.6 |
1/2.5" |
| GV-BX1500-2F |
Fixed |
12 mm |
F/1.6 |
1/2.5" |
| GV-BX1500-3V |
DC Drive |
2.8 ~ 12 mm |
F/1.4 |
1/3" |
| GV-BX1500-8F |
Fixed |
2.8 mm |
F/1.8 |
1/2.5" |
Active Tampering Alarm
Tampered
Focus Change
|
Camera Shift
Overview
Rear Panel

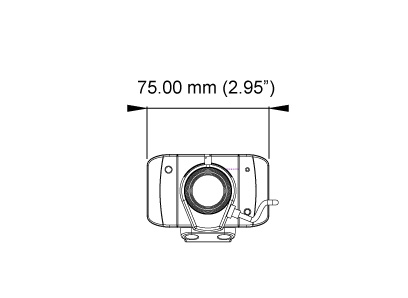

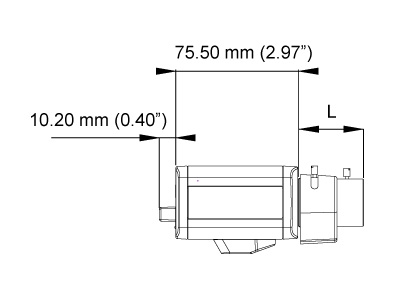

Dimensions
|
|
|
|
31/10
|
GeoVision GV-CA120 WDR Advanced Cube IP Camera - 1.3 Megapixel, 1/2.5" Progressive Scan CMOS, Dual Streams From H.264 And MJPEG, Up to 30 FPS @ 1280x1024, Two-Way Audio, Motion Detection - White
- 1/2.5" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Passive infrared (PIR) sensor for detecting movement and activating the alarm LED
- Two-way audio
- Built-in Micro SD card slot (SDHC / SDXC) for local storage
- Wide Dynamic Range (WDR)
- Defog
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- IP address filtering
- DC 5V / PoE
- Megapixel lens
- Smart device access
- 31 languages on Web interface
- ONVIF conformant
No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift

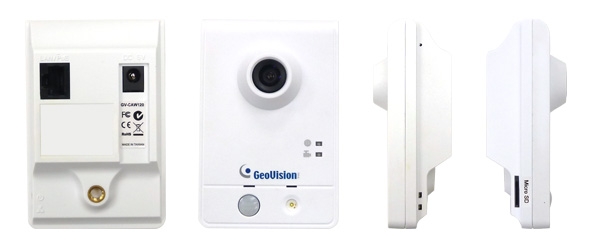

Overview
Panel
|
|
|
|
