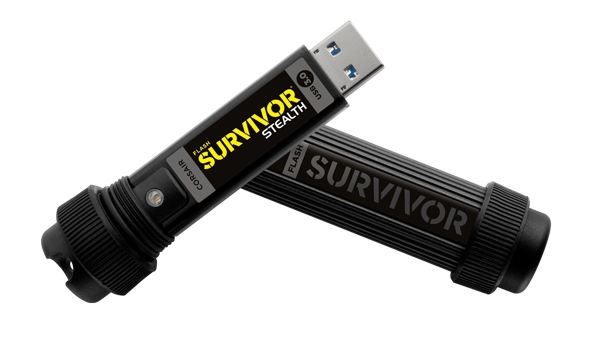

Flash Survivor Stealth USB 3.0 128GB USB Flash Drive



SKU# CMFSS3-128GB



Overview



Military-style data transport with USB 3.0 and USB 2.0 compatibility



Your files are important that's why you're taking them with you. Flash Survivor Stealth USB 3.0 flash drives help keep them safe. The anodized, aircraft-grade aluminum housing is waterproof to 200 meters, vibration-resistant, and shock-resistant.



USB 3.0 speed



If you move a lot of data, you've noticed that as convenient as USB flash drives are, they never seem to be as fast as you'd like. USB 3.0 changes the game. Flash Survivor Stealth USB 3.0 offers read speeds up to four times faster than traditional USB 2.0 drives. It's fast enough to view most videos directly from your Flash Survivor Stealth, without having to take the usual extra step of copying it to a hard drive first.



High-performance USB 2.0 support



Not only is Flash Survivor Stealth USB 3.0 backward compatible with USB 2.0 it offers great performance, too. No matter how up-to-date your PC is, you'll be able to quickly take care of moving your files and be off on your next adventure.





Universal compatibility



It works with Microsoft® Windows®, Mac® OS X, and even Linux without drivers, and there's no software to install. Just plug it in, and go. If your computer has a USB 2.0 or 3.0 connector, you can use Flash Survivor Stealth USB 3.0.

Proven reliability



With almost two decades of building enthusiast-grade memory and components, we've earned a reputation for quality, compatibility, and performance. Need help? We're available by phone call, email or web forum.



Features and Performance



	Flash Survivor Stealth USB 3.0 16GB	Flash Survivor Stealth USB 3.0 32GB	Flash Survivor Stealth USB 3.0 64GB	Flash Survivor Stealth USB 3.0 128GB
SKU	CMFSS3-16GB	CMFSS3-32GB	CMFSS3-64GB	CMFSS3-128GB
Capacity	16GB	32GB	64GB	128GB
Max Sequential Read Speed (USB 3.0)	70 MB/s	80 MB/s	85 MB/s	85 MB/s
Max Sequential Write Speed (USB 3.0)	20 MB/s	40 MB/s	70 MB/s	70 MB/s
Interface	USB 3.0	USB 3.0	USB 3.0	USB 3.0
Shock	40G	40G	40G	40G
Warranty	Five Years	Five Years	Five Years	Five Years

• Flash Survivor Stealth USB 3.0 USB flash drive

• Encased in extremely strong CNC-milled, anodized aircraft-grade aluminum
• Water proof to 200M through the use of a EPDM waterproof seal
• Protected from vibration or impact damage through the use of a molded shock damping collar
• High Performance with USB 3.0 or USB 2.0
• Plug-n-Play compatible
• Protected by a limited 5-year warranty

• Support for Microsoft Windows, Mac OS X and Linux, with no driver or software installation necessary
• USB Standard-A connector works with both USB 3.0 and USB 2.0 ports

• Warranty: Five years
• Unformatted Capacity: 128 GB
• Max Sequential R/W (ATTO): 85 MB/s read / 70 MB/s write (USB 3.0)
• Interface: USB 3.0
• Operating Temperature: No
• Shock: 40G

Epson EB-G6900WUNL

• 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
• Edge Blending Combine multiple individual images to create one seamless giant image.
• SDI¹ and 2 x Digital connections Digital quality and distance flexibility up to 100m
• HDBaseT¹ Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m.
• 360 Installation Install on any plane, from horizontal to vertical and everything in between.
• Arc and Point Correction Fine tune image geometry to perfection.
• Passive 3D For stacked 3D applications using polarised passive glasses
• Six optional Lenses with Lens Shift Standard, Short, Wide, Rear, Middle or Long throw for complete flexibility and easy exchange.

C2Fine Technology for blacker blacks



C2Fine technology offers smooth, uniform images with exceptional contrast for better image quality. Based on this new phase-compensation technology, light leakage is eliminated, allowing for the reproduction of blacker blacks. C2Fine technology is combined with an auto iris, which allows for a contrast ratio up to 5,000:1.





Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, HD-SDI, HDMI, DisplayPort, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands.

And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

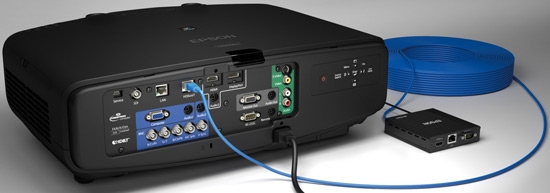

Optional HDBaseT transmitter



For your convenience, Epson offers an optional HDBaseT transmitter box as a companion piece to the EB-G6900WUNL. Three inputs are featured for easy installation: HDMI, LAN, and RS-232 to output into a CAT-5/6 cable.

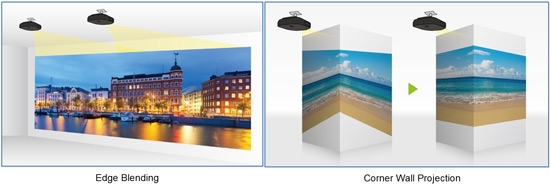

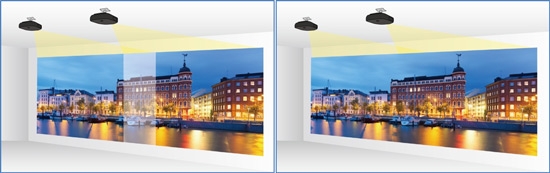

Advanced, integrated edge-blending technology



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap. The EB-G6900WU takes edge blending one step further with curved surface and corner wall support. Project on horizontal or vertical walls while also using edge blending to heighten the experience even more.





Stacked 3D solutions



You can create an impressive viewing experience with twice the brightness. Epsons stacked 3-D solution (requires two projectors). Using polarised filters, in combination with low-cost 3-D glasses.





Split Screen



Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.



DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode² is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.





360-degree installation



The Epson G Series can be rotated 360 degrees in any direction for off-axis positioning flexibility. As a result, it can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Designed for rental and staging



The SDI input accommodates live video streaming. 360-degree installation allows for virtually any placement; and an inconspicuous black case means uncompromised presentation.





Short-throw lens



 Install the projector as close as a 0.7 throw ratio to the screen and still get the same clear, crisp projection. A 1.2x zoom and up to 69% vertical and up to 31% horizontal lens shift gives even more flexibility when you need it.

Six optional lenses



For added flexibility, the G Series offers a total of six lenses, including one standard, one wide, one rear, two middle and one long-throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange. One standard lens included, other lenses are not included with the projector. (Lens not included with NL models).



Easy Management



 The EasyMP Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.



Schedule function



Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.



Protect your investment long-life electrostatic air filter



The Epson G series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule³ and can capture particles as small as three microns, due in part to its pleated, expanded design.

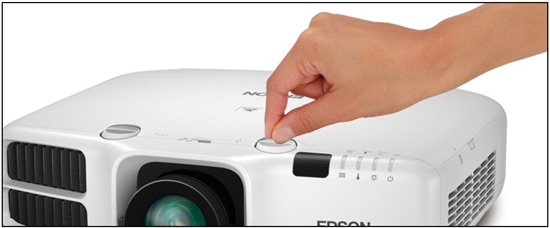

Easy maintenance



Offering convenient access to the lamps and filter, the G series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.



Lens shift



Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to 67 on the vertical axis and up to 30 on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.





Centered lens design



 Featuring a centered lens design, the G series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.

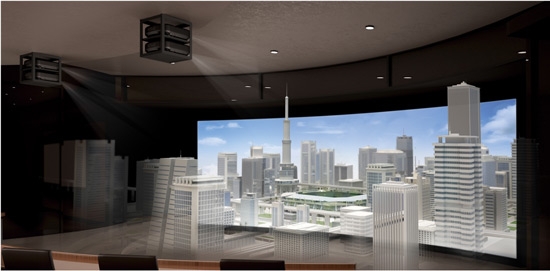

Arc correction



Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.



Convenient test patterns



Make sure your presentation is setup correctly before you begin. The G Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.

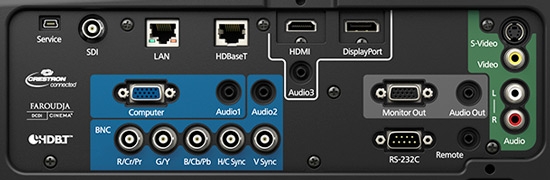

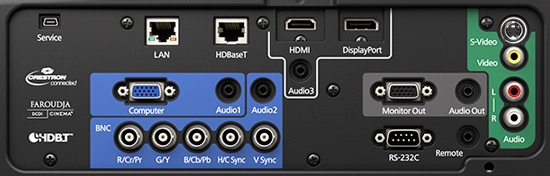

Connectivity Panel



Specifications



PRODUCT NAME	Epson EB-G6900WUNL
PRODUCT CODE	V11H514953
WHAT'S IN THE BOX
	EB-G6900WUNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Lens Lock Screw, HDMI Cable Clamp, Cable Cover, Manual. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.76-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.8 (Optical)
Screen Size	50" to 300" [1.35m to 8.36m] (Zoom: Wide) 50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance	100" screen 2.75m - 4.98m
Throw Ratio	1.26 (Zoom:Wide), 2.30 (Zoom:Tele)
Projection Lens F Number	1.65-2.55
Projection Lens Focal Length	21.28mm - 37.94mm
Focus Method	Manual
Colour Light Output	6,000 Lumens
White Light Output	6,000 Lumens

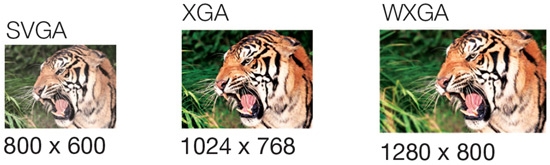

Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	2,000 hours (Power Consumption: Normal (5)) 4,000 hours (Power Consumption: ECO)
Lamp Type	380 W UHE

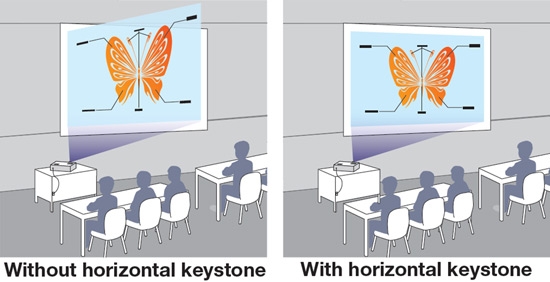

Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -67% to +67% Horizontal: -30% to +30%
Tilt Angle	-1.50 to 10 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DisplayPort
Input: SDI	1 x BNC
Input: Audio	3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	1 x Stereo mini-jack
Speaker Output
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection
Split Screen	Yes
Edge Blending	Yes
Arc Correction	Yes
Frame Interpolation	Yes
360 Degress Projection	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington  style lock provision Padlock & Security cable hole Password protect function Wireless LAN Lock Lens Lock
Colour Modes	Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H	405.5 x 505 x 171 mm
Weight	9.6kg (Including Standard Lens. Excluding Cable Cover)
Lamp Warranty	1 Year or 750 Hours*
Projector Warranty	4 Years or 10,000 Hours*
Power Consumption: Lamp on	542 W
Power Consumption: Standby	0.41 W
Noise Level	Normal/Eco: 39/31 dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V12H004S06	Standard Zoom Lens
	V12H004R03	Rear Projection Wide Lens
	V12H004U01	Short Throw Lens
	V12H004M04	Middle Throw Zoom Lens 1
	V12H004M05	Middle Throw Zoom Lens 2
	V12H004L06	Long Throw Zoom Lens
	V13H010L76	Replacement Lamp
	V13H134A43	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H005M09	Quick Wireless USB Key
	V12H003B22	Ceiling Mount
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H526040	Flush Ceiling mount

Epson EB-G6750WUNL

• 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
• Edge Blending Combine multiple individual images to create one seamless giant image.
• 2 x Digital connections Digital quality and distance flexibility.
• HDBaseT¹ Transmit Full HD video and audio, Ethernet and serial communication through a single CAT 5/6 cable that can be extended up to 100m.
• 360 Installation Install on any plane, from horizontal to vertical and everything in between.
• Arc and Point Correction Fine tune image geometry to perfection.
• Passive 3D For stacked 3D applications using polarised passive glasses
• Six optional Lenses with Lens Shift Standard, Short, Wide, Rear, Middle or Long throw for complete flexibility and easy exchange.



Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, HD-SDI, HDMI, DisplayPort, VGA, BNC and LAN connectivity.

Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.



Optional HDBaseT transmitter



For your convenience, Epson offers an optional HDBaseT transmitter box as a companion piece to the EB-G6900WUNL. Three inputs are featured for easy installation: HDMI, LAN, and RS-232 to output into a CAT-5/6 cable.





Integrated edge-blending technology



 Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Stacked 3D solutions



You can create an impressive viewing experience with twice the brightness. Epsons stacked 3-D solution (requires two projectors). Using polarized filters, in combination with low-cost 3-D glasses.





Split Screen



Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.



DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode² is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.





360-degree installation



 The Epson G Series can be rotated 360 degrees in any direction for off-axis positioning flexibility.

As a result, it can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.





Short-throw lens



Install the projector as close as a 0.7 throw ratio to the screen and still get the same clear, crisp projection. A 1.2x zoom and up to 69% vertical and up to 31% horizontal lens shift gives even more flexibility when you need it.



Six optional lenses



For added flexibility, the G Series offers a total of six lenses, including one standard, one wide, one rear, two middle and one long-throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange. One standard lens included, other lenses are not included with the projector. (Lens not included with ‘NL’ models).



Easy Management



The EasyMP Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.



Multi-PC projection



Epson Multi-PC Collaboration utility allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 28 users connected to the same projector on standby mode. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their content.



Schedule function



Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.



Protect your investment long-life electrostatic air filter



The Epson G series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule³ and can capture particles as small as three microns, due in part to its pleated, expanded design.



Easy maintenance



Offering convenient access to the lamps and filter, the G series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.



Lens shift



Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to 67 on the vertical axis and up to 30 on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.





Centered lens design



Featuring a centered lens design, the G series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.



Arc correction



Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.



Convenient test patterns



Make sure your presentation is setup correctly before you begin. The G Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.





Connectivity Panel



Specifications:



PRODUCT NAME	Epson EB-G6750WUNL
PRODUCT CODE	V11H542953
WHAT'S IN THE BOX
	EB-G6750WUNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, Lens Lock Screw, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.76-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.8 (Optical)
Screen Size	50" to 300" [1.35m to 8.36m] (Zoom: Wide) 50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance	100" screen 2.75m - 4.98m
Throw Ratio	1.26 (Zoom:Wide), 2.30 (Zoom:Tele)
Projection Lens F Number	1.65-2.55
Projection Lens Focal Length	21.28mm - 37.94mm
Focus Method	Manual
Colour Light Output	6,000 Lumens
White Light Output	6,000 Lumens
Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	2,000 hours (Power Consumption: Normal (5)) 4,000 hours (Power Consumption: ECO)
Lamp Type	380 W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -67% to +67% Horizontal: -30% to +30%
Tilt Angle	-1.50 to 10 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DisplayPort
Input: Audio	3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	1 x Stereo mini-jack
Speaker Output	10W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Split Screen	Yes
Edge Blending	Yes
Arc Correction	Yes
Frame Interpolation	Yes
360 Degress Projection	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington  style lock provision Padlock & Security cable hole Password protect function Wireless LAN Lock Lens Lock
Colour Modes	Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H	405.5 x 505 x 171 mm
Weight	9.7kg (Including Standard Lens. Excluding Cable Cover)
Lamp Warranty	1 Year or 750 Hours*
Projector Warranty	4 Years or 10,000 Hours*
Power Consumption: Lamp on	542 W
Power Consumption: Standby	0.41 W
Noise Level	Normal/Eco: 39/31 dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V12H004S06	Standard Zoom Lens
	V12H004R03	Rear Projection Wide Lens
	V12H004U01	Short Throw Lens
	V12H004M04	Middle Throw Zoom Lens 1
	V12H004M05	Middle Throw Zoom Lens 2
	V12H004L06	Long Throw Zoom Lens
	V13H010L76	Replacement Lamp
	V13H134A43	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H005M09	Quick Wireless USB Key
	V12H003B22	Ceiling Mount
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H526040	Flush Ceiling mount

Epson EB-935W

• 3 x Brighter Colours*, and reliable performance The Epson EB-935W driven by 3LCD, 3-chip technology, delivers up to 3,700 lumens of colour brightness and 3,700 lumens of white brightness. With this powerful projector you dont have to dim the lights or close the windows in order to see a bright, clear image.
• Larger-than-life, widescreen images Native high-definition WXGA (1280 x 800) resolution and 16:10 aspect ratio.
• Network connectivity With Epsons EasyMP  Monitor software, users can monitor, control and present from a remote location.
• Tablet or smartphone connection via optional wireless With the addition of a wireless adapter, you can display and control content on your EB-935W from your iOS or Android device with the Epson iProjection App.
• HDMI Connectivity Deliver both audio and brilliant HD video content with just one cable.
• Advanced 3-in-1 USB Plug n Play instant setup Transmit Images, Sound and Mouse Operation through one USB cable.
• Fast, easy setup and image adjustments Expand your projector placement or installation flexibility; get sharp, clear images with no digital distortion.



Remarkable Widescreen performance



The EB-935W features WXGA resolution (1280 x 800, 16:10 aspect ratio), making it ideal for use with the latest-generation widescreen computers. It gives you 30% more image area than a 4:3 image and 10% more image area than a 16:9 image. The EB-935W will still allow you to display 4:3 and 16:9 content.





Network connectivity



Project presentations over the network, transmitting both audio and video with a single connection. With the EB-935W you will be able to display images from any networked location, or, in up to 4 different rooms simultaneously. You can also connect wirelessly, via a network access point, to promote collaborative sharing and an engaging working environment.



The EB-935W allows you to easily monitor/control networked Epson projectors remotely, using the RJ-45 connector and EasyMP® Monitor software. You will save time and maintenance costs by powering projectors on and off without having to go to each individual room; by setting schedules for automatic events. You can also receive email alerts when attention is required.

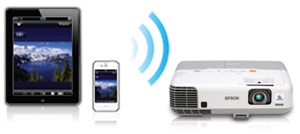

Tablet or smartphone connection via optional wireless



With the addition of a wireless adapter you can display and control content from your iOS or Android device with the Epson iProjection App. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your tablet, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.



Best-quality video



With HDMI digital connectivity the EB-935W can receive both audio and brilliant video content with just one cable. It also makes the EB-935W compatible with the latest laptops, Blu-ray and media players.







Advanced 3-in-1 USB Plug ‘n Play instant setup



The EB-935W enables you to display your presentation, transmit audio and use your mouse to control your presentation all through a single USB cable. Remove the need for separate VGA and audio cables with this neat and simple solution. USB Plug ‘n Play is Windows® and Mac® compatible.



Fast, easy setup and image adjustments



The EB-935W’s 1.6 x optical zoom allows for greater flexibility of projector placement or installation. The vertical and horizontal keystone correction offers easy picture adjustments and allows for off-centre positioning of the projector while still displaying a correctly proportioned image. Finally, Quick Corner® gives the user the ability to move any of the four corners of an image independently, to adjust for a perfectly rectangular picture.





Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.



Connectivity Panel





Specifications



PRODUCT NAME	Epson EB-935W
PRODUCT CODE	V11H565053
WHAT'S IN THE BOX
	EB-935W projector, 1.8m power cable, 1.8m VGA cable, remote control, batteries x 2, projector software Ver. 1.00b (CD ROM), Manual
TECHNOLOGY
Projection System	Epson 3LCD, 3-chip technology
LCD Panel	0.59-inch with MLA(D8)
OPTICAL
Zoom	1 - 1.6 (Optical)
Screen Size	29" to 280" [0.84 to 8.4 m] (Zoom:Wide) 29" to 280" [1.36 to 13.9 m] (Zoom:Tele)
Projection Distance	60" screen 1.79 - 2.92 m
Throw Ratio	1.38 (Zoom:Wide), 2.24 (Zoom:Tele)
Projection Lens F Number	1.51-1.99
Projection Lens Focal Length	18.2mm-29.2mm
Focus Method	Manual Focus
Offset	10:0
Colour Light Output	3,700 Lumens
White Light Output	3,700 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	2,000:1
Lamp Hours	Normal/Eco: 3,000/4,000 Hours
Lamp Type	275 W UHE (E-TORL)
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer	2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device	USB Type A Ver.2.0
Input: Three-In-One USB Display	1 x USB 2.0 type B
Input: Digital	1 x HDMI
Input: Audio	1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control	1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera	1 x USB 2.0 type B
Network I/O:	1 x RJ45 (100Mbps)
Wireless Connectivity	Optional Accessory (ELP-AP07)
Output: Video	1 x D-sub 15 pin (black moulding)
Output: Audio	1 x Stereo mini jack
Speaker Output	16W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
PC Free Presentations
USB Plug 'n Play	Yes
AV Mute Slide	No
Quick Corner	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Padlock Security cable hole Password protect function
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard
GENERAL
Dimensions D x W x H	263 x 345 x 93 mm
Weight	3.4kg
Lamp Warranty	1 Year or 750 hours (whichever comes first)
Projector Warranty	3 Years
Power Consumption: Lamp on	Normal/Eco: 381/313W
Power Consumption: Standby	0.35W (communication off)
Noise Level	Normal/Eco: 39/35dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L64	Lamp ELPLP64
	V13H134A29	Air Filter ELPAF29
	V12H418P13	Wireless Adapter ELPAP07
	V12H005M08	Quick Wireless Key ELPAP08
	V12H003B23	Ceiling Mount MB23
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H002S2Y	Floor Standing Tripod Screen
	V12H321003	ELP-DC06 Visualiser
	V12H377053	ELP-DC11 Visualiser
	V12H500053	ELP-DC20 Visualiser
