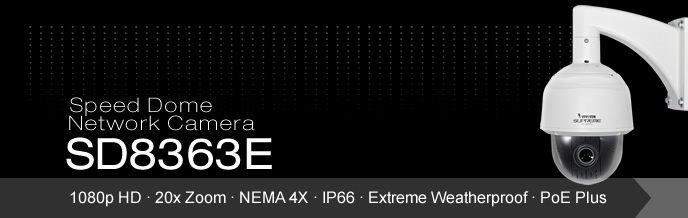

The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling. With the built-in auto tracking feature, the SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.



As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a day. With audio detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.





System Information CPU Multimedia SoC (System-on-Chip) Flash 128 MB RAM 256 MB

Camera Features Image sensor 1/3" Progressive CMOS Maximum Resolution 1920x1080 Lens Type 20x optical zoom, auto focus Focal Length f = 4.7 ~ 94 mm Aperture 1.6 (wide), 3.5 (tele) Auto-iris DC-iris Field of View 3 ~ 55 (horizontal) 2 ~ 32 (vertical) 3 ~ 64 (diagonal) Shutter Time 1/1 sec. to 1/10,000 sec. WDR Technology WDR Pro Day & Night Removable IR-cut filter for day & night function Minimum Illumination 0.02 Lux @ F1.6 ( Color ), 50 IRE (Color) 0.001 Lux @ F1.6 ( B/W ), 50 IRE (B/W) Pan range 360 endless Tilt range 220 ( -110 ~ +110 ) Pan speed 0.05 ~ 450 / sec. Tilt speed 0.05 ~ 450 / sec. Preset Locations 256 preset locations Pan / Tilt / Zoom 48x digital zoom (4x on IE plug-in, 12x built-in) Auto pan mode Auto patrol mode On-board Storage SD/SDHC/SDXC card slot

Video Compression H.264, MJPEG & MPEG-4 Maximum Frame Rate H.264: 30 fps @ 1920x1080, 60 fps @ 1280x720 MPEG-4: 30 fps @ 1920x1080, 60 fps @ 1280x720 MJPEG: 30 fps @ 1920x1080, 60 fps @ 1280x720 (Up to 30/15 fps in WDR mode) Maximum Streams 4 simultaneous streams S/N Ratio Above 60 dB Dynamic Range 108 dB Video Streaming Adjustable resolution, quality and bit rate Zoom enhancement for better image quality under limited bandwidth Image Settings Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) Scheduled profile settings

Audio Audio Capability Audio input / Audio output (Full duplex) Compression GSM-AMR AAC G.711 Interface External microphone input External line output

Network Users Live viewing for up to 10 clients Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X Interface 10 Base-T / 100BaseTX Ethernet (RJ-45) ONVIF Supported, specification available at www.onvif.org

Intelligent Video Video Motion Detection Triple-window video motion detection Auto-Tracking Auto-tracking on moving object

Alarm and Event Alarm Triggers Video motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General Connectors RJ-45 cable connector for Network/PoE connection Audio input Audio output AC 24V power input DC 12V power input Digital input*4 Digital output*2 RS-485 for PTZ control (PelcoD protocol, Baud rate 2400) LED Indicator System power and status indicator Power input PoE plus (IEEE 802.3at compliant) High Power PoE AC 24V Power consumption PoE plus: Max. 19W AC 24V: Max. 48W (heater on) Max. 19W (heater off) High Power PoE: Max. 48W (heater on) Max. 19W (heater off) Dimensions : 205 mm x 321 mm Weight Net: 3660 g Casing Weather-proof IP66- and NEMA 4X-rated metal housing Built-in electrical dehumidifier device (SD8363E-M) Safety Certifications CE, C-Tick, FCC Class A, NEMA 4X, VCCI Operating Temperature -5C ~ 55C (PoE Plus) -40C ~ 55C (AC 24V / High Power PoE) Warranty 36 Months

System Requirements Operating System Microsoft Windows 7/Vista/XP/2000 Browser Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x Other Players VLC: 1.1.11 or above QuickTime: 7 or above
