W1500 integrates the latest technology for one of a kind, big screen, at home entertainment enjoyment. As the worlds first home projector with built in wireless feature, enjoy Full HD 3D video, frame interpolation for ultra-smooth motion quality, brilliant color performance and the flexibility of placing the projector in any room, regardless of size and brightness!









W1500 is able to project uncompressed FHD image from HDMI output devices (e.g. Blu-ray, DVD or AV-R player, set top boxes, games consoles) without the hassle of HDMI cables and unnecessary expenses such as wall/ceiling mount.

Plug and Play! All you need is the power cord and the connection to the video source to have theater-like entertainment. W1500 comes with two built-in 10W speakers with SRS* which can save money (or extra costs) by eliminating the need for Hi-Fi or external speakers.


(1) Improves compressed and uncompressed audio performances by expanding the size of the audio image and creating a deep, rich bass response
(2) Improves audio playback quality; delivering a dynamic 3D entertainment experience with deep, rich bass and high frequency clarity for crisp detail.

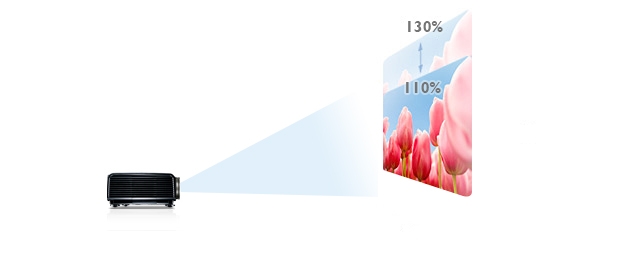

Lens shift offers the extra flexibility to overcome any minor miscalculations during projector installation. All you have to do is adjust the switch next to the lens to shift the projected image up by 110%-130% within the projector housing. With this helpful feature, you’ll never have to worry about positioning the projector slightly out of place again!

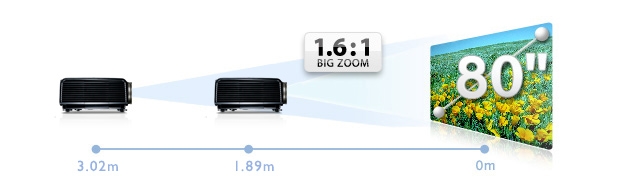

Big screen entertainment in any room thanks to W1500’s short-throw projection feature. With a screen size up to 84” at 2m, experience gaming to the max without having to worry about space limitation or unwanted shadow puppets and image obstructions again!





Equipped with the latest DLP® technology, watching 3D movies directly from Blu-ray DVD or even 3D gaming just became the norm. Experience and enjoy the excitement of 3D viewing in the comfort of your home!







Turns typical 2D content into 3D. Enjoy the experiences of 3D without worrying about the costs and limited 3D contents.

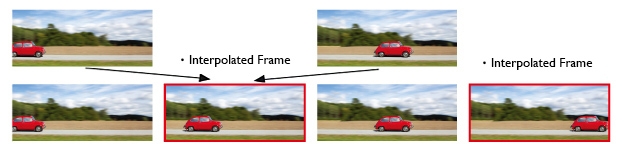

This special mode minimizes the appearance of motion blur and judder to give you an ultra-smooth view of all the action – especially in fast moving scenes in movies and sports games. The Frame Interpolation technology estimates the motion changes from frame to frame and inserts an interpolated frame in-between existing frames, resulting in smoother, life-like motion quality.





W1500 features Texas Instruments' advanced DarkChip3™ DLP® Technology, which projects higher brightness and deeper black levels by "filling in" the area where the digital micro mirror connects to its hinge - producing smooth, film-like picture quality.





3000:1 Contrast Ratio |  10000:1 Contrast Ratio







By matching the color gamut defined by Rec. 709, W1500 delivers colors so real, it reflects what the human eye perceives.







For optimal color precision, the W1500 is built to match one of the highest high-definition video standards seen in professional-grade home projectors today: native Rec. 709 color gamut. This enables the projector to deliver colors so real that it reflects what the human eye perceives.





ISF Certified Calibration Controls customizes the picture quality in any room; offering optimized color performance calibration in both Day and Night modes that can adapt to any room’s layout, size and light levels.









As the first DLP brand to incorporate Philip’s ImageCare technology into its projector lamp system, BenQ has taken a leap further, developing its own SmarEco Technology to perfect what DLP can do for energy saving in the 21st century. W1500 brings together optimized lamp life with uncompromised brightness and exquisite picture quality.





ecoFACTS can tell you how eco-friendly BenQ products are!



Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!



ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.



Arsenic-free optical glass



BFR/PVC-free casing plastics



PVC-free plastic packaging

















The WP-DC52 waterproof case allows you to take great underwater shots and be worry-free during inclement weather. Dustproof and waterproof up to 130ft (40m). Supplied accessories for the waterproof case include a neck strap, wrist strap and silicone grease.



PowerShot G16

PowerShot S200


The PowerShot S120 camera puts the world in your pocket with superb imaging, easy wireless sharing and touch-screen convenience. Newly expanded built-in Wi-Fi  is a snap to set up; it lets you post to Facebook , Twitter , YouTube  and Flickr , send to email, and share easily with your tablet, smartphone, networked PC and wireless PictBridge certified printer. Step up to a new level of image quality with a 12.1 Megapixel High-Sensitivity CMOS Sensor and DIGIC 6 Image Processor that together create the Canon HS SYSTEM, delivering rich natural color and beautiful clarity even in low light. Shoot with great definition at ISO speeds from 80 to 12800, and capture brilliantly realistic 1080p/60p Full HD video. The cameras bright f/1.8 lens captures the subtle nuances of low light, and the 24mm Wide-Angle lens and 5x Optical Zoom offer a wealth of shooting versatility. Experience incredibly quick full resolution continuous shooting with High Speed AF that focuses nearly the moment the camera is pointed. Operation is highly intuitive with a clear 922,000-dot 3.0-inch touch panel LCD screen with convenient Touch Shutter feature. Intelligent IS prevents blur in any situation. New star shooting modes help you capture the nighttime sky like a pro, and Background Defocus mode creates the beautiful background blur of a classic portrait. HDR shooting is another pro-style technique made easy, with several creative finishing options.







• Built in Wi-Fi  allows you to wirelessly transfer your images with ease to social networking sites through CANON iMAGE GATEWAY^#, to a PC, or upload virtually anywhere on your iOS  or Android  device* with the free download of the Canon CameraWindow app**.
• 12.1 Megapixel High-Sensitivity CMOS sensor combined with a DIGIC 6 Image Processor creates the Canon HS SYSTEM for exceptional low-light performance with an ISO range of ISO 80-12800 for enhanced image quality in extreme lighting conditions.
• Capture stunning 1080p/60p Full HD video in stereo sound with a dedicated movie button; video functions include Touch AF while recording, zoom while shooting, and convenient playback on an HDTV via the HDMI output.
• A bright f/1.8 lens allows for capturing low-light conditions or using shallow depth-of-field for dramatic, soft backgrounds, along with 5x Optical Zoom and a 24mm Wide-Angle lens that helps ensure you capture everything in your frame.
• High Speed AF greatly improves focus speed. Paired with continuous shooting speeds of up to 9.4 fps and the removal of buffer time, you can get your best shot in full resolution***.
• Capacitive 3.0" touch panel LCD with a screen resolution of 922,000 dots for a sharp, clear display and easy operation helps make shooting and sharing easy and intuitive.
• Shoot breathtaking images and video of the stars with new star shooting modes designed to better capture the brilliance and wonder of the night sky.
• New Background Defocus mode adds a blurred background while keeping the subject in focus.
• Intelligent IS automatically chooses from six different modes to optimize image stabilization for shake-free images in a wide variety of conditions.
• HDR scene mode combines multiple shots into one picture, capturing a greater dynamic range between the lightest and darkest areas of an image to provide greater detail. New artistic sub-modes such as Art Bold and Art Vivid unlock new opportunities for creativity.
• Additional Features.





The PowerShot S120 camera is equipped with built-in Wi-Fi  technology for on-the-go convenience when you want to share your photos and videos with friends, family and the whole world. The camera can connect directly to both iOS  and Android  devices*, and upload images via the free Canon CameraWindow app** without a computer. And because the PowerShot S120 captures video using easy-to-share MP4 format, it's never been easier to upload video files. Easily post your images to social networking and media sites Facebook , Twitter , YouTube , and now Flickr  through CANON iMAGE GATEWAY^# or save them to the online photo album to share anytime, anywhere. Enhanced Wi-Fi  makes posting in real time possible, so you can keep everyone up to date with photos even as events unfold. Easily control the destination of your uploads to social networking sites; share with everyone, or send photos to selected groups. You can also add comments, even in other languages^{^}. Transfer images to other Wi-Fi  equipped PowerShot cameras, send images to your computer, or print your photos directly to a wireless PictBridge certified printer.







Built-in Wi-Fi  on the PowerShot S120 camera has new features that streamline set-up and sharing for a faster, easier, more comprehensive experience than ever. WEP Key input is no longer necessary, and you can even set up and manage your camera/web service transfer preferences without the use of a software CD or USB cable Wi-Fi  and a web browser are all you need! And, new Automatic Switching through the Image Sync function makes saving and organizing your images easier^##. When the camera finds a linked PC on the same wireless network, images are sent directly to it. Otherwise, images are temporarily stored on CANON iMAGE GATEWAY^# then transferred once a connection is made, eliminating the need for cables.


Compact digital still camera with built-in flash, 5x Optical, 4x Digital and 20x Combined Zoom with Optical Image Stabilizer




12.1 Megapixel, 1/1.7-inch CMOS



Total Pixels
Approx. 12.8 Megapixels

Effective Pixels
Approx. 12.1 Megapixels



Focal Length
5.2 (W) - 26.0 (T) mm (35mm film equivalent: 24-120mm)

Digital Zoom
4.0x

Focusing Range
Normal: 2.0 in. (5cm) - infinity (W), 12 in. (30cm) - infinity (T)
Auto/Manual: 1.2 in. (3cm) - infinity (W), 12 in. (30cm) - infinity (T)
Macro AF: 1.2 in. - 1.6 ft. (3-50cm) (W), 12 in. - 1.6 ft. (30-50cm) (T)
Quick: 4.9 - 66 ft. (1.5 - 20m) (W,T)

Autofocus System
TTL Autofocus, Manual Focus



Optical Viewfinder
Not available

LCD Monitor
3.0-inch TFT Color LCD with wide viewing angle capacitive touch-screen panel

LCD Pixels
Approx. 922,000 dots

LCD Coverage
Approx. 100%



Maximum Aperture
f/1.8 (W), f/5.7 (T)

1-1/2500 sec.
15-1/2500 sec. (in Tv mode)
250-1/2500 sec. (in M mode)



Sensitivity
Auto, ISO 80-12800 (in P mode)

Light Metering Method
Evaluative*, Center-weighted average, Spot



Facial brightness is evaluated in Face Detection AF



Exposure Control Method
Manual Exposure, Program Shift, Safety Shift, AE Lock

Exposure Compensation
Still Images: 3 stops in 1/3-stop increments

Videos: 3 stops in 1/3-stop increments (not available during shooting)



White Balance Control
Auto*, Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Flash, Underwater, Custom 1, Custom 2

* Camera automatically sets the optimal ISO speed according to shooting mode.



Built-in Flash
Auto, Flash On, Slow Synchro, Flash Off

Facial brightness is also evaluated in Face Detect.

Flash Range
1.6 ft. - 23 ft. (W), 1.6 - 7.5 ft. (T) (50cm - 7m (W), (50cm - 2.3m (T)

Image brightness may diminish depending on the shooting distance.

Recycling Time
10 sec. or less (battery voltage: 3.7 V)

Flash Exposure Compensation
2 stops in 1/3-stop increments



Shooting Modes
C, M, Av, Tv, P, Hybrid Auto, Auto, SCN*¹, Creative Filters*², Movie*³



*¹ Portrait, Smart Shutter*⁴, Star*⁵, Handheld Night Scene, Underwater, Snow, Fireworks

*² High Dynamic Range, Nostalgic, Fish-eye Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Monocrhome, Super Vivid, Poster Effect
*³ Standard, Super Slow Motion Movie
*⁴ Smile, Wink Self-timer, Face Self-timer
*⁵ Star Nightscape, Star Trails, Star Time-Lapse Movie



Photo Effects
My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color*

*Adjustment of contrast sharpness, saturation, red, green, blue and skin tone are available

Self Timer
Approx. 10-sec. delay/approx. 2-sec. delay/custom*

*Delay time (0-15 sec. (in one-second increments), 20/25/30 sec.) and number of shots (1-10 shots (in one-shot increments)) can be specified.

Wireless Control
Not available

Continuous Shooting

1. Normal: Approx. 12.1 shots/sec.; 9.4 shots/sec* (in P mode)
2. AF: Approx. 5.5 shots/sec. (in P mode)
3. LV: Approx. 5.6 shots/sec. (in P mode)

• Under conditions where the flash does not fire automatically
• Differs depending on the zoom position
*From the sixth shot

















Image Storage

Storage Media
SD/SDHC/SDXC and UHS-I Memory Cards

File Format
Design rule for Camera File system, DPOF (Version 1.1) compliant

Image Recording Format
Superfine / Fine

JPEG Compression Mode
Still Image: Exif. 2.3 (JPEG)

Video: MOV (Image: H.264; Audio: Linear PCM (Stereo))

Number of Recording Pixels
Still Images:

1) 16:9 - Large: 4000 x 2248; Medium 1: 2816 x 1584; Medium 2: 1920 x 1080; Small: 640 x 360; RAW: 4000 x 2248

2) 3:2 - Large: 4000 x 2664; Medium 1: 2816 x 1880; Medium 2: 1600 x 1064; Small: 640 x 424; RAW: 4000 x 2664

3) 4:3 - Large: 4000 x 3000; Medium 1: 2816 x 2112; Medium 2: 1600 x 1200; Small: 640 x 480; Raw: 4000 x 3000

4) 1:1 - Large: 2992 x 2992; Medium 1: 2112 x 2112; Medium 2: 1200 x 1200; Small: 480 x 480; RAW: 2992 x 2992

5) 4:5 - Large: 2400 x 3000; Medium 1: 1696 x 2112; Medium 2: 960 x 1200; Small: 384 x 480; RAW: 2400 x 3000


Videos:

Full HD 1920 x 1080: 60 fps (59.94), 30 fps

Full HD Star Time-Lapse Movie: 15 fps

HD 1280 x 720: 30 fps (29.97)

Miniature Effect HD 1280 x 720: 6 fps / 3 fps / 1.5 fps

Miniature Effect 640 x 480: 6 fps / 3 fps / 1.5 fps

Super Slow Motion Movie 640 x 480: 120 fps

Super Slow Motion Movie 320 x 240: 240 fps

640 x 480: 30 fps (29.97)

Number of Recordable Images

Image data

		16:9			3:2
		File Size (KB)	8GB	32GB	File Size (KB)	8GB	32GB
Large (L)	SF	4,507	1,729	6,980	5,134	1,515	6,118
	F	2,915	2,640	10,659	3,247	2,384	9,624
Medium 1 (M1)	SF	2,630	2,923	11,801	2,914	2,640	10,659
	F	1,814	4,234	17,091	1,945	3,961	15,989
Medium 2 (M2)	SF	1,095	6,822	27,537	899	8,187	33,044
	F	604	12,280	49,567	496	14,448	58,314
Small (S)	SF	188	35,089	141,622	221	30,703	123,919
	F	113	49,125	198,271	133	40,937	165,225
RAW	RAW	17,680	442	1,788	17,585	444	1,798

		4:3			1:1
		File Size (KB)	8GB	32GB	File Size (KB)	8GB	32GB
Large (L)	SF	5,661	1,379	5,568	4,224	1,832	7,397
	F	3,537	2,192	8,850	2,640	2,923	11,801
Medium 1 (M1)	SF	3,173	2,431	9,814	2,365	3,274	13,217
	F	2,073	3,721	15,020	1,549	4,912	19,826
Medium 2 (M2)	SF	1,002	7,442	30,040	760	9,824	39,653
	F	558	12,927	52,176	420	16,374	66,090
Small (S)	SF	249	27,291	110,150	188	35,089	141,622
	F	150	40,937	165,225	113	49,125	198,271
RAW	RAW	17,529	446	1,804	17,415	448	1,814

		4:5
		File Size (KB)	8GB	32GB
Large (L)	SF	3,396	2,273	9,178
	F	2,121	3,611	14,578
Medium 1 (M1)	SF	1,898	4,026	16,251
	F	1,243	6,140	24,783
Medium 2 (M2)	SF	608	12,280	49,567
	F	336	20,468	82,612
Small (S)	SF	150	40,937	165,225
	F	90	61,406	247,838
RAW	RAW	17,347	450	1,821

Note: SF=Superfine F=Fine
The approximate number of images recordable on memory cards other than the above can be calculated by using the above figures as a reference and extrapolating accordingly.



Time of Recordable Movies

Movie data

	Miniature Effect
	HD: 1280 x 720			640 x 480
	5x	10x	20x	5x	10x	20x
	6 fps*2	3 fps*2	1.5 fps*2	6 fps*2	3 fps*2	1.5 fps*2
Movie Size (KB/sec.)	195	98	49	73	37	18
8GB	10 hrs. 42 min. 58 sec.	20 hrs. 34 min. 24 sec.	38 hrs. 15 min. 35 sec.	26 hrs. 45 min. 37 sec.	48 hrs. 27 min. 58 sec.	82 hrs. 18 min. 04 sec.
32GB	43 hrs. 17 min. 23 sec.	83 hrs. 06 min. 30 sec.	154 hrs. 33 min. 09 sec.	108 hrs. 05 min. 38 sec.	195 hrs. 46 min. 14 sec.	332 hrs. 26 min. 26 sec.

	Super Slow Motion Movie
	640 x 480	320 x 240
	120 fps*2	240 fps*2
Movie size (KB/sec.)	1465	977
8GB	1 hr. 27 min. 00 sec.	2 hrs. 07 min. 47 sec.
32GB	5 hrs. 51 min. 26 sec.	8 hrs. 36 min. 11 sec.

	Other
	Star Time-Lapse Movie (Full HD)	Full HD: 1920 x 1080		HD: 1280 x 720	640 x 480
	15 fps*2*3	60 fps*4	30 fps*1	30 fps*1	30 fps*1
Movie size (KB/sec.)	3	4288	2945	992	382
8GB	189 hrs. 46 min. 59 sec.	30 min. 03 sec.	43 min. 29 sec.	2 hrs. 03 min. 55 sec.	5 hrs. 14 min. 34 sec.
32GB	766 hrs. 11 min. 28 sec.	2 hrs. 01 min. 27 sec.	2 hrs. 55 min. 43 sec.	8 hrs. 20 min. 32 sec.	21 hrs. 10 min. 33 sec.

*¹Actual frame rate is 29.97 fps.
*²Playback frame rate is 30 fps.*¹
*³Actual frame rate is 14.985 fps.
*⁴Actual frame rate is 59.94 fps.



Playback Specifications

Playback Modes File
Stills & Videos:
Auto Rotate, Index Continuous Display, Image Advance (Transition Effects, Scroll Display), Rotate, Favorites, My Category, Smart Shuffle, Group Playback, Slideshow, Erase, Resume, Protect

Still Images:
Single, Index, Magnification (2-10x), Switch to other images while zoomed, Information Display, Red-eye Correction, i-Contrast, Photobook Setup, Cropping, Resize, My Colors, Face ID Info, Histogram, RGB Histogram, Focus Checker, Location Information, Overexposure Warning

Videos:
Normal Playback, Pause, Slow Motion, Skip Backward, Previous Frame, Next Frame, Skip Forward, Erase Clip, Editing, Movie Transcoding

Using the software included with the camera (ImageBrowser EX), there are 8 levels (1.8x to 1x) of playback speed for Super Slow Motion Movies possible on a computer.

Erasing Specifications

Erase Modes
Select Image, Select Range, Select All Images

The image data in the memory card stored with the Design rule for Camera File systems format can be erased (however, protected images cannot be erased).

Using the Movie editing function, sections of the movie can be deleted.



Interfaces

Video Out
NTSC/PAL (dedicated connector (female) with unified type of digital, audio and video), Mini-HDMI connector

Audio Out
Stereo (dedicated connector (female) with unified type of digital, audio and video)

Other
SD memory card slot; direct connection to Canon SELPHY, PIXMA Photo Printers & PictBridge compatible printers

Power Source
Battery Pack NB-6LH, Compact Power Adapter CA-DC10 (included with AC Adapter Kit ACK-DC40)

Shooting Capacity
Approx. 230 shots
Approx. 300 shots with ECO Mode

Playback Time
Approx. 4 hours

Physical Specifications

Operating Temperature
32-104F/0-40C

Operating Humidity
10-90%

Dimensions (W x H x D)
3.94 x 2.32 x 1.14 in. / 100.2 x 59.0 x 29.0mm

Weight
7.65 oz. / 217g (CIPA standard)
6.81 oz. / 193g (camera only)

30 display languages provided (English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified/Traditional Chinese, Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Romanian, Ukrainian, Farsi, Hindi, Malay, Indonesian and Vietnamese).

All data are based on Canon's Standard Test Method. Subject to change without notice.

Canon, DIGIC, ELPH, PIXMA, and PowerShot and SELPHY are registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries. Microsoft, Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple, Inc., registered in the United States and other countries. All other products and brand names are registered trademarks, trademarks or service marks of their respective owners in the United States and/or other countries.

Model: LCSTWPS



Safely tote your Cyber-shot digital camera with this soft carrying case.





Model: LCSTWPL



Safely tote your Cyber-shot digital camera with this soft carrying case.





Model: LCSTWPG



Safely tote your Cyber-shot digital camera with this soft carrying case.





Dimensions (W x H x D):	Approx. 83mm X 120mm X 38mm

Weight:	Approx. 51g

Material:	Nylon

Type of Use:	Carrying Pouch
