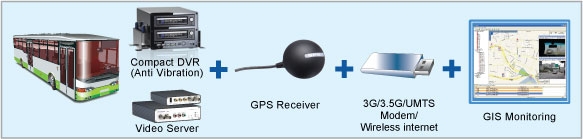

GV-VS14 is a powerful H.264 Video Server with compact size and supports multiple applications. It supports 4-channel full D1 real-time video and audio encoding, fully integrated with GV-NVR to form the most powerful IP solution. It also supports over 50 PTZ models to fulfill various project demands. It can record video to a local USB storage, forming the smallest video recorder. With GPS and UMTS/ 3G/ 3.5G/ 4G support, it provides GIS solution integrated with GV-GIS. It can also active Tampering Alarm alerts when a tampering event happens to prevent crime events.





Video
Video Standard			NTSC, PAL
Video Input			4 channels
Compression			H.264, MJPEG
Frame Rate	NTSC		30 fps per channel; 120 fps in total for 4 channels
	PAL		25 fps per channel; 100 fps in total for 4 channels
Video Resolution	NTSC	Main Stream	704 x 480, 704 x 480 de-interlace, 352 x 240
		Sub Stream	352 x 240, 176 x 112
	PAL	Main Stream	704 x 576, 704 x 576 de-interlace, 352 x 288
		Sub Stream	352 x 288, 176 x 144
Video Streaming			Configurable frame rate and bandwidth, Constant and variable bitrate
Video Adjustment			Brightness, Contrast, Hue, Saturation
Dual Streams			Yes
Audio
Audio Input			4 channels
Compression			G.711
Audio Support			Two-way
Management
Event Management	Trigger		Schedule, Sensor Input, Motion Detection
	Action		Store Video (AVI format), Send e-mails with captured images, Upload captured images to FTP Server, Monitor through Center V2, VSM and GV-GIS, Activate relay outputs to control external devices
Firmware Upgrade			Remote upgrade by HTTP, Firmware upgrade utility included in the Software DVD
Storage			USB storage device (optional)
Client PC Requirements			Microsoft IE 7.x or above running on Windows XP / 7 / Server 2008
Security			IP address filtering
Language			Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hindi / Hungarian / Italian / Indonesian / Japanese / Norwegian / Lithuanian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Thai / Traditional Chinese / Turkish
Network
Interface			10/100 Base-T Ethernet, 802.11b/g/n Wireless LAN (optional), Mobile broadband: UMTS, EDGE, etc. (optional)
Protocol			HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
External Interface
Video Input			4 BNC ports
Audio Input			2 stereo phone jacks to 4 RCA ports
Audio Output			1 RCA port
Sensor Input			4 inputs
Alarm Output			4 outputs
PTZ			RS-485 +/-
GPS			UART
Ethernet			RJ-45, 10/100 Mbps
USB			2 ports (USB 2.0)
Power	Input		12V, 3.5A
	Output		12V, 1.35A, (19.2W Max.)
Environment
Operation Temp.			-20 C ~ 55 C / -4 F ~ 131 F
Humidity			0 ~ 85% RH (non-condensing)
Physical
Dimensions (L x W x H)			174 x 145 x 40 mm / 6.85 x 5.7 x 1.57 in
Weight			0.73 kg / 1.61 lb
Applications
Network Storage			GV-System, GV-Backup Center, GV-Recording Server
Mobile Phone Support			GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone.
Live Viewing			IE , GV-MultiView
CMS Server support			GV-Center V2, GV-VSM, GV-Control Center





The GVVideo Server cannot work with the microphones that acquire power from the unit. Use microphones that have external power supply.
Currently, 3 TB hard disk is not supported.
It is not recommended to use the flash USB drive with GV-VS04H and GV-VS14 because of its slow read and write speed.
Product design and specifications are subject to change without notice.



Optional devices can expand your GV-Video Server's capabilities and versatility. Contact your dealer for more information.



GV-GPS Receiver The GV-GPS Receiver is a Global Position System receiver. With the GV-GPS Receiver, you can perform GPS tracking and location verification of the GV-Video Server. Two types of interfaces are available: UART (for GV-VS04H / GV-VS14) and RS-232 (for GV-VS12). GV-Relay V2 Working with the GV-Relay V2, the GV-Video Server is capable of driving the loads of relay outputs over 5 volts. GV-WiFi USB Adaptor The WiFi USB Adaptor is designed to connect the GV IP devices, such as GV-Video Server or GV-Compact DVR, to the wireless network. GV-VR605A DC Voltage Regulator The GV-VR605A is a voltage regulator designed to be installed in the car and supply power to GV-Video Server and its connected cameras. The GV-VR605A is capable of maintaining a 12V voltage to the GV-Video Server and its connected cameras, providing protection against voltage spikes when you turn on the car ignition. The following devices are only supported by GV-VS04H and GV-VS14. Access Control Series The GV-Video Server can work with the Wiegand-interface card reader to send cardholder data to the central monitoring stations Center V2 and VSM, as well as GV-System. GV-Reader GV-Reader includes transmit-receive antenna and electronics. Featured with the Wiegand output, the unit is compatible with any standard access control panel. GV-R1352 Card Reader The GV-R1352 is a card reader designed to recognize identification cards. Featured with the Wiegand output, the unit can be connected to any standard access control panel. The GV-R1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

Supported Wireless LAN USB Adaptor

Vendors Model D-Link DWA-140 (H/W version B1), DWL-G122 (version C1) EDIMAX EW-7318Ug, EW-7718Un, EW-7711UAn Linksys WUSB54GC, WUSB600 (version 1) Pegatron WL-166N11 Note: Linksys WUSB54GC ver. 3 is not supported.

Supported Mobile Broadband Device

Vendors Model Bandluxe C320, C501 HUAWEI E156, E156B, E169, E220, E303, E353, E1692, E1750, E1752, E1756, EC169C, EC189 USB Modem (HSDPA/UMTS/EDGE/GPRS/GSM) Novatel MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM) Onda MSA523HS Sierra 250U Verizon USB727, USB728, USB760 Modem (EVDO) Vodafone K3565 (Rev 2) ZTE MF100
