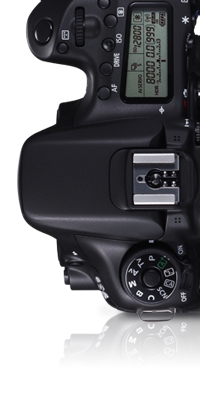

EOS 70D Premium Kit







Capture the moment at seven frames per second



Capture the moment in stunning stills and Full-HD movies with the high performance EOS 70D, featuring 7fps full resolution shooting, an advanced 19-point AF system and Canons unique Dual Pixel CMOS AF technology.







20.2 megapixel CMOS





Smooth, continuous AF in Movies





High speed shooting





19 all cross-type AF points for accurate subject tracking





Moveable screen for creative framing





Large bright touch screen for clear viewing





Powerful DIGIC processing





Great low light shots





Stunning 1080p movies





Share your images and control your camera over Wifi





Customise your viewfinder display





Level your camera for straight horizons





Ensures correctly exposured images in all lighting conditions





Control Speedlites from your camera remotely





Creativly combine images





Edit and process RAW images in camera



The high performance EOS 70D combines a 20.2-megapixel APS-C CMOS sensor and a powerful DIGIC 5+ image processor to deliver 14-bit images that are packed with detail and clarity. Colours are reproduced accurately whilst tonal gradation is subtle and natural.





Capturing superb shots of fast paced action like sports or wildlife is easy with 7fps full resolution continuous shooting and a high performance 19 cross-type point AF System, which provides high precision, responsiveness and accuracy to capture the moment with high image quality.



The EOS 70D is the first camera to feature Canons Dual Pixel CMOS AF technology, enabling fast and smooth autofocus tracking whilst shooting movies. Each pixel features two photo diodes that can be read independently during autofocus or together to capture the image.





The EOS 70D delivers stunning Full-HD (1080p) video with fast accurate autofocus thanks to Canons unique Dual Pixel CMOS AF technology. Explore your creativity with stereo sound, full manual control and selectable frame rates.





Shoot remotely from alternative viewpoints: connect and control your EOS 70D using your PC, Mac, tablet or smartphone. Images can be reviewed and transferred wirelessly and instantly shared with family and friends.





When light levels fall, the EOS 70D keeps performing. It offers an ISO range of up to 12800 expandable to 25600 so you can capture superb handheld shots in low light without using flash.



Use the intuitive touch controls to shoot from unique or awkward angles with a 7.7cm (3.0) 3:2 Vari-angle ClearView II LCD capacitive touch screen, which features 1,040,000 dots for high resolution playback. Switch to Live View mode to capture the best angle and to help compose your shot.





Enjoy a larger, more magnified field of view using the intelligent viewfinder which offers 98% coverage, relaxed viewing with a 22mm eyepoint and displays useful shooting information and an electronic level to help you capture the best shot.





Preserve detail in both highlights and shadows with the EOS 70Ds high dynamic range (HDR) feature, and create composite images with its multiple-exposure facility. Enhance your stills with a range of Creative filters such as Toy camera effect or Miniature.





The EOS 70D is compatible with Canons full range of EF and EF-S lenses and EX-series Speedlites so you can progress your photographic skills with additional lenses and flashes.





Type	22.5mm x 15.0mm CMOS
Effective Pixels	Approx. 20.20 megapixels
Total Pixels	Approx. 20.90 megapixels
Aspect Ratio	3:2
Low-Pass Filter	Built-in/Fixed with fluorine coating
Sensor Cleaning	EOS integrated cleaning system
Colour Filter Type	Primary Colour



Type	DIGIC 5+



Lens Mount	EF/EF-S
Focal Length	Equivalent to 1.6x the focal length of the lens





Type	TTL-CT-SIR with a CMOS sensor
AF System/ Points	19 cross-type AF points (extra sensitivity at f/2.8 at centre)
AF Working Range	EV -0.5 - 18 (at 23C & ISO100)
AF Modes	AI Focus One Shot AI Servo
AF Point Selection	Automatic selection: 19 point AF Manual selection: Single point AF Manual selection: Zone AF AF points can be selected separately for vertical and horizontal shooting
Selected AF Point Display	Indicated by a transmissive LCD in viewfinder and on top LCD panel and Quick Control screen
Predictive AF	Yes, up to 8m
AF Lock	Locked when shutter button is pressed half way in One Shot AF mode or AF-ON button is pressed.
AF Assist Beam	Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
Manual Focus	Selected on lens
AF Microadjustment	C.Fn II-13 +/- 20 steps (wide and tele setting for Zooms) Adjust all lenses by same amount Adjust up to 40 lenses individually Adjustments remembered for lens by serial number





Metering Modes	TTL full aperture metering with 63 zone Dual Layer SPC (1) Evaluative metering (linked to all AF points) (2) Partial metering (approx. 7.7% of viewfinder at centre) (3) Spot metering (approx. 3.0% viewfinder at centre) (4) Centre weighted average metering
Metering Range	EV 1-20 (at 23C with 50mm f/1.4 lens ISO100)
AE Lock	Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved. Manual: By AE lock button in creative zone modes.
Exposure Compensation	+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
AEB	2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments
ISO Sensitivity*	Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25600 During Movie shooting: Auto (100-6400), 100-6400 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 12800





Type	Electronically-controlled focal-plane shutter
Speed	30-1/8000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)



Type	Auto white balance with the imaging sensor
Settings	AWB, Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9.
Custom White Balance	Yes, 1 setting can be registered
WB Bracketing	+/-3 levels in single level increments 3 bracketed images per shutter release. Selectable Blue/Amber bias or Magenta/ Green bias.



Type	Pentaprism
Coverage (Vertical/Horizontal)	Approx. 98%
Magnification	Approx. 0.95x
Eyepoint	Approx. 22mm (from eyepiece lens centre)
Dioptre Correction	-3 to +1 m-1 (dioptre)
Focusing Screen	Fixed (Transmissive LCD screen)
Mirror	Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter)
Viewfinder Information	AF information: AF points, focus confirmation, AF area selection mode Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+). Composition information: Grid, Electronic level (2 methods) Other information: Battery check, Alert symbol
Depth of Field Preview	Yes, with Depth of Field preview button.
Eyepiece Shutter	On strap





Type	Vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots
Coverage	Approx. 100%
Viewing Angle (Horizontally/Vertically)	Approx 170
Coating	Anti-reflection, Solid Structure and Anti smudge
Brightness Adjustment	Adjustable to one of seven levels
Display Options	(1) Quick Control Screen (2) Camera settings (3) Electronic Level





Built-in Flash GN (ISO 100, meters)	12
Built-in Flash Coverage	up to 17mm focal length (35mm equivalent: 28mm)
Built-in Flash Recycle Time	Approx. 3 seconds
Modes	Auto, Manual flash, Integrated Speedlite Transmitter
Red-Eye Reduction	Yes - with red-eye reduction lamp
X-Sync	1/250sec
Flash Exposure Compensation	+/- 3EV in 1/2 or 1/3 increments
Flash Exposure Bracketing	Yes, with compatible External Flash
Flash Exposure Lock	Yes
Second Curtain Synchronisation	Yes
HotShoe/ PC Terminal	Yes/ No
External Flash Compatibility	E-TTL II with EX series Speedlites, wireless multi-flash support
External Flash Control	via camera menu screen





Modes	Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control), Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie), Bulb, Custom
Picture Styles	Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space	sRGB and Adobe RGB
Image Processing	Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Multi Shot Noise Reduction Auto Correction of Lens Peripheral illumination and Chromatic aberration correction Basic+ (Shoot by ambience selection, Shoot by lighting or scene type) Creative filters (Art Bold, Water painting, Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) RAW image processing - during image Playback only Resize to M or S1, S2, S3
Drive Modes	Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote), Silent single shooting, Silent continous shooting
Continuous Shooting	Max. Approx. 7fps. (speed maintained for up to 65 images (JPEG)(with UHS-I card), 16 images (RAW))



LIVE VIEW MODE



Type	Electronic viewfinder with image sensor
Coverage	Approx. 100% (horizontally and vertically)
Frame Rate	30 fps
Focusing	Manual Focus (Magnify the image 5x or 10x at any point on screen) Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Phase detection AF (Quick mode)
Metering	Real-time evaluative metering with image sensor. Evaluative metering, partial metering, spot metering, center-weighted average metering.
Display Options	Grid overlay (x3), Histogram, Multi aspect ratios



Still Image Type	JPEG: Fine, Normal (Exif 2.21 [Exif Print] compliant) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant
RAW+JPEG Simultaneous Recording	Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible.
Image Size	JPEG 3:2: (L) 5472x3648, (M) 3468x2432, (S1) 2736x1824, (S2) 1920x1280, (S3) 720x480 JPEG 4:3: (L) 4864x3648, (M) 3248x2432, (S1) 2432x1824, (S2) 1696x1280, (S3) 640x480 JPEG 16:9: (L) 5472x3072, (M) 3468x2048, (S1) 2736x1536, (S2) 1920x1080, (S3) 720x408 JPEG 1:1: (L) 3648x3648, (M) 2432x2432, (S1) 1824x1824, (S2) 1280x1280, (S3) 480x480 RAW: (RAW) 5472x3648, (M-RAW) 4104x2736, (S-RAW) 2736x1824
Movie Type	MOV (Video: H.264 Intra frame / inter frame, Sound: Linear PCM, recording level can be manually adjusted by user)
Movie Size	1920 x 1080 (29.97, 25, 23.976 fps) intra or inter frame 1280 x 720 (59.94, 50 fps) intra or inter frame 640 x 480 (29.97, 25 fps) inter frame
Movie Length	Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically)
Folders	New folders can be manually created and selected
File Numbering	(1) Consecutive numbering (2) Auto reset (3) Manual reset





Custom Functions	23 Custom Functions
Metadata Tag	User copyright information (can be set in camera) Image rating (0-5 stars)
LCD Panel / Illumination	Yes / Yes
Water/ Dust Resistance	Yes (equal to EOS-1N)
Sound Memo	No
Intelligent Orientation Sensor	Yes
Playback Zoom	1.5x - 10x
Display Formats	(1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) Jump Display
Slide Show	Image selection: All images, by Date, Folder, Movies, Stills Playback time: 1/2/3/5/10/20 seconds Repeat: On/Off Background music: On/Off Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
Histogram	Brightness: Yes RGB: Yes
Highlight Alert	Yes
Image Erase/Protection	Erase: Single image, All images in folder, Checkmarked images, unprotected images Protection: Erase protection of one image at a time
Menu Categories	(1) Shooting menu (x6) (2) Playback menu (x3) (3) Setup menu (x4) (4) Custom Functions menu (5) My Menu
Menu Languages	25 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update	Update possible by the user.



Computer	Hi-Speed USB
Other	Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)





Canon Printers	Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
PictBridge	Yes





Type	SD, SDHC or SDXC (UHS-I)card



PC & Macintosh	Windows 8 / 7 / 7 SP1 / Vista SP2 / XP SP3 OS X v10.6, v10.7, v10.8





Browsing & Printing	ImageBrowser EX
Image Processing	Digital Photo Professional
Other	PhotoStitch, EOS Utility, Picture Style Editor





Batteries	Rechargeable Li-ion Battery LP-E6 (supplied), built in for date & settings
Battery Life	Approx. 920 (at 23C, AE 50%, FE 50%) Approx. 850 (at 0C, AE 50%, FE 50%)
Battery Indicator	6 levels + percentage
Power Saving	Power turns off after 1, 2, 4, 8, 15 or 30mins.
Power Supply & Battery Chargers	AC Adapter Kit ACK-E6, Battery charger LC-E6, Car Battery charger CBC-E6



Body Materials	Aluminium and polycarbonate resin with glass and conductive fibre
Operating Environment	0 40 C, 85% or less humidity
Dimensions (WxHxD)	139.0 x 104.3 x 78.5mm
Weight (Body Only)	Approx. 755g (CIPA testing standard, including battery and memory card)





Viewfinder	Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C
Case	Leather case EH21-L
Wireless File Transmitter	Built in
Lenses	All EF and EF-S lenses
Flash	Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
Battery Grip	BG-E14
Remote Controller/ Switch	Remote Switch RS-60E3, Remote Controller RC-6
Other	Hand Strap E2, GP-E2



AF System/ Points	Peripheral Cross type AF points will not function as a cross type AF points with the following lenses: EF 35-80mm f4-5.6 (II/III/USM), EF35-105mm f4.5-5.6 (USM). EF 80-200mm f4.5-5.6 (II)
Predictive AF	with EF300mm f/2.8L IS USM at 50kph
Magnification	with 50mm lens at infinity, -1m-1 dpt
Continuous Shooting	Large/Fine(Quality 8) resolution Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc. Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
Battery Life	Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
