• Three USB3.0 downstream ports offer simultaneous access to all USB peripheral devices
• Two sockets to support SD/SDHC/SDXC Card, MMC Card and microSD / microSDHC / microSDXC Card
• Compliant with Universal Serial Bus Specification Revision 3.
• Support Super-Speed (5Gbps), High-speed (480Mbps) and Full-speed (12Mbps) data transferring
• Support SDXC (SD Extended Capacity) card up to 2TB.
• Support latest SD UHS-I card for high speed data transferring.
• Expand your existing USB3 port to three SuperSpeed USB3.0 ports easily.
• Support Plug & Play and Hot-Swap functions.

• Compliant with Universal Serial Bus Specification Revision 3.0
• Support Super-Speed(5Gbps), High-speed (480Mbps) and Full-speed (12Mbps) data transferring.
• Support SDXC (SD Extended Capacity) card up to 2TB.
• Support latest SD UHS-I card for high speed data transferring.
• USB powered; no external power required.
• Portable, compact design, and low power consumption make the reader suitable for desktop and mobile PC.

• Compliant with Universal Serial Bus Specification Revision 3.0.
• Support Super-Speed(5Gbps), High-speed (480Mbps) and Full-speed (12Mbps) data transferring.
• Support SDXC (SD Extended Capacity) card up to 2TB.
• Support latest SD UHS-I card for high speed data transferring.
• USB powered; no external power required.
• Allows data exchange among different sockets.

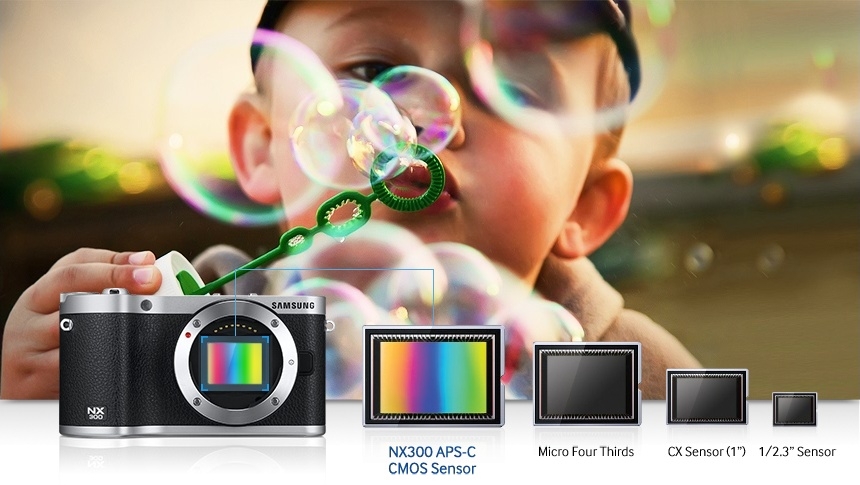

• Discover amazing detail with 20.3MP APS-C sensor

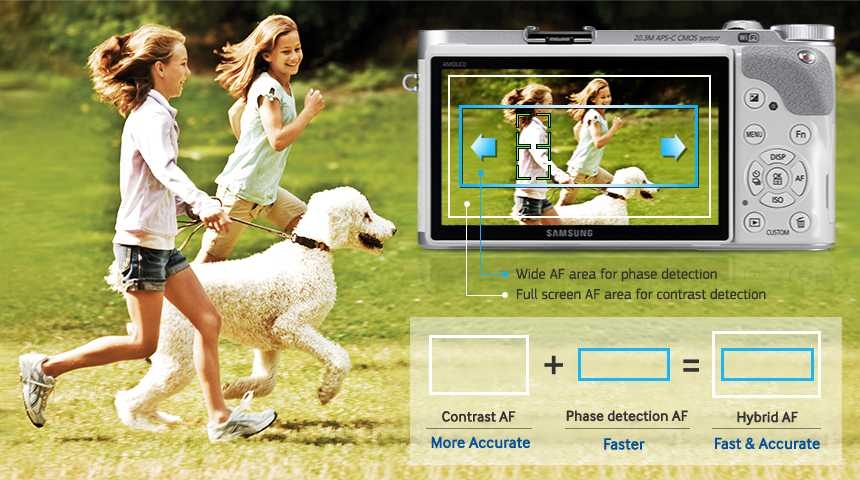

• Take sharp shots spontaneously with hybrid autofocus

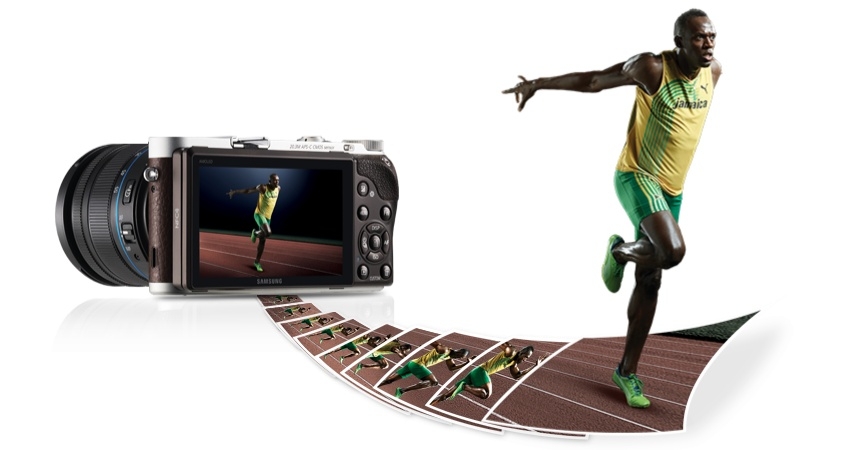

• Shoot continuously at a fast 8.6 frames per second

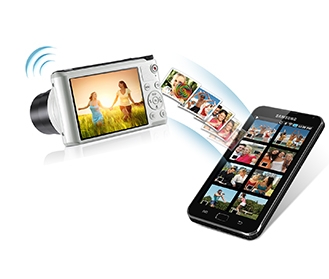

• Share photos on the go with built-in Wi-Fi connectivity

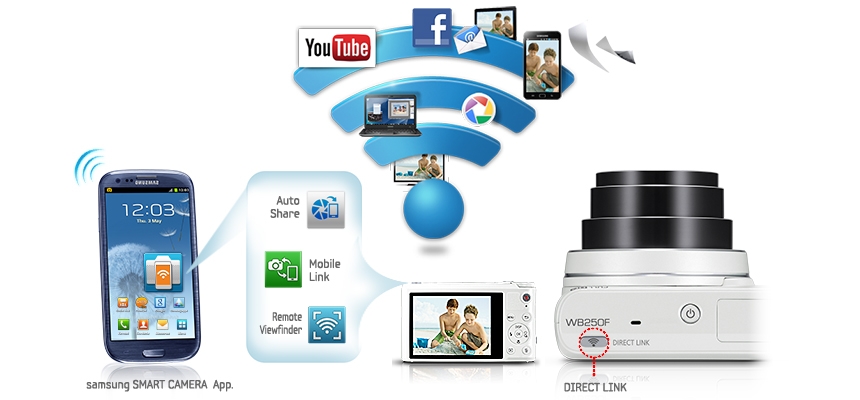

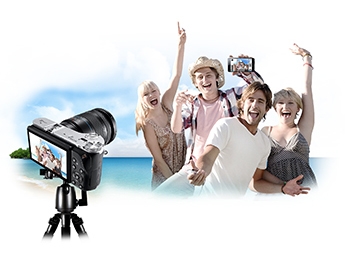

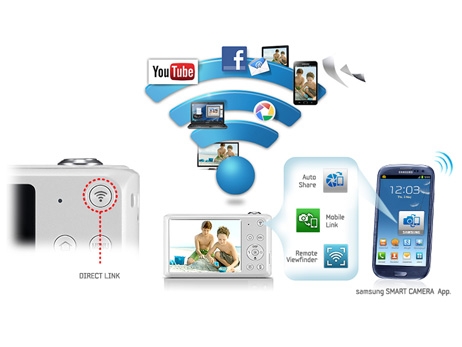

Remotely control your camera from a smartphone



Remote Viewfinder

Control your camera by using your smartphone as the viewfinder. Remote Viewfinder lets you preview images, adjust the camera settings, zoom in and out and frame each scene all from your phone, wirelessly. This feature is available for select smartphones.

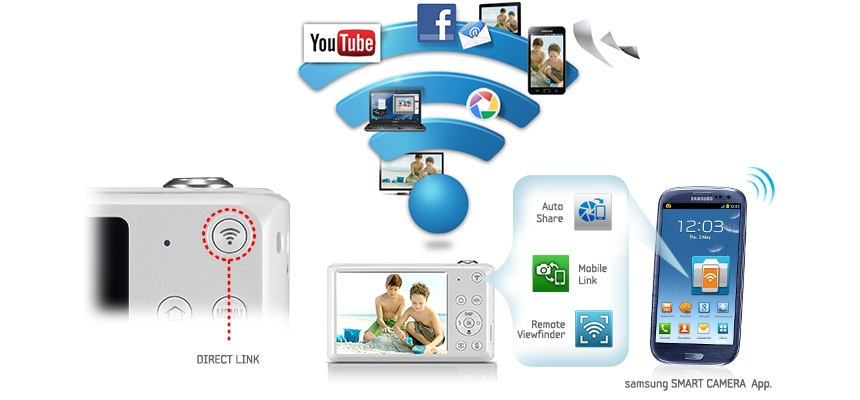

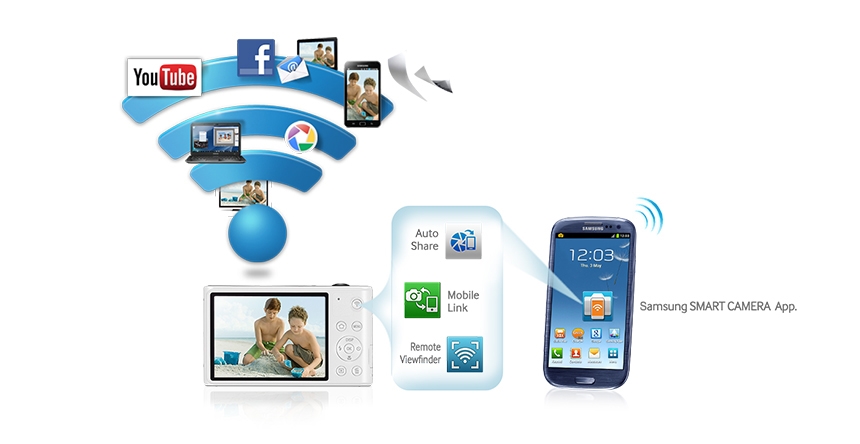

Connect to your camera faster-one touch, three apps

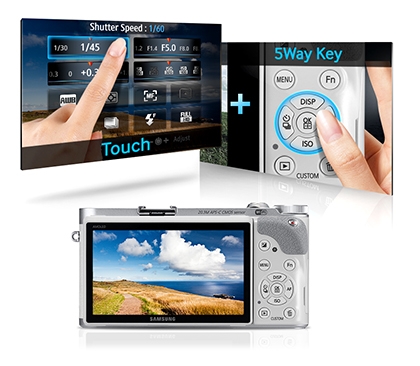

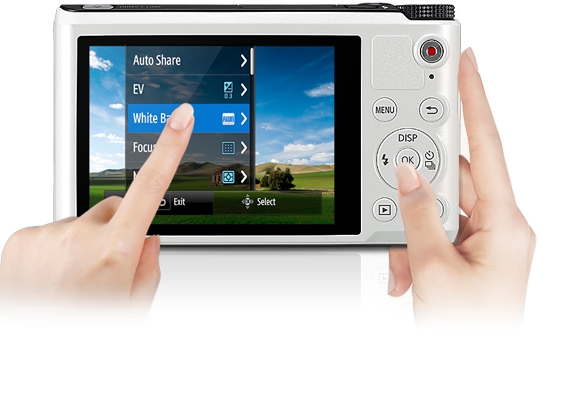

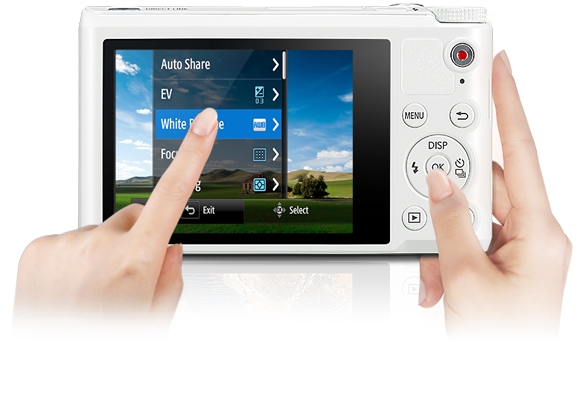

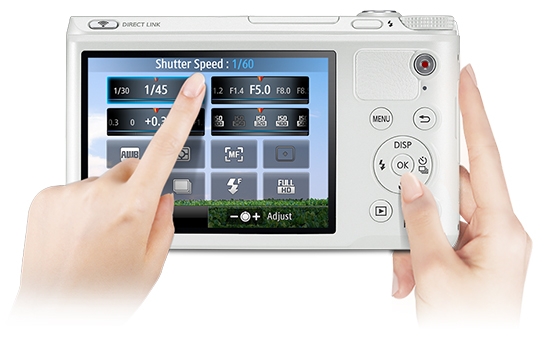

Hybrid UI (Touch & 5 Way Key) Variation


The Samsung SMART CAMERA NX300 offers multiple options, even for navigating the menu on the 3.31" (84mm) WVGA screen. The intuitive Hybrid Touch User Interface combines a 5-way button with a touchscreen so you can quickly select menu options to apply effects, share images, input text and more. Whether youre tapping the screen or moving the cursor around, everything you do is easier and faster.

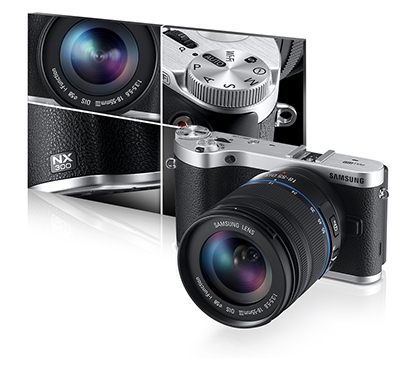

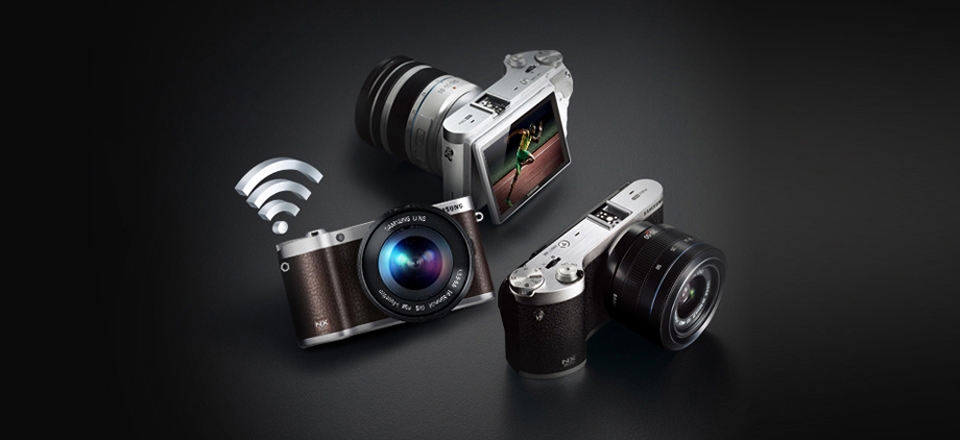

Designed to capture attention with retro modern style





Retro Modern Design

Taking its cues from the simplicity of vintage camera design and from state-of-the-art innovation, the design of the Samsung SMART CAMERA NX300 impresses with elegant, flowing lines and a luxuriously textured feel. Its crafted from sturdy metal, yet is compact and lightweight for easy on-the-go shooting. Sharp edging presents a sleek silhouette when viewed from above, while an ergonomic design ensures a safe and steady grip.

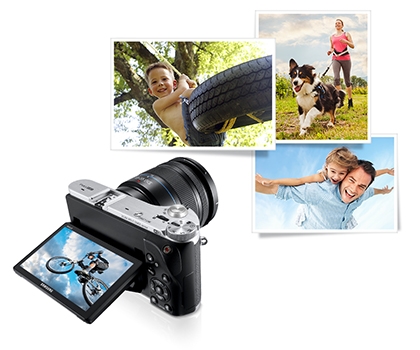

Get a different view on life





3.31" (84mm) AMOLED Tilt Display


Seeand capturethe world differently. The 3.31" (84mm) AMOLED Tilt Display flips up 90 and down 45. So now you can easily frame and capture a low-angle image without having to awkwardly contort your body or lie on the ground. You can also hold the camera over a crowd for a high-angle shot and see exactly what youre getting. Shooting from a variety of angles can also make for more exciting photo albums.

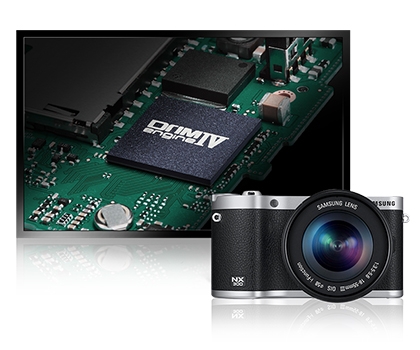

A powerful engine for perfect shooting





DRIMe IV New Image Engine


Powered by Samsungs next-generation DSP imaging engine, the DRIMe IV image processor accurately captures the special moments in your life. Its faster than its predecessor for improved overall performance, including superior colour reproduction and noise reduction. Whether youre shooting 2D or 3D, this powerful engine ensures youll treasure your memorieswith enhanced Full HD movie qualityfor the rest of your life.



Add pop to your movies and stills





True 3D Creator (Worlds 1st One Lens System)

3D Still / Movie Capture Capability (45mm 2D/3D Lens only)



Make vacation stills and videos pop off the screen with True 3D Creator. Featuring the worlds first single lens system for capturing 2D and 3D images, the Samsung SMART CAMERA NX300 is also the only interchangeable-lens camera that lets you shoot stills and movies in 3D via Samsung 45mm 2D/3D lens. When youre done shooting, let your friends back home feel as if they were there with you, by showing off your stunningly vivid adventures on a compatible 3D HDTV.

Make vacation stills and videos pop off the screen with True 3D Creator. Featuring the worlds first single lens system for capturing 2D and 3D images, the Samsung SMART CAMERA NX300 is also the only interchangeable-lens camera that lets you shoot stills and movies in 3D via Samsung 45mm 2D/3D lens. When youre done shooting, let your friends back home feel as if they were there with you, by showing off your stunningly vivid adventures on a compatible 3D HDTV.



Discover the true beauty of Full HD video





Full HD Movie (1080/60P)


The Samsung SMART CAMERA NX300 may not look like a camcorder, but it capably captures Full HD 1080/60P video. With uncompromising performance bolstered by an 18-200mm lens and wide zoom capability, the Samsung SMART CAMERA NX300 delivers smooth, professional-looking videos that play well on your HDTV. When youre ready for showtime, an HDMI interface lets you transmit your vision straight to the big screen.





Wide Range ISO (100~25600)



Capturing natural-looking images indoors, or outside at night, can require a higher ISO than most cameras allow. The Samsung SMART CAMERA NX300 lets you shoot up to ISO 25600 making it twice as sensitive to light as the previous modelso you can snap high-speed photos with minimal noise and blurring, even in low light.



Creative Shot



Instantly add emotional impact to your images without stopping to figure out which mode to use. Creative Shot automatically analyses the scene when you take the shot, and prepares the appropriate effects. So a happy face beams a little brighter, and a sunset glows with a touch more orange.

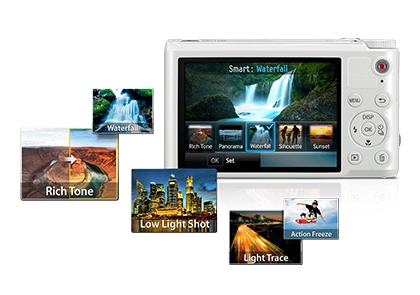

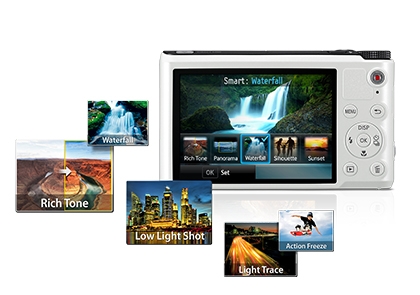

Smart Mode



Tap Smart Mode to access a variety of settings that help you get the perfect shot every timeeven if youre not a pro. Capture a high-speed scene with Sports Capture, or let Rich Tone create extraordinarily surrealistic photos with colours that pop. Just choose the mode you want and shoot perfection.



Smart Filter



Boost creative fun with the Smart Filter right on the display! Cartoon filter makes any photo look like an animated film scene while Cross Filter makes light sources appear to have several points of light, like stars. Theres also Ink Painting, Half-tone Dot and more ways for you to express your creative side.





HDMI



Just one HDMI code is all it takes to connect your SMART CAMERA NX300 directly into your TV, computer or DVD player. With your SMART CAMERA NX300, making professional quality videos is just as easy as sharing them.



Specifications:



Image Sensor

Sensor Type	CMOS
Sensor Size	23.5 x 15.7mm
Effective Pixel	Approx 20.3MP
Total Pixel	Approx 21.6MP
Color Filter	RGB Primary Colour Filter

Lens

Usable Lens	Samsung Lenses for Samsung NX Mount
Mount	Samsung NX

Image Stabilisation

Type	Lens Shift (Depends on Lens)
Mode	OIS Mode1 / Mode2 / OFF

Distortion Correct

Mode	LDC On / Off (depends on Lens)

i-Function

i-Depth, i-Zoom (x 1.2, 1.4, 1.7, 2.0)

Dust Reduction

Type	Supersonic drive

Display

Type	AMOLED with Touch (C-type Touch Control Enabled) and Tilt (Up 90, Down 45)
Size	84mm (3.31")
Resolution	WVGA ( 800 x 480 ) 768k dots (Pentile)
Filed of View	Approx 100%
User Display	Grid (4types), Histgram, Icons : On / Off, Distance Scale : ft / m / Off

Focusing

Type	Phase Detection & Contrast AF
Mode	Single AF, Continuous AF, MF, Touch AF&Shutter
Focusing point	Total AF Point : 105 points (Phase Detection AF), 247 points (Contrast AF) Selection : 1 point ( Free selection ) Multi : Normal 21 (3 x 7) points (Cross point 1), Closeup 35 points Face Detection : Max. 10 faces
AF-Assist Lamp	Yes

Shutter Speed

Type	Electronically controlled vertical-run focal plane shutter
Speed	Auto1/6000sec. ~ 30sec. Manual1/6000sec. ~ 30sec. (1/3EV step) Bulb (Limit time : 4min.)

Exposure

Metering System	TTL 221 (17 x 13) Block segment Metering : Multi, Centre-weighted, SpotMetering range : EV 0-18 (ISO 100 30mm, F2)
Compensation	3 EV (1/3EV step)
AE Lock	CUSTOM Key applicable
ISO Equivalent	Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600 (1 or 1/3EV step) * AUTO ISO upper level is selectable. (Up to ISO 1600)

Drive Mode

Mode	Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE / WB / PW)
Continuous	JPEG : High (8.6fps) , Normal (up to 5fps) selectableBurst : 10, 15, 30fps selectable, 30 shots by 1 release RAW : High (8.6fps), Normal (up to 5fps) selectable
Bracket	Auto Exposure Bracket (3EV), WB, PW
Self-Timer	2 - 30sec. (1sec. step)
Remote Controller	via Micro USB port

Flash

Type	External Flash only (Bundle with SEF8A)
Mode	Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off
Guide Number	8 (at ISO 100) (SEF8A)
Angle of View Coverage	28mm wide-angle (Equivalent to 35mm)
Sync. Speed	Less than 1/180sec.
Flash Compensation	-2 - +2EV (1/2EV step)
External Flash	Samsung External Flash available
Synchro (Flash attachment)	Hot Shoe

White Balance

Mode	Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K (Manual)
Micro Adjustment	Each 7 steps in Amber / Blue / Green / Magenta axis

Dynamic Range Expansion

OFF / Smart Range+ / HDR

Picture Wizard

Mode	Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 ~ 3)
Parameter	Contrast, Sharpness, Saturation, Colour

Shooting

Mode	Smart Auto, Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Smart, Wi-Fi
Smart mode	Beauty Face, Landscape, Macro, Action Freeze, Rich Tone, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light Trace, Creative Shot, Best Face
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours)
Image Size	JPEG (3:2)20M (5472 x 3648), 10.1M (3888 x 2592), 5.9M (2976 x 1984), 2M (1728 x 1152), 5M (2736 x 1824) : Burst mode only JPEG (16:9)16.9M (5472 x 3080), 7.8M (3712 x 2088), 4.9M (2944 x 1656), 2.1M (1920 x 1080) JPEG (1:1) 13.3M (3648 x 3648), 7M (2640 x 2640), 4M (2000 x 2000), 1.1M (1024 x 1024) RAW : 20M (5472 x 3648) * 3D Lens Image Size : JPEG (16:9) 4.1M (2688 x 1512), (16:9) 2.1M (1920 x 1080)
Quality	Super fine , Fine, Normal
RAW Format	SRW (ver.2.0.0)
Color Space	sRGB / Adobe RGB

Image Play

Type	Single image, Thumbnails (3 / 15 / 40 images), Slide show, Movie
Editing	Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours)

Movie Clip

Format	MP4 (H.264)
Compression	Movie : H.264 , Sound : AAC
Mode	Program, Aperture Priority, Shutter Priority, Manual
Recording	With Audio or without Audio (user selectable, recording time : 29 minutes 59 seconds)
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours) (1920 x 1080, 1280 x 720, 640 x 480, 320 x 240)
Image Size	1920 x 1080, 1920 x 810, 1280 x 720 , 640 x 480, 320 x 240 for Sharing
Frame Rate	60fps, 30fps, 24fps (1920 x 810 Only) (* 3D - 30fps Only)
Multi-Motion Recording	x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20
Quality	High Quality , Normal
Sound	Stereo Sound
Movie Editing	Still Image Capture, Time Trimming

Storage

Media	SD, SDHC, SDXC, UHS-1 Support
File Format	RAW (SRW ver2.0.0), JPEG (EXIF 2.21), MPO(for 3D), DCF, DPOF 1.1
Capacity (2GB)	20M : RAW 3920M (3:2) : Super Fine 130, Fine 163, Normal 21710.1M (3:2) : Super Fine 277, Fine 356, Normal 5055.9M (3:2) : Super Fine 471, Fine 570, Normal 7272M (3:2) : Super Fine 1053, Fine 1426, Normal 1941 Burst (5M) : Super Fine 430, Fine 514, Normal 63816.9M (16:9) : Super Fine 153, Fine 190, Normal 2517.8M (16:9) : Super Fine 346, Fine 417, Normal 5684.9M (16:9) : Super Fine 512, Fine 670, Normal 8962.1M (16:9) : Super Fine 1015, Fine 1349, Normal 170013.3M (1:1) : Super Fine 217, Fine 227, Normal 2847M (1:1) : Super Fine 336, Fine 465, Normal 5924M (1:1) : Super Fine 559, Fine 752, Normal 12031.1M (1:1) : Super Fine 2149, Fine 2471, Normal 2819 Movie : 1920 x 1080 60p: High Quality 10m 10s, Normal 12m 43s 1920 x 1080 30p : High Quality 17m 41s, Normal 22m 9s 1920 x 810 24p : High Quality 21m 35s, Normal 27m 2s 1280 x 720 60p: High Quality 16m 51s, Normal 21m 6s 1280 x 720 30p: High Quality 29m 11s, Normal 36m 35s 640 x 480 30p : High Quality 120m 47s, Normal 153m 30s 320 x 240 30p: High Quality 218m 48s, Normal 278m 24s *These figures are measure under the Samsung standard.*

Languages

29 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified / Traditional Chinese, Arabic, Persian, Turkish, Hebrew, Thai, Greek, Hungarian, Estonian, Lithuanian, Latvian,Serbian, Croatian)

GPS

Type	Geo-tagging w / Optional GPS Module (WGS84)

NFC

Yes

Interface

Digital Output Connector	USB 2.0 (micro USB Jack)
Video Output	NTSC, PALHDMI 1.4a
External Release	Yes
DC Power Input Connector	DC 5V, 1A via Micro USB port

Power

Power Source	Type	Rechargeable battery : BP1130 (1130mAh)
Battery		160 min / 320 shots (CIPA Standard)

Physical Specification

Dimension	Dimension (WxHxD)	122 x 63.7 x 40.7mm (excluding the projection part)
Weight		284 g (without battery)
Operating Temperature		0 - 40C
Operating Humidity		5 - 85%

S/W and PC OS

Bundle PC S/W	Adobe Photoshop Lightroom, iLauncher, Adobe Reader

Wireless

Wireless	IEEE 802.11b/g/n support Dual Channel. AutoShare. Cloud. Email. Auto Backup. Remote Viewfinder. Mobile Link. Wi-Fi Direct. AllSharePlay. Social Sharing

System Requirement

Windows	iLauncher	PC with processor better than Intel Core 2 Duo 1.66 GHz / AMD Athlon X2 Dual-Core 2.2 GHz or higher Minimum 512MB RAM (Over 1GB recommended) Windows XP SP2 / Vista / 7 / 8250MB of available hard-disk space (Over 1GB recommend) USB 2.0 port CD-ROM drive nVIDIA Geforce 7600GT or later / Ati X1600 series or later 1024 x 768 pixels, 16-bit colour display compatible monitor (1280 x 1024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later
Macintosh	iLauncher	Mac OS 10.5 or higher Minimum 256MB RAM Minimum 110MB of available hard-disk space USB port CD-ROM drive

• Discover amazing detail with 20.3MP APS-C sensor
• Take sharp shots spontaneously with hybrid autofocus
• Shoot continuously at a fast 8.6 frames per second
• Share photos on the go with built-in Wi-Fi connectivity



Remotely control your camera from a smartphone



Remote Viewfinder

Control your camera by using your smartphone as the viewfinder. Remote Viewfinder lets you preview images, adjust the camera settings, zoom in and out and frame each scene— all from your phone, wirelessly. This feature is available for select smartphones.





Connect to your camera faster-one touch, three apps





Hybrid UI (Touch & 5 Way Key) Variation


The Samsung SMART CAMERA NX300 offers multiple options, even for navigating the menu on the 3.31" (84mm) WVGA screen. The intuitive Hybrid Touch User Interface combines a 5-way button with a touchscreen so you can quickly select menu options to apply effects, share images, input text and more. Whether youre tapping the screen or moving the cursor around, everything you do is easier and faster.



Designed to capture attention with retro modern style





Retro Modern Design

Taking its cues from the simplicity of vintage camera design and from state-of-the-art innovation, the design of the Samsung SMART CAMERA NX300 impresses with elegant, flowing lines and a luxuriously textured feel. Its crafted from sturdy metal, yet is compact and lightweight for easy on-the-go shooting. Sharp edging presents a sleek silhouette when viewed from above, while an ergonomic design ensures a safe and steady grip.



Get a different view on life





3.31" (84mm) AMOLED Tilt Display


Seeand capturethe world differently. The 3.31" (84mm) AMOLED Tilt Display flips up 90 and down 45. So now you can easily frame and capture a low-angle image without having to awkwardly contort your body or lie on the ground. You can also hold the camera over a crowd for a high-angle shot and see exactly what youre getting. Shooting from a variety of angles can also make for more exciting photo albums.



A powerful engine for perfect shooting





DRIMe IV New Image Engine


Powered by Samsungs next-generation DSP imaging engine, the DRIMe IV image processor accurately captures the special moments in your life. Its faster than its predecessor for improved overall performance, including superior colour reproduction and noise reduction. Whether youre shooting 2D or 3D, this powerful engine ensures youll treasure your memorieswith enhanced Full HD movie qualityfor the rest of your life.



Add pop to your movies and stills





True 3D Creator (Worlds 1st One Lens System)

3D Still / Movie Capture Capability (45mm 2D/3D Lens only)



Make vacation stills and videos pop off the screen with True 3D Creator. Featuring the worlds first single lens system for capturing 2D and 3D images, the Samsung SMART CAMERA NX300 is also the only interchangeable-lens camera that lets you shoot stills and movies in 3D via Samsung 45mm 2D/3D lens. When youre done shooting, let your friends back home feel as if they were there with you, by showing off your stunningly vivid adventures on a compatible 3D HDTV.

Make vacation stills and videos pop off the screen with True 3D Creator. Featuring the worlds first single lens system for capturing 2D and 3D images, the Samsung SMART CAMERA NX300 is also the only interchangeable-lens camera that lets you shoot stills and movies in 3D via Samsung 45mm 2D/3D lens. When youre done shooting, let your friends back home feel as if they were there with you, by showing off your stunningly vivid adventures on a compatible 3D HDTV.



Discover the true beauty of Full HD video





Full HD Movie (1080/60P)


The Samsung SMART CAMERA NX300 may not look like a camcorder, but it capably captures Full HD 1080/60P video. With uncompromising performance bolstered by an 18-200mm lens and wide zoom capability, the Samsung SMART CAMERA NX300 delivers smooth, professional-looking videos that play well on your HDTV. When youre ready for showtime, an HDMI interface lets you transmit your vision straight to the big screen.





Wide Range ISO (100~25600)



Capturing natural-looking images indoors, or outside at night, can require a higher ISO than most cameras allow. The Samsung SMART CAMERA NX300 lets you shoot up to ISO 25600 making it twice as sensitive to light as the previous model—so you can snap high-speed photos with minimal noise and blurring, even in low light.



Creative Shot



Instantly add emotional impact to your images without stopping to figure out which mode to use. Creative Shot automatically analyses the scene when you take the shot, and prepares the appropriate effects. So a happy face beams a little brighter, and a sunset glows with a touch more orange.



Smart Mode



Tap Smart Mode to access a variety of settings that help you get the perfect shot every time—even if you’re not a pro. Capture a high-speed scene with Sports Capture, or let Rich Tone create extraordinarily surrealistic photos with colours that pop. Just choose the mode you want and shoot perfection.



Smart Filter



Boost creative fun with the Smart Filter –right on the display! Cartoon filter makes any photo look like an animated film scene while Cross Filter makes light sources appear to have several points of light, like stars. There’s also Ink Painting, Half-tone Dot and more ways for you to express your creative side.





HDMI



Just one HDMI code is all it takes to connect your SMART CAMERA NX300 directly into your TV, computer or DVD player. With your SMART CAMERA NX300, making professional quality videos is just as easy as sharing them.



Specifications:



Image Sensor

Sensor Type	CMOS
Sensor Size	23.5 x 15.7mm
Effective Pixel	Approx 20.3MP
Total Pixel	Approx 21.6MP
Color Filter	RGB Primary Colour Filter

Lens

Usable Lens	Samsung Lenses for Samsung NX Mount
Mount	Samsung NX

Image Stabilisation

Type	Lens Shift (Depends on Lens)
Mode	OIS Mode1 / Mode2 / OFF

Distortion Correct

Mode	LDC On / Off (depends on Lens)

i-Function

i-Depth, i-Zoom (x 1.2, 1.4, 1.7, 2.0)

Dust Reduction

Type	Supersonic drive

Display

Type	AMOLED with Touch (C-type Touch Control Enabled) and Tilt (Up 90, Down 45)
Size	84mm (3.31")
Resolution	WVGA ( 800 x 480 ) 768k dots (Pentile)
Filed of View	Approx 100%
User Display	Grid (4types), Histgram, Icons : On / Off, Distance Scale : ft / m / Off

Focusing

Type	Phase Detection & Contrast AF
Mode	Single AF, Continuous AF, MF, Touch AF&Shutter
Focusing point	Total AF Point : 105 points (Phase Detection AF), 247 points (Contrast AF) Selection : 1 point ( Free selection ) Multi : Normal 21 (3 x 7) points (Cross point 1), Closeup 35 points Face Detection : Max. 10 faces
AF-Assist Lamp	Yes

Shutter Speed

Type	Electronically controlled vertical-run focal plane shutter
Speed	Auto1/6000sec. ~ 30sec. Manual1/6000sec. ~ 30sec. (1/3EV step) Bulb (Limit time : 4min.)

Exposure

Metering System	TTL 221 (17 x 13) Block segment Metering : Multi, Centre-weighted, SpotMetering range : EV 0-18 (ISO 100 30mm, F2)
Compensation	3 EV (1/3EV step)
AE Lock	CUSTOM Key applicable
ISO Equivalent	Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600 (1 or 1/3EV step) * AUTO ISO upper level is selectable. (Up to ISO 1600)

Drive Mode

Mode	Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE / WB / PW)
Continuous	JPEG : High (8.6fps) , Normal (up to 5fps) selectableBurst : 10, 15, 30fps selectable, 30 shots by 1 release RAW : High (8.6fps), Normal (up to 5fps) selectable
Bracket	Auto Exposure Bracket (3EV), WB, PW
Self-Timer	2 - 30sec. (1sec. step)
Remote Controller	via Micro USB port

Flash

Type	External Flash only (Bundle with SEF8A)
Mode	Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off
Guide Number	8 (at ISO 100) (SEF8A)
Angle of View Coverage	28mm wide-angle (Equivalent to 35mm)
Sync. Speed	Less than 1/180sec.
Flash Compensation	-2 - +2EV (1/2EV step)
External Flash	Samsung External Flash available
Synchro (Flash attachment)	Hot Shoe

White Balance

Mode	Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K (Manual)
Micro Adjustment	Each 7 steps in Amber / Blue / Green / Magenta axis

Dynamic Range Expansion

OFF / Smart Range+ / HDR

Picture Wizard

Mode	Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 ~ 3)
Parameter	Contrast, Sharpness, Saturation, Colour

Shooting

Mode	Smart Auto, Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Smart, Wi-Fi
Smart mode	Beauty Face, Landscape, Macro, Action Freeze, Rich Tone, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light Trace, Creative Shot, Best Face
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours)
Image Size	JPEG (3:2)20M (5472 x 3648), 10.1M (3888 x 2592), 5.9M (2976 x 1984), 2M (1728 x 1152), 5M (2736 x 1824) : Burst mode only JPEG (16:9)16.9M (5472 x 3080), 7.8M (3712 x 2088), 4.9M (2944 x 1656), 2.1M (1920 x 1080) JPEG (1:1) 13.3M (3648 x 3648), 7M (2640 x 2640), 4M (2000 x 2000), 1.1M (1024 x 1024) RAW : 20M (5472 x 3648) * 3D Lens Image Size : JPEG (16:9) 4.1M (2688 x 1512), (16:9) 2.1M (1920 x 1080)
Quality	Super fine , Fine, Normal
RAW Format	SRW (ver.2.0.0)
Color Space	sRGB / Adobe RGB

Image Play

Type	Single image, Thumbnails (3 / 15 / 40 images), Slide show, Movie
Editing	Smart Filter, Red-eye fix, Backlight., Resize, Rotate, Face Retouch, Brightness, Contrast
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours)

Movie Clip

Format	MP4 (H.264)
Compression	Movie : H.264 , Sound : AAC
Mode	Program, Aperture Priority, Shutter Priority, Manual
Recording	With Audio or without Audio (user selectable, recording time : 29 minutes 59 seconds)
Smart Filter	Vignetting, Minature, Coloured Pencil, Watercolour, Wash Drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Selective Colour (R / G / B / Y 4 Colours) (1920 x 1080, 1280 x 720, 640 x 480, 320 x 240)
Image Size	1920 x 1080, 1920 x 810, 1280 x 720 , 640 x 480, 320 x 240 for Sharing
Frame Rate	60fps, 30fps, 24fps (1920 x 810 Only) (* 3D - 30fps Only)
Multi-Motion Recording	x0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20
Quality	High Quality , Normal
Sound	Stereo Sound
Movie Editing	Still Image Capture, Time Trimming

Storage

Media	SD, SDHC, SDXC, UHS-1 Support
File Format	RAW (SRW ver2.0.0), JPEG (EXIF 2.21), MPO(for 3D), DCF, DPOF 1.1
Capacity (2GB)	20M : RAW 3920M (3:2) : Super Fine 130, Fine 163, Normal 21710.1M (3:2) : Super Fine 277, Fine 356, Normal 5055.9M (3:2) : Super Fine 471, Fine 570, Normal 7272M (3:2) : Super Fine 1053, Fine 1426, Normal 1941 Burst (5M) : Super Fine 430, Fine 514, Normal 63816.9M (16:9) : Super Fine 153, Fine 190, Normal 2517.8M (16:9) : Super Fine 346, Fine 417, Normal 5684.9M (16:9) : Super Fine 512, Fine 670, Normal 8962.1M (16:9) : Super Fine 1015, Fine 1349, Normal 170013.3M (1:1) : Super Fine 217, Fine 227, Normal 2847M (1:1) : Super Fine 336, Fine 465, Normal 5924M (1:1) : Super Fine 559, Fine 752, Normal 12031.1M (1:1) : Super Fine 2149, Fine 2471, Normal 2819 Movie : 1920 x 1080 60p: High Quality 10m 10s, Normal 12m 43s 1920 x 1080 30p : High Quality 17m 41s, Normal 22m 9s 1920 x 810 24p : High Quality 21m 35s, Normal 27m 2s 1280 x 720 60p: High Quality 16m 51s, Normal 21m 6s 1280 x 720 30p: High Quality 29m 11s, Normal 36m 35s 640 x 480 30p : High Quality 120m 47s, Normal 153m 30s 320 x 240 30p: High Quality 218m 48s, Normal 278m 24s *These figures are measure under the Samsung standard.*

Languages

29 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified / Traditional Chinese, Arabic, Persian, Turkish, Hebrew, Thai, Greek, Hungarian, Estonian, Lithuanian, Latvian,Serbian, Croatian)

GPS

Type	Geo-tagging w / Optional GPS Module (WGS84)

NFC

Yes

Interface

Digital Output Connector	USB 2.0 (micro USB Jack)
Video Output	NTSC, PALHDMI 1.4a
External Release	Yes
DC Power Input Connector	DC 5V, 1A via Micro USB port

Power

Power Source	Type	Rechargeable battery : BP1130 (1130mAh)
Battery		160 min / 320 shots (CIPA Standard)

Physical Specification

Dimension	Dimension (WxHxD)	122 x 63.7 x 40.7mm (excluding the projection part)
Weight		284 g (without battery)
Operating Temperature		0 - 40C
Operating Humidity		5 - 85%

S/W and PC OS

Bundle PC S/W	Adobe Photoshop Lightroom, iLauncher, Adobe Reader

Wireless

Wireless	IEEE 802.11b/g/n support Dual Channel. AutoShare. Cloud. Email. Auto Backup. Remote Viewfinder. Mobile Link. Wi-Fi Direct. AllSharePlay. Social Sharing

System Requirement

Windows	iLauncher	PC with processor better than Intel Core 2 Duo 1.66 GHz / AMD Athlon X2 Dual-Core 2.2 GHz or higher Minimum 512MB RAM (Over 1GB recommended) Windows XP SP2 / Vista / 7 / 8250MB of available hard-disk space (Over 1GB recommend) USB 2.0 port CD-ROM drive nVIDIA Geforce 7600GT or later / Ati X1600 series or later 1024 x 768 pixels, 16-bit colour display compatible monitor (1280 x 1024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later
Macintosh	iLauncher	Mac OS 10.5 or higher Minimum 256MB RAM Minimum 110MB of available hard-disk space USB port CD-ROM drive

20mm NX Pancake Lens W20NB

12-24mm F4-5.6 NX Lens

• Wide Angle
• Compact and Powerful
• Low Chromatic Aberration for High-Quality Images





Spherical lenses create image distortion by causing light rays passing through the center and edge to have different focal points. Samsungs advanced optical processing techniques correct this spherical aberration by expertly manipulating the curvature of the lens to add aspherical elements. Aspheric lenses are quite complex and require a high degree of precision to produce, but the end result sharper images is worth the effort.



Specifications:



Aperture(Min)
Aperture(Min)	F4 - 5.6

Minimum focus distance
Minimum focus distance	0.24m

Magnification
Magnification	Approx.0.14X

Lens Mount
Lens Mount	Samsung NX

Angle of View Coverage
Angle of View Coverage	99.0- 60.7

Elements/Groups
Elements/Groups	10 elements in 8 groups

Max. Diameter
Max. Diameter	63.5mm

Length
Length	65.5mm

Weight
Weight	208g

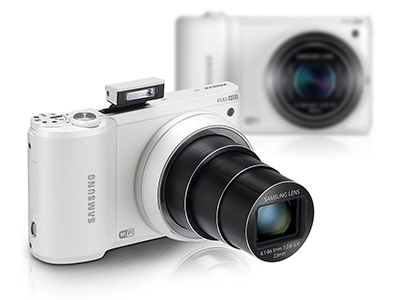

• SMART Camera 2.0
• Share photos and videos with built in Wi-Fi
• 21x, 23mm wide angle Lens
• 3 Intelligent LCD Screen
• Optical Image Stabilisation
• 16.3MP resolution



Total control, now more intuitive



Hybrid Touch Screen


The Hybrid Touch User Interface offers two options: use the 5-way button to quickly move the cursor up, down, left and right to intuitively navigate the menu and make selections on the 3.0 (75mm) hVGA screen. Alternately, when you want to enter text such as an email address, for when youre sharing photos simply input the characters on the touch screen, much like you would on a smartphone. Navigating controls and sharing images couldnt be easier. The user-friendly Smart Panel puts all the most important controls at your fingertips.





Go far and wide for the exceptional shots



23mm wide angle lens, 21x optical zoom


The whole wide world is yours to capture. Use the 23mm wide-angle lens to capture a quaint row of Tudor houses or a gushing, wide waterfall it can handle any sweeping panoramas. Theres also an 21x optical zoom that helps you quickly take stunning close-ups from far away, so you can get sharply rendered images of moving glockenspiel figurines atop a clock tower or of the colourful details of exotic birds in the wildlife park.



Capture brilliance in low-light settings





16M BSI CMOS sensor & Low Light Shot


A sunset beach party, a dimly-lit dance club great photo opportunities dont always have the best lighting. Capture properly exposed images in low-light situations with the 14-megapixel BSI (Back Side Illuminated) CMOS sensor. Use the Low Light Shot mode to automatically select the best setting and merge three continuous shots into one, clear photo.



SMART CAMERA with design smarts





Stylish and Classic Design


The quietly beautiful SMART CAMERA re-imagines the classic professional camera and brings it into the digital era. With a slender body, the design highlights its modern sensibilities with flashes of timeless elegance. Even the unobtrusive DIRECT LINK button maintains the sleek build.



Rewind to the picture perfect moment

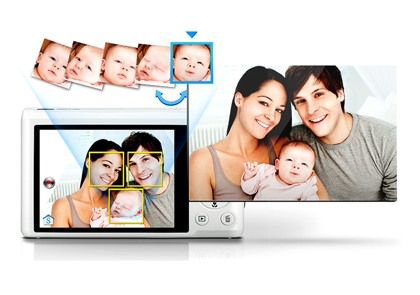

Best Face


Missed it? With the Best Face feature that wont happen again. Use it to travel back in time after youve taken a picture to replace faces with the perfect moment. Use it to open eyes, replace a smile, or find that perfect expression. With the combination lightning fast burst shots and facial recognition, you can simply tap a face that's looking the other way, and tap again to replace it with expressions taken moments before the actual shot.



The easy way to shoot like a pro





Smart Mode


Stop being jealous of the pros with their big cameras, and start taking great shots. A quick tap of Smart Mode and youre set with various special modes. Capture trails of light at night on a busy intersection full of red taillights or capture a high-speed scene with Action Freeze. Let Rich Tone create extraordinarily surrealistic photos with colours that pop and express your artistic side. Just choose the one you want and the WB800F will help you shoot great photos.





Capture 1920 x 1080 Full HD video with life-like colour and extraordinarily sharp details. Shoot longer too — the camera’s H.264 format allows longer recording than a camera with MJPEG video does. When you’re done, you can watch your brilliant HD footage large as life on your HDTV.





Motion Photo



Motion Photo freezes the action around a moving subject to create a fun scene. Capture a friend dancing then make everyone around him still as a statue. Simply shoot the footage, and then rub the area on the display where you want keep the movement. The photo around it will freezeits that easy.





Full Manual (A/S/M) mode allows you full creative control. Aperture Priority and Shutter Priority settings let you experiment with shutter speeds and depth of field — for example, when you’re shooting fast-moving images in low light. With Samsung cameras, you can capture exactly the photos you want.



Specifications:

Image Sensor

Sensor Type	1/2.3 (Approx. 7.76mm) BSI CMOS
Effective Pixel	Approx. 16.3 Mega pixels
Total Pixel	Approx. 17.0 Mega pixels

Lens

Focal Length	Samsung LENS 21x Zoom Lens f = 4.1 ~ 86.1mm (35mm film equivalent: 23 ~ 483mm)
F No.	2.8 (W) ~ 5.9 (T)
Optical Zoom	21x Optical Zoom
digital zoom	Still Image mode: 1.0x ~ 5.0x Play mode: 1.0x ~ 9.4x (depends on image size)* Intelli-zoom: 2.0x

Image Stabilisation

mode	Optical Image Stabilisation

Display

type	TFT LCD (C-Type Touch)
Size	75.0mm (3.0"), 460K dots

Focusing

type	TTL Auto Focus (Centre AF, Multi AF, Tracking AF, Face Detection AF, Touch AF), Manual Focus
Range	Normal: 80cm ~ Infinity (Wide), 350cm ~ Infinity (Tele) Macro: 5cm ~ 80cm (Wide), 180cm ~ 350cm (Tele) Auto Macro: 5cm ~ Infinity (Wide), 180cm ~ Infinity (Tele) Manual: 5cm ~ Infinity (Wide), 180cm ~ Infinity (Tele)

Shutter Speed

Smart Auto: 1/8 ~ 1/2,000 seconds, Program: 1 ~ 1/2,000 seconds, Manual: 16 ~ 1/2,000 seconds

Exposure

Control	Program AE, Aperture Priority AE, Shutter Priority AE, Manual Exposure
Metering System	Multi, Spot, Centre-weighted, Face Detection AE
Compensation	2EV (1/3EV steps)
ISO Equivalent	Auto, 100, 200, 400, 800, 1,600, 3,200

Flash

mode	Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix
Range	Wide: 0.3m ~ 3.38m (ISO Auto), Tele: 0.5m ~ 1.51m (ISO Auto)
Recharging Time	Approx. 4 seconds

White Balance

mode	Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom, K

Still Image

mode	* Mode (Dial): 1) Auto 2) Program 3) A/S/M 4) Smart 5) Magic Plus 6) Best Face 7) Settings 8) Wi-Fi* Auto: Portrait, Night Portrait, Night, Backlight Portrait, Backlight, Landscape, White, Macro, Macro Text, Tripod, Action, Macro Colour, Natural Green, Blue Sky, Sunset, Fireworks, lowlight, spotlight, spotlight macro, spotlight portrait* Smart: Beauty Face, Landscape, Action Freeze, Panorama, Waterfall, Silhouette, Sunset, Fireworks, Light Trace, Low Light Shot, Rich tone, Contiuous Shot, Macro* Magic Plus: My Magic Frame, Split Shot, Motion Photo, Photo Filter, Movie Filter, Photo Editor* Wi-Fi: MobileLink, Remote Viewfinder, SNS & Cloud, E-mail, Auto Backup, AllShare Play, S/W Upgrade Notifier, AutoShare* Drive: Single, Continuous (8fps, 3fps), BKT(AE)* Self timer: Off, 2 seconds, 10 seconds

Image Play

Single image, Thumbnails, Advanced Slide Show, Movie Clip, Smart Album

Date Imprinting

Date&Time, Date, Off (user selectable)

Movie Clip

Recording	* Smart Movie: Landscape, Blue Sky, Natural Green, Sunset * Movie Size: 1920 x 1080 (30fps), 1280 x 720 (30fps), 640 x 480 (30fps), 320 x 240 (30fps), 240 web * 18x optical zoom (Max. recording time: 20 minutes) * Audio: Sound Alive On / Sound Alive Off / Mute * Dual Capture (Movie 1080p@30pfs & Still 2Mpixels)
Effect	* Smart Filter: Miniature, Vignetting, Sketch, Fish-eye, Classic, Retro, Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4
Edit	Pause during recording and playing, Still Image Capture, Time Trimming

Storage

Media	Internal memory: Approximately 9.5MB External Memory: SDSC (up to 2GB guaranteed), SDHC (up to 32GB guaranteed), SDXC (up to 64GB guaranteed)
File format	* Still Image: JPEG (DCF), EXIF 2.21 * Movie Clip: MP4 (Video: MPEG4, AVC / H.264, Audio: AAC)
Image Size	16M: 4608 x 3456 14M: 4608 x 3072 10M: 3648 x 2736, 12M: 4608 x 2592, 5M: 2592 x 1944, 3M: 1984 x 1488, 2MW: 1920 x 1080, 1M: 1024 x 768 8M: 2832 x 2832

Interface

Digital Output Connector	USB 2.0
Audio	Microphone: Mono Internal Speaker: Mono
Video Output	AV: NTSC, PAL (User selectable)
DC Power Input	5V

Power

Power Source	type	Rechargeable battery: SLB-10A Connector Type: micro USB (5 pin)

Physical Specifications

Dimension	Dimension (WxHxD)	110.6 x 65.0 x 21.5mm
Weight		218g (without battery and memory card media)
Operating Temperature		0 ~ 40C
Operating Humidity		5 ~ 85%

S/W and PC OS

Bundle PC S/W	I-Launcher
Compatible OS	Windows XP SP2 / Vista / 7 / 8

System Requirement in General

For Macintosh	Power Mac G3 or later Mac OS 10.5 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive
For Windows	PC with processor better than Intel Core 2 Duo 1.66GHz / AMD Athlon X2 Dual-Core 2.2GHz or higher Minimum 512MB RAM (Over 1GB recommended) Windows XP SP2 / Vista / 7 / 8 250MB of available hard-disk space (Over 1GB recommend) USB 2.0 port CD-ROM drive nVIDIA Geforce 7600GT or later / Ati X1600 series or later 1024 x 768 pixels, 16-bit colour display compatible monitor (1280 x 1024, 32-bit colour display recommended) Microsoft DirectX 9.0c or later

Wireless

Wireless

* Wi-Fi Connectivity - MobileLink, Remote Viewfinder, SNS & Cloud, E-mail, Auto Backup, AllShare Play - S/W Upgrade Notifier, AutoShare * AllShare Play: Nearby Device, Web Storage * SNS & Cloud - Global: Facebook, YouTube, Picasa, SkyDrive - China: Weibo, RenRen, Poco, SkyDrive - Hongkong: Facebook, YouTube, Picasa, Weibo, RenRen, Poco, SkyDrive - Korea: Facebook, YouTube, Picasa, SkyDrive * S/W Upgrade Notifier: Supported in Wi-Fi mode, and only for notification * facebook, weibo, email: Supporting to add comment

ST150F 16.2MP Camera (White)

• Your Best Photos Instantly Shared Wirelessly
• Brighter and More Natural Pictures
• 720p HD Movie Recording

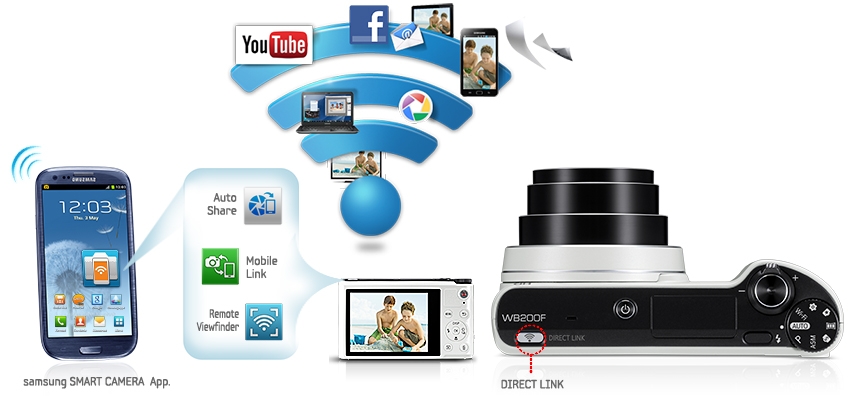

Download the Samsung SMART App. which features- Remote Viewfinder, AutoShare, and MobileLink without having to download each app individually. Rather than launching the apps one at a time on your smartphone, you can open all three apps at once, with the touch of a finger.



Seamless Sharing Across All Devices





AllShare Play lets you connect to all devices that support AllShare Play. You can wirelessly stream photos and videos from your camera to nearby devices to share with friends and family at once, or simply upload to Web Storage instantly for easy management. Enjoy the freedom of sharing with AllShare Play!





3" Hybrid Touch Display



The Hybrid Touch Display offers two options: use the 5-way button to quickly move the cursor up, down, left and right to intuitively navigate the menu and make selections. Alternately, when you want to enter text – such as an email address – simply input the characters on the touch screen. Navigating controls and sharing images couldn’t be easier.

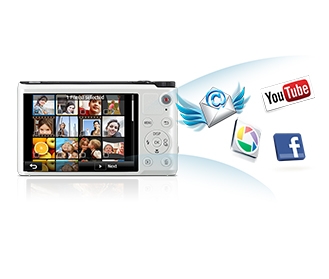

Share with the World, Anywhere in the World





You can instantly email or post must-see images and videos to your favorite social networks. Just select and upload wherever you have a Wi-Fi connection, and then add tags and comments. Share with your Blogger followers, or post to Facebook, Picasa or YouTube and many more social networks.



Easier to Take, Store and Share Pictures





Wirelessly transfer photos and movies to your PC or Mac. Simply choose AutoBackup and you're all set. All your photos and videos are transferred wirelessly and safely stored on to your computer. Feel free to delete photos from your camera knowing there's a duplicate set on your computer.

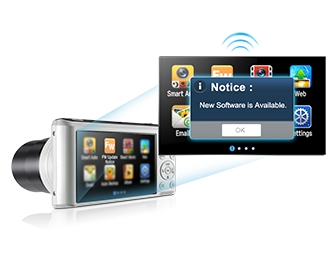

Get Firmware Notifications





When a firmware update is available for our Samsung Wi-Fi connected SMART Camera, the Software Upgrade notification window will pop up on the camera's screen. Connect your camera to your PC for the upgrade, and start using the latest features without delay.





Customize and Edit your Photos



Even if you're not ready for your close-up, you can still create the perfect social network profile picture. Beauty Palette lets you choose from seven different makeup looks that help you change photos instantly.





Class Design with a Modern Touch



With its sleek, seamless body design, the camera feels as good in your hand as it feels great to have handy.



Great Close-Ups



When you're taking pictures at a concert or play, make every seat the best seat in the house. The 5x optical zoom gives you great close-ups, even from the back row. The 25mm wide-angle lens captures all the action on stage. And the combination of 16.1 megapixels and F2.5 lens give you high quality images — even in dim lights.





Add Action to your Still Photos



With Motion Photo, you can freeze time around a moving subject to create enchanting images. Capture a friend dancing while everyone else around him is still as a statue—just like in a Hollywood blockbuster. Simply shoot the footage, and then rub the area on the display where you want action. The photo around it will freeze—it's that easy.



Frame your Pictures in Fun



Make a portrait look like an antique, or put your face on the moon — Magic Frame's 12 background templates offer lots of picture-taking enjoyment. You can also put images on a 1950's TV set or a movie. There are so many possibilities for fun — especially when you share the poster-quality results!



Smart Filter 3.0





Boost creative fun with the Smart Filter 3.0 right on the display! Cartoon filter makes any photo look like an animated film scene while Cross Filter makes light sources appear to have several points of light, like stars. There's also Ink Painting, Half-tone Dot and more ways for you to express your creative side.



Smart Auto 2.0





Smart Auto 2.0 (Still & Movie) instantly analyzes key elements of your composition then automatically adjusts to capture the perfect shot with multitude of different photo modes and movie modes.



Live Panorama



With Live Panorama, you can capture every peak of a sprawling mountain range or every skyscraper in a magnificent city skyline to create astounding 180 panoramic images. And you can preview the image on the LCD before you even snap it. Just hold the shutter button, sweep across the scene and see what you're going to get before you get it.



Specifications:



Design
Color	White
Camera Type	Compact Smart Camera

Image sensor
Effective Pixel	Approx 16.2 MP
Total Pixel	Approx 16.56 MP
Image Sensor Type	CCD

Lens
Optical Zoom	5x
Digital Zoom	Still Image Mode: 1 - 5X, Play Mode: 1 - 14.4X (Depends on Image Size)
Focal Length	Samsung Lens f = 4.522.5 mm
F No.	F2.5-6.3

Shutter Speed
Range	Smart Auto : 1/8~1/2000 sec. Program : 1 ~ 1/2,000 sec.

Exposure
Compensation	2EV (1/3EV steps)
Control	Program AE
ISO Equivalent	Auto, 80, 100, 200, 400, 800, 1600, 3200
Metering System	Multi, Spot, Center-weighted, Face Detection AE

Focusing
Modes	TTL auto focus (Multi AF, Center AF, Face Detection AF, Object Tracking AF, Smart Face Recognition AF)
Range	Normal : 80cm ~ Infinity (Wide), 250cm ~ Infinity (Tele), Macro : 5cm~80cm (Wide), 100cm ~ 250cm (Tele), Auto Macro : 5cm~Infinity (Wide), 100cm~Infinity (Tele)

Display
Main LCD Screen	3.0" TFT QVGA LCD Screen
Resolution	230k

Video
Edit	Still Image Capture / Time Trimming
Picture Effects	Smart Movie Filter: Miniature / Vignetting / Half Tone Dot / Sketch / Fish-eye / Classic / Retro / Palette Effect 1 / Palette Effect 2 / Palette Effect 3 / Palette Effect 4
Recording	Mode : Smart Movie Movie Size:1280x720HQ (30fps, 15fps) - Per one file : Max. 4GB 640x480(30fps, 15fps) 320x240 (30fpss 15fps) * Due to the noise while optical zooming, user can select to record sound or not. (Voice recording selectable : Sound Alive On/ Sound Alive Off/ Mute)
Movie Clip	Max Recording time : 20min

Flash
Modes	Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix
Recharging Time	5 sec
Range	Wide : 0.2m ~ 4.0m, Tele : 0.5m~1.6m(ISO Auto)

Image Stabilization
DIS (Digital Image Stabilization)	Yes

Smart Settings
Smart Auto	2.0
Smart Filter	2.0
Smart Filter (Movie)	Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4, Miniature, Vignetting, Fish Eye, Defog, Classic, Retro, Negative
Smart Filter (Still Image)	Miniature, Vignetting, Half Tone Dot, Sketch, Fish Eye, Defog, Classic, Retro, Negative, Custom RGB
Smart Movie	Landscape, Blue Sky, Natural Green, Sunset

Picture Effects
Photo Style Selector	Yes
Perfect Portrait System	Face Detection, Blink Detection, Smile Shot, Beauty Shot, Self Portrait, Red-eye Fix

Sharpness
Sharpness	Soft+, Soft, Normal, Vivid, Vivid+

White Balance
Modes	Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, CustAuto, DaylighAuto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Storage
File Format	Still Image : JPEG (DCF), EXIF 2.21, GIF Movie Clip : MP4(H.264), Audio : AAC
Image Size	16 M: 4,608 x 3,456 / 14 MP: 4,608 x 3,072 / 12 MW: 4,608 x 2,592 / 10 M: 3,648 x 2,736 / 5 M: 2,592 x 1,944 / 3 M: 1,984 x 1,488 / 2 MW: 1920 x 1080 / 1 M: 1,024 x 768
External Memory (Optional)	External Memory(Optional) : micro SD (up to 2GB guaranteed) micro SDHC (up to 32GB guaranteed), micro SDXC (up to 64GB guaranteed)

Still Image
Edit	Image Edit (Resize, Rotate, Trimming), Photo Style Selector (Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB), Smart Filter (Miniature, Vignetting, Fish Eye1, Fish Eye2 ,DeFog, Sketch Effect), Image Adjust (Brightness, Contrast, Saturation, Red Eye Fix, ACB), Special Effects (Face Retouch Level 1-3, Color Filter Elegant, Add Noise)
Picture Effects	Image Adjust : Sharpness, Contrast, Saturation (5 steps)
Shooting	Mode : Smart Auto, Program, Scene, OIS, Picture-in-Picture, Live Panorama * Smart Auto : Portrait, Night Portrait, Backlight Portrait, Night, Backlight, Landscape, White, NaturalGreen, BlueSky, Sunset, Macro, Macro Text, Macro Color, Tripod, Action, Fireworks * Scene : Funny Face, Intelligent Portrait, Magic Frame, Beauty-Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach&Snow Drive : Single, Continuous, AEB, Motion Capture Self-timer : Off, 2 sec., 10 sec., Double

Audio
Microphone	Mono
Speaker	Mono

Wireless Connectivity
WiFi	Yes

Inputs & Outputs
USB 2.0	Yes
Video Out	AV: NTSC / PAL (User Selectable)

Dimensions
Product Size (WxHxD)	3.57" x 2.11" x 0 .67" (0.77")

Weight
Product without battery and card	112g

Power
DC power input	5.0V
Power Source	Rechargeable Battery
Battery	Rechargeable Battery: BP-70A

System Requirements
Windows	PC with processor better than Pentium 3.2 GHz / AMD Athlon FX 2.6 GHz or higher Minimum 512MB RAM (Over 1GB recommended) Windows XP SP2/ Vista/ 7 250MB of available hard-disk space (Over 1GB recommend), USB Port, CD-ROM drive,nVIDIA Geforce 7600GT or later / Ati X1600 series or later, 1024768 pixels, 16-bit color display compatible monitor ,(1280x1024, 32-bit color display recommended)
Macintosh	Power Mac G3 or later Mac OS 10.5 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive

Operating Conditions
Humidity	5 - 85 %
Temperature	32-104 F

ST150F 16.2MP Camera (Black)

• Your Best Photos Instantly Shared Wirelessly
• Brighter and More Natural Pictures
• 720p HD Movie Recording



Features:





Your Best Photos Instantly Shared Wirelessly



Instantly send quality photos to social networks like Facebook or email them to a small group of people.





Instantly Save Photos to Your Camera and Phone



Simultaneously send every picture you take to your mobile phone via Wi-Fi connection.





Control your Camera from your Smartphone



Control your camera by using your smartphone as the viewfinder.



Features:



Picture Perfect Sharing Every Time



Share your best pictures in style with the ST150. Instantly email or upload high quality photos to your social networks, right from your camera.







Your Best Photos Instantly Shared



Instantly send quality photos to social networks like Facebook or email them to a small group of people—directly from the camera. The dedicated DIRECT LINK hot key helps you quickly connect to Wi-Fi networks. Access your uploaded content on supported connected devices. Plus, you can store cool images and video directly from the camera to Microsoft SkyDrive.



Instantly Save Photos to Your Camera and Phone



Simultaneously send every picture you take to your mobile phone via Wi-Fi connection—to make backing up and sharing your high-quality photos easy. Setup AutoShare once and the camera saves it as the default setting. AutoShare also GPS tags your photos with your Smart Phone.





Camera, Smartphones and Tablets Image Sharing



Now you can select and send an image or album directly to an Android smartphone, iPhone or tablet with the Samsung MobileLink. You don't even have to send the image as a text message or as an email. With MobileLink, you can control the album on your phone and the changes will be saved to your camera, too.



Control Your Camera from Your Smartphone





Control your camera by using your smartphone as the viewfinder. Remote Viewfinder lets you preview images, adjust the camera settings, zoom in and out and frame each scene all from your phone, wirelessly. This feature is available for select smartphones.



Connect to your Camera Faster





Download the Samsung SMART App. which features- Remote Viewfinder, AutoShare, and MobileLink without having to download each app individually. Rather than launching the apps one at a time on your smartphone, you can open all three apps at once, with the touch of a finger.

Seamless Sharing Across All Devices





AllShare Play lets you connect to all devices that support AllShare Play. You can wirelessly stream photos and videos from your camera to nearby devices to share with friends and family at once, or simply upload to Web Storage instantly for easy management. Enjoy the freedom of sharing with AllShare Play!





3" Hybrid Touch Display



The Hybrid Touch Display offers two options: use the 5-way button to quickly move the cursor up, down, left and right to intuitively navigate the menu and make selections. Alternately, when you want to enter text – such as an email address – simply input the characters on the touch screen. Navigating controls and sharing images couldn’t be easier.

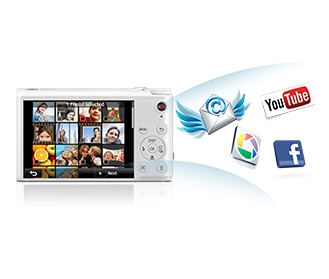

Share with the World, Anywhere in the World





You can instantly email or post must-see images and videos to your favorite social networks. Just select and upload wherever you have a Wi-Fi connection, and then add tags and comments. Share with your Blogger followers, or post to Facebook, Picasa or YouTube and many more social networks.



Easier to Take, Store and Share Pictures





Wirelessly transfer photos and movies to your PC or Mac. Simply choose AutoBackup and you're all set. All your photos and videos are transferred wirelessly and safely stored on to your computer. Feel free to delete photos from your camera knowing there's a duplicate set on your computer.



Get Firmware Notifications



When a firmware update is available for our Samsung Wi-Fi connected SMART Camera, the Software Upgrade notification window will pop up on the camera's screen. Connect your camera to your PC for the upgrade, and start using the latest features without delay.





Customize and Edit your Photos



Even if you're not ready for your close-up, you can still create the perfect social network profile picture. Beauty Palette lets you choose from seven different makeup looks that help you change photos instantly.









Class Design with a Modern Touch



With its sleek, seamless body design, the camera feels as good in your hand as it feels great to have handy.



Great Close-Ups



When you're taking pictures at a concert or play, make every seat the best seat in the house. The 5x optical zoom gives you great close-ups, even from the back row. The 25mm wide-angle lens captures all the action on stage. And the combination of 16.1 megapixels and F2.5 lens give you high quality images — even in dim lights.





Add Action to your Still Photos



With Motion Photo, you can freeze time around a moving subject to create enchanting images. Capture a friend dancing while everyone else around him is still as a statue—just like in a Hollywood blockbuster. Simply shoot the footage, and then rub the area on the display where you want action. The photo around it will freeze—it's that easy.



Frame your Pictures in Fun



Make a portrait look like an antique, or put your face on the moon — Magic Frame's 12 background templates offer lots of picture-taking enjoyment. You can also put images on a 1950's TV set or a movie. There are so many possibilities for fun — especially when you share the poster-quality results!



Smart Filter 3.0





Boost creative fun with the Smart Filter 3.0 right on the display! Cartoon filter makes any photo look like an animated film scene while Cross Filter makes light sources appear to have several points of light, like stars. There's also Ink Painting, Half-tone Dot and more ways for you to express your creative side.



Smart Auto 2.0





Smart Auto 2.0 (Still & Movie) instantly analyzes key elements of your composition then automatically adjusts to capture the perfect shot with multitude of different photo modes and movie modes.



Live Panorama







With Live Panorama, you can capture every peak of a sprawling mountain range or every skyscraper in a magnificent city skyline to create astounding 180 panoramic images. And you can preview the image on the LCD before you even snap it. Just hold the shutter button, sweep across the scene and see what you're going to get before you get it.



Specifications:



Design
Color	Black
Camera Type	Compact Smart Camera

Image sensor
Effective Pixel	Approx 16.2 MP
Total Pixel	Approx 16.56 MP
Image Sensor Type	CCD

Lens
Optical Zoom	5x
Digital Zoom	Still Image Mode: 1 - 5X, Play Mode: 1 - 14.4X (Depends on Image Size)
Focal Length	Samsung Lens f = 4.522.5 mm
F No.	F2.5-6.3

Shutter Speed
Range	Smart Auto : 1/8~1/2000 sec. Program : 1 ~ 1/2,000 sec.

Exposure
Compensation	2EV (1/3EV steps)
Control	Program AE
ISO Equivalent	Auto, 80, 100, 200, 400, 800, 1600, 3200
Metering System	Multi, Spot, Center-weighted, Face Detection AE

Focusing
Modes	TTL auto focus (Multi AF, Center AF, Face Detection AF, Object Tracking AF, Smart Face Recognition AF)
Range	Normal : 80cm ~ Infinity (Wide), 250cm ~ Infinity (Tele), Macro : 5cm~80cm (Wide), 100cm ~ 250cm (Tele), Auto Macro : 5cm~Infinity (Wide), 100cm~Infinity (Tele)

Display
Main LCD Screen	3.0" TFT QVGA LCD Screen
Resolution	230k

Video
Edit	Still Image Capture / Time Trimming
Picture Effects	Smart Movie Filter: Miniature / Vignetting / Half Tone Dot / Sketch / Fish-eye / Classic / Retro / Palette Effect 1 / Palette Effect 2 / Palette Effect 3 / Palette Effect 4
Recording	Mode : Smart Movie Movie Size:1280x720HQ (30fps, 15fps) - Per one file : Max. 4GB 640x480(30fps, 15fps) 320x240 (30fpss 15fps) * Due to the noise while optical zooming, user can select to record sound or not. (Voice recording selectable : Sound Alive On/ Sound Alive Off/ Mute)
Movie Clip	Max Recording time : 20min

Flash
Modes	Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix
Recharging Time	5 sec
Range	Wide : 0.2m ~ 4.0m, Tele : 0.5m~1.6m(ISO Auto)

Image Stabilization
DIS (Digital Image Stabilization)	Yes

Smart Settings
Smart Auto	2.0
Smart Filter	2.0
Smart Filter (Movie)	Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4, Miniature, Vignetting, Fish Eye, Defog, Classic, Retro, Negative
Smart Filter (Still Image)	Miniature, Vignetting, Half Tone Dot, Sketch, Fish Eye, Defog, Classic, Retro, Negative, Custom RGB
Smart Movie	Landscape, Blue Sky, Natural Green, Sunset

Picture Effects
Photo Style Selector	Yes
Perfect Portrait System	Face Detection, Blink Detection, Smile Shot, Beauty Shot, Self Portrait, Red-eye Fix

Sharpness
Sharpness	Soft+, Soft, Normal, Vivid, Vivid+

White Balance
Modes	Auto, Daylight, Cloudy, Fluorescent H, Fluorescent L, Tungsten, CustAuto, DaylighAuto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom

Storage
File Format	Still Image : JPEG (DCF), EXIF 2.21, GIF Movie Clip : MP4(H.264), Audio : AAC
Image Size	16 M: 4,608 x 3,456 / 14 MP: 4,608 x 3,072 / 12 MW: 4,608 x 2,592 / 10 M: 3,648 x 2,736 / 5 M: 2,592 x 1,944 / 3 M: 1,984 x 1,488 / 2 MW: 1920 x 1080 / 1 M: 1,024 x 768
External Memory (Optional)	External Memory(Optional) : micro SD (up to 2GB guaranteed) micro SDHC (up to 32GB guaranteed), micro SDXC (up to 64GB guaranteed)

Still Image
Edit	Image Edit (Resize, Rotate, Trimming), Photo Style Selector (Normal, Soft, Vivid, Forest, Retro, Cool, Calm, Classic, Negative, Custom RGB), Smart Filter (Miniature, Vignetting, Fish Eye1, Fish Eye2 ,DeFog, Sketch Effect), Image Adjust (Brightness, Contrast, Saturation, Red Eye Fix, ACB), Special Effects (Face Retouch Level 1-3, Color Filter Elegant, Add Noise)
Picture Effects	Image Adjust : Sharpness, Contrast, Saturation (5 steps)
Shooting	Mode : Smart Auto, Program, Scene, OIS, Picture-in-Picture, Live Panorama * Smart Auto : Portrait, Night Portrait, Backlight Portrait, Night, Backlight, Landscape, White, NaturalGreen, BlueSky, Sunset, Macro, Macro Text, Macro Color, Tripod, Action, Fireworks * Scene : Funny Face, Intelligent Portrait, Magic Frame, Beauty-Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach&Snow Drive : Single, Continuous, AEB, Motion Capture Self-timer : Off, 2 sec., 10 sec., Double

Audio
Microphone	Mono
Speaker	Mono

Wireless Connectivity
WiFi	Yes

Inputs & Outputs
USB 2.0	Yes
Video Out	AV: NTSC / PAL (User Selectable)

Dimensions
Product Size (WxHxD)	3.57" x 2.11" x 0 .67" (0.77")

Weight
Product without battery and card	112g

Power
DC power input	5.0V
Power Source	Rechargeable Battery
Battery	Rechargeable Battery: BP-70A

System Requirements
Windows	PC with processor better than Pentium 3.2 GHz / AMD Athlon FX 2.6 GHz or higher Minimum 512MB RAM (Over 1GB recommended) Windows XP SP2/ Vista/ 7 250MB of available hard-disk space (Over 1GB recommend), USB Port, CD-ROM drive,nVIDIA Geforce 7600GT or later / Ati X1600 series or later, 1024768 pixels, 16-bit color display compatible monitor ,(1280x1024, 32-bit color display recommended)
Macintosh	Power Mac G3 or later Mac OS 10.5 or higher Minimum 256MB RAM 110MB of available hard-disk space USB port CD-ROM drive

Operating Conditions
Humidity	5 - 85 %
Temperature	32-104 F
