Image Date Product description Price Buy
20/05

PQI Air Cam Digital Camera


- 5MP, HD 1080p, Built-In Microphone, 170 Degree Lens Angle, STN Mode Display

Description

PQI Air Cam is a camera with Wi-Fi capabilities created especially for extreme sports enthusiasts. Not only does it support standard SD cards, it can also simultaneously support the PQI Air Card, a memory card that incorporates wireless and SD capabilities, has a microSD slot, supports speeds up to Class 10, and can hold up to 32 GB and change its capacity based on personal needs. It allows you to browse and share your photos instantly, eliminating the headaches from not being able to immediately view and share your amazing photos. Once you insert the Air Card into the Air Cam memory slot, it automatically enables the Wi-Fi capabilities for easy use without any extra setup. You can also use a cell phone, tablet PC, or other handheld devices to download the PQI app Air Card+ (supports Google Play and iOS systems) and you can share your pictures and videos with friends with the push of a button no need to use a computer or card reader to retrieve your files. You can have amazing pictures no matter where you are.

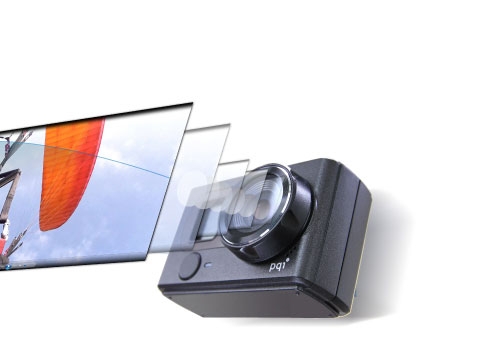

Wide angle 170 degree

Nothing will be missed with the 170° wide-angle fish eye lens.

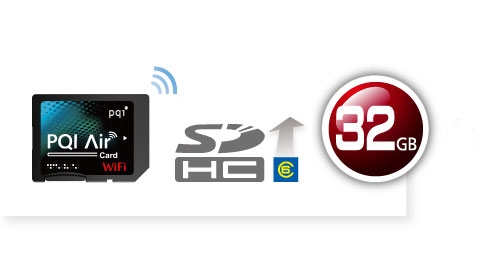

Use PQI Air Card to enjoy instant wireless sharing

PQI Air Card is a memory card that incorporates wireless and SD capabilities, has a microSD slot, supports speeds up to Class 10, can hold up to 32 GB and change its capacity based on personal needs, allowing you to browse and share your photos instantly.


Equipped with a 5 megapixel, HD 1080P high resolution display

A Full HD 1080p display, the highest specification in the market, and 5 megapixel high resolution which produces razor sharp images, as well as supports video capture and burst shot.

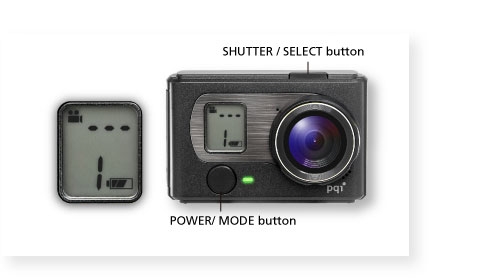

Easy operation

The current mode and remaining battery life is shown on the front display panel.


Camera clip and mount included

Camera clip, bicycle mount, and adhesive mount included for PQI Air Cam to be easily and safely secured on any object to instantly capture exciting moments with ease.

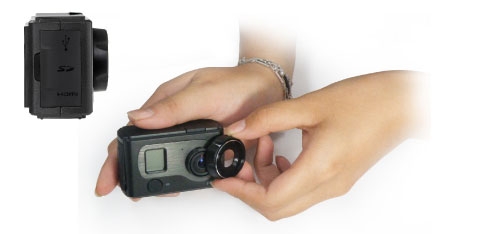

With the unique lens protector, detaching and switching lenses is a breeze!

The lens protector protects the most fragile lenses from accidental scratches and wear and tear. Switch lenses quickly and improve the life of your lenses.


Specifications:
Capacity supports SDHC Class 6 and higher, up to 32GB
Dimensions 70.96(L) x 30(D) x 45(H)(mm) (w/o Lens); 2.79 x 1.18 x 1.77 (in)
96.8(L) x 52.8(D) x 74.46(H) (mm) (w/ waterproof housing); 3.81 x 2.08 x 2.93 (in)
Weight About 905(g) w/battery (3.18 oz)
Other Information Image sensorCMOS
Video resolution1080P, 960P, 720P,WVGA
Video compression formatH.264
Movie formatMP4
Audio formatAAC
Frames per second
30 frames/1080P,960P,720P
60 frames/720P
Lens angle170 degree
Image resolution5 megapixel
Interval shooting3, 5, 10, 30, 60 seconds selections
White BalanceAutomatic
ExposureAutomatic
Focal length40CM to infinity
Built-in microphoneYes
ScreenSTN mode display
OutputUSB2.0, HDMI
Battery1130mAh rechargeable lithium battery
Applications HDCAM, provides video editing and playback functions
Link contains in-depth information about this product Link contains a picture of this product    NA
20/05

Panasonic PT-RZ470EAK DLP Projector - 1920x1080, 3500 Lumens, 20000:1, 20000Hrs, VGA, HDMI, DVI

Panasonic RZ470 - Install, DLP, Laser/LED Combo, 3500 Lumens, Full HD, HDMI / DVI-I / VGA / S-Video / VIDEO IN, LAN Control, DIGITAL LINK (HDBaseT)


Panasonic's new non-lamp projectors use a LED/Laser-combined light source for next-generation projection. Loaded with features for professional integration, the series expand projection capabilities in museums, digital signage and more. Panasonic's first lamp free projectors deliver an exciting new standard in professional reliability.

  • LED/Laser Combined Light Source Enables Up to 10 Years* of Continuous Operation
  • Beautiful Picture Quality for a Long Period of Time with 24/7 Operation
  • DIGITAL LINK Tranmits Analog/Digital and Control Signals up to 100m with a Single Cable
  • Flexible 360 Degree Installation
  • Image Appears Immediately - No Need for Cooling After Use

Specifications

Model PT-RZ470
Platform Data
Classification Education / Corporate / Retail
Projection System Laser DLP
Native Resolution 1920 x 1080 (HD 1080)
Brightness (Ansi Lumens) 3500
Aspect Ratio (Native) 16:9
Contrast Ratio 20000:1
Lens Type Standard
Throw Ratio 1.46 - 2.94:1
Display Area 40" - 300"
Zoom Ratio 2.0:1
Lamp Life (Standard/Eco hrs) 20000
Connectivity (input) HDMI, DVI-I, S-Video, Composite, VGA
Network Connectivity LAN Display / LAN Control
USB None
Speakers None
Dimensions (W x H x D mm) 455 x 137 x 415
Weight (KG) 11
Accessories Power cord, Remote Control
Warranty 3 Years
Link contains in-depth information about this product Link contains a picture of this product    NA
20/05

BenQ 13BQWDA Wireless Network Card, 802.11b/g/n - USB2.0


- For All BenQ Projectors That Support Wireless Display
BenQ Wireless Display Adaptor

  • IEEE 802.11b/g/n standards compliant
  • Creates USB 2.0 seamless wireless
  • Connectivity
  • For all BenQ projectors that support
  • Wireless display
 Link contains in-depth information about this product Link contains a picture of this product    NA
20/05

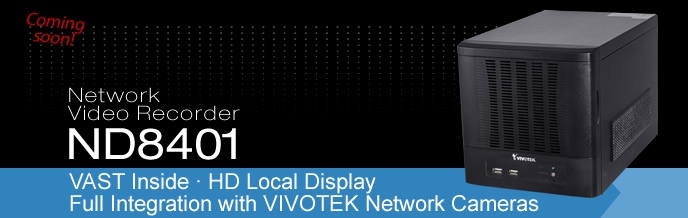

Vivotek ND8401 Network Video Recorder - 4x Hot-Swap 3.5" SATA I/II HDD, Real-Time 16 Channel Live View & 4-CH Synchronous Playback, RAID 0,1,5,10, H.264, MPEG-4 & MJPEG, USB2.0, 1xRS232, 2xGigLAN


VAST Inside HD Local Display Full Integration with VIVOTEK Network Cameras Network Video Recorder ND8401

Overview

VIVOTEK ND8401 is a 16-CH Network Video Recorder designed for sophisticated recording applications. The unit is equipped with an Intel Dual-core Atom Processor with maximum recording throughput at a robust 96 Mbps. RAID 0/1/5/10 is supported with four HDDs, with an external eSATA port for additional expansion. Like VIVOTEK NVR ND8301, a local display output port is available with full HD resolution (1920x1080), eliminating the need for a separate PC to view video from the unit. Setup of parameters such as IP address, HDD to logical volumes, and basic camera configuration can easily be performed with the setup wizard, making the ND8401 the easiest NVR to use yet. When connecting ND8401 to more than one of the same model of VIVOTEK camera, the "Shepherd" program can be used to duplicate the configuration to multiple cameras.

VIVOTEK's professional software VAST is installed in ND8401 with performance tuning, allowing for simple and effective management of a surveillance system using the LiveClient and Playback programs. As VIVOTEK's camera features are fully integrated into VAST, cutting-edge technologies such as Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control the ND8401, and compatibility with the iViewer application allows for remote access to the ND8401 on handheld devices. By integrating all of the components together using VIVOTEK's ND8401, network cameras, VAST and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.

Features - Hardware

  • Dual-core Intel  AtomTM Processor
  • RAID 0, 1, 5, 10 Storage Solution
  • 4 Bay hot-swap HDD Tray, Max. 12TB
  • External eSATA Interface
  • Full HD Local Display
  • Standalone Desktop NVR Design
  • Dual Gigabit Ethernet Ports
  • USB Port* 4
  • Size: 204mm (W) x 330mm (D) x 215mm (H)

Features - Software

  • Easy Installation and Configuration (Shepherd/Setup Wizard)
  • VAST Inside (Live Client/Playback)
  • Real-time 16-CH Live View & 4-CH Synchronous Playback
  • H.264, MPEG-4 and MJPEG
  • Multiple Recording Types & Event Trigger Sources
  • Multiple Video Search Modes
  • E-map
  • Supported by VAST Central Management Software (VAST CMS support to be ready in Q1, 2013)
  • Full Integration with VIVOTEK Network Cameras
  • VIVOTEK iViewer support (iOS/Android)

Specifications:
System
  • CPU: Dual-core Intel AtomTM
  • RAM: 2GB DDRIII
  • OS: Windows 7 Embedded
Backup
  • Manual/Scheduled backup
Camera Compatibility
  • Full integration with VIVOTEK network cameras
EasySetup
  • "Setup Wizard" for Network/HDD/Camera easy setup
Export
  • Format: AVI/3GPP/EXE
Language Support
  • English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portuguese, Czech
Local LiveView Monitor
  • Display Layout: 1X1/2X2/3X3/4X4/5X5/1+5/1+12/1+31
  • E-Map
  • Snapshot
  • PiP
  • Display Performance:
      MPEG-4: 2 streams 30fps @ 1080p; 16 streams 30fps @ CIF
    • H.264: 1 stream 30fps @ 1080p; 7 streams 30fps @ CIF
    • Auto Patrol (display layout)
      • Pan/Tilt/Zoom control of VIVOTEK cameras
    • Instant event notification
      • Instant Replay: 20 sec., 30 sec., 1 min., 5 min., 15 min.
    • Full HD local display by VGA connector
Local Playback
  • Display Layout: 1x1/2x2/3x3/4x4/1+5/1+12
  • Playback Mode: play, pause, stop, next/frame, next/previous time interval, speed control
  • Search Mode: browsing/time/event
  • Bookmark
Mobile APP Support
  • VIVOTEK iViewer (iOS/Android)
Recording
  • Throughput: max. 96 Mbps
  • Recording Policy: scheduled recording (event/continuous modes), manual recording
  • Video Compression: H.264/MPEG-4/MJPEG
  • Resolution: up to 5-Megapixel recording
  • Format: 3GPP
  • Auto Recycling: buffer size setting, time setting
  • Activity adaptive recording
Storage
  • 4 x hot-swap 3.5" SATA I/II HDD, up to 12TB
  • 1 x external eSATA interface
  • RAID0,1,5,10
channels
  • 16-CH
Connectors
  • 2 x RJ45, Gigabit
  • 4 x USB2.0
  • 1 x RS232
Networking
  • IPv4, TCP/IP, HTTP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS
  • 2 x Ethernet Gigabit ports
Alarm and Event Management
  • Trigger Source: motion, temperature, tampering, DI/O, IR, PIR, IVA, video lost, recording error, recording status, substation connection status, storage connection status, storage capacity status, license status, network status & memory status
  • Actions: email, start recording, move to the preset position, set DO, GSM short message & send CGI command
Security
  • 5 levels of user roles
  • Multi-level user access with password protection
Dimensions
  • 204mm (W) x 330mm (D) x 215mm (H)
Weight
  • Net: 5240 g (without HHD)
LED Indicator
  • 1 x Power status
  • 1 x HDD status
Power
  • Input: AC 100-240 V, 50-60 Hz
  • Power Consumption: max. 58W
Approvals
  • CE, FCC Class B, VCCI, C-Tick
Operating Environments
  • Temperature: 0C ~ 40C ( 32F ~ 104F )
  • Humidity: 20%~95% RH
Warranty
  • 24 months
Link contains in-depth information about this product Link contains a picture of this product    NA
20/05

Vivotek FD8363 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 30 fps @ 1920x1080, Vandal-Proof IK10-rated And Weather-Proof IP66-Rated Housing, Built-In MicroSD/SDHC/SDXC Card Slot - White


Full HD Smart Focus System Smart IR IP66 Vandal-proof Fixed Dome Network Camera FD8363

Overview

VIVOTEK FD8363 is a professional outdoor dome network camera, offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As with other true day/night models, the camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.

For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the revolutionary Smart Focus System, including Easy Focus Button and Remote Focus to make installation and image adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.

The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions, while its metal vandal-proof housing effectively provides robust protection from vandalism. With other advanced features such as WDR enhanced, tamper detection, 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8363 provides the most robust solution suitable for demanding outdoor environments.

Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • 3 ~ 9 mm Motorized, DC-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15 Meters
  • Built-in Smart IR to Avoid Overexposure
  • WDR Enhancement for Unparalleled Visibility in High Contrast Environments
  • Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
  • Smart Focus System for Remote and Easy Focus Adjustment
  • Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

These specifications are subject to change without notice.

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/2.7" Progressive CMOS
Maximum Resolution
  • 1920x1080
Lens Type
  • Vari-focal, remote focus
Focal Length
  • f = 3 ~ 9
Aperture
  • 1.2 (wide), 2.1 (tele)
Auto-iris
  • DC-iris
Field of View
  • 38 ~ 104 (horizontal)
  • 22 ~ 71 (vertical)
  • 43 ~ 111 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR Enhanced
Day & Night
  • Removable IR-cut filter for day & night function
Minimum Illumination
  • 0.08 Lux @ F1.2, 50 IRE ( Color )
  • 0.001 Lux @ F1.2, 50 IRE ( B/W )
Pan range
  • 360
Tilt range
  • 180
Pan / Tilt / Zoom
  • ePTZ
  • 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators
  • Built-in IR illuminators, effective up to 15 meters
  • IR LED*8
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video
Compression
  • H.264, MJPEG & MPEG-4
Maximum Frame Rate
  • H.264: 30 fps at 1920x1080
  • MPEG-4: 30 fps at 1920x1080
  • MJPEG: 30 fps at 1920x1080
Maximum Streams
  • 4 simultaneous streams
S/N Ratio
  • Above 52 dB
Dynamic Range
  • 55 dB
Video Streaming
  • Adjustable resolution, quality and bit rate
  • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality, and bit rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio
Audio Capability
  • Audio input / Audio output (Full duplex)
Compression
  • GSM-AMR
  • AAC
  • G.711
Interface
  • External microphone input
  • External line output
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System
  • Remote focus & easy focus
Connectors
  • RJ-45 for network/PoE connection
  • Audio input/output
  • AV output
  • AC 24V power input
  • DC 12V power input
  • Digital input*1
  • Digital output*1
LED Indicator
  • System power and status indicator
Power input
  • 12V DC
  • 24V AC
  • IEEE 802.3af PoE Class 3
Power consumption
  • DC 12V: 6.9 W
  • PoE: 9.3W
  • AC 24V: 8.5W
Dimensions
  • : 173 mm x 115 mm
Weight
  • Net: 1220 g
Casing
  • Vandal-proof IK10-rated metal housing
  • Weather-proof IP66-rated housing
Safety Certifications
  • CE, C-Tick, FCC Class A, LVD, VCCI
Operating Temperature
  • Starting Temperature: -10C ~ 50C (14F ~ 122F)
  • Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty
  • 36 Months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (Streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
20/05

Vivotek FD8163 Day & Night Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 1/2.7" Progressive CMOS, 30 fps @ 1920x1080, Built-In MicroSD/SDHC/SDXC Card Slot, Real-time H.264, MPEG-4, and MJPEG - White


Full HD Smart Focus System Smart IR PIR Fixed Dome Network Camera FD8163

Overview

VIVOTEK FD8163 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8163 features a removable IR-cut filter and 15-meter smart IR illuminators, maintaining clear images 24 hours a day. It is especially suitable for monitoring wide open indoor areas such as a building lobby, train station, or applications requiring accurate identification.

For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System including Easy Focus Button and Remote Focus to make installation and adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. Furthermore, the unique design featuring four-step mounting also facilitates installation of the FD8163.

Together with a PIR sensor for enhanced detection, WDR enhanced, 802.3af compliant PoE, tamper detection, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8163 is indisputably the top choice for reliable and high performance surveillance.

Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • 3 ~ 9 mm Motorized, DC-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15 Meters
  • Built-in Smart IR to Avoid Overexposure
  • Built-in PIR Sensor for Human Detection
  • WDR Enhancement for Unparalleled Visibility in High Contrast Environments
  • Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
  • Smart Focus System for Remote and Easy Focus Adjustment
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Specifications:
These specifications are subject to change without notice.

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/2.7" Progressive CMOS
Maximum Resolution
  • 1920x1080
Lens Type
  • Vari-focal, remote focus
Focal Length
  • f = 3 ~ 9
Aperture
  • 1.2 ( wide ), 2.1 ( tele )
Auto-iris
  • DC-iris
Field of View
  • 38 ~ 104 (horizontal)
  • 22 ~ 71 (vertical)
  • 43 ~ 111 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
WDR Technology
  • WDR Enhanced
Day & Night
  • Removable IR-cut filter for day & night function
Minimum Illumination
  • 0.08 Lux @ F1.2, 50 IRE ( Color )
  • 0.001 Lux @ F1.2, 50 IRE ( B/W )
Pan range
  • 360
Tilt range
  • 180
Pan / Tilt / Zoom
  • ePTZ
  • 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators
  • Built-in IR illuminators, effective up to 15 meters
  • IR LED*8
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video
Compression
  • H.264, MJPEG & MPEG-4
Maximum Frame Rate
  • H.264: 30 fps at 1920x1080
  • MPEG-4: 30 fps at 1920x1080
  • MJPEG: 30 fps at 1920x1080
Maximum Streams
  • 4 simultaneous streams
S/N Ratio
  • Above 52 dB
Dynamic Range
  • 55 dB
Video Streaming
  • Adjustable resolution, quality and bit rate
  • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality, and bit rate
  • Time stamp and text caption overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio
Audio Capability
  • Audio input / Audio output (Full duplex)
Compression
  • GSM-AMR
  • AAC
  • G.711
Interface
  • Built-in microphone
  • External microphone input
  • External line output
Effective Range
  • 5 meters
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Interface
  • 10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, PIR
Alarm Events
  • Event notification using HTTP, SMTP, FTP, NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Smart Focus System
  • Remote focus & easy focus
Connectors
  • RJ-45 for network/PoE connection Audio input/output
  • AV output
  • AC 24V power input
  • DC 12V power input
  • Digital input*1
  • Digital output*1
LED Indicator
  • System power and status indicator
Power input
  • 12V DC
  • 24V AC
  • IEEE 802.3af PoE Class 3
Power consumption
  • DC 12V: 6.9 W
  • PoE: 9.3W
  • AC 24V: 8.5W
Dimensions
  • : 157 mm x 110 mm
Weight
  • Net: 840 g
Safety Certifications
  • CE C-Tick FCC (Class B) LVD VCCI
Operating Temperature
  • Operating Temperature: 0C ~ 50C (32F ~ 122F)
Warranty
  • 36 Months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (Streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
