07/05

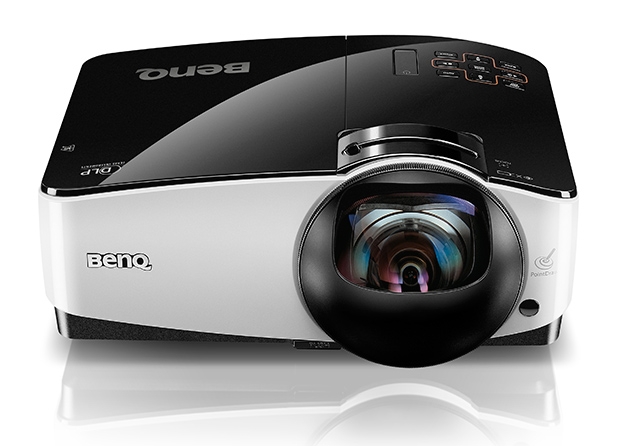

BenQ MW870UST Ultra Short-Throw DLP Projector - 1280x800, 3000 Lumens, 2600;1, 4000Hrs, VGA, HDMI, Audio, RS232, RJ45, Speakers

MW870UST

An Added Touch of Fun and Excitement in Learning

The MW870UST gives you the ultimate interactivity with the all new 3rd generation PointDraw technology! Interact simultaneously with multi-device collaboration mode and QDraw3 on the WXGA resolution screen. This ultra short-throw projector also enables 3D projection to maximize the learning experience.

Features

Interactive Learning with BenQ's Leading Technology

3rd Generation PointDraw Technology Now with the All New Multi-Device Collabration Mode

BenQ promotes classroom collaboration as well as teacher-student and student-student interaction by facilitating a diverse learning environment that fosters all learners. Its latest creation, the 3rd generation PointDraw technology, takes teaching and learning to a new level with additional support for multi-device collaboration. With simultaneous teacher-student interaction, students can take turn making their contribution to the lesson under the teachers complete guidance and control.

DLP Link 3D Projection

Maximize students learning with amazing 3D effects! The MW870UST is 3D ready to turn conventional classrooms into a whole new immersive learning environment that best suits todays young learners. Teachers can illustrate complex or abstract concepts using 3D graphics and engage students in biology projects such as animal dissection more effectively. They can also take their classes on virtual field trips whenever and wherever they want.

Good Things Come in Short Distance

Zero Space Constraints

Just imagine the freedom of having the same projection quality with half the required distance! You’ll have better flexibility in choosing your projection locations! That's the magic of short throw!

Zero Eye-Blinding Lights

The short throw projection distance keeps the projector light from shining directl into your eyes, allowing you to kkep your focas on your audience.

Zero Disruptions

Say goodbye to the shadows that often interrupt your presentation. With a projection distance this close, you and your audience can move freely without worrying about obstructions between the projector and the screen!

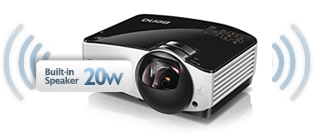

Thoughtful Design for Teachers 20W Speaker Power and Microphone Input Support

The MW870UST comes with enhanced audio support for your classroom. Two 10W speakers are sealed and secured within each side of the projector with BenQ's anti-shake design to deliver 20W crisp-clear audio performance with stable projection. The microphone input connects the projector to a conventional microphone or microphone headset for increased ease of teaching and learning.

Calibration-Free Interactivity

Unlike other interactive projection solutions, BenQ's PointDraw technology requires no calibration at all between the MW870UST and the projection screen. Teachers can easily set up their lesson to begin teaching – All they need to do is switch on the projector and the PointDraw pen!

WXGA Widescreen Short-throw Projection

Engage your class with BenQ's WXGA (1280x800) short-throw picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts the total viewing area by 30% for effective learning. The unique ultra short-throw technology renders sharper, clearer images and less shadow distractions using only 0.7m to project a large 87" image. WXGA is the best resolution support for widescreen PC and notebooks.

WXGA widescreen projection boosts your totalviewing area by 30%

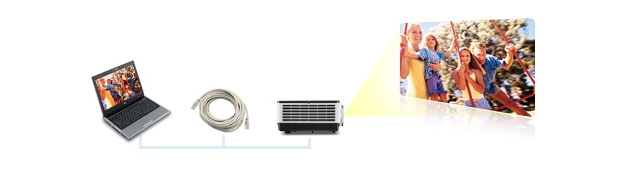

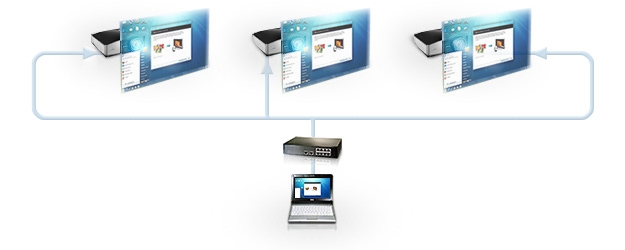

LAN Display and USB Display

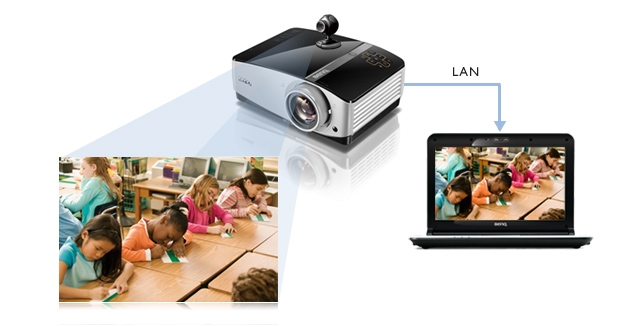

The MW870UST keeps display set-ups quick and easy with LAN Display and USB Display options. LAN Display supports classroom projector control and audiovisual projection display via a single LAN cable. It also enables simultaneous school-wide emergency broadcasts.

USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

PC-Less Teaching

To make a teacher's job easier, the MW870UST supports PC-less teaching in two ways: USB Drive Display and Remote Desktop.

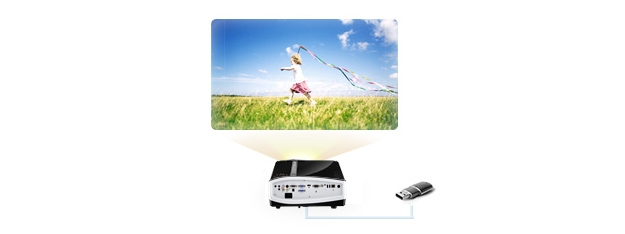

USB Drive Display allows teachers to teach light with a USB flash drive. All they need to do is save the files they need onto a USB flash drive and insert it in the MW870UST to start teaching. File types supported are JPEG, JPG, BMP, PNG, GIF and TIFF.

Remote Desktop grants teachers remote access to files stored in their computers with a wireless mouse and keyboard via LAN connection. With this handy feature, there will be no need for a classroom computer – which means more money saved on computer purchase, maintenance and repair for your school.

ecoFACTS Label

ecoFACTS can tell you how eco-friendly BenQ products are!

Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Specifications:

Projection System	DLP
Native Resolution	WXGA(1280x800)
Brightness*	3000AL
Contrast Ratio	2600:1
Display Color	1.07 Billion Colors
Lens	F= 2.7, f=5.45mm
Aspect Ratio	Native 16:10 (5 aspect ratio selectable)
Throw Ratio	0.37 ([email protected])
Image Size (Diagonal)	60"-300"
Zoom Ratio	Fixed
Lamp Type	225W
Lamp(Normal/Economic Mode/SmartEco Mode)*	2500/4000 hours (Normal/Economic mode)
Keystone Adjustment	1D, Vertical 40 degrees
Projection Offset	125%5%
Resolution Support	VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency	31K~102KHz
Vertical Scan Rate	23~120Hz
Interface	Computer in (D-sub 15pin)x 2 (Share with Component Video in) Monitor out (D-sub 15pin)x 1 HDMI (V1.3)x 1 Composite Video in (RCA)x 1 S-Video in (Mini DIN 4pin)x 1 Audio in (Mini Jack)x 1 Audio L/R in (RCA)x 1 Audio out (Mini Jack)x 1 Microphone in (Mini Jack)x 1 Speaker10W x 2 LAN (RJ45)x 1 USB (Type A)x 2 (Wireless display/USB Reader/Remote Desktop) USB (TypeB)x 1 (work for PD pen/ FW download) USB (mini TypeB)x 1 (USB display) RS232 (DB-9pin)x 1 IR Receiverx 2
Dimensions(W x H x D)	330 x 154 x 278 mm
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Weight	4.1 kg (9.1 lbs)
Audible Noise	33/31 dBA (Normal/Economic mode)
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	310W (typical), Standby<1W
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes	Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard)	Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable USB cable (B to A type)
Accessories (Optional)	Wireless Dongle WDRL3070 PointDraw 3.0 pen kit Carry Bag Wall mount 3D Glass Document Camera S30
3D Support and Compatibility	PC: 120Hz Frame Sequential 3D for resolutions up to WXGA PC: 60Hz Top-bottom 3D for resolutions up to SXGA+ Video: 60Hz Frame Sequential 3D for resolutions up to 480i

Link contains in-depth information about this product

07/05

Panasonic DMC-FT5 Digital Camera - Silver

- 16.1MP, 4.6x Optical Zoom, f=4.9 - 22.8mm (28 - 128mm In 35mm Equivalent, 3.0"TFT LCD, Optical Image Stabilizer, 1080/50p Full HD Video Recording, Waterproof

DMC-FT5

Digital Camera

Waterproof, Shockproof, Freezeproof, Dustproof and Pressure Resistance
1080/50p Full HD Video Recording in AVCHD Progressive
Wi-Fi Functions and NFC (Near Field Communication)
High Image Quality with 16.1-Megapixel High Sensitivity MOS Sensor
GPS and GLONASS (Global Navigation Satellite System)
Red Color Reproduction for Beautiful Underwater Shots

Overview

Rugged Digital Camera FT5 - Featuring Ultimate Toughness and Photo / Video Hybrid for All Kinds of Outdoor Excitement

The DMC-FT5 is waterproof to depth of 13m/43ft and dustproof equivalent to the "IPX8" and "IP6X" standard. It is also shockproof droppable from a height up to 2.0m/6.6ft, freezeproof that endure the temperature as low as -10C/14F, and comprehends pressure resistance of 100kgf/220lbf. It newly adopts an anti-fog glass to prevent from being fogged with steam. Take out the camera to fishing, camping, diving, snorkeling, surfing, climbing, skiing or snowboarding The DMC-FT5 is an all-year-round active field player to record stunning memories.

The DMC-FT5 can record high-resolution full HD 1,920 x 1,080 videos with stunning smoothness at 50p in AVCHD Progressive and 25p in MP4. The videos also come with the high-quality stereo sound of Dolby Digital and a stereo microphone with zoom noise reduction. The Time Lapse Shot is advanced for DMC-FT5. Once the start time, the interval and the number of picture to shoot are set, the camera will automatically shoot images and those images can be combined in a camera to produce a time lapse video.

The DMC-FT5 integrates Wi-Fi connectivity and NFC technology. NFC lets users connect the camera with a smartphone/tablet by just placing them nearby and follow the simple guidance. With "Panasonic Image App", users can enjoy remote shooting, easy SNS upload, and Instant Transfer, which allows the camera to automatically transfer data to the designated electronic devices. Transferring data to PC is available via wireless access point (router) at home. The Wi-Fi Direct allows direct playback of images on some of the DLNA-compliant VIERA HDTV.

The GPS complies with GLONASS to further enhance its accuracy. It shows the name of the Country/Region, State/Prov./County, County/Township, City/Town/Village, and worldwide landmark information. The photos and videos with the location names are automatically sorted in the camera for quick reach and newly added logging function allows memorizing travelling distance which can be displayed on the Google Earth application. Compass, altimeter and even barometer are adopted for active outdoor use.

The new 16.1-megapixel High Sensitivity MOS sensor is integrated in the DMC-FT5 to further enhances its high performance signal processing. Wavelet NR (Noise Reduction) system in the Venus Engine enables deliberate noise reduction process without missing low-frequency noise by enlarging its detection area. It results in the high sensitivity image with reduced blur even at high ISO settings. The Advanced Underwater Mode with Red Color Reproduction compensates for the red color which is easily lost in underwater shooting.

Specifications:

Metrics
Dimensions (W x H x D)	109.2 x 67.4 x 28.9 mm / (4.30 x 2.65 x 1.14 inch)
Weight	Approx. 188g without Battery and SD Memory Card (0.41 lb) / Approx. 214g with Battery and SD Memory Card (0.47 lb)

Pixels
Camera Effective Pixels	16.1 Megapixels

Sensor
Sensor Size / Total Pixels / Filter	1/2.33-type High Sensitivity MOS Sensor / 17.5 Total Megapixels / Primary Color Filter

Lens
Aperture	F3.3 - 5.9 / 2-step (F3.3 / 10(W), F5.9 / 18(T))
Optical Zoom	4.6x
Focal Length	f=4.9 - 22.8mm (28 - 128mm in 35mm equiv.) / (33-140mm in 35mm equiv. in video recording)
Extra Optical Zoom (EZ)	5.9x (4:3 / 10M), 8.4x (4:3 / 5M), 10.5x (under 3M)
Intelligent Zoom	9.3x
Lens	LEICA DC VARIO-ELMAR / 10 elements in 8 groups / (5 Aspherical Lenses / 6 Aspherical surfaces / 1 ED Lens) / Anti-fog Glass
2- Speed Zoom	-
Optical Image Stabilizer/Five Axis Correction	Power O.I.S. (On / Off) / No
Digital Zoom	Max. 4x

Focus
Focusing Area	Normal: Wide 30 cm - infinity / Tele 30 cm - infinity / Macro / Intelligent AUTO/ motion picture: Wide 5 cm - infinity / Tele 30cm - infinity
AF Assist Lamp	Yes (On/Off), LED light in motion picture
Focus	Normal, AF Macro, Macro Zoom / Quick AF (On/Off, On in Intelligent Auto), Continuous AF(only for motion picture) / AF Tracking
AF Metering	Face / AF Tracking / 23-Area / 1-Area / Spot

Shutter
Shutter Speed	approx. 4 - 1/1300 sec / 15sec / 30sec in Sarry Sky mode

Finder
Viewfinder	-

File
File Format	Still Image: JPEG(DCF/Exif2.3), DPOF / 3D Image: MPO / Motion picture: AVCHD, MP4

Recording Modes
Mode Dial / Mode Button	Intelligent Auto, P, M, Creative Control, Sports, Snow, Beach&Snorkeling, Advanced Underwater, Panorama Shot, SCN
Creative Control mode	Expressive, Retro, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color
Still Image Scene Mode	Portrait, Soft Skin, Scenery, Night Portrait, Night Scenery, Hand Held Night Shot, HDR, Food, Baby1, Baby2, Pet, Sunset, High Sensitivity, Starry Sky, Glass Through, 3D Photo
Continuous Shooting Mode	Full- Resolution Image: 10 frames/sec Max. 7 images with AF Tracking: 5 frames/sec, 2 frames/sec Max.100 images Intelligent Burst Shooting / High- speed Burst: approx. 40 frames/sec (recorded in 5M/3M/0.3M for 4:3, 4.5M/2.5M/0.3M for 3:2, 3.5M/2M/0.2M for 16:9, 3.5M/2.5M/0.2M for 1:1) / approx. 60 frames/sec (recorded in 2.5M/0.3M for 4:3, 3M/0.3M for 3:2, 3.5M/0.2M for 16:9, 2M/0.2M for 1:1) / Flash burst shooting

Motion Picture Recording (*2)
HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1280 x 720 pixels, 50p (HD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 25fps (FHD: 20Mbps / MP4) / 1280 x 720 pixels, 25fps (HD: 10Mbps / MP4)
STD Video	640 x 480 pixels, 25fps (VGA: 4Mbps / MP4)

Continuous recordable time (motion pictures)
AVCHD	approx. 80 min (FHD / 60p), 85min (FHD / 60i)
MP4	approx. 95 min (FHD)

Actual recordable time (motion pictures)
AVCHD	approx. 35 min (FHD / 60p), 40min (FHD / 60i)
MP4	approx. 45 min (FHD)

Exposure Parameters
Exposure	Program AE, Manual
Exposure Compensation	1/3 EV step, +/-2 EV
Auto (AE) Bracketing	1/3 -1EV step, Max +/-1EV, 3 frames
Light Metering	Intelligent Multiple
ISO Sensitivity	Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 / 3200 / High Sensitivity mode (ISO 1600-6400)

Picture Quality
Still Picture Recording	[1:1] 3456x3456 (12M) / 2736x2736 (7.5M EZ) / 1920x1920 (3.5M EZ) / 1536x1536 (2.5M EZ) / 480x480 (0.2M EZ) / [4:3] 4608x3456 (16M) / 3648x2736 (10M EZ) / 2560x1920 (5M EZ) / 2048X1536 (3M EZ) / 1280x960 (1M EZ) / 640x480 (0.3M EZ) / [3:2] 4608x3072 (14M) / 3648x2432 (9M EZ) / 2560x1712 (4.5M EZ) / 2048x1360 (2.5M EZ) / 640x424 (0.3M EZ) / [16:9] 4608x2592 (12M) / 3648x2056 (7.5M EZ) / 2560x1440 (3.5M EZ) / 1920x1080 (2M EZ) / 640x360 (0.2M EZ)
Image Quality	Fine / Standard (3D mode: MPO Fine / MPO Standard )
White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set / White Balance Adjustment (Except Auto)
Photo Style / Film Mode	-
Color Mode / Color Effect / My color	Color Mode : Standard, Black&White, Sepia, Vivid (in P, M), Happy (only in iA mode)
Aspect Bracketing	-

Other
Digital Red Eye Correction (Red-Eye Removal)	Yes
GPS	Yes(GPS / GLONASS) / GPS LOG
Wi-FI	IEEE 802.11b/g/n / 2412MHz - 2462MHz (1-11ch) / WPA / WPA2 / Infurastracture mode / WPS / Wi-Fi Direct / Wi-Fi Button
NFC	Yes
Zoom in Motion Picture	Yes
Self Timer	2sec / 10sec

Display
Playback Mode	All, Slideshow, Filtering PlayPicture Only, Video Only, 3D Play, GPS Area Play, Altimeter Log, Travel, Category Selection, Select Date, Favorites), Calendar
Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
Calendar Display / Dual- Image Playback	Yes / No
Set Favorites / Rotate Image	Yes / No
Show Histogram	Yes
Show Highlights	-
DPOF Print Setting / Set Protection	Yes / Yes

Edit
Retouch	Creative Retouch / Auto Retouch / Color Reproduction
Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
Copy / Title Edit / Text Stamp	Yes / Yes / Yes
Cut Animation	Yes
Video Divide	Yes
PictBridge Support	Single / Multi / All / Favorites / DPOF

Setup
OSD language	Japanese, English, German, French, Italian, Spanish

Monitor
LCD Monitor	7.5cm (3.0") TFT Screen LCD Display (460K dots), AR Coating / Field of View : approx. 100% / AUTO Power Monitor mode, Power Monitor mode

Flash
Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off, 0.3 - 5.6m (Wide/ISO Auto), 0.3 - 3.1m (Tele/ISO Auto)

Media
Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
Built- in- Memory	Approx. 15MB TBD

Audio
Microphone / Speaker	Stereo / Mono

Interface
Interface	microHDMI, AV Output (PAL/NTSC), USB(AV/USB Multi)

Power
Power	Li-ion Battery Pack (3.6V / 1250mAh / 4.5Wh) / AC Adaptor (Input: 110-240V AC)(Optional)
Battery life (approx.)	370 pictures (CIPA Standard)*1

Standard Package
Included Software	PHOTOfunSTUDIO 9.1 PE / Adobe Reader
Standard Accessories	Battery Pack, Battery Charger, AC Cable, USB Cable, Hand Strap, CD-ROM

Further Specifications

NOTE

*1 / Recording conditions by CIPA standard / - CIPA is an abbreviation of [Camera & Imaging Products Association]. / - Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on. / - Using a Panasonic SD Memory Card (32 MB). / - Using the supplied battery. / - Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) / - Recording once every 30 seconds with full flash every second recording. / - Rotating the zoom lever from Tele to Wide or vice versa in every recording. / - Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases. / *2 / - These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. / - The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. / - Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc. / -Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. / -Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB.

07/05

Panasonic DMC-FT5 Digital Camera - Orange

- 16.1MP, 4.6x Optical Zoom, f=4.9 - 22.8mm (28 - 128mm In 35mm Equivalent, 3.0"TFT LCD, Optical Image Stabilizer, 1080/50p Full HD Video Recording, Waterproof

DMC-FT5

Digital Camera

Waterproof, Shockproof, Freezeproof, Dustproof and Pressure Resistance
1080/50p Full HD Video Recording in AVCHD Progressive
Wi-Fi Functions and NFC (Near Field Communication)
High Image Quality with 16.1-Megapixel High Sensitivity MOS Sensor
GPS and GLONASS (Global Navigation Satellite System)
Red Color Reproduction for Beautiful Underwater Shots

Overview

Rugged Digital Camera FT5 - Featuring Ultimate Toughness and Photo / Video Hybrid for All Kinds of Outdoor Excitement

Specifications:

Metrics

Dimensions (W x H x D) 109.2 x 67.4 x 28.9 mm / (4.30 x 2.65 x 1.14 inch)

Weight Approx. 188g without Battery and SD Memory Card (0.41 lb) / Approx. 214g with Battery and SD Memory Card (0.47 lb)

Pixels

Camera Effective Pixels 16.1 Megapixels

Sensor

Sensor Size / Total Pixels / Filter 1/2.33-type High Sensitivity MOS Sensor / 17.5 Total Megapixels / Primary Color Filter

Lens

Aperture F3.3 - 5.9 / 2-step (F3.3 / 10(W), F5.9 / 18(T))

Optical Zoom 4.6x

Focal Length f=4.9 - 22.8mm (28 - 128mm in 35mm equiv.) / (33-140mm in 35mm equiv. in video recording)

Extra Optical Zoom (EZ) 5.9x (4:3 / 10M), 8.4x (4:3 / 5M), 10.5x (under 3M)

Intelligent Zoom 9.3x

Lens LEICA DC VARIO-ELMAR / 10 elements in 8 groups / (5 Aspherical Lenses / 6 Aspherical surfaces / 1 ED Lens) / Anti-fog Glass

2- Speed Zoom -

Optical Image Stabilizer/Five Axis Correction Power O.I.S. (On / Off) / No

Digital Zoom Max. 4x

Focus

Focusing Area Normal: Wide 30 cm - infinity / Tele 30 cm - infinity / Macro / Intelligent AUTO/ motion picture: Wide 5 cm - infinity / Tele 30cm - infinity

AF Assist Lamp Yes (On/Off), LED light in motion picture

Focus Normal, AF Macro, Macro Zoom / Quick AF (On/Off, On in Intelligent Auto), Continuous AF(only for motion picture) / AF Tracking

AF Metering Face / AF Tracking / 23-Area / 1-Area / Spot

Shutter

Shutter Speed approx. 4 - 1/1300 sec / 15sec / 30sec in Sarry Sky mode

Finder

Viewfinder -

File

File Format Still Image: JPEG(DCF/Exif2.3), DPOF / 3D Image: MPO / Motion picture: AVCHD, MP4

Recording Modes

Mode Dial / Mode Button Intelligent Auto, P, M, Creative Control, Sports, Snow, Beach&Snorkeling, Advanced Underwater, Panorama Shot, SCN

Creative Control mode Expressive, Retro, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color

Still Image Scene Mode Portrait, Soft Skin, Scenery, Night Portrait, Night Scenery, Hand Held Night Shot, HDR, Food, Baby1, Baby2, Pet, Sunset, High Sensitivity, Starry Sky, Glass Through, 3D Photo

Continuous Shooting Mode Full- Resolution Image: 10 frames/sec Max. 7 images with AF Tracking: 5 frames/sec, 2 frames/sec Max.100 images Intelligent Burst Shooting / High- speed Burst: approx. 40 frames/sec (recorded in 5M/3M/0.3M for 4:3, 4.5M/2.5M/0.3M for 3:2, 3.5M/2M/0.2M for 16:9, 3.5M/2.5M/0.2M for 1:1) / approx. 60 frames/sec (recorded in 2.5M/0.3M for 4:3, 3M/0.3M for 3:2, 3.5M/0.2M for 16:9, 2M/0.2M for 1:1) / Flash burst shooting

Motion Picture Recording (*2)

HD Video 1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1280 x 720 pixels, 50p (HD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 25fps (FHD: 20Mbps / MP4) / 1280 x 720 pixels, 25fps (HD: 10Mbps / MP4)

STD Video 640 x 480 pixels, 25fps (VGA: 4Mbps / MP4)

Continuous recordable time (motion pictures)

AVCHD approx. 80 min (FHD / 50p), 85min (FHD / 50i)

MP4 approx. 95 min (FHD)

Actual recordable time (motion pictures)

AVCHD approx. 35 min (FHD / 50p), 40min (FHD / 50i)

MP4 approx. 45 min (FHD)

Exposure Parameters

Exposure Program AE, Manual

Exposure Compensation 1/3 EV step, +/-2 EV

Auto (AE) Bracketing 1/3 -1EV step, Max +/-1EV, 3 frames

Light Metering Intelligent Multiple

ISO Sensitivity Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 / 3200 / High Sensitivity mode (ISO 1600-6400)

Picture Quality

Still Picture Recording [1:1] 3456x3456 (12M) / 2736x2736 (7.5M EZ) / 1920x1920 (3.5M EZ) / 1536x1536 (2.5M EZ) / 480x480 (0.2M EZ) / [4:3] 4608x3456 (16M) / 3648x2736 (10M EZ) / 2560x1920 (5M EZ) / 2048X1536 (3M EZ) / 1280x960 (1M EZ) / 640x480 (0.3M EZ) / [3:2] 4608x3072 (14M) / 3648x2432 (9M EZ) / 2560x1712 (4.5M EZ) / 2048x1360 (2.5M EZ) / 640x424 (0.3M EZ) / [16:9] 4608x2592 (12M) / 3648x2056 (7.5M EZ) / 2560x1440 (3.5M EZ) / 1920x1080 (2M EZ) / 640x360 (0.2M EZ)

Image Quality Fine / Standard (3D mode: MPO Fine / MPO Standard )

White Balance Auto / Daylight / Cloudy / Shade / Incandescent / White Set / White Balance Adjustment (Except Auto)

Photo Style / Film Mode -

Color Mode / Color Effect / My color Color Mode : Standard, Black&White, Sepia, Vivid (in P, M), Happy (only in iA mode)

Aspect Bracketing -

Other

Digital Red Eye Correction (Red-Eye Removal) Yes

GPS Yes(GPS / GLONASS) / GPS LOG

Wi-FI IEEE 802.11b/g/n / 2412MHz - 2462MHz (1-11ch) / WPA / WPA2 / Infurastracture mode / WPS / Wi-Fi Direct / Wi-Fi Button

NFC Yes

Zoom in Motion Picture Yes

Self Timer 2sec / 10sec

Display

Playback Mode All, Slideshow, Filtering PlayPicture Only, Video Only, 3D Play, GPS Area Play, Altimeter Log, Travel, Category Selection, Select Date, Favorites), Calendar

Thumbnails / Zoomed Playback 12,30-thumbnails / Yes

Calendar Display / Dual- Image Playback Yes / No

Set Favorites / Rotate Image Yes / No

Show Histogram Yes

Show Highlights -

DPOF Print Setting / Set Protection Yes / Yes

Edit

Retouch Creative Retouch / Auto Retouch / Color Reproduction

Resize / Cropping / Aspect Conv. / Leveling Yes / Yes / No / No

Copy / Title Edit / Text Stamp Yes / Yes / Yes

Cut Animation Yes

Video Divide Yes

PictBridge Support Single / Multi / All / Favorites / DPOF

Setup

OSD language Japanese, English, German, French, Italian, Spanish

Monitor

LCD Monitor 7.5cm (3.0") TFT Screen LCD Display (460K dots), AR Coating / Field of View : approx. 100% / AUTO Power Monitor mode, Power Monitor mode

Flash

Built- in- Flash Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off, 0.3 - 5.6m (Wide/ISO Auto), 0.3 - 3.1m (Tele/ISO Auto)

Media

Recording Media Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card

Built- in- Memory Approx. 10MB

Audio

Microphone / Speaker Stereo / Mono

Interface

Interface microHDMI, AV Output (PAL/NTSC), USB(AV/USB Multi)

Power

Power Li-ion Battery Pack (3.6V / 1250mAh / 4.5Wh) / AC Adaptor (Input: 110-240V AC)(Optional)

Battery life (approx.) 370 pictures (CIPA Standard)*1

Standard Package

Included Software PHOTOfunSTUDIO 9.1 PE / Adobe Reader

Standard Accessories Battery Pack, Battery Charger, AC Cable, USB Cable, Hand Strap, CD-ROM

Further Specifications

NOTE *1 / Recording conditions by CIPA standard / - CIPA is an abbreviation of [Camera & Imaging Products Association]. / - Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on. / - Using a Panasonic SD Memory Card (32 MB). / - Using the supplied battery. / - Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) / - Recording once every 30 seconds with full flash every second recording. / - Rotating the zoom lever from Tele to Wide or vice versa in every recording. / - Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases. / *2 / - These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. / - The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. / - Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc. / -Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. / -Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB.

07/05

Panasonic DMC-FT5 Digital Camera - Blue

- 16.1MP, 4.6x Optical Zoom, f=4.9 - 22.8mm (28 - 128mm In 35mm Equivalent, 3.0"TFT LCD, Optical Image Stabilizer, 1080/50p Full HD Video Recording, Waterproof

DMC-FT5

Digital Camera

Waterproof, Shockproof, Freezeproof, Dustproof and Pressure Resistance
1080/50p Full HD Video Recording in AVCHD Progressive
Wi-Fi Functions and NFC (Near Field Communication)
High Image Quality with 16.1-Megapixel High Sensitivity MOS Sensor
GPS and GLONASS (Global Navigation Satellite System)
Red Color Reproduction for Beautiful Underwater Shots

Overview

Rugged Digital Camera FT5 - Featuring Ultimate Toughness and Photo / Video Hybrid for All Kinds of Outdoor Excitement

Specifications:

Metrics
Dimensions (W x H x D)	109.2 x 67.4 x 28.9 mm / (4.30 x 2.65 x 1.14 inch)
Weight	Approx. 188g without Battery and SD Memory Card (0.41 lb) / Approx. 214g with Battery and SD Memory Card (0.47 lb)

Pixels
Camera Effective Pixels	16.1 Megapixels

Sensor
Sensor Size / Total Pixels / Filter	1/2.33-type High Sensitivity MOS Sensor / 17.5 Total Megapixels / Primary Color Filter

Lens
Aperture	F3.3 - 5.9 / 2-step (F3.3 / 10(W), F5.9 / 18(T))
Optical Zoom	4.6x
Focal Length	f=4.9 - 22.8mm (28 - 128mm in 35mm equiv.) / (33-140mm in 35mm equiv. in video recording)
Extra Optical Zoom (EZ)	5.9x (4:3 / 10M), 8.4x (4:3 / 5M), 10.5x (under 3M)
Intelligent Zoom	9.3x
Lens	LEICA DC VARIO-ELMAR / 10 elements in 8 groups / (5 Aspherical Lenses / 6 Aspherical surfaces / 1 ED Lens) / Anti-fog Glass
2- Speed Zoom	-
Optical Image Stabilizer/Five Axis Correction	Power O.I.S. (On / Off) / No
Digital Zoom	Max. 4x

Focus
Focusing Area	Normal: Wide 30 cm - infinity / Tele 30 cm - infinity / Macro / Intelligent AUTO/ motion picture: Wide 5 cm - infinity / Tele 30cm - infinity
AF Assist Lamp	Yes (On/Off), LED light in motion picture
Focus	Normal, AF Macro, Macro Zoom / Quick AF (On/Off, On in Intelligent Auto), Continuous AF(only for motion picture) / AF Tracking
AF Metering	Face / AF Tracking / 23-Area / 1-Area / Spot

Shutter
Shutter Speed	approx. 4 - 1/1300 sec / 15sec / 30sec in Sarry Sky mode

Finder
Viewfinder	-

File
File Format	Still Image: JPEG(DCF/Exif2.3), DPOF / 3D Image: MPO / Motion picture: AVCHD, MP4

Recording Modes
Mode Dial / Mode Button	Intelligent Auto, P, M, Creative Control, Sports, Snow, Beach&Snorkeling, Advanced Underwater, Panorama Shot, SCN
Creative Control mode	Expressive, Retro, High Key, Low Key, Sepia, Dynamic Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Miniature Effect, Soft Focus, Star Filter, One Point Color
Still Image Scene Mode	Portrait, Soft Skin, Scenery, Night Portrait, Night Scenery, Hand Held Night Shot, HDR, Food, Baby1, Baby2, Pet, Sunset, High Sensitivity, Starry Sky, Glass Through, 3D Photo
Continuous Shooting Mode	Full- Resolution Image: 10 frames/sec Max. 7 images with AF Tracking: 5 frames/sec, 2 frames/sec Max.100 images Intelligent Burst Shooting / High- speed Burst: approx. 40 frames/sec (recorded in 5M/3M/0.3M for 4:3, 4.5M/2.5M/0.3M for 3:2, 3.5M/2M/0.2M for 16:9, 3.5M/2.5M/0.2M for 1:1) / approx. 60 frames/sec (recorded in 2.5M/0.3M for 4:3, 3M/0.3M for 3:2, 3.5M/0.2M for 16:9, 2M/0.2M for 1:1) / Flash burst shooting

Motion Picture Recording (*2)
HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1280 x 720 pixels, 50p (HD: 17Mbps / AVCHD) (Sensor Output is 50fps) / 1920 x 1080 pixels, 25fps (FHD: 20Mbps / MP4) / 1280 x 720 pixels, 25fps (HD: 10Mbps / MP4)
STD Video	640 x 480 pixels, 25fps (VGA: 4Mbps / MP4)

Continuous recordable time (motion pictures)
AVCHD	approx. 80 min (FHD / 60p), 85min (FHD / 60i)
MP4	approx. 95 min (FHD)

Actual recordable time (motion pictures)
AVCHD	approx. 35 min (FHD / 60p), 40min (FHD / 60i)
MP4	approx. 45 min (FHD)

Exposure Parameters
Exposure	Program AE, Manual
Exposure Compensation	1/3 EV step, +/-2 EV
Auto (AE) Bracketing	1/3 -1EV step, Max +/-1EV, 3 frames
Light Metering	Intelligent Multiple
ISO Sensitivity	Auto / i.ISO / 100 / 200 / 400 / 800 / 1600 / 3200 / High Sensitivity mode (ISO 1600-6400)

Picture Quality
Still Picture Recording	[1:1] 3456x3456 (12M) / 2736x2736 (7.5M EZ) / 1920x1920 (3.5M EZ) / 1536x1536 (2.5M EZ) / 480x480 (0.2M EZ) / [4:3] 4608x3456 (16M) / 3648x2736 (10M EZ) / 2560x1920 (5M EZ) / 2048X1536 (3M EZ) / 1280x960 (1M EZ) / 640x480 (0.3M EZ) / [3:2] 4608x3072 (14M) / 3648x2432 (9M EZ) / 2560x1712 (4.5M EZ) / 2048x1360 (2.5M EZ) / 640x424 (0.3M EZ) / [16:9] 4608x2592 (12M) / 3648x2056 (7.5M EZ) / 2560x1440 (3.5M EZ) / 1920x1080 (2M EZ) / 640x360 (0.2M EZ)
Image Quality	Fine / Standard (3D mode: MPO Fine / MPO Standard )
White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set / White Balance Adjustment (Except Auto)
Photo Style / Film Mode	-
Color Mode / Color Effect / My color	Color Mode : Standard, Black&White, Sepia, Vivid (in P, M), Happy (only in iA mode)
Aspect Bracketing	-

Other
Digital Red Eye Correction (Red-Eye Removal)	Yes
GPS	Yes(GPS / GLONASS) / GPS LOG
Wi-FI	IEEE 802.11b/g/n / 2412MHz - 2462MHz (1-11ch) / WPA / WPA2 / Infurastracture mode / WPS / Wi-Fi Direct / Wi-Fi Button
NFC	Yes
Zoom in Motion Picture	Yes
Self Timer	2sec / 10sec

Display
Playback Mode	All, Slideshow, Filtering PlayPicture Only, Video Only, 3D Play, GPS Area Play, Altimeter Log, Travel, Category Selection, Select Date, Favorites), Calendar
Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
Calendar Display / Dual- Image Playback	Yes / No
Set Favorites / Rotate Image	Yes / No
Show Histogram	Yes
Show Highlights	-
DPOF Print Setting / Set Protection	Yes / Yes

Edit
Retouch	Creative Retouch / Auto Retouch / Color Reproduction
Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
Copy / Title Edit / Text Stamp	Yes / Yes / Yes
Cut Animation	Yes
Video Divide	Yes
PictBridge Support	Single / Multi / All / Favorites / DPOF

Setup
OSD language	Japanese, English, German, French, Italian, Spanish

Monitor
LCD Monitor	7.5cm (3.0") TFT Screen LCD Display (460K dots), AR Coating / Field of View : approx. 100% / AUTO Power Monitor mode, Power Monitor mode

Flash
Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off, 0.3 - 5.6m (Wide/ISO Auto), 0.3 - 3.1m (Tele/ISO Auto)

Media
Recording Media	Built-in Memory, SD Memory Card, SDHC Memory Card, SDXC Memory Card
Built- in- Memory	Approx. 15MB TBD

Audio
Microphone / Speaker	Stereo / Mono

Interface
Interface	microHDMI, AV Output (PAL/NTSC), USB(AV/USB Multi)

Power
Power	Li-ion Battery Pack (3.6V / 1250mAh / 4.5Wh) / AC Adaptor (Input: 110-240V AC)(Optional)
Battery life (approx.)	370 pictures (CIPA Standard)*1

Standard Package
Included Software	PHOTOfunSTUDIO 9.1 PE / Adobe Reader
Standard Accessories	Battery Pack, Battery Charger, AC Cable, USB Cable, Hand Strap, CD-ROM

Further Specifications

NOTE

07/05

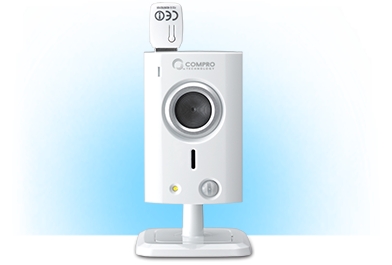

Compro TN50 H.264 Cloud Network Camera - 1/7" CMOS Sensor, 10x Digital Zoom, 2-Way Audio With Microphone And Speaker, MicroSD Card Slot, Smart Motion Detection, H.264 And MJPEG Compression - White

TN50

Plug-n-Play H.264 Cloud Network Camera

Overview

Plug-n-Play H.264 Cloud Network Camera
Exclusive C4Home Cloud iPhone/Android App and PC Platform
H.264 and MJPEG Compression
1-2-3 Steps Easy Installation
10x Digital Zoom
2-way audio with Microphone and speaker
Smartphone 2-way audio for Instant Communication
PIR Sensor and Illumination LED
Plug-n-Play Functionality
MicroSD card slot for events recording and snapshots
Cross Platform Accessibility
Friendly Browser Interface
Smart Motion Detection
Smartphone Push Notification and SMS/Email Event Notification
Easy Mounting Design
Upgradeable to WiFi with Compro WL160 USB stick (802.11b/g/n)

Features

Plug-n-Play H.264 Network Camera

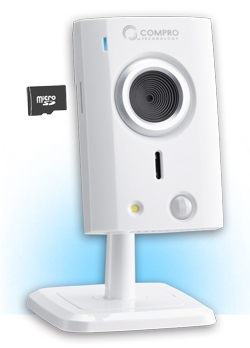

Compro TN50 is a sleek and compact network camera, plug-n-play design with built-in PIR (Passive Infrared motion detection) sensor and illumination LED let you instantly monitor your home and valuable possessions from anywhere in the world.

1-2-3 Easy Step Installation

The TN50 camera offers simple 1-2-3 step installation, no PC and network knowledge required:

Connect TN50 with your wireless router and power adaptor.
Download C4Home app to your iPhone/iPad or Android phone/tablet.
Scan the QR code on the back side of TN50, it will automatically add camera to the app.

Now you can watch live video on your smartphone/tablet in anytime, anywhere!

Exclusive C4Home Cloud App Service and 4 Cameras Monitoring

The TN50 cloud network camera integrated the C4Home cloud service, you can login to the www.c4home.com web interface to watch and control your cameras. Or you can free download and install the C4Home app to your iPhone/iPad and Android phone/tablet. With C4Home app, you can watch the live video of your network camera on hand, snapshot and smartphone 2-way audio communication in anytime. For the web interface and Android phone/tablet, C4Home also provide 4 cameras live monitoring at the same.

Smartphone 2-Way Audio Communication

You can use voice communication directly from your smartphone and the network cameras microphone/speaker.

While you are watching the live video on your smartphone, you can eavesdrop on the monitored area to know whats going on and broadcast your voice to intruders from your smartphone by touch the live video screen on your smartphone with finger and talk. Also you can use this feature to communication with your family.

PIR sensor and Illumination LED

The camera integrated PIR sensor (Passive Infrared Sensor) can detect intruder's movements even in pitch darkness and the movement can trigger the camera to start recording video or snapshot. The camera also can automatically illuminate the scene with its built-in white LED upon detecting events, allowing it to capture clear images of the intruder's face.

MicroSD Storage

TN50 built-in MicroSD/SDHC card slot, allow you to save the event recording and snapshot to the MicroSD card.

H.264 Compression

The camera utilizes the cutting-edge H.264 video compression technology. Compared with the MPEG-4 format, the H.264 technology has higher compression efficiency, which means it can accomplish high image quality while reducing bandwidth requirement and saving storage cost.

10x Digital Zoom

The 10x digital zoom allows users to zoom into details in the live video and to clearly identify suspicious objects or people in the monitored area before engaging with them.

Smart Motion Detection

The camera offers three individually configurable motion detection zones. The camera can be configured to automatically take snapshots or send out Email or SMS alert messages in response to any motion detected in user-defined areas.

Plug-n-Play Functionality

Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router setup required - simply plug in the cable, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.

Friendly Browser Interface

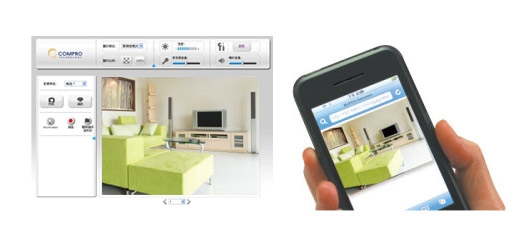

You can view the live video and manage your camera from anywhere and at anytime on your web browser. The camera's browser interface, WebVUer, is so easy to use that there is virtually no learning time required.

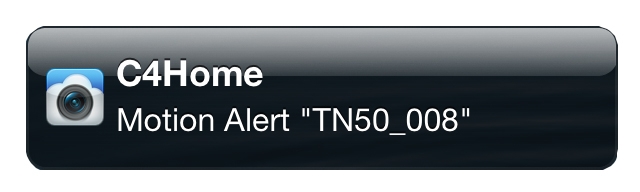

Push Notification

Push notification provides the instant notice direct to your iPhone or Android phone when the network camera online/offline or motion detected. You can click to watch the live video of network camera for monitoring or check out the snapshot to know what’s happened and you won’t miss any important situation.

SMS & Email Event Notification

The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.

Upgradeable to WiFi with Compro 802.11 b/g/n USB Adaptor

TN50 offers a fast and easy wireless upgrade solution. Simply plug the optional wireless adapter into the camera's USB socket, and you will instantly get 802.11 b/g/n wireless LAN support on the TN50.

Easy Mounting Design

Wall mounting and angle adjustment for this camera is easy and effortless. The camera's friendly mounting design allows it to be placed in the most ideal location. Once secured on the wall or ceiling, the camera can then be easily configured via the setup wizard or browser interface to rotate its image by 180°.

Software

C4Home cloud service – Design for your smartphone and tablet

TN50 integrated C4Home cloud service to your smartphone and tablet (iPhone and Android), you can free download and install the C4Home app to your device, then quick add your network camera for monitoring in anytime, anywhere. Also, you can login to the www.c4home.com website to watch live video and control your cameras in any PC.

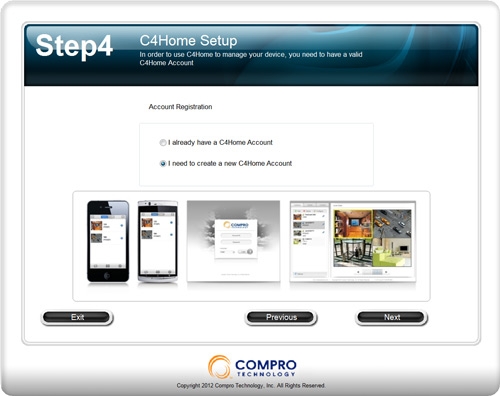

iWizard IP camera installer and utility Step by step instruction to setup and use your IP camera.

Installation wizard helps to setup your camera in the first time. iWizard utility helps you to search the available cameras on your local network and quick setup for access

WebVUer - Access IP camera from Internet Explorer and other web browser.

WebVUer allow users to watch live video and controls IP camera from PC in home, office and outdoor with internet connect. And support live video watch in FireFox, Safari, Google Chrome web browsers on PC. (with VLC Plug-in installed) Also, it supports live MJPEG video streaming mode for mobile phone/iphone/BlackBerry/PDA devices.

Hardware

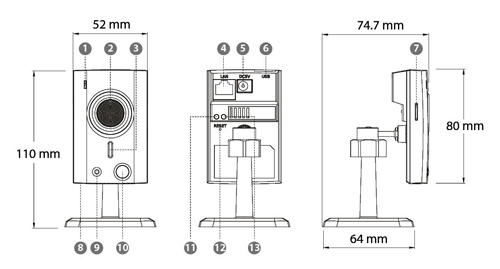

Name of each part and dimensions

LED status indicator
Lens
Speaker
Ethernet port
Power connector
USN wireless adaptor port
MicroSD card slot
Microphone pinhole (on the bottom)
Illumination LED
PIR Sensor
Connection status indicator
Reset button
Network speed indicator

Operating Condition: 0 C ~ 40 C

Power Supply: DC 5V/2A

Dimensions: 64 x 74.7 x 110mm (including bracket)

Package Contents

TN50 network camera
Software CD (Manuals included)
Start Up Guide
Power adaptor
RJ-45 Network cable
Screws for ceiling mounting
Screw mount
Wireless dongle(optional)

System Requirements

Computer with 2.8GHz dual processor and 2 GB memory or above
Supported Operating Systems: Windows XP SP3, Vista SP1, Windows 7, MAC OS(M-JPEG only)
Support Web Browser: Internet Explorer 7 or later

Specifications:

Specifications
Camera
Image Sensor	1/7" CMOS sensor
Lens	Focal Length: 2.0 mm Max Aperture Ratio: F2.8 Fixed iris
Angle of View	40 horizontal
Zoom	10x digital zoom
Focusing Range	1m ~ INF
Min Illumination	Color Mode: 1.0 lux
Shutter Time	1/5 ~ 1/16000 sec
Video
Video Compression	H.264 ( MPEG-4 Part 10) Motion JPEG
Resolutions	160 x 120, 320 x 240, 640 x 480
Maximum Frame Rate (fps)	Up to 30 frames at 640 x 480
Video Streaming	Support Dual Streams: Stream1: H.264 Stream2: H.264, MJPEG
Image Setting	Adjustable image size and quality AGC, AWB, AES Configurable brightness, saturation and sharpness
Audio
Audio Communication	Two-way audio with built-in Microphone and speaker
Audio Compression	G.711 PCM 64Kbit/sec
Networking
Security	User ID / Password Protection WEP/WPA/WPA2 encryption (wireless network)
Supported Protocols	TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DNS, DDNS (iDDNS), DynDNS, PPPoE, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4, 802.1x
Ethernet	10/100 Base-T, autosensing, RJ-45
Firmware
* Support UPnP * Support online firmware update
Web Browser
Internet Explorer (ActiveX)	Monitor the current condition of the monitor area via Internet Explorer Capture a still image and save it in JPG format on PC Alarm and event management: FTP, I/O alarm, server notification and email
Support Devices	PC, Laptop, Nettop, MID with IE/ActiveX support. Mobile phone, iPhone/iPad, BlackBerry, Android, Windows Mobile, PDAs support in MJPEG mode.
Other Web-Browsers	Support real-time video in FireFox, Safari, Google Chrome web-browsers (With VLC plug-in installed)
Mobile Phone
Smartphone App	View live video on iPhone/Android phone
MJPEG Mode	Viewing of camera image via phone browsers
3GPP Mode	Viewing of camera image via 3G phones (3GPP Streaming)
General
Operating conditions	0 - 40C
Power Supply	DC 5V/2A
Dimensions	64 x 74.7 x 110 mm (including bracket)

07/05

Compro NC2200 Dome Network Camera - 2 Megapixel, 1/3" Progressive Scan CMOS Image Sensor, 10x Digital Zoom, H.264, Vandal Resistant, MicroSD/SDHC Card Slot, IP66-Rated Weatherproof Casing - White

NC2200 | 2MP-IP66-POE-H.264-VANDAL-RESISTANT

Key Features

1/3" progressive scan CMOS image sensor
Supports H.264, MPEG-4 and MJPEG video compression
10x digital zoom
2-Megapixel 1600 by 1200 resolution at 15 FPS
Supports dynamic dual streaming, active bandwidth, management, activity-adaptive streaming, Quality-of-Service (QoS)
Intelligent video analytics
Supports SMS and E-mail notification
microSD/SDHC memory slot for storing event snapshot and recording
IP66-rated weatherproof casing
2-axis positioning (manual pan/tilt)
Built-in microphone

Technical Specifications

Camera
Indoor / Outdoor	Indoor & Outdoor
Sensor	1/3" CMOS 2-Megapixel sensor
Lens	Fixed iris, F 2.0, f 1.96mm
Zoom	10x digital
Angle of View	105
Min Illumination	1.0 lux
Shutter Time	1/5 ~ 1/16000 Sec.
Camera Angle Adjustment	40 pan, 90 tilt
Video
Video Format	M-JPEG, MPEG-4, H.264
Resolutions	160x120, 320 x 240, 640 x 480, 1280 x 1024, 1600 x 1200
Frame Rate	Turbo picture mode:1600 x1200 up to 15 FPS Motion adaptive mode: HDTV 720P (1280 x 720) up to 30 FPS; VGA or below up to 30 FPS
Video Streaming	Dual video stream supported
Dynamic Control	Active bandwidth management, activity adaptive streaming
Image Settings	Adjustable image size and quality AGC, AWB, AES Configurable brightness, saturation and sharpness
Audio
Compression Format	G.711 PCM 64 Kbit/sec
Audio Input / Output	Built-in microphone
System Integration
Intelligent Analytics	Motion detection, tampering detection, loitering detection, audio detection, multi-zone/sensitivity
Triggering Event	Analytics, schedule, network failure
Triggering Reaction	SMS, snapshot, local/remote recording, e-mail, FTP, alarm output, ComproView notification
SDK	Yes
Local Storage
Local Storage	Built-in microSD memory slot (with a pre-installed 4GB memory card)
Format	AVI (audio incl.), by events or schedule; JPEG, file name format customizable
Network
Protocols	3GPP, ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP/IPv4, IGP, NTP, PPPoE, QoS, RSP, RTSP, SMTP, TCP/IP, UDP, UPnP
Ethernet	10/100 Base-T, auto-sensing, RJ-45
User Group	2 levels, unlimited users, ID/password protected, max 10 simultaneous users
Diagnostics	Auto connectivity diagnosis, auto bandwidth detection, iWizard
Remote Surveillance
Mobile Surveillance	M-JPEG, 3GPP over Android, BlackBerry, iPhone, Windows Mobile (features vary)
Web Surveillance	16-CH WebVUer over Internet Explorer, Chrome, Firefox, Safari (features vary)
General
Unit Configuration	Rebooting, factory default, date/time synchronization, user profile management, firmware upgrade, OSD, multilingual UI
User Authentication	ID, password
Frame Rate	HTTP mode
OSD	Text or image overlay, 4 locations
Language	Chinese Traditional, Chinese Simplified, German, Spanish, English, Japanese, Portuguese, Russian, Turkish, Ukrainian, Bulgarian
Regulatory	CE, FCC
Mechanical
Weather Resistance	IP66
Dimensions	103mm x 100 x 56 mm (L x W x H)
Weight (Net)	270g
Electrical
Input Voltage	PoE (Power-over-Ethernet) only
PoE	IEEE 802.3af Class 3
Environmental
Operating Temperature	-20~ 50 C / -4 ~ 122 F
Humidity	20~80% RH non-condensing
Browsing Requirement
OS	Microsoft Windows XP SP3, Vista SP1, 7 (x86/x64)
Processor	Intel 2.8 GHz, 2GB RAM
Web Browser	Microsoft Internet Explorer 8.0 or above, non-IE browsers require 3rd-party VLC plugin

07/05

Team 64GB X121 Flash Drive - Read 180MB/s, Write 70MB/s, Unique Appearance Design, USB3.0 - Red/Black

X121

Capacity: 64GB

Info:

Feature USB3.0 data transfer interface Support hot swapping and plug n’ play High quality Silicone gel casing Resistance to splash and vibrations Backward compatibility with USB 2.0/USB 1.1 No external power source required (power adaptor) Cap can be retracted backwards Trinket hole at the tail end.

Features

Team X121 flash drive is equipped with the latest USB 3.0 interface. The casing is made of silicone gel featuring good quality and resistance to splash and vibrations, giving consumers speedy and practical enjoyment.

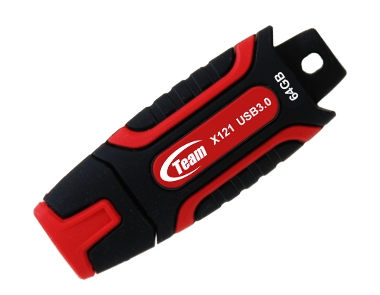

Unique appearance design

The body and cap are in a two-color design with the appearance inspired by the roaring engine of a sports car. The jet black relief stripes on both sides of the body and the hot-rod red frame not only highlight the extreme speed of USB 3.0 with a visual sensation, but also increase the grip and friction, making plugging and unplugging more easily.

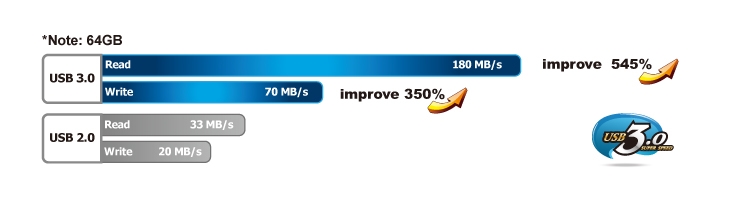

USB3.0 transmissio

USB 3.0 helps you save more time with the transmission rate of 180MB and 70MB/second for reading and writing, respectively, 6 times faster than high-end USB 2.0.

Practical function at the tail

The trinket hole at the tail end of product allows users to attach the product on a keychain, purse or any personal belonging. For convenience, the cap can be fixed at the tail, thus eliminating the concern of losing the cap.

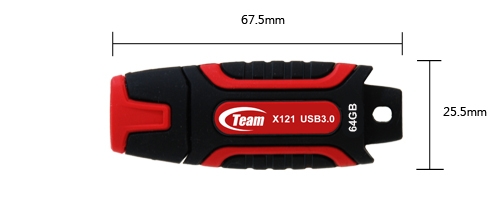

Product Dimensions

Specification

Specification	Content
Interface	USB 3.0
Hot Plug	YES
LED Reveal	NO
Weight	18.4g
Accessories	--
Warranty	Lifetime warranty
Notes	--
other	--

System Requirements

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Linux2.4, Mac

07/05

Team 128GB X121 Flash Drive - Read 180MB/s, Write 70MB/s, Unique Appearance Design, USB3.0 - Red/Black

X121

Capacity: 128GB

Info: Feature USB3.0 data transfer interface Support hot swapping and plug n’ play High quality Silicone gel casing Resistance to splash and vibrations Backward compatibility with USB 2.0/USB 1.1 No external power source required (power adaptor) Cap can be retracted backwards Trinket hole at the tail end

Features:

Unique appearance design

USB3.0 transmissio

USB 3.0 helps you save more time with the transmission rate of 180MB and 70MB/second for reading and writing, respectively, 6 times faster than high-end USB 2.0.

Practical function at the tail

Product Dimensions

Specification

Specification	Content
Interface	USB 3.0
Hot Plug	YES
LED Reveal	NO
Weight	18.4g
Accessories	--
Warranty	Lifetime warranty
Notes	--
other	--

System requirements

Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, Linux2.4, Mac

07/05

View Sonic PJD5134 Portable DLP Projector - 800x600, 3000 Lumens, 15,000;1, 10,000Hrs, VGA, HDMI, RS-232, Speakers

PJD5134

Light, Bright, and Portable Projector

Product Description

The PJD5134 is a high-performance SVGA 800x600 DLP projector with 3000 ANSI lumens and 15000:1 contrast ratio. This projector is packed with features including HDMI, DynamicECO, multiple PC and video input options, 1.1x optical zoom, keystone correction and integrated speakers. With its HDMI input, the PJD5134 can display 3D content directly from a 3D Blu-ray player. Presenters can put the PJD5134 in standby mode reducing brightness down to 30% with DynamicECO technology when they need to shift audiences focus without restarting the projector. Filter-less design and energy-saving eco mode provide for virtually zero maintenance and enhanced product reliability. The PJD5134 portable design is ideal for tabletop use or mounting on a ceilingin both classrooms and corporate offices.

Key Features:

3,000 ANSI lumens for clear and bright images
BrilliantColor technology provides exceptional display quality
Maintenance free, filter-less design
Long-lasting reliable picture quality & superior color performance
3D Blu-ray ready with HDMI
6-segment color wheel design, auto source detection, support HD signals & integrated speaker
DynamicEco technology for total control of audiences focus
PC 3D ready & up to 120Hz refresh rate powered by DLP Link Technology
Long lamp life up to 10,000 hours**
Eco-mode saves money and power
Small & light for easy mobility
Industry leading warranty: 3 years limited on parts and labor, 1 year on lamp, and free 1st year Express Exchange service*

3000 lumens shines in virtually any setting

Uses less watts per lumen than other comparable projectors. And with 15000:1 contrast (with DynamicEco), the PJD5134 is the bright choice for business and education.

Settings where the PJD5134 is the perfect solution

Business - conference rooms, meeting rooms, boardrooms.
Classrooms - lectures, videos, project presentations and even auditorium presentations.

DLP Technology

Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology that Hollywood relies on. For fast action, the response time is also on the order of 1,000 times faster than similar LCD based projectors. And with no air filters to clean or change, the latest generation of DLP based projectors from ViewSonic offer amongst the lowest TCO (Total Cost of Ownership) in the industry.

BrilliantColor Technology

ViewSonics PJD5134 projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies such as LCD which use just 3 primary colors to produce the image, the PJD5134 uses up to 6 separate colors. The sophisticated 6-segment color wheel enhances the yellow color performance that is the key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.

Maintenance free with filter-less design

ViewSonics PJD5134 projector features a filter-less design. Unlike LCD projectors that require the user to clean, sometimes to replace, filters after every 100 to 300 hours of operation, ViewSonics PJD5134 projector is filter-less eliminating the need for filter cleaning or filter replacement. This saves you significant maintenance dollars and labor over the projectors lifespan, and lowers your total cost of ownership (TCO).

Long-lasting reliable picture quality & superior color performance

ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on after thousands of hours of usage. Built on DLP technology, the ViewSonic PJD5134 projector virtually eliminates image degradation known as color decay yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD5134 is still producing a stunning, sharp image that lasts.

3D Blu-ray ready with HDMI

With its HDMI input, the ViewSonic PJD5134 projector can now display 3D images directly from 3D Blu-ray players. The PJD5134 is designed to provide an amazing 3D visual experience for classroom, office, and even home environments.

Packed with features

6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
Auto source detection senses the source input and syncs with your computer automatically
Support wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
Integrated speaker ideal for multimedia applications, videos, audio-enabled presentations

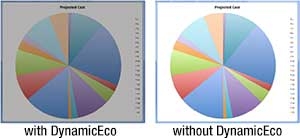

DynamicEco technology for total control of audience's focus

With the DynamicEco button on the remote, take command of presentations by dimming the screen image - up to 70%. The projector will also auto activate DynamicEco when the unit is not in use. When DynamicEco is activated, the lamp’s power consumption is significantly reduced- a great energy-saving design for a low total cost of ownership (TCO).

PC 3D-Ready / 120Hz refresh rate powered DLP® LinkTechnology

With support for DLP Link technology, you´ll have amazing 3D capabilities at your disposal. All that’s required to unlock 3D capabilities on ViewSonic PJD5134 3D ready projector are ViewSonic PGD-250 3D active shutter glasses, 3D content and 3D-enabled video card. Unleash 3D experience with the ViewSonic PJD5134 today.

Long lamp life up to 10,000 hours

The new advanced lamp technology from ViewSonic extends the lamp life up to 10,000 hours** and saves you on replacement lamp costs.

Eco-mode saves money, power and green the planet

With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50%** and up to 10,000 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. It´s good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).

Small & light for easy mobility

Only 3.3 inches in height and lightweight at 4.6 pounds, ViewSonics PJD5134 is light and compact making it the perfect portable projector for mobile sales and business travelers.

Piece of mind with industry leading warranty

Backed by our 25 year reputation for quality and reliability, ViewSonic offers one of the industrys best overall projector warranty with 3-year limited parts and labor, 1-year lamp and first year free Express Exchange service*. Dont be fooled by seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts.

ViewSonic PJD5 Series Feature Comparison

Model	PJD5132	PJD5134	PJD5232	PJD5234	PJD5533w
Resolution	SVGA 800x600	SVGA 800x600	XGA 1024x768	XGA 1024x768	WXGA 1280x800
Brightness	3000 Lumens	3000 Lumens	2800 Lumens	2800 Lumens	3000 Lumens
Aspect Ratio	4:3	4:3	4:3	4:3	16:10
VGA In/Out	2/1	2/1	2/1	2/1	2/1
HDMI
S-Video
Composite Video
Speaker
RS-232

What is in the box:

ViewSonic PJD5134 projector
Power cord
VGA cable
Remote control with batteries
Quick start guide
ViewSonic Wizard CD (with User Guide)

Dimensions and Other Features:

Product Dimensions (w x h x d) with stand: 10.5 x 3.3 x 8.7

Specifications:

DISPLAY

Type

0.55" Digital Micromirror Device (DLP)

Resolution

SVGA 800x600 (native)

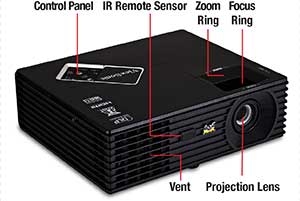

Lens

1.1x Manual optical zoom / manual optical focus

Zoom Factor

N/A

Keystone

Vertical digital keystone correction (+/- 40)

Display Size

24 300 in. / 0.6 7.6 m (diagonal)

Throw Distance

3.3 37.0 ft. / 1.0 11.3 m

Throw Ratio

1.86~2.04:1

Lamp Type

190 watt

Lamp Life (normal/eco-mode)

4500 /10,000* hours

Brightness

3000 Lumens

Contrast Ratio

15,000:1 (w/ DynamicEco)

Aspect Ratio

4:3 (native)

Color Wheel

6-seg RGBCYW / 7200rpm

Color Depth

30 bits, 1.07B Color (10+10+10)

Color Gamut

N/A

INPUT SIGNAL

Computer and Video

NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p

Frequency

Fh: 31100KHz, Fv: 48120Hz

COMPATIBILITY

VGA to 1600x1200 UXGA

Mac

Up to UXGA (may require MAC adaptor

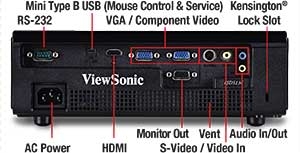

CONNECTOR

Audio Input

3.5mm mini jack

Audio Out

3.5mm mini jack

RGB Input

15-pin mini D-sub (x2)

Composite Input

RCA jack

S-Video Input

4-pin mini-DIN

Component

15-pin mini D-sub (x2, shared with RGB)

RGB Output

15-pin mini D-sub

Control

RS-232 (DB-9)

Digital

HDMI

Network

N/A

USB

Mini B (for mouse control and service)

Mic-In

N/A

Screen Trigger

N/A

Card Reader

N/A

AUDIO

Speakers

Amplifier

N/A

POWER

Voltage

100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption

250W (typ) / <1W (stand-by mode)

CONTROLS

Basic

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

OSD

Display, Picture, Source, System Setup (Basic), System Setup (Advanced), Information (See user guide for full OSD functionality)

OPERATING CONDITIONS

Temperature

32F104F (0C40C)

Humidity

10%90% (non-condensing)

Altitude

0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)

NOISE LEVEL

Normal

32dB

Eco-Mode

29d

DIMENSIONS (WxHxD)

Physical

10.6 x 3.3 x 8.7 in. / 268 x 84.4 x 221 mm

Packaging

14.2 x 12.8 x 7.4 in. / 360 x 325 x 188 mm

WEIGHT

Net

4.6 lb. / 2.1 kg

Gross

7.5 lb. / 3.4 kg

LANGUAGE

N/A

Regulations

CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS

PACKAGE CONTENTS

PJD5134 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).

Warranty

3-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service**

OTHER

N/A

07/05

BenQ MX766 DLP Projector - 1024x768, 4000 Lumens, 13000;1, 3000Hrs, VGA, HDMI, S-Video, RS232, USB, Speakers

MX766

Projection Perfect for Every Occasion

The BenQ MX766 is just the projector you need to perfect your presentation in all settings. Featuring XGA resolution with 4000 ANSI lumens and 13000:1 high contrast ratio, the MX766 also offers multi display for ultra-smooth connection, PC-less presentation to keep your presentation lookin' great!

Features:

Power saving , Eco friendly

World-Leading SmartEco Technology for a Greener Environment

As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MX766 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.

Eco Blank Mode

The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.

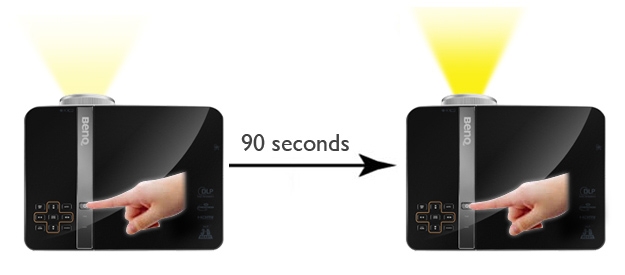

Full Power On
100% Lamp Power
Attention on the Projection Screen

Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

Normal Mode
296W Projector Power
Consumption
by Average

SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average

(Source: 2010 Philips white paper)

No Source Detected Mode

The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Source Detected
100% Lamp Power

No Source Detected

30% Lamp Power

Audio Pass through

With the built-in speaker, the MX766 can be used as an audio system when it's on the standby mode. This saves you the trouble as well as the extra budget for getting a separate audio system.

0.5W in Standby Mode

When inactive, the MX766 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.

Hassle-free projector maintenance

Upper lamp door for easy lamp access

the upper lamp door is designed for it managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.

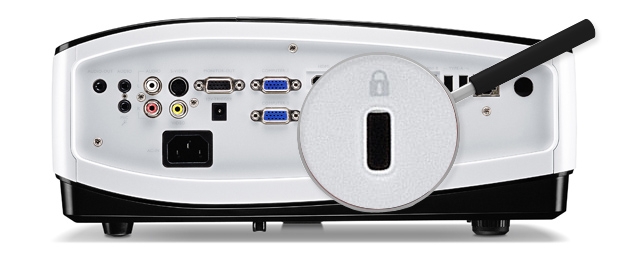

Kensington lock to discourage theft

A Kensington lock is designed to enable projector managers to secure their classroom projectors either to a ceiling mount or an audiovisual equipment cart, adding extra "physical" security to a classroom projector. BenQ's education projectors are each built with a security bar to help discourage a good number of opportunistic thieves.

LAN Control with Crestron and PJ-Link

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. The MX766 offers seamless support for the Crestron and PJ-Link LAN Control system.

USB Camera for easy classroom monitoring

Teachers can real-time monitor situation in classroom on their laptop at distanced office just via USB camera connection.

Thoughful designs

Instant restart

The Instant Restart feature gives teachers a 90-second window period to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.

LAN Display

LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.

PC-Less Teaching

USB Drive Display allows teachers to teach light with a USB flash drive. All they need to do is save the files they need onto a USB flash drive and insert it in the MX766 to start teaching. File types supported are JPEG, JPG, BMP, PNG, GIF and TIFF.

Thoughtful Teaching Template Design

To make your teaching job easier, BenQ has added the teaching template function to the MX766. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.

Microphone Input Support

With the microphone input, you will no longer need to shout at the top of your lungs to get the attention of your audience. All you need to do is plug in the microphone or microphone headset to get your point across!

ecoFACTS Label

ecoFACTS can tell you how eco-friendly BenQ products are!

Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Specifications:

Projection System	DLP
Native Resolution	XGA(1024x768)
Brightness*	4000AL
Contrast Ratio	13000:1
Display Color	1.07 Billion Colors
Lens	F=2.42-2.98, f=20.7-31.13mm
Aspect Ratio	Native 4:3 (5 aspect ratio selectable)
Throw Ratio	1.83-2.81 (53"@2m)
Image Size (Diagonal)	40"-300"
Zoom Ratio	1.5:1
Lamp Type	310W
Lamp(Normal/Economic Mode/SmartEco Mode)*	2500/3500/3000 hours
Keystone Adjustment	1D, Vertical 40 degrees
Projection Offset	130% 5%
Resolution Support	VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency	27K~102KHz
Vertical Scan Rate	23~120Hz
Interface	Computer in (D-sub 15pin) x 2(Share with component) Monitor out (D-sub 15pin) x 1 HDMI x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 Audio in (Mini Jack) x 2 Audio L/R in (RCA) x 1 Audio out (Mini Jack) x 1 Microphone in (Mini Jack) x 1 Speaker 20W x 1 LAN (RJ45) x 1 (LAN Control & LAN Display & Audio) USB (Type A) x 2 (USB Reader & Wireless Display & Remote Desktop) USB (Type mini B) x 1 (USB Display & Download) RS232 (DB-9pin) x 1 IR Receiver x 2 (Front+Top)
Dimensions(W x H x D)	329x 137.2 x 256.2mm
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
Weight	3.9kg
Audible Noise	36/34 dBA (Normal/Economic mode)
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	340W(typical), Standby<0.5W
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes	Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard)	Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable Carry bag
Accessories (Optional)	Presentation Plus P/N: 65.J9306.002 Spare Lamp Kit P/N: 5J.J6R05.001 Ceilling Mount P/N: 5J.J2K01.001 3D Glasses P/N: 5J.J0T14.011

07/05

Panasonic DMC-FH10 Digital Camera - Silver

- 16.1MP, 5x Optical Zoom, f=4.3 - 21.5mm (24 - 120mm In 35mm Equivalent), 2.7"TFT LCD, Optical Image Stabilizer, Intelligent Auto, Sonic Speed AF

Lumix DMC-FH10

Compact and stylish digital camera

Overview

The super slim and stylish Panasonic DMC-FH10 compact camera is small enough to fit in your pocket with creative controls to personalize your pictures. Discover high quality pictures from a small, stylish camera and the ability to personalize your everyday photography. A 5x optical zoom gives you the versatility to shoot near and far making it great for travel. Expressing yourself has never been easier than with the in-camera Creative Panoramic Scene mode. The DMC-FH10 shoots amazing HD video along with stunning photos making this your perfect pocket-able camera.

Compact and Slim Pocket-able Camera

24mm Ultra Wide-Angle Lens

The DMC-FH10 packs a 24mm ultra wide-angle lens with 5x optical zoom* into a slim, compact body. The 24mm gives you a wider range of composition possibilities with approximately 213% larger viewing space compared to that of a 35mm camera.

* 35mm camera equivalent: 24-120mm

5X Wide-Angle Optically Stabilized Zoom

8x Intelligent Zoom

When you need to get even closer to your subject, the Intelligent Zoom is an extensive zoom function that uses digital zoom technology with minimum deterioration of image quality. The 5x optical zoom can virtually extend to an 8x zoom equivalent.

HD Video Capture

The DMC-FH10 records HD video in Motion JPEG format (1,280 x 720 pixels at 30 fps). Video recording can be easily started with the press of the Motion Picture Button making it convenient for switching between photo and video shooting instantly.

QuickTime Motion JPEG. n Some lens movement sounds may be recorded. In Motion Picture Mode, the length of recording time depends on the capacity of the SD/SDHC/SDXC Memory Card. (Up to the equivalent of 2 GB per video recording.) Motion pictures can be recorded continuously up to 2 GB. The maximum available recording time for up to 2 GB only is displayed on the screen. Use a card with SD Speed Class* with "Class 6" or higher when recording motion images. SDHC Memory Cards and SDXC Memory Cards can be used only in equipment that is compatible with their respective formats. If the computer being used does not support SDXC Memory Cards, a message prompting you to format may appear. (Doing so will cause recorded images to be erased so do not choose to format.) SDXC Logo is a trademark of SD-3C,LLC.

*SD speed class is the speed standard regarding continuous writing.

Panorama Shot

Panorama Shot Scene Mode makes it possible to shoot a wide horizontal/vertical panoramic image with consecutive shots, by overlaying the previous picture. The multiple images are stitched together to create one single wide image capturing your scene.

MEGA O.I.S. (Optical Image Stabilizer)

The MEGA O.I.S. (Optical Image Stabilizer) compensates for hand-shake that causes blurred photos. Even slight hand-shake movement is accurately detected and compensated for to produce sharp, clear images.

Night Portraits

Night Scenes

In Dimly Lit Rooms

Macro Shots / Zoom Shots

iA (Intelligent Auto) Mode

In the iA (Intelligent Auto) Mode, the camera does all the work, leaving you free to compose your shot and capture the moment. Simply aim, press, and shoot. The detection and correction functions go to work to give you beautiful photos and videos*.

Sonic Speed AF

The DMC-FH10 is ready to shoot when you are. With its quick start-up time and Sonic Speed AF, the DMC-F10 helps you to never miss a moment.

AC / USB Battery Charging

The DMC-FH10 complies with USB power charging in addition to the conventional AC power supply. The efficient, rechargeable lithium-ion battery lets you take approximately 260 shots on a single battery charge.

* Based on the CIPA standard.

State-Of-The-Art Features And Technologies

The Intelligent LCD automatically adjusts the brightness in 11 steps according to shooting conditions.
In addition to 4:3, 3:2, and 16:9, you can shoot with a unique, square-shaped 1:1 aspect ratio.
A total of 14 Scene Modes set the most appropriate parameter in wide-ranging situations.
The 90MB built-in memory provides extra memory when your memory card fills up.
The PHOTOfunSTUDIO smartly sorts your images into practical folders for quick, easy management.
9-area AF
Quick AF
Copy Setting
Focus Range Display
World Time Setting
Slideshow with Music
Category Selection
12/30 Thumbnails Display
Calendar Display
Set Favorites
DPOF Print Setting
Set Protection
Resize
PictBridge Compatible

Specifications:

Metrics
Dimensions (W x H x D)	93.0 x 54.6 x 18.0 mm / (3.66 x 2.15 x 0.71 inch)
Weight	Approx.85g without Battery and micro SD Memory Card (0.19 lb) / Approx. 100g with Battery and micro SD Memory Card (0.22 lb)
Optics
Pixels
Camera Effective Pixels	16.1 Megapixels
Sensor
Sensor Size / Total Pixels / Filter	1/2.33-inch CCD Sensor / 16.6 Total Megapixels / Primary Color Filter
Lens	null / LUMIX DC VARIO / 6 elements in 5 groups / (3 Aspherical Lenses / 5 Aspherical surfaces)
Aperture	F2.8 - 6.9 / 2-Step (F2.8 / 9.0 (W), F6.9 / 22.0 (T))
Optical Zoom	5x
Focal Length	f=4.3 - 21.5mm (24 - 120mm in 35mm equiv.) / (26 - 130mm in 35mm equiv. in video recording)
Extra Optical Zoom (EZ)	6.3x (4:3 / 10M), Max. 9x (4:3 / 5M), 11.3x (4:3 / under 3M)
Intelligent Zoom	8x
2- Speed Zoom	-
Optical Image Stabilizer/Five Axis Correction	MEGA O.I.S. (Off / On) / No
Digital Zoom¹	Max. 4x
Focus	null / Normal / Quick AF (Always On), Continuous AF(only for motion picture)
Focusing Area	Normal / Intelligent AUTO : Wide 5 cm - infinity / Tele 100cm - infinity
AF Assist Lamp	-
AF Metering	Face / 9-Area / 1-Area
Shutter
Shutter Speed	approx. 8 - 1/1600 sec / 15 sec / 30 sec / 60 sec in Starry Sky mode
Finder
Viewfinder	-
Recording
File
File Format	Still Image: JPEG(DCF/Exif2.3) / Motion picture: Quick Time Motion JPEG
Recording Modes
Mode Dial / Mode Button	Intelligent Auto, Normal Picture, Creative Control,Panorama Shot, SCN
Creative Control mode	-
Still Image Scene Mode	Portrait, Soft Skin, Scenery, Sports, Night Portrait, Night Scenery, Food, Baby1(Birthday only), Baby2(Birthday only), Pet(Birthday only), / Sunset, High Sensitivity, Glass Through, Photo Frame, Starry Sky
Continuous Shooting Mode	Full-Resolution Image, approx. 1.0 frames/sec / High-speed Burst Mode: approx. 10 frames/sec / (recorded in 3M for 4:3, 2.5M for 3:2, 2M for 16:9, 2.5M for 1:1) / Flash burst shooting
*Motion Picture Recording (2)**
HD Video	1280 x 720 pixels, 30fps (HD / Motion JPEG)
STD Video	640 x 480 pixels, 30 fps (VGA / Motion JPEG) / 320 x 240 pixels, 30fps (QVGA / Motion JPEG)
Continuous recordable time (motion pictures)
AVCHD	-
MP4	-
Actual recordable time (motion pictures)
AVCHD	-
MP4	-
Exposure Parameters
Exposure	Auto(Program AE)
Exposure Compensation	1/3 EV step, +/-2 EV
Auto (AE) Bracketing	-
Light Metering	Intelligent Multiple
ISO Sensitivity	I.ISO / 100 / 200 / 400 / 800 / 1600 / High Sensitivity mode (ISO 1600-6400)
Picture Quality
Still Picture Recording	[1:1] 3456 x 3456 (12M) / [4:3] 4608 x 3456 (16M) / 3648 x 2736 (10M EZ) / 2560 x 1920 (5M EZ)/ 2048 x 1536 (3M EZ) / 640 x 480 (0.3M EZ) / [3:2] 4608 x 3072 (14M) / [16:9] 4608 x 2592 (12M)
Image Quality	-
White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / White Set
Photo Style / Film Mode	-
Color Mode / Color Effect / My color	Color Mode : Standard, Black&White, Sepia, Vivid (Normal only), Happy (only in iA mode)
Aspect Bracketing	-
Other
Digital Red Eye Correction (Red-Eye Removal)	Yes
GPS	-
Wi-FI	-
NFC	-
Zoom in Motion Picture	Yes(Digital Zoom)
Self Timer	2sec / 10sec
Playback
Display
Playback Mode²	All, Slideshow, Filtering PlayPicture Only, Video Only, Category Selection, Select Date, Favorites), Calendar
Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
Calendar Display / Dual- Image Playback	Yes / No
Set Favorites / Rotate Image	Yes / No
Show Histogram	-
Show Highlights	-
DPOF Print Setting / Set Protection	Yes / Yes
Edit
Retouch	Auto Retouch
Resize / Cropping / Aspect Conv. / Leveling	Yes / No / No / No
Copy / Title Edit / Text Stamp	Yes / No / No
Cut Animation	-
Video Divide	-
PictBridge Support	Single / Multi / All / Favorites / DPOF
Setup
OSD language	English, Spanish
Others
Monitor
LCD Monitor³	2.7"(6.7cm) TFT Screen LCD Display (230K dots) / Field of View : approx. 100%
Flash
Built- in- Flash	Auto, Auto/Red-eye Reduction, Forced On, Slow Sync./Red-eye Reduction, Forced Off / 0.4 - 4.4m (Wide/i.ISO), 1.0 - 1.7m (Tele/ISO Auto)
Media
Recording Media	Built-in Memory, micro SD Memory Card, micro SDHC Memory Card
Built- in- Memory	Approx. 90 MB
Audio
Microphone / Speaker	Mono / Mono
Power⁴	null / Li-ion Battery Pack (3.6V / 690mAh / 2.5Wh) / AC Adaptor (Input: 110-240V AC)(Included, connect with USB cable)
Battery life (approx.)	260 pictures (CIPA Standard)*1
Standard Package
Included Software	PHOTOfunSTUDIO 9.0 LE, Adobe Reader
Standard Accessories	Battery Pack, AC adaptor, USB Cable, Hand Strap, CD-ROM
Further Specifications
NOTE	1 / Recording conditions by CIPA standard / - CIPA is an abbreviation of [Camera & Imaging Products Association]. / - Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on. / - Using a Panasonic SD Memory Card (32 MB). / - Using the supplied battery. / - Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].) / - Recording once every 30 seconds with full flash every second recording. / - Rotating the zoom lever from Tele to Wide or vice versa in every recording. / - Turning the camera off every 10 recordings and leaving it until the temperature of the battery decreases. / 2 / - These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. / - The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. / - Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc. / - Maximum time to record motion pictures continuously with [AVCHD] in [FHD/60p]/[FHD/60i] is 29 minutes 59 seconds. / - Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds or up to 4 GB.

07/05

SanDisk 32GB Cruzer Force Flash Drive - Durable Metal Casing, Durable And Stylish, USB2.0

Cruzer Force USB Flash Drive

Expansive File Storage in a Durable Metal Case

With the Cruzer Force USB flash drive, you'll get large storage capacities within a distinctive, stylish design. This USB flash drive features a durable metal casing that provides a dash of style. With capacities up to 32GB, this secure, reliable flash drive can store even large files, including high-resolution images and HD video. It comes with SanDisk SecureAccess software, which makes it easy to create an encrypted, password-protected folder. You'll be able to share the files you want--and keep sensitive files private.

Durable metal casing
Available in capacities up to 32GB**
Stores large HD video, music, and photo files
Portable flash drive fits in a bag or pocket
Comes with SanDisk SecureAccess software**

Selected: 32GB | Item # SDCZ71-032G

Overview

Durable and Stylish

The Cruzer Force USB flash drive is durable, and its sleek design brings style to file storage.

Available in Capacities up to 32GB

With capacities as large as 32GB, the Cruzer Force USB flash drive can hold even bulky files. Keep your most important files in easy reach, including HD video, high-resolution images, music, and personal documents.

Portable Drive for Easy File Storage

This compact USB drive fits easily in a pocket or bag, so it's simple to back up, store, and transport files. Thanks to the small hole in the metal casing, you can connect the Cruzer Force USB flash drive to a key ring or lanyard for convenient access.

SanDisk SecureAccess Software Keeps Files Private

The Cruzer Force USB flash drive comes with SanDisk SecureAccess software, which creates a password-protected folder for your sensitive files. The application uses 128-bit AES encryption, so you'll be able to share your favorite media while preventing access to your private documents.

Specifications:

Compatibility: USB 2.0
Available capacities: 8 GB, 16 GB, and 32 GB**
Security: Password protection and 128-bit AES encryption**
Dimensions: 1.35 x 0.47 x 0.29 in. (34.4 mm x 12.0 mm x 7.4 mm)
Operating temperature: 32 - 113 F (0 45 C)
Storage temperature: 50 - 158 F (-10 70 C)
Warranty United States: 2-year limited warranty. All other regions: 5-year limited warranty.**

Product Numbers

Americas	Europe/ Asia-Pacific/ Latin America/ Middle East and Africa
SDCZ71-008G-A46 8GB	SDCZ71-008G-B35 8GB
SDCZ71-016G-A46 16GB	SDCZ71-0016G-B35 16GB
SDCZ71-032G-A46 32GB	SDCZ71-0032G-B35 32GB
Australia	China
SDCZ71-008G-BQ35 8GB	SDCZ71-008G-Z35 8GB - April 30, 2013
SDCZ71-016G-BQ35 16GB	SDCZ71-016G-Z35 16GB
SDCZ71-032G-BQ35 32GB	SDCZ71-032G-Z35 32GB
Canada
SDCZ71-008G-B35S 8GB
SDCZ71-016G-B35S 16GB
SDCZ71-032G-B35S 32GB

07/05

SanDisk 16GB Cruzer Force Flash Drive - Durable Metal Casing, Durable And Stylish, USB2.0

Cruzer Force USB Flash Drive

Expansive File Storage in a Durable Metal Case

Durable metal casing
Available in capacities up to 32GB**
Stores large HD video, music, and photo files
Portable flash drive fits in a bag or pocket
Comes with SanDisk SecureAccess software**

Selected: 16GB | Item # SDCZ71-016G

Overview

Durable and Stylish

The Cruzer Force USB flash drive is durable, and its sleek design brings style to file storage.

Available in Capacities up to 32GB

Portable Drive for Easy File Storage

SanDisk SecureAccess Software Keeps Files Private

Specifications:

Compatibility: USB 2.0
Available capacities: 8 GB, 16 GB, and 32 GB**
Security: Password protection and 128-bit AES encryption**
Dimensions: 1.35 x 0.47 x 0.29 in. (34.4 mm x 12.0 mm x 7.4 mm)
Operating temperature: 32 - 113 F (0 45 C)
Storage temperature: 50 - 158 F (-10 70 C)
Warranty United States: 2-year limited warranty. All other regions: 5-year limited warranty.**

Product Numbers

Americas	Europe/ Asia-Pacific/ Latin America/ Middle East and Africa
SDCZ71-008G-A46 8GB	SDCZ71-008G-B35 8GB
SDCZ71-016G-A46 16GB	SDCZ71-0016G-B35 16GB
SDCZ71-032G-A46 32GB	SDCZ71-0032G-B35 32GB
Australia	China
SDCZ71-008G-BQ35 8GB	SDCZ71-008G-Z35 8GB - April 30, 2013
SDCZ71-016G-BQ35 16GB	SDCZ71-016G-Z35 16GB
SDCZ71-032G-BQ35 32GB	SDCZ71-032G-Z35 32GB
Canada
SDCZ71-008G-B35S 8GB
SDCZ71-016G-B35S 16GB
SDCZ71-032G-B35S 32GB

07/05

SanDisk 8GB Cruzer Force Flash Drive - Durable Metal Casing, Durable And Stylish, USB2.0

Cruzer Force USB Flash Drive

Expansive File Storage in a Durable Metal Case

Durable metal casing
Available in capacities up to 32GB**
Stores large HD video, music, and photo files
Portable flash drive fits in a bag or pocket
Comes with SanDisk SecureAccess software**

Overview

Durable and Stylish

The Cruzer Force USB flash drive is durable, and its sleek design brings style to file storage.

Available in Capacities up to 32GB

Portable Drive for Easy File Storage

SanDisk SecureAccess Software Keeps Files Private

Specifications:

Compatibility: USB 2.0
Available capacities: 8 GB, 16 GB, and 32 GB**
Security: Password protection and 128-bit AES encryption**
Dimensions: 1.35 x 0.47 x 0.29 in. (34.4 mm x 12.0 mm x 7.4 mm)
Operating temperature: 32 - 113 F (0 45 C)
Storage temperature: 50 - 158 F (-10 70 C)
Warranty United States: 2-year limited warranty. All other regions: 5-year limited warranty.**

Product Numbers

Americas	Europe/ Asia-Pacific/ Latin America/ Middle East and Africa
SDCZ71-008G-A46 8GB	SDCZ71-008G-B35 8GB
SDCZ71-016G-A46 16GB	SDCZ71-0016G-B35 16GB
SDCZ71-032G-A46 32GB	SDCZ71-0032G-B35 32GB
Australia	China
SDCZ71-008G-BQ35 8GB	SDCZ71-008G-Z35 8GB - April 30, 2013
SDCZ71-016G-BQ35 16GB	SDCZ71-016G-Z35 16GB
SDCZ71-032G-BQ35 32GB	SDCZ71-032G-Z35 32GB
Canada
SDCZ71-008G-B35S 8GB
SDCZ71-016G-B35S 16GB
SDCZ71-032G-B35S 32GB

Links

Contact | About Us | Your Account
FAQ | Signup | Login

Newsletter

All prices shown on camerafarm.com.au website are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. We sell and ship to anywhere in Australia .
© Techbuy Pty Ltd (camerafarm.com.au) 2026 All rights reserved. (site rev. 1.6b) For more information, please see our usage policies.

Shop online for Digital Cameras and accessories | Camerafarm Australia

Camerafarm product archive #41399

BenQ MW870UST Ultra Short-Throw DLP Projector - 1280x800, 3000 Lumens, 2600;1, 4000Hrs, VGA, HDMI, Audio, RS232, RJ45, Speakers

MW870UST

Panasonic DMC-FT5 Digital Camera - Silver

DMC-FT5

Metrics

Pixels

Sensor

Lens

Focus

Shutter

Finder

File

Recording Modes

Motion Picture Recording (*2)

Continuous recordable time (motion pictures)

Actual recordable time (motion pictures)

Exposure Parameters

Picture Quality

Other

Display

Edit

Setup

Monitor

Flash

Media

Audio

Interface

Power

Standard Package

Further Specifications

Panasonic DMC-FT5 Digital Camera - Orange

DMC-FT5

Metrics

Pixels

Sensor

Lens

Focus

Shutter

Finder

File

Recording Modes

Motion Picture Recording (*2)

Continuous recordable time (motion pictures)

Actual recordable time (motion pictures)

Exposure Parameters

Picture Quality

Other

Display

Edit

Setup

Monitor

Flash

Media

Audio

Interface

Power

Standard Package

Further Specifications

Panasonic DMC-FT5 Digital Camera - Blue

DMC-FT5

Metrics

Pixels

Sensor

Lens

Focus

Shutter

Finder

File

Recording Modes

Motion Picture Recording (*2)

Continuous recordable time (motion pictures)

Actual recordable time (motion pictures)

Exposure Parameters

Picture Quality

Other

Display

Edit

Setup
