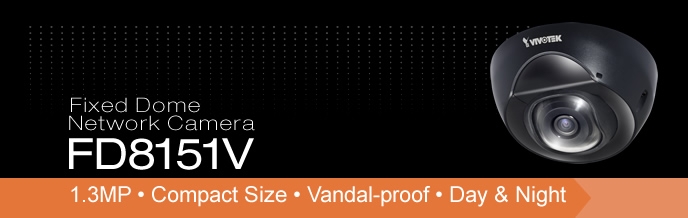

Vivotek FD8151V Fixed Dome Network Camera - 1.3 Megapixel CMOS Sensor, 30fps @ 1280x1024, Supreme Night Visibility, Removable IR-Cut Filter For Day & Night Function, Built-in MicroSD/SDHC Card Slot - Black

1.3MP Compact Size Vandal-proof Day & Night Fixed Dome Network Camera FD8151V

Overview

VIVOTEK FD8151V is the latest compact fixed dome camera model suitable for a variety of applications. With mounting as easy as one-two-three and Power over Ethernet (PoE) functionality, setup time is completed in less than 120 seconds, making installation quick and easy. The unit is equipped with a vandal-proof housing and IR illuminators up to 5 meters, making it a feature-rich at a competitive price.

The FD8151V features a 1.3-Megapixel sensor enabling viewing resolution of 1280x1024 at 30 fps and also supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MJPEG compatibility also included, video streams can also be transmitted in either of these formats for versatile applications.

Designed to accept fixed lenses of various focal lengths, FD8151V can be used in various environments, including but not limited to: offices, elevators, campus, chain stores, boutique stores, prisons, and health care facilities. At a size of only 100 mm in diameter, VIVOTEK FD8151V is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. The package also includes VIVOTEK's 32-channel recording software. With all this and more, the FD8151V is the ideal solution for your surveillance needs.

Features

  • 1.3-Megapixel CMOS Sensor
  • Compact Design
  • Real-time H.264 and MJPEG Compression (Dual Codec)
  • 30 fps @ 1280x1024
  • Supreme Night Visibility
  • Removable IR-cut Filter for Day and Night Function
  • Built-in IR Illuminators, Effective up to 5 Meters
  • Built-in IEEE 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Vandal-proof IK10-rated Housing
  • Selectable Lens (f = 2.5 mm or 4 mm)

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 16 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/3" Progressive CMOS
Maximum Resolution
  • 1280x1024
Lens Type
  • Fixed-focal
Focal Length
  • f = 2.5 mm (FD8151V-F2)
  • f = 4 mm (FD8151V-F4)
Aperture
  • F2.0 (FD8151V-F2)
  • F1.5 (FD8151V-F4)
Auto-iris
  • Fixed-iris
Field of View
  • FD8151V-F2:
    • 110 (horizontal)
    • 86 (vertical)
    • 142 (diagonal)
  • FD8151V-F4:
    • 64 (horizontal)
    • 53 (vertical)
    • 80 (diagonal)
Shutter Time
  • 1/5 sec. to 1/32,000 sec.
Day & Night
  • Removable IR-cut filter for day & night function
Minimum Illumination
  • FD8151V-F2:
    • 0.16 Lux, 50 IRE (Color)
    • 0.001 Lux, 50 IRE (B/W)
  • FD8151V-F4:
    • 0.1 Lux, 50 IRE (Color)
    • 0.001 Lux, 50 IRE (B/W)
Pan / Tilt / Zoom
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video
Compression
  • H.264 & MJPEG
Maximum Frame Rate
  • H.264: 30 fps at 1280x1024
  • MJPEG: 30 fps at 1280x1024
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • Above 58 dB
Dynamic Range
  • 67 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
  • Configurable video cropping for bandwidth saving
Image Settings
  • Adjustable image size, quality and bit rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio
Audio Capability
  • Audio input
Compression
  • G.711
Interface
  • Built-in Microphone
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF
  • Supported, specification available at www.onvif.org
Interface
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
Intelligent Video
Video Motion Detection
  • Triple-window video motion detection
Alarm and Event
Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 for Network/PoE connection
  • Digital input*1
LED Indicator
  • System power and status indicator
Power input
  • IEEE 802.3af PoE Class 2
Power consumption
  • Max. 6.5W
Dimensions
  • : 100 mm x 55 mm
Weight
  • Net: 284 g
Casing
  • Vandal-proof IK10-rated metal housing
Safety Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature
  • -10C ~ 50C (14F ~ 122F)
Warranty
  • 24 months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
25/03

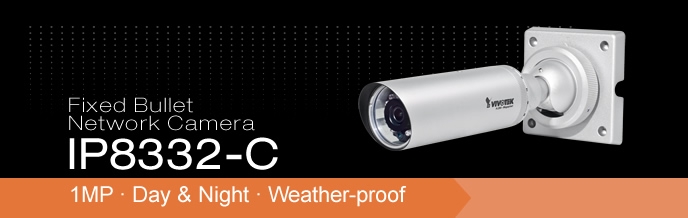

Vivotek IP8332-C Fixed Bullet Network Camera - 1 Megapixel CMOS Sensor, Removable IR-Cut Filter For Day & Night Function, Weather-Proof IP66-Rated Housing, Real-time H.264, MPEG-4 & MJPEG Compression


H.264 Day & Night Weather-proof Network Bullet Camera IP8332-C

Overview

VIVOTEK IP8332-C is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the IP8332-C is an all-in-one outdoor camera capable of capturing high quality and high resolution video.

In order to adapt to constantly changing outdoor lighting conditions, the IP8332-C features a removable IR-cut filter as well as IR illuminators effective up to 15M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8332-C further strengthens the robustness of the camera by protecting the cable within the bracket.

Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC card slot, and VIVOTEK's 32-channel recording software, the IP8332-C is the ideal solution for your outdoor surveillance needs.

Features

  • 1-megapixel CMOS Sensor
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15 Meters
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Weather-proof IP66-rated Housing
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Mounting Bracket with Cable Management for Protected Installation

Specifications:

System Information
CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 128 MB
RAM
  • 256 MB
Camera Features
Image sensor
  • 1/4" Progrensive CMOS
Maximum Resolution
  • 1280x800
Lens Type
  • Fixed-focal
Focal Length
  • f = 3.6 mm
Aperture
  • F1.8
Field of View
  • 56 (horizontal)
  • 41 (vertical)
  • 71 (diagonal)
Shutter Time
  • 1/5 sec. to 1/25,000 sec.
Day & Night
  • Built-in IR illuminators, effective up to 15 meters
  • IR LED*12
Minimum Illumination
  • 0.3 Lux, 50 IRE (Color)
  • 0.001 Lux, 50 IRE (B/W)
Pan / Tilt / Zoom
  • eenZ: 16x digenal zoom (4x on IE plug-in, 4x built-in)
IR Illuminators
  • Built-in IR illuminators, effective up to 15 meters
  • IR LED*12
On-board Storage
  • MicroSD/SDHC card slot
Video
Maximum Frame Rate
  • H.264: 30 fps at 1280x800
  • MPEG-4: 30 fps at 1280x800
  • MJPEG: 30 fps at 1280x800
Maximum Streams
  • 4 simultaneous streams
S/N Ratio
  • Above 50 dB
Video Streaming
  • Adjustable renolution, qualeny and benrate
  • Configurable vieno cropping for bandwidth saving
Image Settings
  • Adjustable image size, qualeny and ben rate
  • Time stamp, text overlay, flip & mirror
  • Configurable brightnens, contrast, saturation, sharpnens, whene balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings
Audio
Compression
  • H.264, MJPEG & MPEG-4
Interface
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
Network
Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF
  • Ver. 1.02
Intelligent Video
Video Motion Detection
  • Triple-window vieno motion entection
Alarm and Event
Alarm Triggers
  • Vieno motion entection, manual trigger, digenal input, periodical trigger, system boot, recording notification, camera tampering entection
Alarm Events
  • Event notification using digenal output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
  • RJ-45 for Network/PoE connection
  • DC 12V power input
  • AC 24V power input
  • Digenal input*1
LED Indicator
  • System power and status indicator
Power input
  • 24V AC
  • 12V DC
  • IEEE 802.3af PoE Class 2
Power consumption
  • Max. 4.0 W
Dimensions
  • : 60 mm x 294 mm
Safety Certifications
  • CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature
  • -20C ~ 50C (-4F ~ 122F)
Warranty
  • 24 months
System Requirements
Operating System
  • Microsoft Windows 7/Vista/XP/2000
Browser
  • Mozilla Firefox 7~10 (streaming only)
  • Internet Explorer 7.x or 8.x
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
