11/03
|
BenQ MW817ST Ultra-Sharp DLP Projector - 1280x800, 3000 Lumens, 13000;1, 6500Hrs, VGA, HDMI, Mini-USB, LAN, RS232, Speakers MW817ST
Ultra-Sharp Images in a Short Distance
Designed for disruption-free learning in small-sized classrooms, the MW817ST offers a 87 WXGA picture in only 1 meter with a 0.49 ultra short-throw ratio. Together with 13000:1 ultra-sharp contrast ratio and 3000 ANSI lumen brightness, this projector has the most dynamic image quality to offer!
Features
World-Leading SmartEco Technology for a Greener Environment
As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW817ST brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
Normal Mode
296W Projector Power Consumption by Average
Smart Eco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Long Lamp Life at up to 6,500 hours
Enjoy a lamp life performance of up to 6500 hours in SmartEco mode– longer lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
Lamp life results will vary depending on environmental conditions and usage.

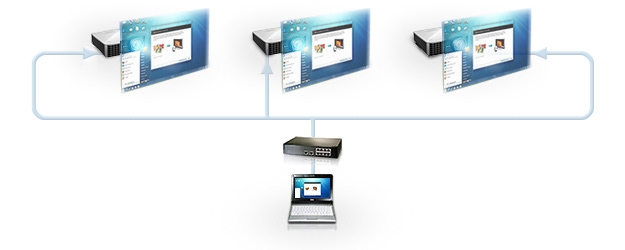

LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW817ST offers seamless support for the Crestron and PJ-Link LAN Control system.

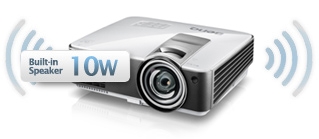

The Perfect Sound Solution
Built-in 10W Big Audio Power
The MW817ST features one built-in 10W speaker to help enrich every lesson with top quality audio performances.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
 |
|
Arsenic-free optical glass
BFR/PVC-free casing plastics
PVC-free plastic
|
Specifications:
| Projection System |
DLP |
| Native Resolution |
WXGA (1280x800) |
| Brightness* |
3000AL |
| Contrast Ratio |
13000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.6, f=6.9mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
0.49 (87"@0.91m) |
| Image Size (Diagonal) |
50"~300" |
| Zoom Ratio |
Fixed |
| Lamp Type |
210W |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
4000/5000/6500 hours |
| Keystone Adjustment |
1D, Vertical 30 degrees |
| Projection Offset |
110% 5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Type B) x1 (Download & page/down)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear)
|
| Dimensions(W x H x D) |
287.3 x 114.4 x 232.6mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.8kg (6.2lbs) |
| Audible Noise |
36/29 dBA (Normal/Economic mode) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
275W, Standby<1W |
| On-Screen Display Languages |
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
|
| Accessories (Optional) |
Presentation Plus P/N: 65.J9306.002
Spare Lamp Kit P/N: 5J.J7C05.001
Ceilling Mount P/N: 5J.J4N10.001
Wall Mount P/N: 5J.J4R10.011
3D Glasses P/N: 5J.J0T14.011
Carry bag P/N: 5J.J3T09.001
|
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
|
|
|
|
11/03
|
SanDisk 8GB Cruzer Orbit USB Flash Drive - Attaches To A Key Ring, Three-Ring Binder, Or Lanyard, Password Protection And 128-bit AES Encryption, USB2.0 Cruzer Orbit USB flash drive
Selected: 8GB | Item # SDCZ58-008G
Transport and Share Your Data with Style and Convenience
Combining a 360-degree swivel design with pocket-sized portability, the Cruzer Orbit USB flash drive offers an easy and convenient way to store, transfer, and share your data. This flash drive features a protective cover that rotates to shield the USB connector from damage when it's not in use. With its compact form factor, the flash drive is ideal for data users who need easy, portable access to their most important files. With a design that is both fun and practical, the Cruzer Orbit USB flash drive is built to revolve around your life on the go.
- Revolving design protects the drive's USB connector
- Attaches to a key ring, three-ring binder, or lanyard
- Capacities up to 32GB offer plenty of storage space**
- Protect your private files with SanDisk Secure Access software**
Overview
Compact Swivel Design Offers Portability and Protection
The Cruzer Orbit USB Flash Drive is less than 1.5 inches long and just over a quarter-inch thick, so it's easy to slip in a pocket, backpack, or purse. The flash drive's 360-degree, rotating cover shields the USB connector when it's not in use. Easily attach it to a key ring, three-ring binder, or lanyard for easy portability.
High-Capacity Flash Drive Accommodates Large Media Files
Available in capacities up to 32GB, this USB drive lets you carry your personal documents and favorite media with you. The drive is large enough to accommodate high-volume files such as videos, photos, music, and office documents.
Simple, Drag-and-Drop File Transfer
Transferring files to the drive is easy: simply plug it into an available USB port and drag the desired files into the drive's folder. No additional software or drivers are required, so you can begin transferring and backing up your files immediately.
SanDisk SecureAccess Software Keeps Files Private
The Cruzer Orbit USB Flash Drive comes with SanDisk SecureAccess software, which creates a password-protected folder for your sensitive files. The application uses 128-bit AES encryption, so you'll be able to share your favorite media and USB flash drive while protecting your private documents from unwanted access.
Specifications
- Available capacities: 8 GB, 16 GB, 32 GB
- Dimensions: 1.38" x 0.85" x 0.26" (35.17 mm x 21.5 mm x 6.72 mm)
- Weight : 0.14oz (3.94g)
- Operating temperature: 32 - 113 F (0 45 C)
- Storage temperature: 50 - 158 F (-10 70 C)
- Compatibility: USB 2.0
- Security: Password protection and 128-bit AES encryption
- Support: Two year limited warranty in the US and 5 years elsewhere**
Product Numbers
Americas
|
Europe/ Asia-Pacific/ Latin America/ Middle East and Africa
|
| SDCZ58-008G-A46 8GB |
SDCZ58-008G-B35 8GB |
| SDCZ58-016G-A46 16GB |
SDCZ58-016G-B35 16GB |
| SDCZ58-032G-A46 32GB |
SDCZ58-032G-B35 32GB |
Australia
|
China
|
| SDCZ58-008G-BQ35 8GB |
SDCZ58-008G-Z35 8GB |
| SDCZ58-016G-BQ35 16GB |
SDCZ58-016G-Z35 16GB |
| SDCZ58-032G-BQ35 32GB |
SDCZ58-032G-Z35 32GB |
Canada
|
| SDCZ58-008G-B35S 8GB |
| SDCZ58-016G-B35S 16GB |
| SDCZ58-032G-B35S 32GB |
|
|
|
|
11/03
|

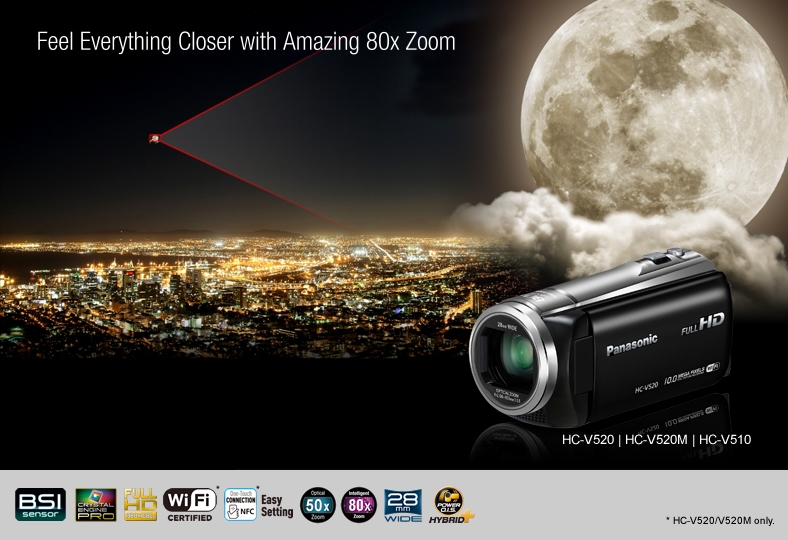

Panasonic HC-V520M Camcorder - Black
- 16GB Internal Memory, HD 1080p, 50x Optical Zoom, 3.0"Wide LCD, Image Stabilizer, Intelligent Autio, iA Plus HC-V520MGN-K
High Quality
The wide shooting range expands the breadth of your expression, extending from 28mm wide angle to Intelligent 80x zooming. It combines with 5-Axis HYBRID O.I.S. + that thoroughly suppresses blurring over the entire shooting range. This makes it possible to capture crisp, clear images with reduced blur in almost every shooting situation.
The V520 Series is also equipped with Level Shot Function, in addition to the 5-Axis HYBRID O.I.S. +. Level Shot Function automatically detects and corrects the tilting of captured images. It records more horizontal images even if when shooting in an unstable or awkward position such as low-angle or high-angle shooting
Level Shot Function OFF: An acceleration sensor detects the tilt, and automatically levels the scene.
Level Shot Function ON: Images are often tilted without realizing it.
New BSI Sensor
The BSI Sensor has improved high sensitivity performance to record easy-to-see, clear images even in dimly lit situations.

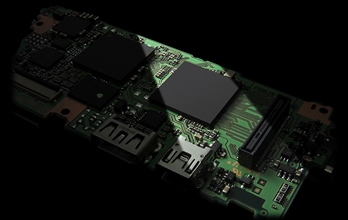

CRYSTAL ENGINE PRO IIThe Crystal Engine Pro instantly processes the huge amount of data that goes into Full-HD images, and further enhances Full-HD quality. It produces smooth, high-resolution zoom shots even when the range exceeds the limit for optical zooming. Crystal Engine Pro clearly delineates even the tiniest details of your subject, with extremely natural beauty.
Still Picture Recording mode lets you shoot with a maximum resolution of 10 megapixels.
For images recorded with a 16:9 aspect ratio.

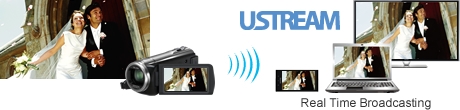

Real Time Broadcasting
Real TimeBuilt-in Wi-Fi function enables Real Time Broadcasting of important events via Ustream. This lets you deliver live images to people with Internet access around the world. There is also a function to send e-mail to notify the start of broadcasting to preregistered e-mail addresses.

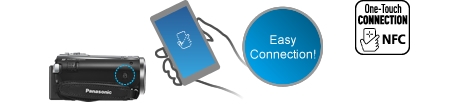

Real TimeWith NFC, you can connect a smartphone or tablet to a camcorder in one touch.

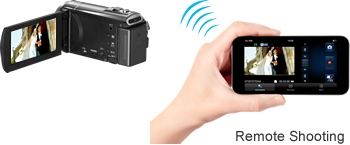

Utilize a smartphone or tablet as a live-view remote controller and operate the camcorder from a distance!

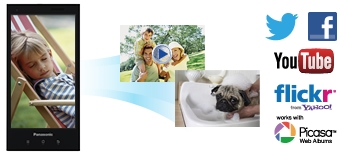

Easy ShareYou can enjoy Highlight Playback with a smartphone or tablet right after shooting. Favorite scenes can be shared on SNS with simple drag and drop operation.

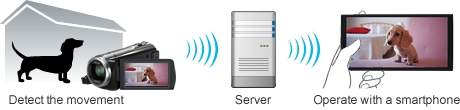

Home Monitoring
Home MonitoringWhen you are away from home, you can monitor and record there with high-quality live video using your smartphone or tablet.

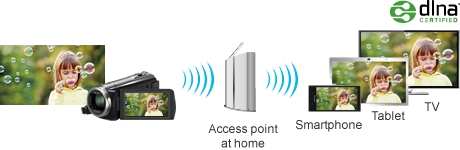

Wireless TV Playback
Wireless TV PlaybackAn Access Point at home can be used to transfer data wirelessly to the TV or a tablet in the living room, kitchen or other rooms in the home and play back images on the large-screen TV.

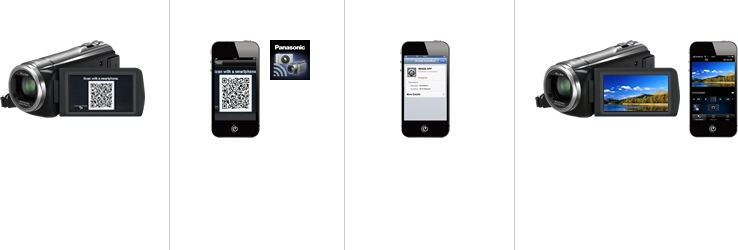

Easy Connection with QR Code
The camcorder can be easily connected to a smartphone or tablet by using the QR code.
This lets you use the versatile Wi-Fi functions immediately without having to make initial settings.
1 Display the QR code
From Wi-Fi Setup, select Direct Connection > Change Connection Type > QR Code in that order.
2 Scan the QR code
Start up ''Panasonic Image App,'' and select QR Code connection. Then scan the QR code that is displayed on the camcorder.
3 Install the profile
Install the ''IMAGE APP'' profile that is automatically displayed, and turn the Wi-Fi connection ON.
4 Connected
This completes the setup. You can start using functions like remote operation and Home Monitoring immediately.
You can make your camcorder wireless.
By using the Eye-Fi™ card, you can save files recorded on the card on a PC, or upload them to SNS via a wireless network. You can also directly transport the data to your device (smartphone, tablet etc.) without connecting another access point.
- The functions of the Eye-Fi™ card (including wireless transmission) are not guaranteed to work on this product. In the case of a malfunction of the card, please contact the card manufacturer.
- To use the Eye-Fi™ card, permission from the national or regional government is required. Do not use if you have not obtained permission. If you are unsure as to whether use is permitted, please check with card manufacturer.
- Install the software supplied with the Eye-Fi™ card in advance on your PC, and configure the Eye-Fi™ settings. (For settings methods etc., please read the card operating instructions or consult the card manufacturer)
Operation & Usability
Creative Control
The V520 Series features four filter effects – Miniature Effect, 8mm Movie, Silent Movie and Time Lapse Recording – to further enhance expressive capabilities. The filter results can be checked on the LCD while shooting. This makes it possible to shoot impressive video recordings that are matched to the shooting situation.
Miniature Effect
This effect defocuses peripheral areas while keeping the focus point sharp and clear making life-size subject look like a diorama.
Silent Movie
You can record motion pictures that are similar to black-and-white silent films by lowering the amount of incoming light.
8 mm Movie
You can record motion pictures with a faded retro effect.
Time Lapse Recording
A scene that moves slowly for long period of time is recorded frame by frame with an interval, and is recorded as a short time motion picture.
iAThis powerful function senses the shooting conditions and automatically makes the settings and activates functions that willdeliver optimal results. In addition, the iA Plus Mode enables you to adjust exposure compensation and white balance by just push the button on the LCD.
iA Plus Easy customize settings without releasing iA mode.
Brightness Control
You can adjust the exposure compensation accurately and easily.
Color Control
You can adjust the white balance from warm red to cool blue.

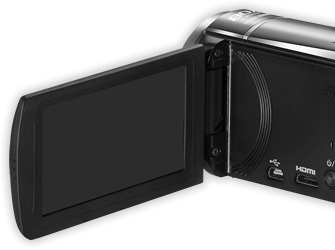

The easy-to-view 7.5 cm / 3.0" wide LCD screen allows intuitive fingertip touch-operation. When shooting, you can use Touch Zoom to instantly zoom in and out by simply touching your fingertips, and Touch Shutter to automatically focus when shooting still images by simply touching the subject on the screen. For playback, you can also change thumbnail pages by sliding a fingertip across the screen. You get smooth, intuitive operation and don't have to take your eyes off of the LCD screen.
Intuitive Touch Operation

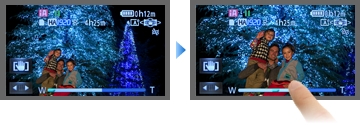

Touch Zooming
You can easily zoom in and out by simply touching the LCD with your fingertips

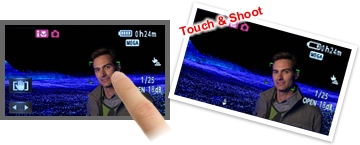

Touch Shutter
You can touch the subject on the LCD screen to instantly focus on it and takes a still picture.
Touch for Playback
You can flip through thumbnail pages, display one of the thumbnail scenes.
2D to 3D Conversion
2D images can be easily transformed into 3D images with the 2D to 3D Conversion function. Simply connect the camcorder to a 3D-compatible TV with an HDMI cable. The 2D to 3D Conversion function then uses the image processing capability of the engine to convert 2D images into 3D. This is an easy, casual way to enjoy the excitement of 3D.
HC-V520 / V520M / V510
| |
NTSC |
PAL |
| SENSOR SECTION |
| Image Sensor |
1/5.8" BSI MOS Sensor |
1/5.8-type BSI MOS Sensor (For Europe)
1/5.8" BSI MOS Sensor (For Asia) |
| Total Pixels |
2.51 megapixels |
2.51 megapixels |
| Effective Pixles |
Motion Image |
2.25 megapixels [16:9] (O.I.S. / Standard Mode) |
2.25 megapixels [16:9] (O.I.S. / Standard Mode) |
| Still Image |
1.69 megapixels [3:2]
2.25 megapixels [16:9]
1.69 megapixels [4:3] |
1.69 megapixels [3:2]
2.25 megapixels [16:9]
1.69 megapixels [4:3] |
| LENS SECTION |
| F Value |
F1.8 (WIDE) / F4.2 (TELE) |
F1.8 (WIDE) / F4.2 (TELE) |
| Optical Zoom |
50x |
50x |
| Focal Length |
2.06 - 103 mm |
2.06 - 103 mm |
35 mm Film
Camera
Equivalent |
Motion Image |
28.0 - 1748 mm [16:9] (O.I.S. / Standard Mode) |
28.0 - 1748 mm [16:9] (O.I.S. / Standard Mode) |
| Still Image |
33.5 - 1676 mm [3:2],
28.0 - 1748 mm [16:9],
34.2 - 1708 mm [4:3] |
33.5 - 1676 mm [3:2],
28.0 - 1748 mm [16:9],
34.2 - 1708 mm [4:3] |
| Lens Brand |
Panasonic Lens |
Panasonic Lens |
| CAMERA SECTION |
| Standard Illumination |
1400 lx |
1400 lx |
| Minimum Illumination |
4 lx (Scene Mode Low Light 1/30),
1 lx (Color Night Rec) |
4 lx (Scene Mode Low Light 1/25),
1 lx (Colour Night View) |
| Focus |
Auto / Manual |
Auto / Manual |
| Zoom |
Intelligent Zoom OFF |
62 x |
62 x |
| Intelligent Zoom ON |
80 x |
80 x |
| Digital Zoom |
150 x / 3000 x (The maximum value of zoom magnification) |
150 x / 3000 x (The maximum value of zoom magnification) |
| White Balance |
Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set |
Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set |
| Shutter Speed |
Motion Image |
[60i / 60p]
Auto Slow Shutter ON : 1/30 - 1/8000
Auto Slow Shutter OFF : 1/60 - 1/8000 |
[50i / 50p]
Auto Slow Shutter ON : 1/25 - 1/8000
Auto Slow Shutter OFF : 1/50 - 1/8000 |
| Still Image |
1/2 - 1/2000 |
1/2 - 1/2000 |
| Iris |
Auto / Manual |
Auto / Manual |
| Image Stabilizer |

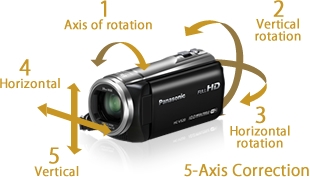

Hybrid O.I.S.+ with Active Mode, O.I.S. Lock, Level Shot Function |
Hybrid O.I.S.+ with Active Mode, O.I.S. Lock, Level Shot Function |
| Creative Control |
Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec |
Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec |
| RECORDING SECTION |
| Recording Media |
V520/V510: SD/SDHC/SDXC Memory Card
V520M: Built-in memory (16GB), SD/SDHC/SDXC Memory Card |
V520/V510: SD/SDHC/SDXC Memory Card
V520M: Built-in memory (16GB), SD/SDHC/SDXC Memory Card |
| Recording Format |
[AVCHD] AVCHD Progressive
[iFrame] MP4 |
[AVCHD] AVCHD Progressive
[iFrame] MP4 |
| Compression Method |
MPEG-4 AVC/ H.264 |
MPEG-4 AVC/ H.264 |
| Recording/ Playback Mode |
1080/60p (28Mbps / VBR), (1920 x 1080)
PH (24Mbps / VBR), (1920 x 1080)
HA (17Mbps / VBR), (1920 x 1080)
HG (13Mbps / VBR), (1920 x 1080)
HE (5Mbps / VBR), (1920 x 1080)
iFrame (28Mbps / VBR), (960 x 540) |
1080/50p (28Mbps / VBR), (1920 x 1080)
PH (24Mbps / VBR), (1920 x 1080)
HA (17Mbps / VBR), (1920 x 1080)
HG (13Mbps / VBR), (1920 x 1080)
HE (5Mbps / VBR), (1920 x 1080)
iFrame (28Mbps / VBR), (960 x 540) |
| Thumbnail Display |
20 thumbnails / page,
9 thumbnails / page,
1 thumbnail / page |
20 thumbnails / page,
9 thumbnails / page,
1 thumbnail / page |
| Audio Recording System |
1080/ 60p, PH, HA, HG, HE: Dolby Digital (2ch)
iFrame: AAC (2ch) |
1080/ 50p, PH, HA, HG, HE: Dolby Digital (2ch)
iFrame: AAC (2ch) |
| Microphone |
2ch Stereo, Zoom Microphone |
2ch Stereo, Zoom Microphone |
| Speaker |
Dynamic type |
Dynamic type |
| STILL IMAGE SECTION |
| Recording Format |
JPEG (DCF/Exif2.2) |
JPEG (DCF/Exif2.2) |
| Recirding Image Size |
Still Image |
10 megapixels (4224 x 2376), 2.1 megapixels (1920 x 1080) [16:9]
7.7 megapixels (3408 x 2272), 2.0 megapixels (1728 x 1152) [3:2]
7.4 megapixels (3136 x 2352), 0.3 megapixels (640 x 480) [4:3] |
10 megapixels (4224 x 2376), 2.1 megapixels (1920 x 1080) [16:9]
7.7 megapixels (3408 x 2272), 2.0 megapixels (1728 x 1152) [3:2]
7.4 megapixels (3136 x 2352), 0.3 megapixels (640 x 480) [4:3] |
| Simultaneous Recording |
2.1 megapixels (1920 x 1080) [16:9] |
2.1 megapixels (1920 x 1080) [16:9] |
| GENERAL SECTION |
| Power Supply |
3.6V (Battery) / 5.0V (AC Adaptor) |
3.6V (Battery) / 5.0V (AC Adaptor) |
| Power Consumption |
Max. 5.8W (Recording) / Max. 7.7W (Charging) |
Max. 5.8W (Recording) / Max. 7.7W (Charging) |
| Dimensions (W x H x D) |
Approx. 53 x 61 x 116 [mm] (2.087 x 2.402 x 4.567 [inch]) |
Approx. 53 x 61 x 116 [mm] (2.087 x 2.402 x 4.567 [inch]) |
| Weight (w/o battery and SD card) |
V520: Approx. 229g (0.505lb)
V520M: Approx. 230g (0.508lb)
V510: Approx. 225g (0.497lb) |
V520: Approx. 229g (0.505lb)
Approx. 225g (0.488lb) (without coating: GC/GK models)
V520M: Approx. 230g (0.508lb)
Approx. 226g (0.499lb) (without coating: GC/GK models)
V510: Approx. 225g (0.497lb)
Approx. 221g (0.488lb) (without coating: GC/GK models) |
| LCD Monitor |
3.0" Wide LCDmonitor (460,800 dots) |
7.5 cm (3.0") Wide LCDmonitor (460,800 dots) (For Europe)
3.0" Wide LCDmonitor (460,800 dots) (For Asia) |
| Interface |
AV |
Yes |
Yes |
| HDMI |
Yes (mini) |
Yes (mini) |
| USB |
2.0 Hi-Speed |
2.0 Hi-Speed |
| USB Charge |
Yes |
Yes |
| On-Screen Display Language |
 |
|
| Wi-Fi |
| Standard |
V520 / V520M: IEEE 802.11b/g/n
V510: - |
V520 / V520M: IEEE 802.11b/g/n
V510: - |
| Frequency |
V520 / V520M: 2.4GHz band
V510: - |
V520 / V520M: 2.4GHz band
V510: - |
| NFC |
V520 / V520M: Yes
V510: - |
V520 / V520M: Yes
V510: - |
| STANDARD ACCESSORY |
| AC Adaptor |
Yes |
Yes |
| AC Cable |
Yes |
Yes |
| DC Cable |
Included AC adaptor |
Included AC adoptor |
| Rechargeable Battery Pack |
Yes (1,940 mAh) |
Yes (1,940 mAh) |
| HDMI Cable |
Yes (mini) |
Yes (mini) |
| USB Cable |
Yes |
Yes |
| Bandled Software |
HD Writer AE 5.0 |
HD Writer AE 5.0 |
As of January 7, 2013
Motion Image Recording Time (Approx.)
| |
Image Quality |
1080/60p**
(28 Mbps) |
PH
(24 Mbps) |
HA
(17 Mbps) |
HG
(13 Mbps) |
HE
(5 Mbps) |
iFrame |
| Built-in Memory |
16 GB* (V520M) |
1 h 20 min |
1 h 30 min |
2 h |
2 h 40 min |
6 h 40 min |
1 h 20 min |
| SDXC/SDHC |
64 GB* |
5 h 20 min |
6 h |
8 h 30 min |
11 h |
27 h 30 min |
5 h 20 min |
| 32 GB* |
2 h 40 min |
3 h |
4 h 10 min |
5 h 30 min |
13 h 40 min |
2 h 40 min |
| 16 GB* |
1 h 20 min |
1 h 30 min |
2 h |
2 h 40 min |
6 h 40 min |
1 h 20 min |
| 8 GB* |
40 min |
45 min |
1 h |
1 h 20 min |
3 h 20 min |
40 min |
| 4 GB* |
19 min |
21 min |
30 min |
40 min |
1 h 30 min |
19 min |
These figures vary depending on the pictures being recorded.
We recommend using SDXC/SDHC/SD Memory Cards conforming to class 4 or higher of the SD Speed Class Rating or the following SD Memory Cards made by Panasonic for motion-image recording.
Please confirm the latest information about SDXC/SDHC/SD Memory Cards that can be used for motion-image recording, on the following website.
Camcorder Information (This website is in English only.)
http://panasonic.jp/support/global/cs/e_cam/index.html
* 1 GB means 1 billion bytes. Usable capacity will be less.
** 1080/50p for PAL area.
Number of Recordable Still Pictures (Approx.)
| Image Quality |
Capacity |
Built-in
Memory |
SDXC/SDHC Memory Card |
16 GB*
(V520M) |
64 GB* |
32 GB* |
16 GB* |
8 GB* |
4 GB* |
| 2D Image |
3136 x 2352 pixels
(4:3) 7.4 M |
3300 |
13000 |
6500 |
3300 |
1600 |
800 |
640 x 480pixels
(4:3) 0.3 M |
117000 |
475000 |
235000 |
117000 |
58000 |
28000 |
3408 x 2272 pixels
(3:2) 7.7 M |
3200 |
13000 |
6000 |
3200 |
1600 |
800 |
1728 x 1152 pixels
(3:2) 2 M |
8500 |
36000 |
18000 |
8500 |
4400 |
2200 |
4224 x 2376 pixels
(16:9) 10 M |
2500 |
10000 |
5000 |
2500 |
1200 |
600 |
1920 x 1080 pixels
(16:9) 2.1 M |
12500 |
52000 |
25000 |
12500 |
6000 |
3200 |
In Motion Images Shooting Mode
| Image Quality |
Capacity |
Built-in
Memory |
SDXC/SDHC Memory Card |
16 GB*
(V520M) |
64 GB* |
32 GB* |
16 GB* |
8 GB* |
4 GB* |
| 2D Image |
1920 x 1080 pixels
(16:9) 2.1 M |
12500 |
52000 |
25000 |
12500 |
6000 |
3200 |
These figure vary depending on the pictures being recorded.
* 1 GB means 1 billion bytes. Usable capacity will be less.
Battery Life (Approx.) 2D Recording [NTSC]
| |
1080/60p |
PH mode |
HA mode |
HG mode |
HE mode |
iFrame |
VW-
VBT190 |
V520M/
V520/
V510 |
SDXC/SDHC/
SD Memory Card |
Continuous
Recording Time |
1 h 55 min |
2 h |
2 h |
2 h 5 min |
2 h 5 min |
2 h 15 min |
Actual
Recording Time* |
1 h |
1 h |
1 h |
1 h 5 min |
1 h 5 min |
1 h 10 min |
VW-
VBT380 |
V520M/
V520/
V510 |
SDXC/SDHC/
SD Memory Card |
Continuous
Recording Time |
4 h 5 min |
4 h 15 min |
4 h 20 min |
4 h 20 min |
4 h 25 min |
4 h 45 min |
Actual
Recording Time* |
2 h 5 min |
2 h 10 min |
2 h 15 min |
2 h 15 min |
2 h 15 min |
2 h 25 min |
Battery Life (Approx.) 2D Recording [PAL]
| |
1080/50p |
PH mode |
HA mode |
HG mode |
HE mode |
iFrame |
VW-
VBT190 |
V520M/
V520/
V510 |
SDXC/SDHC/
SD Memory Card |
Continuous
Recording Time |
2 h 5 min |
2 h 15 min |
2 h 15 min |
2 h 15 min |
2 h 20 min |
2 h 30 min |
Actual
Recording Time* |
1 h 5 min |
1 h 10 min |
1 h 10 min |
1 h 10 min |
1 h 10 min |
1 h 15 min |
VW-
VBT380 |
V520M/
V520/
V510 |
SDXC/SDHC/
SD Memory Card |
Continuous
Recording Time |
4 h 30 min |
4 h 45 min |
4 h 45 min |
4 h 50 min |
4 h 50 min |
5 h 20 min |
Actual
Recording Time* |
2 h 20 min |
2 h 25 min |
2 h 30 min |
2 h 30 min |
2 h 30 min |
2 h 45 min |
|
|
|
|
11/03
|
Sony DSCWX200B Digital Camera - Black
- 18.2MP, 10x Optical Zoom, Focal Length (f= mm), Focal Length (f=35mm Conversion), 2.7"LCD TFT, Intelligent AUTO, Exmor R CMOS Sensor Model: DSC-WX200
WX200 Digital Compact Camera
Share the fun times with less to carry
18.2MP, Exmor R CMOS, 10x optical zoom, Full HD, Intelligent AUTO, Wi-Fi and Picture Effects
- Travel light and capture every scene in detail
- Dont miss out the moment with fast autofocus
- Upload photos and video via Wi-Fi and your phone
Overview
Travel in real style
Give your pictures extra polish with this slim, colourful camera that's loaded with smart features for better-looking pictures and easy sharing. Slipping easily into a pocket or bag, it packs a powerful 10x optical zoom lens and Wi-Fi for showing the world how you have fun.
Share the fun with built-in Wi-Fi
Send photos and videos straight to your smartphone or tablet for easy viewing and sharing, with no cables needed. View pictures wirelessly on your networked TV, or backup cable-free to a PC. Even use your phone as a handy remote to control the camera.
No guesswork needed
Wondering which settings are best? Let your camera do all the work. From close-ups to twilight portraits, your camera adjusts everything automatically so you easily get the results you want, no fuss. It even detects if your subject's moving, cutting motion blur in any scene.
Keep pace with moment
Grab those spur-of-the moment photo opportunities that only happen once. Speedy autofocus snaps accurately onto your subject for crisp, blur-free shots even at high zoom settings or in dim light where other cameras struggle.
Get a panorama in one shot
It's easy to grab breathtaking views of landscapes or city scenes. Just press the button and sweep the camera from side to side (or up and down). Your camera automatically stitches together a high-speed burst of frames to create one full panoramic image.
Add your creative touch
Get creative with a choice of fun, easy-to-use Picture Effects. Make the scene stand-out with watercolour, illustration, toy camera, partial colour and more. Just select an effect and see the result on your camera's screen. You can even add effects to panoramas and movies.
Features:
- Capture 18.2 megapixel detail, even in low light - Shoot detail-packed stills and movies, even indoors or in dim light, with the 18.2 effective megapixels Exmor R™ CMOS sensor
- Easy sharing with Wi-Fi - Send photos and videos straight to a smartphone or tablet; back-up shots wirelessly to you PC, or view on your connected TV
- Shutter in your pocket - Use your phone as a handy remote to control the camera via Wi-Fi; it’s great when you don’t want to be left out of the scene
- Ready to shoot, near or far - Ideal for travel, the high-quality G Lens with 10x optical zoom handles wide-angle landscapes, portraits and dramatic close-ups
- Get a wider view - Make sure nothing’s left out of the picture: the wide angle lens packs more into holiday scenes, interiors and group shots
- Add artistic picture effects - Add creative effects to stills, movies and panoramas without having to download and use image-editing software
- Don’t leave it to guesswork - Intelligent Auto recognises a wide range of scenes and adjusts settings automatically so you can get detailed results every time
- Capture action with no blur - Superior Auto recognises when subjects are moving in your picture and automatically adjusts settings for crisp, blur-free results
- Shoot smooth, steady Full HD movies - Film smooth, steady video clips in Full HD, even when you’re walking or zooming, with Optical SteadyShot Active Mode
- Get clear close-ups - Powerful 20x Clear Image Zoom really fills the frame, even with distant subjects so your shots always stay clear and detail-packed
- Focus on the moment - Speedy, precise autofocus locks onto your subject for pin-sharp results, even in low light or when you’re zoomed right in
- Shoot high quality pictures quickly - The BIONZ processor is key to high-speed continuous shooting at 10 frames per second and finely detailed image quality
- Don’t worry about unsteady hands - Enjoy crisper, blur-free still photos with Optical SteadyShot that cuts handheld wobbles when you don’t have a tripod
- See detail in the dark - Use Extra High Sensitivity mode to capture crisp detail in the dimmest conditions like dusk or candlelight
- See photos clearly on-screen - View your shots on the high-resolution Clear Photo LCD screen that automatically adjusts brightness to suit sunshine or dull days
- Flatter your portrait subject - Let the camera automatically remove skin blemishes, brighten teeth, widen eyes and cut forehead shine when you capture portraits
- Capture full panoramas with movement and faces - Just press the shutter button and sweep the camera for extra-wide panoramas of landscapes, city scenes and packed parties
- Boost your flash photography - Advanced Flash brightens up dim scenes, like friends and family who are further away from the camera
Technical Specifications DSC-WX200
Lens
|
Optical Zoom
|
10x
|
|
Clear Image Zoom
|
YES 18M Approx.20x / 10M Approx.26x / 5M Approx.37x / VGA Approx.153x / 13M(16:9) Approx.20x / 2M(16:9) Approx.51x
|
|
Digital Zoom
|
18M Approx.40x / 10M Approx.53x / 5M Approx.75x / VGA Approx.153x / 13M(16:9) Approx.40x / 2M(16:9) Approx.102x
|
|
F
|
3.3-5.9
|
|
Focal Length (f= mm)
|
4.45-44.5
|
|
Focal Length (f=35mm conversion)
|
25-250
|
|
Macro (cm)
|
iAuto:AF(W:Approx.5cm(0.16') to Infinity, T:Approx.150cm(4.92') to Infinity) / Program Auto:AF(W:Approx.5cm(0.16') to Infinity, T:Approx.150cm(4.92') to Infinity)
|
|
Filter Diameter (mm)
|
NO
|
|
Conversion Lens compatibility
|
NO
|
|
Carl Zeiss Vario-Tessar Lens
|
NO
|
|
Sony G
|
YES
|
Image Sensory
|
CCD Type
|
Exmor R CMOS Sensor
|
|
Size (Inches)
|
1/2.3 type(7.76mm)
|
Wi-Fi
|
Ctrl with Smartphone
|
YES
|
|
Send to Smartphone
|
YES
|
|
Eye-Fi
|
YES
|
Camera
|
Effective Pixels (Mega Pixels)
|
Approx. 18.2
|
|
Bionz Processor
|
YES
|
|
Face Detection
|
YES
|
|
Smile Shutter
|
YES
|
|
Soft Skin Mode
|
YES
|
|
Background Defocus
|
YES
|
|
GPS
|
NO
|
|
Waterproof
|
NO
|
|
Backlight Correction
|
YES
|
|
Picture Effect
|
HDR Painting, Richtone Monochrome, Miniature, Toy camera, Pop Color, Partial Color, Soft High-key, Watercolor, Illustration
|
|
Sweep Panorama
|
NO
|
|
Intelligent Sweep Panorama
|
YES(360 format compatible)
|
|
Underwater Sweep Panorama
|
YES
|
|
3D Sweep Panorama
|
NO
|
|
Clear RAW NR
|
NO
|
|
Auto Focus Area (Multi Point)
|
YES
|
|
Auto Focus Area (Centre weighted)
|
YES
|
|
Auto Focus Area (Spot)
|
YES
|
|
Auto Focus Area (Flexible Spot)
|
NO
|
|
Manual Focus
|
NO
|
|
Aperture Auto Mode
|
iAuto(F3.3/F8.0(W), 2 steps with ND Filter) / Program Auto(F3.3/F8.0(W), 2 steps with ND Filter)
|
|
Aperture Priority Mode
|
NO
|
|
Aperture Manual Mode
|
NO
|
|
Shutter Speed Auto Mode (sec)
|
iAuto(4" - 1/1600) / Program Auto(1" - 1/1600)
|
|
NR Slow Shutter
|
NO
|
|
Hand Shake Alert
|
NO
|
|
Exposure Control
|
2.0EV, 1/3EV step
|
|
White Balance
|
Auto, Daylight, Cloudy, Fluorescent1, Fluorescent2, Fluorescent3, Incandescent, Flash, One Push, One Push Set, Underwater
|
|
Automatic White Balance
|
YES
|
|
Light Metering (Multi Pattern)
|
YES
|
|
Light Metering (Centre weighted)
|
YES
|
|
Light Metering (Spot)
|
YES
|
|
Sharpness Setting
|
NO
|
|
Saturation Setting
|
NO
|
|
Contrast Setting
|
NO
|
|
ISO Sensitivity (REI)
|
Auto / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800
|
|
Scene Selection
|
Soft Snap / Soft Skin / Anti Motion Blur / Backlight Correction HDR / Night Portrait / Night Scene / High Sensitivity / Handheld Twilight / Beach / Snow / Fireworks / Gourmet / Pet Mode / Landscape / Underwater
|
SteadyShot
|
SteadyShot capability
|
YES
|
|
Optical SteadyShot capability
|
YES
|
Auto Focus System
|
AF Illuminator
|
Auto / Off
|
Built-In-Flash
|
Flash Mode
|
Auto / Flash On / Slow Synchro / Flash Off / Advanced Flash
|
|
Red-Eye Correction
|
Auto / On / Off
|
|
Auto Daylight Synchronized Flash
|
NO
|
|
Distance limitations using Flash (m)
|
ISO Auto: Approx.0.2m to 3.7m(7 7/8 inches to 12feet 1 3/4 inches)(W) / Approx.1.5m to 2.2 m(4feet 11 1/8 inches to 7feet 2 5/8 inches)(T), ISO3200: up to Approx.5.9m(19feet 4 3/8 inches)(W) / Approx.3.4m(11feet 1 7/8 inches)(T)
|
LCD/ Viewfinder
|
LCD Screen Size (inches)
|
6.7cm (2.7type)
|
|
LCD Total Dots Number
|
460.800
|
|
LCD Monitor Type
|
TFT ClearPhoto
|
|
Auto Bright Monitoring
|
NO
|
|
Optical Viewfinder
|
NO
|
|
Electrical Viewfinder
|
NO
|
Recording
|
Recording Media
|
Memory Stick Duo / Memory Stick PRO Duo / Memory Stick PRO Duo (high speed) / Memory Stick PRO HG Duo / Memory Stick XC-HG Duo / Memory Stick Micro* / Memory Stick Micro (mark 2)*
|
|
Recording Media II
|
SD Memory Card / SDHC Memory Card / SDXC Memory Card / microSD Memory Card* / microSDHC Memory Card* / microSDXC Memory Card*
|
|
Recording Format
|
JPEG
|
|
DCF (Design rule for Camera File System)
|
YES
|
|
DPOF (Digital Print Order Format)
|
YES
|
|
Burst Mode (shots)
|
Approx.10 fps
|
|
Burst Interval (approximately sec)
|
Approx.0.1 sec.(10 shots)
|
|
Still Image size (18 M 48963672)
|
YES
|
|
Still Image size (16M 4608 x 3456)
|
NO
|
|
Still Image size (14M 4320 x 3240)
|
NO
|
|
Still Image size (13M 4224 x 3168)
|
NO
|
|
Still Image size (12M 4000 x 3000)
|
NO
|
|
Still Image size (10M 3648 x 2736)
|
YES
|
|
Still Image size (9.0M, 3456 x 2592)
|
NO
|
|
Still Image size (8.0M, 3264 x 2448)
|
NO
|
|
Still Image size (7.2M 3072 x 2304)
|
NO
|
|
Still Image size (5.0M, 2592 x 1944)
|
YES
|
|
Still Image size (3.1M, 2048 x 1536)
|
NO
|
|
Still Image size (VGA, 640 x 480)
|
YES
|
|
Still Image size (16:9 mode, 1920 x 1080)
|
YES
|
|
Still Image size (16:9 mode, 4896x2752)
|
YES
|
|
Still Image size (16:9 mode, 4608 x 2592)
|
NO
|
|
Still Image size (16:9 mode, 4,320 x 2,432)
|
NO
|
|
Still Image size (16:9 mode, 4000 x 2248)
|
NO
|
|
Still Image size (3:2 mode, 4000 x 2672)
|
NO
|
|
Still Image size (3:2 mode 3648 x 2432)
|
NO
|
|
Still Image size (3:2 mode 3456 x 2304)
|
NO
|
|
2D Panorama
|
360(11,520 x 1,080) / HR(10,480x4,096) / Wide(7,152 x 1,080/4,912 x 1,920) / Standard(4,912 x 1,080/3,424 x 1,920)
|
|
3D Mode
|
4:3mode:18M(4,896 x 3,672) / 16:9mode:13M(4,896 x 2,752)
|
|
Moving Image Size (1920x1080 60p Approx.28Mbps)
|
NO
|
|
Moving Image Size (1920x1080 50i Approx.24Mbps)
|
YES
|
|
Moving Image Size (1920x1080 50i Approx.17Mbps)
|
YES
|
|
Moving Image Size (1440x1080 25fps Fine Approx.12Mbps)
|
NO
|
|
Moving Image Size (1280x720 30fps Fine Approx.9Mbps)
|
NO
|
|
Moving Image Size (1280x720 30fps Standard Approx.6Mbps)
|
NO
|
|
Moving Image Size (1280x720 25fps Fine Approx.6Mbps)
|
YES
|
|
Moving Image Size (640x480 30fps Approx.3Mbps)
|
NO
|
|
Moving Image Size (640x480 25fps Approx.3Mbps)
|
YES
|
|
Moving Image Size (320x240 30fps)
|
NO
|
|
Moving Image Size (AVCHD 1920 x 1080(50i, Interlace) Approx.24Mbps(Average bit-rate))
|
YES
|
|
Moving Image Size (AVCHD 1920 x 1080(50i, Interlace) Approx.17Mbps(Average bit-rate))
|
YES
|
|
Moving Image Size (AVCHD 1440 x 1080(50i, Interlace) Approx.9Mbps(Average bit-rate))
|
YES
|
|
Moving Image Size (MP4/AVI 1440 x 1080 Approx.25fps Progressive) Approx.12Mbps(Average bit-rate))
|
YES
|
|
Moving Image Size (MP4/AVI 1280 x 720 Approx.25fps Progressive) Approx.6Mbps(Average bit-rate))
|
YES
|
|
Moving Image Size (MP4/AVI 640 x 480 Approx.25fps Progressive) Approx.3Mbps(Average bit-rate))
|
YES
|
Playback/ Edit
|
HD (High Definition) Playback
|
Under 18M(4,8963,672)
|
|
Slideshow Playback
|
YES
|
|
Slideshow with Music
|
YES
|
|
Slideshow Movie
|
YES
|
|
Trimming
|
YES
|
|
Playback Zoom
|
YES (8x)
|
|
Cue & Review (MPEG)
|
YES
|
|
Index Playback
|
16 / 25 images
|
|
Image Rotation
|
YES
|
|
Auto Image Rotation
|
YES
|
|
Auto grouping and & Best Picture Recognition
|
YES
|
General
|
Battery Remaining Indicator
|
NO
|
|
Histogram Indicator
|
YES
|
|
Exposure Warning Indicator
|
NO
|
|
Disk / Memory Stick remaining indicator
|
NO
|
|
PTP (Picture Transfer Protocol)
|
NO
|
|
Print Image Matching
|
YES
|
|
PictBridge
|
NO
|
|
Shop Front Mode
|
NO
|
|
Start up time (approximately sec)
|
Approx. 1.8 sec.
|
|
Menu Language
|
English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian, Danish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Bulgarian, Croatian, Romanian
|
Jacks
|
Multi use Terminal with HD
|
Multi Terminal, Hi-Speed USB(USB2.0), Micro HDMI
|
|
Multi use Terminal
|
YES
|
|
AV Out
|
NO
|
|
USB 2.0 Hi-Speed
|
YES
|
Power/ Others
|
Battery System
|
Lithium N
|
|
Supplied Battery
|
NP-BN
|
|
Stamina (battery life) with the supplied battery(s) in normal shooting condition
|
Approx. 220 / Approx. 110min
|
|
Battery for Clock
|
NO
|
|
Weight (g)
|
Approx. 105g (3.8oz.)
|
|
Weight with Accessories (g)
|
Approx. 121g (4.4oz.)
|
|
Supplied Software
|
PlayMemories Home
|
|
Supplied Accessories
|
Rechargeable Battery Pack (NP-BN), AC Adaptor (AC-UB10/UB10B), Micro USB cable, Wrist Strap, Instruction Manual
|
Dimensions
|
Width (mm)
|
92.3
|
|
Height (mm)
|
52.4
|
|
Depth (mm)
|
21.6
|
Disclaimers
|
*
|
Requires adaptor (not supplied)
|
|
|
|
|
11/03
|
HP B6Y06A #771B Ink Cartridge - Light Grey, 775ML - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
11/03
|
HP B6Y04A #771B Ink Cartridge - Light Cyan, 775ML - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
11/03
|
HP B6Y03A #771B Ink Cartridge - Light Magenta, 775ML - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
11/03
|
HP B6Y02A #771B Ink Cartridge - Yellow, 775ml - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
11/03
|
HP B6Y01A #771B Ink Cartridge - Magenta, 775ML - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
11/03
|
HP B6Y00A #771B Ink Cartridge - Chromatic Red, 775ML - For HP Designjet Z6200/Z6800
|
|
|
|
11/03
|
HP B6X99A #771B Ink Cartridge - Matte Black, 775ml - For HP Designjet Z6200/Z6800/Z6810
|
|
|
|
Previous Page
|
Next Page
|
|
