P1
Overview
Ultra-light HD Portable LED Projector
- Long-life LED light-source with 200 lumens brightness
- 1280 x 800 high resolution supports HD visual quality
- 5 seconds on and instant off capability saves waiting time before/ after the usage
- Perfect projection with auto keystone correction and instant height adjustment
- Short-throw projection: 1 meter provides a 40 display
- Incredible mobility with an ultra-light and slim design
- Award-winning Design with Good Design, red dot Design, and iF Gold Awards
Experience bright, crystal clear 40 HD 1280 x 800 projections from a distance of only 1 meter. At this size, even 8-point fonts can be seen and read clearly. The use of an energy-efficient LED light source delivers a 10X longer lifespan along with bigger savings. Additionally, it also ensures whisper-silent operation.
ASUS Set-n-Go Technology for Instant On/Off, Instant Height Adjustment, and Auto Keystone Correction for quick, easy use. It tips the scales at just 415g, and has dimensions similar to a CD case. Its compatibility with most ASUS laptop power adapters makes it the ideal ASUS business combo.
Bright, Crystal Clear Display
200 ANSI Lumens
Operating at a brightness of 200 ANSI lumens to allow project displays with professional precision and complete clarity of color and detail.
HD 1280 x 800
The P1 is able to display content and visuals in HD 1280 x 800, so whatever is seen on screen precisely matches the original content viewed on a notebook or PC.
Eco-LED Light Source
Sharp images, crisp text and vibrant colors are all possible thanks to the most innovative and updated DLP technology. Moreover, the mercury-free eco-LED light source used in the P1 has a lifespan of up to 30,000 hours. To put that into perspective, it would last for 20 years if it is used 4 hours daily. Additionally, it also ensures whisper-silent operation.
Quick, Convenient Control
5 Seconds On and Instant Off
The P1 can be quickly set up to provide crystal clear projections in as little as 5 seconds from power-up without any need for long warm-up times. There is no cooling down period required either, powering off instantly.
Auto Keystone Correction
An Auto Keystone Correction feature can detect the P1s orientation and automatically corrects distorted trapezoid images that result from an angled projection. This saves the user the time and hassle of having to adjust the image.

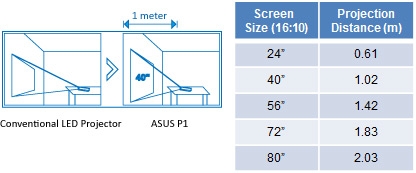

Short Distance with Big Screen
With a short throw ratio of 1.16:1, users can enjoy HD projections the equivalent of a 40" display with only one meter away from the screen. At this size, even a 8-point font can be visibly seen and read clearly.
Instant Height Adjustment
The P1 enables instant height adjustment thanks to a flip-down stand that can be quickly adjusted to suit the task at hand; saving the user a considerable amount of time when compared with traditional adjustable screw-stands.
One Power Adapter for Business Combo
To further lighten the load, it works with most* ASUS notebook AC power adapters (65W). One notebook and projector sharing a single power adapter makes it the ideal business presentation combo that delivers the one-two punch in the boardroom.
Award-Winning Design
ASUS Design engineers penned the lines of the P1 with the user in mind, giving it the instant height adjustment flip-down stand and making it compatible with most ASUS notebook AC power adapters. Its internal thermal design and the use of highly thermal conductive magnesium alloys together increase cooling efficiency to ensure the P1 operates silently and rarely overheats.
The P1 joins a long list of award-winning designs that come from the ASUS Design offices; it recently bagged Good Design Award in Japan and iF Gold Product Design and red dot Design Awards in Germany.
Specifications:
Display
Display Technology: 0.45" DLP
Light Source: R/G/B LED
Light Source Life (max): 30000 hours
True Resolution (native): WXGA(1280x800)
Brightness (max): 200 ANSI lumens
Contrast Ratio (typical): 2000:1
Color Saturation :120%(NTSC)
Display Colors :16.7M
Projection Lens
Throw Ratio: 1.16
Projection Distance: 0.5 ~3 meters
Projection/Screen Size: 20 ~120 inchs
Projection Offset: 100%
Zoom Ratio: Fixed
Video Feature
Picture Modes: 7 Modes, (Black board/White board/Dynamic Mode/Game Mode/Scenery Mode/Theater Mode/Standard Mode)
Keystone adjustment: Digital (Up to +/- 30 degree)
Auto Keystone: Yes
Aspect Ratio: 16:9/16:10/4:3
Projector Placement: Front Table/Front Ceiling/Rear Table/Rear Ceiling
Signal Frequency
Analog Signal Frequency: 31~79 KHz(H)/ 56~75 Hz(V)
Noise Level
Acoustic Noise: 28 dBA(Theater mode)
I/O Ports
PC Signal Input : D-sub 15 pin (through CEA 30pin)
Video Input : Composite Video: RCA x 1 (through CEA 30pin)
Mechanical Design
Chassis Colors: Black
On-machine Buttons: Yes, (Left/Menu/Right/Input Select/Power Key)
Tripod Socket: Yes
Supporting Stand: Yes
Security
Kensington lock

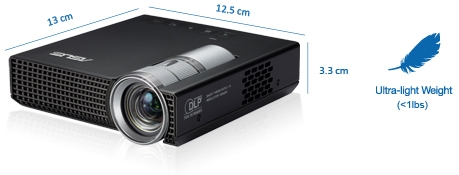

Dimensions
Physical Dimension(WxHxD): 125.5x 33.5 x130mm
Box Dimension (WxHxD): 230x 180x 122mm
Weight
Net Weight (Esti.): 415g
Gross Weight (Esti.): 1.3kg
Operation Temperature
5C ~ 35C
Operation Humidity
35%85%
Accessories
30-pin CEA integrated cable(D-sub/Composite)
Power Adapter
Power Cord
Carrying Bag
CD(user manual)
Quick Start Guide
Warranty card
Regulation Approval
FCC, UL, IC, CE, C-Tick, CB, VCCI, CCC, GOST-R, WEEE, ROHS
