HVC330 provides organizations with a high performance, low cost 4-site MCU video conferencing system that's perfect for any budget. This “All-in-One” solution comes with everything you need right out of the box, so there are no costly upgrades or installation fees. With the HVC330 you can record meetings and save 5-megapixel snapshots directly to a USB flash drive, even when you're offline, and link up to 4 MICs into one daisy chain to enjoy great audio reception even in large conference rooms.…









show files on your PCs desktop during any live call with our ScreenShare software





present live images or snapshots taken using your mobile device instantly with VCLink







record every- thing on the screen directly to a flash drive even when youre not in a call







connect up to 4 MICs into 1 daisy chain for excellent audio reception in larger rooms







configure your system and troubleshoot issues in real-time from a remote site



key features

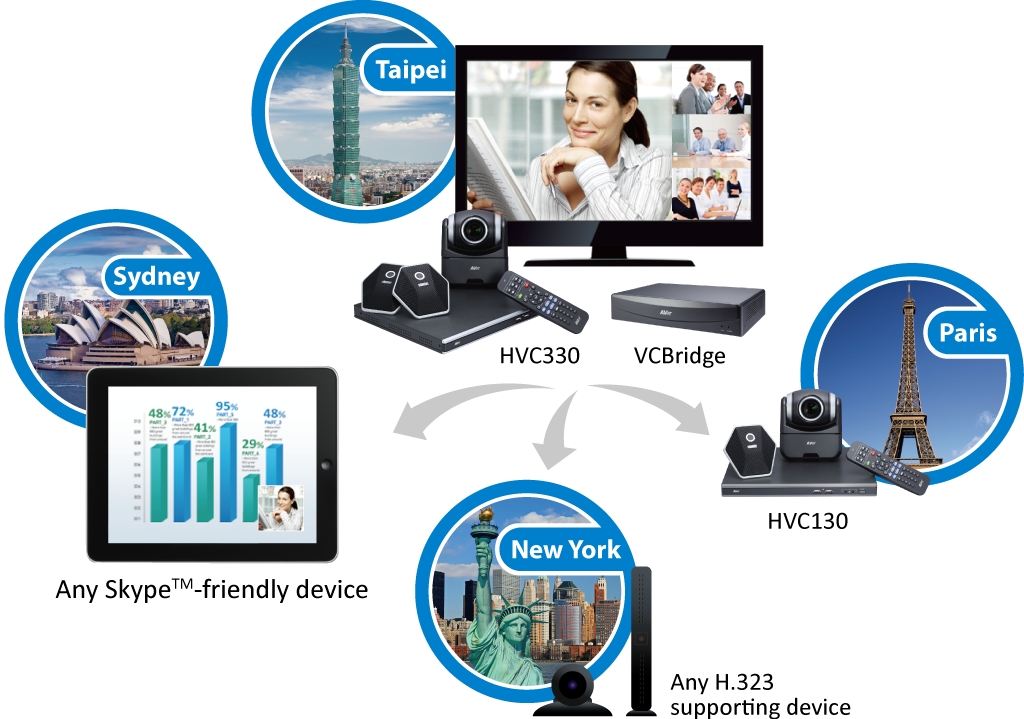

Bring any Skype user into your video conference by connecting VCBridge to your HVC330.





With AVer you get HD video conferencing at a price so affordable that you can purchase at least two units for the price of just one from most other brands. After integrating the HVC330 into your companys regular work routine, you will notice a real cut back on the time you and your staff must spend in the air and on the road, leading to a marked decrease in travel expenses. In addition to its budgetary advantages, utilizing the HVC330 to conduct meetings, training sessions and presentations is certain to lead to increased interoffice productivity and improved relationships with customers. By taking advantage of the HVC330s meeting recording and snapshot saving features, you can help to reduce the occurrence of post-meeting information loss, bolstering your operational efficiency even more. With so many cost-effective advantages, an industry-leading 3-year warranty and an unbeatable price, its easy to see how HVC330 can help to give your company a return on investment (ROI) that keeps its financial outlook looking strong.





Grade schools and universities alike can utilize the HVC330 to push the limits of distance learning. By implementing the HVC330 in the classroom as a distance learning tool, teachers can break free of the physical boundaries of the traditional classroom. Schools can connect with partner schools or extension campuses oceans away, taking virtual field trips to expose students to different peoples and cultures, while avoiding spending a fortune. The HVC330s one-touch recording to a USB flash drive feature lets teachers easily capture entire lectures and then share the recordings later for review purposes or in an online, e-learning' setting. The HVC330's free software add-ons and 5M snapshot features help teachers to enhance the quality and depth of their lessons, not to mention the ease with which teachers can connect an AVerVision visualizer (document camera) to show live, detailed images of anything from a book to a bug. To top it off, the user-friendly design of the HVC330 makes taking advantage of any one of these great features as easy as pressing a button.



model	HVC330
system includes
main system HD quality PTZ camera microphone (unidirectional) x 2 IR remote control L-bracket connection cables
communications
H.323 and SIP standards 128Kbps ~ 4Mbps RJ45 network LAN (10/100Mbps) manual bandwidth setting MCU up to 4 sites content sharing capability from all sites
display
supports XGA (4:3 RGB) / 720p (16:9 RGB) display supports single and dual monitor display multiple layout styles user-friendly OSD (supports 21 languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai) display / edit site-name
video standards
H.264, H.263, H.263+, H.261 H.239 dual video streams
video features
video conferencing resolutions: - QSIF (176 x 120) - QCIF (176 x 144) - SIF (352 x 240) - CIF (352 x 288) - 4SIF (704 x 480) - 4CIF (704 x 576) - HD720p (1280 x 720) content sharing resolutions: - VGA (640 x 480) - SGA (800 x 600) - XGA (1024 x 768) - SXGA (1280 x 1024) supports rate control mechanism supports H.239 dual video stream shared from local or far site
camera
5-megapixel CMOS camera 7X optical zoom PTZ function (25 up/down; 100 left/right) F = 3.325 ~ 3.675; fl = 6 ~ 60mm 30cm MOD 62 FOV
video inputs
PTZ camera input S-video input VGA input (for dual stream content)
video outputs
HDMI output VGA output
audio features
echo cancellation auto gain control noise suppression
audio standards
G.711, G.722, G.722.1, G.728, G.722.1C
MIC inputs
AVer MIC in Aux. MIC in from mini XLR connector MIC in (3.5mm)
audio inputs
audio in (3.5mm)
audio outputs
HDMI audio out audio out (3.5mm)
meeting recording function
in meeting and offline recording to a USB flash drive supports screen re-layout during playback
snapshot sharing function
capture 5M image for live sharing zoom (2X) / pan the captured image snapshot images can be saved to USB flash drive snapshot images and live images can be shared from your mobile device
others
remote management through Web live monitoring function from Web firmware update via Internet / Ethernet or USB flash drive upload and manage phone book via the Internet RS-232 interface for API remote control App on iOS & Android phonebook download / upload / edit save system settings
