CB-502Ap
5 Megapixel Cube Network Camera
- Most Intelligent, Compact and Affordable 5M Camera
- HDTV Quality (Full HD 1080p @ 30fps Streaming)
- Unique Design for Low Lux Application (1/2.5 Sensor)
- Intelligent Multi-Profile Sensor Management for Different Environment
- Support 3G/ 4G (WiMAX/LTE) Wireless Connectivity
- Interchangeable CS Mount Lens
- Edge Recording/ Micro SD slot
- PoE/ Two-way Audio/ PIR/ Illumination LED/ DIDO/ Privacy button
Overview
(*) These are optional features. Please refer to the Buying Guide for the full list of optional features available for this product.
HDTV grade superior video quality
The Brickcom CB-502Ap provides full frame rate video in resolutions up to 5 megapixel including HDTV (Full HD 1080p @ 30 fps streaming). At the same time, the CB-502Ap supports H.264, Motion JPEG and MPEG-4 for multiple streaming to meet different quality need. The CB-502Ap uses a 1/2.5" Sensor, offers a reliable video even in a low lux application (1 Lux @ F1.5, B/W; 2 Lux @ F1.5,Color). Brickcom understands the importance of the video quality, and develop this CB-502Ap providing clear, sharper video and color fidelity.
Smart design & intelligent surveillance software features
The CB-502Ap is designed with powerful software features to maximize the camera capabilities and adapt variable environments to provide optimized video quality. The intelligent multi-profile supports 5 profiles, allows users being able to configure more parameter of image. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance etc. Furthermore, the profiles can be switched automatically following the user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.
Alarm capability & edge recording
The CB-502Ap is designed with a PIR sensor for detecting movement even in dark and a white LED for illumination the scene at an event. Moreover, it supports DI/DO for external alarm device. By integrating with the Brickcom BP-1000 power battery pack, the CB-502Ap can supports the edge recording, the camera can continue recording and store the data to the Micro SD/SDHC card when the network or power connection is interrupted.

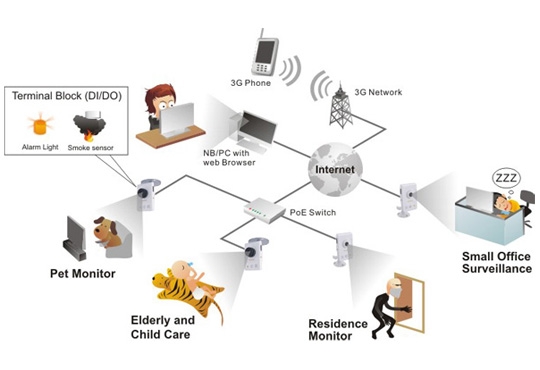

Easy & Flexible installation
The 5M Cube camera Series offers a wide variety of data transmission options to meet different needs. The CB-502Apsupports 3G/ 4G (WiMAX/ LTE) wireless connectivity. With CB-502Ap, users can utilize 3G networks in areas where cabling installation would be costly or difficult. Moreover, CB-502Ap upports PoE (Power over Ethernet) which allows the cameras to transmit data and receive power through the same cable.
