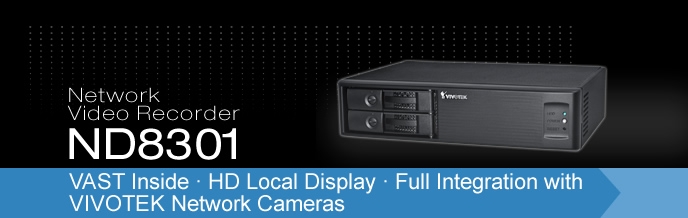

VIVOTEK ND8301 is an 8-CH Network Video Recorder designed for sophisticated recording applications. The unit is equipped with an Intel Dual-core Atom Processor with maximum recording throughput at a robust 96 Mbps. RAID 0/1 is supported with two removable HDDs for backup efficiency, with an external eSATA port for additional expansion. A first desktop type for the VIVOTEK NVR series, a local display output port is now available with full HD resolution (1920X1080), eliminating the need for a separate PC to view video from the unit. Setup of parameters such as IP, HDD, and basic camera configuration can easily be performed with the setup wizard, making the ND8301 the easiest NVR to use yet. When connecting ND8301 to more than one of the same model of VIVOTEK camera, the "Shepherd" program can be used to duplicate configuration settings to multiple cameras.



The operating system in ND8301 is VIVOTEK's professional central management software VAST, allowing for simple and effective management of a surveillance system using the LiveClient and Playback programs. As VIVOTEK's camera features are fully integrated into VAST, cutting-edge technologies such as SVC and Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control the ND8301 (VAST CMS support will be ready in 2013.), and compatibility with the iViewer application allows for remote access to the ND8301 on handheld devices. By integrating all of the components together using VIVOTEK's ND8301, network cameras, VAST and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.









Model: AM-214

P/N No: 909001900G



Package dimension	195x125x160 (mm)
Package weight	15,260g
Outer dimension	640 x 425 x 340 (mm)
Weight	713g

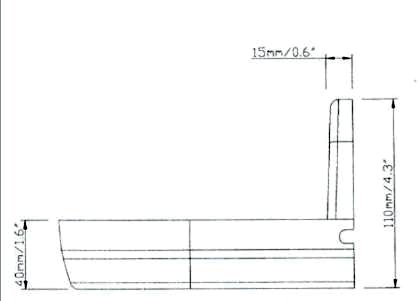

Dimensions



IP8172





VIVOTEK IP8172 is a professional box camera offering 5-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. Featuring 5-Megapixel resolution and high-performance H.264/MPEG-4/MJPEG compression technology, the IP8172 offers extra-smooth video and wide coverage.



In addition, the IP8172 is also equipped with a focus assist button to allow users to precisely adjust the camera focus. After pushing the focus assist button on the camera unit, an indicator will be displayed onscreen with detailed focus information, which will change in accordance with the manual adjustment. Moreover, continuing to push the button will zoom in on the target area for fine tuning, resulting in better usability and picture clarity.



The IP8172 can also be directly connected to an analog monitor with the built-in BNC connector, providing integrators more flexibility and hassle-free installation for a myriad of applications.



As with all VIVOTEK true day/night cameras, the IP8172 features a removable IR-cut filter, maintaining clear images 24 hours a day. Together with WDR enhancement, users can identify image details in extremely bright as well as dark environments. Also including other high-end features such as multiple streams, video cropping, ePTZ, SD/SDHC/SDXC card slot, PoE, and the included 32-CH recording software, the IP8172 is indisputably the top choice for reliable and high performance megapixel surveillance.



CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB



Image sensor	1/2.5" Progressive CMOS
Maximum Resolution	2560x1920
Lens Type	Vari-focal, CS Mount
Focal Length	f = 2.8 ~ 12 mm
Aperture	F1.2 (wide) ~ F2.5 (tele)
	DC-iris
Field of View	28.2 ~ 115.3 (horizontal) 21.3 ~ 84.2 (vertical) 35.5 ~ 150.2 (diagonal)
WDR Technology	WDR Enhanced
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.02 Lux @ F1.2 (Color) 0.001 Lux @ F1.2 (B/W)
Pan / Tilt / Zoom	ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
On-board Storage	SD/SDHC/SDXC card slot





	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 10 fps at 2560x1920 30 fps at 1920x1080 MPEG-4: 10 fps at 1920x1536 25 fps at 1920x1080 MJPEG: 13 fps at 2560x1920 30 fps at 1920x1080
Maximum Streams	3 simultaneous streams
S/N Ratio	Above 60 dB
Dynamic Range	57 dB
Video Streaming	Adjustable resolution, quality and bitrate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings



Audio Capability	Audio input/output (full duplex)
	GSM-AMR, AAC, G.711
	Built-in microphone External microphone input External line output
Effective Range	5 meters



Users	Live viewing for up to 10 clients
	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF	Ver. 1.02



Video Motion Detection

Triple-window video motion detection

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

Smart Focus System	Focus assist button and OSD
Connectors	RJ-45 cable connector for Network/PoE connection Audio input Audio output Video output AC 24V power input DC 12V power input Digital input*1 Digital output*1
LED Indicator	System power and status indicator
Power input	24V AC 12V DC IEEE 802.3af PoE Class 3
Power consumption	Max. 4.87 W (DC 12V) Max. 7 W (AC 24V) Max. 6.8 W (PoE)
	218 mm (D) x 72 mm (W) x 62 mm (H)
Weight	Net: 702 g
Safety Certifications	CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature	Starting Temperature: 0C ~ 50C (32F ~ 122F) Working Temperature: -10C ~ 50C (14F ~ 122F)
Warranty	24 months



Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above Quicktime: 7 or above
